Hot Sale Mobile 13m 20m Small Trailer Concrete Sprayer Placing Boom Concrete Spreader With China Factory Price
- Category: >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.Shandong Ltd.
Share on (1601332492630):
Product Overview
Description

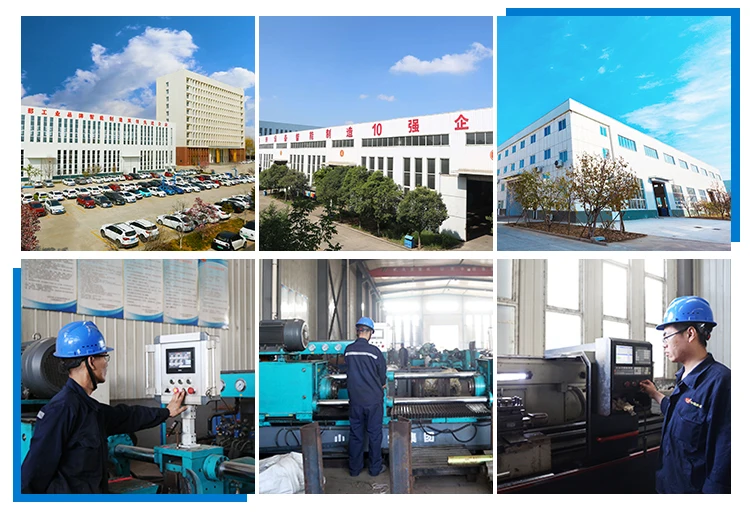

Company Profile
Welcome to Shandong China Coal Group ☺
We adhere to the business philosophy of customer first, all products have been strictly inspected before leaving the factory to ensure that they meet the highest safety standards, we believe you will be very satisfied with its quality after receiving the goods.
If you don't find the product you need, you can tell us, we will provide diverse styles for you to choose, please feel free to buy! Thanks again.
If you don't find the product you need, you can tell us, we will provide diverse styles for you to choose, please feel free to buy! Thanks again.
This price is the deposit price for product production
Products Description

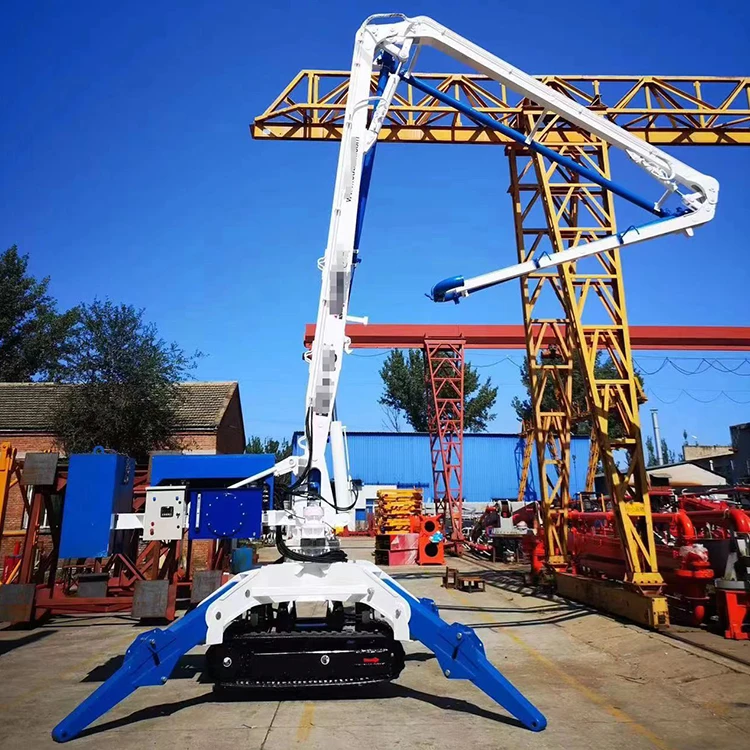

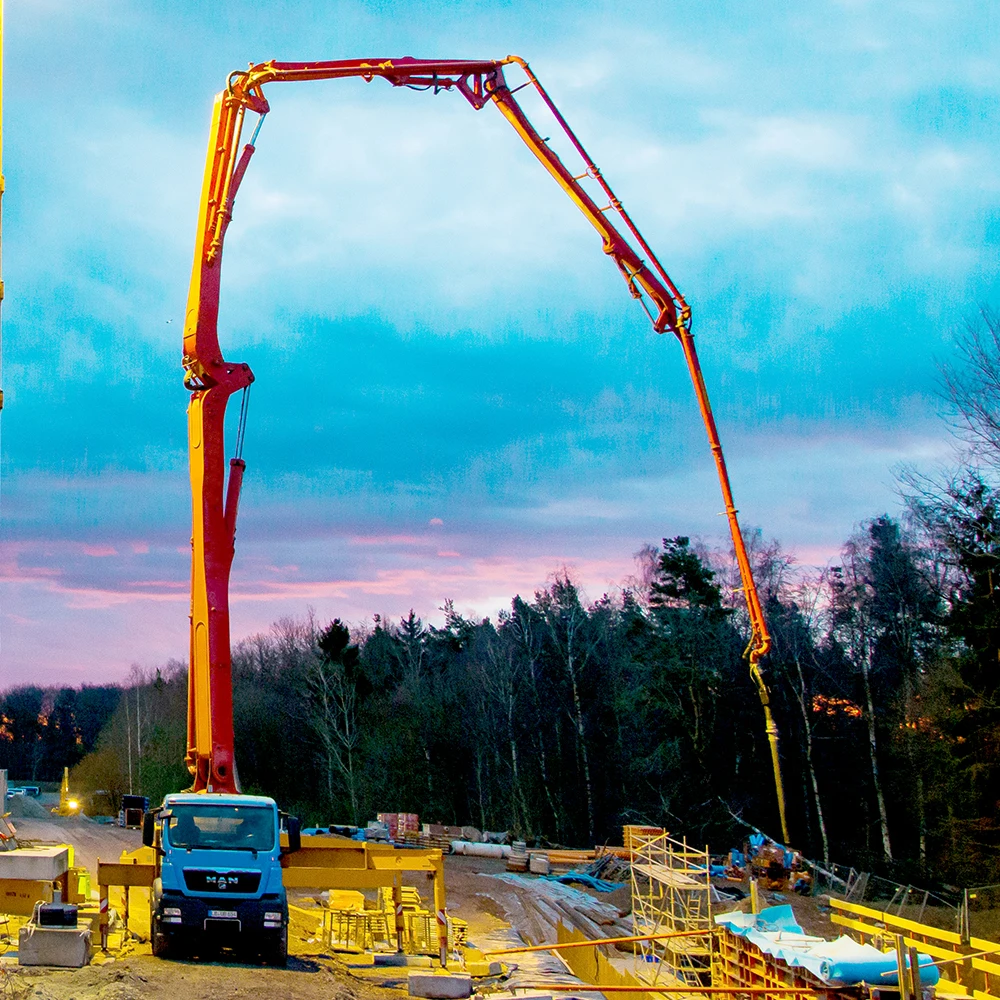

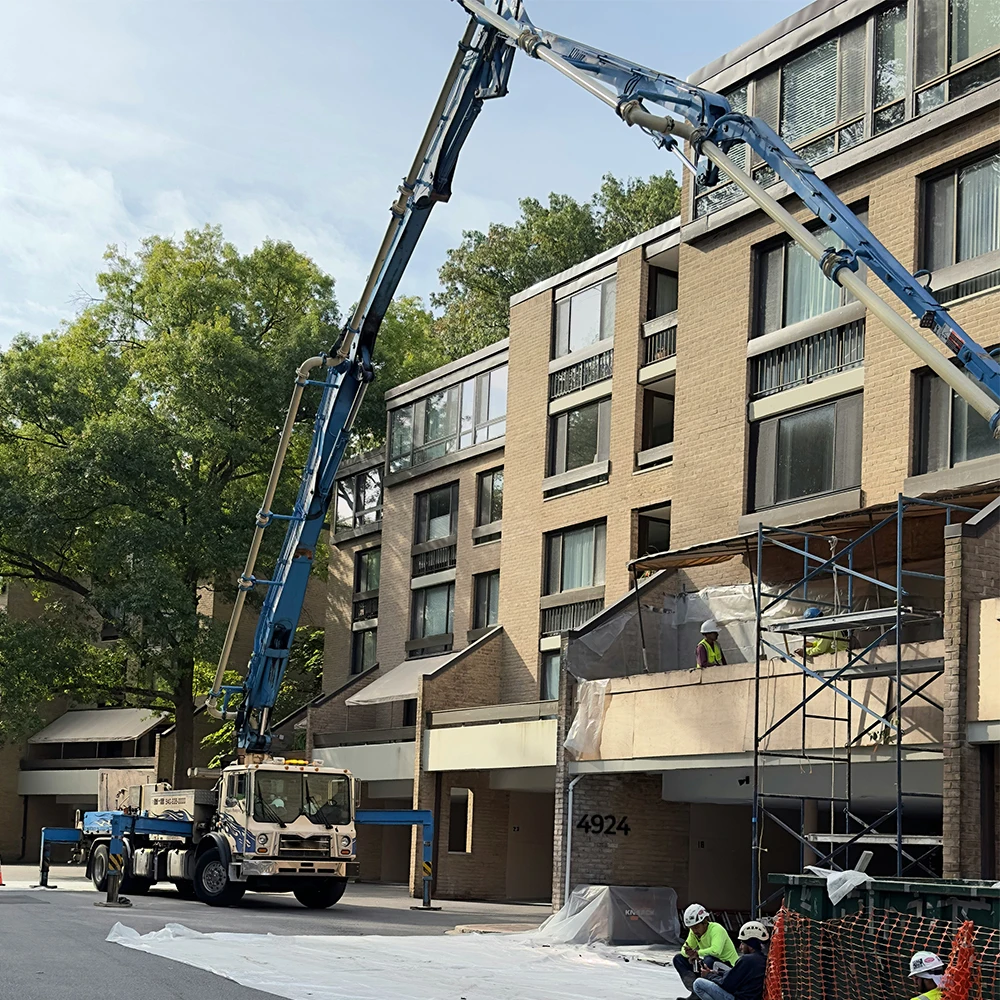

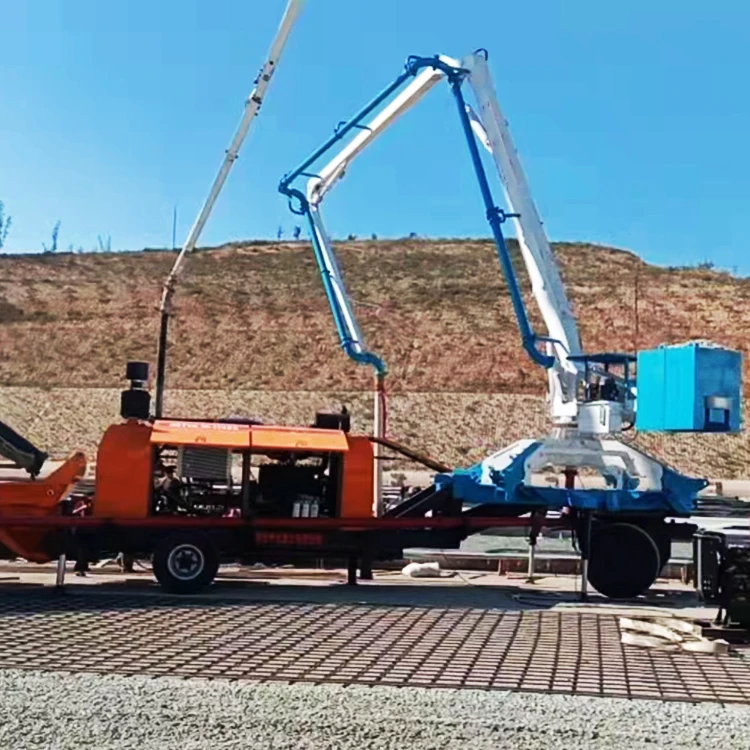

Hydraulic placing machine is an extension of the traditional placing machine, an intelligent concrete placing machine, on the basis of the traditional placing machine to improve the operation of the inconvenience and personnel costs and pouring efficiency of a new type of placing machine.
Features:
1.Mobility: Mobile hydraulic placing machines are usually designed to be lightweight and easy to carry, suitable for multi-point placing on construction sites.
2.Hydraulic Operation: Driven by hydraulic system, it can efficiently and smoothly carry out placing operations and adapt to different working environments.
3.Quick setup: It can be quickly installed and disassembled, saving time and improving construction efficiency.
3.Wide range of application: It can be used for conveying and laying concrete, mortar and other materials, and is widely used in construction sites, bridge construction and other occasions.
4.Environmental adaptability: For places with large terrain undulations, it can easily cope with complex construction conditions by virtue of its flexibility.zmwm17
Features:
1.Mobility: Mobile hydraulic placing machines are usually designed to be lightweight and easy to carry, suitable for multi-point placing on construction sites.
2.Hydraulic Operation: Driven by hydraulic system, it can efficiently and smoothly carry out placing operations and adapt to different working environments.
3.Quick setup: It can be quickly installed and disassembled, saving time and improving construction efficiency.
3.Wide range of application: It can be used for conveying and laying concrete, mortar and other materials, and is widely used in construction sites, bridge construction and other occasions.
4.Environmental adaptability: For places with large terrain undulations, it can easily cope with complex construction conditions by virtue of its flexibility.zmwm17
Product Paramenters
Project name | HGY13 | HGY15 | HGY17 | HGY19 | HGY21 | HGY23 | |||||
Max. working radius | 13m | 15m | 17m | 19m | 21m | 23m | |||||
Tilt working range | 0°~84° | 0°~89° | 0°~84° | 0°~84° | 0°~84° | -4°~90° | |||||
Slewing working range | Full Rotary | ||||||||||
Motor power of hydraulic washing system | 4kw | 4kw | 5.5kw | 7.5kw | 22kw | 22kw | |||||
Working pressure of hydraulic system | 20mpa | 16mpa | 20mpa | 20mpa | 32mpa | 32mpa | |||||
Slewing speed | 0.46r/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | |||||
Concrete pipe specification | ∅125*4 | ||||||||||
Length of hose at arm end | 3m | ||||||||||
Outrigger span | 4000*4000mm | 4231*4231mm | 5167*5167mm | ||||||||

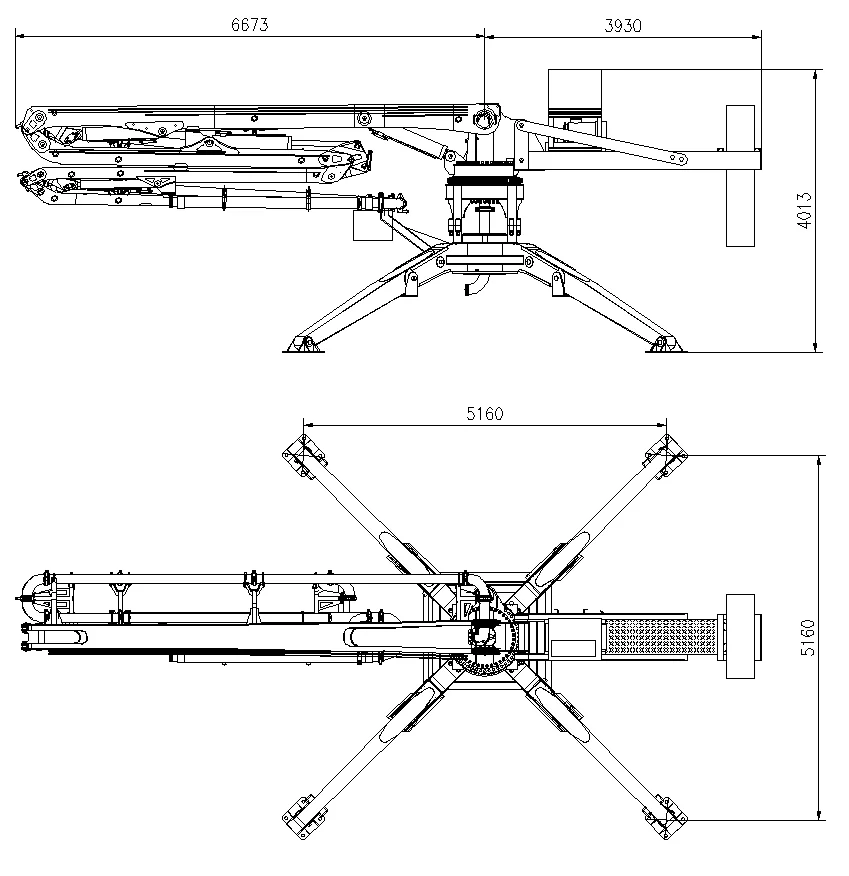

Overall size of the machine | 8900*4000*2585 | 6000*5000*4000 | 6670*5730*4510 | 6500*4800*4600*5312 | 6839*5089 *5060*5800 | ||||||
Slewing angle | 360° | 360° | 360° | 360° | 360° | 360° | |||||
Weight (self-weight/counterweight T) | 2.7/4.3 | 3.23/5.43 | 5/7.2 | 5.3/7.5 | 7.7/9.9 | 8/10.2 | |||||
Details Images
We Also Selling
Our Advantages
FAQ
1. You are a manufacturing factory or trading company?
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.
2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.
3. What are your main products?
We mainly produce mining machinery,road machinery and railway equipment. We can provide you with any machinery you need!
4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.
2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.
3. What are your main products?
We mainly produce mining machinery,road machinery and railway equipment. We can provide you with any machinery you need!
4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
