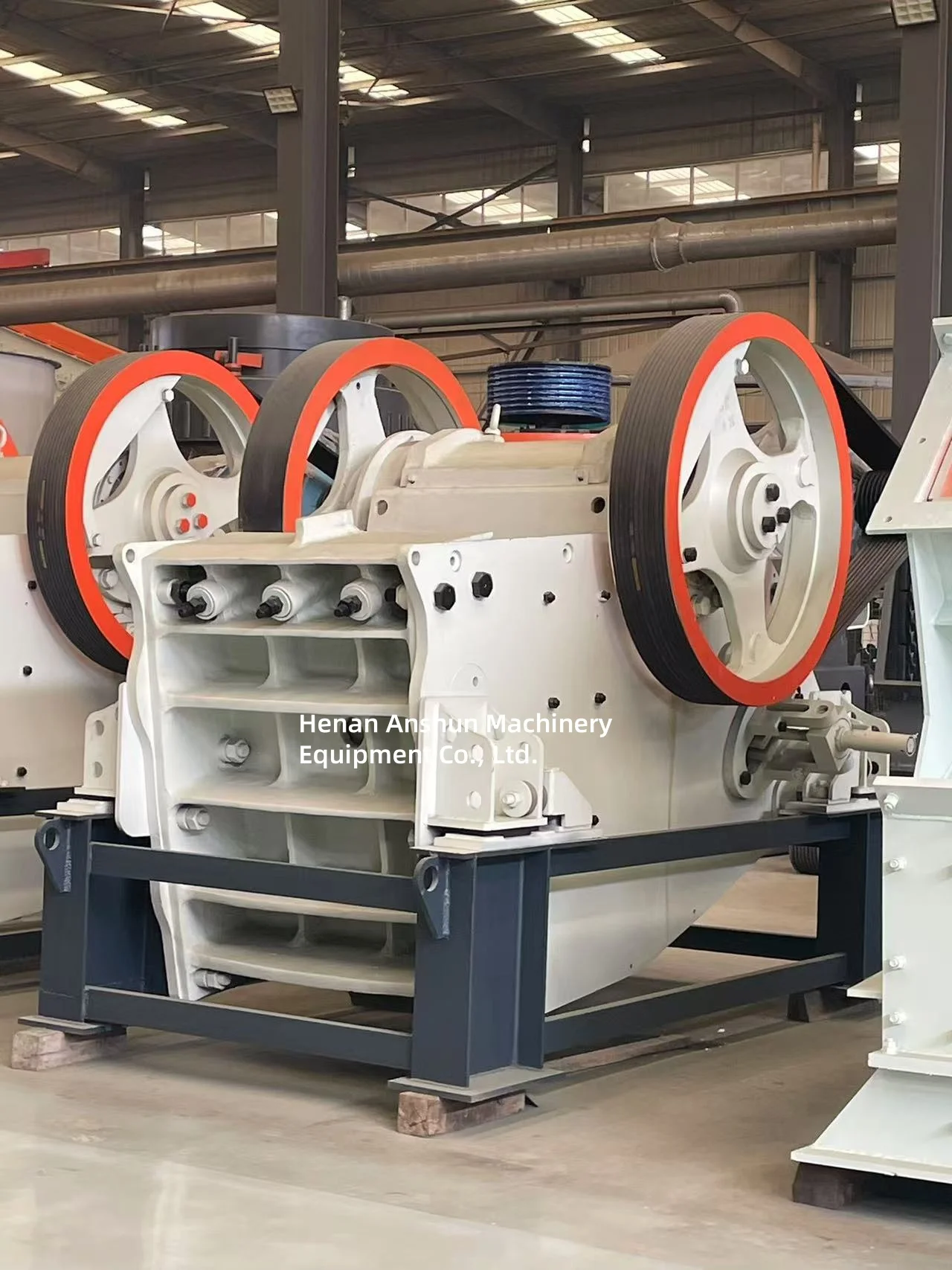

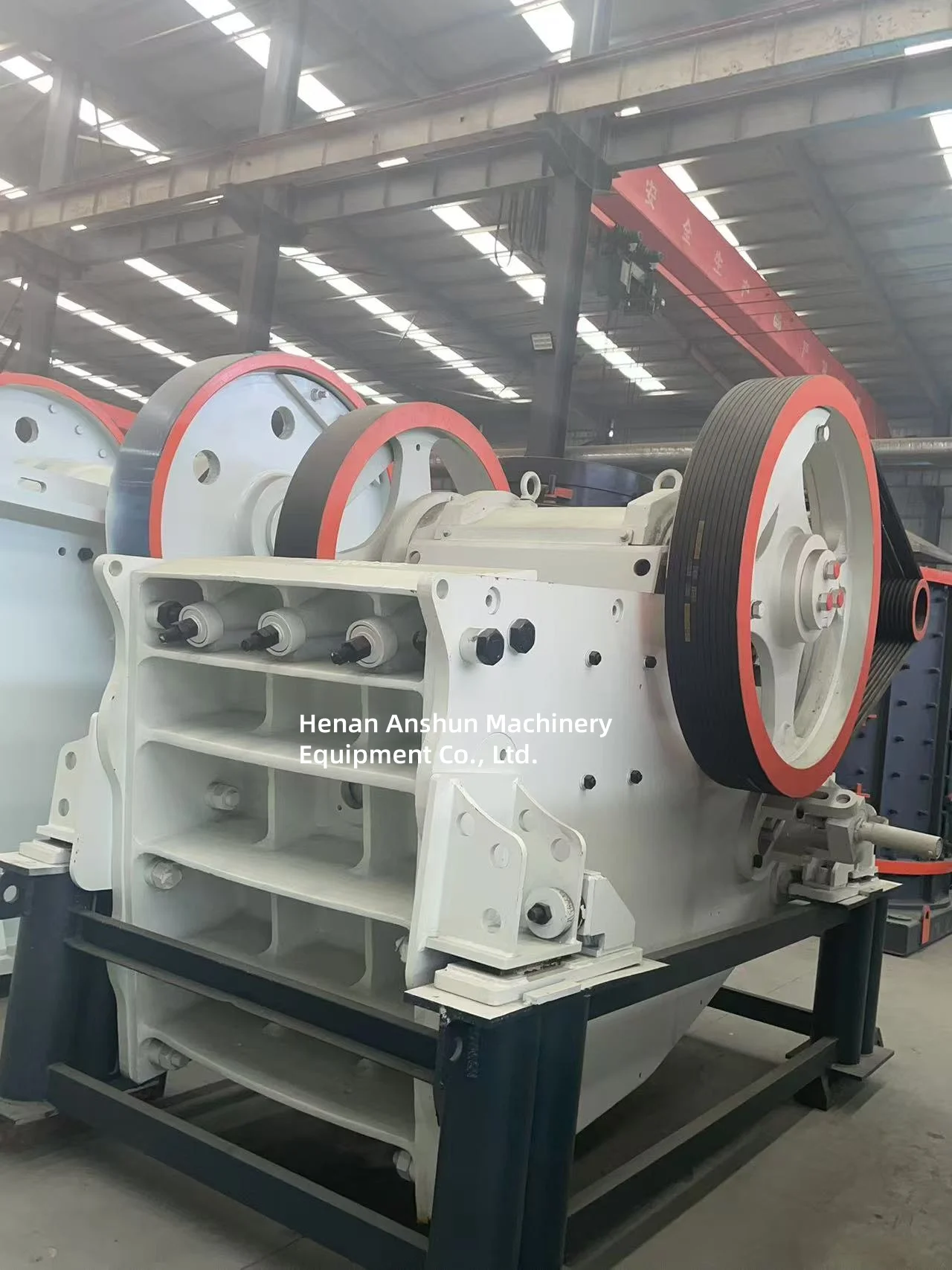

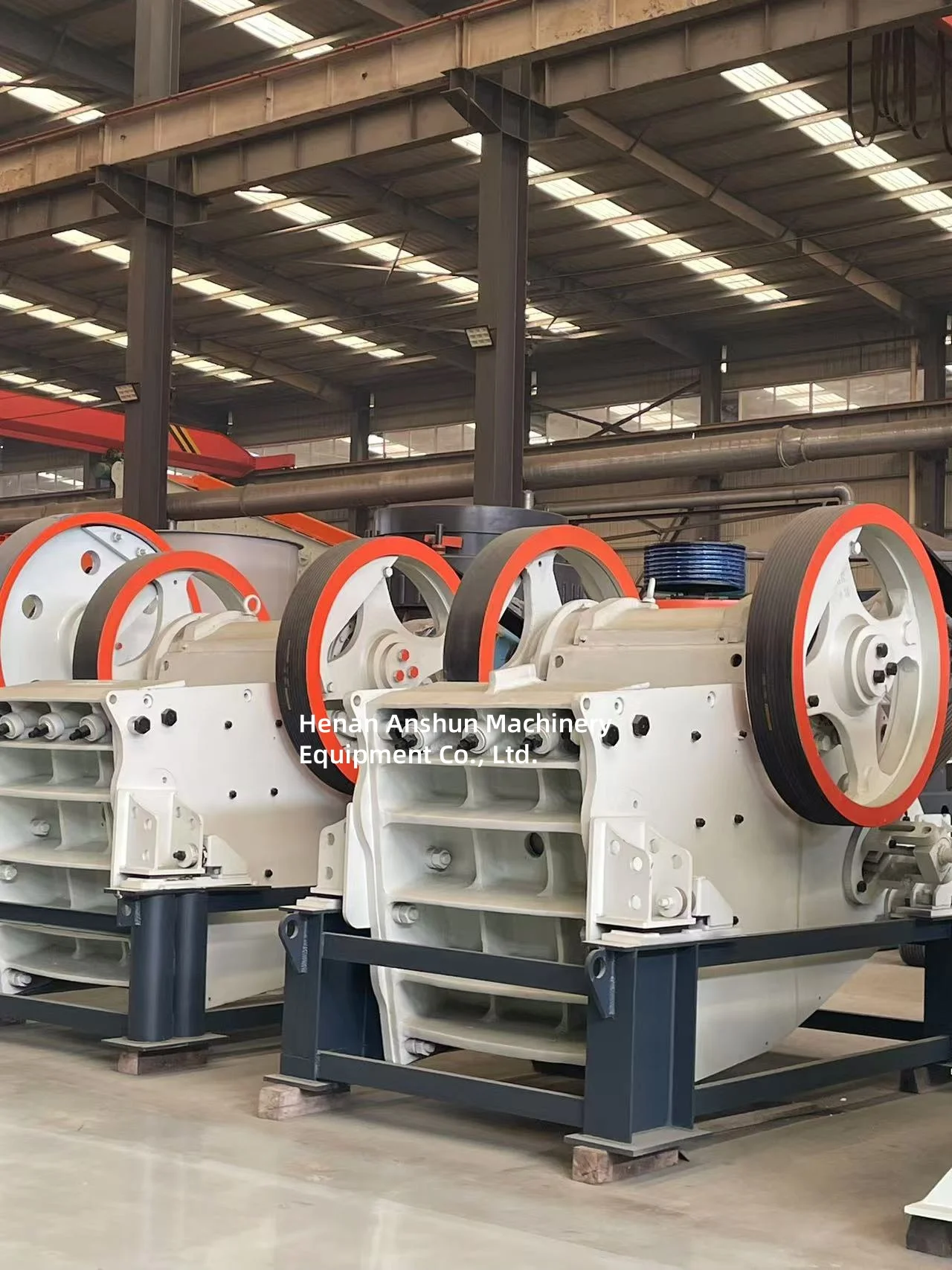

6CX Series Jaw Crusher Stone Crusher Mining Machinery Parts

Share on (1601332794751):


Price:$35,715.00

Quantity:


Product Overview

Description



Products Description


The 6CX series jaw crusher is a new generation of products that has been successfully developed using the finite element analysis method, using the most advanced crushing technology and research results in the world, based on decades of experience in jaw crusher design and manufacturing. Compared with traditional jaw crushers, the 6CX series jaw crushers pay more attention to details in design and manufacturing. They use high-strength materials and advanced manufacturing processes, and have higher structural strength, higher equipment reliability, and greater crushing efficiency. It has the advantages of larger ratio, higher output and lower overall processing cost.




Application

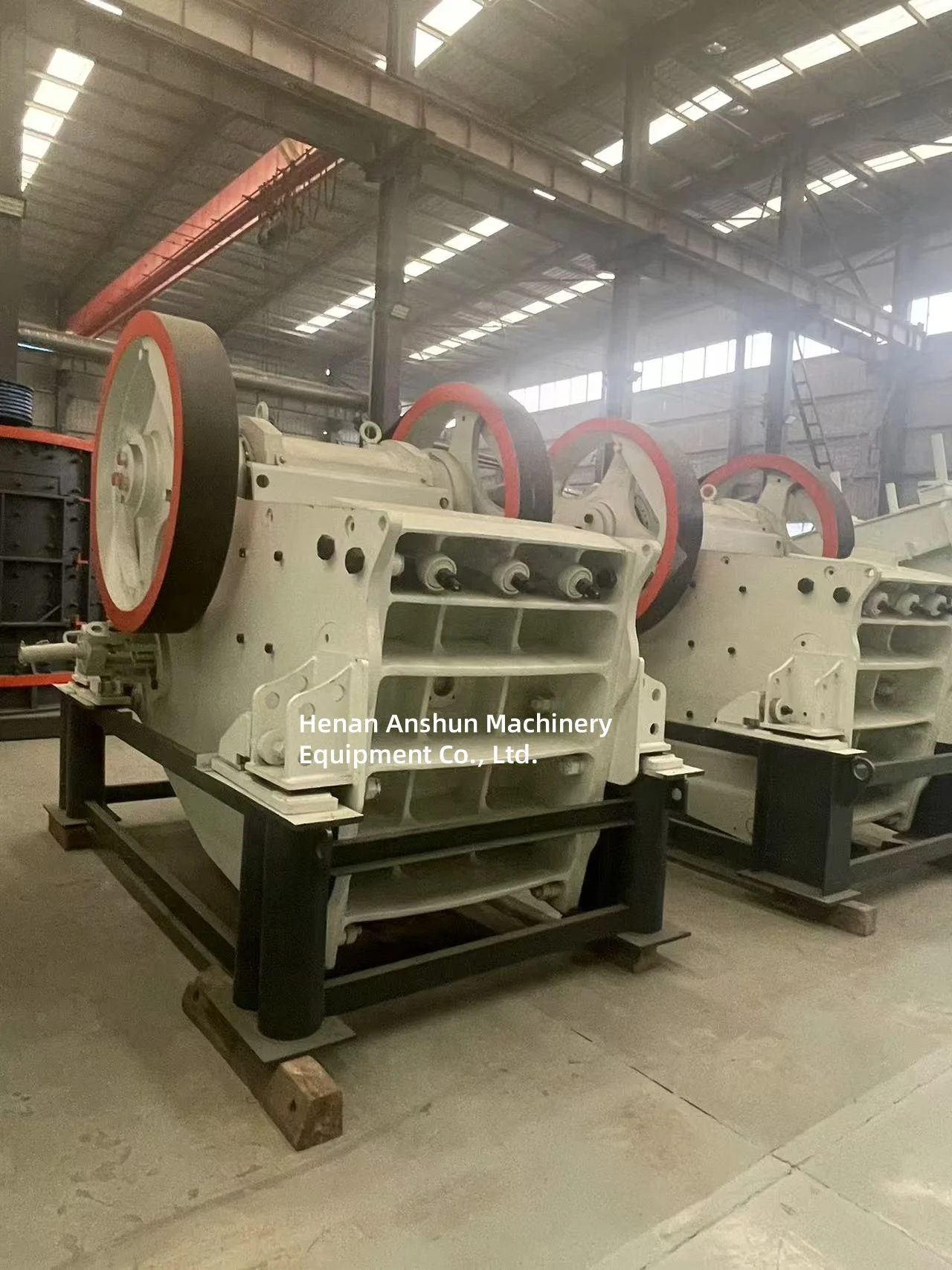

6CX Series European Jaw Crusher
It is suitable for crushing hard and medium-hard ores and rocks, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc. It is widely used in metallurgy, construction, road construction, chemical and phosphate industries.

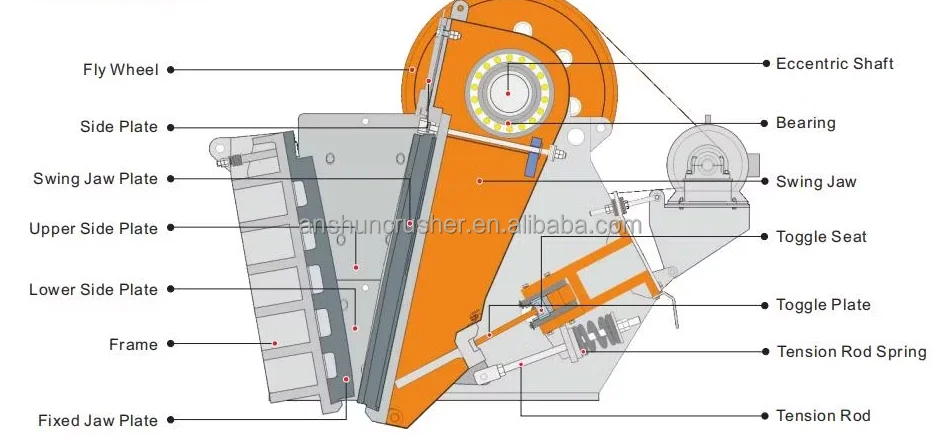

Working Principle




When the movable jaw approaches the fixed jaw, the material is crushed by strong squeezing; at the same time, because the swing trajectory of the movable jaw is not a strict linear motion, but has a certain arc trajectory, the material will also be split to a certain extent. Only under the combined effect of these two modes of action can the material be effectively crushed.


Product Paramenters


Model
Size of Feed Opening(mm)
Motor Power(kw)
Speed(r/min)
Fixed jaw plate length(mm)
Max.Maintenance Weight(Kg)
(Without Flywheel Moving Jaw Assembly)
6CX80
800×510
75
350
1100
2870
6CX96
930×580
90
300
1100
3500
6CX100
1000×760
90
260
1600
7060
6CX106
1060×700
110
280
1450
4020
6CX110
1100×850
132
230
1800
9000
6CX125
1250×950
160
220
2000
12960
6CX140
1400×1070
200
220
2100
15950
6CX145
1400×1100
200
220
2300
18600
6CX160
1600×1200
250
220
2500
21380


Product Advantages




The non-welded integrated frame and overall cast steel structure design significantly enhance the stability and durability of the equipment, and maintain excellent performance even in high-intensity working environments. In addition, the larger eccentric shaft and higher-specification bearing design increase the load-bearing capacity and effectively extend the service life of the equipment.
The symmetrical deep V-shaped crushing chamber design not only effectively increases the width of the feed inlet, enabling the equipment to handle larger-sized raw materials, but also optimizes the material flow path to ensure that the material is fully crushed in the crushing chamber, thereby improving the crushing efficiency.
Under the same specifications, the output power of the European version of the jaw crusher is higher than that of the ordinary jaw crusher, and the optimized crushing process and efficient power system make the equipment have lower energy consumption and higher crushing efficiency under the same conditions.


Company Profile

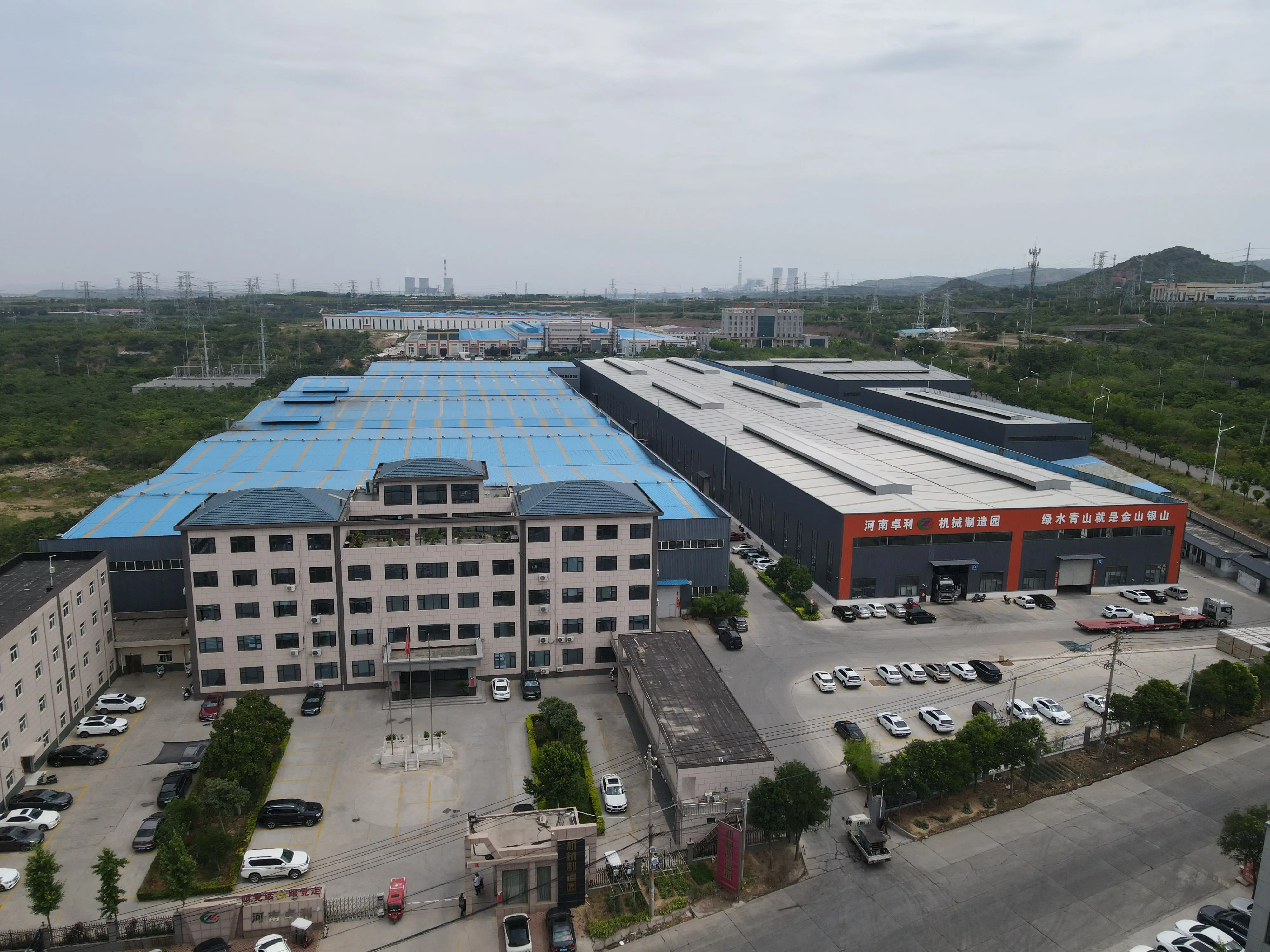

Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry.

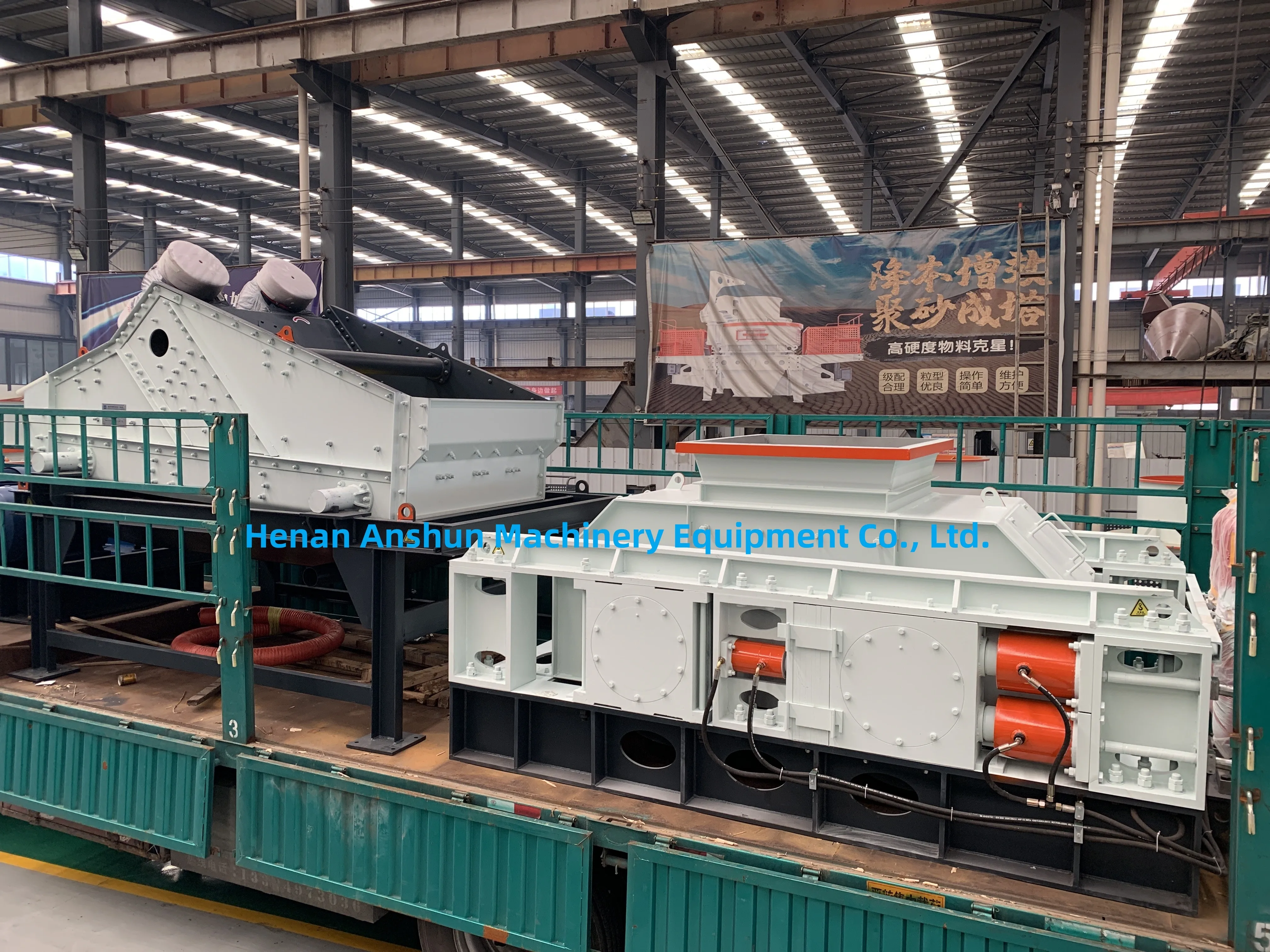

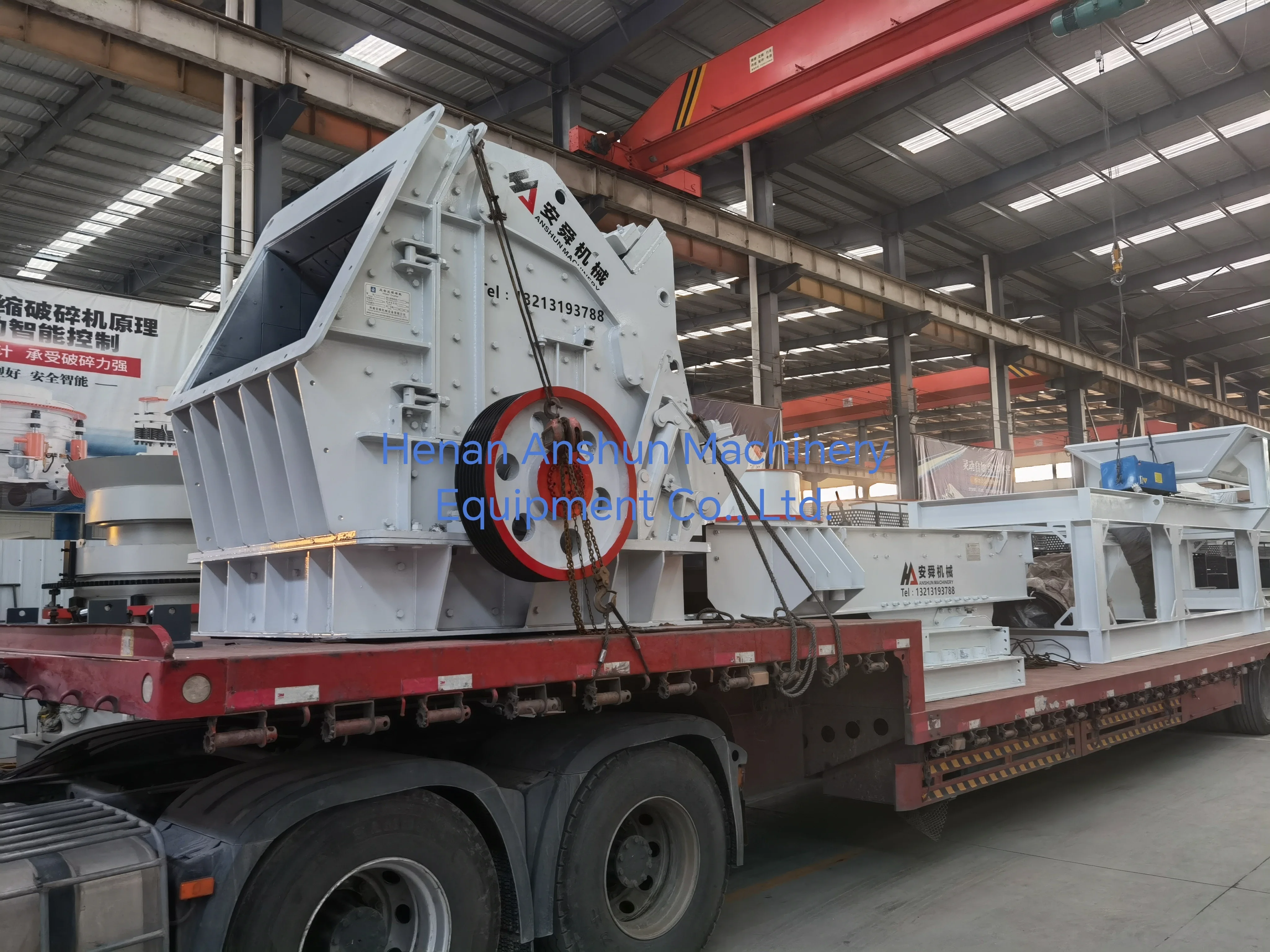

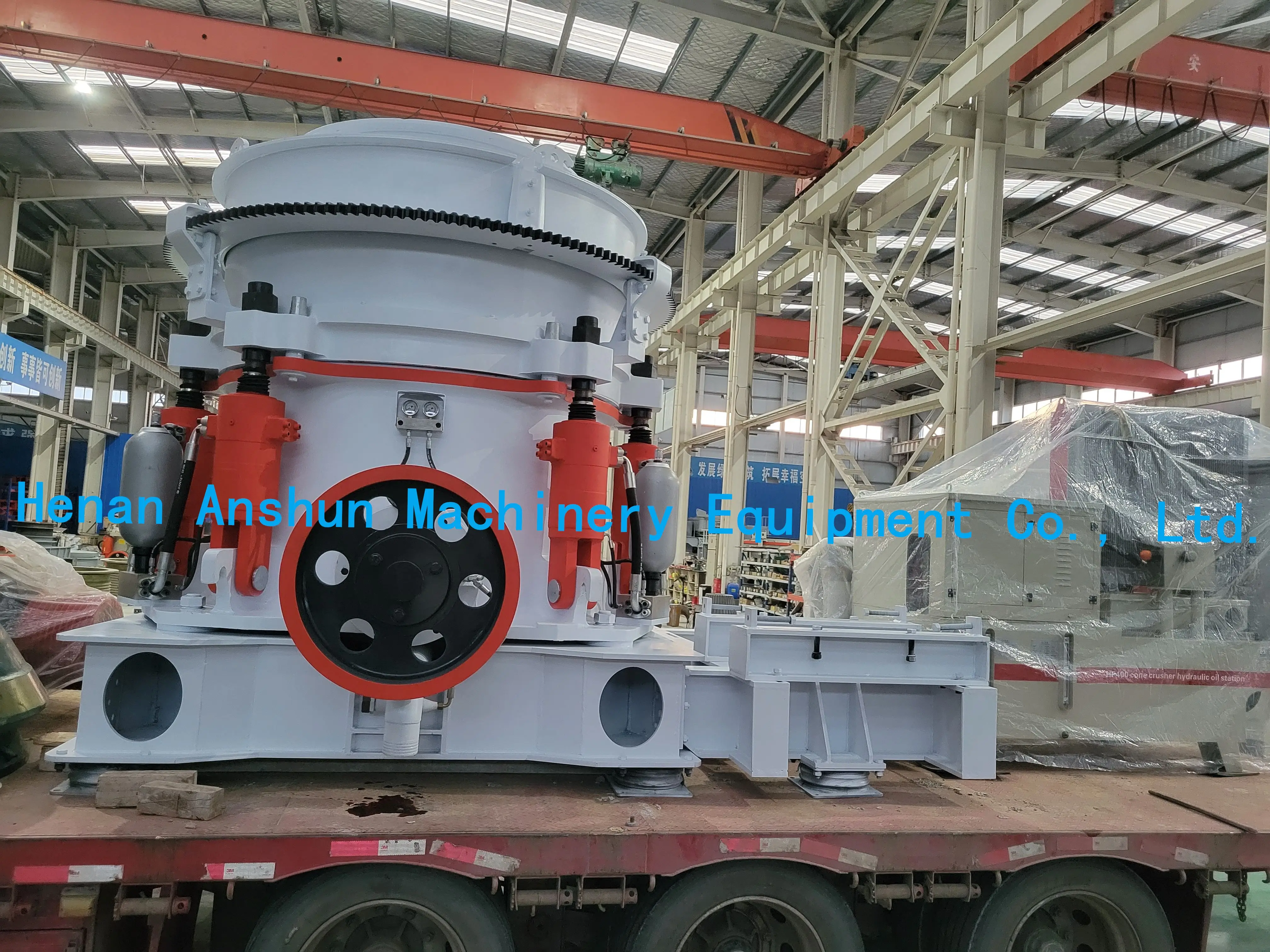

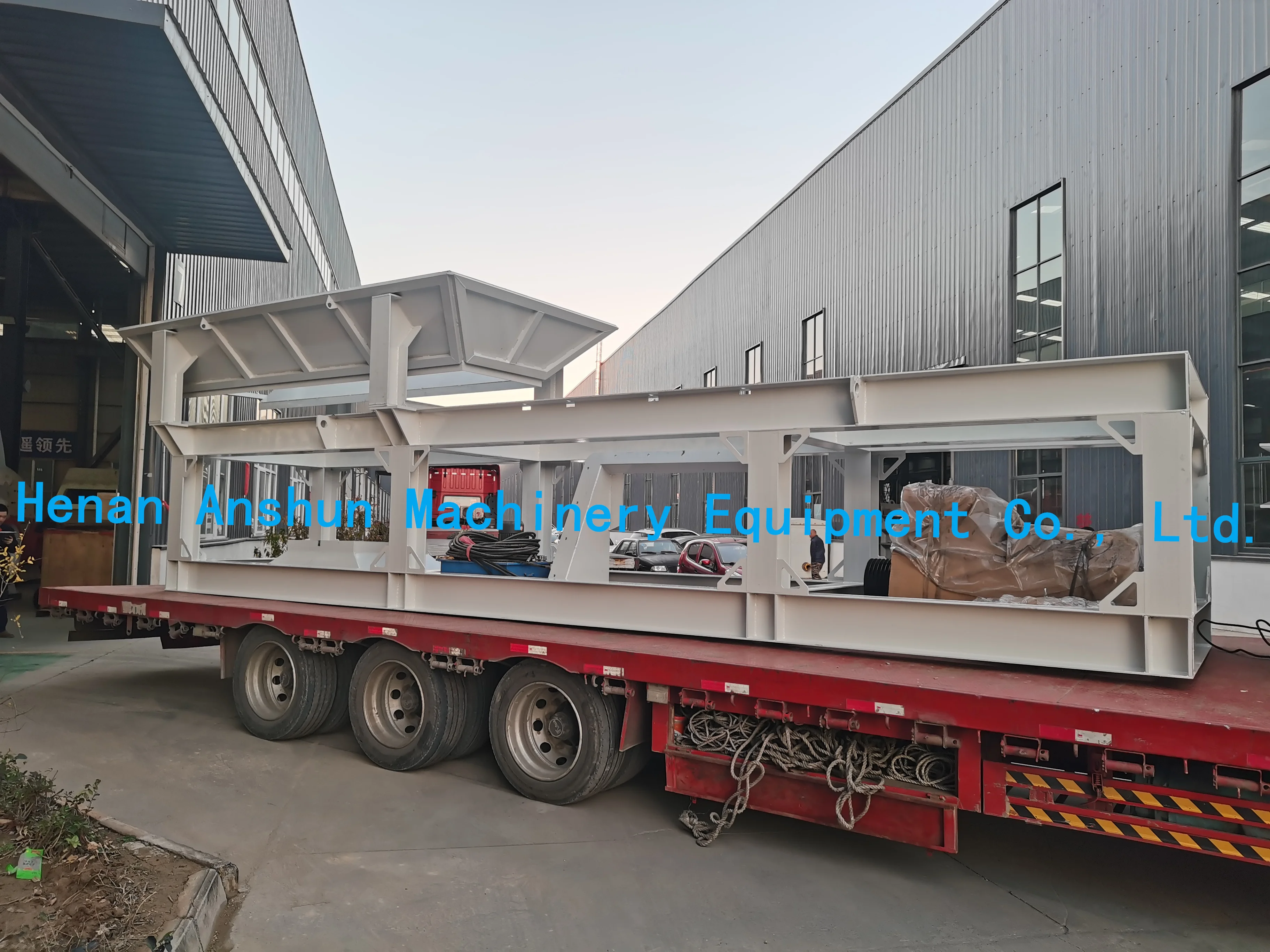

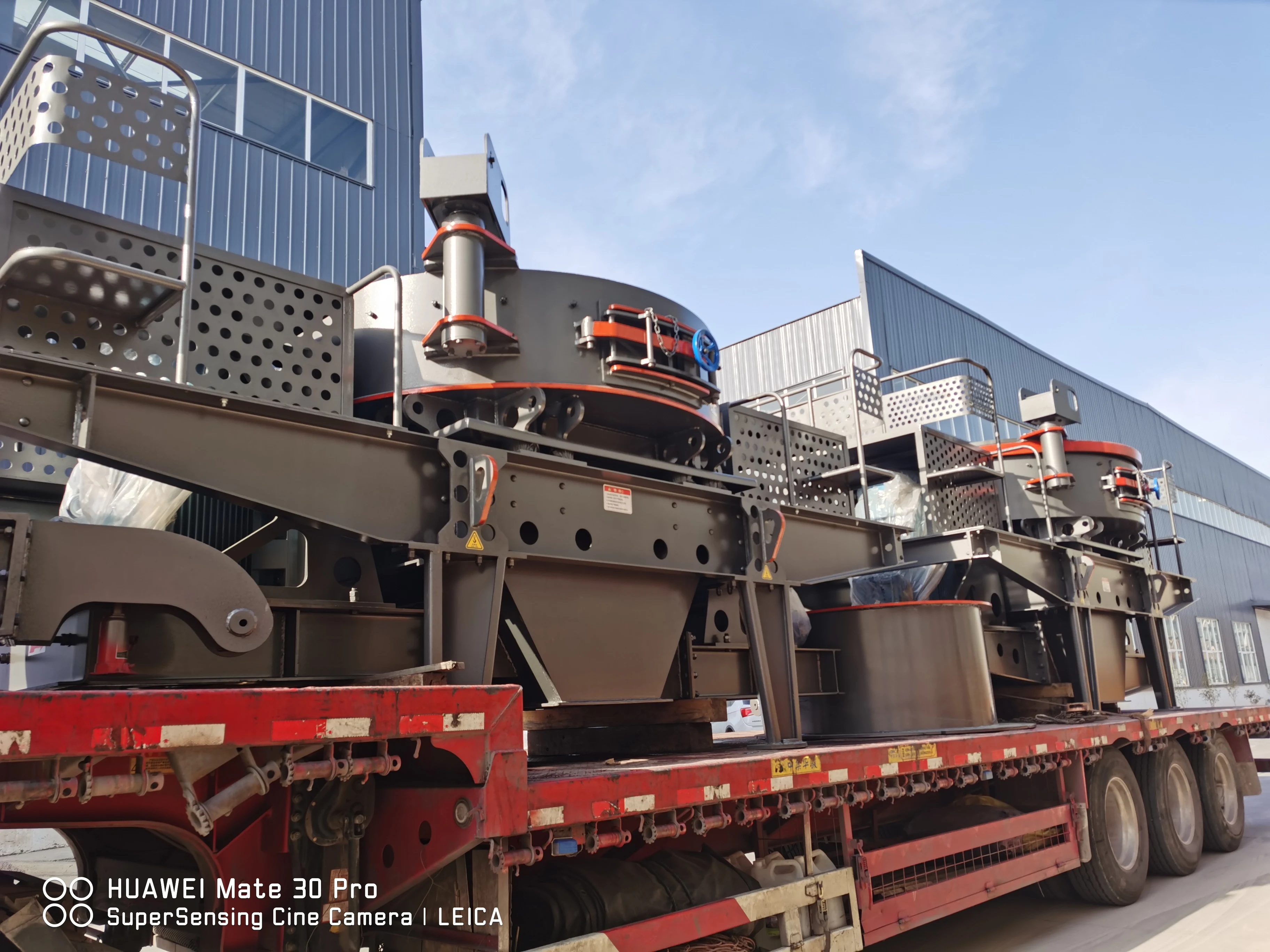

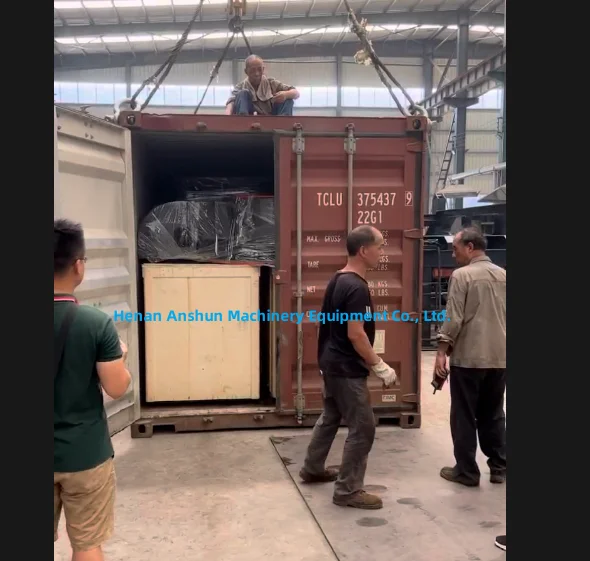

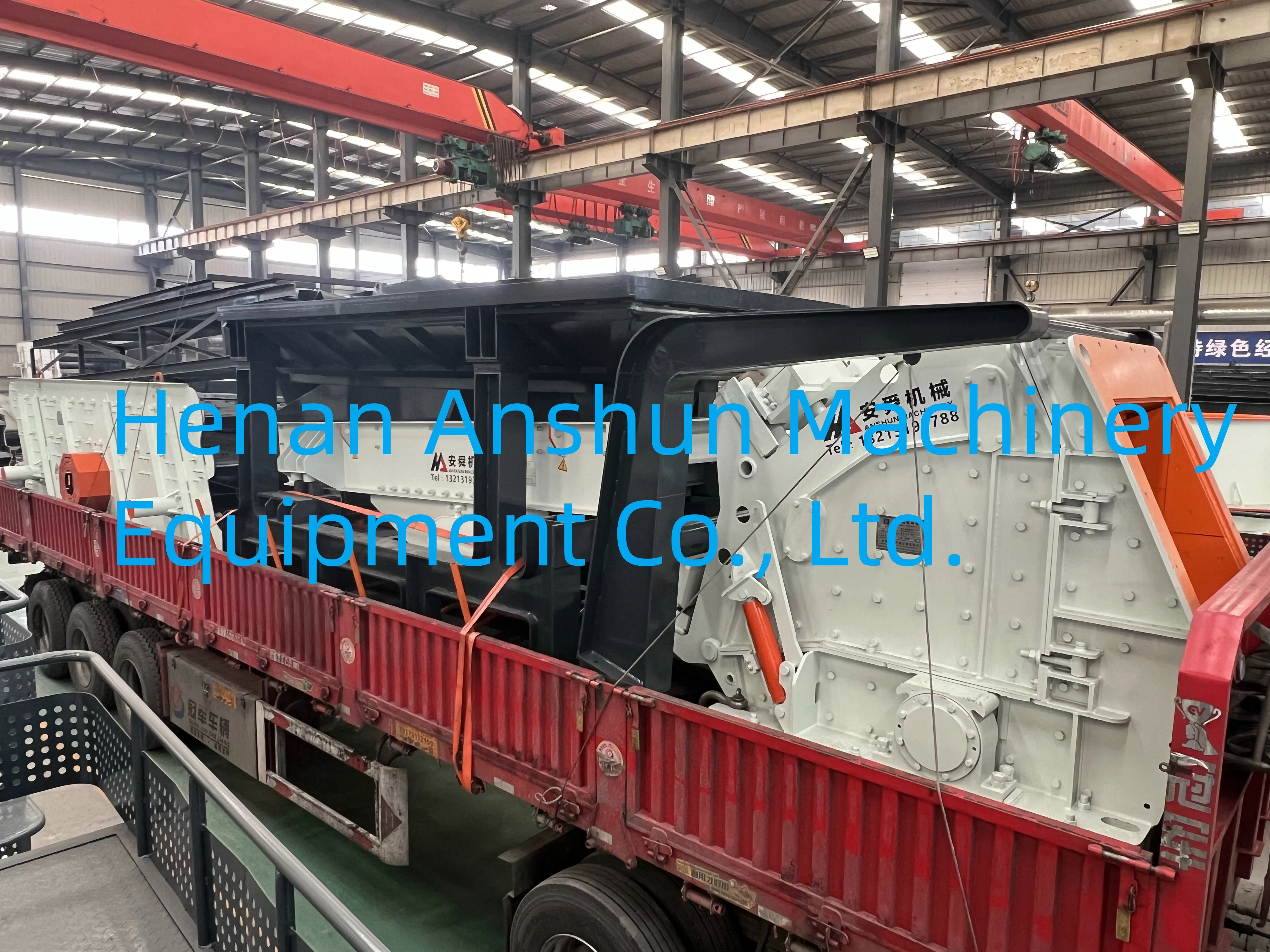

Packing&Shipping






FAQ


Support:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support :
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that
responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support :
ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has
strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
