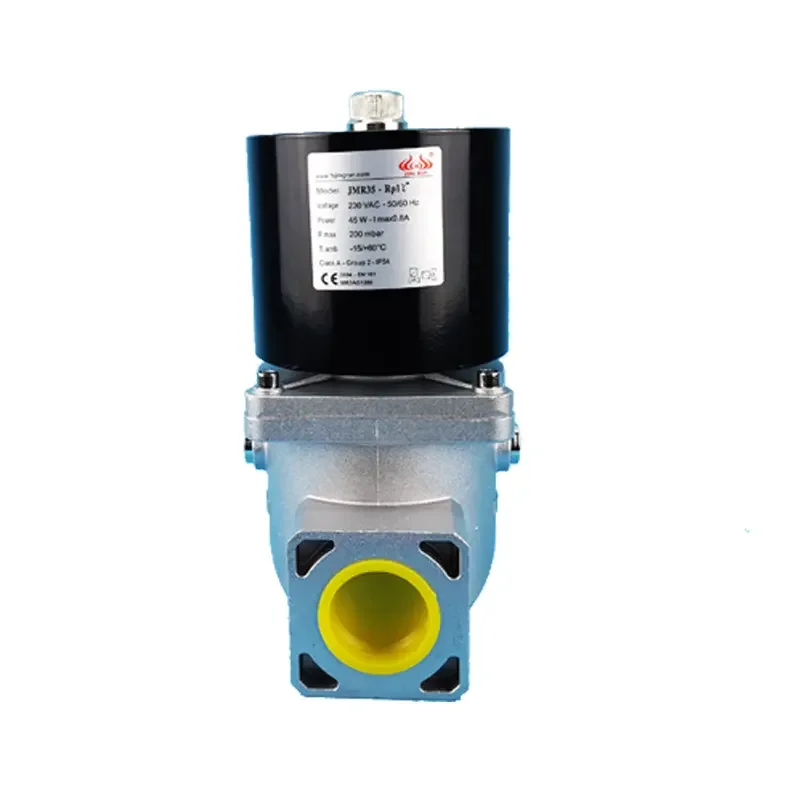

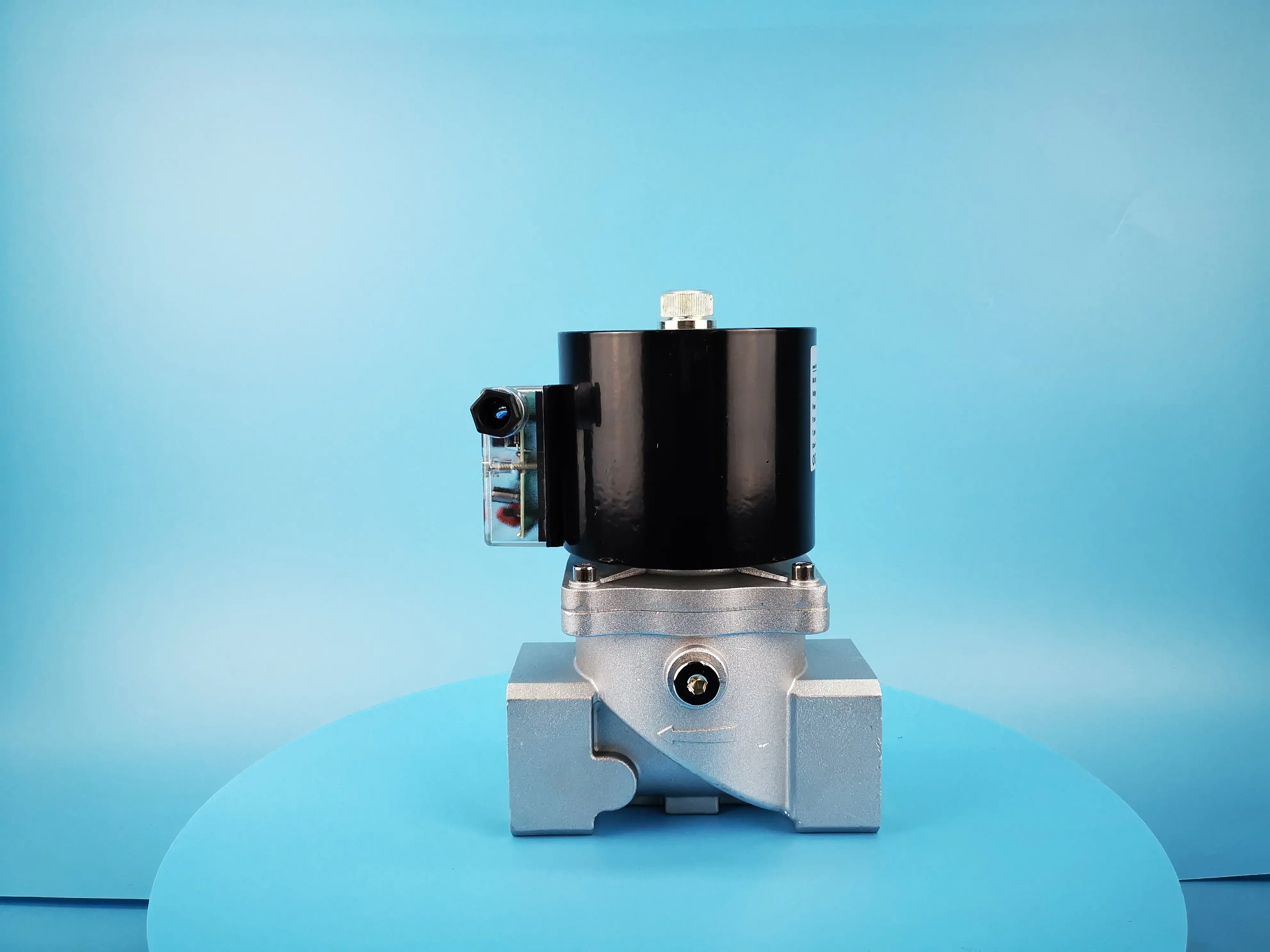

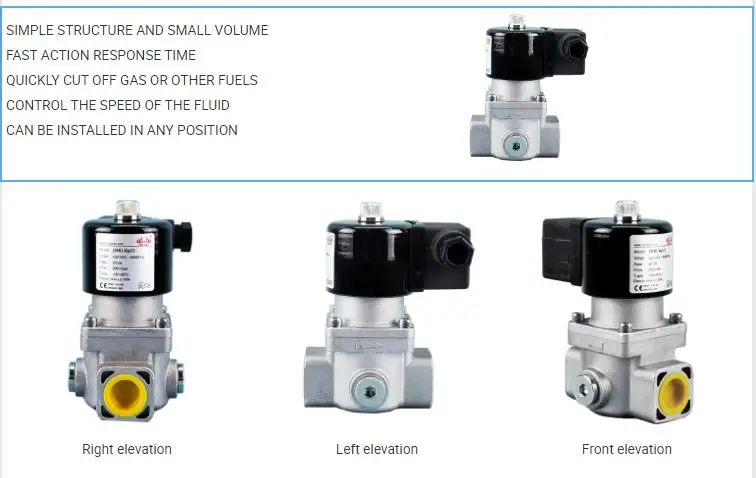

JMR35 RP11/4 Industrial 12V 24V 220V Solenoid Valve 2 Way 1/2 Inch Water Gas Solenoid Valve
- Category: >>>
- Supplier: Foshan Jingran Electromechanical Equipment Co. Ltd.Foshan Ltd.
Share on (1601332991339):
Product Overview
Description
| Connection: | 3/8"-2" threaded port; DN40-DN80 flange port; |
| Rated voltage | 230Vac, 50/60HZ; 110Vac 50/60HZ; |
| Maximum working pressure | 200/360mbar |
| Opening/closing time | < 1 second; |
| opening time | 4-25 seconds |
| Protection grade | IP54 |
| Applicable medium | gas, natural gas, liquefied petroleum gas, air and other non-corrosive gases. |
| Material | die-casting alloy aluminum |
| Voltage Tolerance | -15%~10% |
,
| Model | Caliber | Max.pressure (mbar) | A | B | C | D | h | int | Material | Connection Type |
| JMR1-Rp½" | RP½" | 360 | Cast Aluminum | Threads | ||||||
| JMR2-Rp¾" | Rp¾" | 360 | 84 | 94 | 216 | 238 | Cast Aluminum | Threads | ||
| JMR3-Rp1" | Rp1" | 360 | 84 | 94 | 216 | 238 | Cast Aluminum | Threads | ||

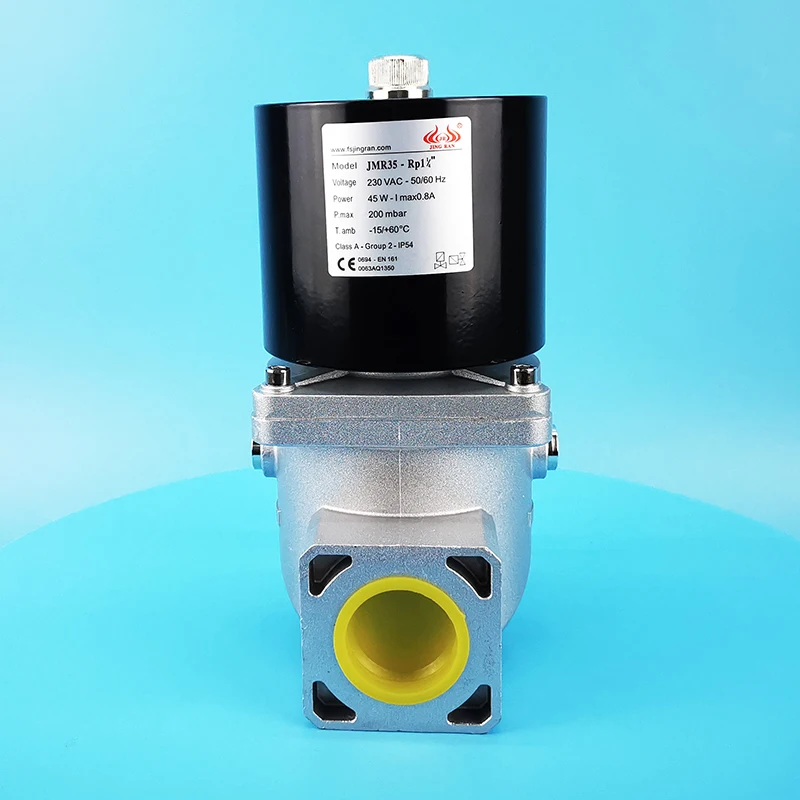

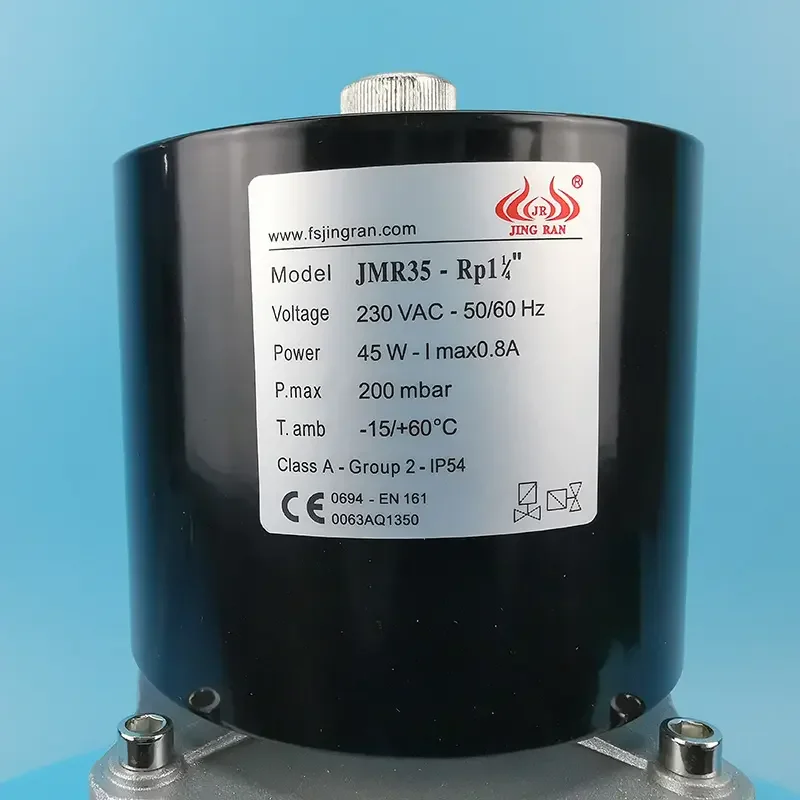

| JMR35-Rp1¼" | Rp1¼" | 360 | 117 | 152 | 262 | 300 | Cast Aluminum | Threads | ||
| JMR4-Rp1½" | Rp1½" | 360 | 117 | 152 | 262 | 300 | Cast Aluminum | Threads | ||
| JMR6-Rp2" | Rp2" | 360 | 105 | 155 | 272 | 310 | Cast Aluminum | Threads | ||
| JMR72-DN65 | DN65 | 200 | 198 | 305 | 336 | 435 | 4×18 | 156 | Cast Aluminum | Flange |
| JMR82-DN80 | DN80 | 200 | 198 | 305 | 336 | 435 | 8×18 | 160 | Cast Aluminum | Flange |
