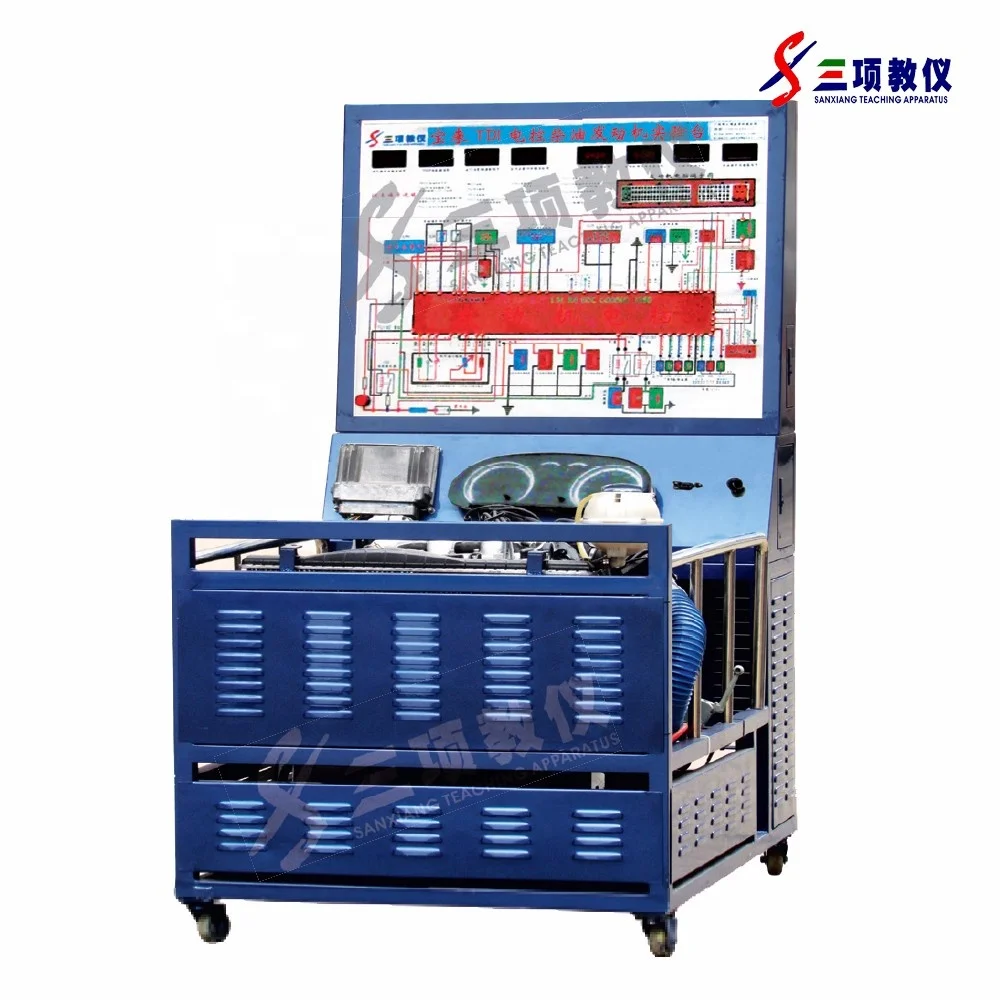

Factory Sales Educational Instrument Electric Controlled Diesel Engine Test Bench for Vocational Students Training

1, the engine works normally, runs smoothly, and the emissions meet the requirements of relevant regulations;

2, the sensors, actuators are complete and effective, can be detected by special instruments;

3, digital display of each sensor voltmeter change value;

4, pointer type oil pressure gauge shows fuel pressure;

5, equipped with the corresponding technical data and intuitive circuit schematic;

6, the experimental platform can meet the structure, working principle and fault diagnosis of the electronic diesel engine practice teaching needs;

7, the experimental bench panel engraved with a complete electronic control system schematic and detection terminals, can detect a variety of sensors, actuators and other signal parameters such as voltage, resistance, frequency, etc.;

8, the experimental bench is equipped with a data monitoring port, which can read data code, read dynamic data flow, parameter setting and other diagnostic functions through a special instrument;

9, fault setting function, manual fault setting switch, intelligent multi-function integrated machine system or intelligent fault setting assessment system (equipped with communication interface and network interface) can be selected according to the user;

10, after setting the fault, students can use special instruments to judge and troubleshoot the fault, and check the location and content of the set fault point;

11, the user can choose the function:

This optional function is to use PLC or single-chip computer program control to form a network system, can realize a master computer simultaneously connected to control a number of student test terminals (student machine made of experiment box), each student terminal has the same control circuit diagram and the same detection point as the control panel of the training station, when the master practical training station set a fault, the student side can detect the same fault. At the same time, the student side can also monitor and analyze the parameters of all sensors and actuators with the control panel of the master training station, and each student side can achieve the same teaching effect as the master training station.

12, can produce other models according to customer requirements.
