Quality Reliable Mono Sunpower Maxeon M6 IBC 9bb Solar Cell 1/9 Cut Cells 50*50mm With Consistent Performance ibc Solar Panel
- Category: >>>
- Supplier: Shenzhen Xiangxinrui Solar Energy Co. Ltd.Shenzhen Ltd.
Share on (1601333088720):
Product Overview
Description
Specification

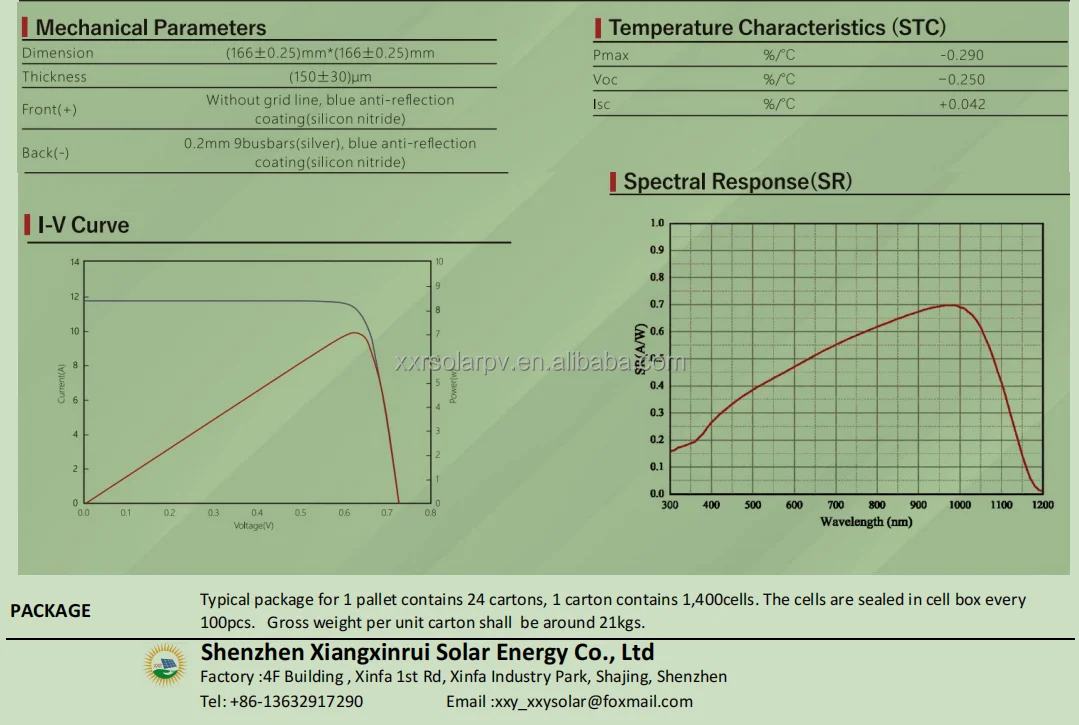

Product name | XXR - Quality Reliable 9bb IBC 1/9 Cut solar cell | XXR - Quality Reliable 9bb IBC 1/9 Cut solar cell | |||||||||||
Whole Size | 166*166MM(6.54INCH) | 166*166mm （6.54inch） | |||||||||||

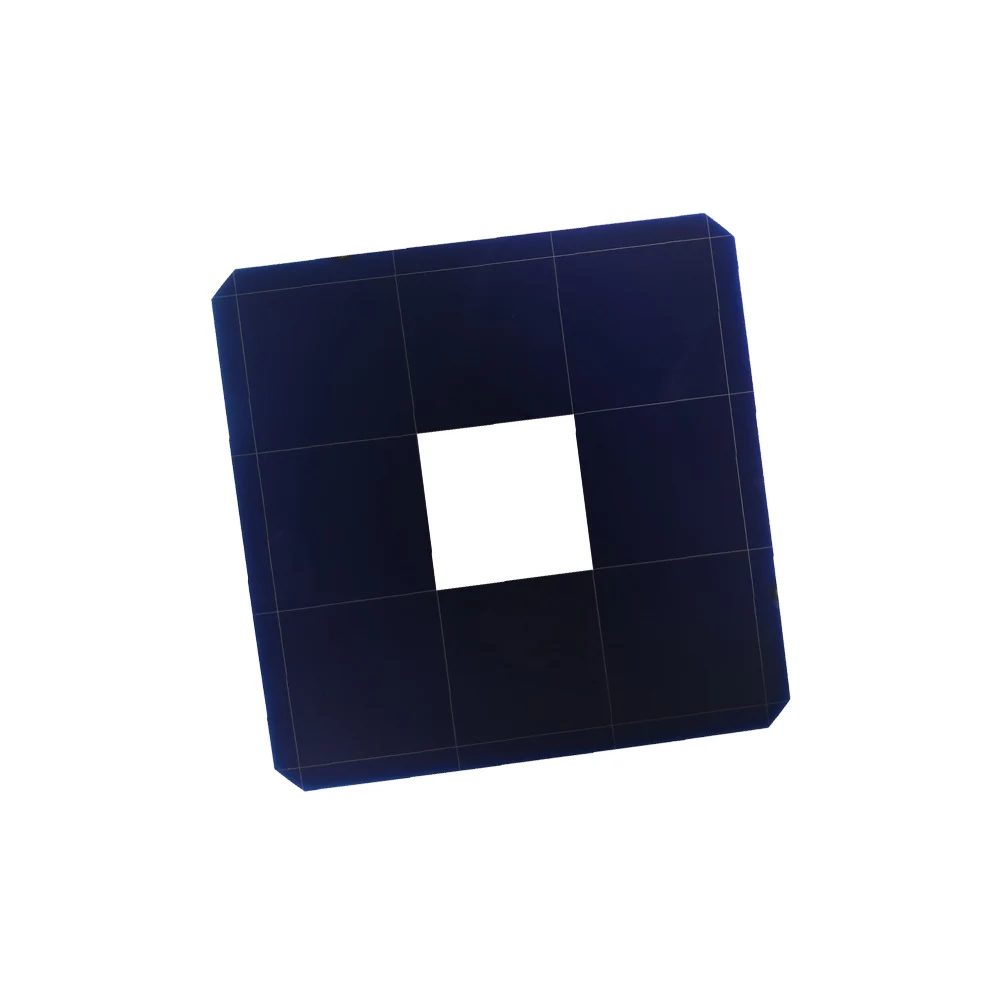

Cut Cells | 50*50mm（1/9 cut） | ||||||||||||
Material | Monocrystalline silicon solar cell | Monocrystalline Silicon | |||||||||||
Efficiency (%) | 22.5 | 23.00 | 24.80 | 25.00 | 25.50 | 25.80 | 26.00 | ||||||
Pmax(W) | 0.5625 | 0.575 | 0.620 | 0.625 | 0.638 | 0.645 | 0.650 | ||||||
Vmp(V) | 0.600 | 0.600 | 0.615 | 0.616 | 0.620 | 0.623 | 0.624 | ||||||
Imp(A) | 0.938 | 0.958 | 1.008 | 1.015 | 1.028 | 1.035 | 1.042 | ||||||
Voc(V) | 0.708 | 0.708 | 0.718 | 0.719 | 0.723 | 0.726 | 0.727 | ||||||
Isc(A) | 1.031 | 1.054 | 1.109 | 1.116 | 1.131 | 1.139 | 1.146 | ||||||
FF(%) | 80.58 | 80.67 | 81.22 | 81.55 | 82.33 | 82.79 | 82.97 | ||||||
Product Description

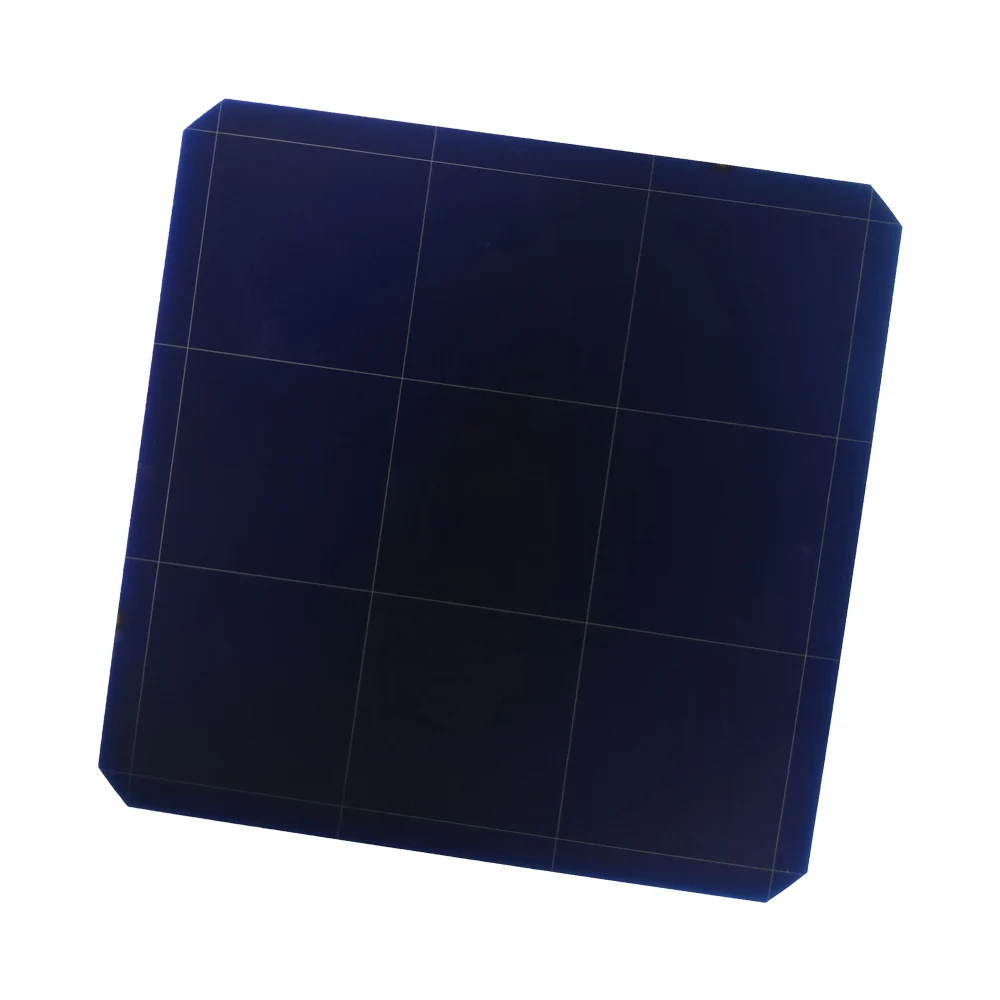

IBC high efficiency solar cell
The interdigitated back contact IBC cell structure positions the emitter and contact on the rear side of the wafer. This setup allows for independent optimization of the front surface for optical characteristics and the back surface for the electronic properties of the emitter and contacts.
IBC solar cells exhibit remarkable performance under both concentrated and one-sun illumination conditions. The design offers several advantages. Firstly, there is no contact grid shading on the side facing the sun. Additionally, due to the thin device design, there is a potential for low substrate cost. Moreover, as both contacts are on the back, the module assembly costs are reduced. Finally, the solar cells can be placed in closer proximity within the module as there is no need for spacing between cells.
IBC solar cells exhibit remarkable performance under both concentrated and one-sun illumination conditions. The design offers several advantages. Firstly, there is no contact grid shading on the side facing the sun. Additionally, due to the thin device design, there is a potential for low substrate cost. Moreover, as both contacts are on the back, the module assembly costs are reduced. Finally, the solar cells can be placed in closer proximity within the module as there is no need for spacing between cells.
Interdigitated Back Contact IBC solar cells are a crucial solution to the challenges of enhancing cell efficiency and lowering the manufacturing cost of solar cells in the industry.

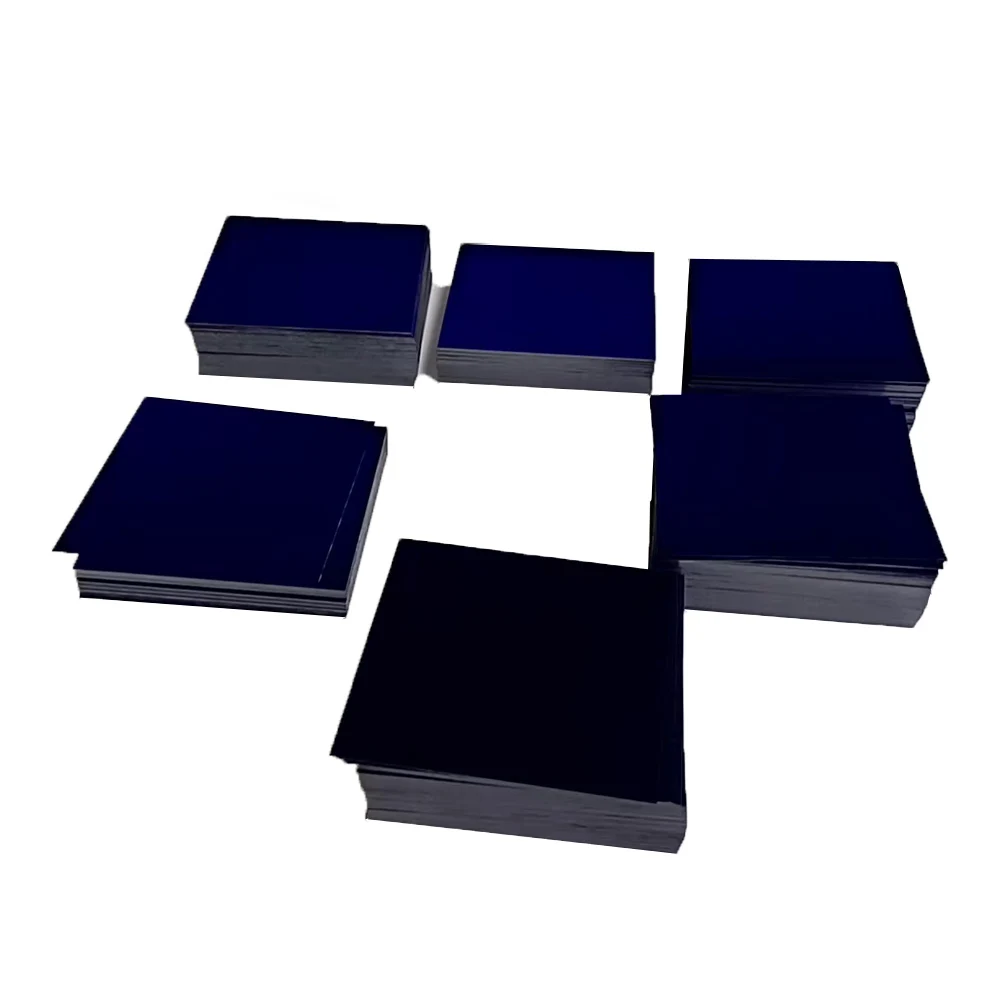

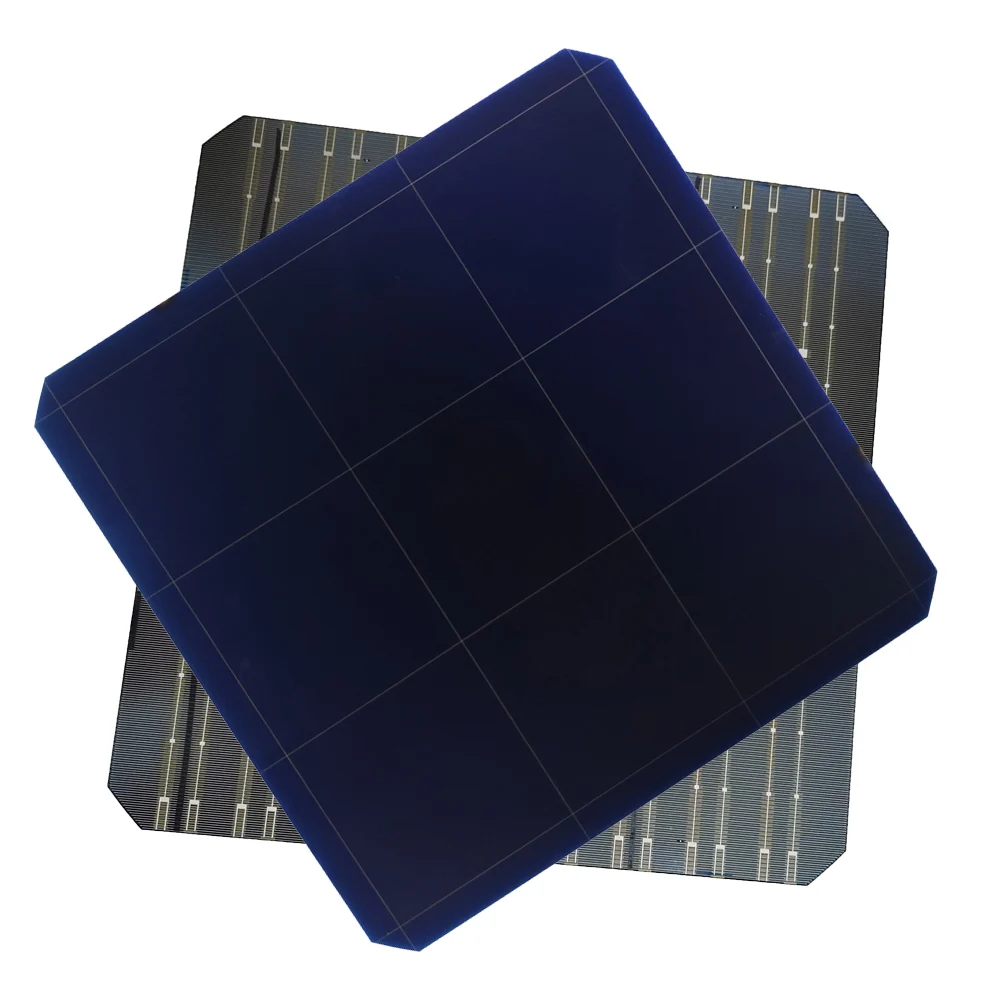

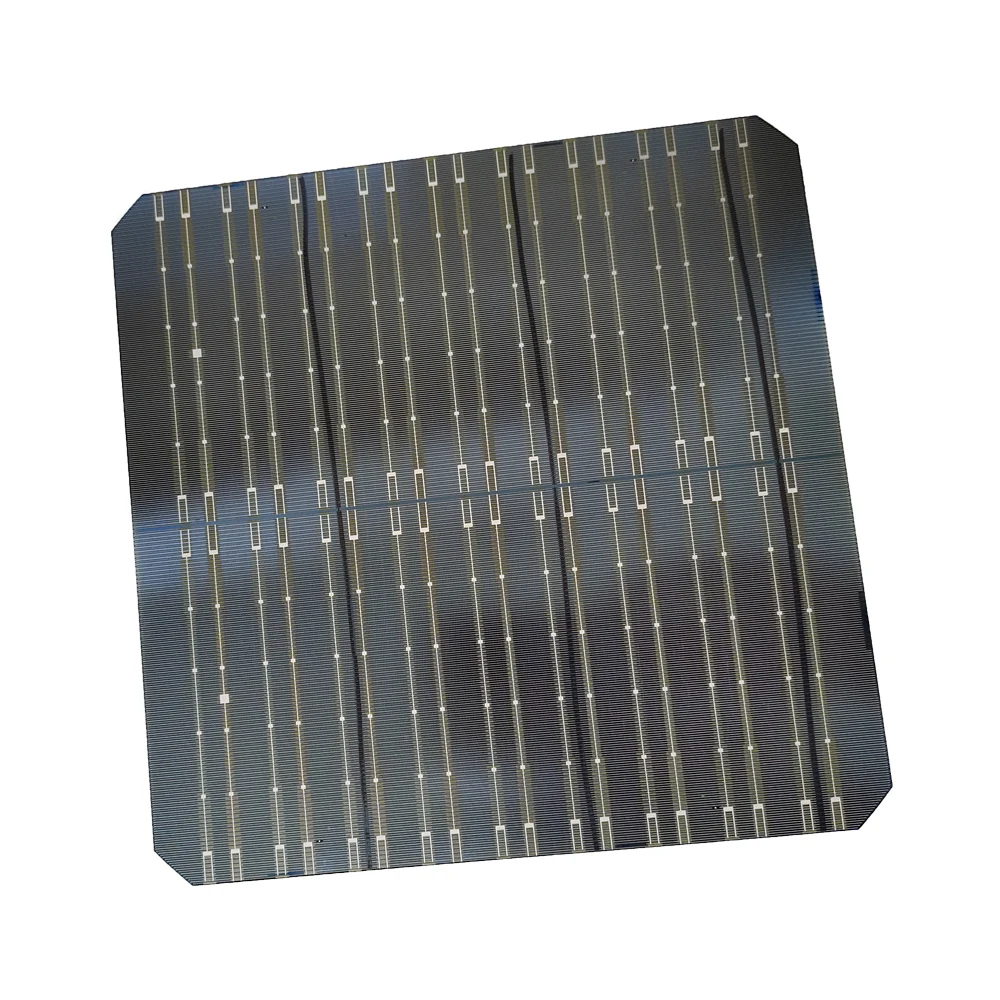

Details Images

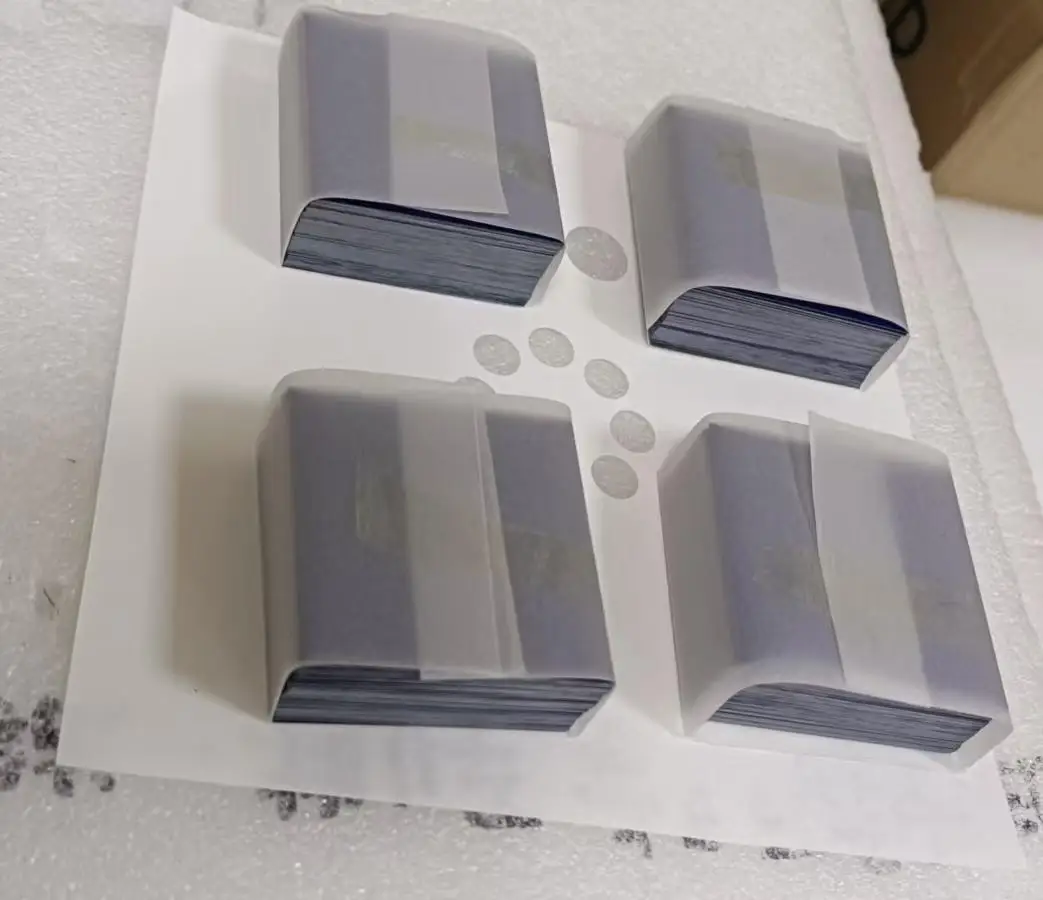

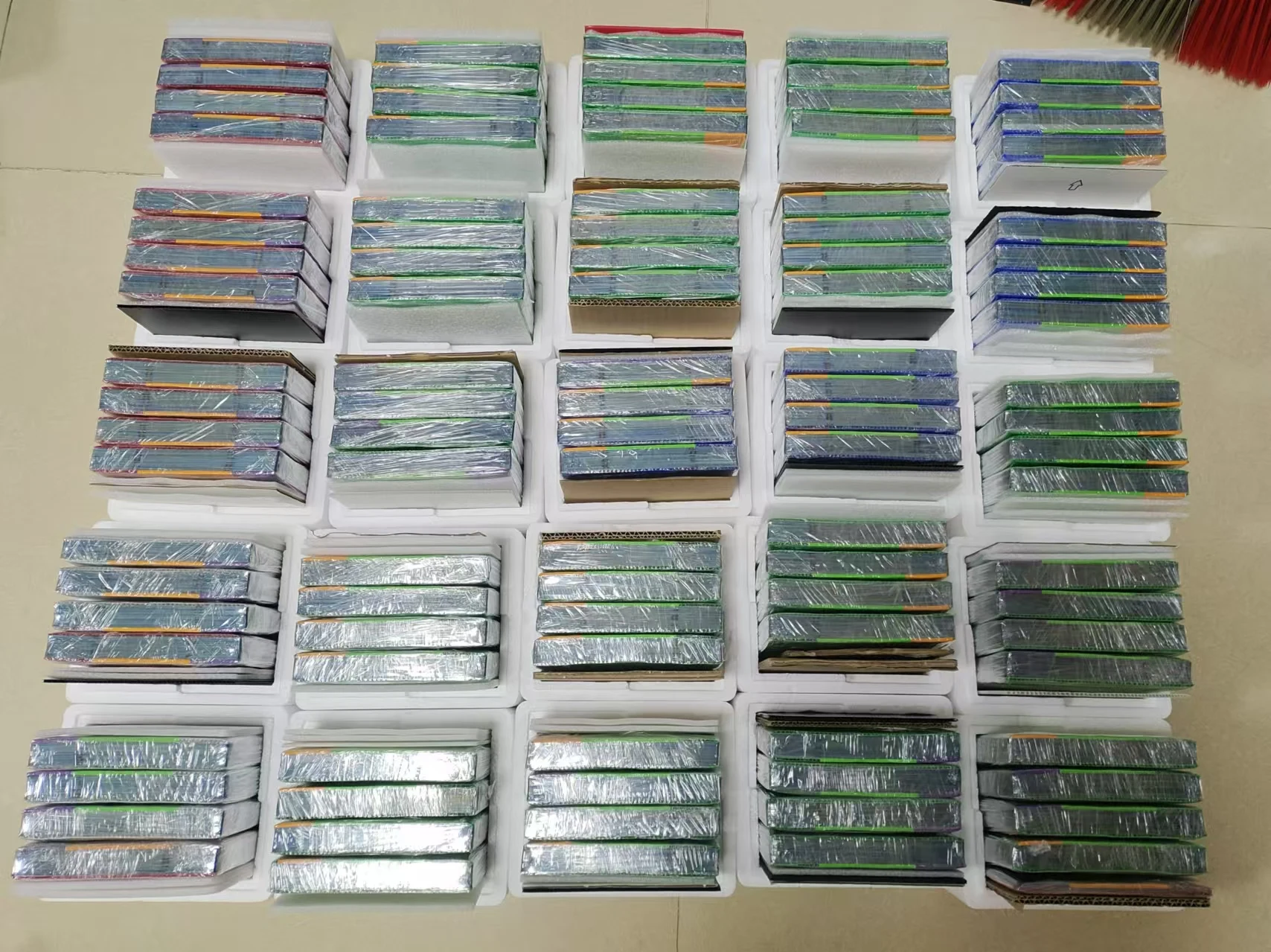

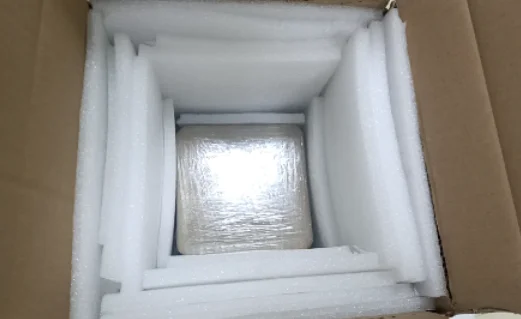

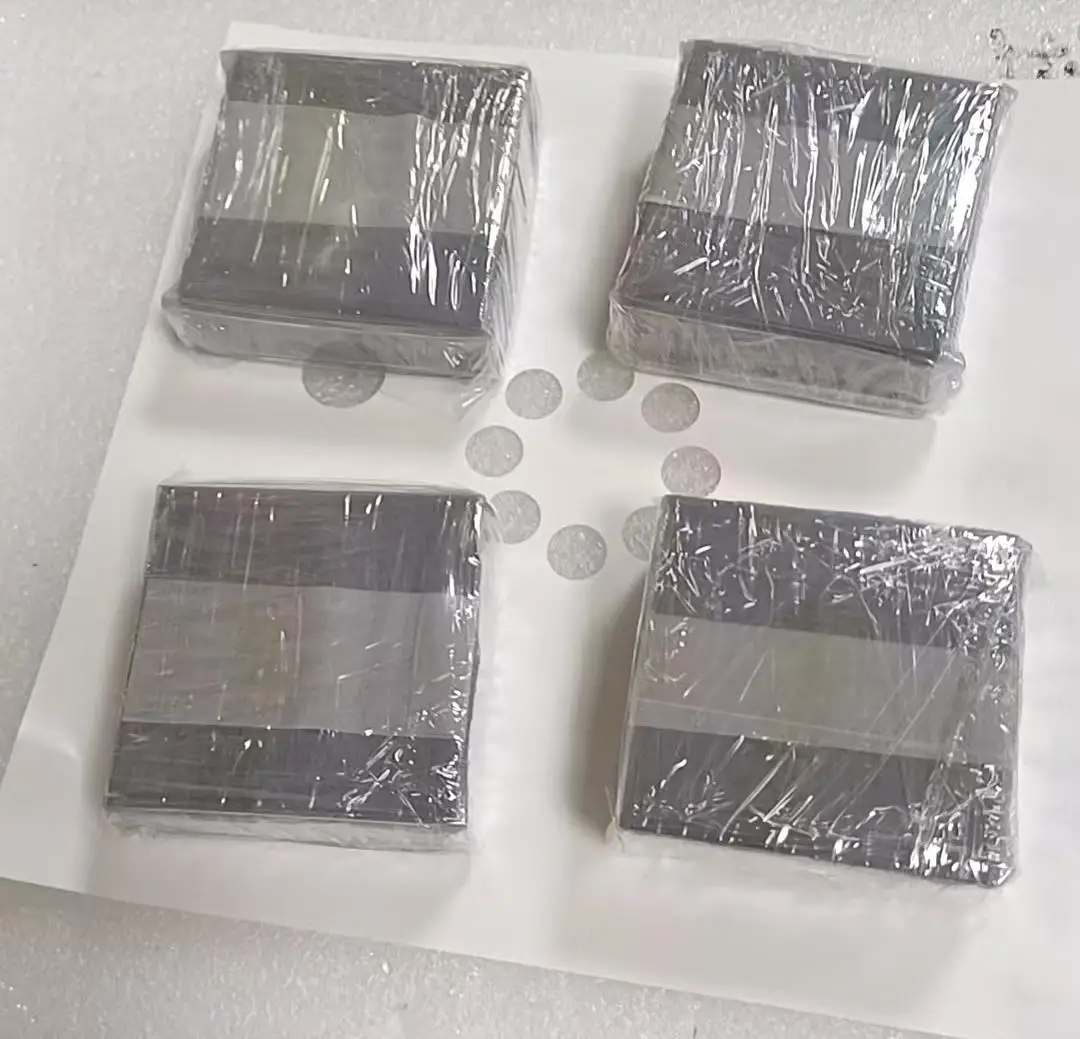

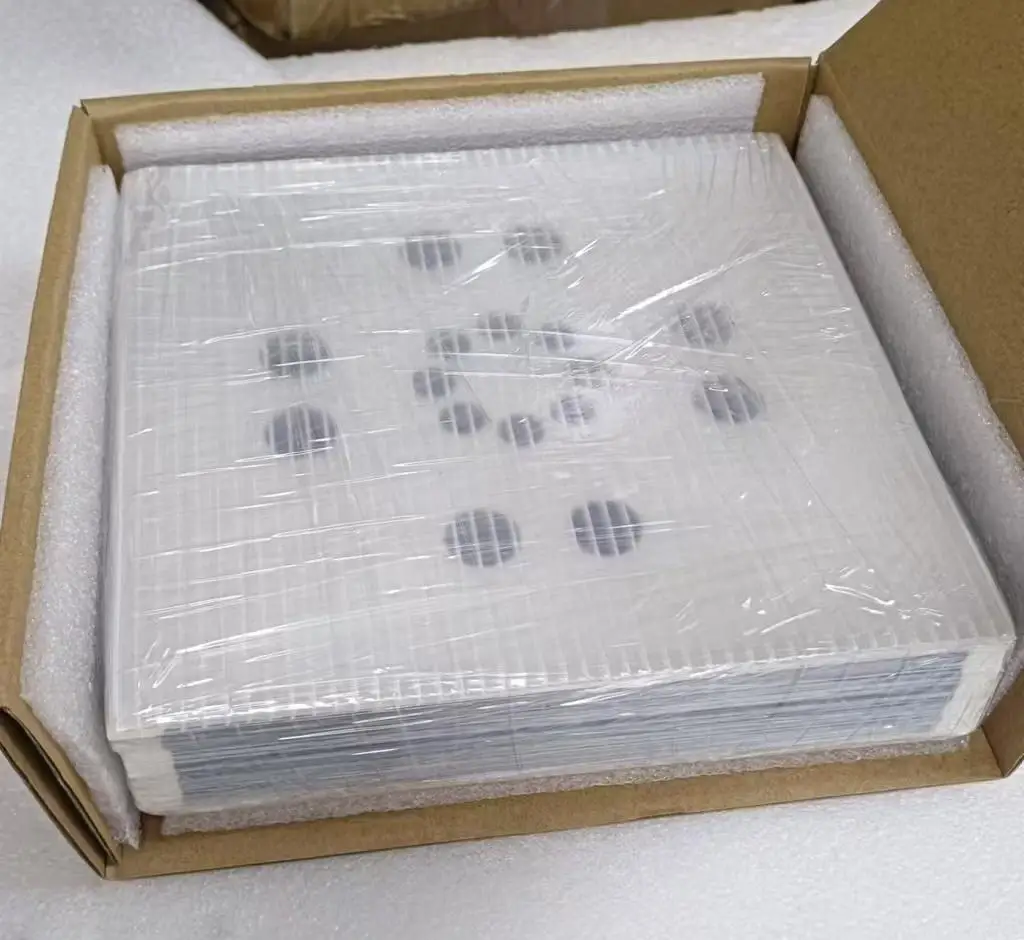

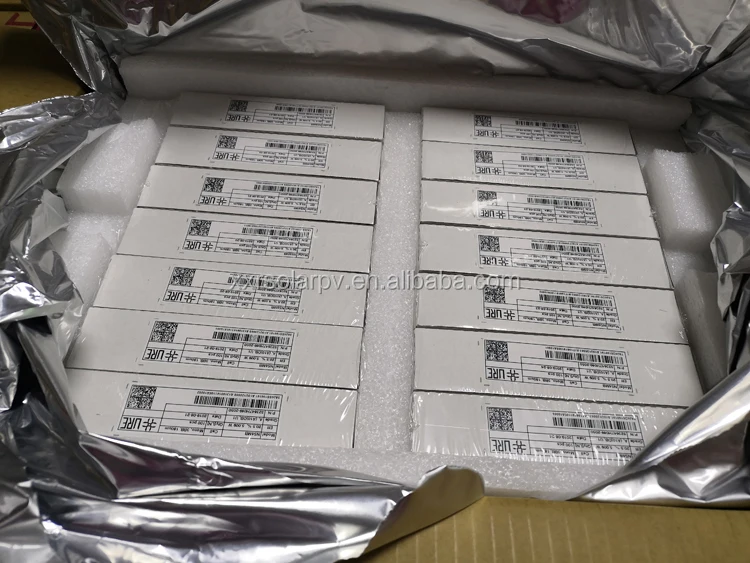

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

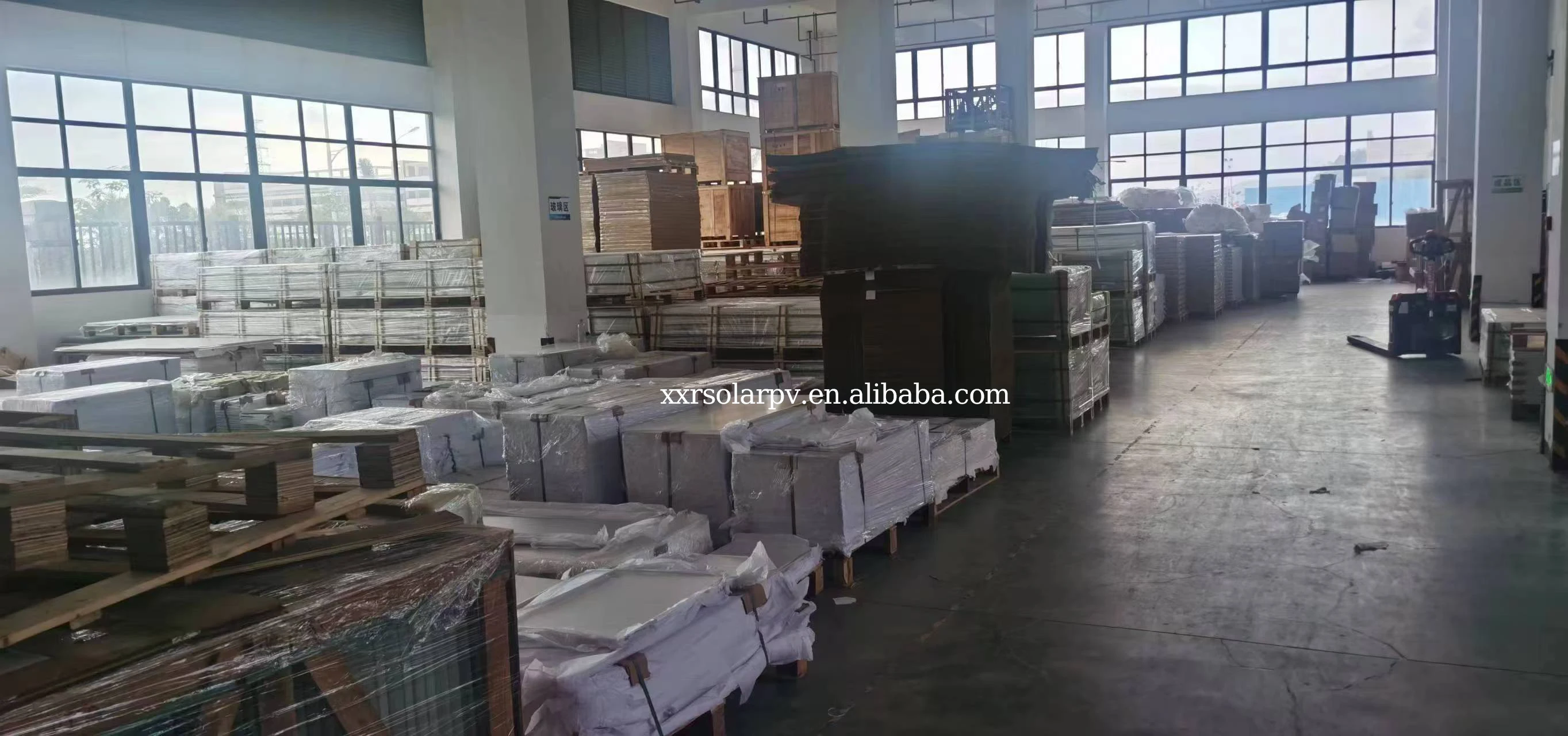

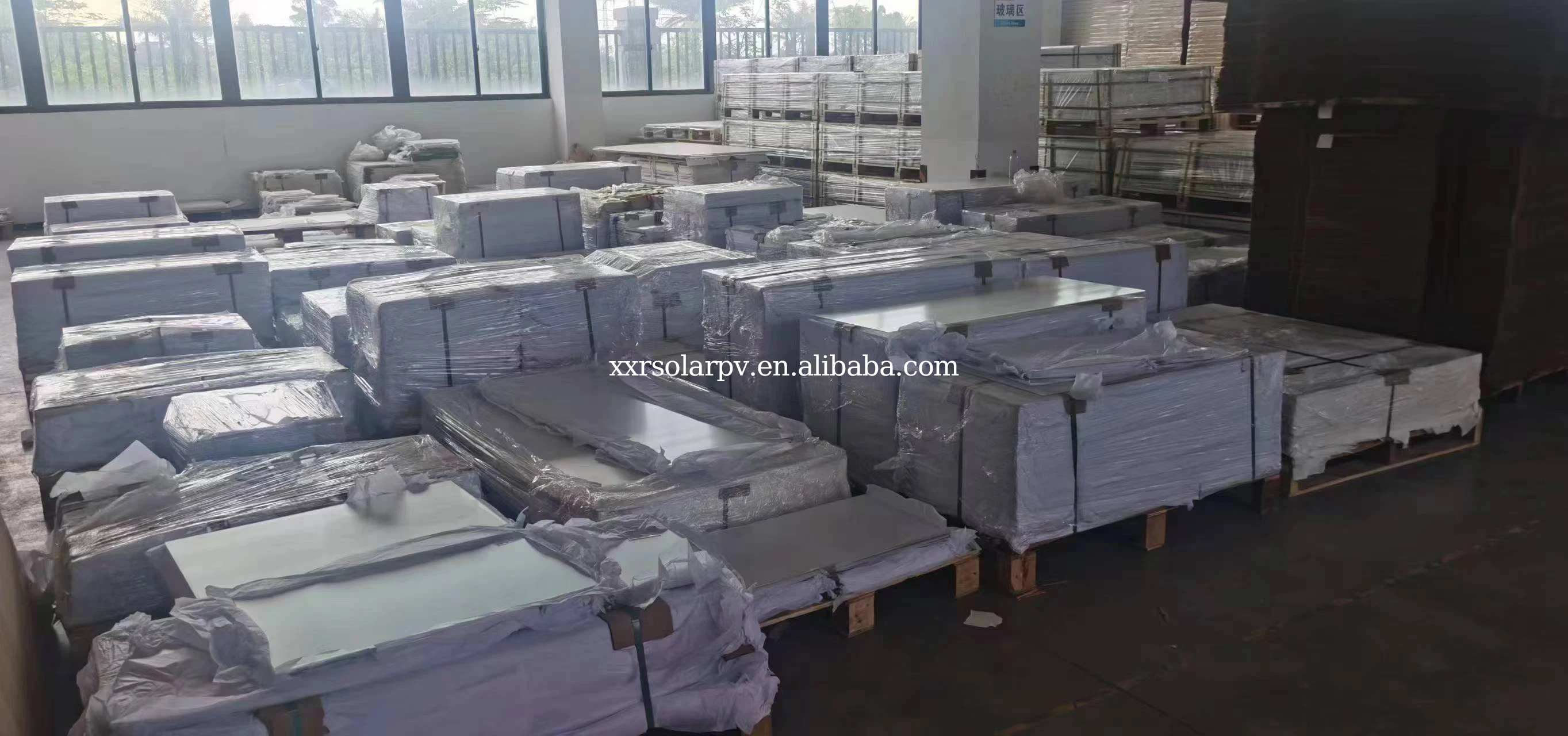

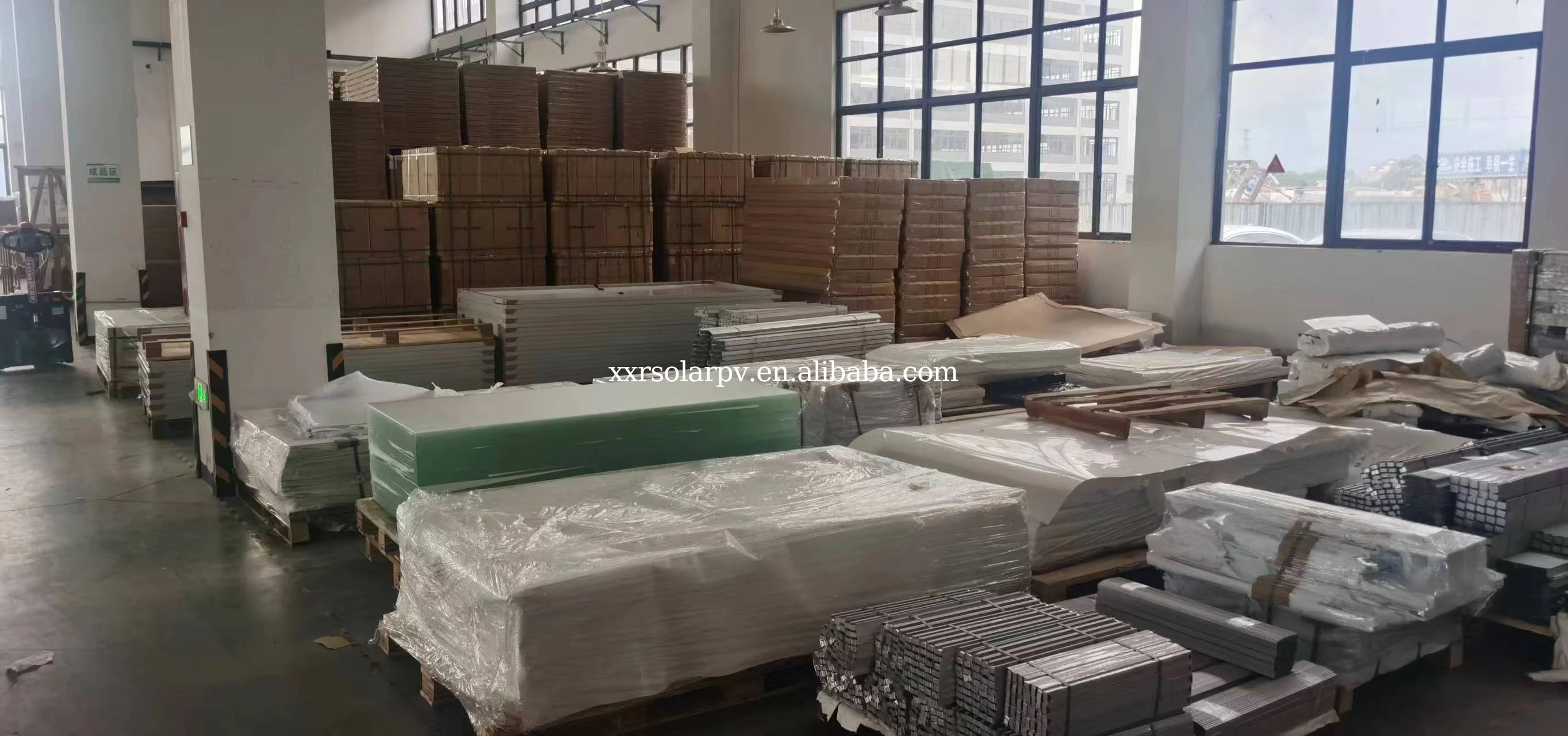

Company Profile
certificate
Recommend Products
Sunpower 166*166mm
166*166mm bifi topcon
158.75*158.75mm 5bb perc

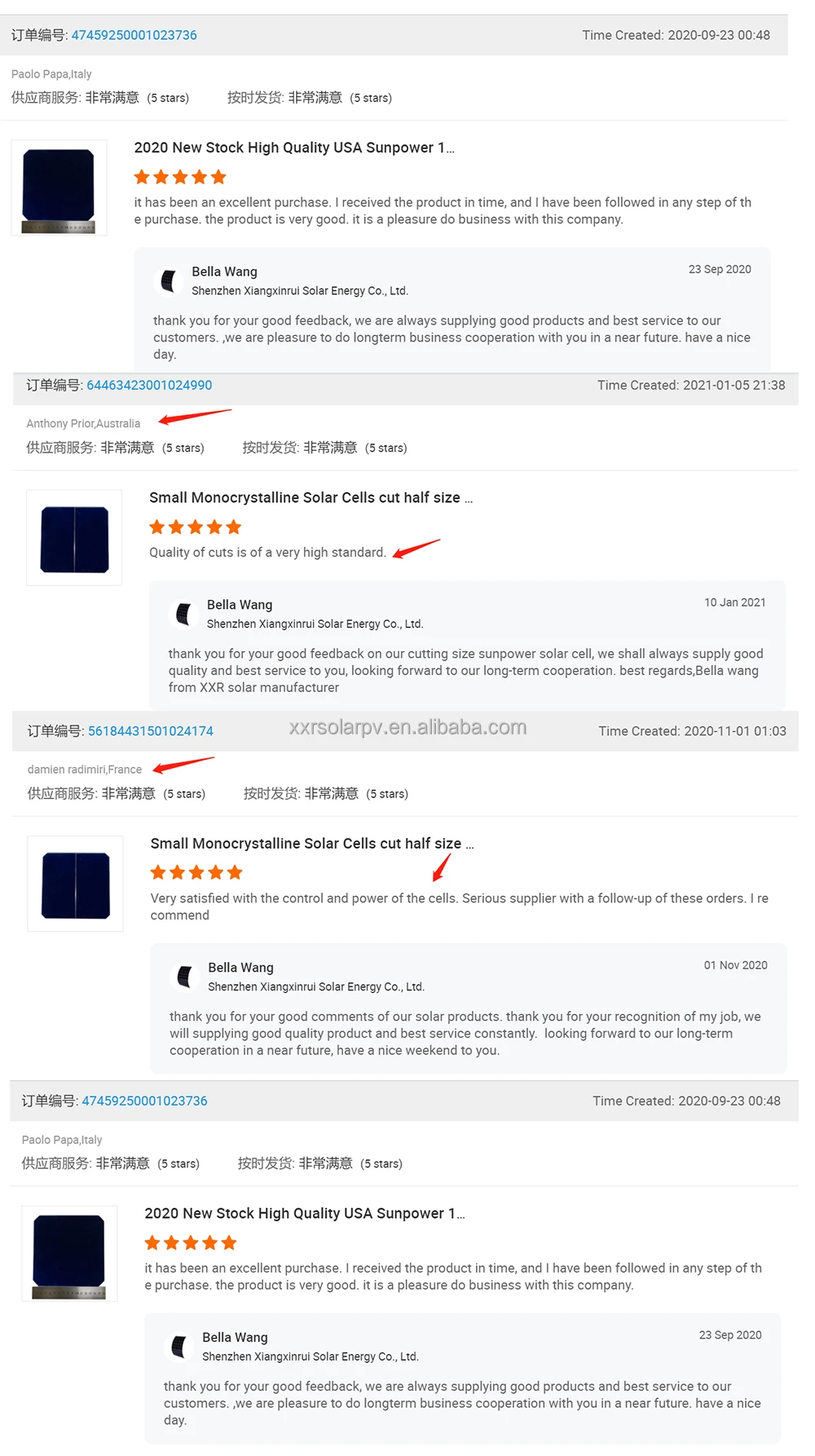

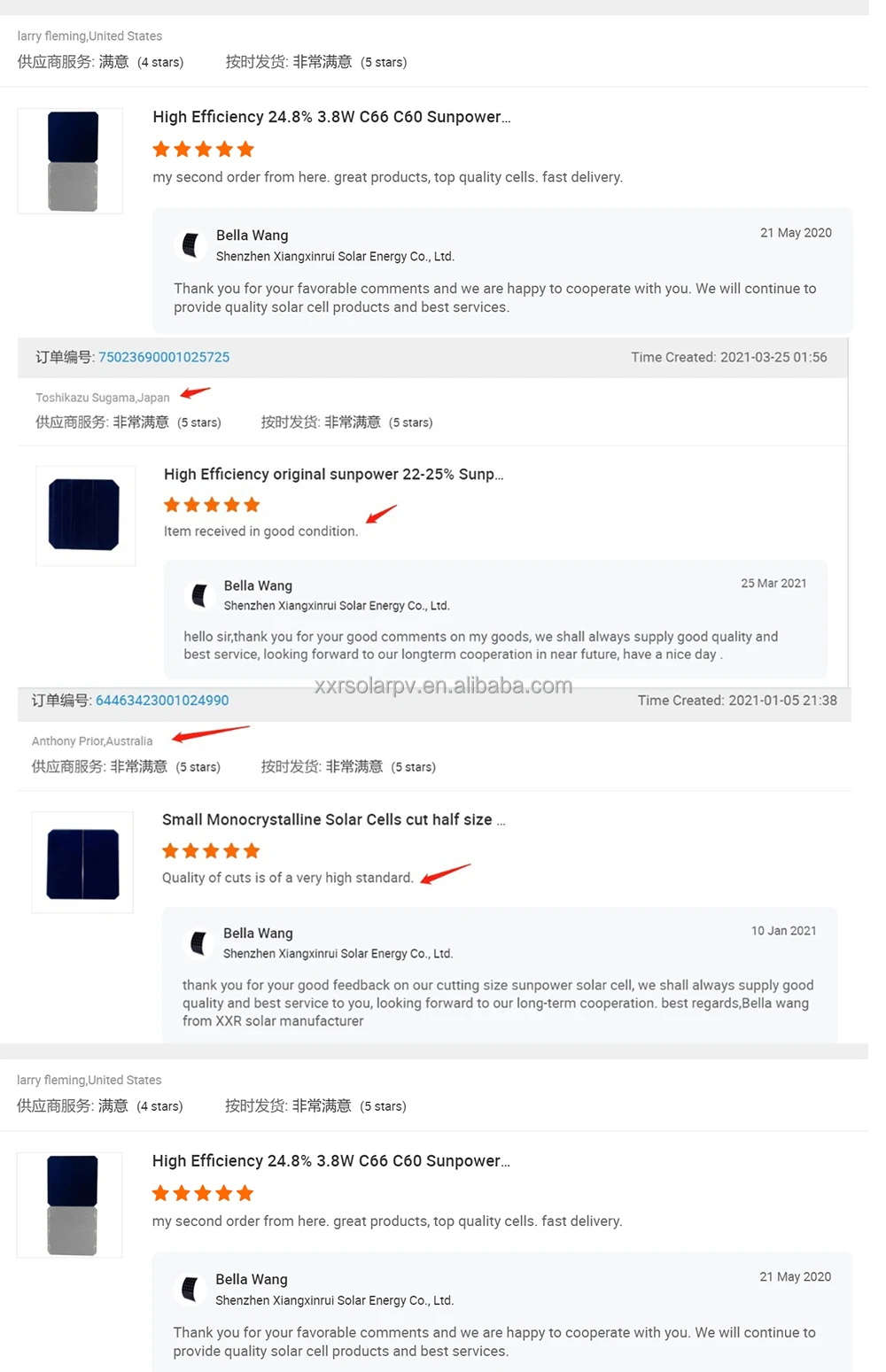

Customers' Feedback

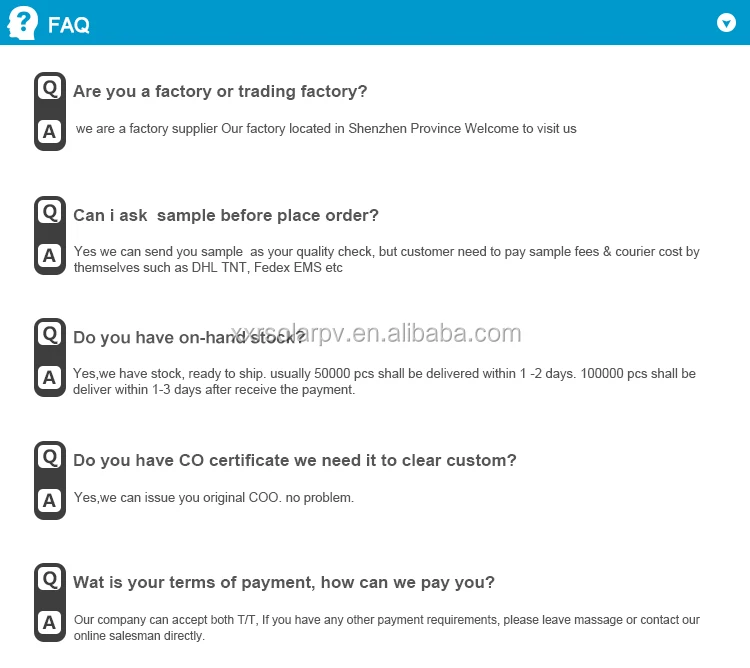

FAQ
