Powerful Hydraulic Bulldozer HD16 with Efficient Standard Type Design
- Category: >>>
- Supplier: Qingdao Dawnshine Import & Export Co. Ltd.Qingdao Ltd.
Share on (1601333215344):
Product Overview
Description
Product Description
Crawler Bulldozers are powerful tracked machines that use mounted blades to move material.Haitui HD16 bulldozer is a 160hp power shift crawler bulldozer.
The power shift transmission is more flexible and easy operating compared with mechanical transmission.
A reliable 131KW Weichai WD10G178E25 engine gives you the more power and reliability you need.
The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.
Product Parameter
| Model | HD16 |
| L*W*H(Without Ripper) | 4990×3440×3110 |
| L*W*H(With Ripper) | 6200×3440×3110 |
| Operating Weight(Without Ripper) | 16.4 |
| Operating Weight(With single teeth Ripper) | -- |
| Operating Weight(With three teeths Ripper) | 18.2 |
| Engine Model | WP10G178E355 |
| Engine Power(kw/ r/min) | 131/1850 |
| Engine Displacement(L) | 9.726 |
| Max. torque(N.m/rpm) | 830/1000-1200 |
| Engine Model | WD10G178E25 |
| Engine Power(kw/ r/min) | 131/1850 |
| Engine Displacement(L) | 9.726 |
| Max. torque(N.m/rpm) | 830/1000-1200 |
| Min. fuel consumption(g/KW.h) | 214 |
| Min. turning radius(m) | 3.1 |
| Productivity (m³/H) | 220 |
| Grounding length (mm) | 2430 |
| Ground Specific Pressure(MPa) | 0.066 |
| Min. Ground Clearance (mm) | 405 |
| Gradeability (°) | 30 |
| Number of track plates (each side) | 37 |
| Track plate width (mm) | 510 |
| Track centre distance (mm) | 1880 |
| Chain track pitch (mm) | 203.2 |
| Number of pallets (per side) | 2 |
| Number of supporting wheels (per side) | 6 |
| Working Pressure (MPa) | 14 |
| Hydraulic system flow rate (L/min) | 213 |
| Max.traction force (KN) | 144 |
| SBlade type | Straight-tilt Balde |
| Blade L*H(mm) | 3440×1150 |
| -- | |
| -- | |
| -- | |
| Shovel capacity (m3) | 4.5 --6.87 |
| Shovel lifting height(mm) | 1095 |
| Spade depth (mm) | 540 |
| Max. tilt of shovel blade (mm) | 400 |
| Ripper Type | Single / Three Teeths |
| Ripper Weight(kg) | 1.8 |
| Ripper Depth(mm) | 570 |
| Max. Loosening Depth (mm) | |
| Looseners Lifting Height(mm) | 600 |
| Forward speed(km/h) | F1:0~3.29 |
| F2:0~5.82 | |
| F3:0~9.63 | |
| -- | |
| -- | |
| Rear speed(km/h) | R1:0~4.28 |
| R2:0~7.59 | |
| R3:0~12.53 | |
| -- |

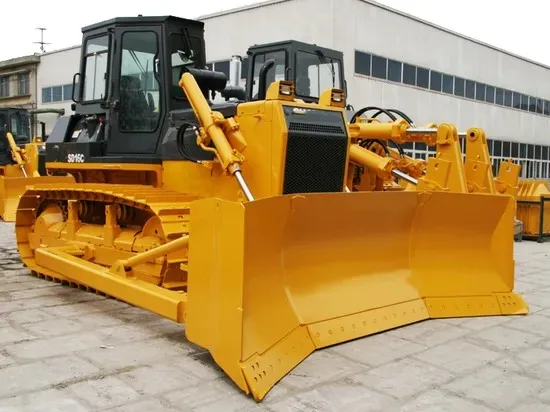

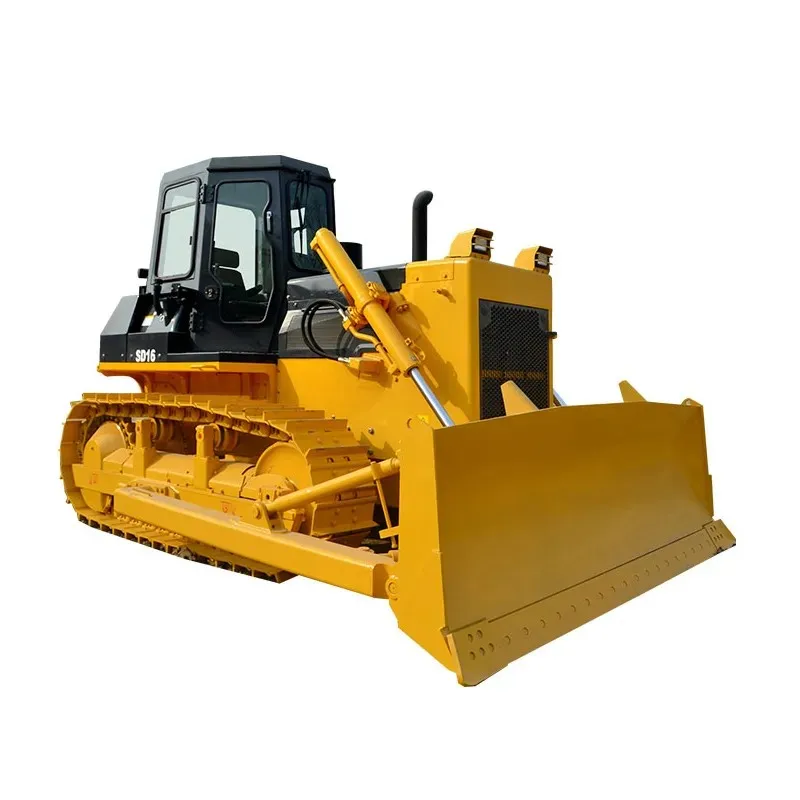

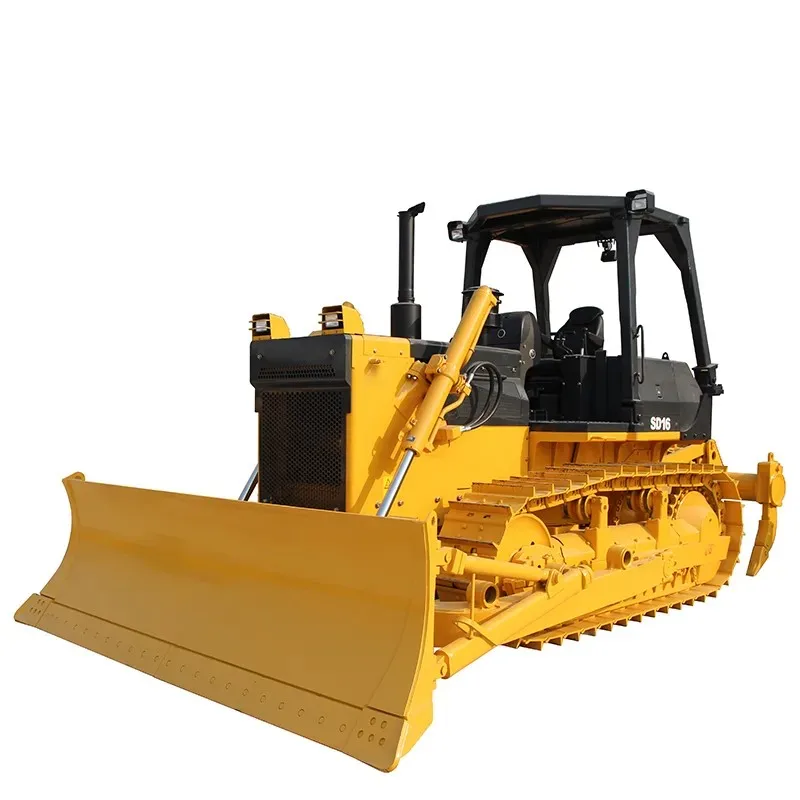

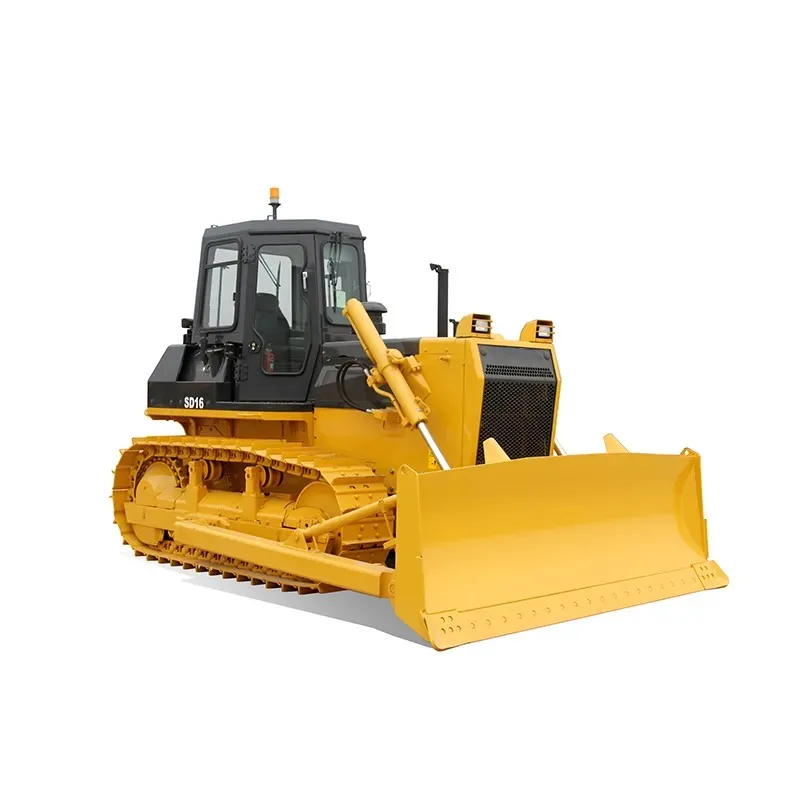

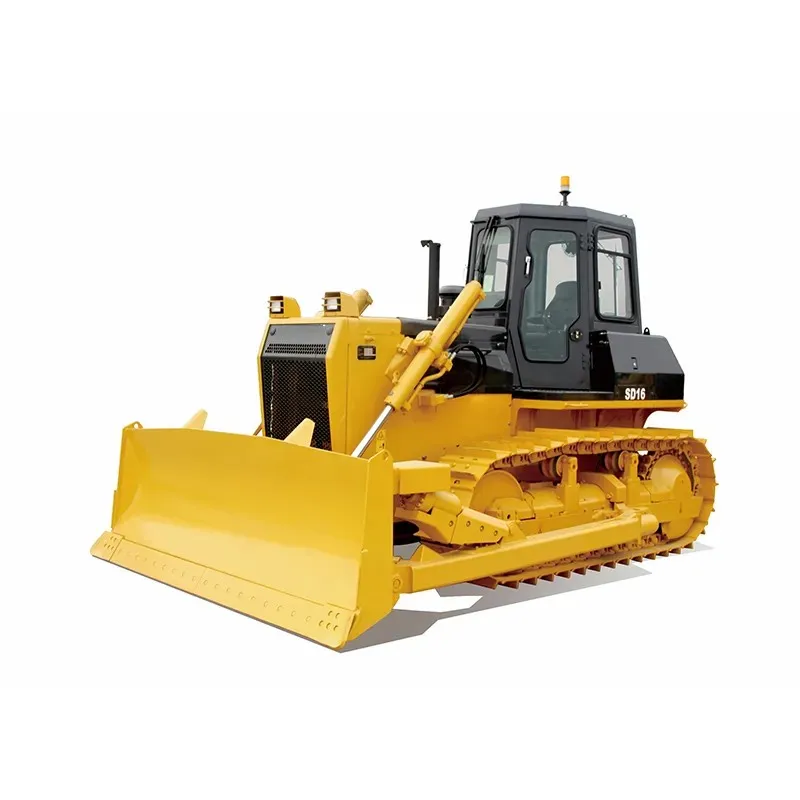

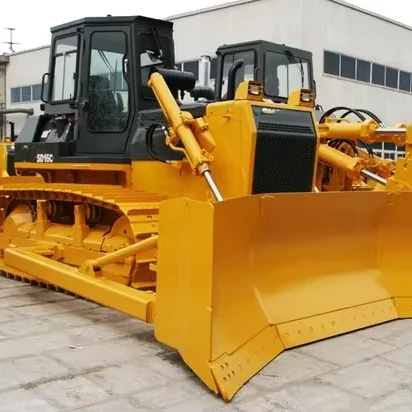

Product Picture
FAQ
Packaging & Shipping
1.Seaworthy Package with Plywood case/Pallet
2.Shipping with container ship and roller ship and bulk ship.
With Clients
We have clients from 30 more countries in Africa, South Amercia, Mid-east countries, Southern-East Asia Countries. we dealing all kind brand of trucks construction machinery.
After Sales Service
1. Reply your inquiry in 12 working hours;
2. 12years experienced staffs answer all your questions;
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of trucks and machinery with reasonable price;
5. Quality first, service first, price first.
