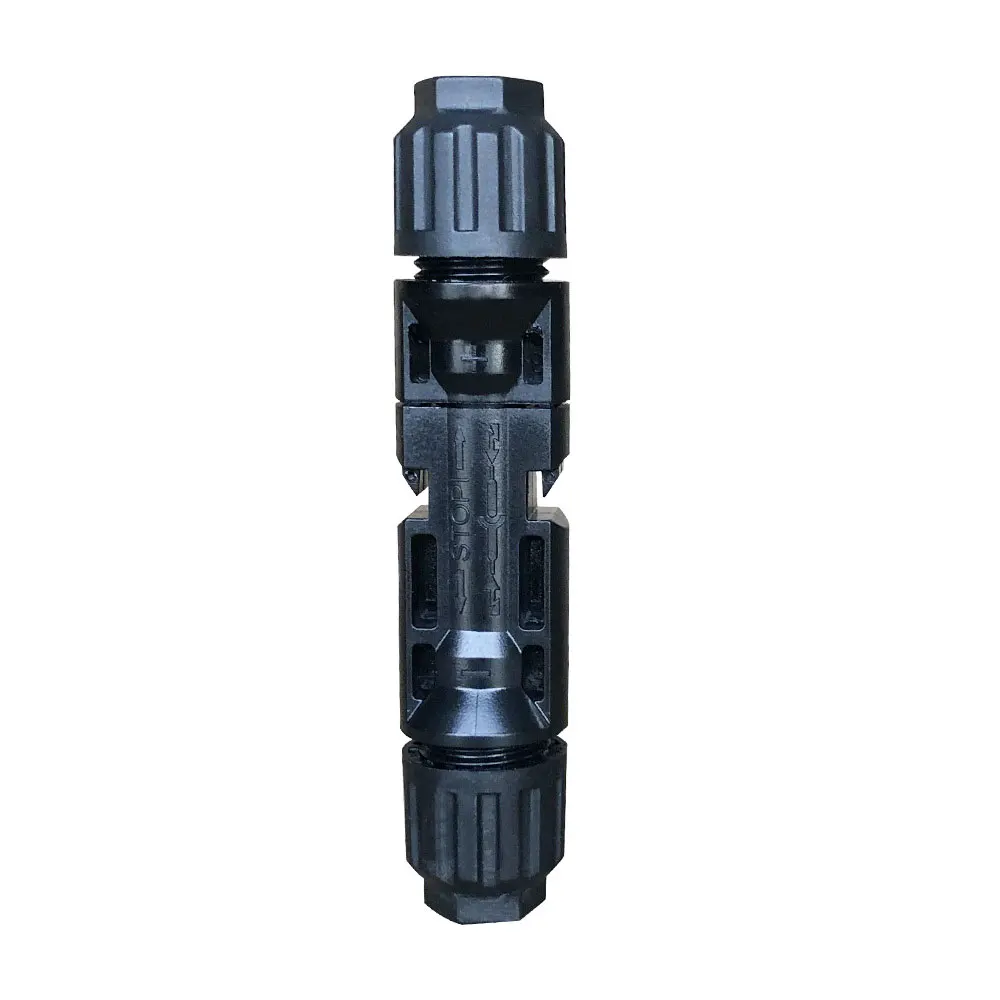

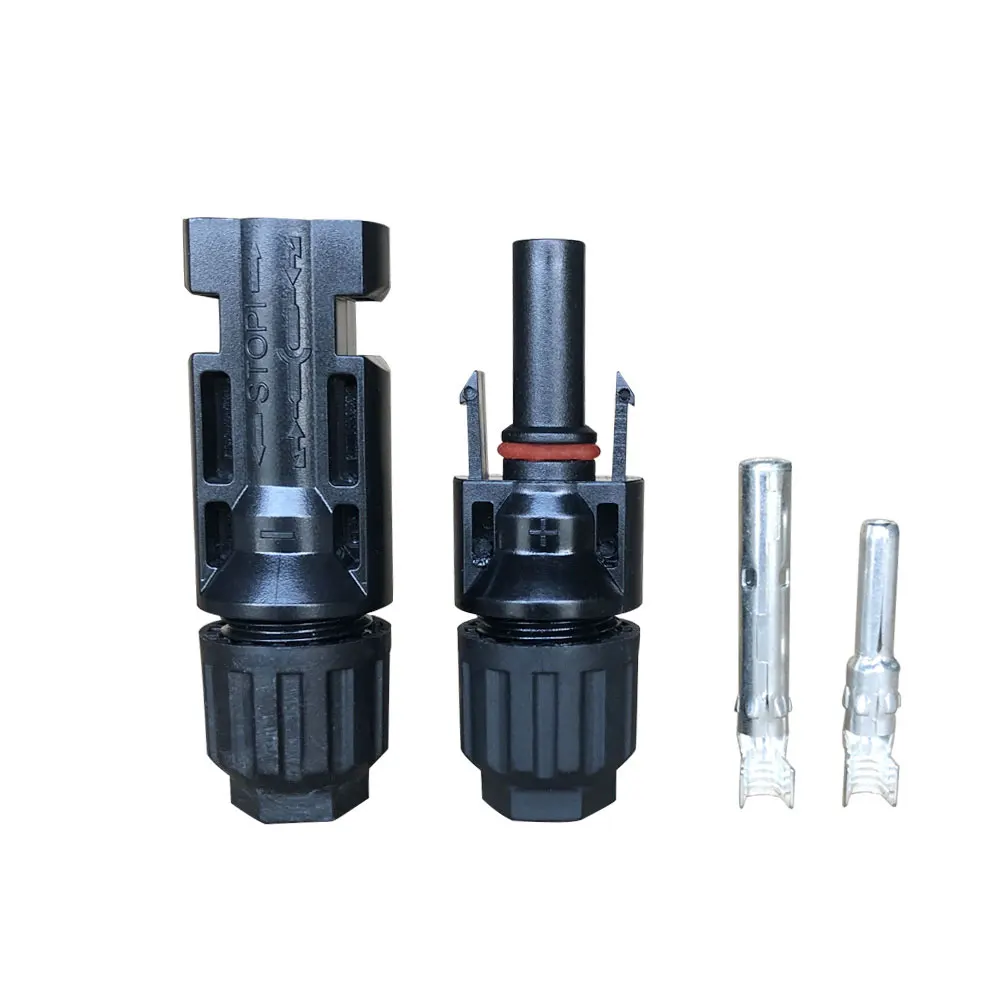

Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2
Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2
Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2
Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2
Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2
Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2
Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2

Solar PV Connector Mc and Spanner Solar Panel Connector used For 30A Solar Cable 6mm2 4mm2 2.5mm2

Share on (1601334659997):


Price:$0.24-0.30

Quantity:


Product Overview

Description


Products Description

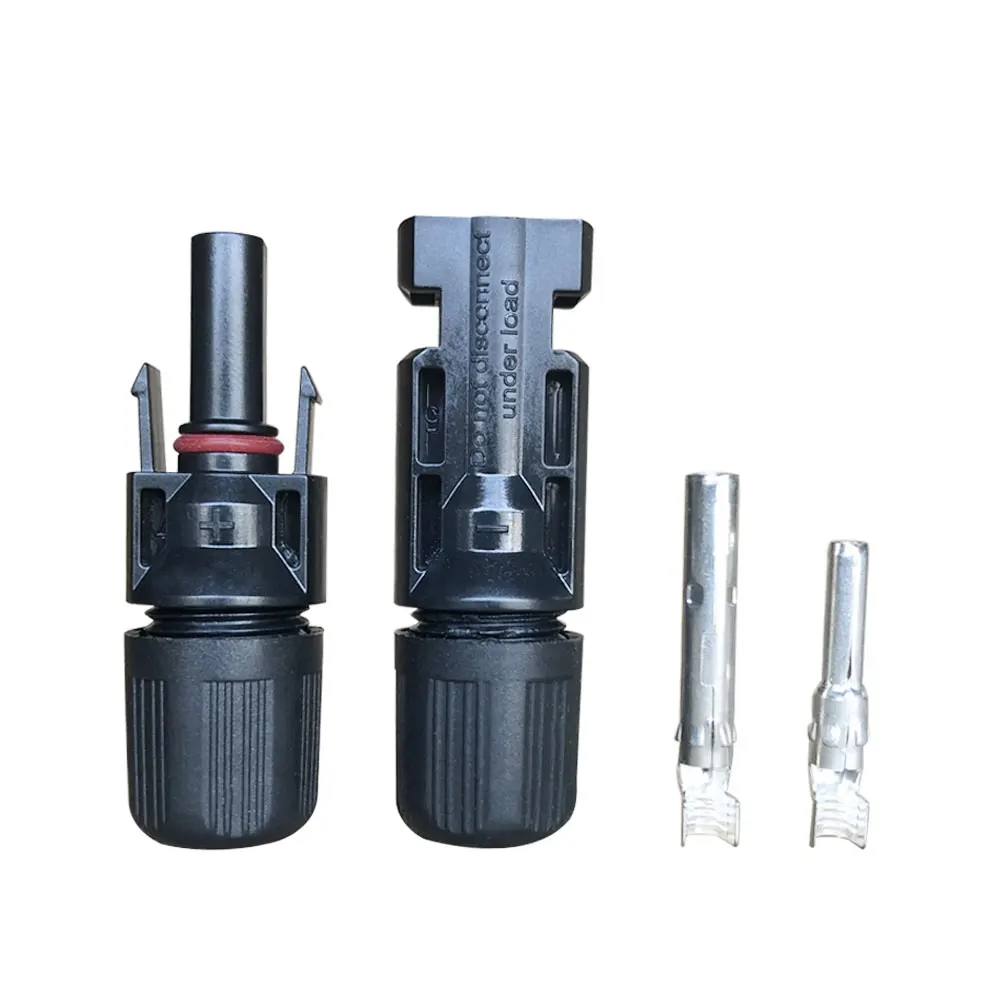

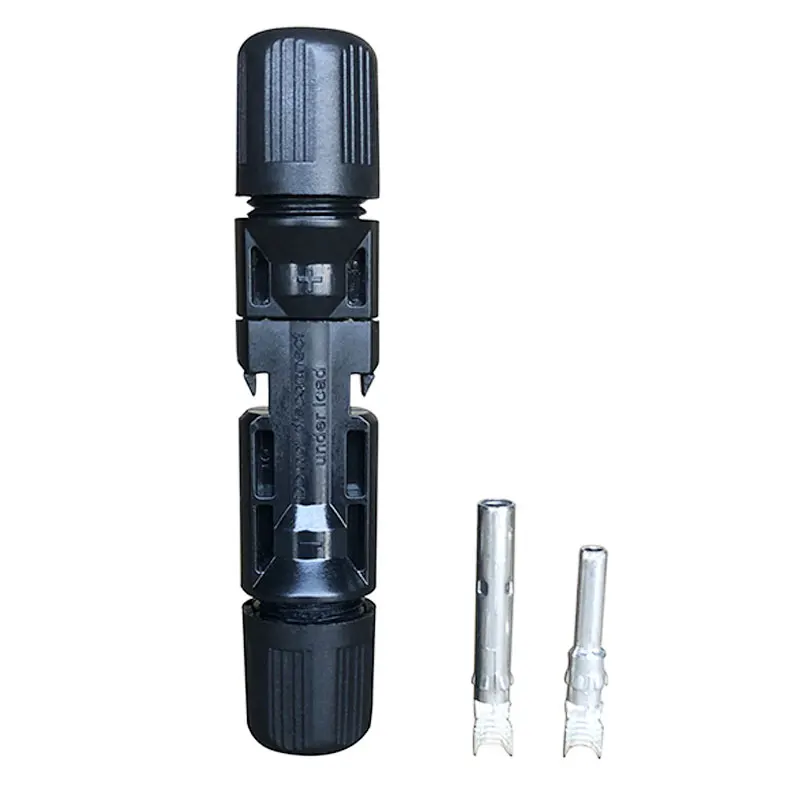

17A/22.5A/30A 1000V IP67 Solar Connector
This is our Solar connector integrating R&D, production and sales. It has IP68 protection level, UL94-VO flame resistance level, strong anti-aging, radiation resistance, high temperature resistance, low temperature resistance, excellent electrical conductivity, easy installation, and can be used for a long time. For outdoor use, it also has TUV, CE, RoHS, REACH, UKCA certification.
1. High quality PPO Material
2. T2 Copper Conductor
3. High-Strength Waterproof Ring
4. Stable Self-Locking Structure
5. Protection Class IP68
6. Strong Adaptability To The Environment
Key Features

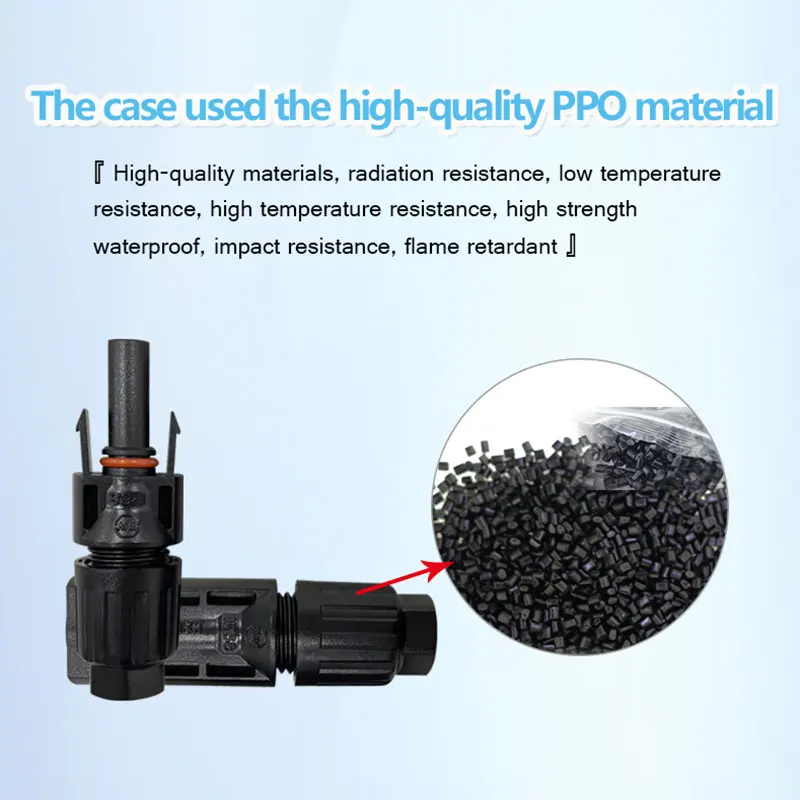

High Quality PPO Material
High-quality materials, high temperature resistance, low temperature resistance, high temperature resistance, high strength, impact resistance, flame retardant.

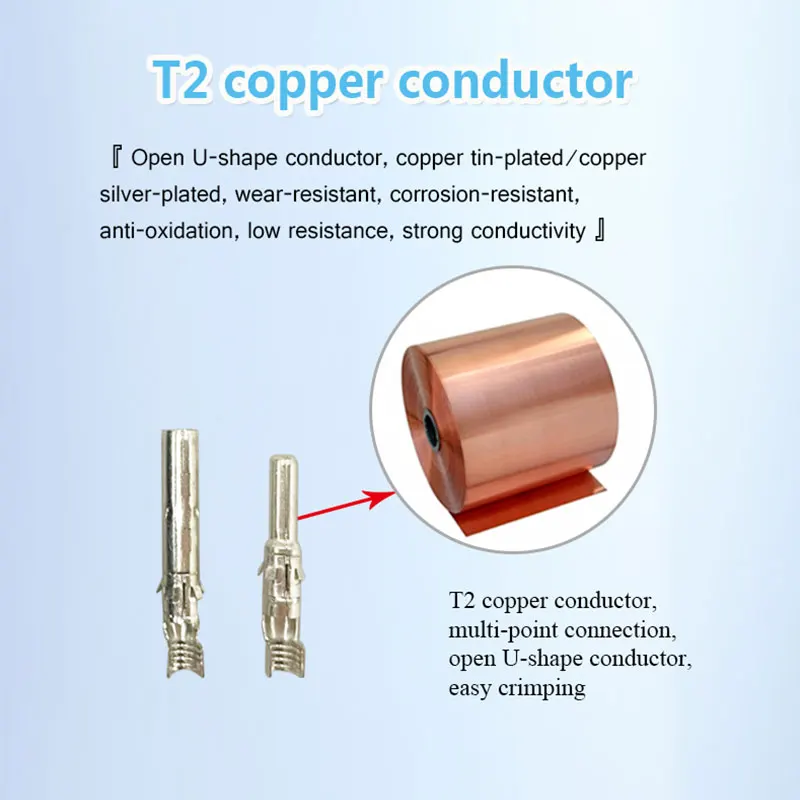

T2 Copper Conductor
Open-type inner core (O-shaped inner core is optional), tinned/silver-plated copper, wear-resistant, corrosion-resistant, prevent oxidation, low resistance and strong conductivity.

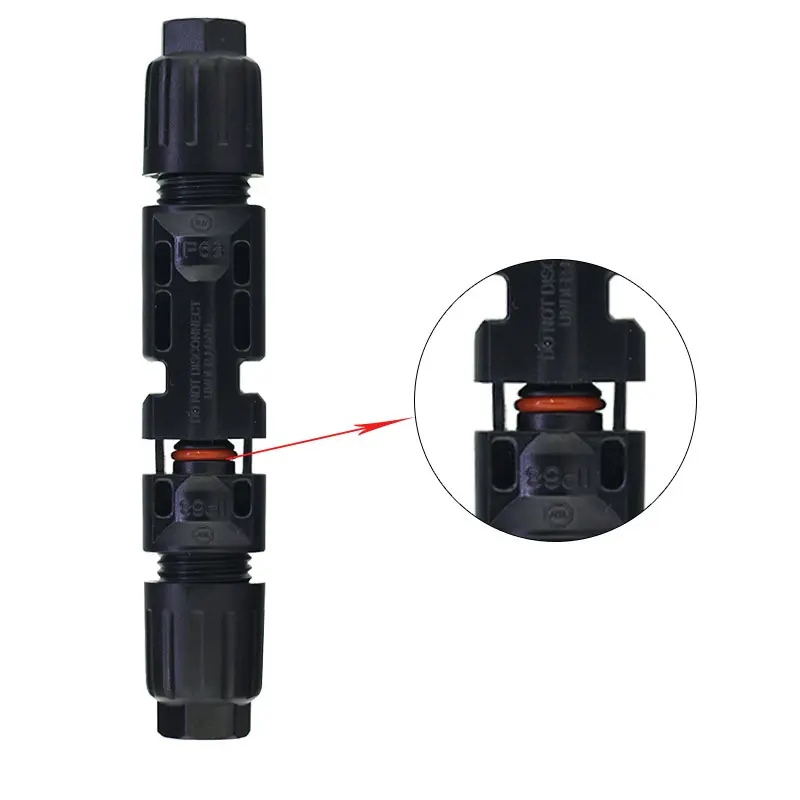

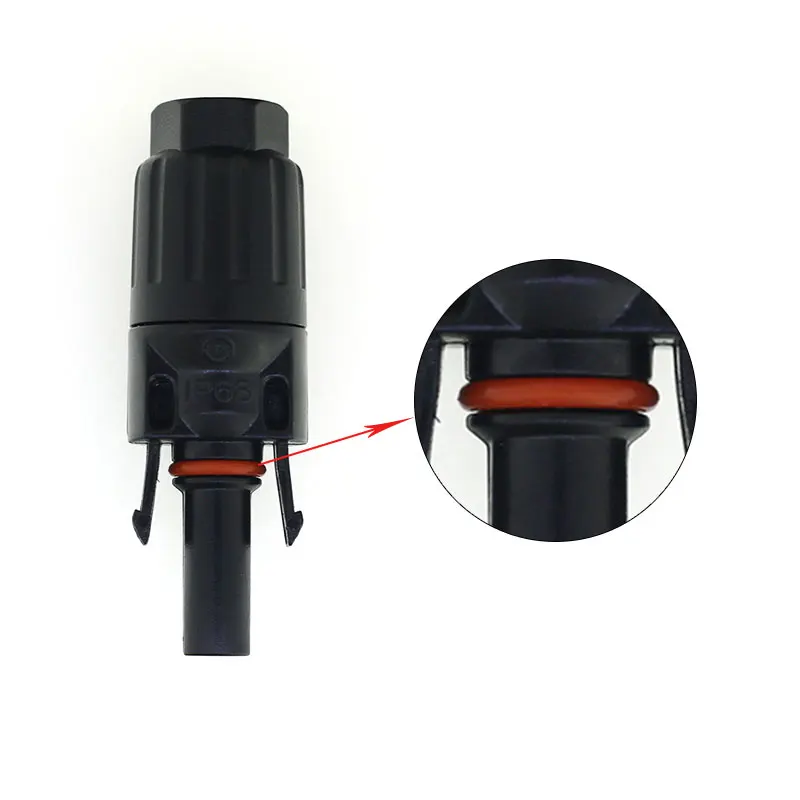

High Strength Waterproof Ring
The product adopts high-strength waterproof ring, insulating silicone, waterproof and dustproof, and the protection level is IP68.
Stable Self-locking Structure
The connection is connected by compression, and the male and female heads have a self-locking structure, which can be opened and closed freely.

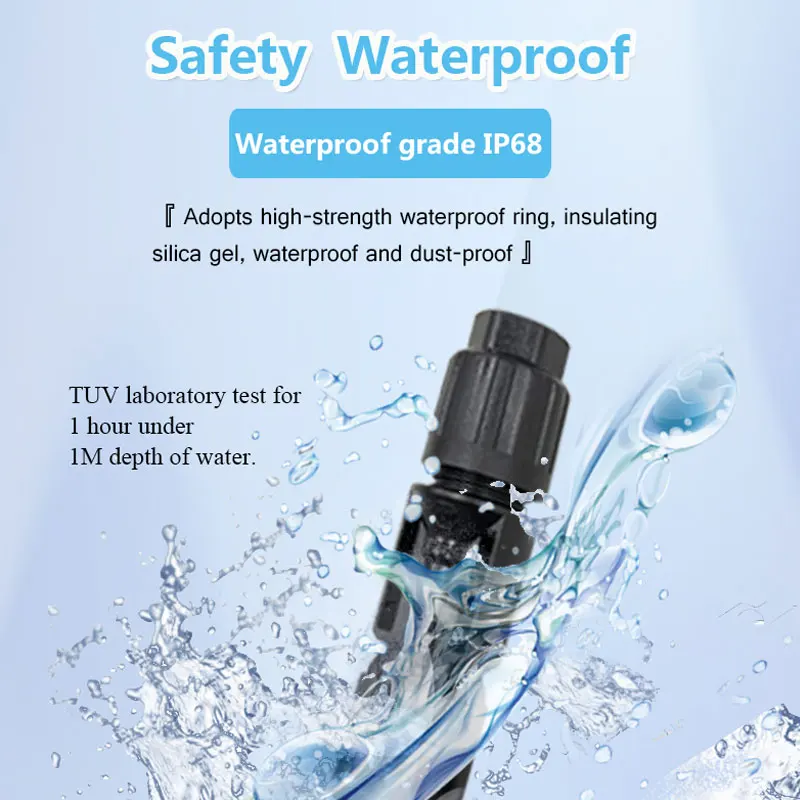

Protection Class IP68
The water depth is 1 meter, lasts for 1 hour, works normally (TUV laboratory test).
Adapt To The Environment
-40℃~+90℃ can be used, suitable for most working environments.

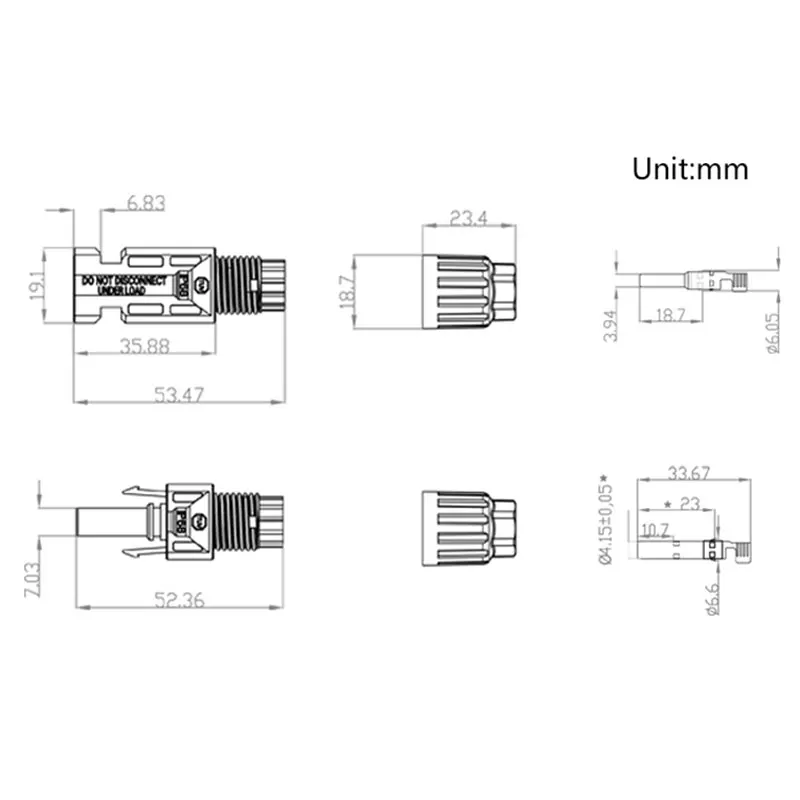

Specification



Model Number
PV-MC(PC)
Voltage
DC 1000V
Rated current
17A/22.5A/30A
Insulation material
PP0
Contact material
copper tin-plated
Waterproof
IP68
Ambient Temperature
-20℃~+40℃
Product Temperature
-20℃~+60℃
Wiring specification
2.5mm²/4mm²/6mm²
Contact resistance
≤0.35mΩ
Incineration level
UL94-V2
Box size
48*38*35cm(1000set)
Box Gauge Weight
21KG

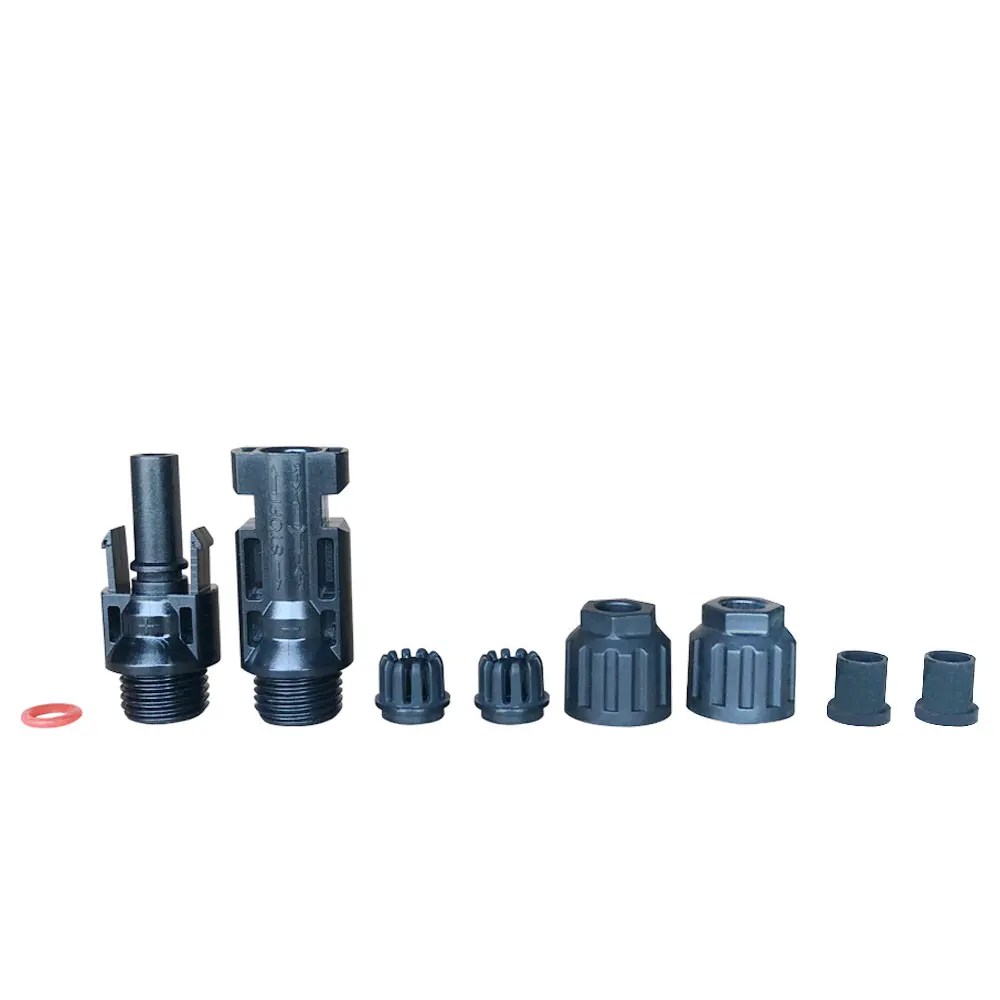

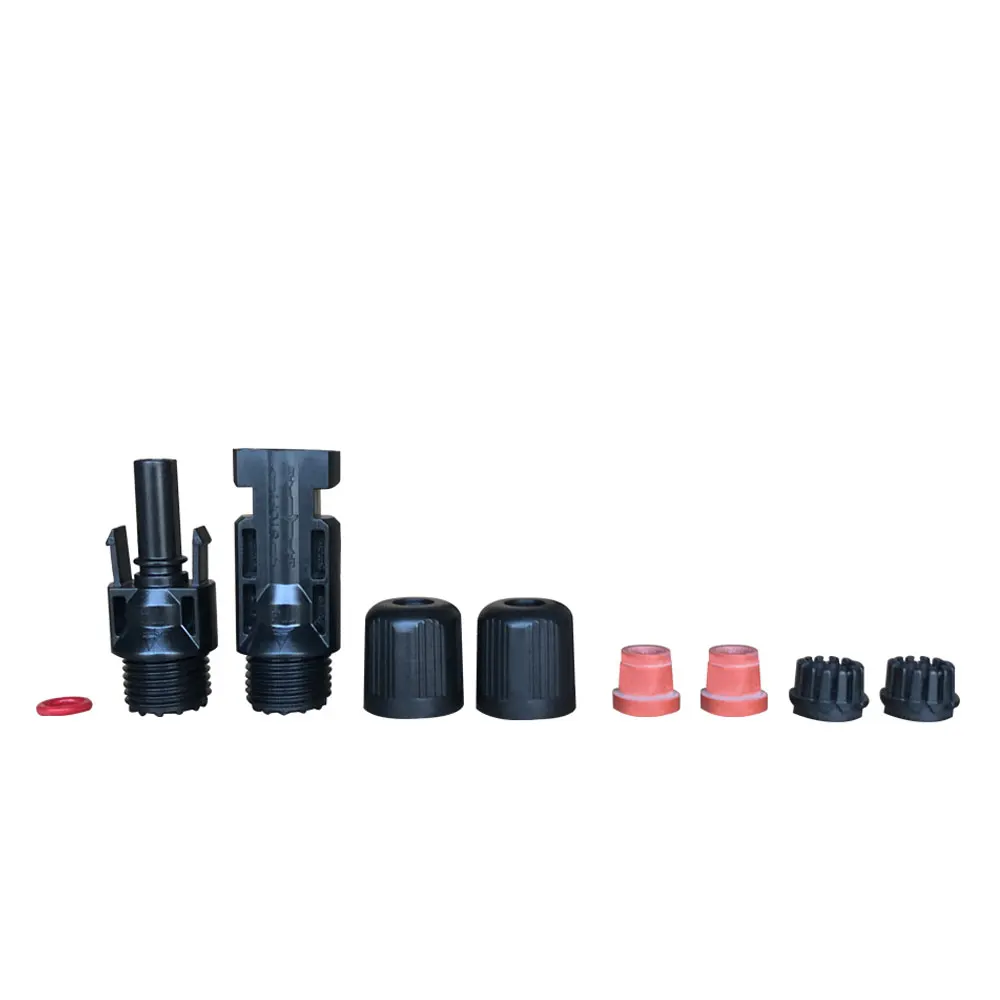

Product List

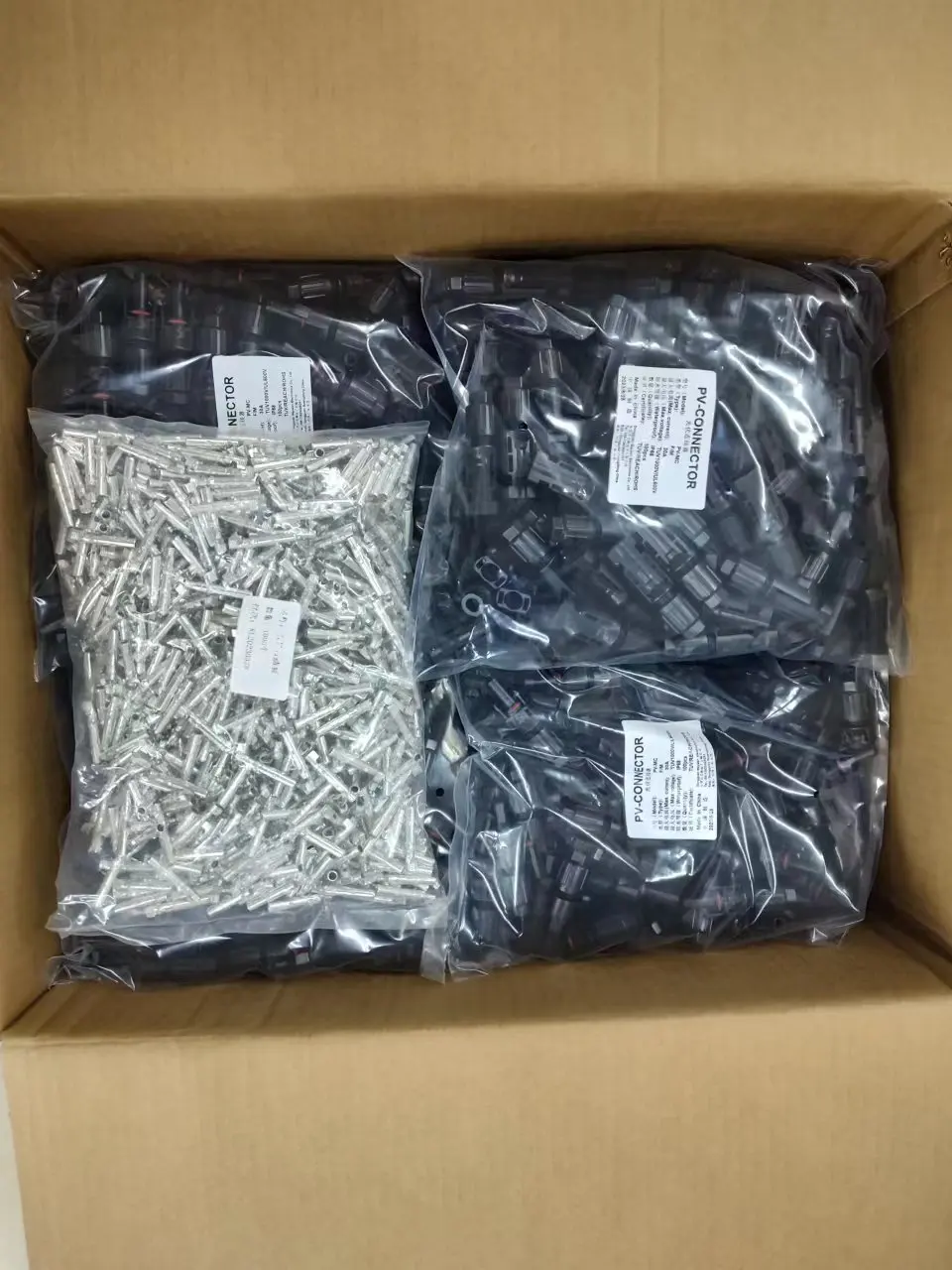

Package Content
A box of 1000 sets of Solar connectors 1.100 male/100 female per pack
2.1000 sets of car parts terminals/stamping parts terminals
3.The packaging can be changed according to customer needs, please contact customer service for details.

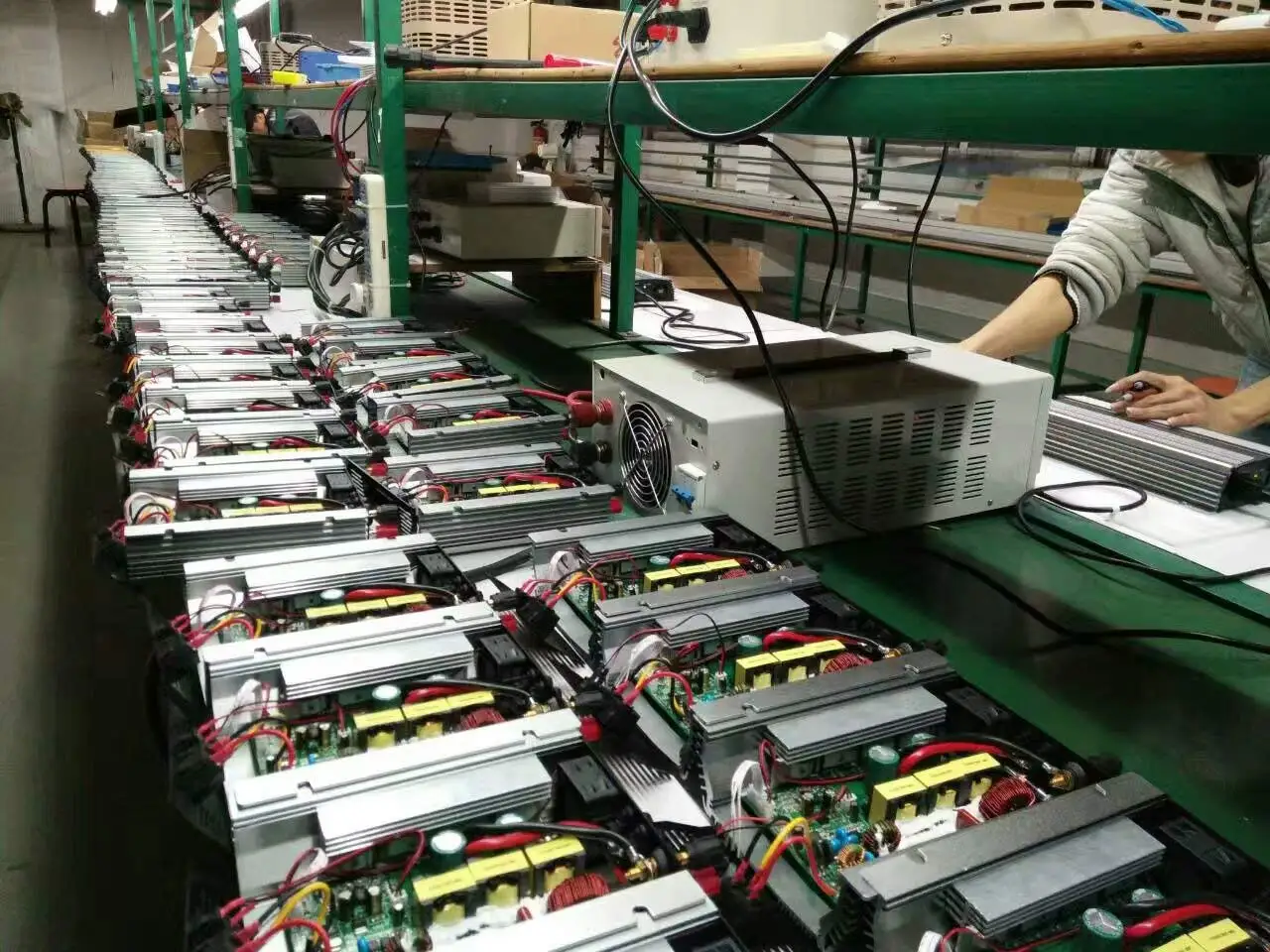

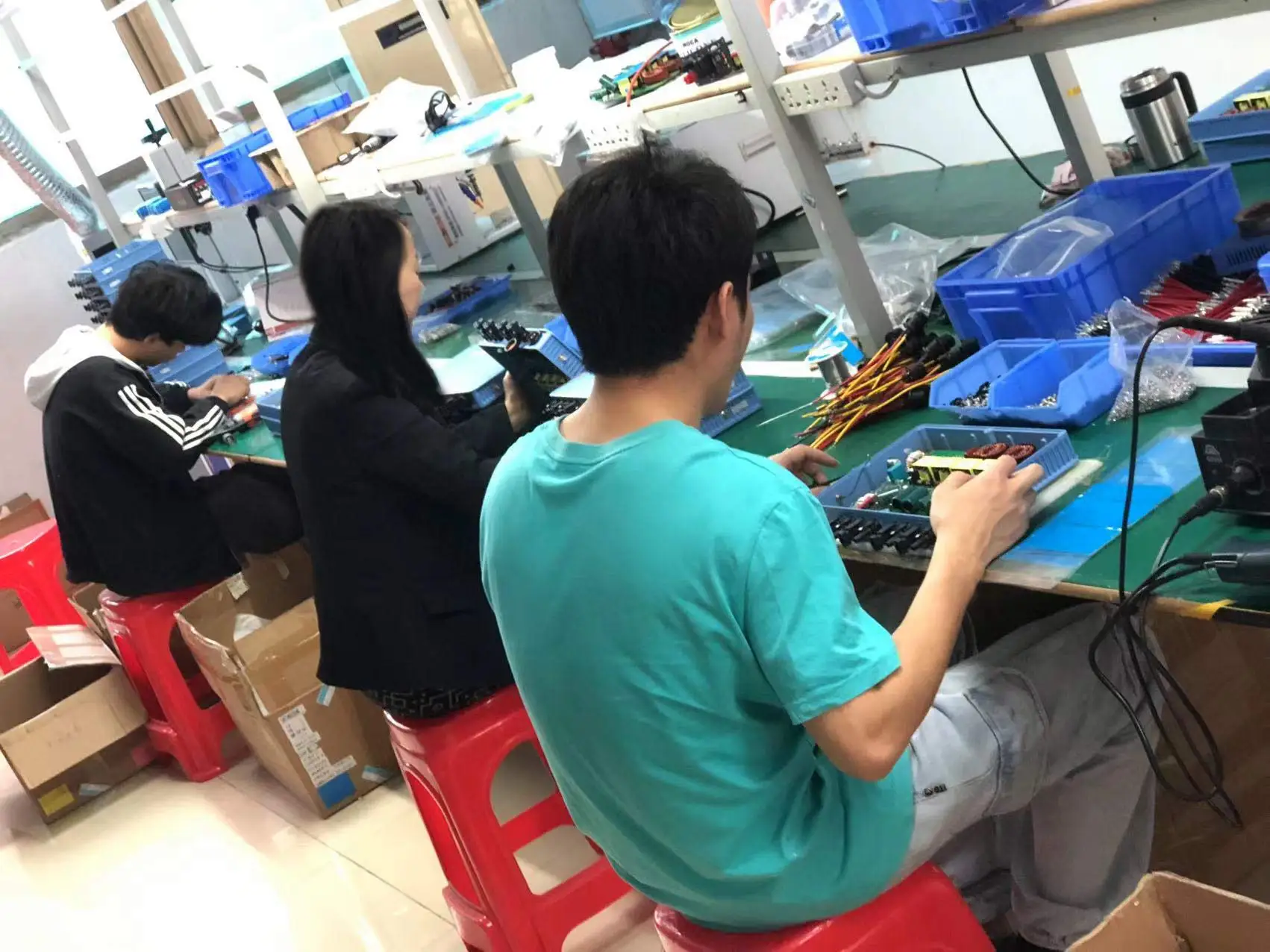

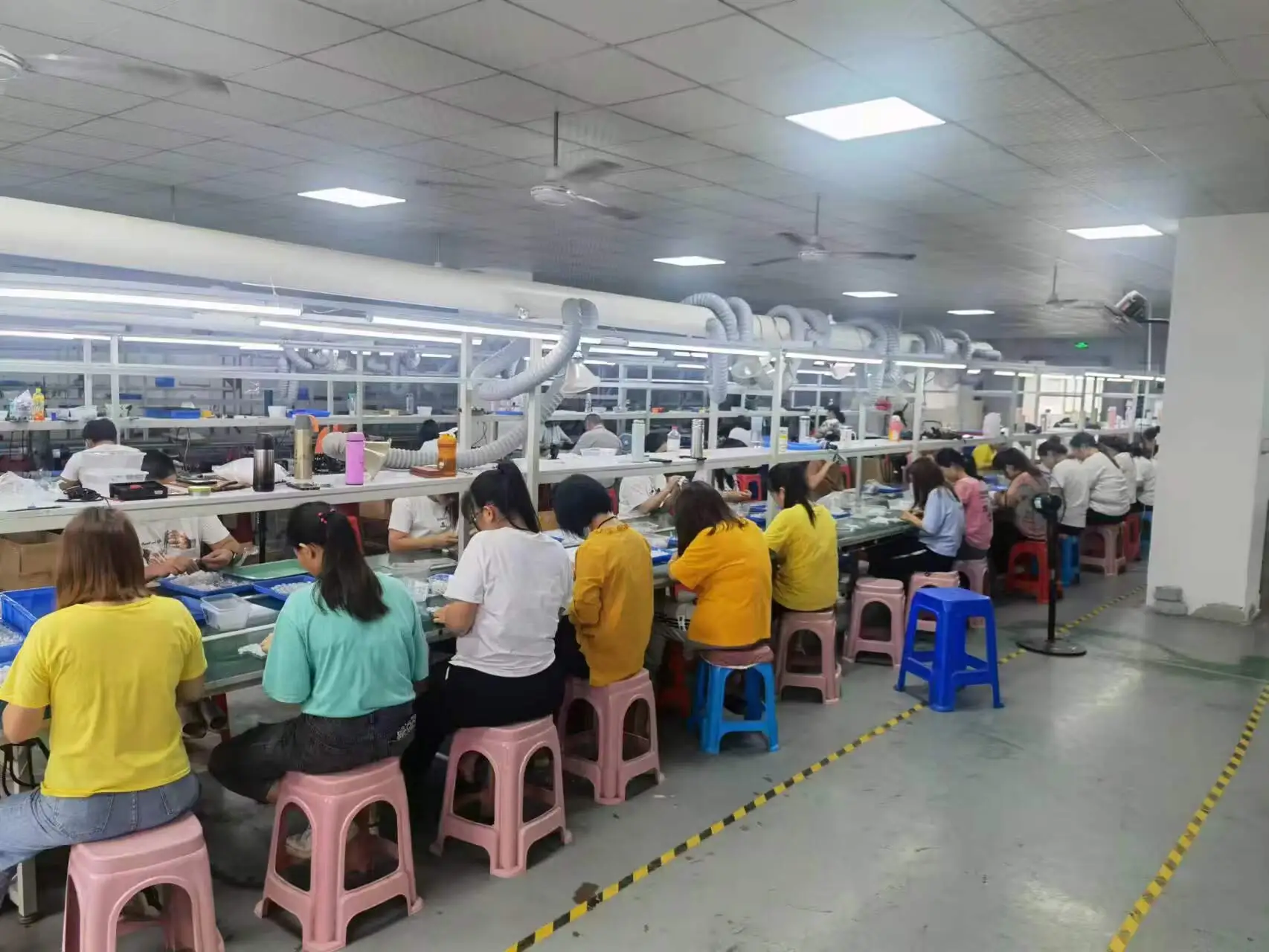

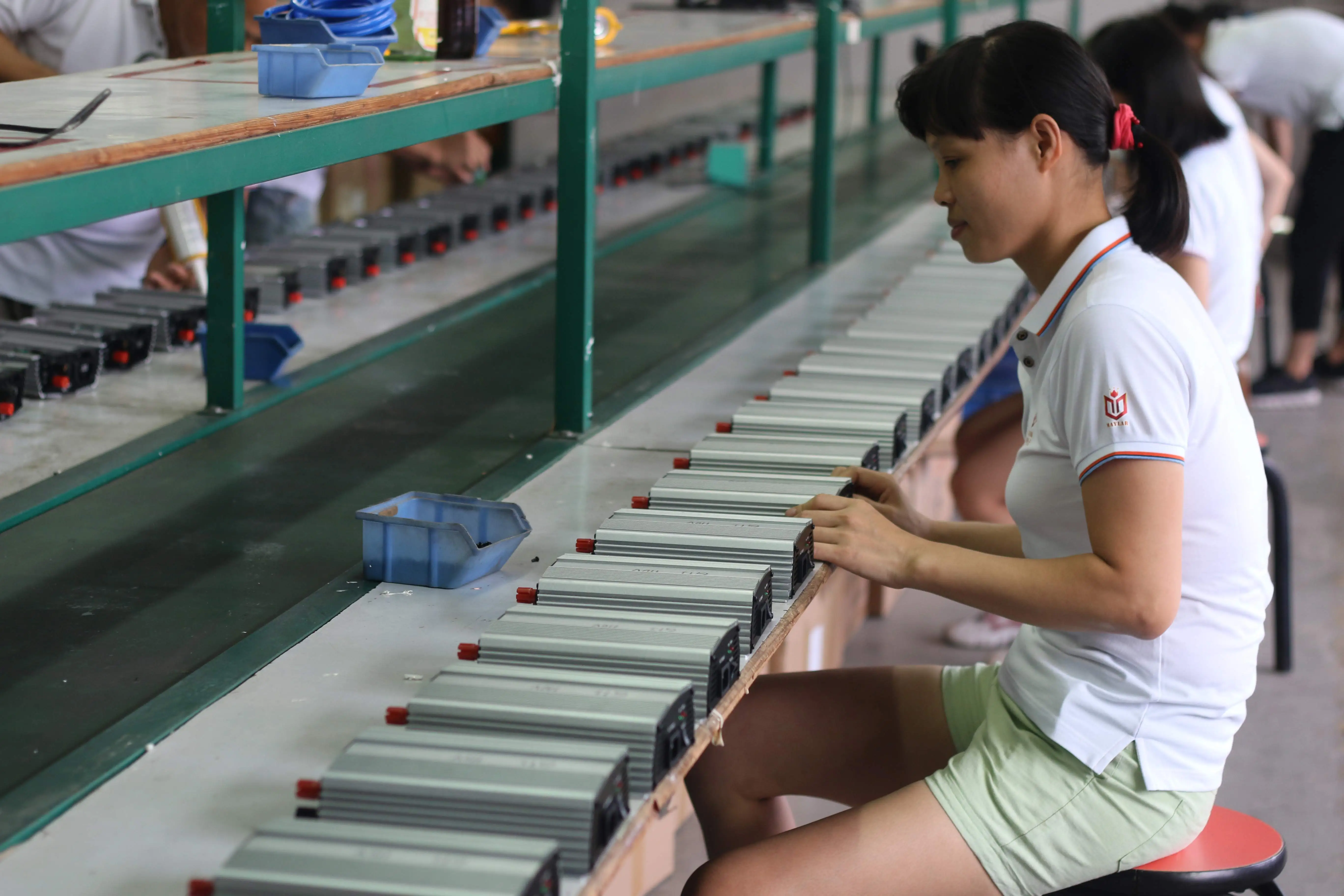

Company Profile



Willone. was established in 2010. It's a new science and technology enterprise which focus on photovoltaic energy. Willone integrating research& development, production and sales in simultaneously; And at the same time it continuous innovate application technology and products and achieved significant results. Willone main products have solar micro-inverter, solar connectors, solar cable and solar related solar products. And solar inverter and solar connector got a number of patented technology and international certification (including TUV, CE, ROHS, REACH ,UKCA). Good market forward-looking, excellent product quality and best after-sales service help us get the recognition of the majority customers at home and abroad friends. We believe that "people-oriented,quality based on"will makes Willone and all the customers on the way to the bright future.
Our Service



We are good at OEM/ODM project! Welcome to contact us for the below services:
1. Custom Logo on the Product
2. Custom Professional Packaging and User Manual
3. Provide Barcode Stickers
4. Provide High- Definition Photograph Service for your Website
5. Provide DDP Shipping Service to Amazon FBA
6. Provide Droppshiping Service

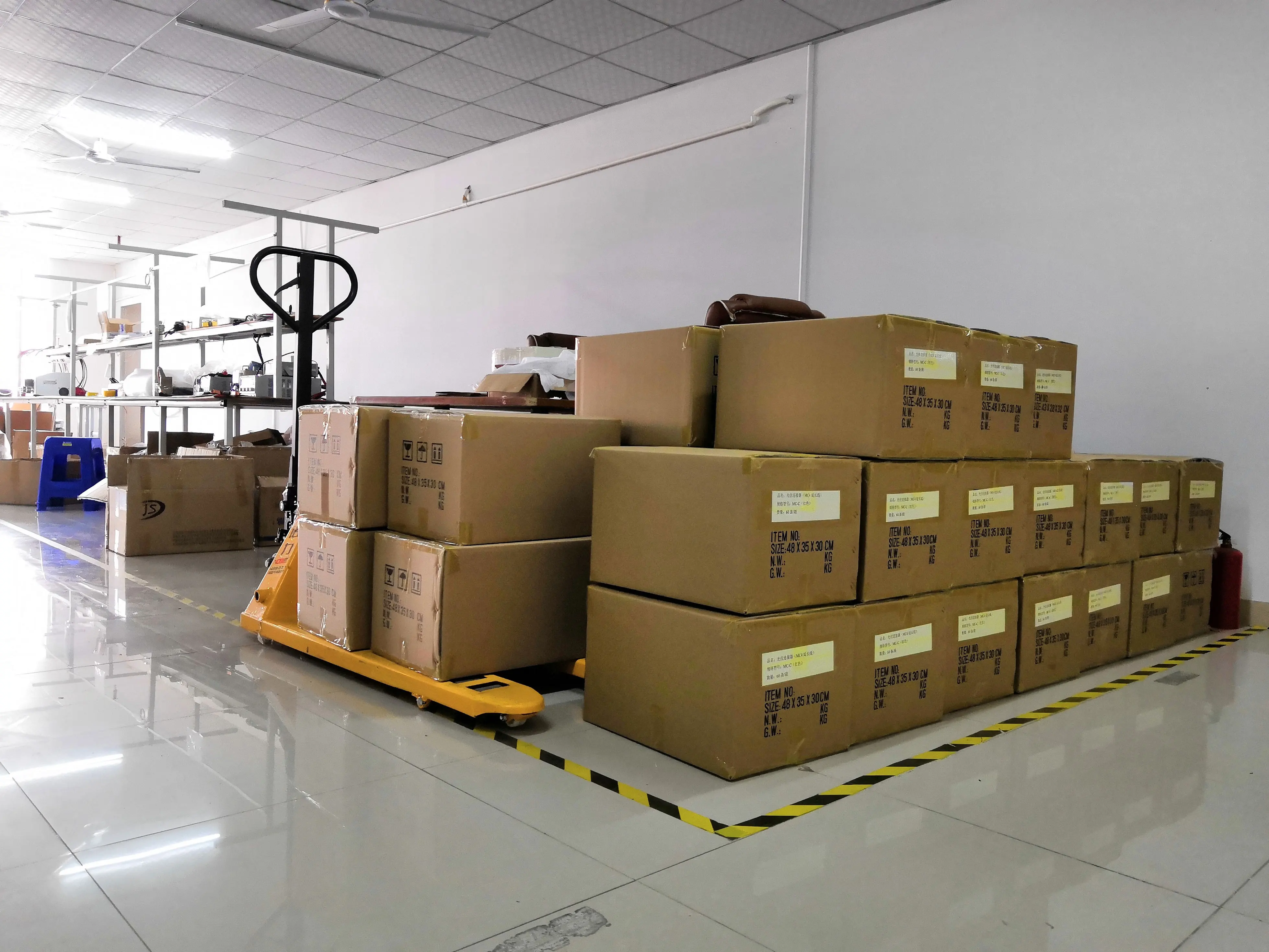

Product packaging



Choose The Most Suitable Packaging And Transportation
We will choose the best packing and transportation mode according to the product characteristics and your requirements.
FAQ



1.When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
2.Can I get a sample for test before place order?
A:Of course!
3.How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
4 What's your shipment method?
A: We ship by Express, by air, by sea, by train.
5. If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
6. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
7.what can you buy from us?
solar connector,PV connector,solar cable connector,solar PV cable,micro inverter
8. why should you buy from us not from other suppliers?
Willone, focusing on the new energy products. We have more more than 10years experience for solar PV connectors and micro inverters with high quality.
9. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery.
