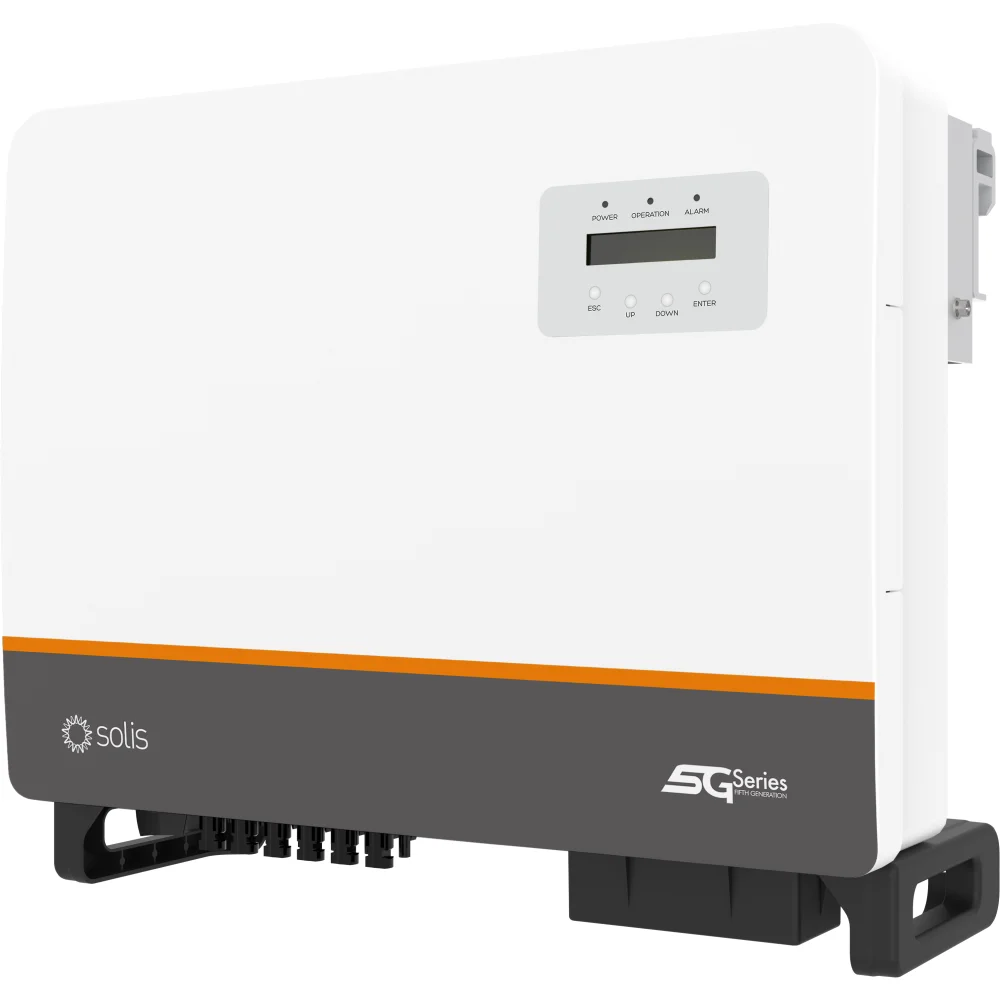

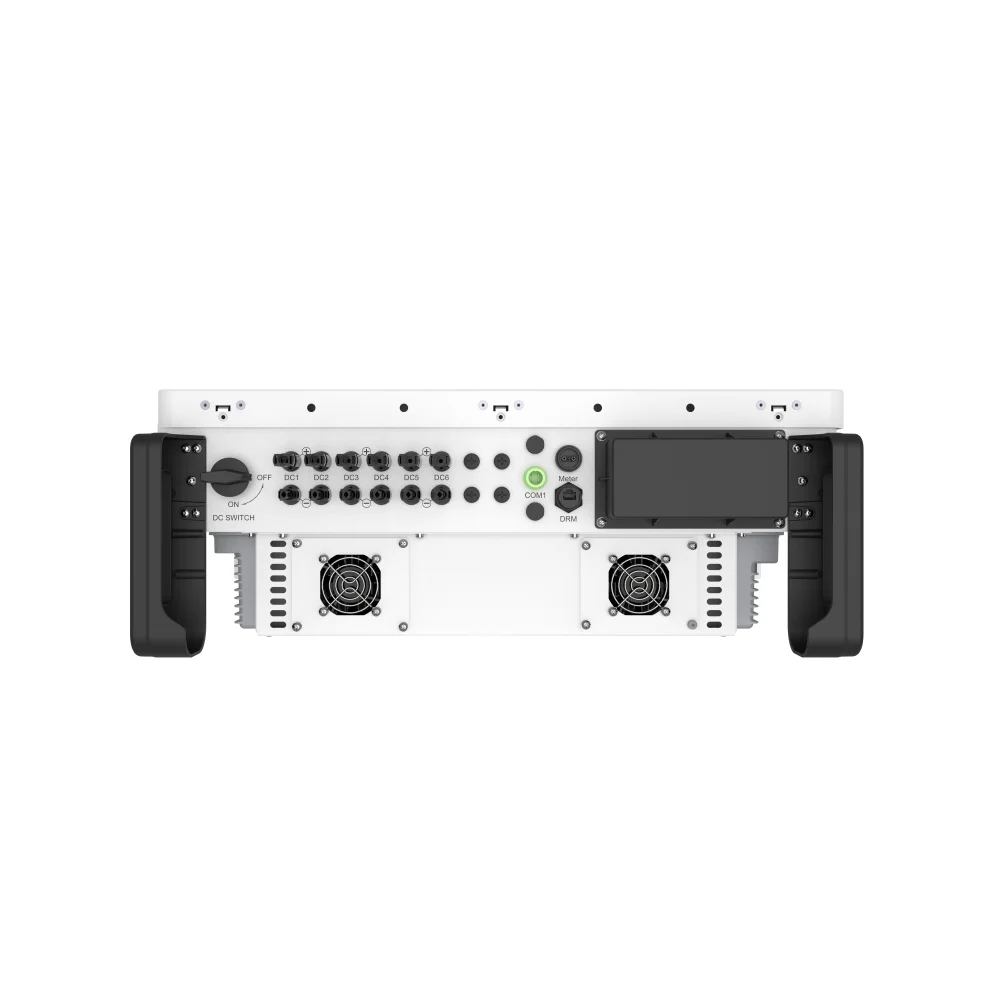

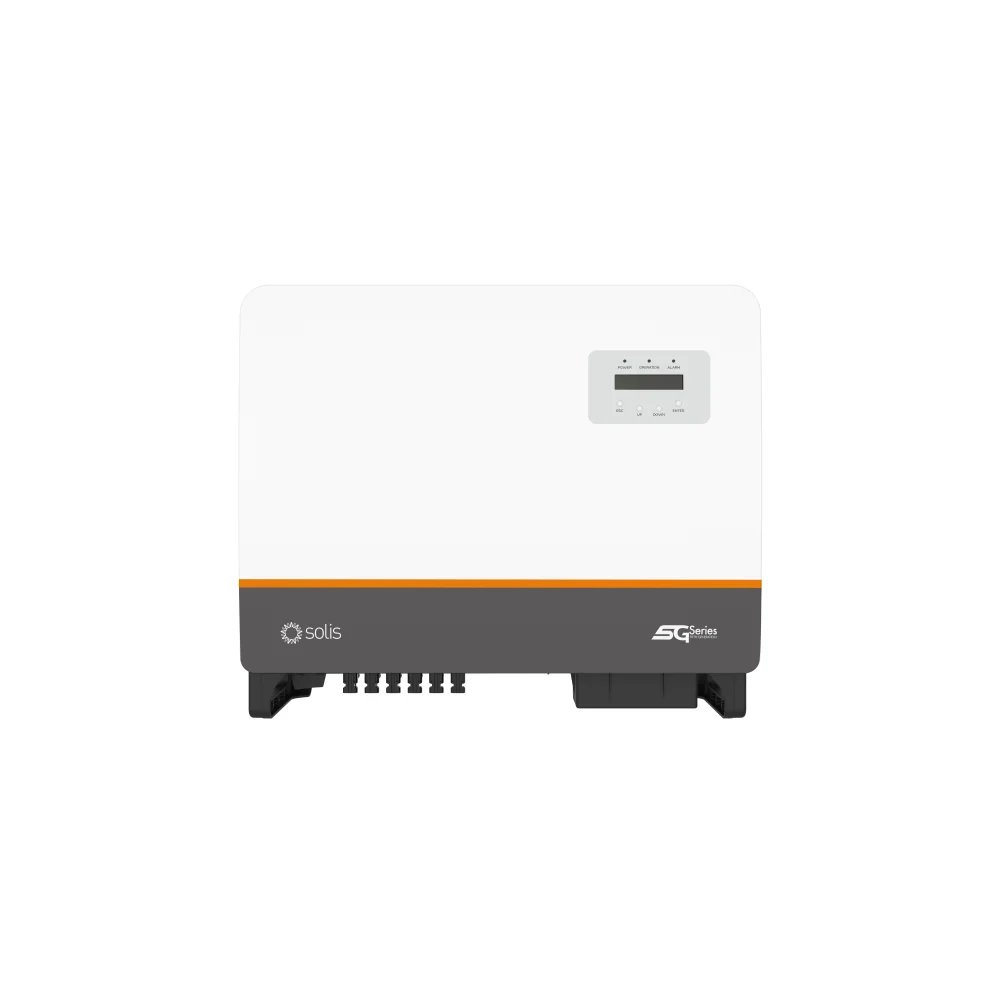

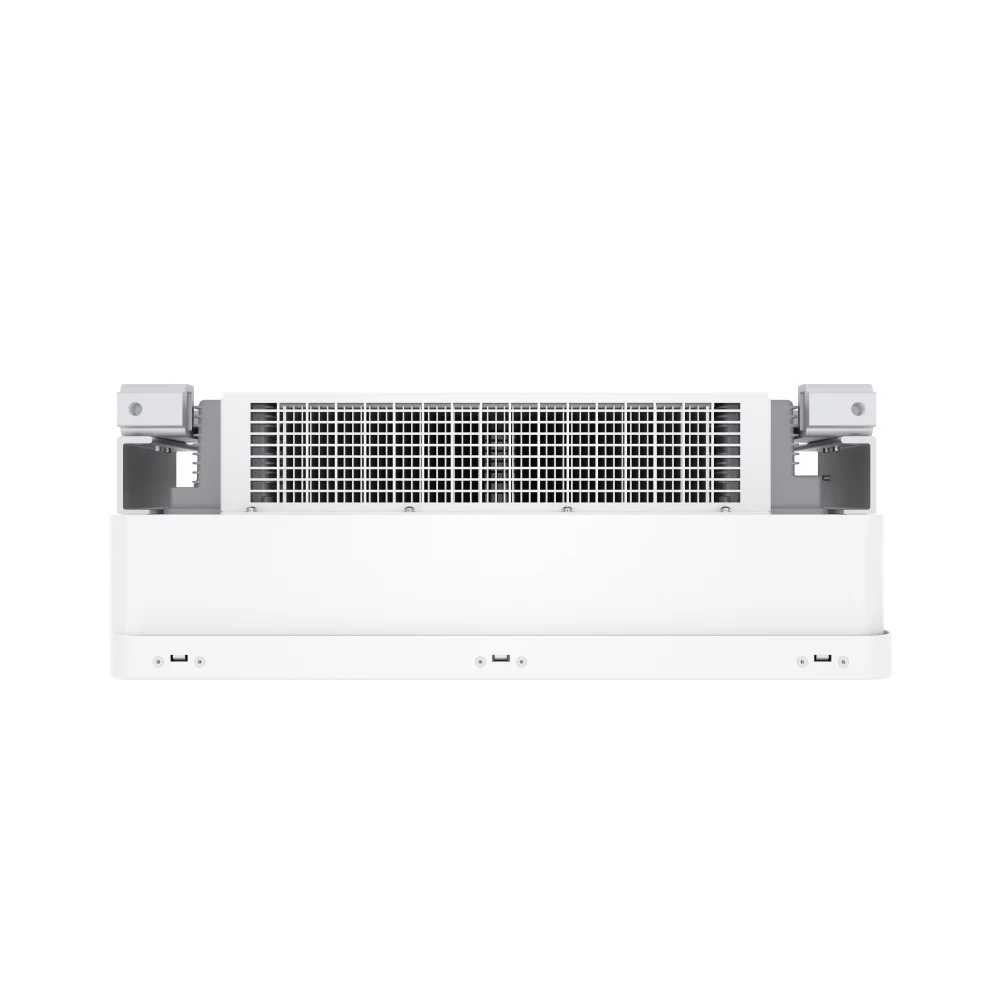

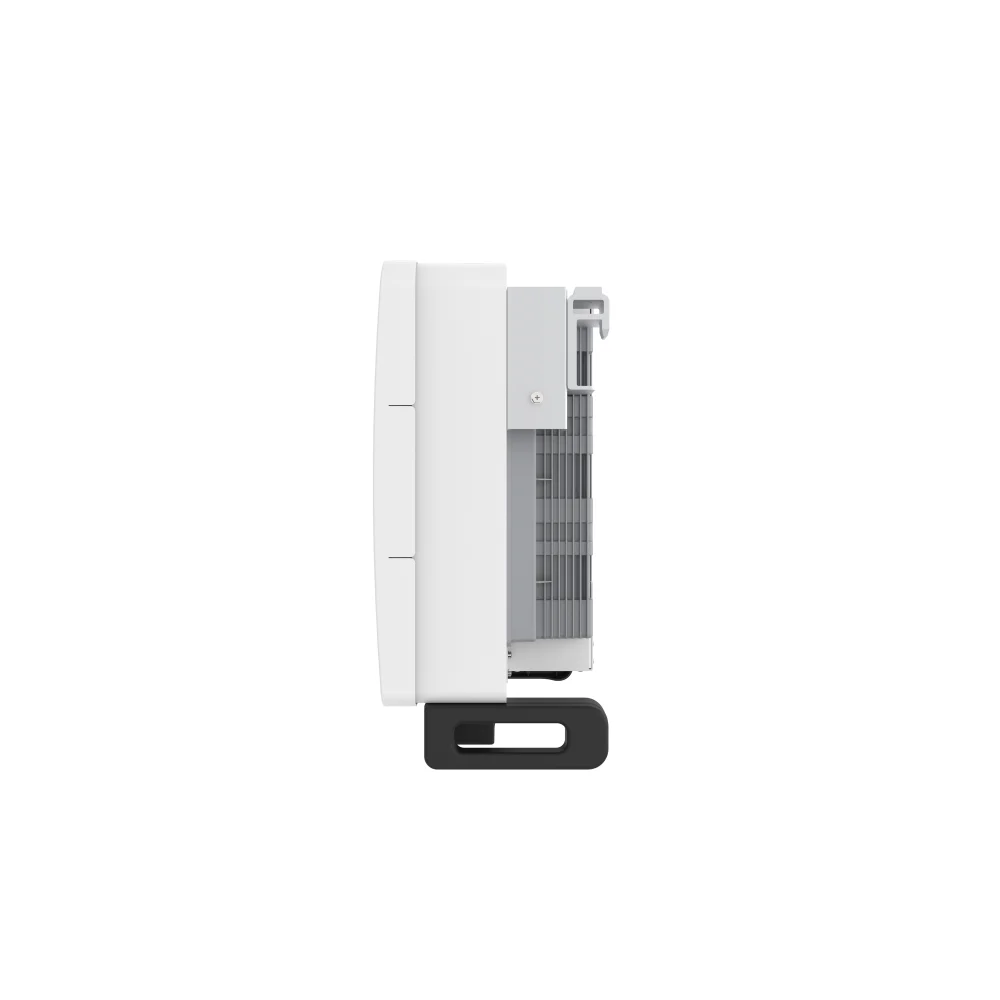

25KW 30KW 40KW Three Phase Grid Tied Inverters S5 GC(25 40)K On Grid Solar Inverter
- Category: >>>
- Supplier: Nanjing C&D Clean Energy Co. Ltd.Nanjing Ltd.
Share on (1601334672802):
Product Overview
Description
Product Paramenters
Products Description
Max. input voltage | 1100 V | |||||||||
Rated voltage | 600 V | |||||||||
Start-up voltage | 180 V | |||||||||
MPPT voltage range | 200-1000 V | |||||||||
Max. input current | 32 A / 32 A / 32 A | 4*32 A | ||||||||
Max. short circuit current | 40 A / 40 A / 40 A | 4*40 A | ||||||||
MPPT number/Max. input strings number | 3/6 | 4/8 | ||||||||
Output AC | ||||||||||
Rated output power | 25 kW | 30 kW | 33 kW | 36 kW | 40 kW | |||||
Max. apparent output power | 27.5 kVA | 33 kVA | 36.3 kVA | 39.6 kVA | 44 kVA | |||||
Max. output power | 27.5 kW | 33 kW | 36.3 kW | 39.6 kW | 44 kW | |||||
Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | |||||||||
Rated grid frequency | 50 Hz / 60 Hz | |||||||||
Rated grid output current | 38.0 A / 36.1 A | 45.6 A / 43.3 A | 50.1 A / 47.6 A | 54.7 A / 52.0 A | 60.8 A / 57.7 A | |||||
Max. output current | 41.8 A | 50.2 A | 55.1 A | 60.2 A | 66.9 A | |||||
Power factor | >0.99 (0.8 leading - 0.8 lagging) | |||||||||
THDi | <3% | |||||||||
Max. output current | 41.8 A | 50.2 A | 55.1 A | 60.2 A | 66.9 A | |||||
Power factor | >0.99 (0.8 leading - 0.8 lagging) | |||||||||
THDi | <3% | |||||||||
Company Profile
Nanjing C&D Clean Energy Co., Ltd. established in 2 0 2 1, is a leading clean energy supply chain serviceprovider under C&D Inc., a subsidiary of C&D Group, a Fortune Global 5 0 0 company. Specializing inclean energy, particularly solar photovoltaics, we are committed to creating new value for a bettelworld. Our operations span various sectors, including global trade of products and equipment, aswell as the investment, development, and operation of renewable energy projects. We also providevalue-added services by integrating and optimizing supply chains and industry operations.
With strong partnerships with renowned global solar brands such as Canadian Solar, Longi SolarTongwei Solar, Solis, Huawei, Sungrow, Kstar, and others, our business extends across key internationamarkets, including Europe, North America, and Southeast Asia. We have established critical logisticshubs in the Netherlands, Germany, the United Arab Emirates, Turkey, the United States, Pakistan, andother countries, ensuring the efficient and timely delivery of products to customers worldwide.
Q1.Can I get a sample?
Yes, you can.
Q2.Can l use my own logo or design on the product?
Q3.Do you have a factory?
Q4.Do you have warehouses in Europe and America?
Q5.When will the shipment be made?
Yes, you can.
Q2.Can l use my own logo or design on the product?
Yes, we offer OEM/ODM services; your logo and design can be produced on theproduct.lt depends on quantity.
Q3.Do you have a factory?
No,we are a professional and large-scale wholesale distributor that aggregateshigh-quality products from leading PV brands.
Q4.Do you have warehouses in Europe and America?
Yes, we have multiple warehouses in Europe and the United States, which canprovide you with fast logistics services.
Q5.When will the shipment be made?
All our products are in stock and will be shipped within 5 days. We can deliver 2,000pieces within 7 days.
