Waste Oil Industry Filter Press Oil Press Machine for Sunflower Coconut Palm Oil
- Category: >>>
- Supplier: Henan Remont I/E Co. Ltd.Henan Ltd.
Share on (1601334700366):
Product Overview
Description
Product Description
General introduction of Oil Industry Filter Press Oil Press Machine
| Item Name | Hydraulic membrane filter press equipment | Filter cloth material | cotton, dacron, nylon, polyester fibers, etc |
| Plate Type | Chamber, plate frame, membrane, etc | Operation | Manual, semi-automatic, fully automatic |
| Plate Material | PP, cast iron, rubber | Plate Size | 320, 450,630,800,1000, 1250, 2000mm |
| Frame Material | Q235 carbon steel | Max. Filter Area | 2000m2 |
Detailes of Product
Detailed parts of Oil Industry Filter Press Oil Press Machine

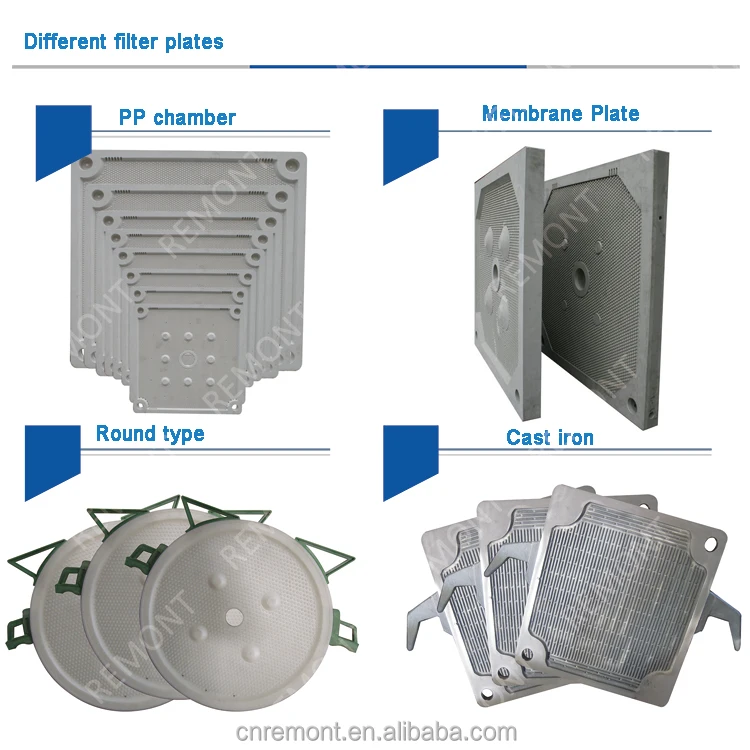

Filter plate
- Function: to install filtering medium and ensure filter press can filter normally work at rated pressure;
- Material: New reinforced polypropylene material;
- Working (filtering/ blowing) pressure and temperature: customized based on your requirements;
- Handles: wear-resisting FRPP, the handle is together with briquette;
- Feeding: central feeding;
- Discharge: close discharge and cake washable.

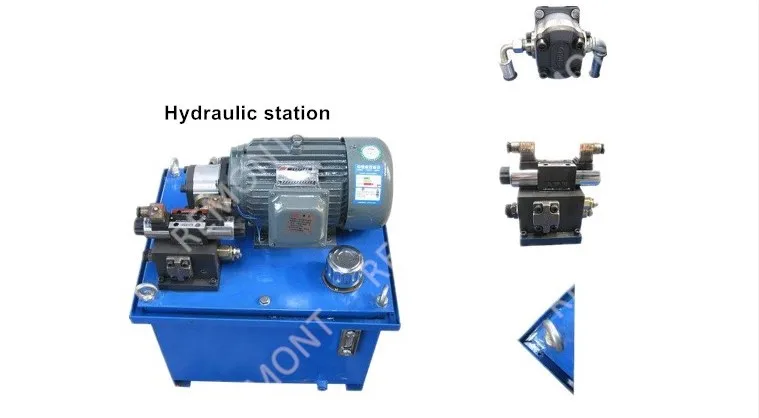

Hydraulic station
- Function: to provide pressing power and ensure oil cylinder open/close and manipulator normally work
- Makeup: oil tank, oil pump system, manifold block, hydraulic valves, oil pipes, pressure displayer and driving system.
- Max oil pressure and Rated pressure: customized based on your requirements;
Production workshop of Oil Industry Filter Press Oil Press Machine
Henan Remont I/E Co., Ltd. is professionally engaged in production of filtering equipment for more than 20 years. Our machines has exported to USA. Vietnam, Ausralia, Indonesia, Sri Lanka, South Africa and other countries. Also we supply equipments to the famous big companies in China.
Ø Continous years " China National Quality Trustable products ".
Ø " National Customer Satification Enterprise In Quality and Service"
Ø Our products have been awarded "National Top Ten Famous Brand".
Ø We have attained CE and ISO9001:2000 quality system certification.
Technical Parameters
Specifications of Oil Industry Filter Press Oil Press Machine
| Model | Fliter Area(m2) | Plate Size(mm) | Cake Thickness | Filter Chamber Volume | Plate No. | Motor Power |
| XAZ30/870-30U | 30 | 870*870/ 800*800 | 30mm | 460L | 23 pcs | 2.2 kw |
| XAZ40/870-30U | 40 | 595L | 30 pcs | |||
| XAZ50/870-30U | 50 | 748L | 38 pcs | |||
| XAZ60/870-30U | 60 | 902L | 46 pcs | |||
| XAZ70/870-30U | 70 | 1056L | 54 pcs | |||
| XAZ80/870-30U | 80 | 1210L | 62 pcs | |||
| XAZ50/1000-30U | 50 | 1000*1000 | 736L | 28 pcs | 4.0 kw | |
| XAZ60/1000-30U | 60 | 889L | 34 pcs | |||
| XAZ70/1000-30U | 70 | 1041L | 40 pcs | |||
| XAZ80/1000-30U | 80 | 1193L | 46 pcs | |||
| XAZ100/1000-30U | 100 | 1475L | 57 pcs | |||
| XAZ120/1000-30U | 120 | 1777L | 69 pcs | |||
We are able to supply 2000 square meters of filter press if necessary contact us to custom.
How you can get the right Model? Please tell me.
| ||||||
Application
Application of Oil Industry Filter Press Oil Press Machine
*Used for a set of projects or used alone
*One person can operate two machines at the same time, which saves a lot of manpower and material resources
*Be used for Liquid Solid Separation, include sewage treatment, sand washing and Coal washing.
Packaging & Shipping
How to Order ?
1. Firstly, please refer to technical data of filter press, choose a suitable model, plate material, plate closing mode, filtration flow mode.
2. Based on production requirements, please choose between: open-flow, close-flow; cake washing, non-washing before ordering.
3. Slurry feeding pump, squeezing pump(or air compressor) is not included in the filter press machine by default, please add them to your purchase order if they are requested from us.
4. Customized filter press for special working conditions are available, please feel free to present your requirements.
