ultra slim 32 inch android wireless wall mounted digital signage menu advertising board lcd screen display
- Category: >>>
- Supplier: Shenzhen Maxway Technology Co. Ltd.Shenzhen Ltd.
Share on (1601334708624):
Product Overview
Description
Detailed Images

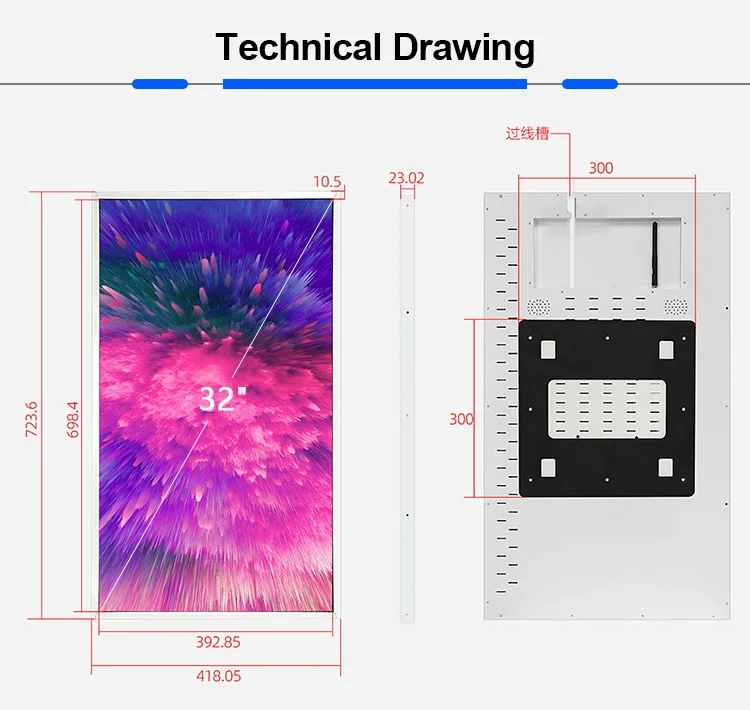

Product view of front, back, side and dimensions.
Product name: ultra slim 32 inch android wireless wall mounted digital signage menu advertising board lcd screen display
Model Number: MW-321ASN
Product Description
Main features and specs.
Main features
| OS: | Android version 6.0/7.1/8.1/11.0 (Linux optional) | |
Hardware (All IN ONE PC optiional) | CPU Options | A64 Quad-core ARM Cortex-A53,1.5GHz |
| RK3566 Quad-core ARM Cortex-A55,1.8GHz | ||
| RK3288 Quad-core ARM Cortex-A17,1.8GHz | ||
RK3399 Dual-core Cortex-A72 2.0GHz + Quad-core Cortex-A53 1.5GHz | ||
| RAM: | 2GB/4GB/8GB | |
| Nand Flash: | Standard 8GB(16GB/32GB/64G optional) | |
| WiFi network: | Support WIFI 802.11b/g/n | |
| 3G/4G network: | Support 3G/4G (optional) | |

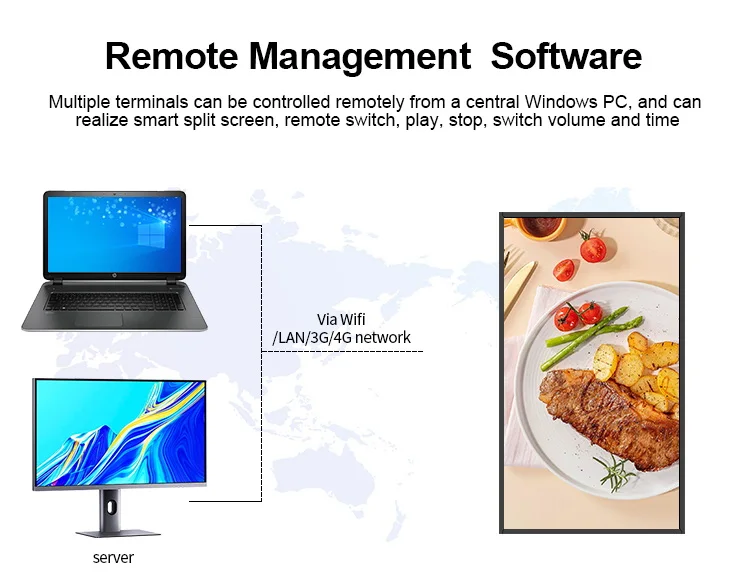

| Managing software: | Use our CMS software installed in server/your computer by which to control and group manage all terminals. Or you may use your own software | |
| Playlist editor: | Multimedia contents can play by playlist mode and loop. | |
| Scheduling playback: | Publish task by calendar, then appointed terminal/terminals would play accordingly | |

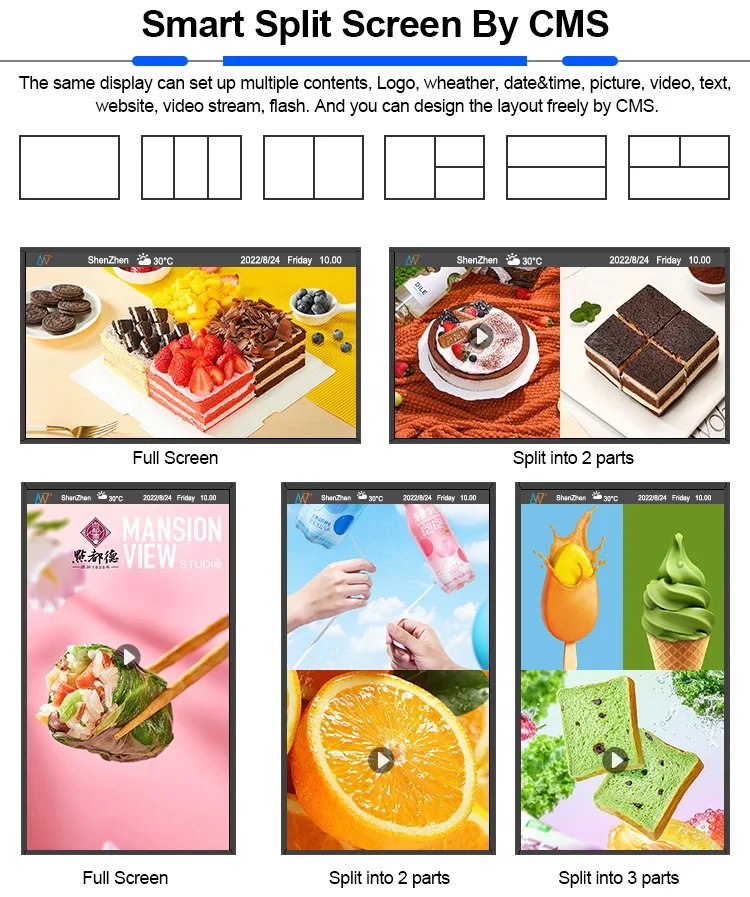

| Split Screen display: | Design the layout as you like, supports video, photo, text, ppt, word, excel, flash, rss, wheather, clock, date, web all can be display on different areas | |
| Auto Playback: | Set time power on /off and automatically display and loop, 7 days and 24 hours no manual operation. | |
| video/picture rotation: | 90/180/270 degree. (vertical display or horizontal display) | |
| Display type: | Horizontal or vertical/ landscape or portrait | |
| Two speakers: | Built-in stereo speakers (2x5W) | |
| Files update: | Files can be transmitted to flash memory automatically from server via LAN, WIFI or 3G/4G network | |

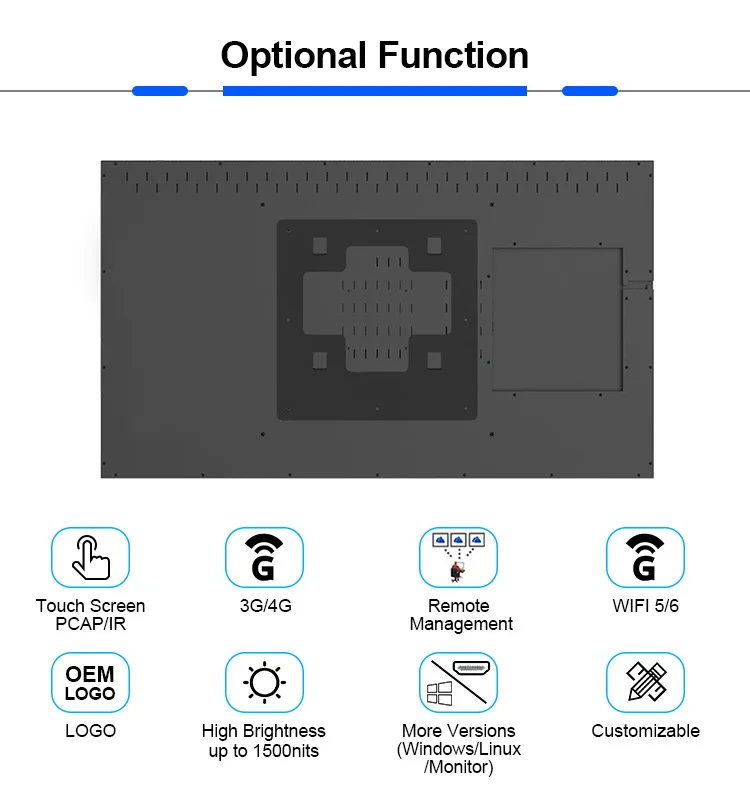

| Touch screen: | Optional, to make interacive contents. | |
| Network options: | Standard with LAN and WiFi (3G/4G is optional) | |
| Accessories: | Use Manual,power cord, Remote Control, keys, screws, allen wrench | |
Welcome to contact us and get user manual for reference.
More specs
| LCD screen specs | Model Number: | MW-321ASN |
| Screen size: | 32" | |
| Display proportion: | 16:9 | |
| Resolution(Pixel): | 1920*1080 | |
| Display color: | 16.7 M | |
| Response time : | 6.5 ms | |
| Luminance: | 400 nits | |
| Contrast ratio: | 4000:1 | |
| View angel (L/R/U/D): | 89/89/89/89 | |
| Backlit: | WLED | |
Media Formats | Video: | RM, RMVB, MKV, MOV, M4v, MPG1/2/4,TS,FLV,PMP, AVI, VOB,DAT, MP4 |
| Audio: | MP3, WMA | |
| Picture: | JPEG, BMP,GIF,PNG | |
| Power supply | AC Input: | 110-240V |
Appearance | Color option: | White/Black/Silver or optional |
| Housing material: | Metal | |

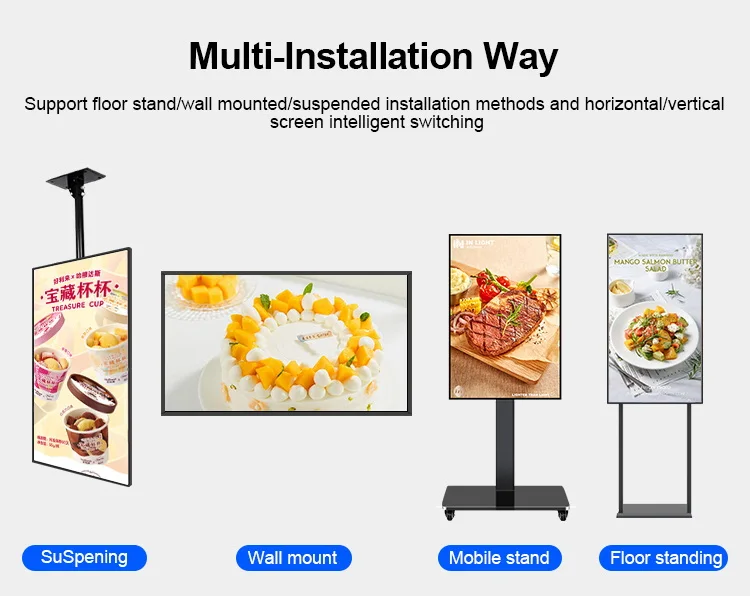

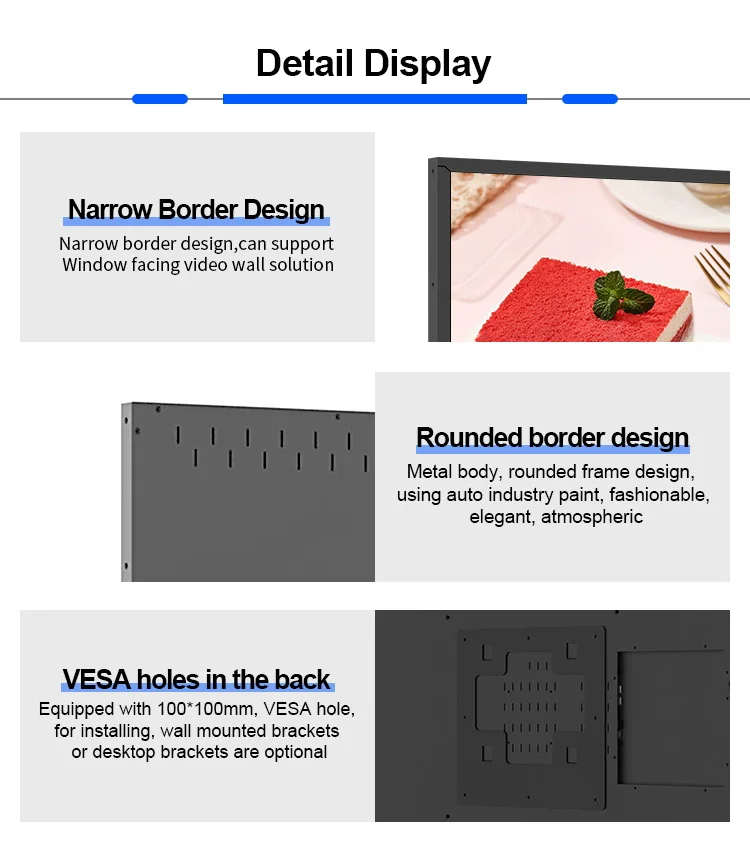

| Installation: | Wall-mounting VESA holes |
