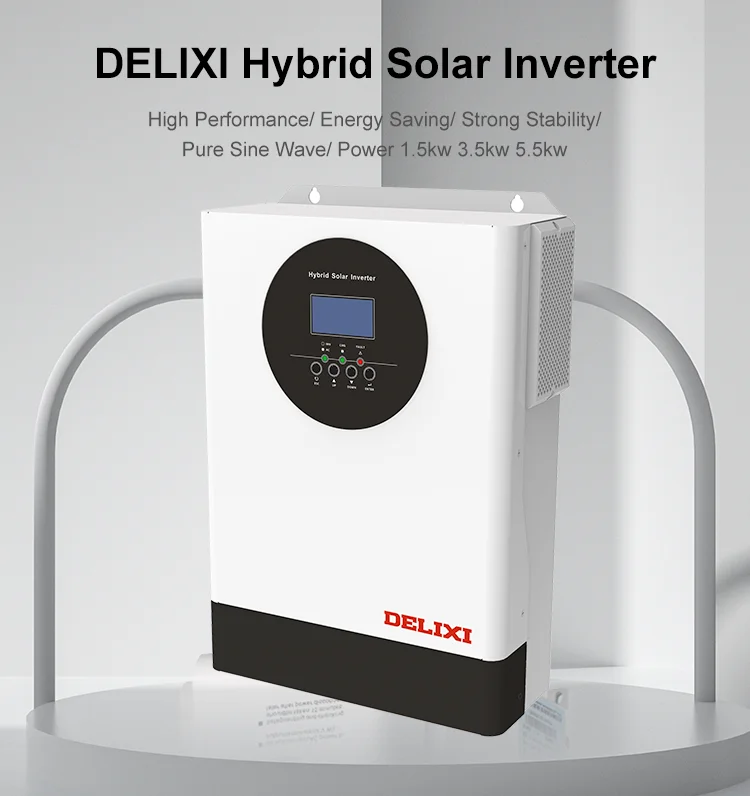

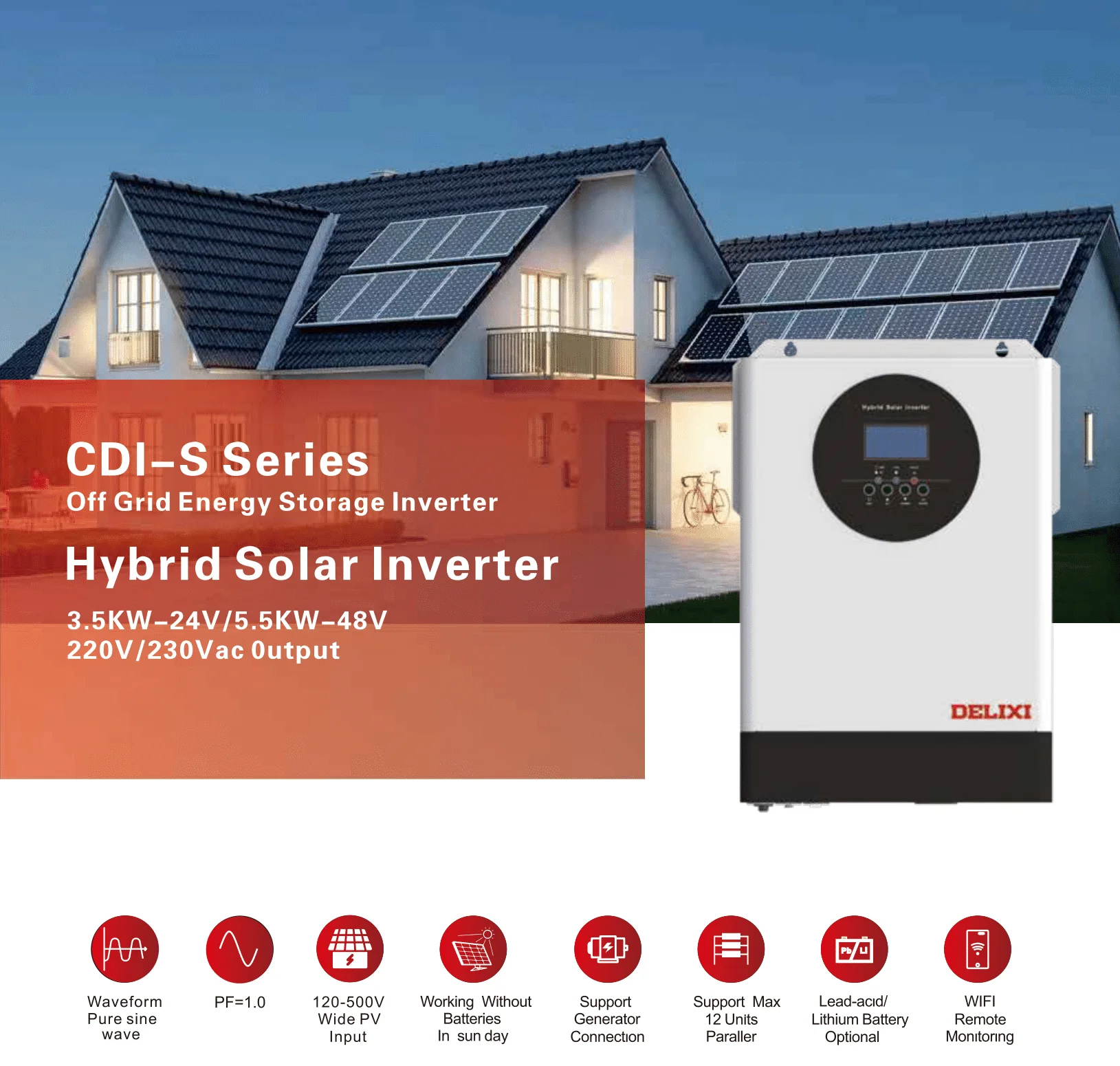

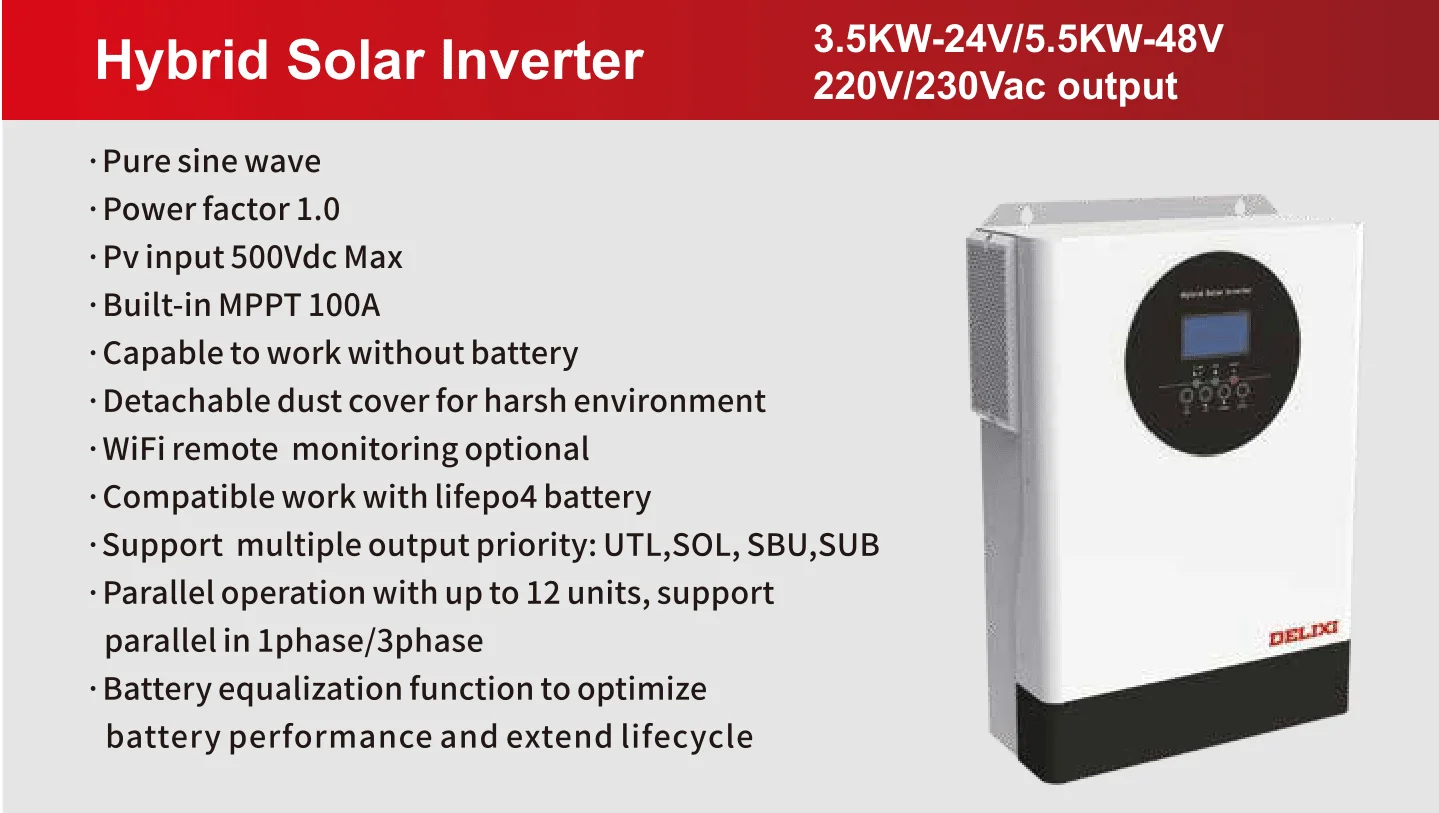

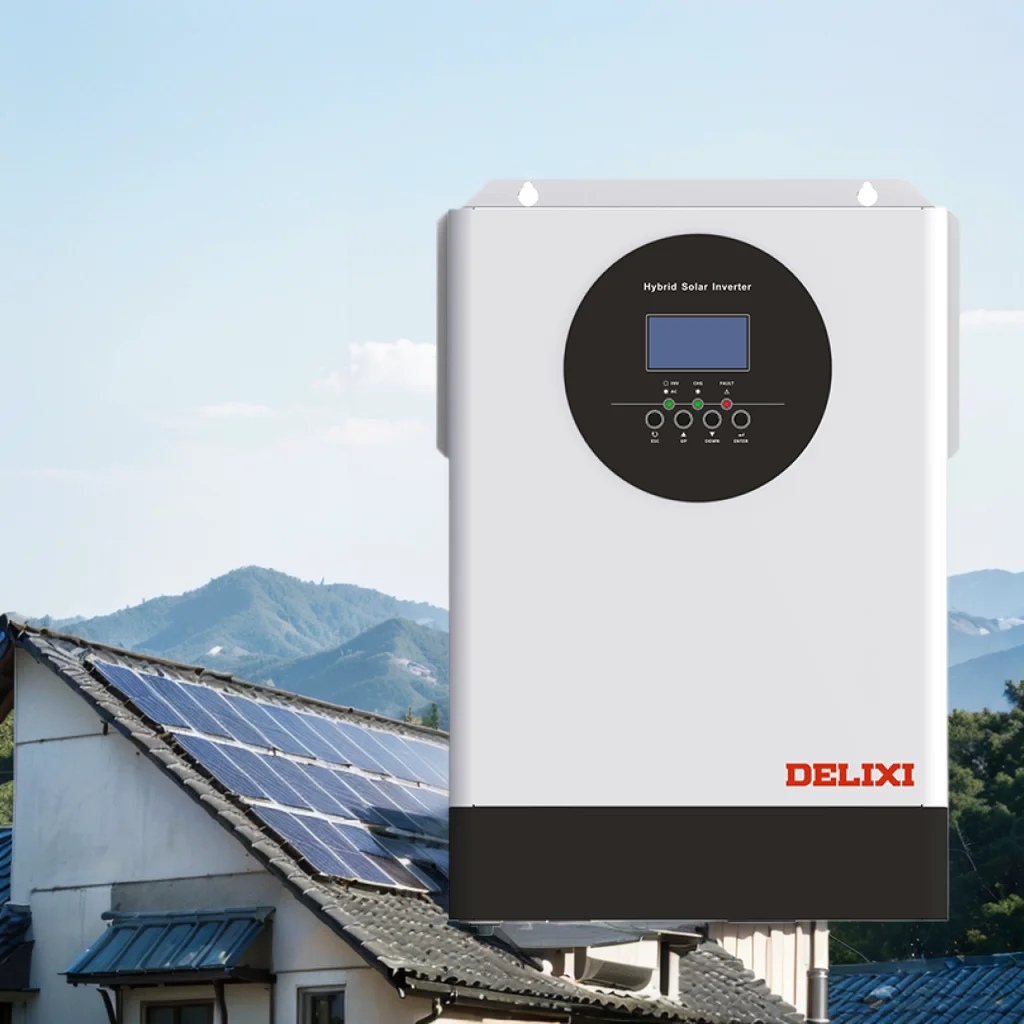

Delixi Off Grid Solar Inverter 3Kw/3.5Kw/5.2Kw/5.5Kw Frequency Power with Mppt 80A/100A/120V Char Controller Single Output
- Category: >>>
- Supplier: Delixi (hangzhou) Inverter Co. Ltd.Delixi Ltd.
Share on (1601334755529):
Product Overview
Description
VR
Tecnical Date

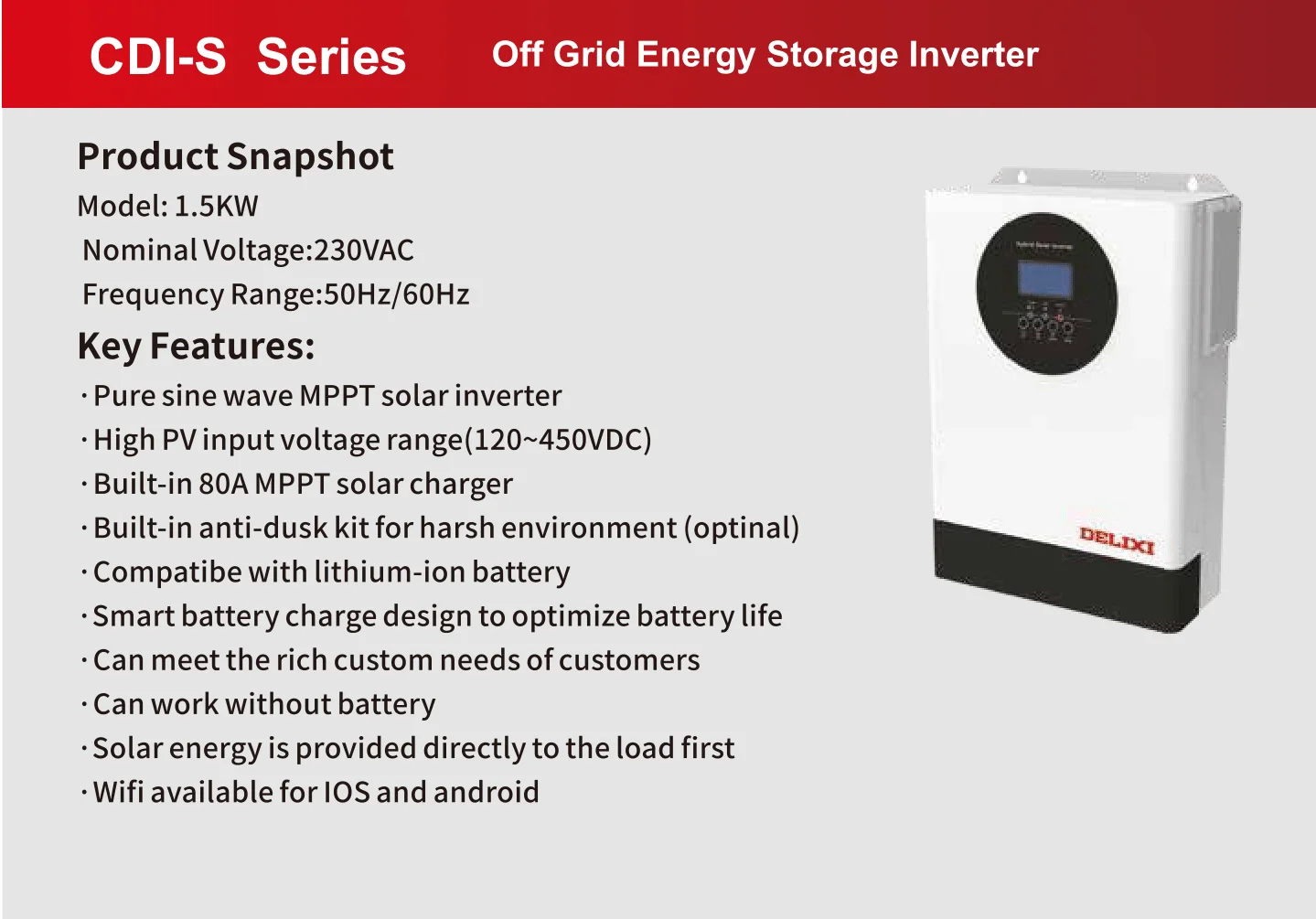

MODEL | CDI-S1500-12 | CDI-MS3500-24 | CDI-MS5500-48 | CDI-MS5500-48PL | ||||
CAPACITY | 1500VA/1500W | 3.5KVA/3.5KW | 5.5KVA/5.5KW | 5.5KVA/5.5KW | ||||

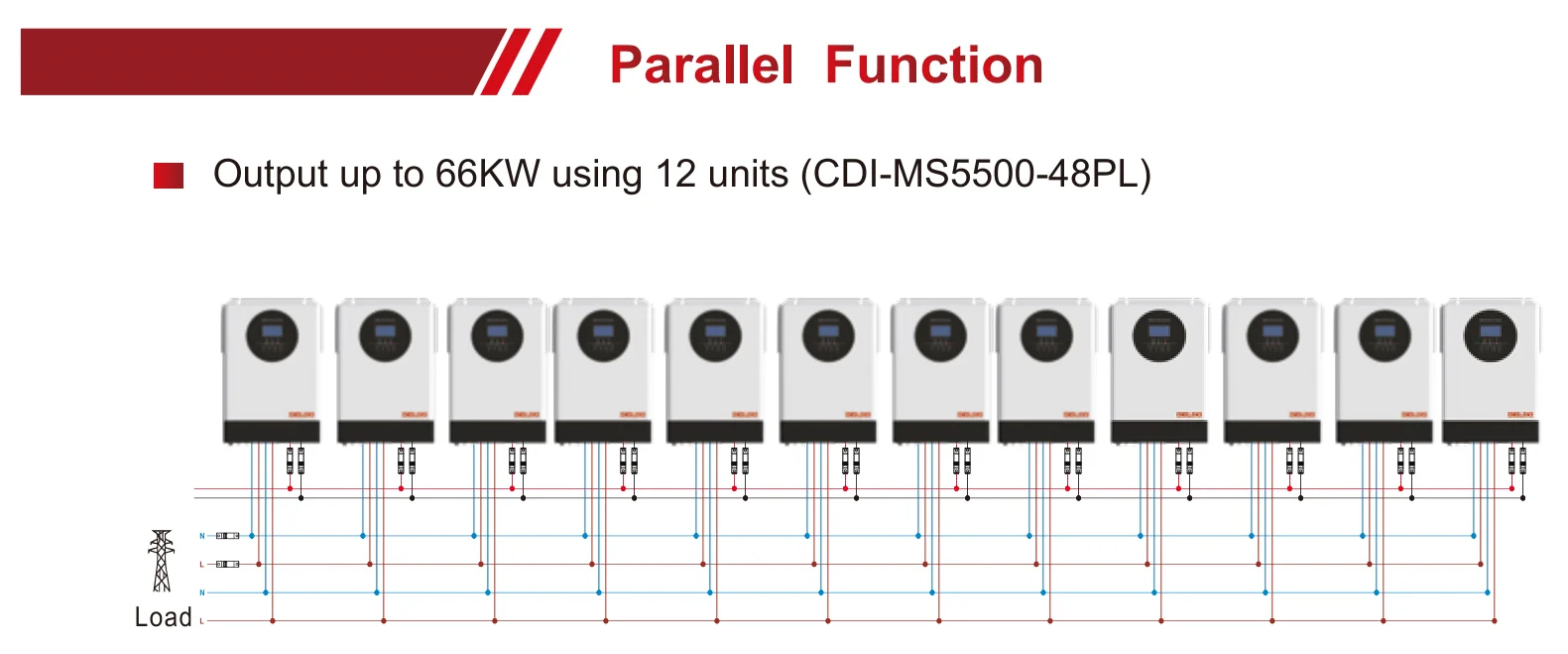

Parallel Capability | NO | NO | NO | YES,12 UNITS | ||||
INPUT | ||||||||
Nominal Voltage | 230VAC | |||||||
Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) omputer | |||||||
Frequency | 50/60 Hz(Auto sensing) | |||||||
OUTPUT | ||||||||
Nominal Voltage | 220/230VAC±5% | |||||||
Surge Power | 3000VA | 7000VA | 11000VA | 11000VA | ||||
Frequency | 50/60Hz | |||||||
Waveform | Pure Sine wave | |||||||
Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) | |||||||
Peak Efficiency(PVto INV) | 97% | 96% | 96% | |||||
Peak Efficiency(Battery to INV) | 94% | 93% | ||||||
Overload Protection | 5s@>= | 150% load; 10s@110%~150% load | ||||||
Crest Factor | ≤3 | 2:1 | 2:1 | |||||
Admissible Power FACTOR | 1 | 0.6~1(inductive or capacitive) | ||||||
BATTERY | ||||||||
Battery Voltage | 12VDC | 24VDC | 48VDC | 48VDC | ||||
Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | 54VDC | ||||
OverCharge Protection | 16VDC | 33VDC | 63VDC | 63VDC | ||||
Charging Method | 3 steps | CC/CV | ||||||
Solar Charger & AC Charger | ||||||||
Solar Charger TYPE | MPPT | |||||||
Max.PV Array Power | 2000W | 4000W | 5500W | 5500W | ||||
Max.PVArrayOpenCircuitVoltage | 450VDC | 500VDC | ||||||
PV Array MPPT Voltage Range | 120VDC~450VDC | |||||||
Max.Solar Input Current | 60A | 15A | 18A | 18A | ||||
Max.Solar Charge Current | 80A | 100A | 100A | 100A | ||||
Max.AC Charge Current | 60A | 60A | 60A | 60A | ||||
MPaHx.YCShaIrCgAe CLurrent | 80A | 100A | 100A | 100A | ||||
PHYSICAL | ||||||||
Dimensions,D x W x H(mm ) | 348x270x95 | 448x295x120 | ||||||
PackageDimensions,DxWxH(mm) | 350x395x175 | 560x375x190 | ||||||
Net Weight(Kg) | 4 | 9 | 10 | 10 | ||||
Communication Interface | USB / Rs232 (s andard)GPRS/WIFI(Optional) | USB /Rs232 /Dry-contact | ||||||
ENVIRONMENT | ||||||||
Operating Temperature Range | (0°C to 55°C) | (-10°C to 50°C) | ||||||
Storage temperature | (-15°Cto 60C) | (-15°C to 50°C) | ||||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||||
