PERC AIR SEDIM FILTER AND PUMP 105 AE T3

 Modular ribbed Aerobic Percolating Filter with Primary Sedimentation and Pump for discharge to T3 (Surface Water). 30,670 litres - 105 P.E.

Including booster pump excluding electrical control panel.

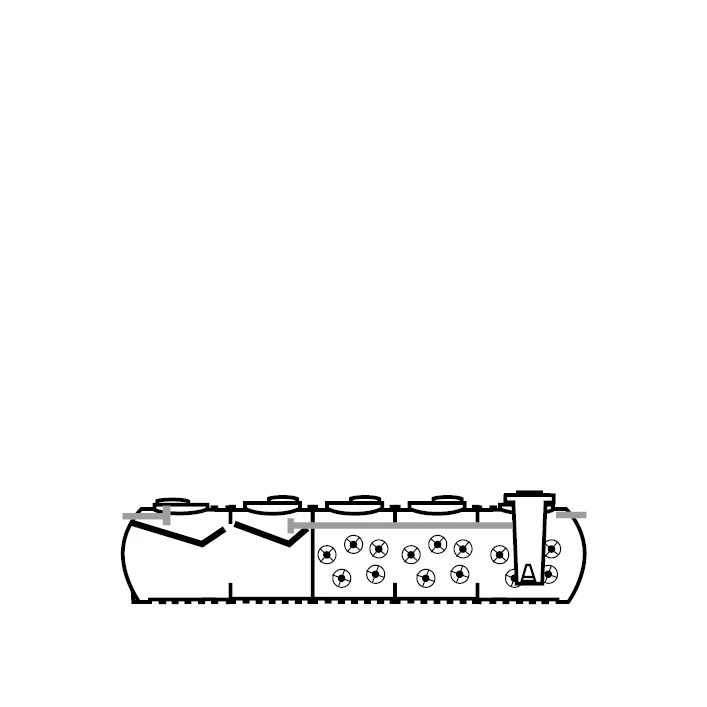

Supply of aerobic percolating filter with primary sedimentation and underground booster pump in PE ?FSALP? Starplast type with a horizontal cylindrical shape, monolithic or modular, electrofusion welded with full passage, the constant thickness of the walls and the structure stiffened by vertical and horizontal ribs guarantee mechanical seal. Furthermore, in correspondence with the support feet of the same there are through holes for anchoring to the ground/RC slab. Inside there is the primary sedimentation section, the secondary treatment section filled with elements for the formation of bacterial flora and a single-phase booster pump for the relaunch of the wastewater to the walking surface. An adequate number of accesses with Ø 600 through holes with bayonet caps will be positioned on the upper generator of the tank. The percolating filter sized according to the UNI EN 12566-1/3 standards must be suitable for the complete treatment of waste water from private homes or similar, suitable for discharge into surface water or subsequent treatment. The FSALPMN33000T3 percolating filter will have the following dimensions: L 1005 W 210 H 234 volume Lt 30670 potential A.E 101
