3KW 100KW Kaplan Turbine Generator Vertical Open Channel Axial Flow Hydro 10Kw Kaplan Turbine

Product Overview

Description

3KW-100KW Kaplan Turbine Generator Vertical Open Channel Axial Flow Hydro 10Kw Kaplan Turbine



Vertical Open Channel Axial Turbine; Kaplan Turbine Generator;

Power: 3 - 100kW;

Voltage:Customized;

Frequency: Customized;

Fluid: water, physical and chemical properties similar to water;

Temperature: below 50℃.



According to different installation methods, we have pressure type axial flow andopen channel axial flow hydro generators. Pressure type turbine has horizontal and vertical type.
The hydraulic design of kaplan turbine is a cooperated with Dr. Punit Singh, Centre for Sustainable Technologies, Indian Institute of Science, using computational fluid dynamic technology (CFD).

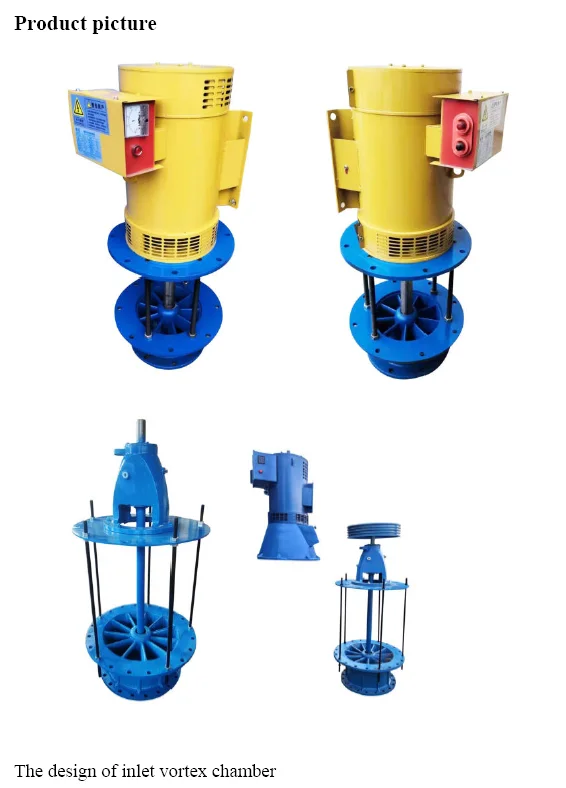

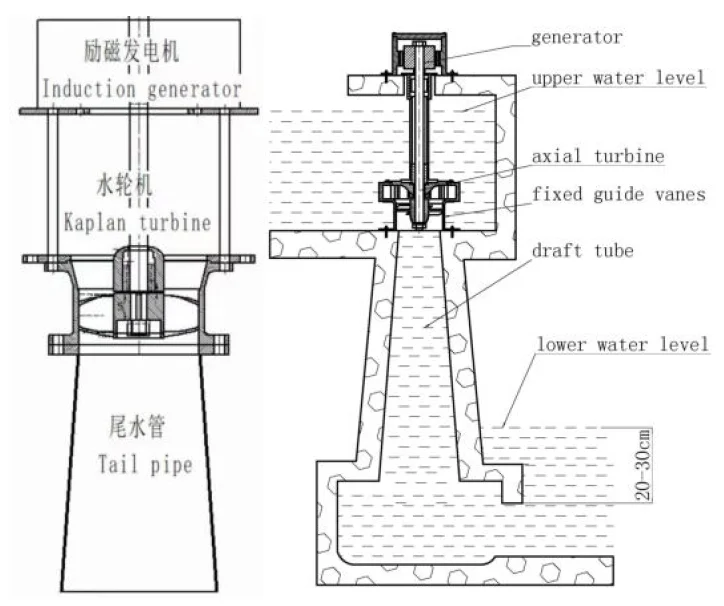

Open channel axial hydroelectric generator is composed of micro axial hydraulic turbine and generator mounted in one shaft. Hydraulic turbine is mainly composed of inlet guide vane, rotating impeller, draft tube, main shaft, base, bearing et al. As high pressure fluid is guided into draft tube, vacuum is formed. Upstream water guided by inlet channel and volute would enter guide vane and force the rotor to rotate. Therefore, the high pressure energy and high velocity dynamic energy is transformed into power.

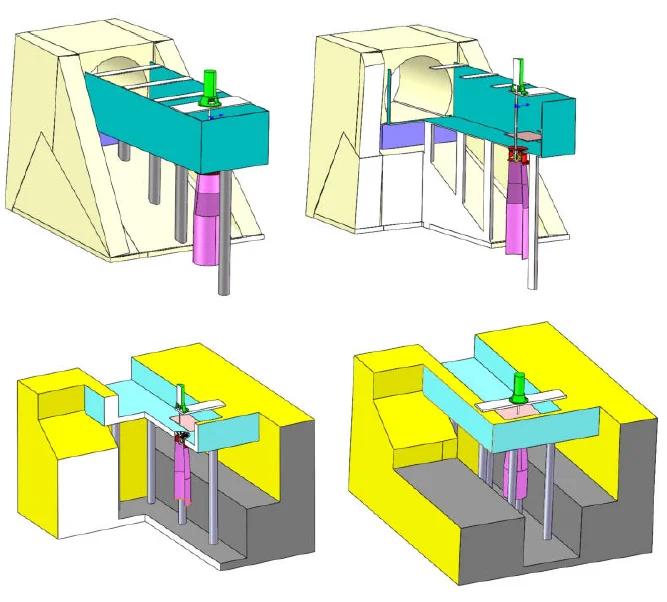

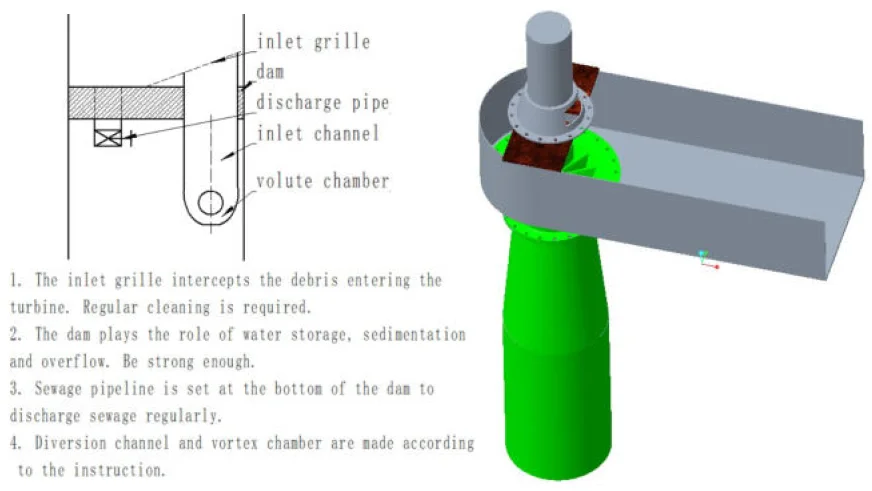

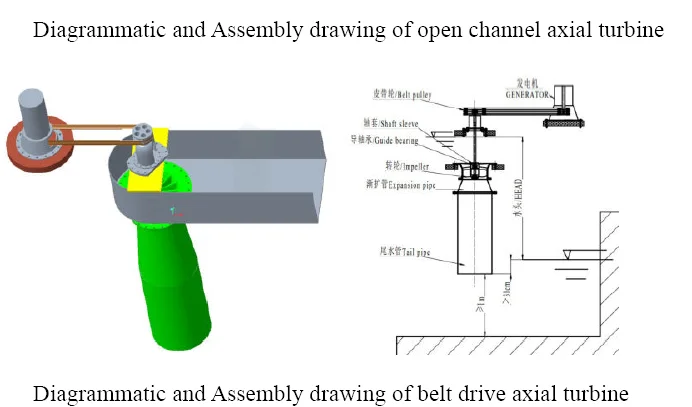

Installation and structure







The vertical open channel axial-flow generator set is an all-in-one machine with the following technical advantages:

1.Light in weight and small in size, which is easy to install, transport and maintain.
2. The turbine has 5 bearings, which is more reliable.





Specification:

P/kw	Head/m	Flow m3/s	Impeller dia./mm	Driven Type
3	1.5	0.15-0.4	265	Belt
	2	0.1-0.35	220	Direct
	3	0.04-0.2	170	Direct
5	1.5	0.2-0.6	300	Belt
	2	0.1-0.38	265	Direct
	3	0.11-0.21	220	Direct
	4	0.11-0.2	220	Direct
8	2	0.15-0.8	300	Belt
	3	0.11-0.22	265	Direct
	4	0.11-0.23	220	Direct
10	1.5	0.3-1.5	550	Belt
	2	0.25-1.1	300	Belt
	4	015-04	203	Direct
15	1.5	0 2-16	600	Belt
	2	0 15-0 4	500
	3	0 2-0-55	300
20	2	0 3-1.4	600	Belt
	3	0.25-1.2	450
	4	0.25-1.1	300
30	5	0.15-0.75	550	Belt







The types of hydro turbine generator:

Francis Turbine Generator
Double Nozzle Pelton Turbine
Mixed Flow Turbine Generator
Double outlet hydraulic turbine generator
Kaplan Turbine Generator: Horizontal Pressure Type Axial Turbine and Vertical Open Channel Axial Turbine
Turgo Turbine Generator

When buying turbine generator, users should select the proper turbine generator with proper specifications of rated power, water head and water flow,
according to their own site conditions of water resource.

Pls contact me for more information!
