HDPE 1mm ASTM GM13 Shrimp Waterproof Geomembrane Liner Outdoor Landfill Ponds Fish Farms Industrial Design Modern LLDPE EVA

Product Overview

Description

Features:PE Geomembrane/ hdpe geomembrane pond liner
1.All physical factors such as anti-draw, anti-tear, and anti-stab meet the requirement of water works, chemicals, tunnels, and transportation project in most conditions.
2.Good aging, durable performance, and wide temperature arrange, it can be useful over thirty years on the condition of -60æ«60æ.
3.Anti-stab and fine friction factors.
4.Canker proof, acid and alkali proof, untoxic.
5.Lower cost per unit area, cost is 1/3«1/2 lower than that of PVC film, glass and cloth.
6.Convevient to install and dependable effect.
Specification:
Breadth:4~8m  Thickness:0.2~2.0mm.

Smooth High Density Polyethylene Geomembrane

Specifications:

Width:2000-7000mm Thickness:0.3-3.0mm implementation of the standards: GM-13 (CJ/T 234-2006)



Main items and indicators:

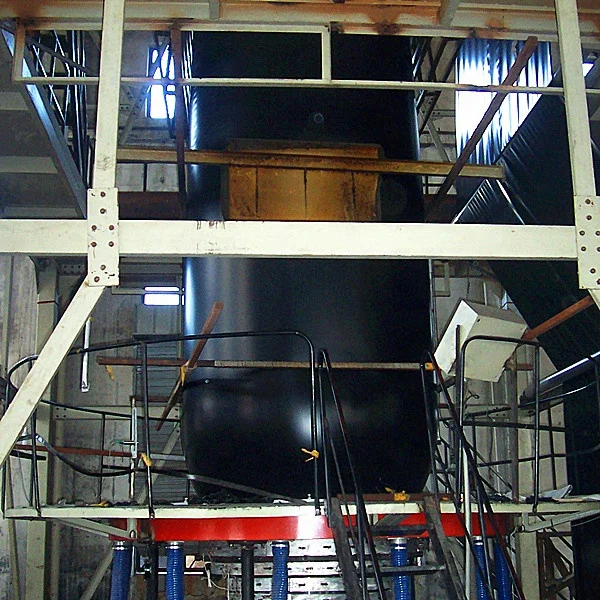

Use and description:high quality polyethylene HDPE Geomembrane resins, is made by the three co-extrusion technology.

Features: Good physical and mechanical properties, high tear strength, good deformation adaptability, resistance to puncture, anti-aging, anti-UV, anti-oil, anti-salt, anti-acid and alkali, corrosion resistance, high and low tempreture resistance, non-toxic, long service life. Good effects of waterproof, drainage, anti-seepage and moistureproof. Complete specifications, width and thickness. Low cost and simple construction.



Application

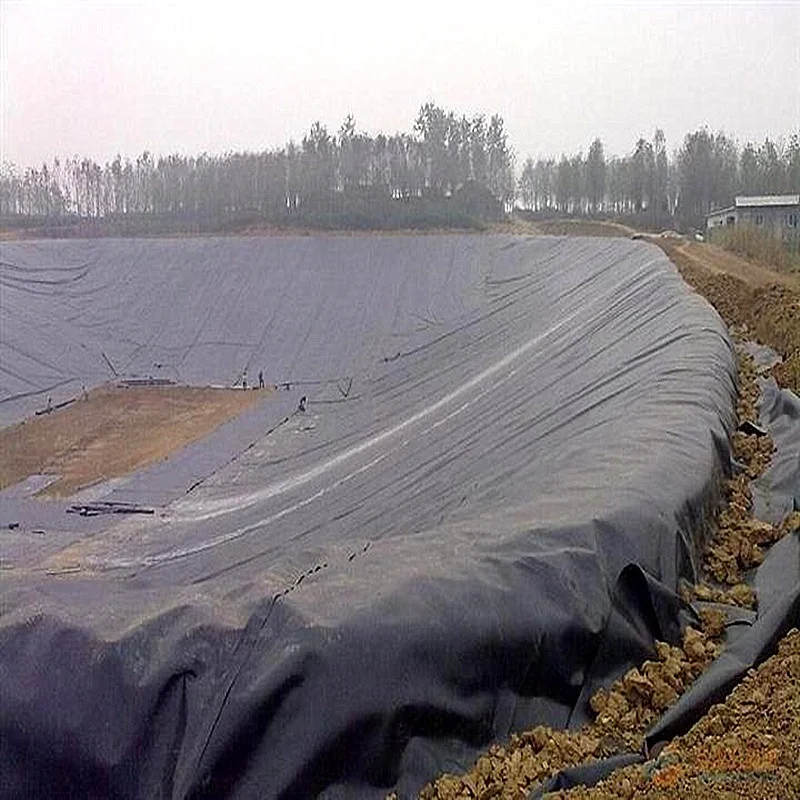

1.       Environmental protection, sanitation (such as solid waste landfills, sewage treatment plants, power plants regulate pools, industrial, hospital solid waste, etc.)

2.       Conservancy (such as rivers, lakes and reservoirs dam seepage, lost circulation, strengthening, drainage of seepage, vertical heart wall, slope protection, etc.)

3.       Municipal works (subway, underground engineering building, green roof, roof garden seepage, sewage pipe lining, etc.)

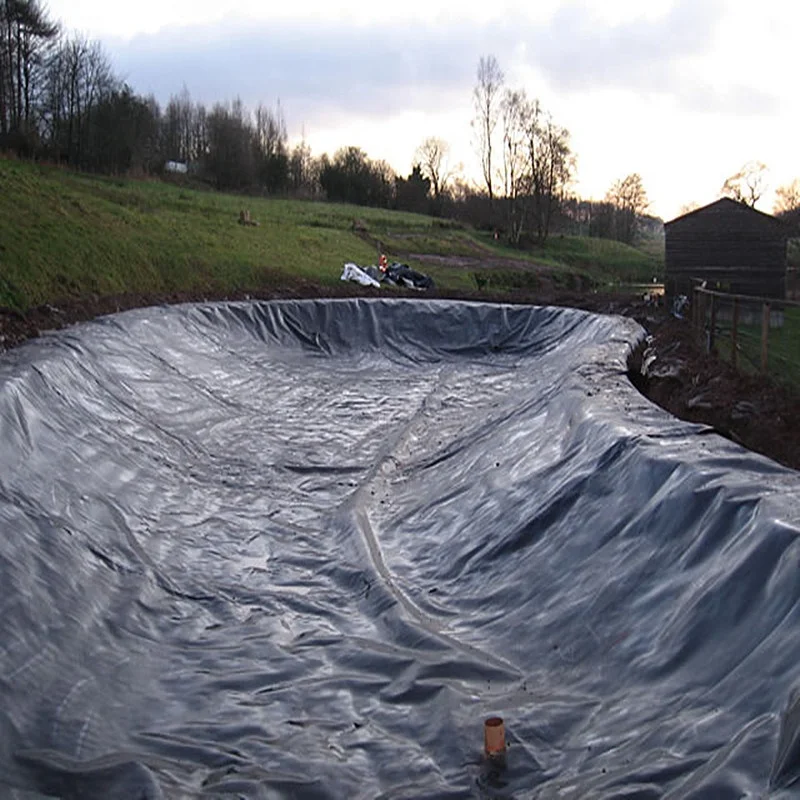

4.       Garden (artificial lake, river, reservoir, golf course ponds substrate, slope protection, green lawn water moisture, etc.)

5.       Petrochemical (chemical plants, oil refineries, gas station storage tanks impervious, chemical reactor, settling tank lining, etc.)

6.       Mining (washing, the heap leaching pool, the ash-field, dissolution, the precipitation, the yard, the substrates of tailings seepage, etc.)

7.       Transport facilities (road base reinforcement, Subway, Culvert seepage)

8.       Agriculture (channel, diversion canal, reservoir, reference pool, water storage pond, irrigation systerm seepage)

9.       Aquaculture (intensive, factory farming pond, fish ponds, shrimp ponds lining, sea cucumber circle slope protection, etc.)

10.   Salt (salt crystal pool, brine pool thatch cover, salt membrane, plastic thatch film of salt pond)



Ordinary High Density Polyethylene Geomembrane (GH-1 Type)

Item	Index
Thickness, mm	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density, g/cm3	0.940
Yield strength (MD/CD),≥N/mm	3	5	8	11	13	16	22	26	33
Break strength (MD/CD),≥N/mm	5	8	12	17	20	24	34	40	51
Yield elongation (MD/CD), ≥%	/	/	/	11
Break elongation (MD/CD), ≥%	450
Right angle tear strength (MD/CD),≥N	24	40	60	80	100	120	160	200	240
Puncture-resistant strength, ≥N	51	85	125	170	200	250	340	400	500
Carbon black content, %	2.0-3.0





Environmental Smooth High Density Polyethylene Geomembrane (GH-2S Type)
