Tobee Effluent Handling
$12,600
G Series Electric Single Screw Pump Petroleum Industry DC Motor Centrifugal Theory Low High Pressure 1kw/2kw/5kw 3 Inch OEM
- Category: >>>
- Supplier: Wuxi Mengqifeng Trading Co. Ltd.Wuxi Ltd.
Share on (1601335023908):
Product Overview
Description

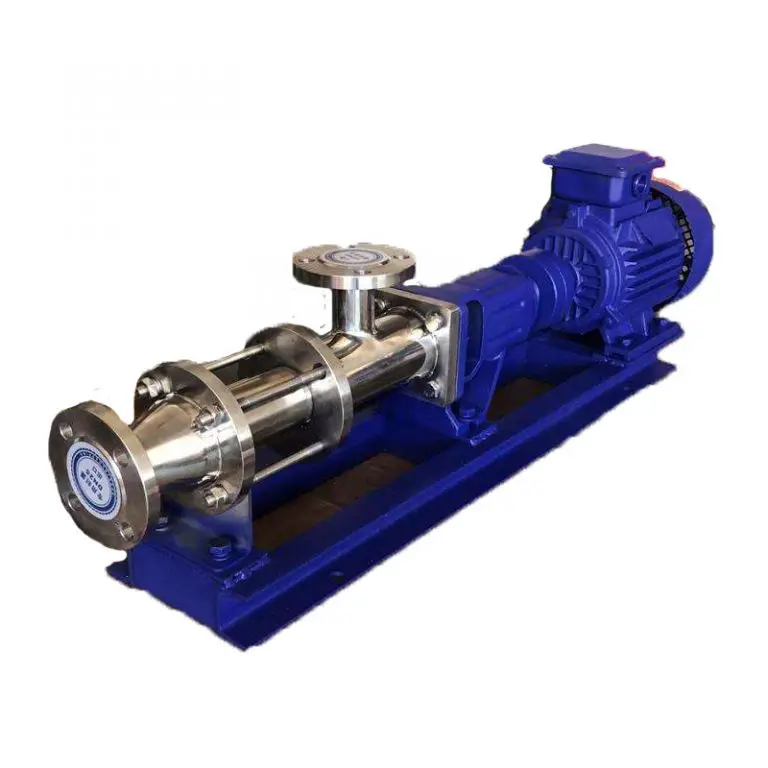

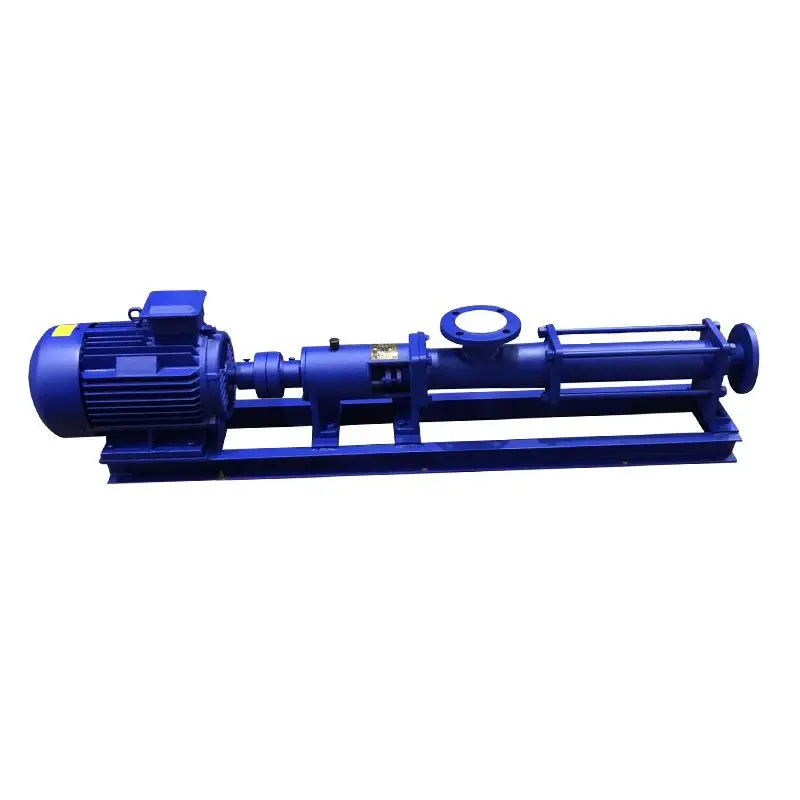

G type single screw pump is a kind of internal meshing closed screw pump,belongs to the rotor type positive displacement

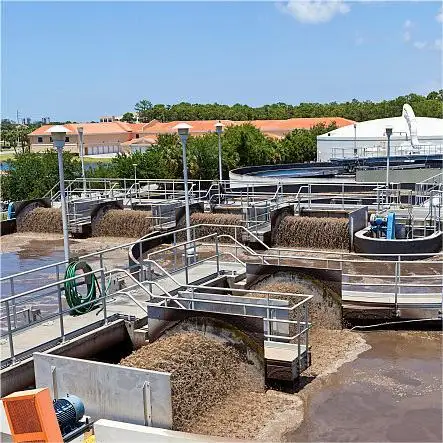

pump,because of the adaptability of this pump to the medium, mall pressure pulsation, in addition to transport a variety of fluid media, but also can transport high viscous media, containing hard suspended particles or solid particles quality, medium containing fiber, good adjustment performance, wide range, high efficiency, therefore, in environmental protection, shipping, oil, medicine, daily chemical, food, brewing，construction, mining, chemistry, printing, paper, power plants, boilers and other industries are widely used.
pump,because of the adaptability of this pump to the medium, mall pressure pulsation, in addition to transport a variety of fluid media, but also can transport high viscous media, containing hard suspended particles or solid particles quality, medium containing fiber, good adjustment performance, wide range, high efficiency, therefore, in environmental protection, shipping, oil, medicine, daily chemical, food, brewing，construction, mining, chemistry, printing, paper, power plants, boilers and other industries are widely used.
Achieve pulsation-free, quantitative transmission
The section area of the sealing cavity generated by the rotor and the stator is always fixed, so it can be pulsation-free and quantitative transmission.
Various liquids can be transported without affecting their quality
Without the valve structure, from aqueous liquids to high-viscosity liquids, high-concentration mud, liquids containing solids or bubbles, powders, etc., can be transported in a sealed space without affecting quality.
The output can be freely controlled
Since the amount of spit per unit time is proportional to the rotation speed of the rotor, the amount of spit can be freely adjusted as long as the rotation speed is controlled.

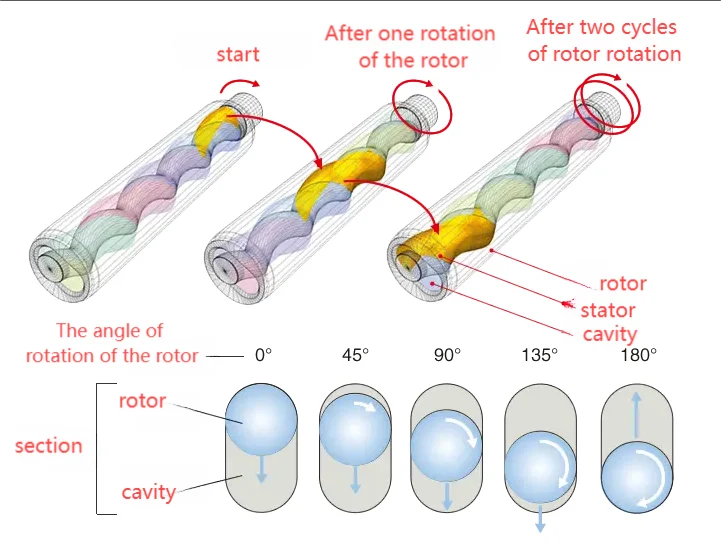

Principle of screw pump
The main working parts are eccentric screw (rotor) and fixed bushing (stator), due to the special geometry of the rotor, the formation of several separate sealing cavity, rotor operation, the media in each sealing cavity continuously, uniform speed, volume unchanged from the suction end to the extrusion end.

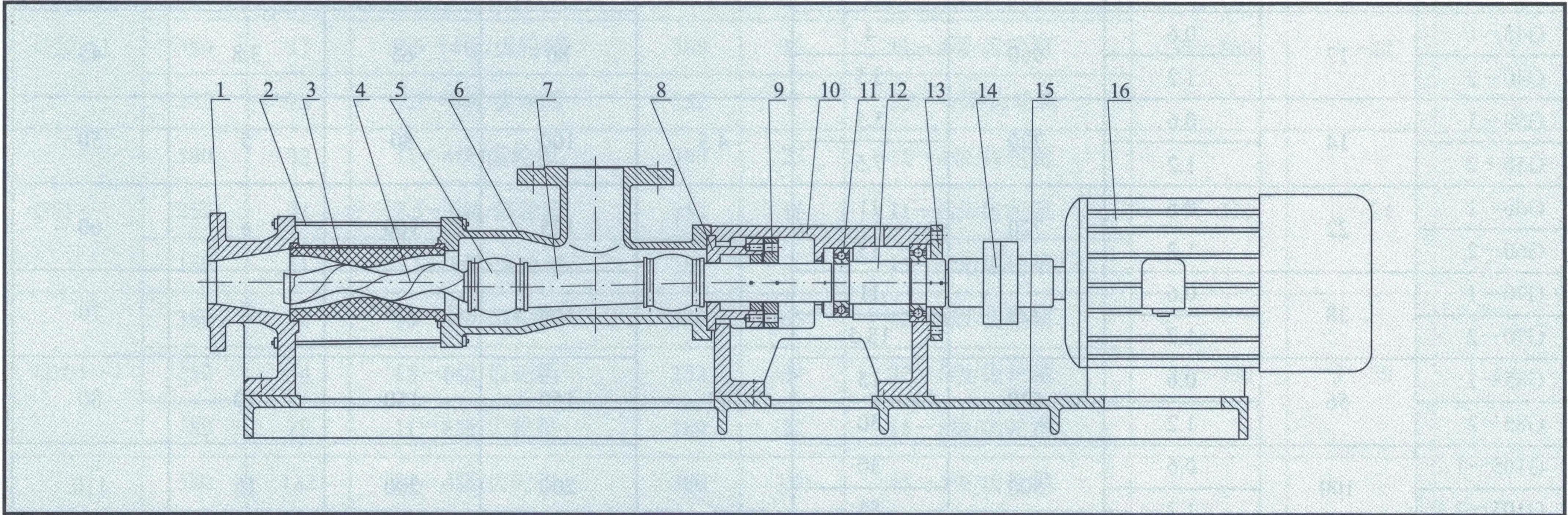

The name of each part
1.Inlet 2.Pull-bar 3.Stator 4.Screw shaft 5.Cardan joint 6.Outlet 7.Joint shaft 8.Packing seat9.Packing gland 10.Bearing seat 11.Bearing 12.Transimission shaft 13.Bearing cover 14.Clutch 15.Foudation 16.Motor
Stainless steel rotor sleeve
Universal joint assembly
Stator
Model | Flow（m³/h） | Pressure（MPa） | Maximum of rotation（r/min） | Motor power（kw） |
G20-1 | 0.8 | 0.6 | 960 | 0.75 |
G202 | 0.8 | 1.2 | 960 | 1.5 |
G25-1 | 2 | 0.6 | 960 | 1.5 |
G25-2 | 2 | 1.2 | 960 | 2.2 |
G30-1 | 5 | 0.6 | 960 | 2.2 |
G30-2 | 5 | 1.2 | 960 | 3 |
G35-1 | 8 | 0.6 | 960 | 3 |
G35-2 | 8 | 1.2 | 960 | 4 |

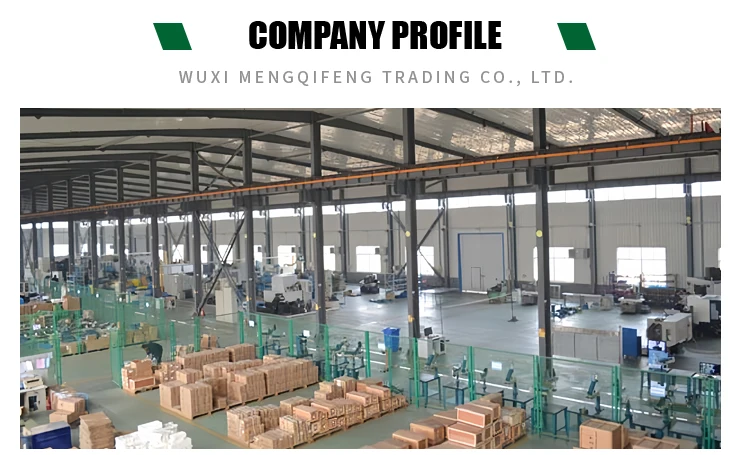

Wuxi Mengqifeng Trading Co., Ltd. is a comprehensive foreign trade import and export enterprise based in Wuxi and facing the world.
The company is currently committed to the procurement of screw pumps and other environmental protection equipment products. With a keen market insight and years of accumulated industry experience, we can accurately grasp market trends and provide customers with products that meet their needs and are competitive.
Mengqifeng has a professional and energetic team. Experienced purchasers have established long-term and stable cooperative relationships with many suppliers around the world to ensure that the purchased goods are of excellent quality and reasonable prices. The sales team has excellent communication skills and market expansion capabilities, and can quickly respond to customer needs and provide personalized solutions. At the same time, the efficient logistics and customs clearance team ensures the timeliness and compliance of goods transportation, allowing goods to circulate smoothly worldwide.
In terms of service concept, the company always puts the customer's needs first, takes integrity as the foundation, pays attention to every detail, and strives to provide customers with the whole-process service from consultation, procurement to after-sales. We know that every cooperation is an opportunity to establish a long-term trust relationship. Therefore, we do our best to meet the expectations of customers and create value for them.
During the operation, Mengqifeng adheres to the values of innovation, collaboration and win-win. Continuously explore new business models and trade channels, strengthen the collaboration and communication within the internal team, and work hand in hand with partners to achieve common development.
In the future, Wuxi Mengqifeng Trading Co., Ltd. will continue to follow the dynamics of the international market, continuously enrich the product line, improve the service level, and expand the business field. With a more open attitude, actively seek cooperation opportunities, contribute to the development of foreign trade in Wuxi and even the whole country, and strive to become a leading enterprise in the industry.
The company is currently committed to the procurement of screw pumps and other environmental protection equipment products. With a keen market insight and years of accumulated industry experience, we can accurately grasp market trends and provide customers with products that meet their needs and are competitive.
Mengqifeng has a professional and energetic team. Experienced purchasers have established long-term and stable cooperative relationships with many suppliers around the world to ensure that the purchased goods are of excellent quality and reasonable prices. The sales team has excellent communication skills and market expansion capabilities, and can quickly respond to customer needs and provide personalized solutions. At the same time, the efficient logistics and customs clearance team ensures the timeliness and compliance of goods transportation, allowing goods to circulate smoothly worldwide.
In terms of service concept, the company always puts the customer's needs first, takes integrity as the foundation, pays attention to every detail, and strives to provide customers with the whole-process service from consultation, procurement to after-sales. We know that every cooperation is an opportunity to establish a long-term trust relationship. Therefore, we do our best to meet the expectations of customers and create value for them.
During the operation, Mengqifeng adheres to the values of innovation, collaboration and win-win. Continuously explore new business models and trade channels, strengthen the collaboration and communication within the internal team, and work hand in hand with partners to achieve common development.
In the future, Wuxi Mengqifeng Trading Co., Ltd. will continue to follow the dynamics of the international market, continuously enrich the product line, improve the service level, and expand the business field. With a more open attitude, actively seek cooperation opportunities, contribute to the development of foreign trade in Wuxi and even the whole country, and strive to become a leading enterprise in the industry.
Q1：What is the guarantee of the product?
A1：In the non-human factors caused by the product damage, our warranty period is 2 years, free replacement of the corresponding
parts.
Q2：What factors will affect the flow of the pump?
A2：Flow rate is determined by rotor/stator pitch, elliptical diameter, eccentricity, and pump speed.Liquid properties, liquid viscosity, density, temperature and other properties will affect the flow and pressure of the pump. Liquids with higher viscosity may require more power to push, which affects flow and pressure
Q3：Can I purchase parts of the product separately?
A3：Yes, we supply all the accessories for this product.
parts.
Q2：What factors will affect the flow of the pump?
A2：Flow rate is determined by rotor/stator pitch, elliptical diameter, eccentricity, and pump speed.Liquid properties, liquid viscosity, density, temperature and other properties will affect the flow and pressure of the pump. Liquids with higher viscosity may require more power to push, which affects flow and pressure
Q3：Can I purchase parts of the product separately?
A3：Yes, we supply all the accessories for this product.
