Price:$350.00-450.00

Quantity:


Product Overview

Description





Products Description


Recommend Medium
1.All Kinds of Sludge like :Activated sludge, thick sludge, regulated sludge, dehydrated sludge, matured sludge, flotation sludge, river sludge, sewer sludge, secondary sludge...
2.Other Industrial Waste like: Auxiliary flocculant, intermediate agent, ferric chloride, lime milk, metal hydroxide, coal slurry..
3.Argricultural Waste like:Biomass material,liquid fertilizer，faeces...

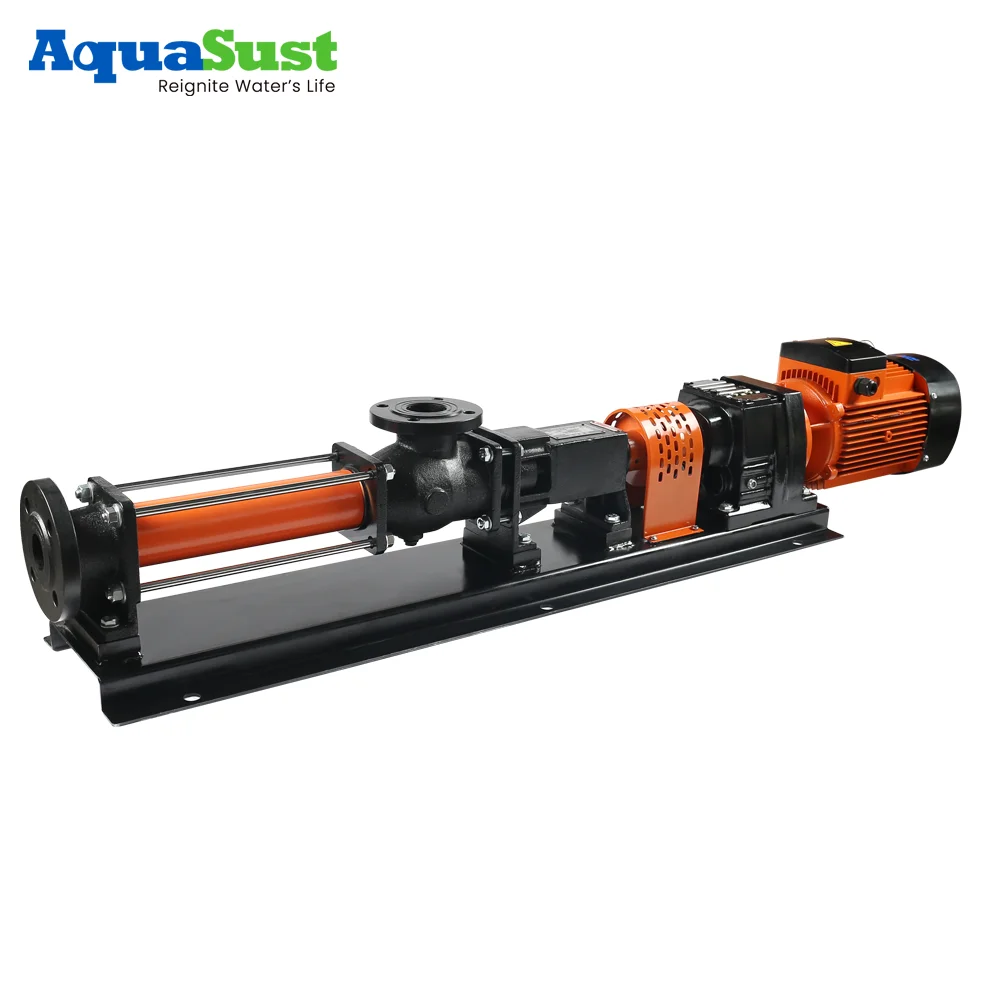

Aquasust Single Screw Pemp
Aquasust single screw pump is an internally meshed sealed screw pump, belonging to the rotary displacement pump. When the rotor of the single helix rotates around the axis of the stator hole of the double helix, the sealed chamber formed between the rotor and stator continuously, uniformly, and with a constant volume transports the medium from the suction chamber to the discharge chamber. Single screw pumps have low disturbance, stable pump pressure, and good suction performance when conveying media. They can transport non Newtonian liquids with viscosity, as well as concentrates containing mechanical impurities and solid particles.


Main Parameter of Sanitary Single Screw Pumps


Model
Pressure(mpa)
Inlet(mm)
Outlet(mm)
Rotate Speed(r/min)
Capacity(m³/h)
RG20B01C
≤0.6
G1''
G3/4''
229-1450
0.12-1.7
RG25B01L
≤0.6
50
40
207-1450
0.2-3
RG30B01C
≤0.6
50
40
134-690
0.3-2.4
RG32B01C
≤0.6
50
40
271-690
1-3.2
RG35B01C
≤0.6
65
50
136-690
0.7-5
RG38B01C
≤0.6
65
50
210-710
1.8-6.7
RG40B01C
≤0.6
80
65
116-686
1-8.5
RG45B01C
≤0.6
80
65
177-690
2.5-13.5
RG50B01C
≤0.6
80
80
106-530
2-14
RG65B01C
≤0.6
100
80
119-530
3-23.5
RG70B01C
≤0.6
125
100
130-434
5.2-23


Product Details








Product Adventage
1: Same model, greater pressure
Round G series 1st stage pump pressure 0.6mpa 2nd stage 1.2mpa 3rd stage 1.6mpa 4th stage 2.4mpa
Elliptical series 1st stage pump pressure 0.8mpa 2nd stage 1.6mpa 3rd stage 2.4mpa 4th stage 3.0mpa
2: Low speed (the lower the speed of the screw pump, the lower the wear and durability)
The speed of Aquasus screw pumps is generally between 250-380r/min, while the speed of dry mud pumps is only 65-120r/min.
3: High-quality steel

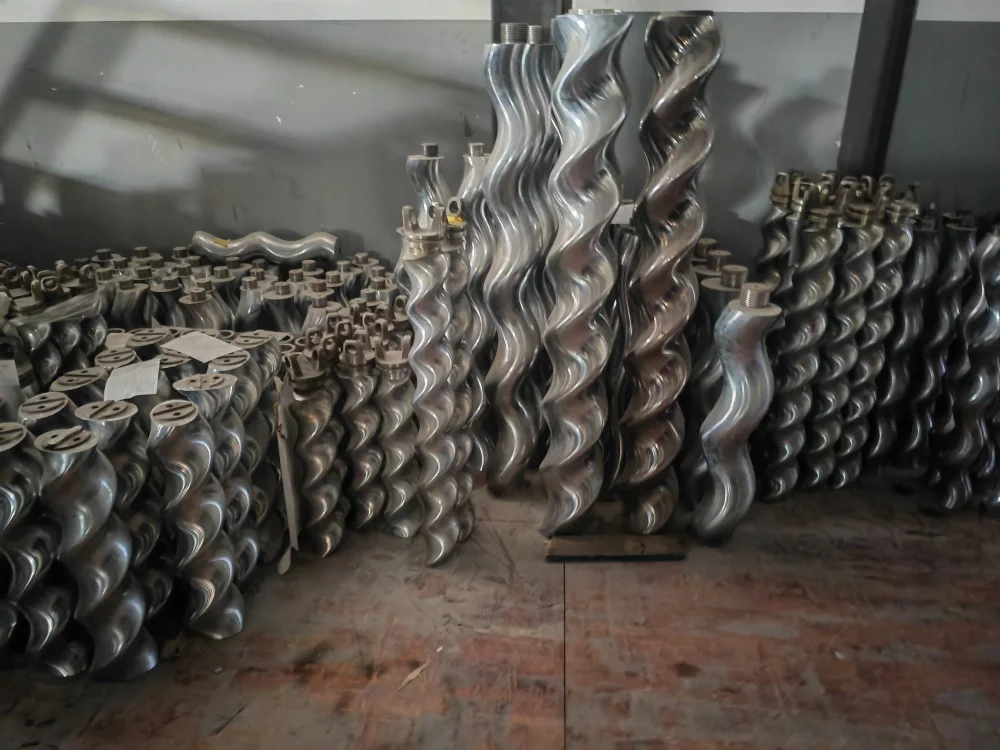

Ordinary shaft steel is made of 40cr steel for heat treatment hardening. For special cases, we will use tool steel to achieve a hardness of 65 degrees or above.
4: Rubber wear resistance and formula
We use more than 30% imported nitrile rubber raw materials and add other ultra wear-resistant materials. After testing with 100000 rotations and torques, we have obtained the most wear-resistant formula hardness, which prolongs the rubber's lifespan.
6: No leakage mechanical seal
The spring of the mechanical seal can be automatically cleaned while conveying materials, and a double end container mechanical seal can also be selected, which is more wear-resistant than ordinary silicon carbide mechanical seals. The entire mechanical seal frame is made of stainless steel material, and the O-ring is made of fluororubber.
7: Bearing housing structure
using customized low-speed ultra-high torque double row ball bearing with force and a balance bearing to achieve a maximum service life of 200000 hours without replacement.


Standard Packing






Recommend Products




Exhibition




Certifications




Service

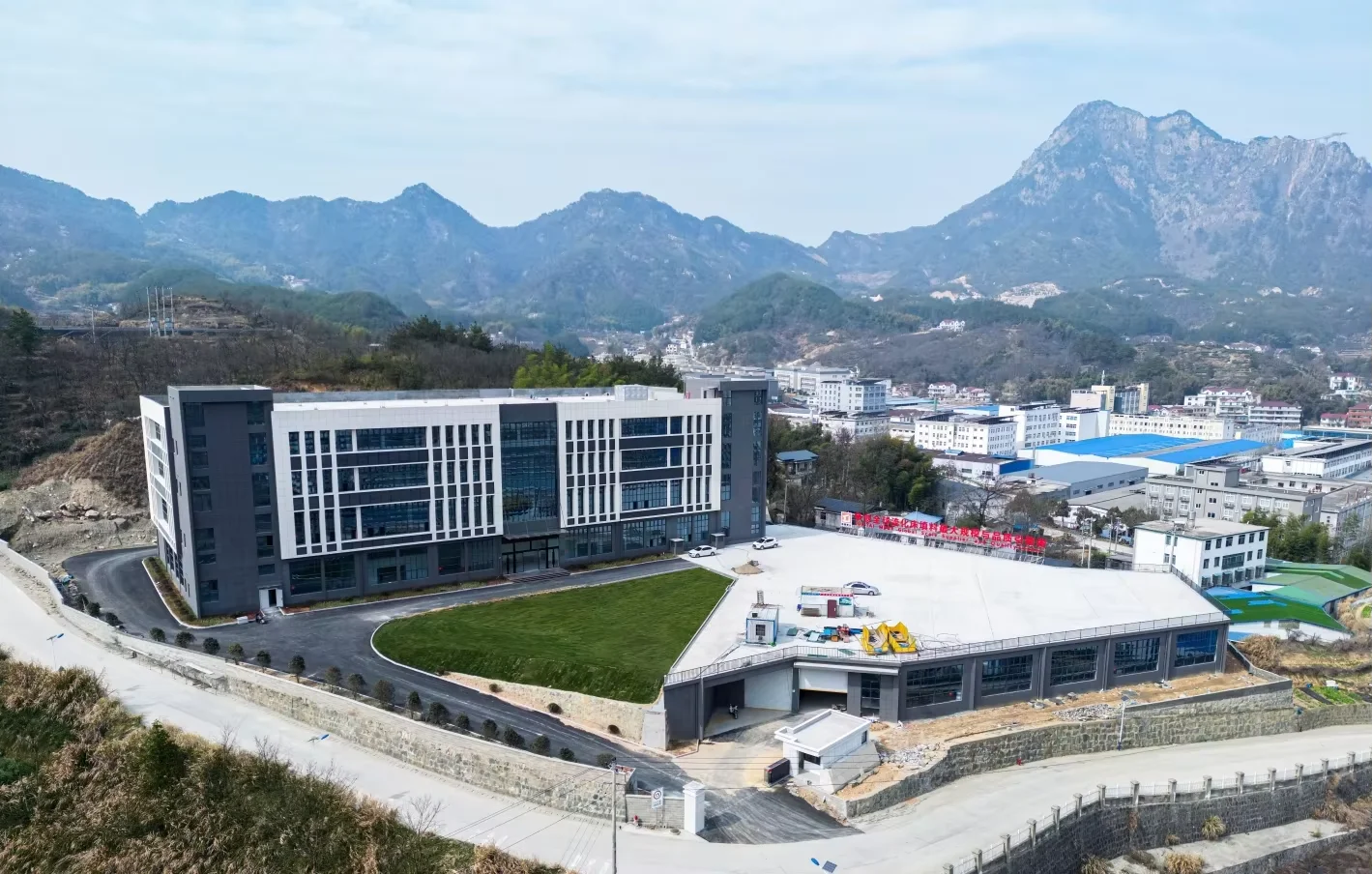

About us
