New Product Debubble Equipment Bitumen Bag Melting Machine
- Category: >>>
- Supplier: Zhengzhou SINOSUN Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601335363693):
Product Overview
Description
4 - 6 TPH Bitumen Decanter DT4 Bitumen Decanting Machine Price
Product Description

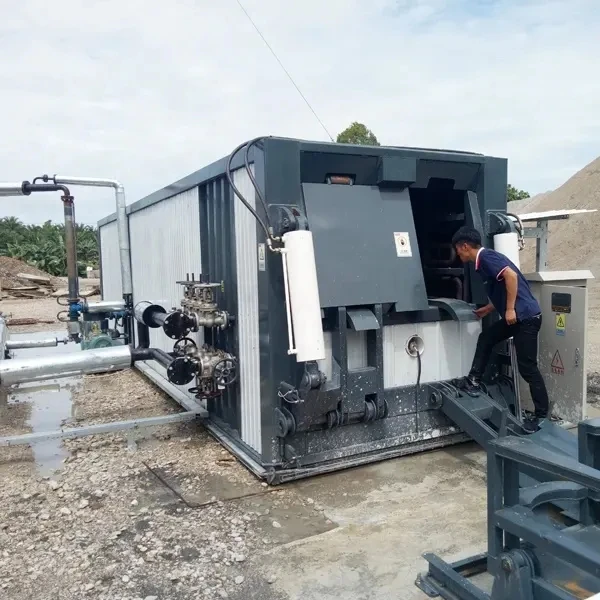

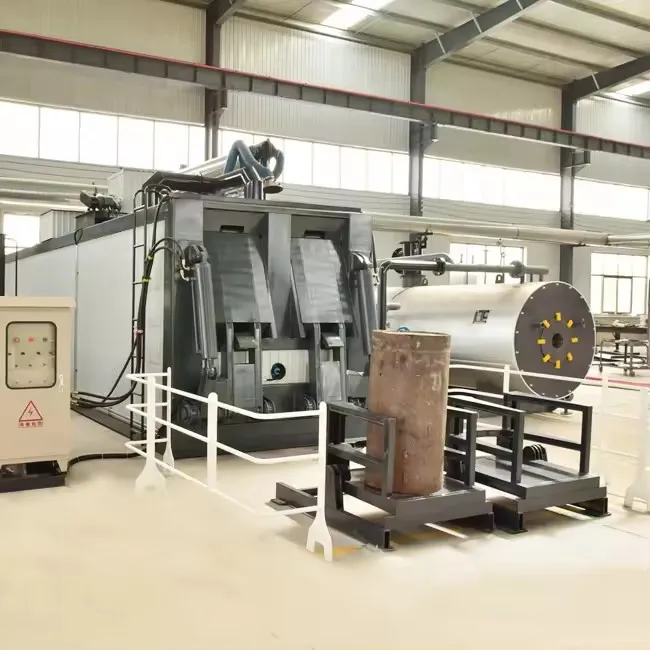

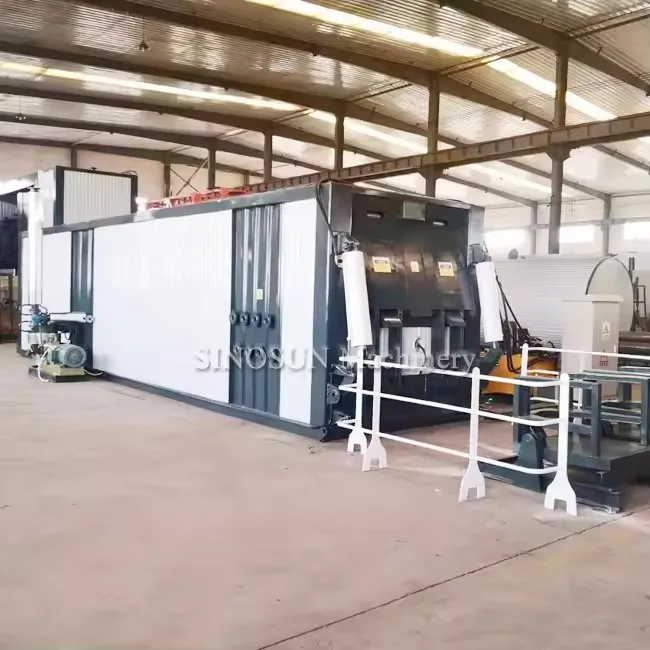

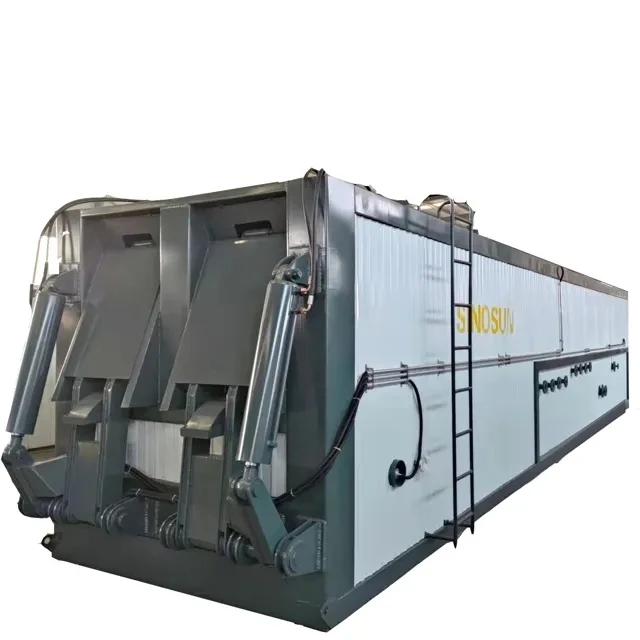

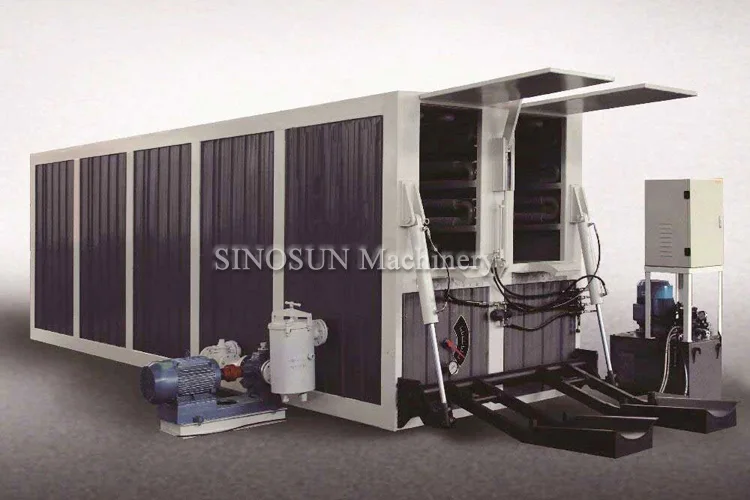

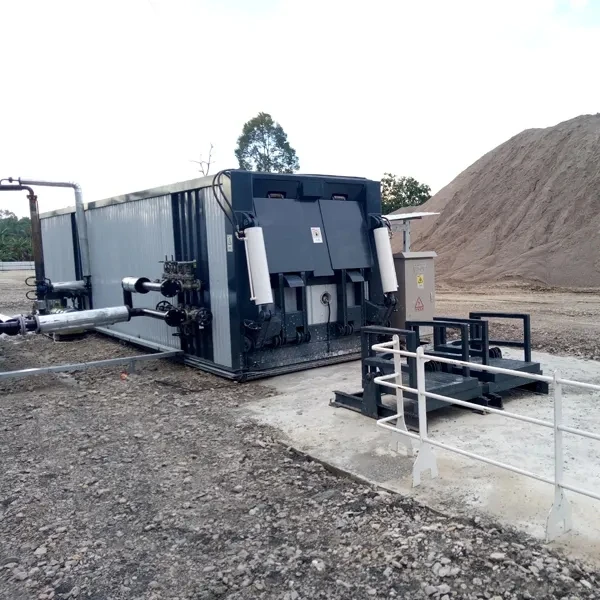

SINOSUN DT 4 - 6 TPH Bitumen Decanting Machine
Drummed bitumen melting machine is used to decant bitumen out of drums and heating up bitumen.
SINOSUN DT series drummed bitumen melting machine can make full use of hot gas of burner to make bitumen coming out of drums, and use the hot oil heating coils to heat up bitumen indirectly, which prevents bitumen from aging during heating.
Other functions of bitumen melting machine are dehydration and removing residue automatically.
Our DT series drummed bitumen melting machine is popular for its features of energy saving and environment friendly.
Performances :
1. Special enclosed construction which is more environmental friendly.
2. Adopt automatical control system and imported auto-ignite burner.

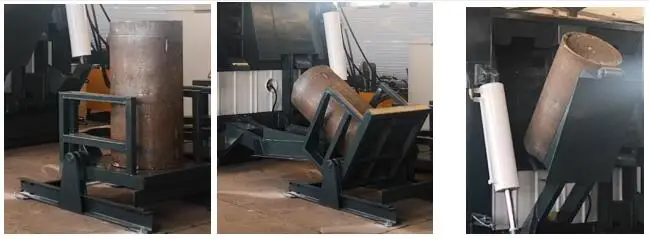

3. Strong applicability. It is suitable for various types of drums. Even when the drum is out of shape, the machine could still be operated normally.
4. Energy-saving. It makes full use of hot gas (320-450℃) of burner to melt and make bitumen coming out of drums (it is about 150℃ while waste gas was let off to air). The closed-construction saves 50% energy sources compared with the exposed one.
5. Easy to transport, operate and install.
Technical Parameter
Technical parameter of SINOSUN DT4 Bitumen Decanting Machine
(1)Complete machine technical parameter
1 | Model | DT4 |
2 | Outer dimension(transport) | 7.5×2.25×2.56(L x W x H)(m) |
3 | Production rate:(t/h) | 4-6 (when the temperature is 20°C) |
4 | Suitable barrel shape | Barrel bitumen wit different model both home and abroad |
5 | Barrel quantity(barrel/trolley) | 26 |
6 | Bitumen oil pool capacity(M3) | 12 |
7 | Thermal oil furnace capacity(Kcal/h) | 500000 |
8 | Electric installed capacity(KW) | 26 |
9 | Complete machine weight(t) | 16 |
(2) Thermal oil furl heating furnace performance parameter
1 | Model | DRY50 |
2 | Rated heating capacity(KCAL/H) | 500000 |
3 | Max. service temperature(°C) | According to the process requirement, generally ≤250 |
4 | Design pressure(Mpa) | 1.0 |
5 | Electric power(Kw) | 16.5 |
6 | Total weight(t) | 5 |
7 | Outer dimension(L x W x H)(M) | 5.0x1.7x2.3 |
PRODUCTS CATEGORY
 |  |  |
 |  |  |
COMPANY INTRODUCTION
About SINOSUN GROUP
SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.
We mainly supply:
1. Stationary Batch Mix Asphalt Plant (SAP series)
2. Recycle Asphalt Mixing Plant (SR series)
3. Mobile Batch Mix Asphalt Plant ( MAP series)
4. Continuous/Drum Mix Asphalt Plant (CAP series)
5. Bitumen Melting Machine / Bitumen Decanter(DT series)
6. Emulsion Bitumen Plant (RH series)
7. Burner For Asphalt Mixing Plant

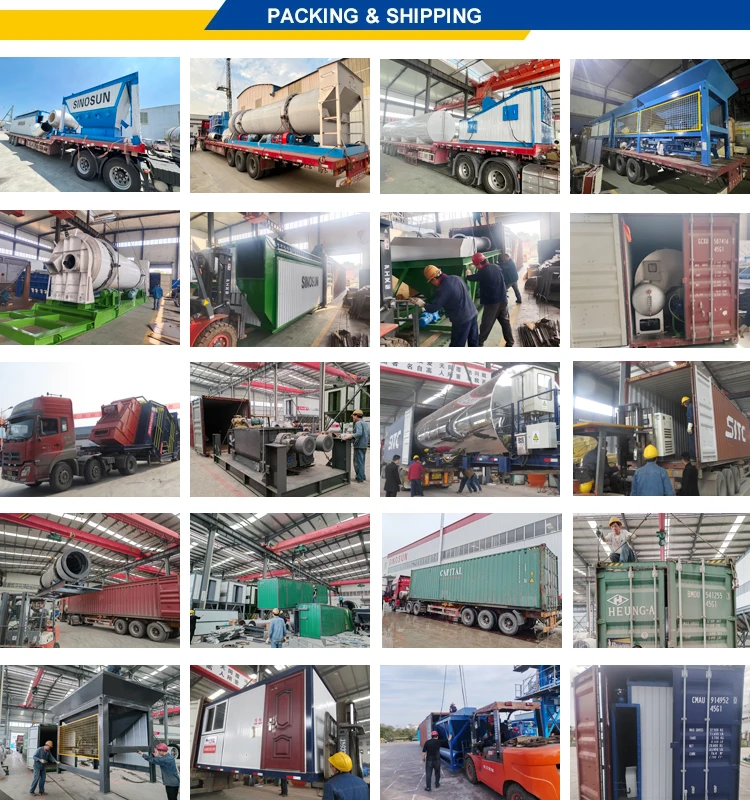

PACKAGING & SHIPPING
SINOSUN SERVICE
FAQ
Q:Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q:How many workers are needed to operate one set of asphalt plant?
A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.
Q:How many days are used for installation of one set asphalt plant?
A:Around 20-30 days, according to local situation.
Q:Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q:How long is the delivery time?
A:30-40 days, according to different configuration. We promise to delivery on time.
Q:Can you sent me some spare parts freely?
A:Some spare parts will be sent to you together with asphalt plants freely.
Q:How to go to your asphalt plant factory easily?
A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q:How long is the warranty of your asphalt plant?
A:12 months
Q:What payment terms you accept?
A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways according to the practical situation.
Get the quotation of asphalt mixing plant, welcome contact us at any time.
