CS Tec High Quality 30kw Single Fiber Laser Source New Metal Control System Construction Continuous Wave Laser Equipment
- Category: >>>
- Supplier: Wuhan Cs Tec Co. Ltd.Wuhan Ltd.
Share on (1601335418511):
Product Overview
Description
Products Description
CS Single Mode CW fiber laser Water -cooling 3KW-30KW
The Single Mode CW Fiber Laser adopts all-fiber design, and the beam quality is close to the differentiation limit. By matching output fibers with different core diameters, it meets the application requirements of various fields, such as precision machining, deep penetration welding, Scientific research,etc.
Product Feature
High Beam Quality: One of the significant advantages that the CW fiber laser’s all-fiber design brings is its high beam quality.This means that the laser produces a beam that is very stable and accurate, with a quality close to the diffraction limit, making it more practical and efficient in precise applications like precision machining and deep penetration welding.
High Electro-optical Efficiency: Another important feature of the CW fiber laser is its high electro-optical efficiency. This
implies that it can effectively transform input electrical energy into light energy, thereby saving energy and reducing operating costs. This high electro-optical efficiency characteristic makes the CW fiber laser an ideal choice for fields such as scientific research.
High Energy Density: Additionally, the CW fiber laser’s output fibers have different core diameters, enabling it to output a
high-energy-density laser beam. This high energy density laser not only enables deep penetration welding but also functions in other high-energy applications.
high-energy-density laser beam. This high energy density laser not only enables deep penetration welding but also functions in other high-energy applications.
High Electro-optical Efficiency: Another important feature of the CW fiber laser is its high electro-optical efficiency. This
implies that it can effectively transform input electrical energy into light energy, thereby saving energy and reducing operating costs. This high electro-optical efficiency characteristic makes the CW fiber laser an ideal choice for fields such as scientific research.
Product Paramenters
Model | CS-3000SM | CS-6000SM | CS-10000SM | CS-20000SM | CS-30000SM | ||||
Operation Mode | CW/Modulation | ||||||||
Central Wavelength/nm | 1080+5 | ||||||||
Modulation Frequency/Hz | 0-5000 | ||||||||
Output Power/w | 3000 | 6000 | 10000 | 20000 | 30000 | ||||
Power Range/% | 10-100% | ||||||||
Output Power Instability(RMS)/% | ≤±1.5% | ||||||||
Beam Quality(M2) | ≤1.3 | ≤1.5 | ≤2 | ≤3 | ≤3 | ||||
Output Fiber Connector | QBH(Customized ) | QD | |||||||
Output Fiber Length/m | 10(Customized) | 6 | 3 | ||||||
Operating Voltage | 380VAC/50Hz160Hz | ||||||||
Control Mode | RS232/AD/Ethernet/Fieldbus | ||||||||
Cooling | Water Cooling | ||||||||
Operating Humidity/% | <70 | <50 | |||||||
OperatingTemperature/℃ Storage | 10~40 | ||||||||
Temperature/℃ | -10-60 | ||||||||

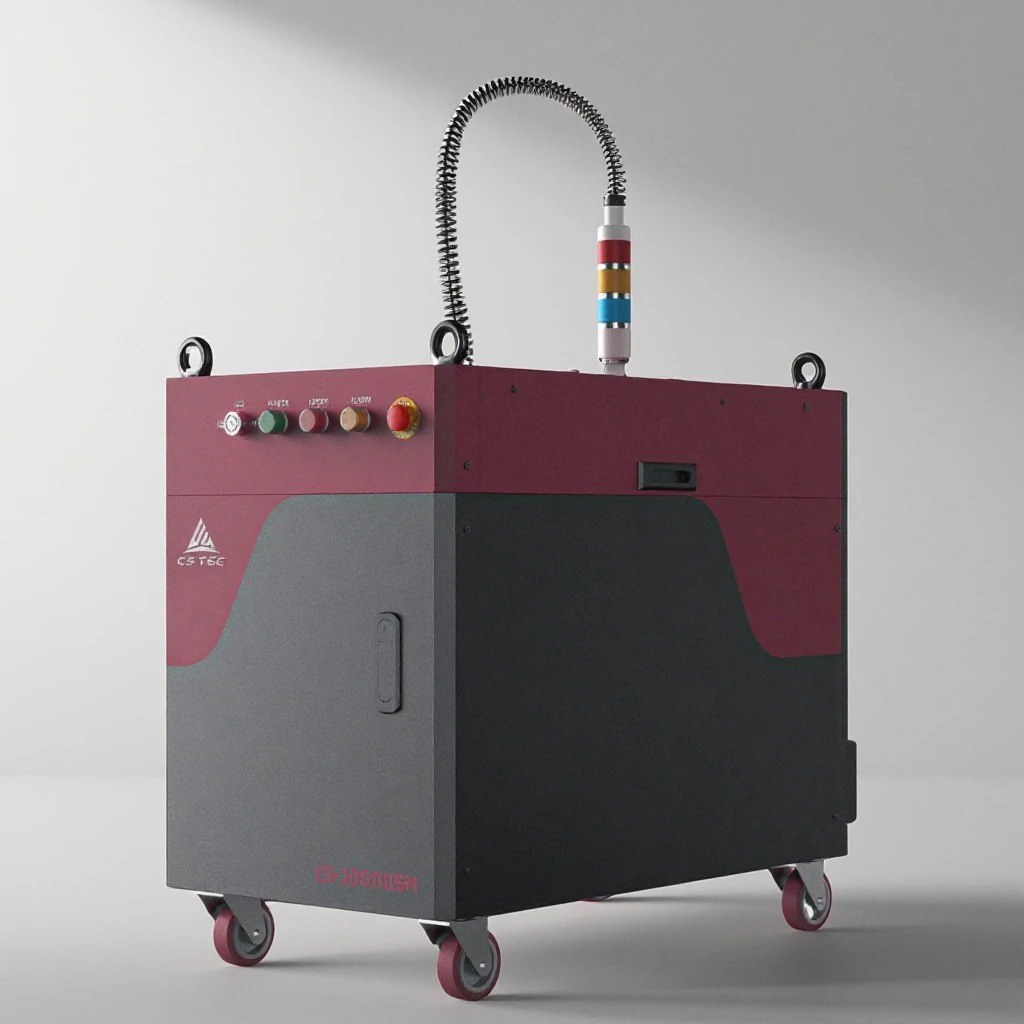

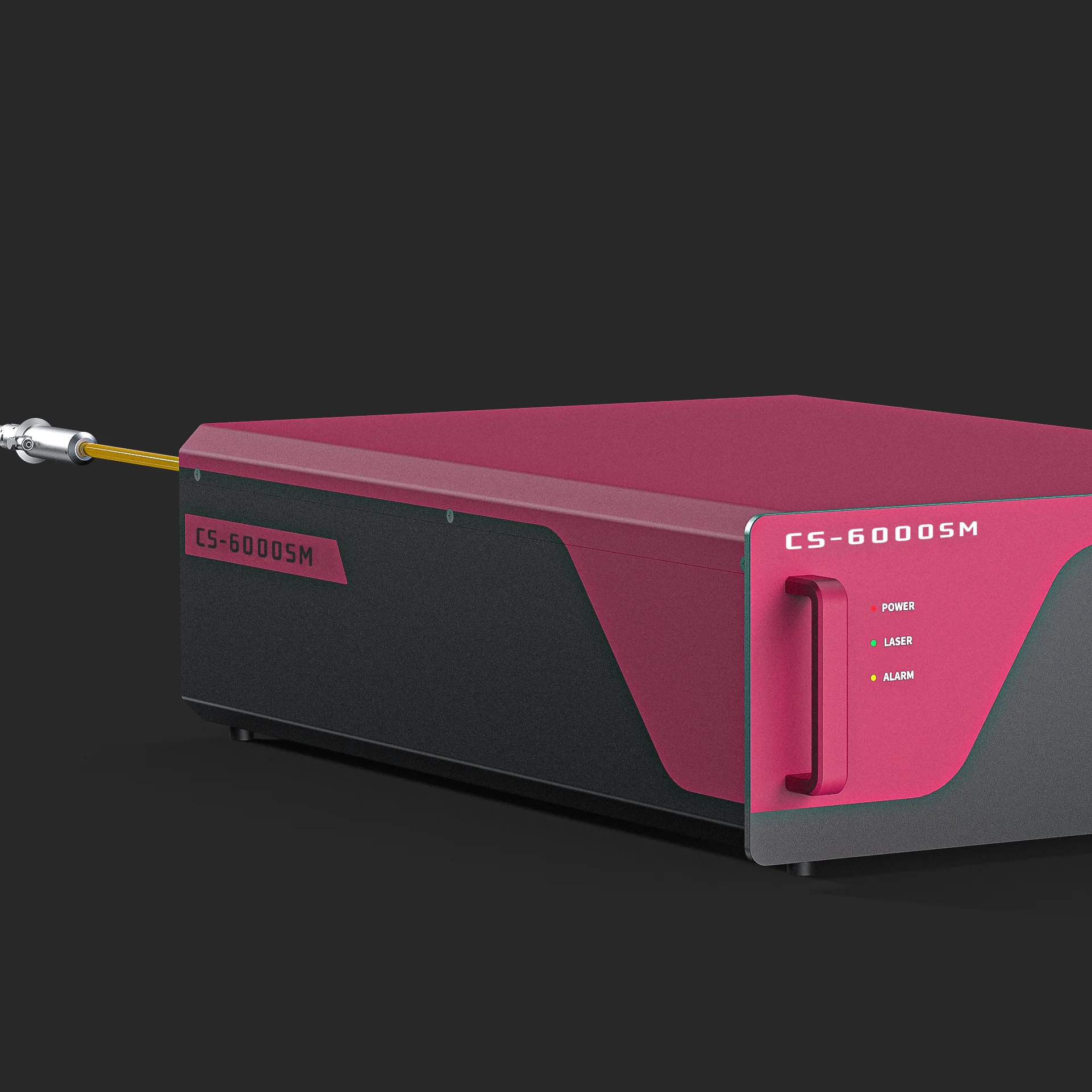

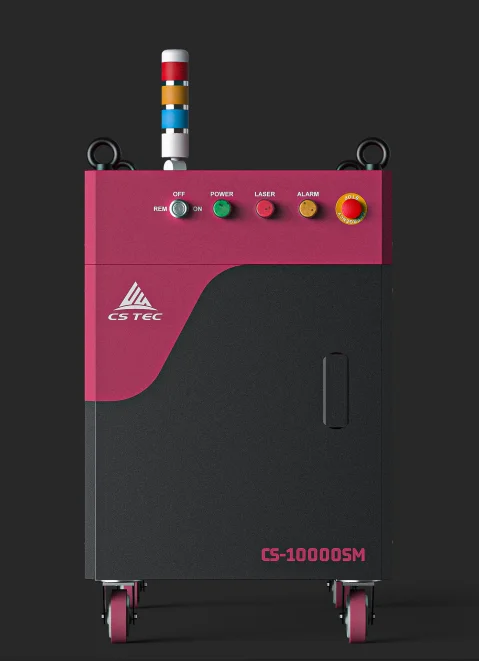

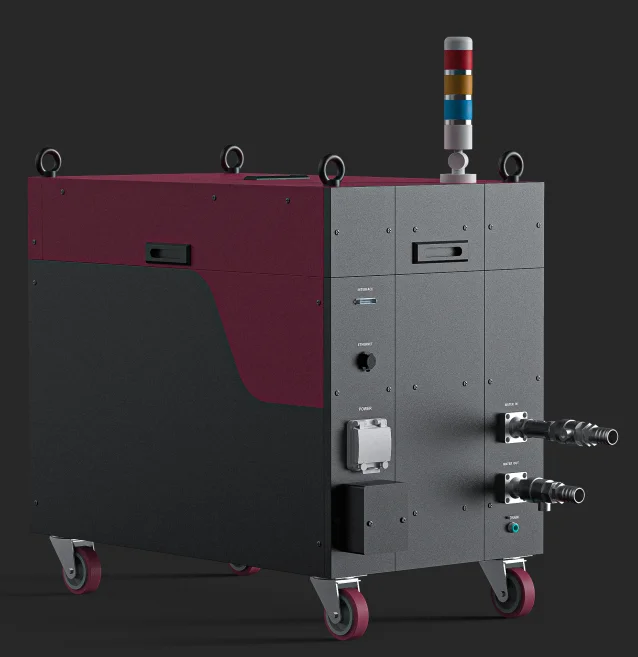

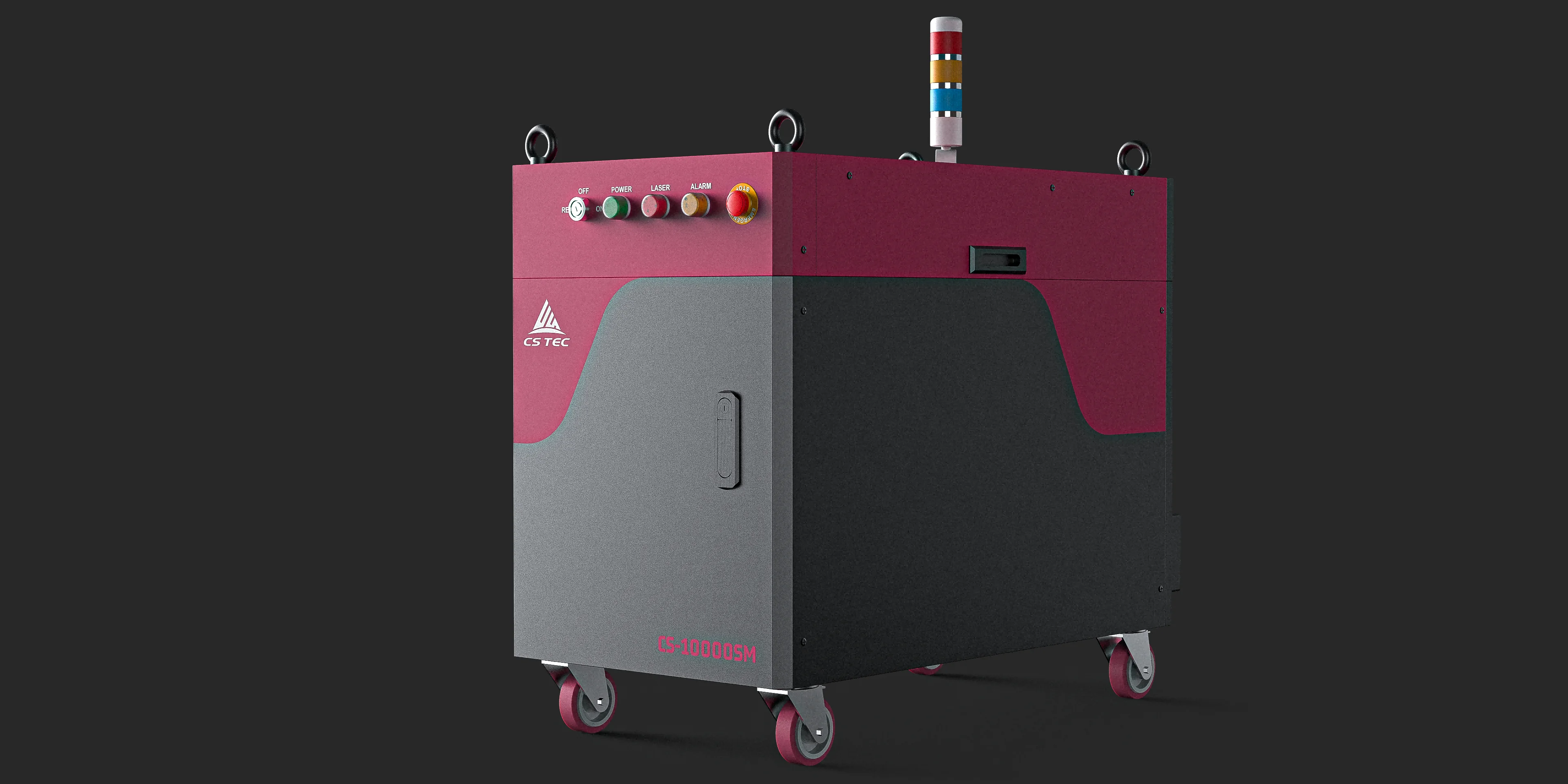

Details Images
Company Profile
Wuhan CS Tec Co., Ltd
Wuhan CS Tec Co., Ltd.,(also known as "CS"), is a high-tech company located in the heart of Wuhan's Optical Valley. We are a dedicated enterprise specializing in laser-related equipment and customized products, offering an expansive portfolio of services that cater to the diverse needs of our clients. With over a decade of international experience in the laser industry, CS Tec is an established industry leader. Our expertise is deeply rooted in providing a wide array of cost-effective laser products, ranging from fiber laser core devices to comprehensive solutions tailored to our customers' unique needs.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing.Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser
technology,constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need.Trust in CS Tec to provide the laser technology that helps shape your future.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing.Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser
technology,constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need.Trust in CS Tec to provide the laser technology that helps shape your future.
"Capture the laser, Shape the future" - with CS Tec,
you're in capable hands.
you're in capable hands.
Exhibition
FAQ
Q:What does Wuhan CS TEC Co do?
A: Wuhan CS TEC Co is a high-tech company located in the heart of Wuhan's Optical Valley, specializing in laser-related equipment and customized products. They offer a wide range of services to meet the diverse needs of their clients.
Q: What products does Wuhan CS TEC Co offer?
A: The company's products include laser diodes, laser components and fiber processing equipment, single-mode continuous wave (CW) fiber lasers, special wavelength fiber lasers, direct diode lasers, and more.
Q: What are the features of Wuhan CS TEC Co's laser diodes?
A: The laser diodes offered by the company have multiple advantages such as high reliability, stable output power, high power,high efficiency, long lifespan, and high compatibility. They are wavelength-selectable, covering a wide spectral range from 405 to 1550nm, and are available in different power levels to suit various application needs.
Q: What are the advantages of Wuhan CS TEC Co's fiber lasers?
A: The company's fiber lasers boast high beam quality, high energy density, and high electro-optical efficiency, making them suitable for various fields such as precision machining, deep penetration welding, and scientific research.
Q: What are the characteristics of Wuhan CS TEC Co's special wavelength fiber lasers?
A: The company's special wavelength fiber lasers feature a complete fiber design, a wide selection of wavelengths, and an optimized OEM solution, catering to the needs of the industrial, medical, and R&D markets.
Q: What are the benefits of Wuhan CS TEC Co's direct diode lasers?
A: The company's direct diode lasers have a wall-plug efficiency approaching 35% and are used across a variety of
applications.such as soft soldering, metal hardening, plastics welding, silicon surface modification, and Flat Panel Display (FPD) bonding.They also serve as an excellent source for optical laser pumping.
Q: What system solutions does Wuhan CS TEC Co provide?
A: The company provides comprehensive solutions for all laser systems, with a particular emphasis on traditional laser applications for marking and cutting.
Q: What are the features of Wuhan CS TEC Co's marking machines?
A: The company's marking machines include both table and portable types, equipped with either fiber laser or UV laser technology.These marking machines cover the full range of power, making them suitable for a wide array of applications, from small-scale marking tasks to high-volume industrial projects.
Q: What are the advantages of Wuhan CS TEC Co's cutting machines?
A: The company's cutting machines offer several standard types, each tailored for specific applications. Their precision cutting machines are designed for tasks requiring high levels of accuracy. The single table and double table models cater to different work volume requirements, while their full enclosure machines provide an extra level of safety for operators.
Q: What are the characteristics of Wuhan CS TEC Co's welding machines and cleaning machines?
A: The company's welding machines come in two standard types: handheld and platform models. They are equipped with Continuous
Wave(CW), Quasi Continuous Wave (QCW), or Yttrium-Aluminum-Garnet (YAG) lasers, covering the full range of power to suit different
welding tasks. Their cleaning machines offer two types based on their source of power. The first type is equipped with a
Continuous Wave (CW) fiber laser with power up to 3000W, ideal for intense cleaning operations. The second type employs a pulsed
fiber laser with power up to 500W, which is perfect for tasks requiring controlled and precise cleaning.
A: Wuhan CS TEC Co is a high-tech company located in the heart of Wuhan's Optical Valley, specializing in laser-related equipment and customized products. They offer a wide range of services to meet the diverse needs of their clients.
Q: What products does Wuhan CS TEC Co offer?
A: The company's products include laser diodes, laser components and fiber processing equipment, single-mode continuous wave (CW) fiber lasers, special wavelength fiber lasers, direct diode lasers, and more.
Q: What are the features of Wuhan CS TEC Co's laser diodes?
A: The laser diodes offered by the company have multiple advantages such as high reliability, stable output power, high power,high efficiency, long lifespan, and high compatibility. They are wavelength-selectable, covering a wide spectral range from 405 to 1550nm, and are available in different power levels to suit various application needs.
Q: What are the advantages of Wuhan CS TEC Co's fiber lasers?
A: The company's fiber lasers boast high beam quality, high energy density, and high electro-optical efficiency, making them suitable for various fields such as precision machining, deep penetration welding, and scientific research.
Q: What are the characteristics of Wuhan CS TEC Co's special wavelength fiber lasers?
A: The company's special wavelength fiber lasers feature a complete fiber design, a wide selection of wavelengths, and an optimized OEM solution, catering to the needs of the industrial, medical, and R&D markets.
Q: What are the benefits of Wuhan CS TEC Co's direct diode lasers?
A: The company's direct diode lasers have a wall-plug efficiency approaching 35% and are used across a variety of
applications.such as soft soldering, metal hardening, plastics welding, silicon surface modification, and Flat Panel Display (FPD) bonding.They also serve as an excellent source for optical laser pumping.
Q: What system solutions does Wuhan CS TEC Co provide?
A: The company provides comprehensive solutions for all laser systems, with a particular emphasis on traditional laser applications for marking and cutting.
Q: What are the features of Wuhan CS TEC Co's marking machines?
A: The company's marking machines include both table and portable types, equipped with either fiber laser or UV laser technology.These marking machines cover the full range of power, making them suitable for a wide array of applications, from small-scale marking tasks to high-volume industrial projects.
Q: What are the advantages of Wuhan CS TEC Co's cutting machines?
A: The company's cutting machines offer several standard types, each tailored for specific applications. Their precision cutting machines are designed for tasks requiring high levels of accuracy. The single table and double table models cater to different work volume requirements, while their full enclosure machines provide an extra level of safety for operators.
Q: What are the characteristics of Wuhan CS TEC Co's welding machines and cleaning machines?
A: The company's welding machines come in two standard types: handheld and platform models. They are equipped with Continuous
Wave(CW), Quasi Continuous Wave (QCW), or Yttrium-Aluminum-Garnet (YAG) lasers, covering the full range of power to suit different
welding tasks. Their cleaning machines offer two types based on their source of power. The first type is equipped with a
Continuous Wave (CW) fiber laser with power up to 3000W, ideal for intense cleaning operations. The second type employs a pulsed
fiber laser with power up to 500W, which is perfect for tasks requiring controlled and precise cleaning.
