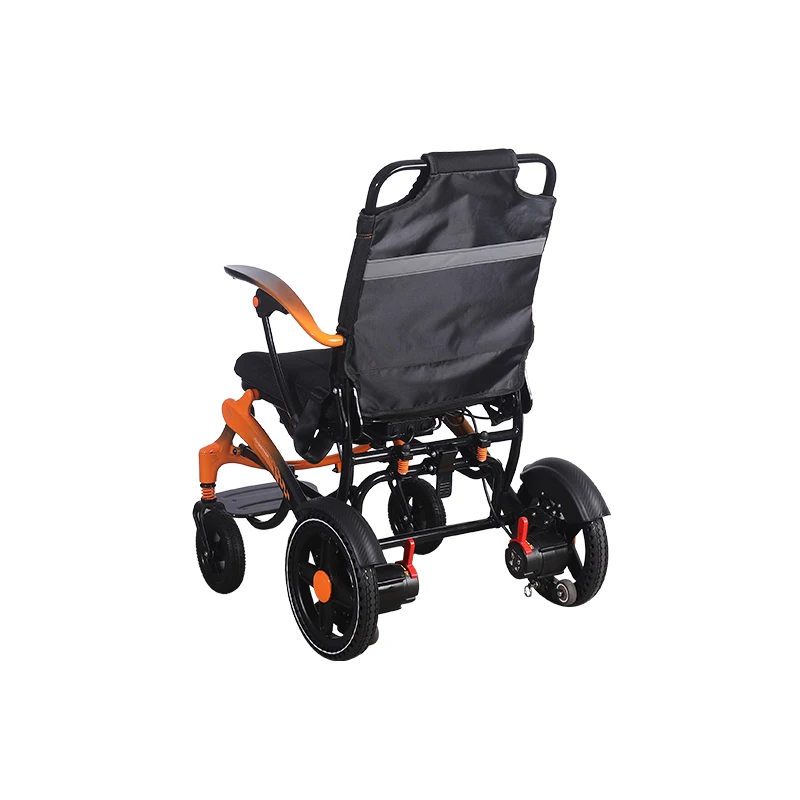

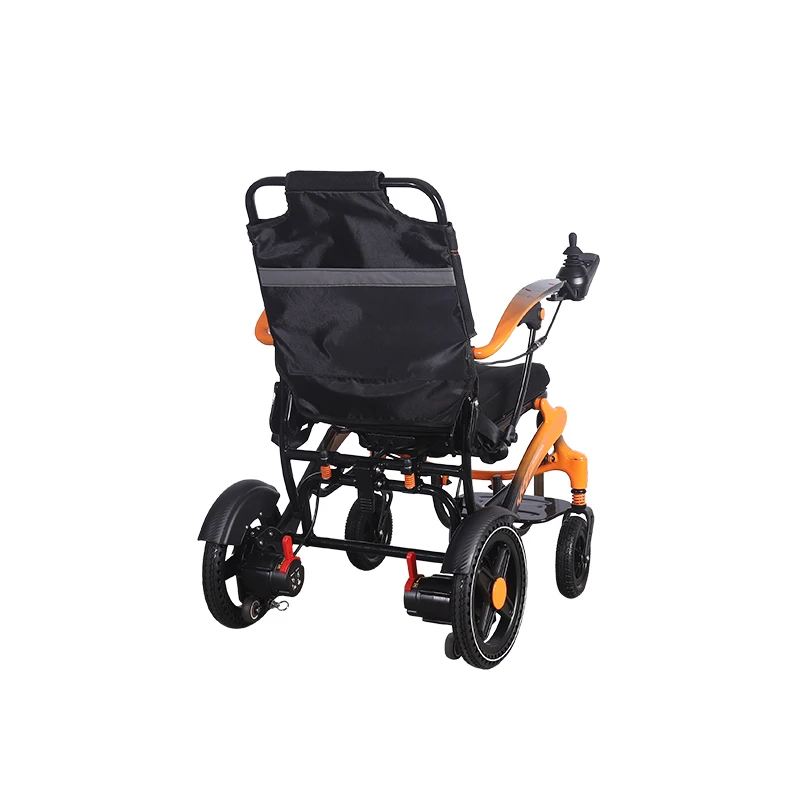

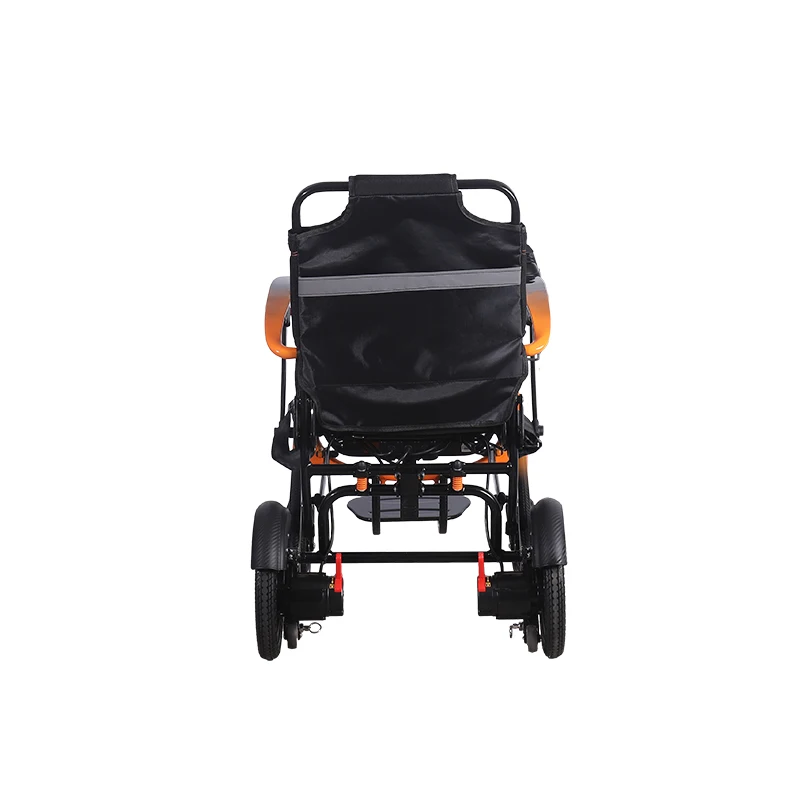

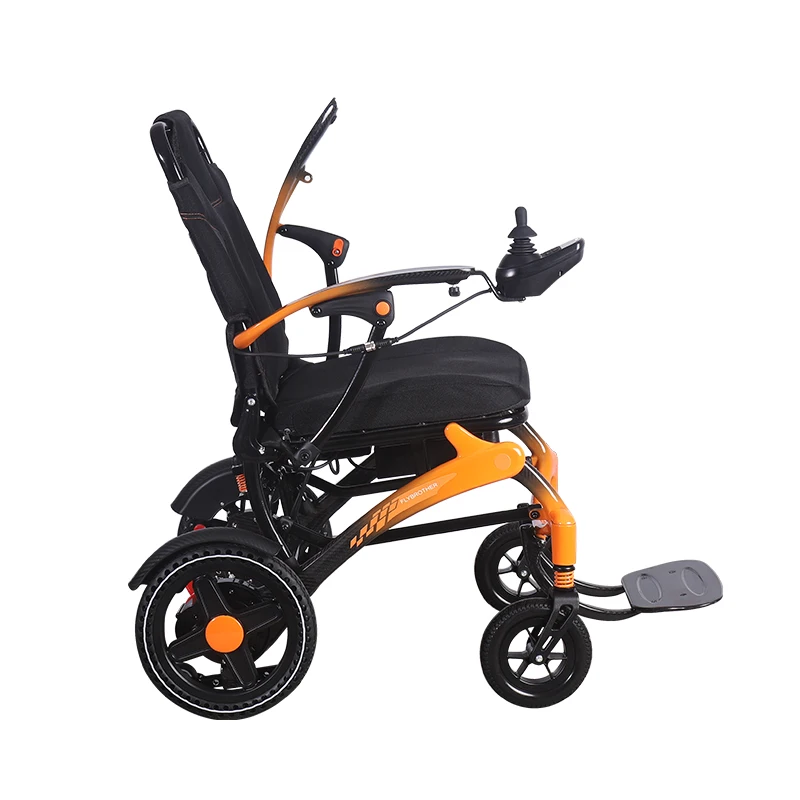

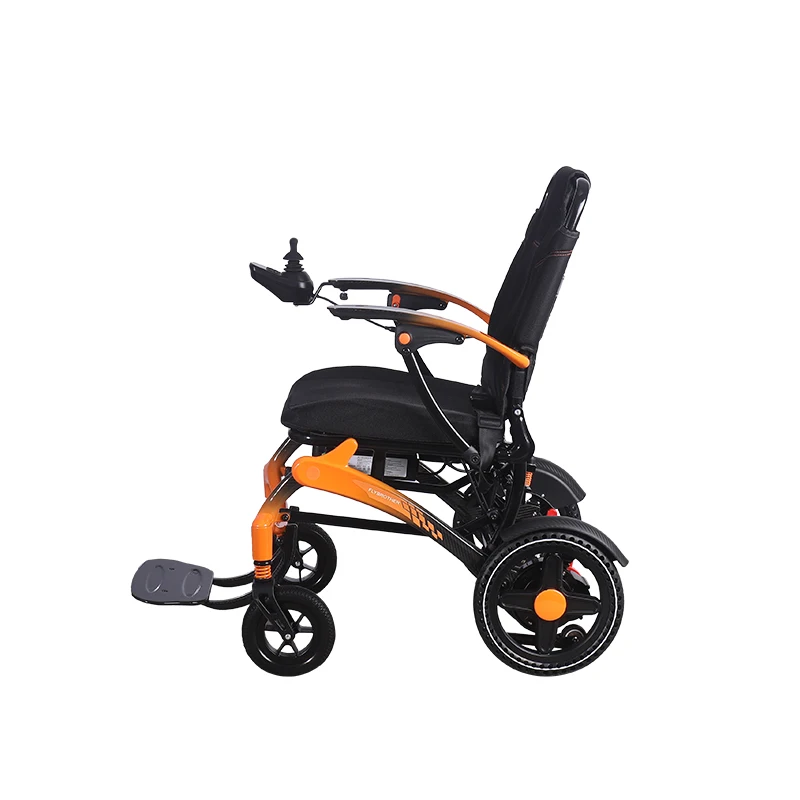

Lightweight Carbon Fiber Electric Scooter Wheelchair Easy Folding Design for the Disabled Handicapped Scooters
- Category: >>>
- Supplier: Zhejiang Nysin Medical Co. ltd.Zhejiang ltd.
Share on (1601335481845):
Product Overview
Description
Product Description
Specification
Item No | NXN18-226 |
Frame | Carbon fiber+Aluminium alloy |
Motors | 24V/180W/220W*2 ( Unite /Shiyou Brushless） |
Battery | 24V12AH(lithium battery） |
Controller | Joystick (Yaton /ShiyouBrushless） |
Charger | AC100-240V, 24V2A/3A) |
Weight Capacity | 136kgs/300lbs |
Charge time | 4-6h |
Max. forward speed | Up to 6km/h |
Max. backward speed | Up to 2km/h |
Mini Turning radius | 900mm |
Climbing capability | 9° (100kgs) |
Obstacle clearance height | 25mm (100kgs) |
Ditch crossing width | 100mm (100kgs) |
Driving Range | 15km(12Ah) |
Ground clearance | 35mm at Anti-tip wheel, 100mm at Motor |
Front Tyres | 7inch 165mm×29mm PU solid |
Rear Tyres | 11inch 227mm×35mm Honeycomb |
Anti-tip Tyres | 2inch Rubber |
Rim Material | Magnesium alloy |
Seat Material | Oxford cloth/Cotton, Inside:Sponge |
Seat Width | 420mm |
Seat Deepth | 430mm |
Seat Thickness | 30-50mm |
Seat to Ground Height | 480mm |
Seat to Foot platform Height | 350mm |
Overall Length | 960mm（With Anti-tip wheel） |
Overall Width | 600mm |
Overall Height | 920mm |
Fold Size（L*W*H） | 350*600*725mm |
G.W. with carton | 22.5kgs/49lbs |
N.W.with out battery | 16.3kgs+0.55kgs(2Acharger) 35.8lbs+1.2lbs |
Battery Weight | 2.2kgs/4.8lbs |
Packing size | 810*420*620mm |
20 ' FCL | 137pcs |
40' HQ FCL | 339pcs |
Packing & Delivery
Carton Packaging

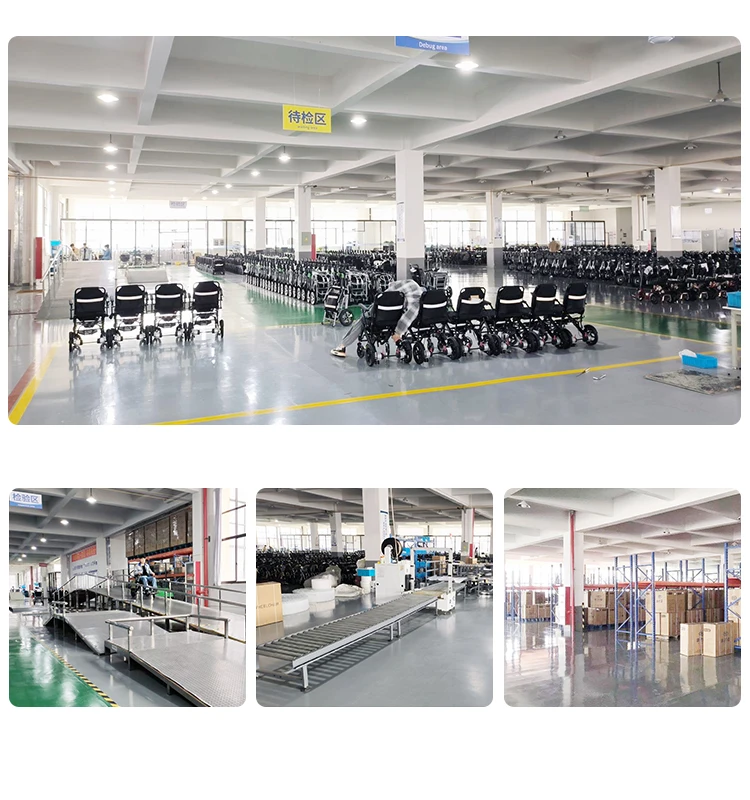

Company Profile
FAQ
1. What is the weight capacity of the electric wheelchair?
Answer: Our electric wheelchairs have a weight capacity of up to 300 lbs (136 kg), depending on the model.
2. How long does the battery last on a full charge?
Answer: Typically, the battery lasts between 8 to 12 hours on a full charge, allowing for a range of up to 15 miles (24 km).
3. What is the warranty period for the electric wheelchair?
Answer: We offer a one-year warranty for the entire wheelchair, including a separate warranty for the battery, usually ranging from 6 months to one year.
4. Can the electric wheelchair be used outdoors, and on what types of terrain?
Answer: Yes, our electric wheelchairs are designed for outdoor use and can handle various types of terrain, including pavement,gravel, and grass.
5. What are the dimensions of the wheelchair when folded?
Answer: When folded, the dimensions are approximately 30 inches (L) x 15 inches (W) x 29 inches (H), making it easy to fit into the trunk of most cars.
6. Is the seat adjustable in terms of height and position?
Answer: Yes, the seat height and position are adjustable to ensure maximum comfort for the user.
7. How fast can the electric wheelchair travel?
Answer: The wheelchair can travel at speeds of up to 4 mph (6.4 km/h).
8. What is the total weight of the electric wheelchair, including the battery?
Answer: The total weight, including the battery, is approximately 50 lbs (22.7 kg), depending on the model.
9. Are there any customization options available, such as color or accessories?
Answer: Yes, we offer various customization options, including different colors, seat cushions, and additional accessories such as cup holders and storage pouches.
10. What safety features does the electric wheelchair have?
Answer: Our electric wheelchairs are equipped with several safety features, including an anti-tip design, seat belts, and powerful braking systems for maximum safety.
Answer: Our electric wheelchairs have a weight capacity of up to 300 lbs (136 kg), depending on the model.
2. How long does the battery last on a full charge?
Answer: Typically, the battery lasts between 8 to 12 hours on a full charge, allowing for a range of up to 15 miles (24 km).
3. What is the warranty period for the electric wheelchair?
Answer: We offer a one-year warranty for the entire wheelchair, including a separate warranty for the battery, usually ranging from 6 months to one year.
4. Can the electric wheelchair be used outdoors, and on what types of terrain?
Answer: Yes, our electric wheelchairs are designed for outdoor use and can handle various types of terrain, including pavement,gravel, and grass.
5. What are the dimensions of the wheelchair when folded?
Answer: When folded, the dimensions are approximately 30 inches (L) x 15 inches (W) x 29 inches (H), making it easy to fit into the trunk of most cars.
6. Is the seat adjustable in terms of height and position?
Answer: Yes, the seat height and position are adjustable to ensure maximum comfort for the user.
7. How fast can the electric wheelchair travel?
Answer: The wheelchair can travel at speeds of up to 4 mph (6.4 km/h).
8. What is the total weight of the electric wheelchair, including the battery?
Answer: The total weight, including the battery, is approximately 50 lbs (22.7 kg), depending on the model.
9. Are there any customization options available, such as color or accessories?
Answer: Yes, we offer various customization options, including different colors, seat cushions, and additional accessories such as cup holders and storage pouches.
10. What safety features does the electric wheelchair have?
Answer: Our electric wheelchairs are equipped with several safety features, including an anti-tip design, seat belts, and powerful braking systems for maximum safety.
