China famous brand ZL50E 5T Wheel loader price list for sale
- Category: >>>
- Supplier: Acntruck Vehicle & Machinery (Shanghai) Co. Ltd.Acntruck Ltd.
Share on (1601335555100):
Product Overview
Description
Personal Business Card
Products Description
China New Loaders WheeL Loader ZL50E for Sale
The engine is perfectly matched to the transmission chain and hydraulic system, for more efficiency and less wastage.
The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
309° panoramic visibility gives the operator a very comfortable work environment in the cab. Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
ZL50E underground wheel loader is applicable for containers, docks, mines and other space of low height.
1.Featuring the automatic leveling function and high working efficiency, the working device is designed optimally, and the dumping height, dumping distance, digging force, and lifting capability and the total time of three devices reach or overpass the index of domestic first-class product.
2.Adopting the articulated frame, small turning radius and the mobility, the skid steer loader is suitable to work in narrow area.
3.The reasonable and well matching of the power shift system, hydraulic, steering system and control system make them more portable and flexible in operation, and the whole machine is more stable.
4.The features of whole glass-steel hood, left and right side door-opening structure and automatic locking function reduce the noise and make it convenient for operation and easy for maintenance of the engine.
Product Parameters
Description | Specification | Unit | ||
Rated operating load | 5000 | kg | ||
Bucket capacity | 2.5 | m³ | ||
Machine weight | 18500 | kg | ||
Dump clearance at maximum lift | 2580 | mm | ||
Reach at maximum lift | 960 | mm | ||
Wheel base | 2300 | mm | ||
Tread | 1490 | mm | ||
Max. breakout force | 56 | Kn | ||
Max. horse power | 45 | Kn | ||
Hydraulic cycle time-raise | 5 | s | ||
Total hydraulic cycle time | 9 | s | ||
Min. circle radius over outside bucket | 5100 | mm | ||
Min. turning radius over tyres | 4450 | mm | ||
Articulation angle | 35 | ° | ||
Gradeability | 28 | ° | ||
Tyre size | 16/70-20 | |||
Overall machine dimension (LxWxH) | 8390×3000×2700 | mm | ||
Engine Model | LR4B3ZU-G73X3QR-U3 | |||
Rated power/Speed | 66.2/2400 | Kw/rpm | ||
Travel speed | I-gear(F/R) | 10 | km/h | |
II-gear(F/R) | 28 | km/h | ||

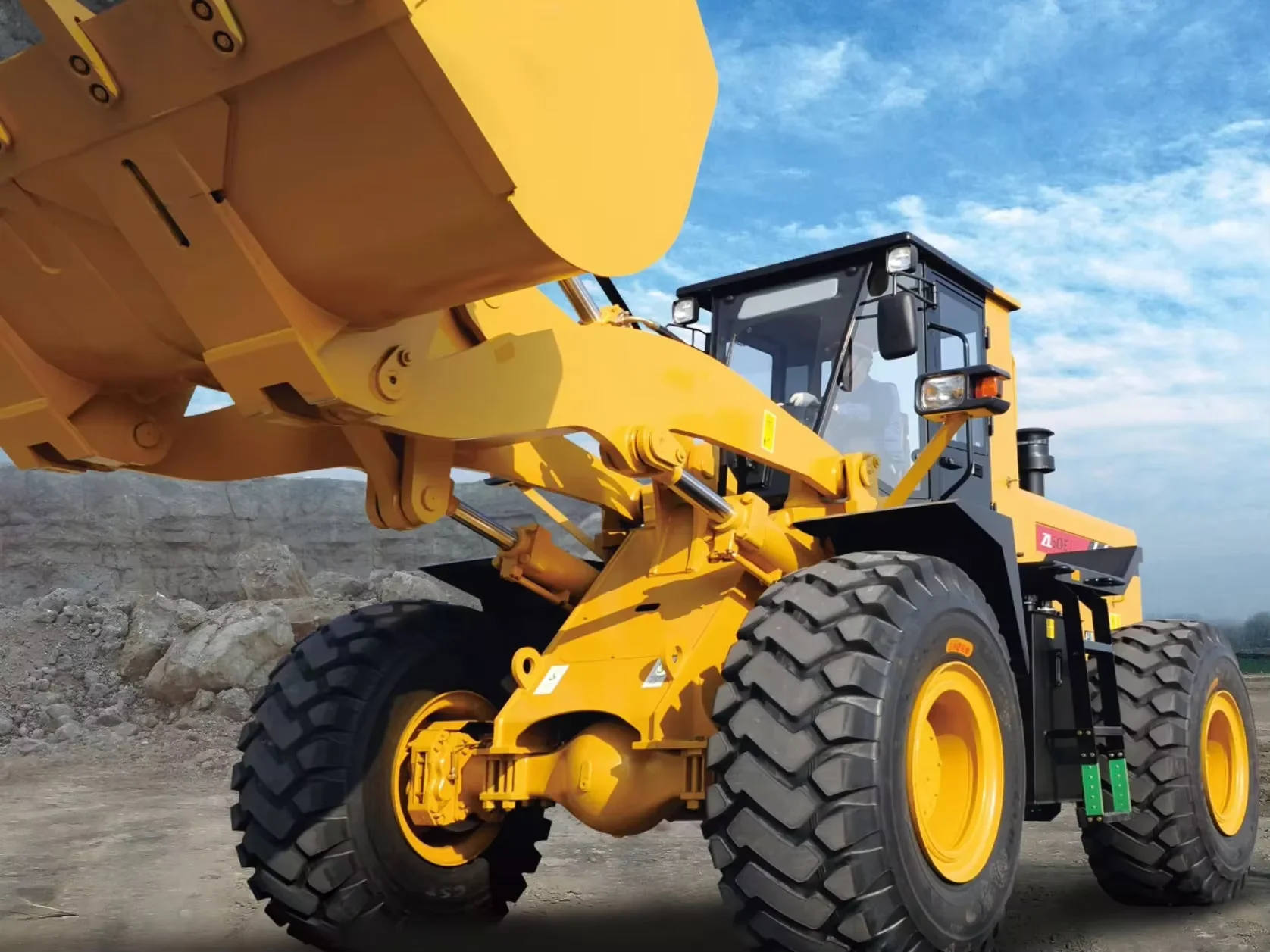

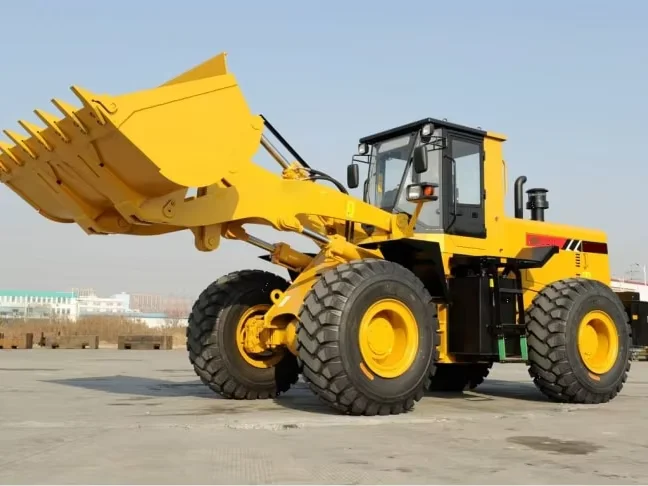

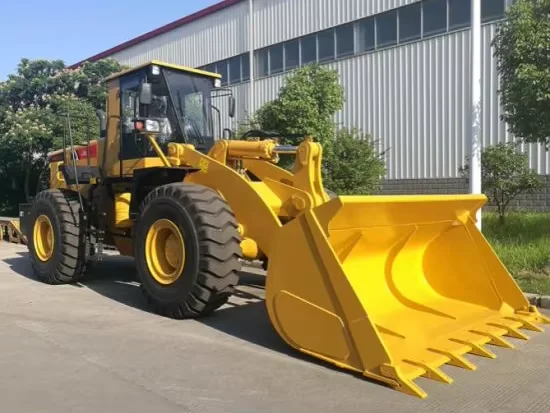

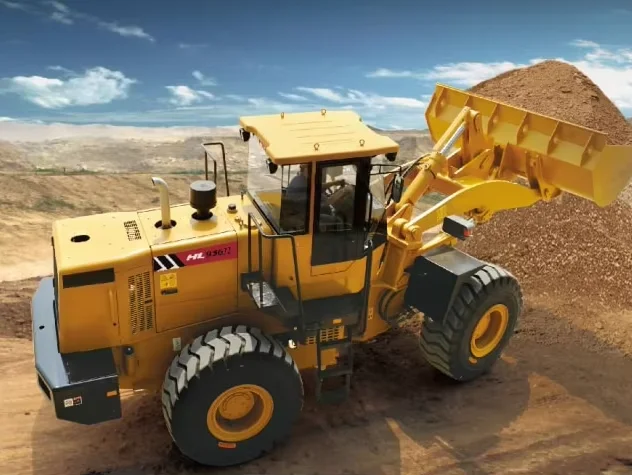

Product Show
