Engineering water well drilling rig deep can drill 300 meters of crawler hydraulic drilling machine
- Category: >>>
- Supplier: Guangzhou Carlson Machinery Co. Ltd.Guangzhou Ltd.
Share on (1601336325063):
Product Overview
Description
Products：

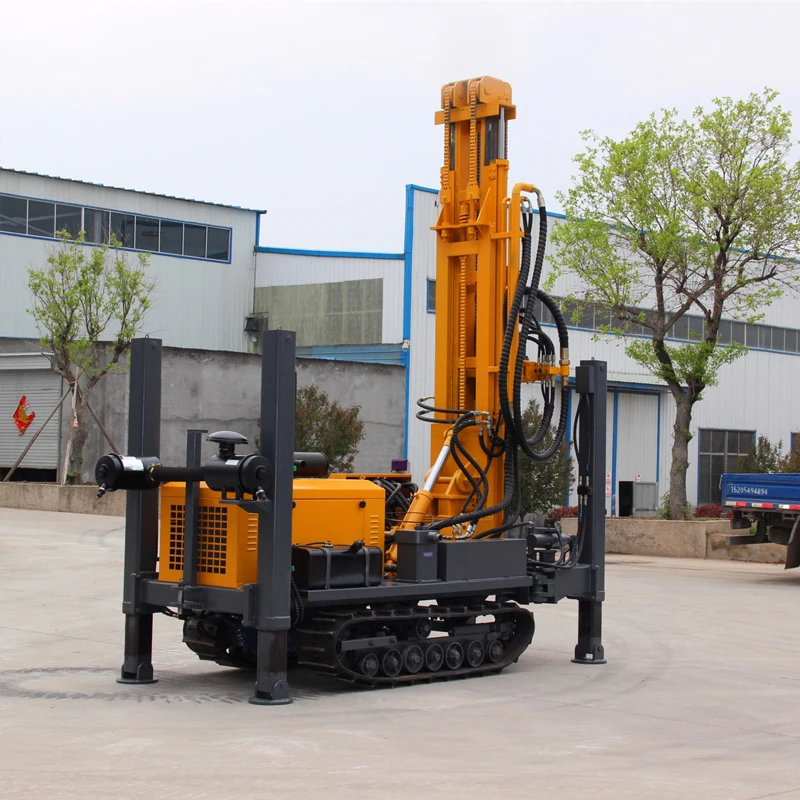

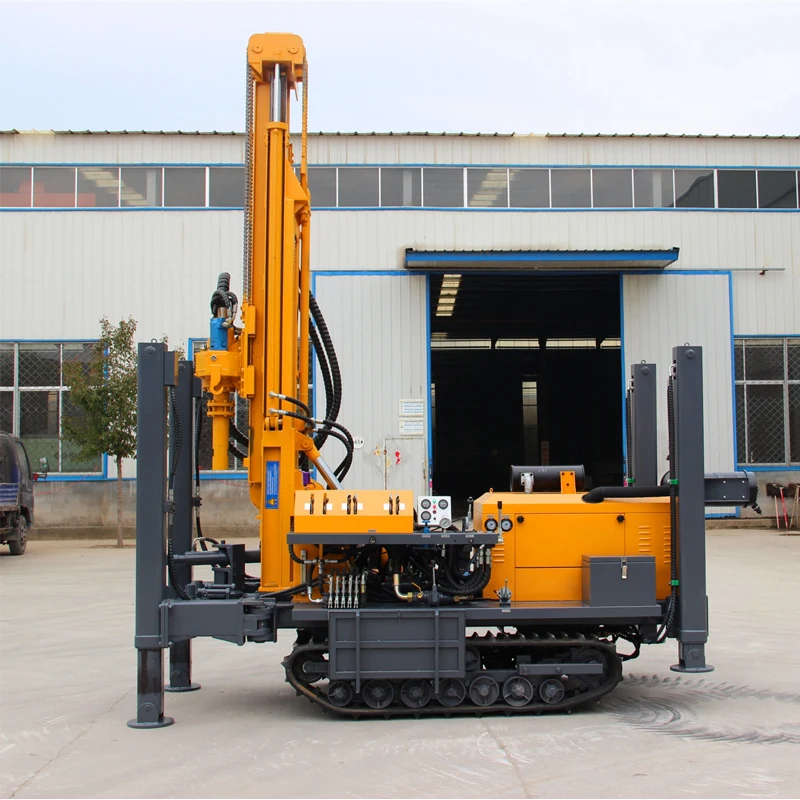

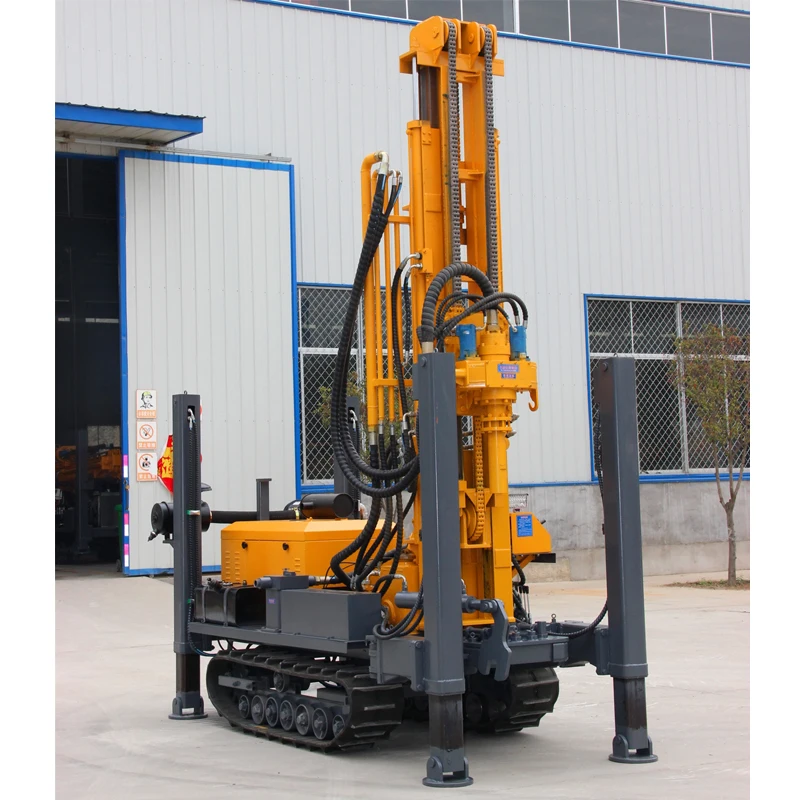

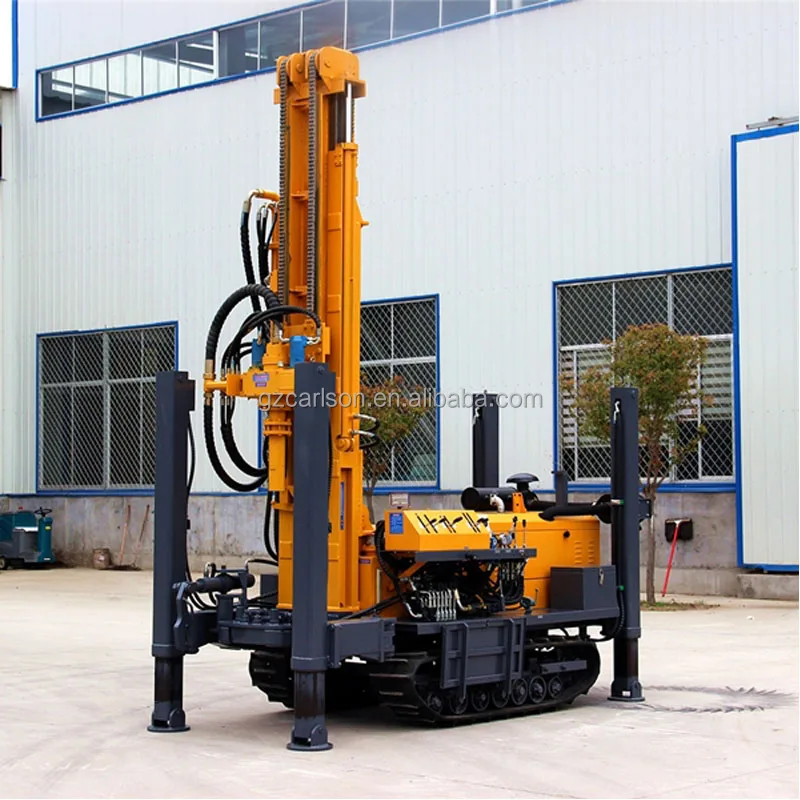

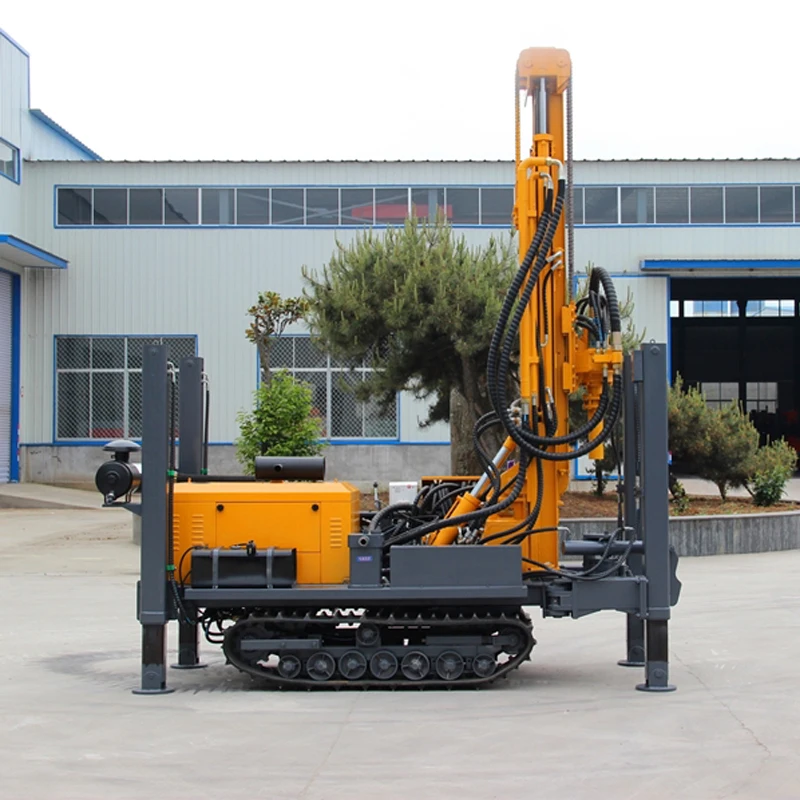

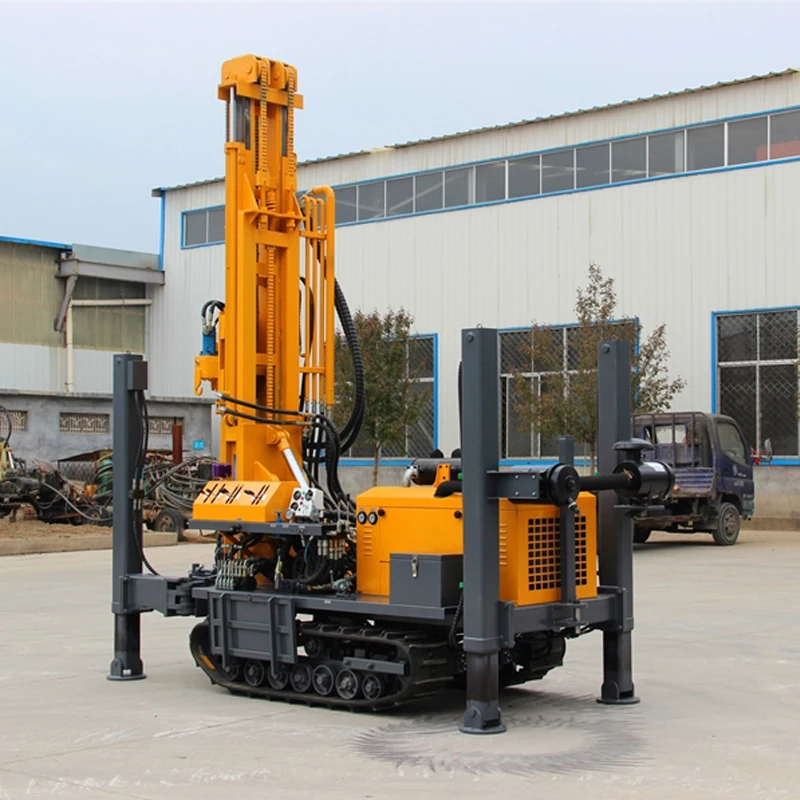

Engineering water well drilling rig drilling rig deep water well drilling rig can drill 300 meters of crawler hydraulic drilling machine
Pneumatic drilling rigs are particularly suitable for water intake formations in mountainous and rocky areas. It is very flexible on difficult road surfaces and can be widely used in hydrological well resource exploration, coalbed methane, shale gas shallow, geothermal and other fields. It can also be used for coal mine gas mining and salvage work. It is suitable for mud drilling, air drilling, air foam drilling and other construction operations to meet the drilling needs of different terrains and formations. The pneumatic well drilling rig shall be used together with the air compressor, and mud pump and foam pump can be added. Different drilling tools are required, such as drill rods, hammers, rock drills, etc.
This drilling rig needs to be used together with an air compressor. If you want to purchase an air compressor at the same time, please let us know your drilling depth and diameter, and we will provide corresponding suggestions:
1.55KW all diesel engine
2. Patent designed composite arm frame, dual cylinder lifting;
3. Professional excavator chassis, sturdy and durable, heavy load-bearing, wide chain plate. The drilling rig adopts rubber tracks, which have high flexibility and minimal damage to hard road surfaces.

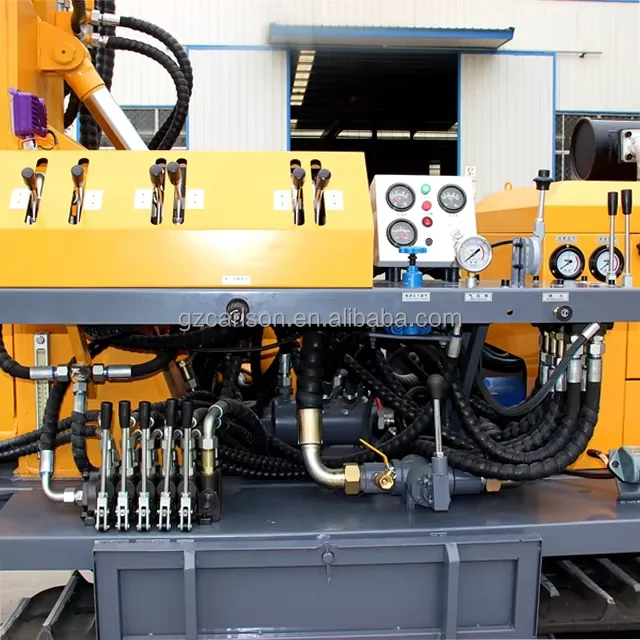

4. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance, and low cost.
For more product information, you can consult our sales manager.
The weight (T) | 4.5 |
The hole diameter (mm) | 140-254 |
Drilling depth (m) | 180 |
One-time advance length (m) | 3.3 |
Walking speed (km/h) | 2.5 |
Climbing angles (Max.) | 30 |
Equipped capacitor (kw) | 55 |
Using air pressure (Mpa) | 1.7-2.5 |
Air consumption (m3/min) | 17-31 |
Swing speed (rpm) | 45-70 |
The penetration efficiency (m/h) | 10-35 |
Certifications
Recommend Products
Packaging and Delivery
Company Profile
Guangzhou Carlson Machinery is our new branch. The head office was established in 2010 and is located in Jining City, Shandong Province, the land of etiquette and the hometown of Confucius and Mencius.
We have 20 core R&D engineers with more than 10 years of R&D experience. We are an enterprise integrating production, R&D, and sales. The company has advanced Processing equipment, strong technical force, and complete testing equipment. The company produces pavement, construction, industrial and mining, agricultural and forestry machinery and other equipment.
The products are sold well in Europe, America, South America, Southeast Asia, Africa, the Middle East, Southeast Asia and other parts of the world. In the future development projects, Guangzhou Carlson Machinery Co., Ltd. will take high quality, high standards, high efficiency and high service as its strategic goals to provide high-quality products to users. Warmly welcome to negotiate, guide and cooperate.
We have 20 core R&D engineers with more than 10 years of R&D experience. We are an enterprise integrating production, R&D, and sales. The company has advanced Processing equipment, strong technical force, and complete testing equipment. The company produces pavement, construction, industrial and mining, agricultural and forestry machinery and other equipment.
The products are sold well in Europe, America, South America, Southeast Asia, Africa, the Middle East, Southeast Asia and other parts of the world. In the future development projects, Guangzhou Carlson Machinery Co., Ltd. will take high quality, high standards, high efficiency and high service as its strategic goals to provide high-quality products to users. Warmly welcome to negotiate, guide and cooperate.
FAQ
Q1: Are you factory or trading company?
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our
principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:T/T,L/C,D/P, Western Union etc.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set. Warranty:12 months
Q8:Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it's the buyer responsibility need to pay it, the shipping cost it's not included the tax.
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our
principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions.
Q4: How long is your delivery time?
A:Generally it is 3-7 days if the goods are in stock. Or it is 15-20 days if the automatic weighing vertical bagged liquid pastes packaging machine is customized, it is according to mould and quantity .
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100%safe payment protection.
A:Generally it is 3-7 days if the goods are in stock. Or it is 15-20 days if the automatic weighing vertical bagged liquid pastes packaging machine is customized, it is according to mould and quantity .
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100%safe payment protection.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:T/T,L/C,D/P, Western Union etc.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set. Warranty:12 months
Q8:Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it's the buyer responsibility need to pay it, the shipping cost it's not included the tax.
