Price:$8,999.00-9,999.00

Quantity:


Product Overview

Description





Products Description




Best Price 10 ton monorail double girder overhead crane bridg crane

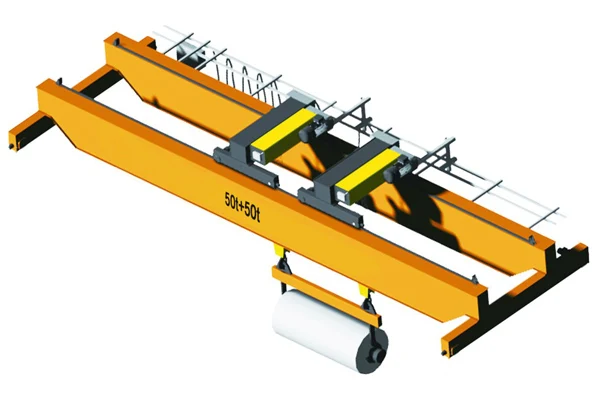

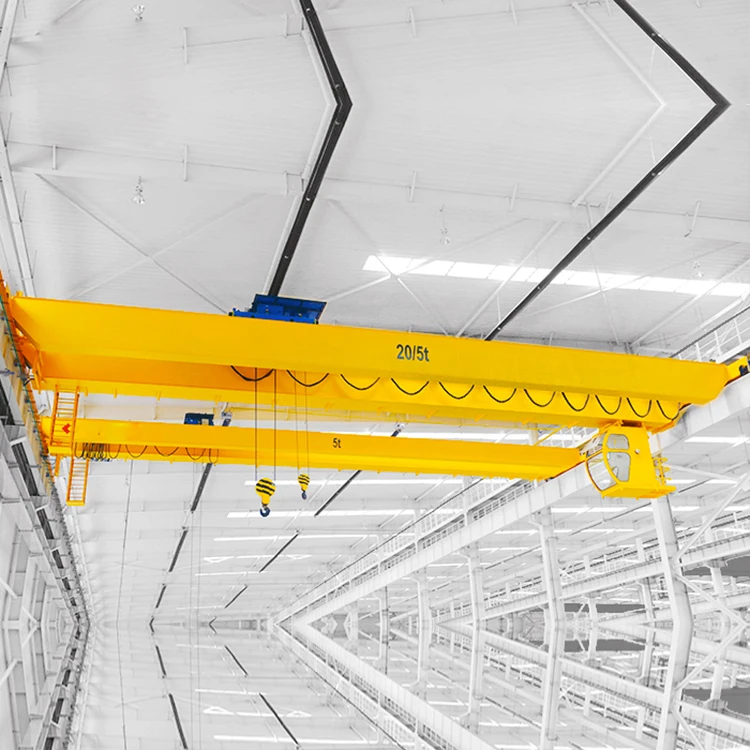

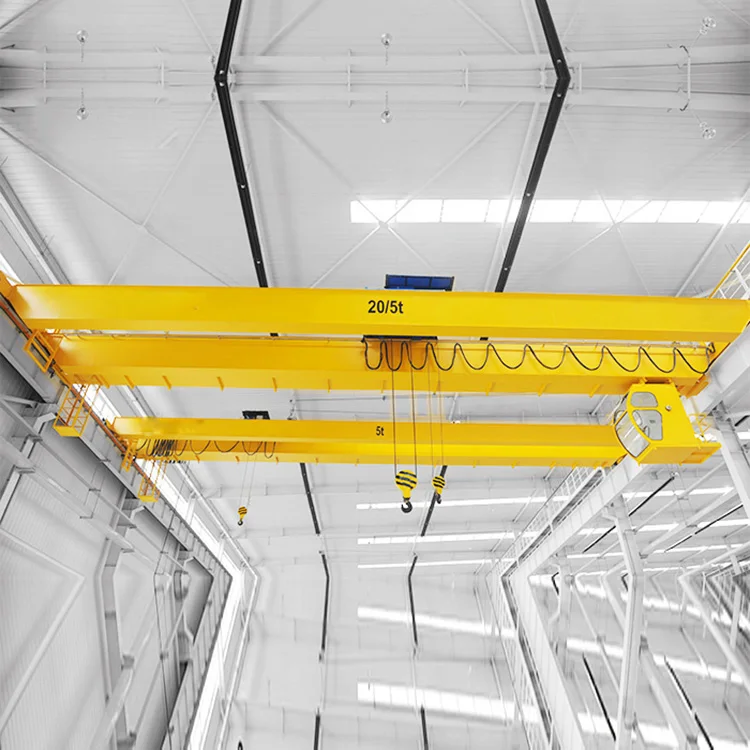

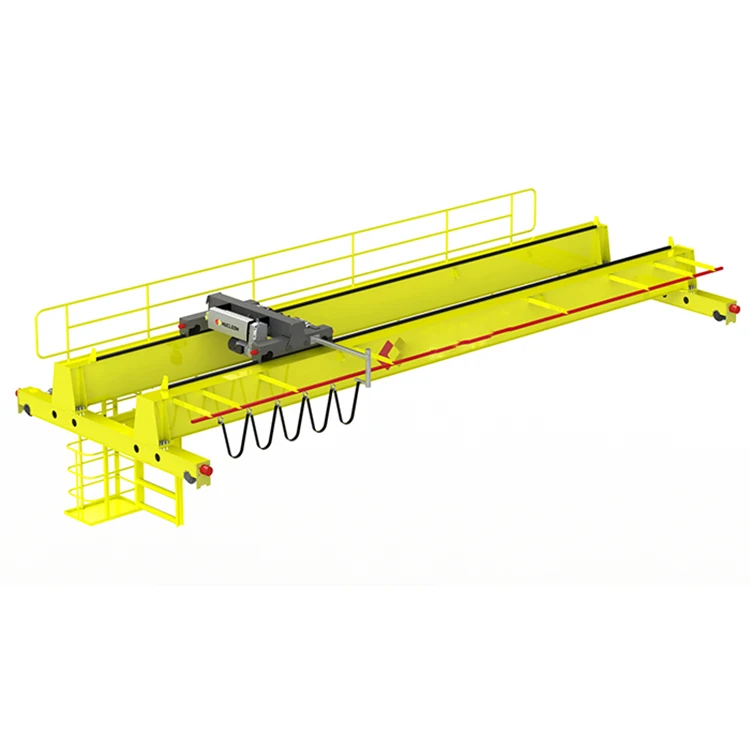

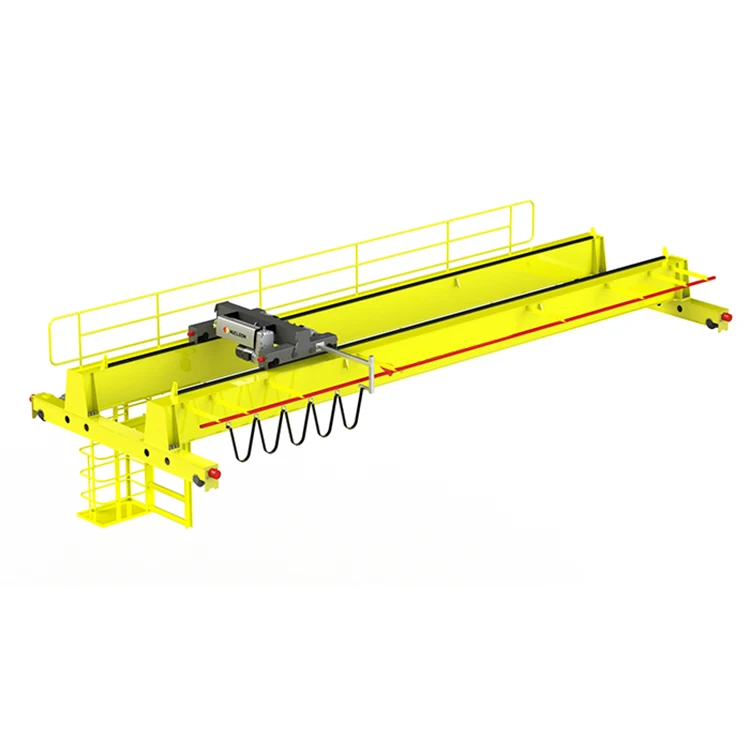

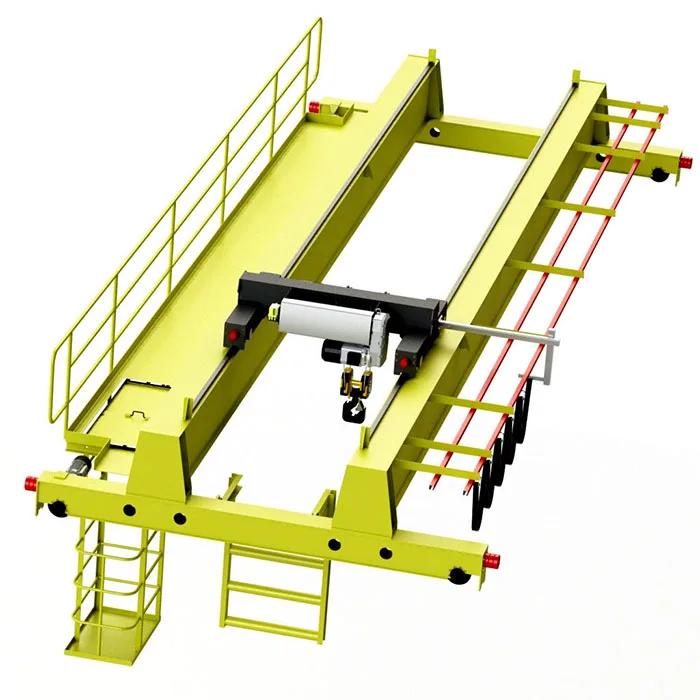

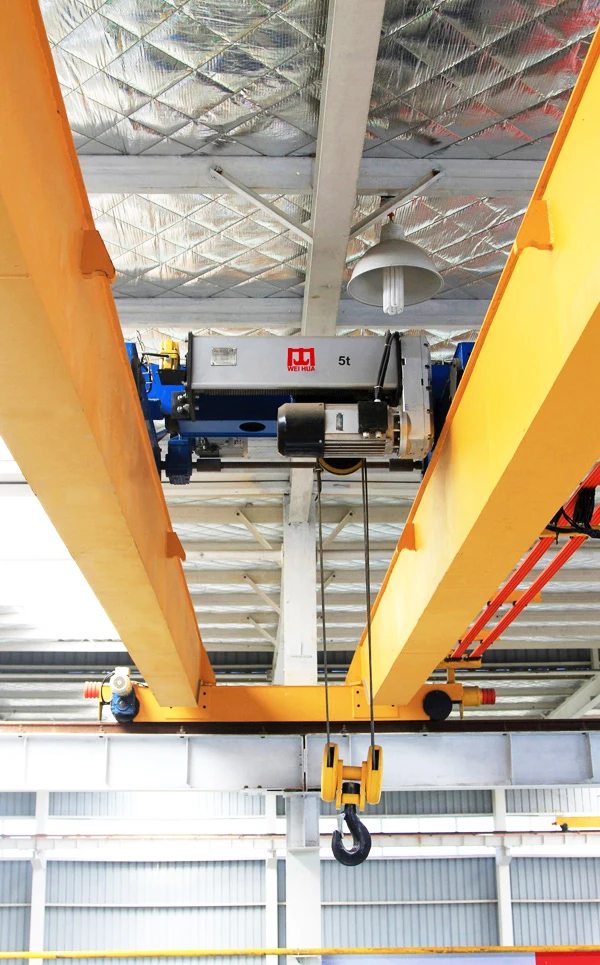

This double girder overhead crane with electric hoist is for lifting 5t~50t stuff. It's very convenient to install in new or existing workshops. This crane is easy to operate with various functions. With the advantages of compact structure, light weight and high lifting height, double girder overhead crane with electric hoist is widely used in workshops, metallurgy, warehouses and assembly shops etc.












Overhead Crane Features:
1. Double main girders, box-type shaped by wielding;
2. High quality carbon steel Q235B and Q345B;
3. Double girder connected by high strength screws;
4. Welding seams are tested by X-ray and ultrasound;
5. Forged wheels;
6. Compact structure, small volume and light weight trolley;
7. Lifting mechanism is open type winch trolley;
8. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
9. Good operation performance, step less speed regulating and running smoothly;




Main Girder
Shot blasting sa2.5: after welding to release internal stresses;
Painting: high quality epoxy zinc-rich primer
Thickness of oil film: 140μm
Electrical Cabinet
Brand: Schneider, SIEMENS, CHINT
Surface of cabinet: Antisepsis plastic spraying, reasonable layout, IP55
PVC Flat Cable specially used for crane
Wire frame&Wire groove to protect
Wireless Remote Control
Model: F21 F23 F24
Speed: single/double speed, VFD speed control
Optional:Pendant control, remote control, cab control

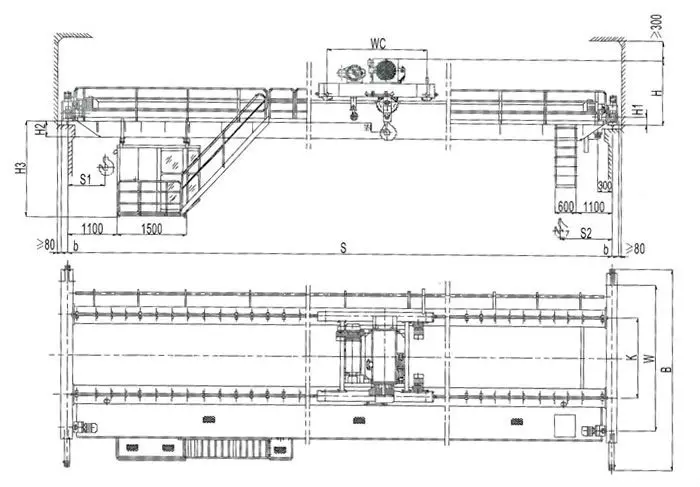

 European Standard Electric Hoist Double Girder Overhead Crane







Lifting Capacity
t
5
10
16
20
32
50
Span
m
10.5m～31.5m, and customizable





Lifting Height
m
6m～24m, and customizable





Lifting Speed
m/min
0.8/5
0.8/5
0.66/4
0.53/3.4
0.8/3.3
0.53/3.2
Trolley Traveling Speed
m/min
2~20





 Crane Traveling Speed
m/min
3~30





Work Duty

A5





Power Supply

380V, 50Hz









Main Products






The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, grab bucket crane, jib crane, marine deck crane, electric hoist, electric winch, mobile platforms and other types of hydraulic crane technical requirements.
\\uD83D\\uDC47\\uD83D\\uDC47\\uD83D\\uDC47Click the one you are interested\\uD83D\\uDC47\\uD83D\\uDC47\\uD83D\\uDC47

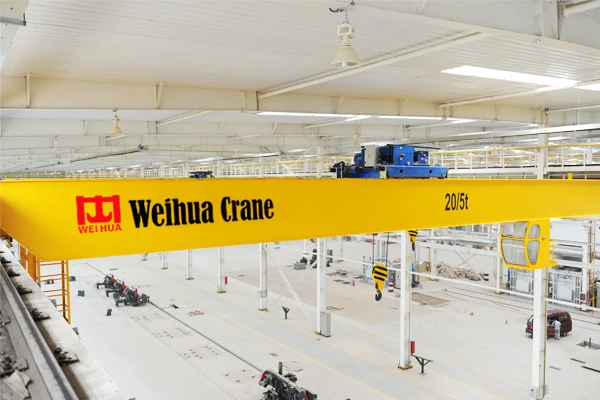

Company Profile






Weihua Group was founded in 1988. After 33 years of development, it has developed products such as lifting machinery, port machinery, mining machinery, electric hoists, electric winch, parking equipment, special robots and other products.The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

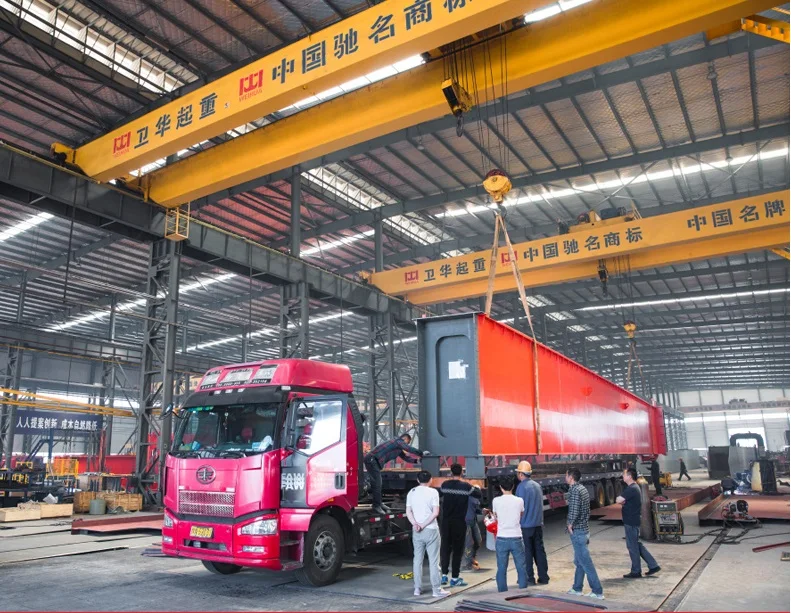

Packing and shipping






FAQ




Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, limit switch (lifting and traveling), interlocking protection devices, buffer, track sweep plate, shield, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.
