CF30M High Performance 300ml DC12V/24V Air Liquid Micro Diaphragm Pump with EPDM/PTFE/FFKM for Chemical Printing Industry
- Category: >>>
- Supplier: Shenzhen Sinko Fluid Technology Co. Ltd.Shenzhen Ltd.
Share on (1601338111317):
Product Overview
Description

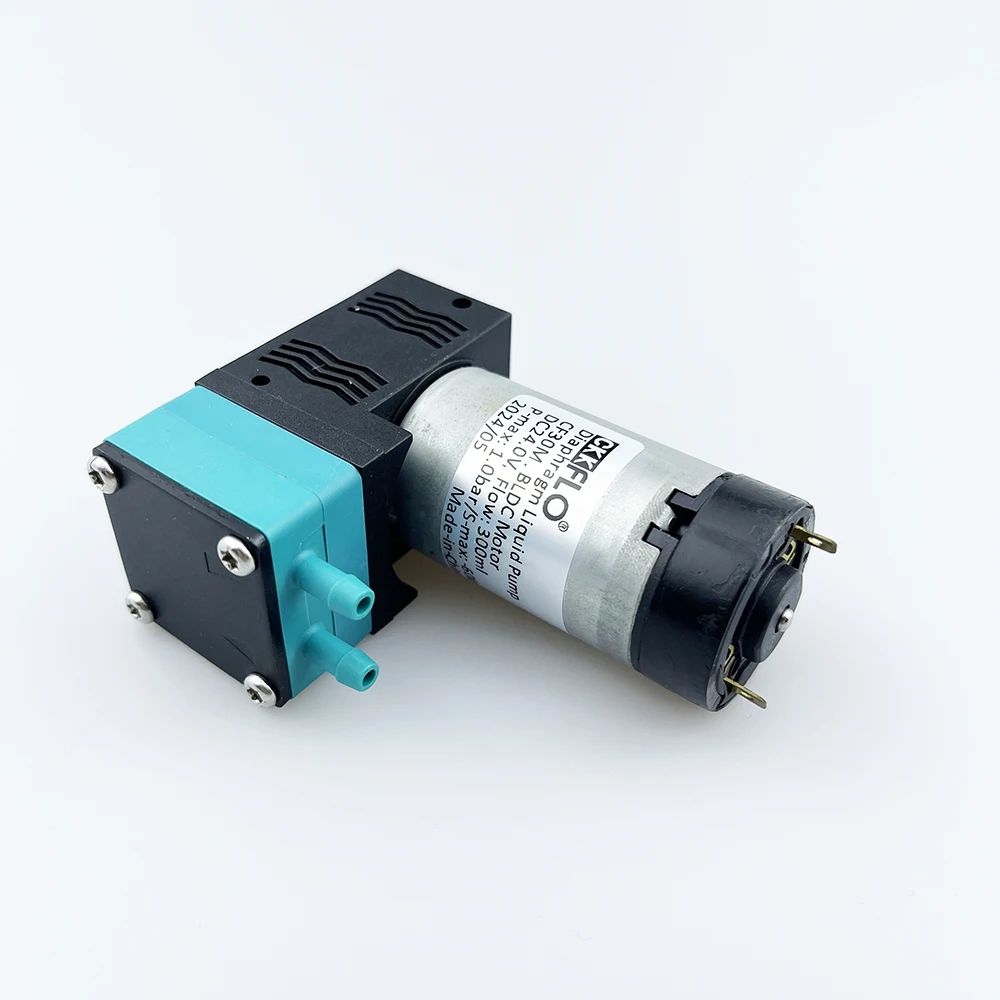

CF30 MICRO DIAPHRAGM AIR LIQUID MIXTURE PUMP RELIABLE AND DURABLE EPDM/PTFE/FFKM OPTIONAL
CF30 SERIES DIAPHRAGM AIR LIQUID PUMP is a high-end customized liquid pump. It uses imported engineering plastic raw materials and imported bearings.It is matched with brushless motor. It is lightweight, durable, reliable, long-life, and maintenance-free.
Equipped with motor speed regulation and other properties, it is widely used in medical IVD fields, digital printing, gas analysis
and environmental protection online monitoring, and vacuum technology.
Equipped with motor speed regulation and other properties, it is widely used in medical IVD fields, digital printing, gas analysis
and environmental protection online monitoring, and vacuum technology.
Part number | CF30M-CBD | CF30M-CBLD | ||||
Pump head | PA | PA | ||||
Diaphragm | EPDM/PTFE/FFKM | PTFE/PTFE/FFKM | ||||
Valves | EPDM | EPDM | ||||
Liquid flow rate at atm.pressure | ≥300ml/min | ≥300ml/min | ||||
Air flow at atm.pressure | ≥2.5L/min | ≥2.5 L/min | ||||
Max Suction head(mWg) | ≥3 | ≥3 | ||||
Max Pressure head(mWg) | ≥10 | ≥10 | ||||
Weight(g) | 172 | 172 | ||||
Input voltage(VDC) | 12V/24V | 12V/24V | ||||
Unload current(mA) | 190/376 | 502/250 | ||||
Permissible ambient temperature(℃) | 5 - 40 | 5 - 40 | ||||
Permissible media temperature (℃) | 5 - 40 | 5 - 40 | ||||
