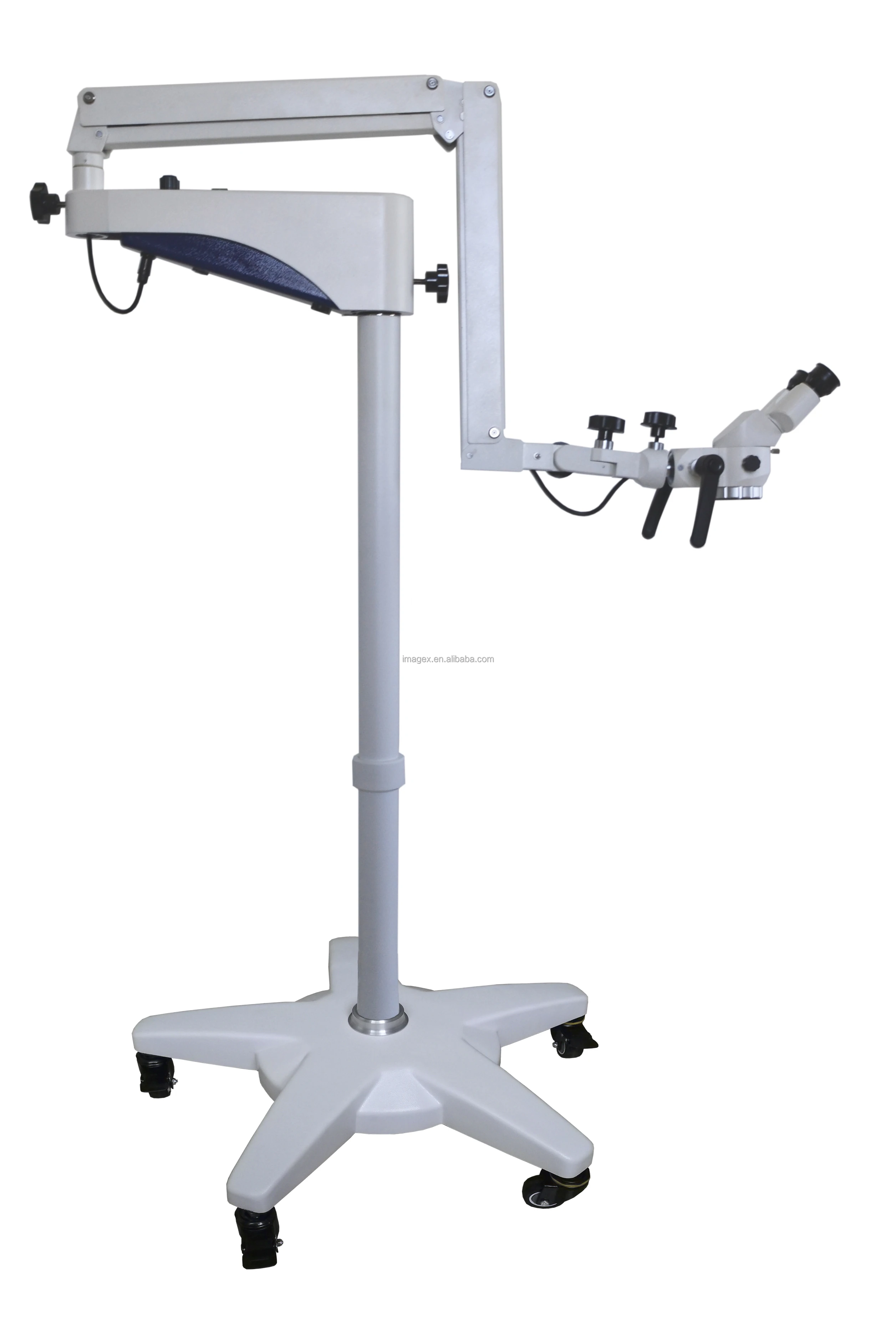

45° Tilted Binocular Operation Microscope for ENT & Dental Surgeries

Imagex YSX Series Operation Microscopes – Precision and Flexibility for Micro-Operations

The Imagex YSX Series Operation Microscopes are state-of-the-art surgical tools designed to provide unparalleled clarity and precision in a wide range of medical procedures. With a powerful 10W LED light source for coaxial illumination, these microscopes offer adjustable brightness and superior light intensity (>30,000 lx), ensuring clear visibility during intricate surgeries. Whether you are working in ear, nose, and throat (ENT) surgeries, dental procedures, ophthalmology, gynecology, or general surgery, the Imagex YSX Series is engineered for flexibility, ease of use, and exceptional optical performance.

Key Features of the Imagex YSX Series:

• Versatile Magnification: With a 6X magnification binocular, the Imagex YSX Series offers adjustable magnification via a 3-step magnification changer (0.6X, 1X, 1.6X), delivering total magnifications of 3X, 5X, 8X, 4.7X, 7.5X, and 12X to suit different operational needs.


• Coaxial LED Illumination: Equipped with a 10W LED light source for coaxial illumination, the system offers adjustable brightness, providing a consistent and bright light source for precise visual accuracy.


• Adjustable Focal Length: The Imagex YSX Series comes with two objective lenses, F=200mm and F=300mm, allowing you to select the optimal focal length for different procedures.


• Convenient Ergonomics: The microscopes are designed for flexible handling, featuring a 2-part arm with universal joints for smooth adjustments and an optional counterweight system for the YSX120 and YSX130 models. You can choose between floor stands or table mount clamps depending on your workspace configuration.


• Integrated Filters: Built-in green and yellow filters help enhance contrast and reduce glare, ensuring sharp and clear images in diverse environments.


• Optional Accessories: The Imagex YSX Series offers a wide range of optional accessories, including video camera adapters, beamsplitters, and a variety of cameras and monitors for real-time video demonstrations and recording.

Product Models and Specifications:

YSX101 – Straight Binocular

• Observation Angle: Straight


• Magnification of Binocular: 6X


• Total Magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X


• Illumination: Coaxial illumination with 10W LED light source


• Stand Type: 2-part column fitted with a five-star base with casters


• Optional Accessories: Video camera adapter, Camera (U3CMOS03100KPA, WUCAM0720PA, FHD2100), Monitor S24R352FHC, and more.

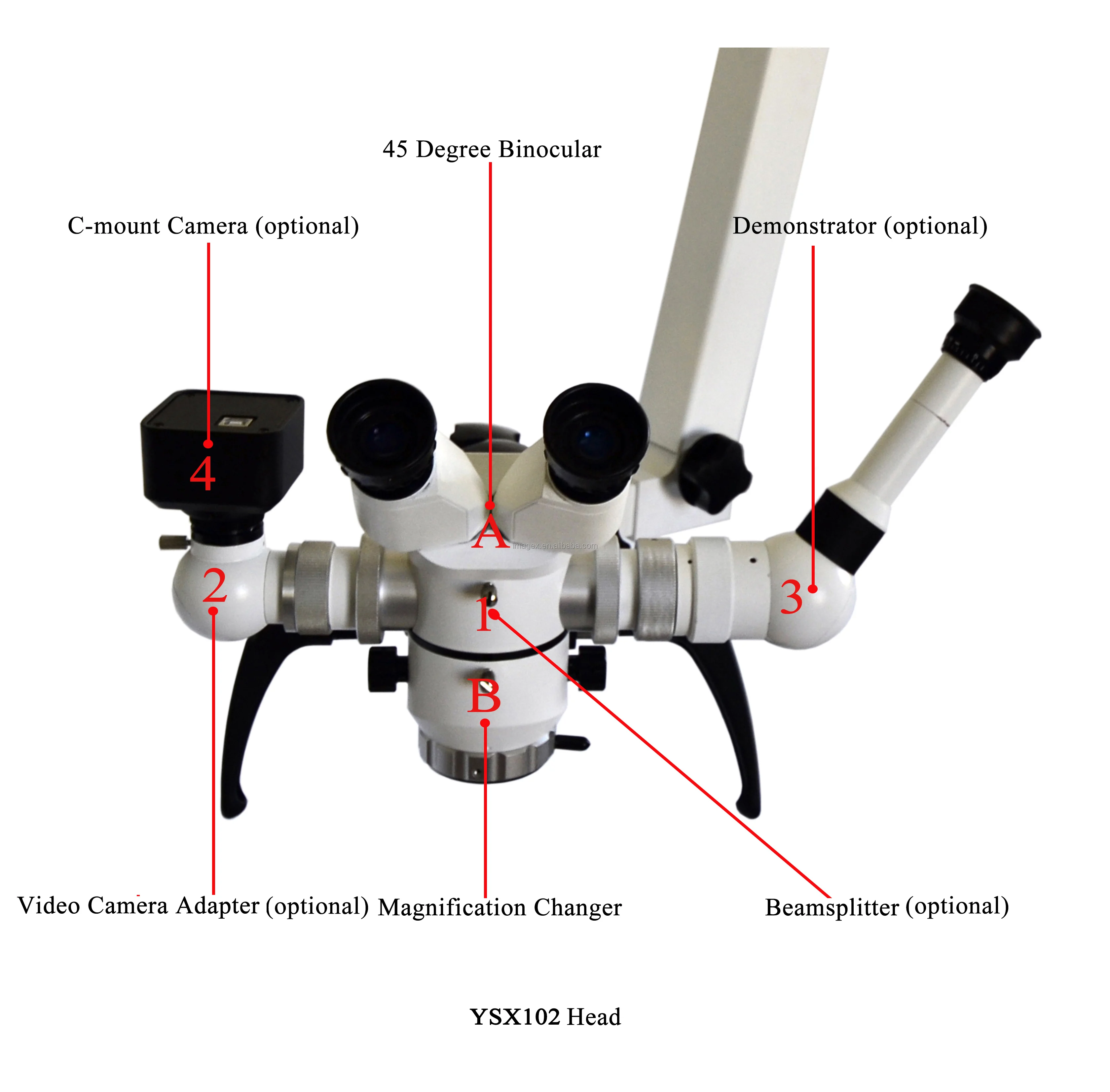

YSX102 – 45° Tilted Binocular

• Observation Angle: 45° Tilted


• Magnification of Binocular: 6X


• Total Magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X


• Illumination: Coaxial illumination with 10W LED light source


• Stand Type: 2-part column fitted with a five-star base with casters


• Optional Accessories: Same as YSX101, with additional camera and monitor options.

YSX103 – Straight Binocular with Table Mount Clamp

• Observation Angle: Straight


• Magnification of Binocular: 6X


• Total Magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X


• Illumination: Coaxial illumination with 10W LED light source


• Stand Type: Table mount clamp for flexible positioning


• Optional Accessories: Same as YSX101, ideal for fixed and mobile setups.

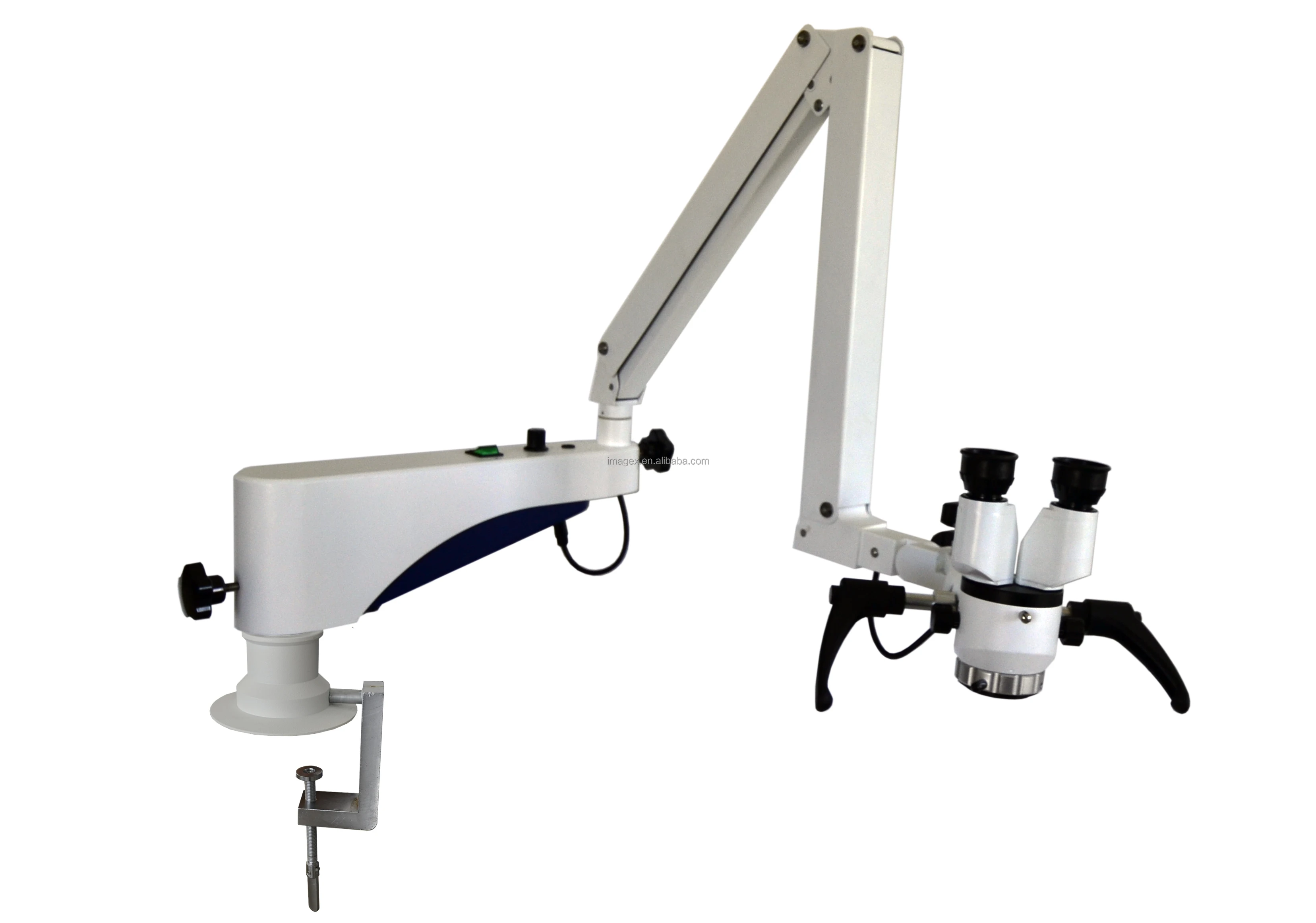

YSX104 – 45° Tilted Binocular with Table Mount Clamp

• Observation Angle: 45° Tilted


• Magnification of Binocular: 6X


• Total Magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X


• Illumination: Coaxial illumination with 10W LED light source


• Stand Type: Table mount clamp for ergonomic and space-saving setup


• Optional Accessories: Video camera adapter, camera, and more.

YSX120 – Straight Binocular with Beamsplitter and Video Camera Adapter

• Observation Angle: Straight


• Magnification of Binocular: 6X


• Total Magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X


• Illumination: Coaxial illumination with 10W LED light source


• Beamsplitter: 50:50 beamsplitter with C-mount for video cameras


• Stand Type: 2-part column with five-star base and casters


• Optional Accessories: Includes SLR camera adapter, video cameras (e.g., U3CMOS03100KPA), and S24R352FHC monitors.

YSX130 – 45° Tilted Binocular with Beamsplitter and Video Camera Adapter

• Observation Angle: 45° Tilted


• Magnification of Binocular: 6X


• Total Magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X


• Illumination: Coaxial illumination with 10W LED light source


• Beamsplitter: 50:50 beamsplitter with C-mount for video cameras


• Stand Type: 2-part column with five-star base and casters


• Optional Accessories: Same as YSX120 with additional custom mounting solutions.

Why Choose Imagex YSX Series?

• Precision and Clarity: High-quality optics ensure exceptional image quality and resolution, perfect for detailed and delicate operations.


• Ergonomic Design: The flexible handling options, including adjustable arms and stand types, make it easy to position and operate the microscope, reducing fatigue during long procedures.


• Customizable Setup: With a wide range of optional accessories and configurations, the Imagex YSX Series can be tailored to meet the specific needs of your medical practice.

The Imagex YSX Series Operation Microscopes offer advanced functionality and reliability, making them an essential tool for medical professionals in a variety of specialties. Experience precision and clarity with every procedure—choose the Imagex YSX Series for your operating room today.

Contact us for more details and pricing options.
