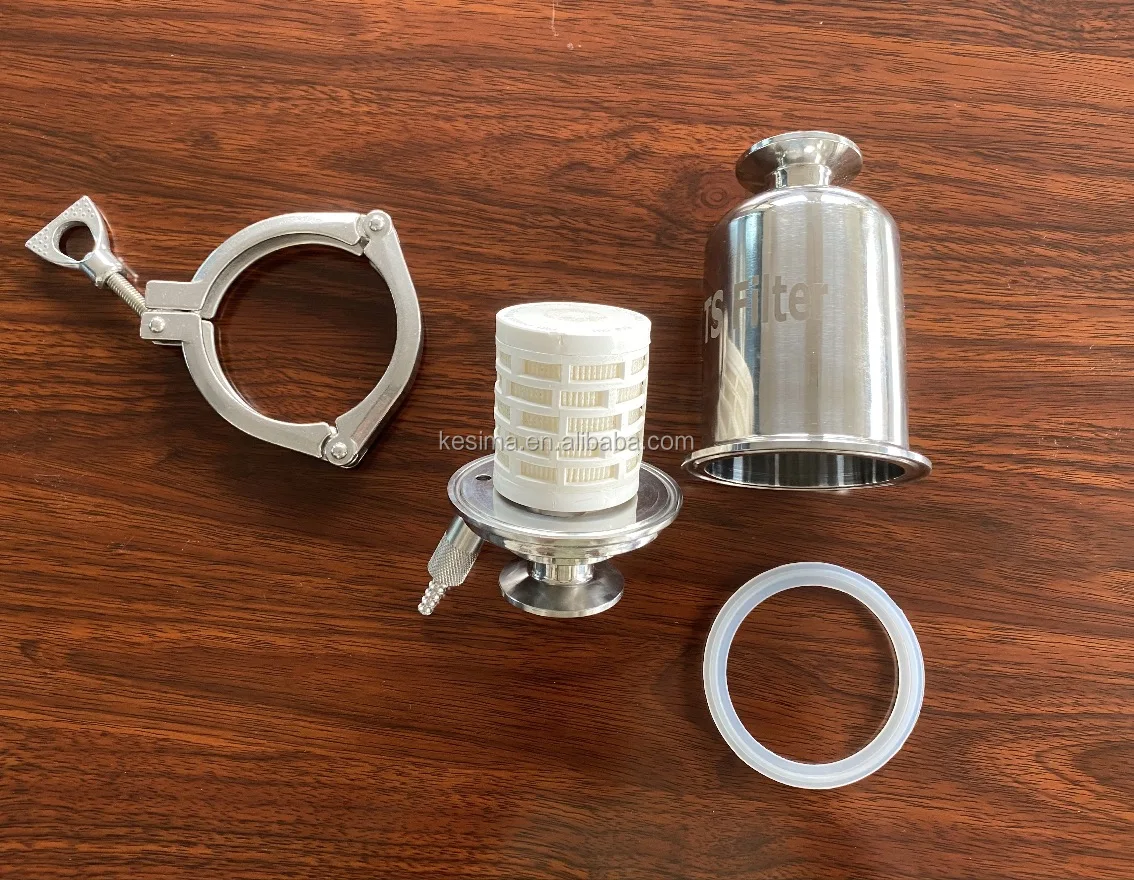

Cost Effective 5/2.5 Inch Mini Filter Cartridge with Various Membrane for Small scale Sterile Process Gases and Sterile Vents
- Category: >>>
- Supplier: Hangzhou Kosma Membrane Technology Co. Ltd.Hangzhou Ltd.
Share on (1601338561216):
Product Overview
Description
Products Description
PARAMETER INFORMATION
Materials Of Construction | Filter Media | PES/PP/PTFE/NYLON66/PVDF | ||||||||||
Support Layers | Polypropylene | |||||||||||
Inner Core | Polypropylene/SUS | |||||||||||
Outer Cage, End Cap | Polypropylene | |||||||||||
Seal Method | Thermal Bonded, No Adhesives | |||||||||||
O-Rings/Gaskets: | Silicone, Nitrile, EPDM, Viton | |||||||||||
Cartridge Dimensions | Outer Diameter | 56mm | ||||||||||
Length | 70mm (except end cap) 125mm(except end cap) | |||||||||||
Filtration Area(m2) | 0.12 m2(70mm length) 0.23 m2(125mm length) | |||||||||||
Operating Conditions | Normal Operating Temperature | Up to 60℃ (140 ℉ ) | ||||||||||
Max.operating Temperature. | 80℃ (176 ℉ ) at △ P≤1.0 bar (14.5psi) | |||||||||||
Normal Flow Direction | 4.2 bar (60.9 psi) at 25℃ (77 ℉ ) | |||||||||||
Reverse Flow direction | 2.1 bar (30.5psi) at 25℃ (77 ℉ ) | |||||||||||
Sterilization | Steam Sterilization for 30 minutes at 135℃ (275 ℉ ) | |||||||||||
Cartridge Safety | Endotoxin | ＜ 0.25 EU/m | ||||||||||
Extractables | 0.015g / 10" | |||||||||||
RELATED PRODUCTS
Company Profile
Exhibition
Why Choose Us
PACKING AND SHIPPING
FAQ
1. How can we get the quotation of filter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
Email:phil(at)tsjmlc.com
Best wishes!
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
Email:phil(at)tsjmlc.com
Best wishes!
