Low price SINTRUK 6X4 10 18m3 vacuum water pump diving sewage tank trailer truck with good quality
- Category: >>>
- Supplier: Jinan Quanyu Import And Export Co. Ltd.Jinan Ltd.
Share on (1601338660056):
Product Overview
Description

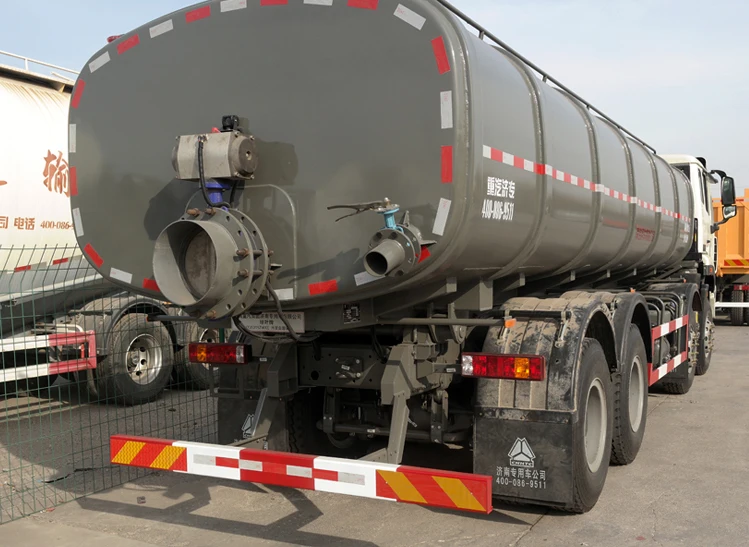

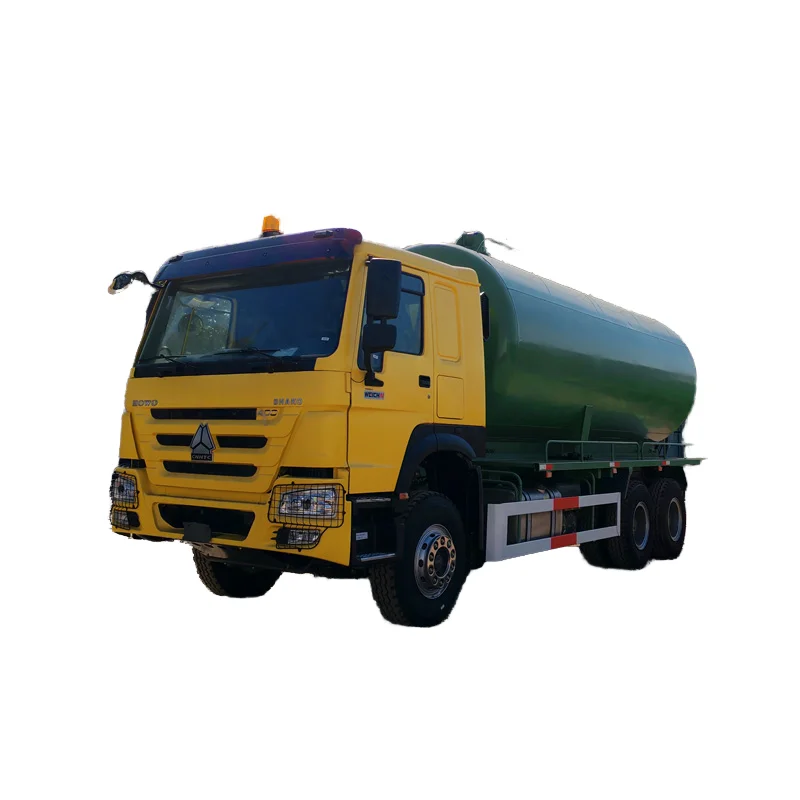

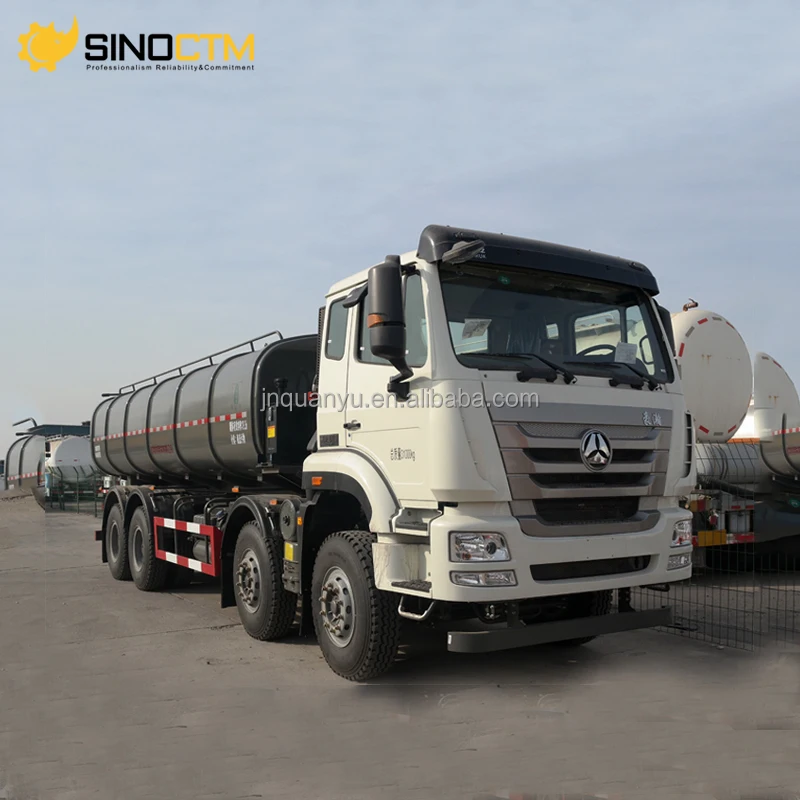

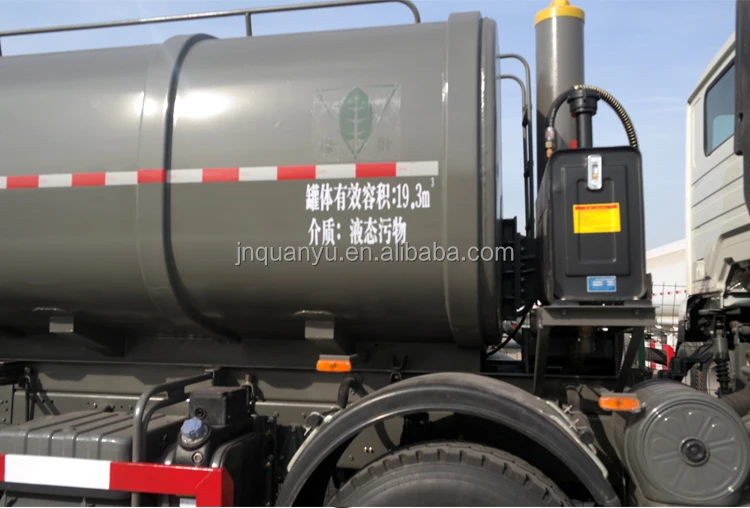

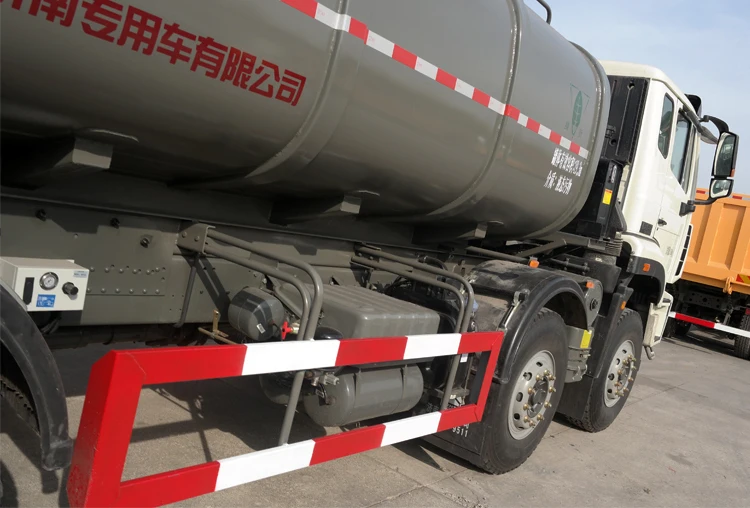

Sinotruk New Design cleaning sewage suction dredging truck
Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.
Product Description
Specification
SINOTRUK HOWO 6x4 SEWAGE SUCTION TRUCK SPECIFICATIONS | ||||
Truck Model | ZZ1257V4647B1 | |||
Truck Brand | SINOTRUK-HOWO | |||
Dimension (LxWxH) (unloaded)mm | 11150×2550×3650 | |||
Tank volume(m³) | Sewage Tank Body:18m³,with lifting system,Vacuum pump, Back door hydraulic opening.Tank Body Material:End Plate 8mm ; Tank Body 6mm;Vacuum pump:Jurop PN155DAir flow:1550L/minVacuum Degree Max：-0.092MpaSuction Full Time:15 MinutesDepth:6mRubber hose:6m | |||
Approaching angle/ Departure angel (°) | 16/15 | |||
Overhang (front/rear) (mm) | 1500/1830 | |||
Wheel base (mm) | 4575+1400 | |||
Max. Driving speed (km/h) | 102 | |||
Front axle loading capacity (kg) | 9000 | |||
Rear axle loading capacity(kg) | 2*16000 | |||
Curb weight (kg) | 13760 | |||
Gross vehicle weight | 25000 | |||
Cab Model | SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. | |||
Engine Model | Model | WP12.400E201(EURO II),400hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
Rated Power (kw/rpm) | 294/2100 | |||
Make WEICHAI, Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking Brake (emergency brake) | Spring energy, compressed | |||
Steering system | Model | hydraulic steering with power assistance.(Left hand driving) Option:Right Hand Driving | ||
Front axle | SINOTRUK VGD95 9500kg Front Axle,new 9.5-ton front axles of equipped with drum brakes. | |||
Rear axle | SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |||
Wheels &Tire | Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. | |||
Electrical system | Electrics Operating voltage | 24V,negative grounded | ||
Starter | 24V,7.5 Kw | |||
Alternator | 3-phase,28V,1500 W | |||
Batteries | 2x12 V,165 Ah | |||
horn,headlamps,fog lights,brake lights,indicators and reverse light。 | ||||
Oil Tank | 400L fuel tank | |||
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |||
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||||
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Recommend Products

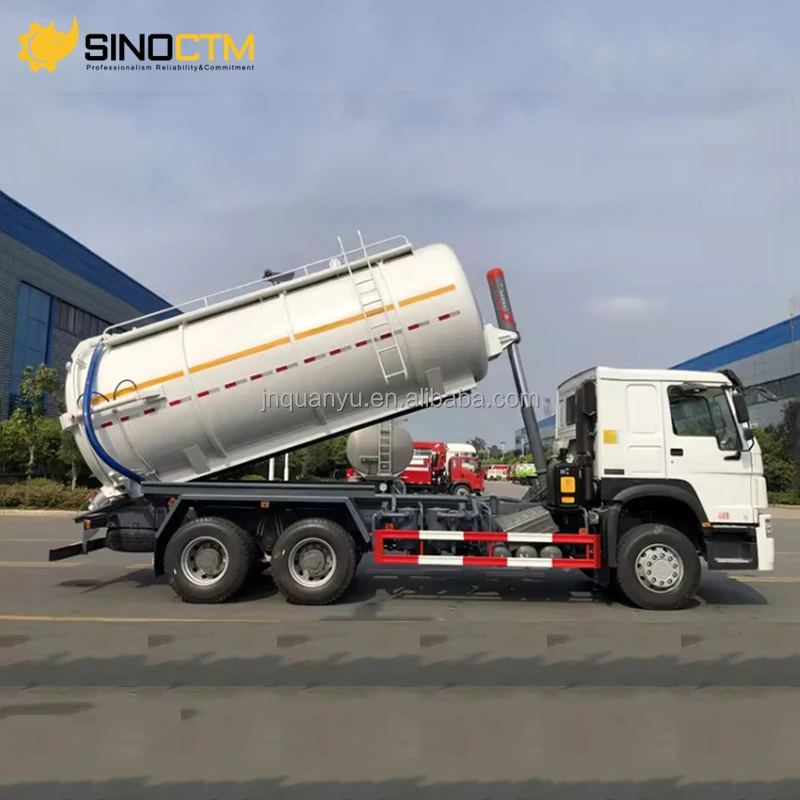

The vehicle adopts the domestic well-known manufacturer chassis,refitted with tank body, vacuum pump,suction rubber pipe, hydraulic system, pipeline system etc. Once-compression moulding tank head, the rear door can be opened and the body can be lifted bu double hydraulic cylinders. The vehicle can be widely used in the city of collecting the sludge and sewage in rain water wells, and various inspection wells; for sucking, loading and discharging the deposit of petrochemical sewage pool; also can be for drought, waterlogging and other rescue project.
Company Profile

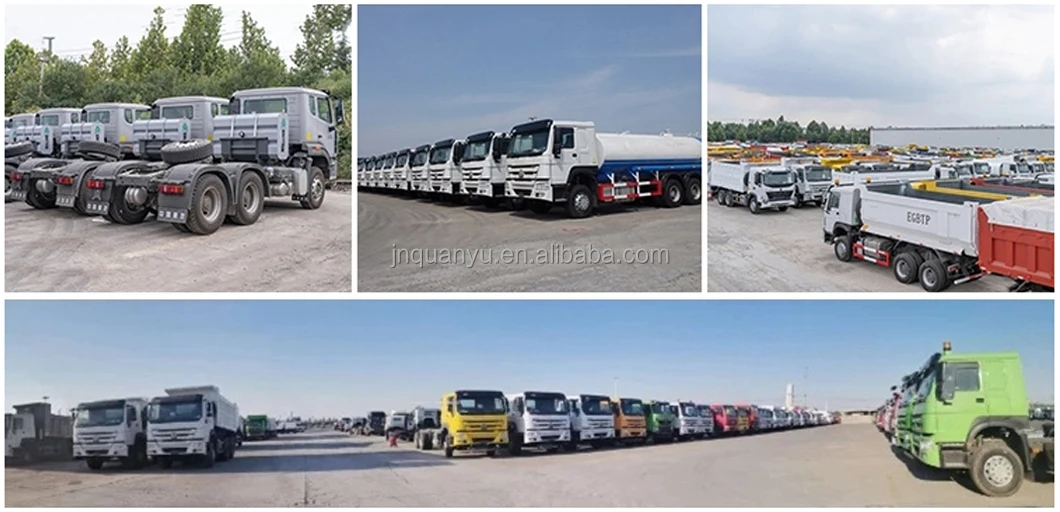

SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation withGerman man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an
annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of
goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading
goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of
goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading
goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Packing & Delivery
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.
Main Products
1.Dump Truck / Tipper Truck / Mining Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Cargo truck / Van truck / Refrigeration truck
8. Fecal suction truck / Sewage suction truck / garbage compactor truck
9. Cement Powder Tank truck/ Bulk cement truck
10.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer /van container trailer etc. )
11.Construction Machinery (Excavator, wheel loader, buldozer, road roller, motor grader)
12.Coach Bus
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Cargo truck / Van truck / Refrigeration truck
8. Fecal suction truck / Sewage suction truck / garbage compactor truck
9. Cement Powder Tank truck/ Bulk cement truck
10.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer /van container trailer etc. )
11.Construction Machinery (Excavator, wheel loader, buldozer, road roller, motor grader)
12.Coach Bus
FAQ
Q1. What's your MOQ?
A1. One unit.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers.
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery.
A1. One unit.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers.
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery.
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
