C89 C140 LGSF Light Gauge Steel Framing Machine For Dubai and Saudi



1. Product Description:

      The C89 C140 LGS Light Gauge Steel Villa House Structure Roll Forming Machine Villa Steel Frame Forming Machine can meet the manufacturing needs of all frame keels of low-rise single family or conjoined building frames (including walls, floor Beams and roof trusses) with one click.
      The frame keel system manufactured by it can be compatible with the existing brick-concrete structure, wood structure and heavy steel structure.

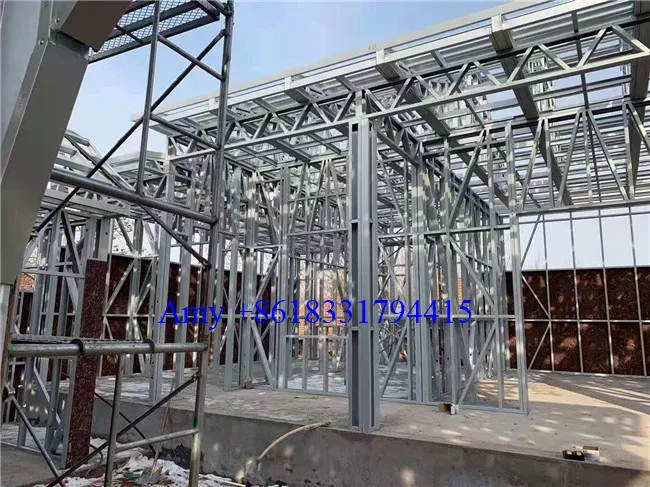

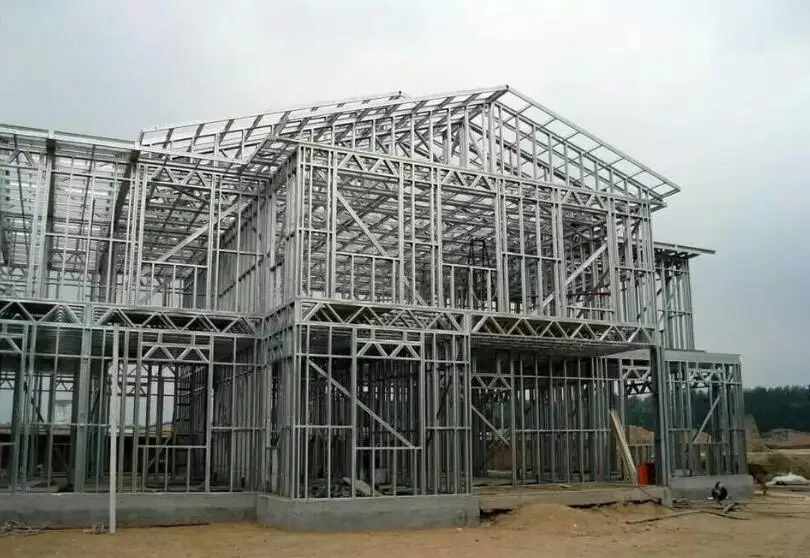

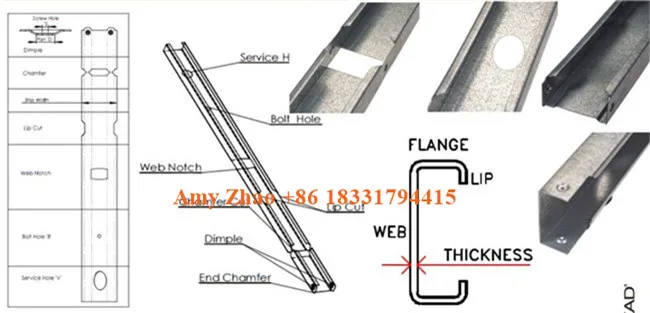

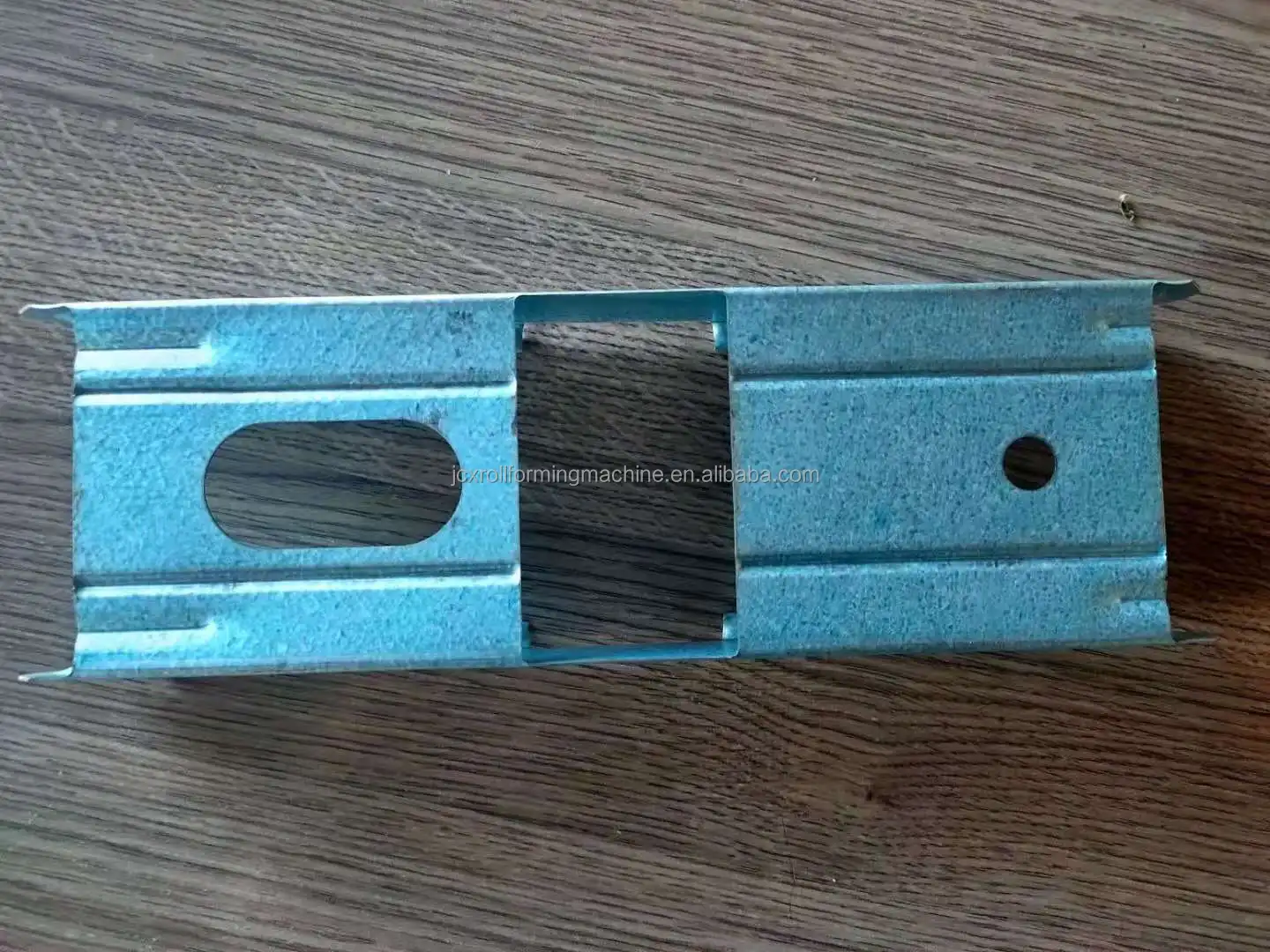

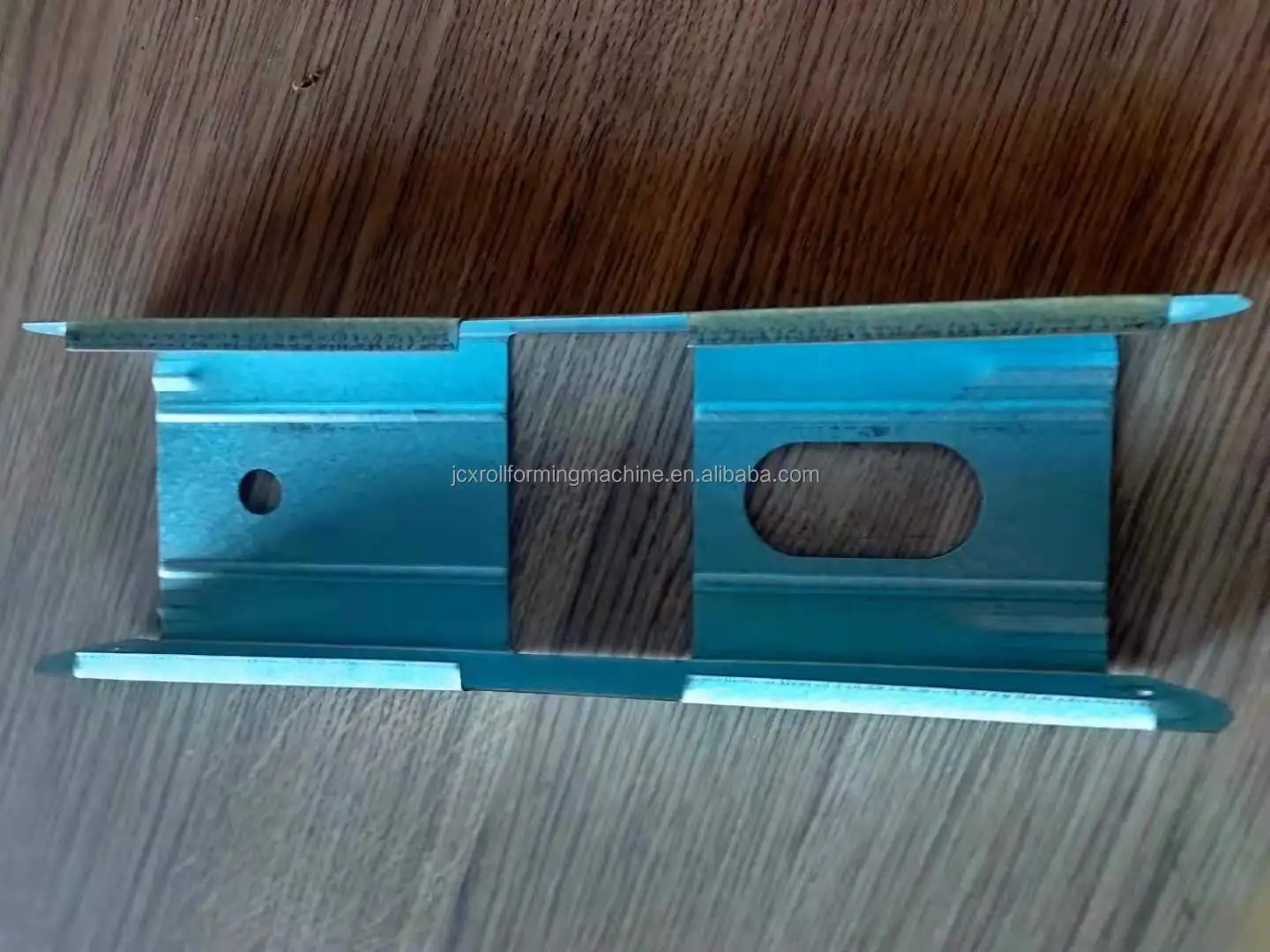

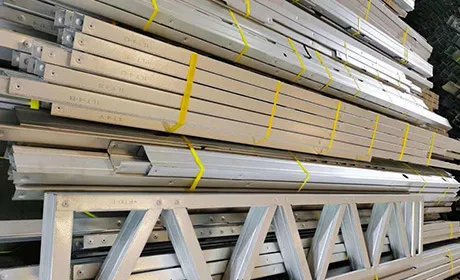

2. Profile for steel house frames:

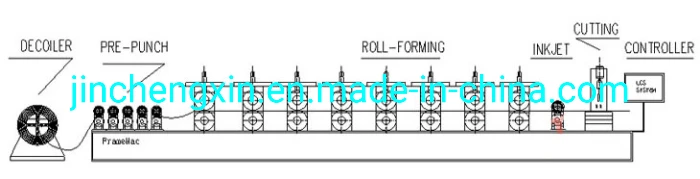

3. Flow chart of  Full automatic C89 C140 LGS 1.5mm Light Gauge Steel Framing Forming Machine With Vertex :

4. Technical Specification:

item	value
Applicable Industries	Manufacturing Plant
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2021
Warranty of core components	2 Years
Core Components	PLC, Engine, Motor
Production program	YND
Automatic Grade	Automatic
Forming Speed	50m/min
Inkjet Printer	Control by computer, double head printer;
Voltage	380V or customized as customer's request
Total Power	11kw
Machine Length	4.3m * 1.7m * 0.8m
Machine weight	3000kg
Suitable Material width	C89 ---180mm;    C140 ----233mm;
Warranty	1 Year
Key Selling Points	High Productivity
After-sales Service Provided	Video technical support
Thickness of the plate	0.8-1.5mm
Section size	C89, C140, OR customized
Suitable design software	Vertex BD
Suitable material	G550 / S550 galvalume steel
Usage	Making Light gauge steel frame for villa house

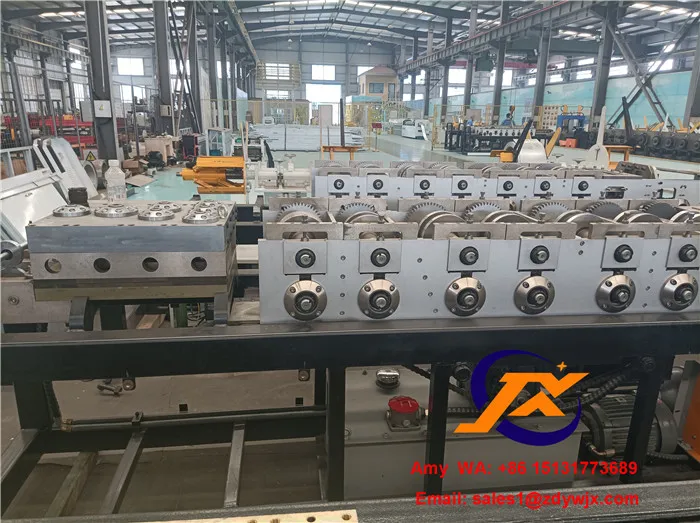

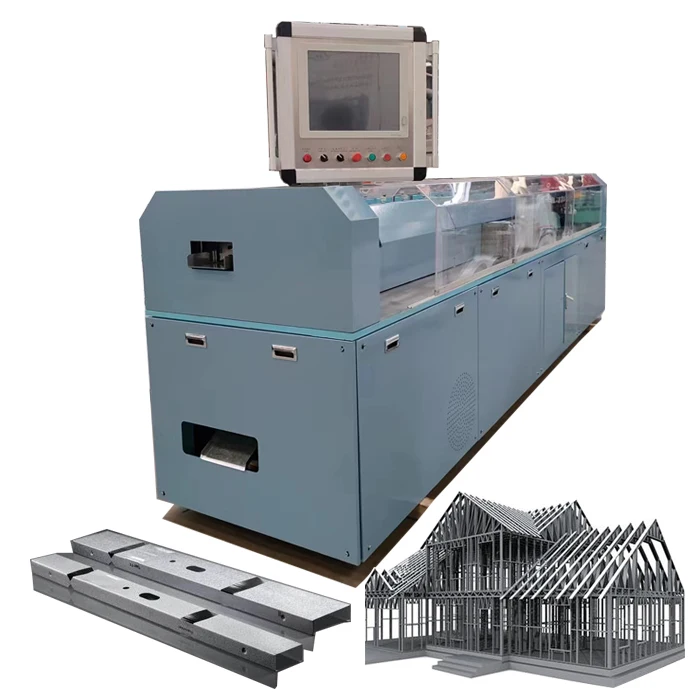

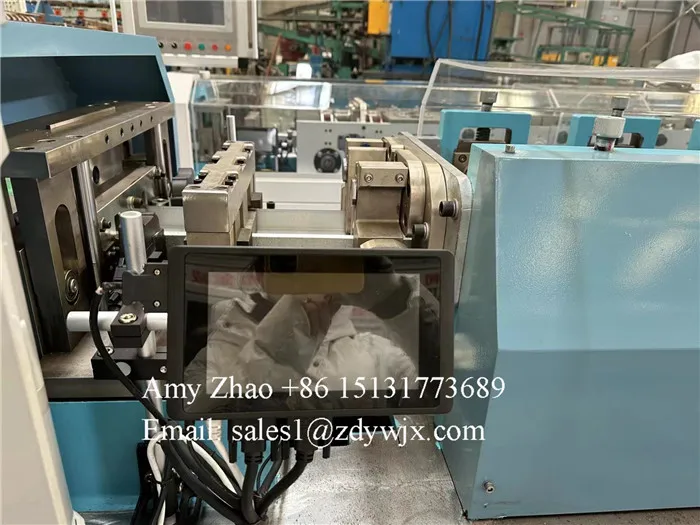

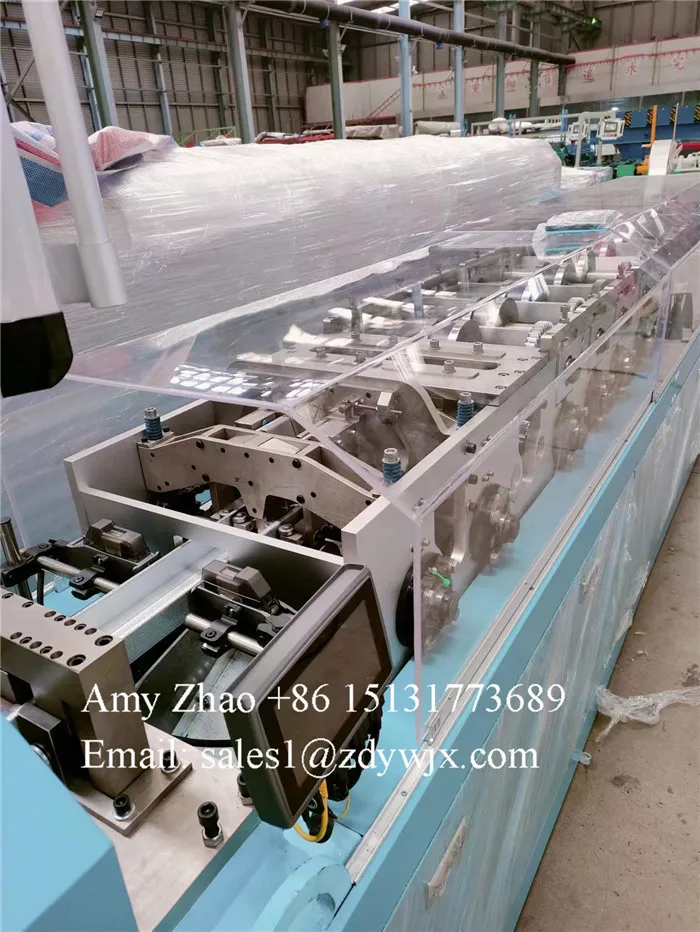

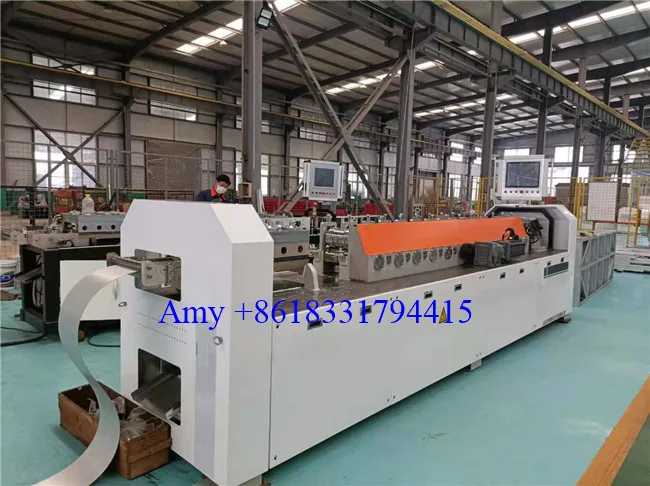

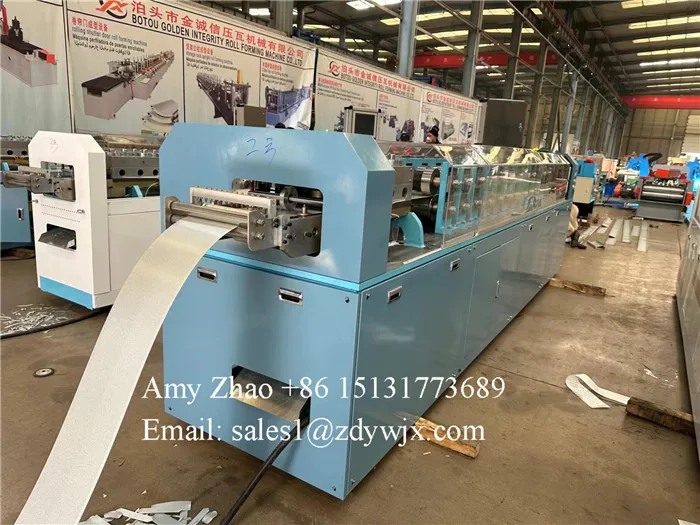

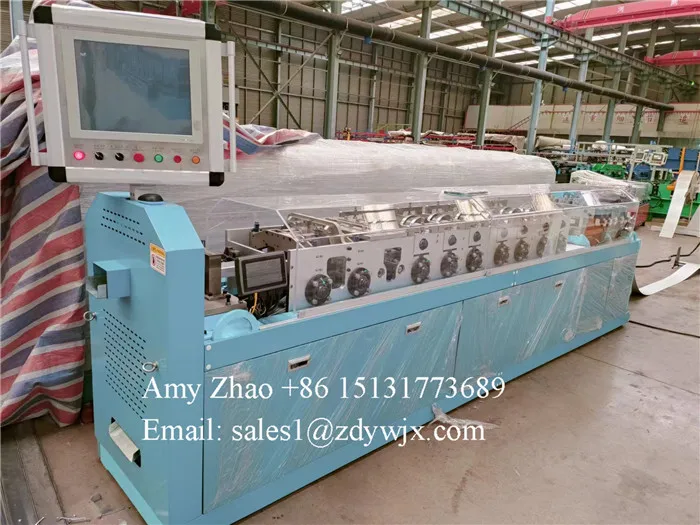

5. Overview of  C89 C140 LGSF Light Gauge Steel Framing Machine For Dubai and Saudi :

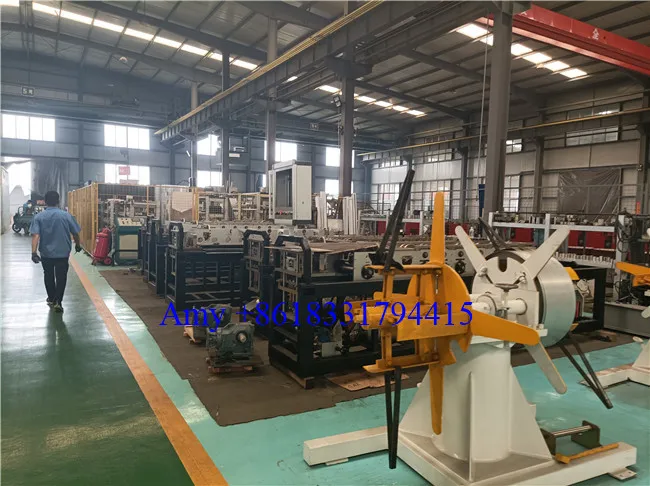

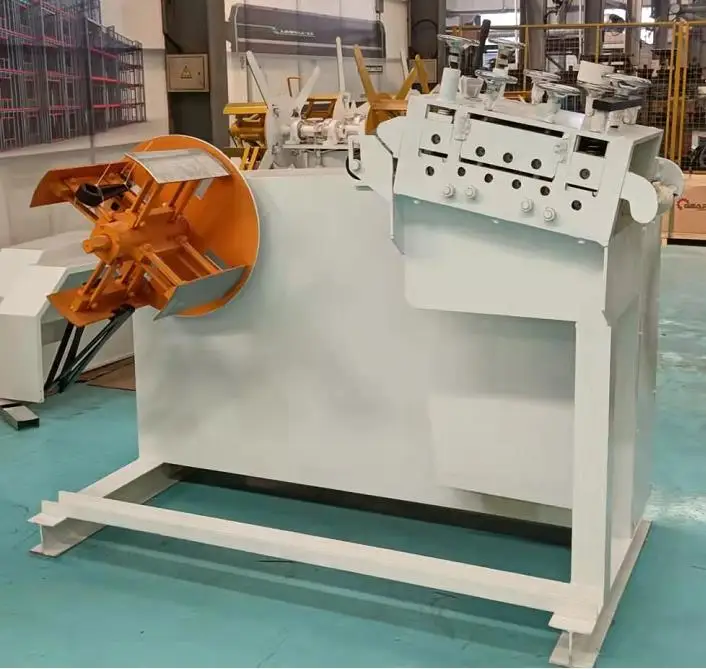

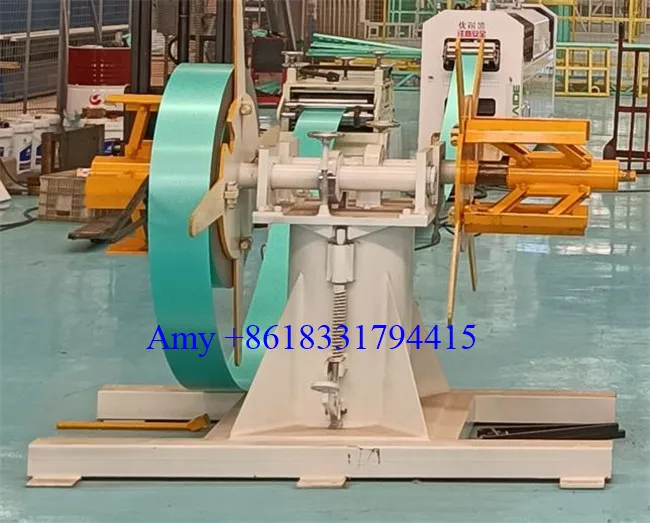

Decoiler:

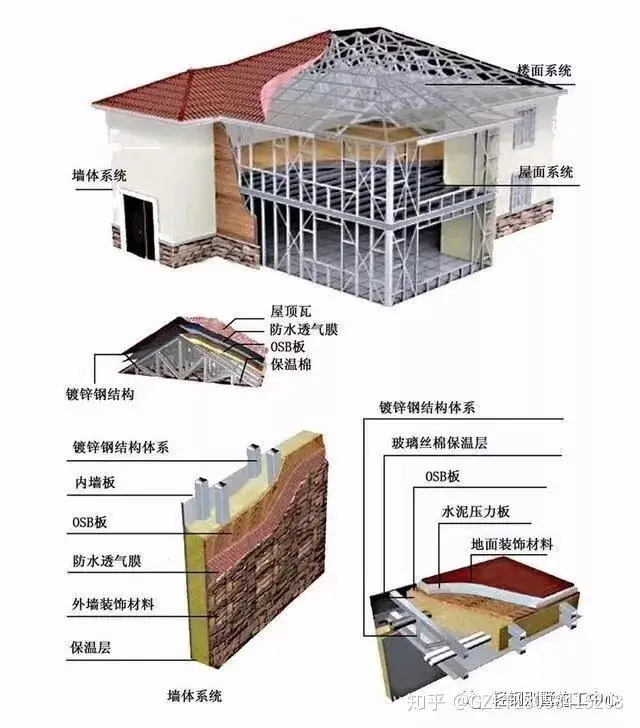

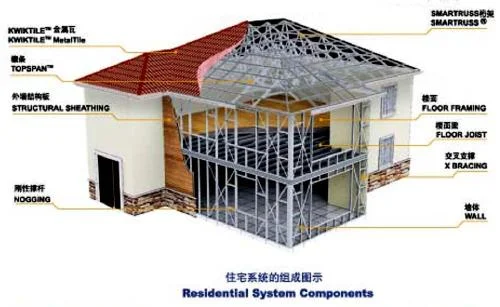

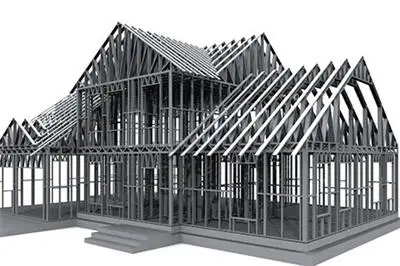

6. Application:
