Product Overview

Description

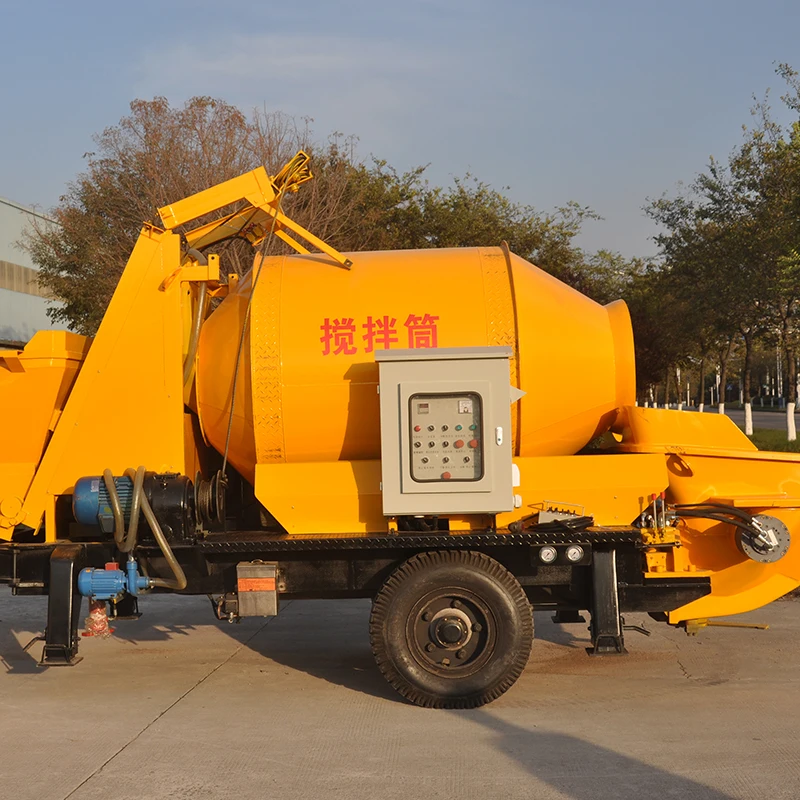

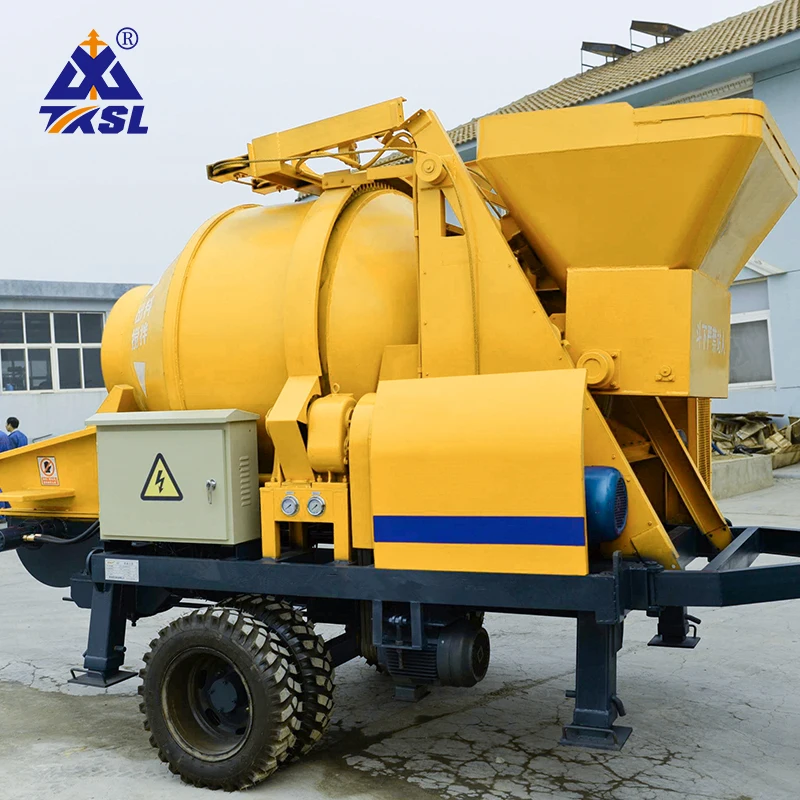

Putzmeister cifa concrete pumps concrete diesel small concrete pump

Product Description





The mixing and pumping machine adopts S-valve reversing, which can meet the mixing and long-distance transportation of concrete mortar in construction. The hydraulic cooling adopts water cooling, which has good effect, is easy to use, has reverse pump function, and reduces pipeline blockage; it is equipped with automatic centralized lubrication system to ensure the service life of rotation; the electric control cabinet is equipped with a wired remote control handle for easy operation.



Applications

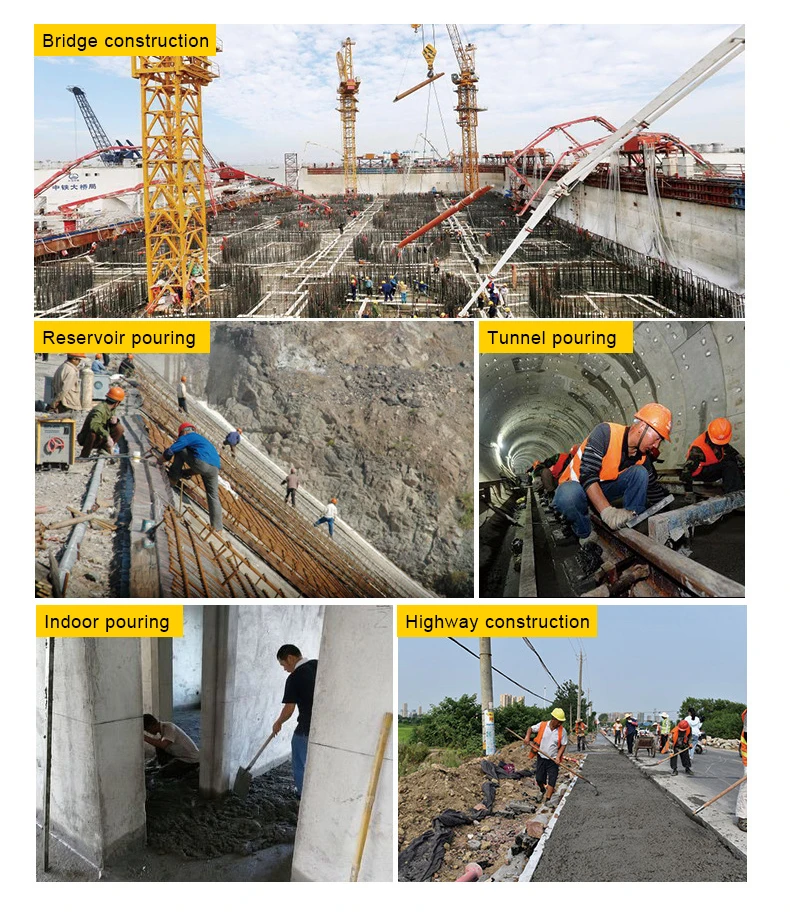

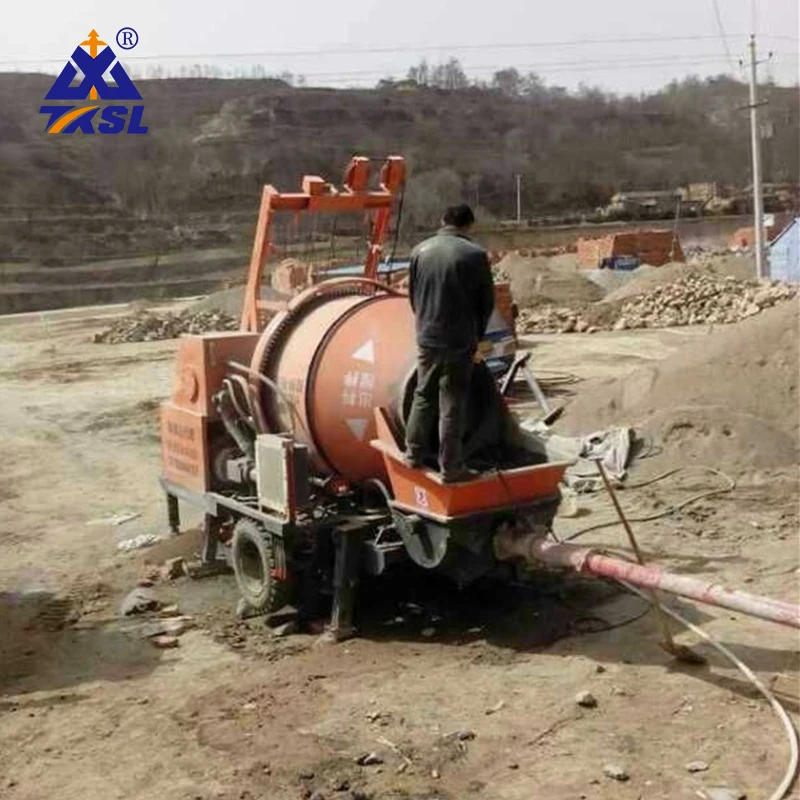

Small concrete pump is widely used for secondary construction filling, reinforcement grouting, fillback grouting and bolt supporting in floor heating engineering, roofing, high-rise building walls, reservoirs, hydropower stations, ports, docks, foundation treatment, soft foundation, tunnels, subways, mining construction etc.







Advantages

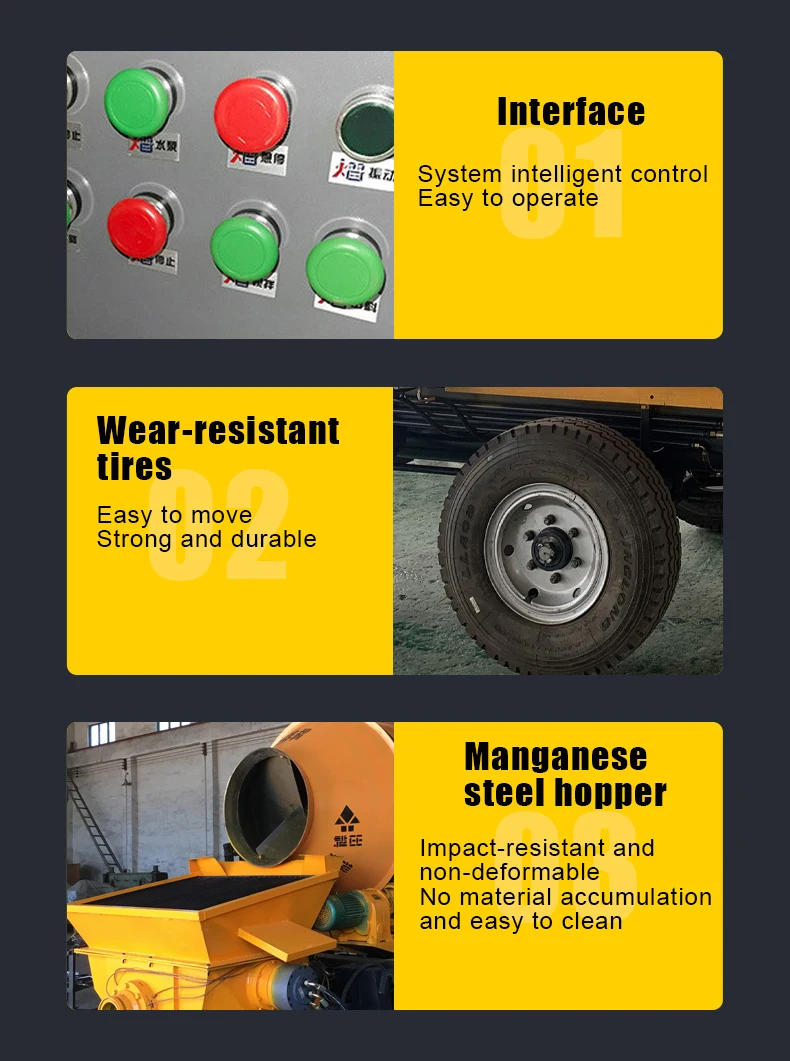

1. The machine body is smartly designed, easy to operate, easy to move and flexible, and has stable performance;
2. It comes with a mixing barrel for mixing, and the auxiliary time is short to ensure that the mixing pump works flawlessly under harsh conditions;
3. The mixing pump adopts a double-cylinder full hydraulic pumping system, which is convenient and fast, with fast pumping speed and high working efficiency;
4. It has a high degree of automation and can be operated by one person, and is equipped with a remote control for convenient operation;
5. The hydraulic system greatly improves the overall reliability of the mixing pump;

6. The vehicle design integrates economy, reliability, durability, good maneuverability, and high equipment utilization.

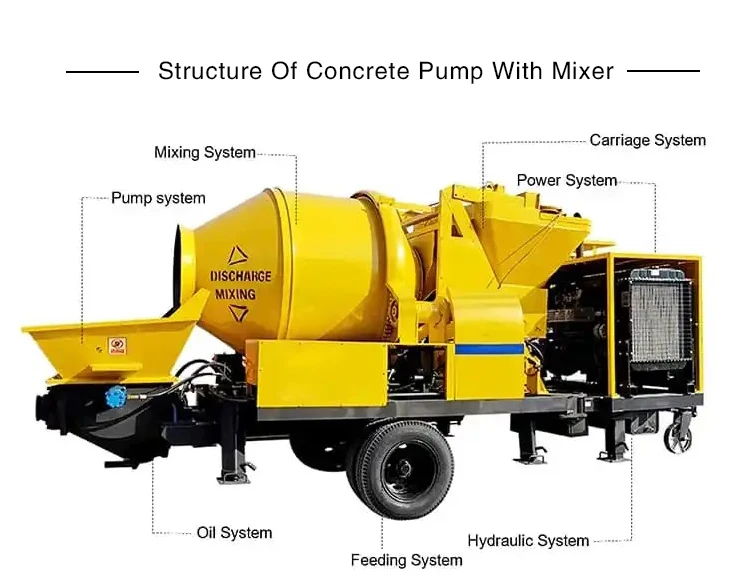

7. The mixing drum equipped with the mixing device is driven by a ruler ring, and the hopper is driven by a taper motor to load the material. The up and down movement of the hopper and the forward and reverse rotation of the mixing drum are all electrically controlled. It has the advantages of low energy consumption, compact structure, smooth movement, reliable transmission, simple operation, good mixing quality, high production efficiency and high degree of automation;
8. The mixer adopts dual motors for mixing, which is fast and even. It uses grinding wheels for rotation, which is overall stable. It is equipped with a vibration device for material dropping;
9. The delivery pump adopts a double-cylinder full hydraulic pumping system, which is stable and reliable in performance. All hydraulic accessories are domestic and foreign brands with reliable quality;
10. The lubrication system adopts five-point separate lubrication to protect key components from wear.









Working Principle

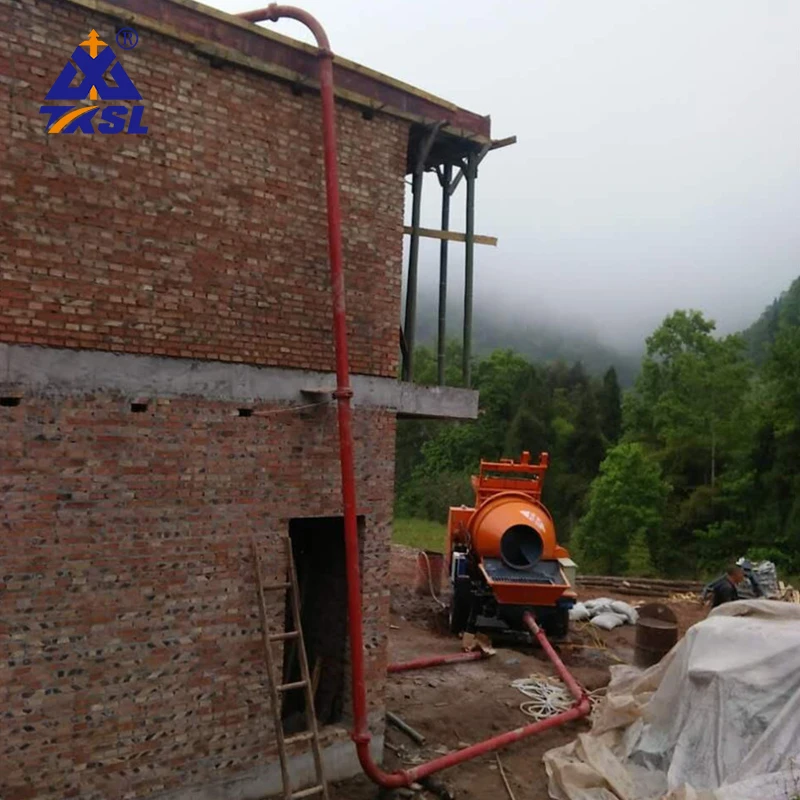

Special equipment for pouring secondary structural columns. The pump is light in weight and equipped with running wheels for easy movement. It has a unique design and can be placed directly on the floor for on-site pouring without being restricted by the pumping height. It effectively solves the problem of difficulty in high-quality pouring of the top section close to the bottom beam during the casting process of structural columns. Concrete pump with pump ensures the flatness and visual quality of the structural columns. It is suitable for the transportation of fine stone concrete in super high-rise buildings, group structural columns of building floors, and the pouring and pumping efficiency of secondary structural columns. The pumping system is several times that of manual construction, which effectively improves production efficiency and saves labor costs.











Parameters





Motor power	15Kw	22Kw	37Kw
Work efficiency	6m3/h	12m3/h	20m3/h
Maximum pressure	15mpa	18mpa	18mpa
Vertical conveying distance	20M	40M	80M
Weight	600Kg	1600Kg	2200Kg
Dimensions	1800x700x1100mm	3400x1200x1600mm	3800x1500x1600mm

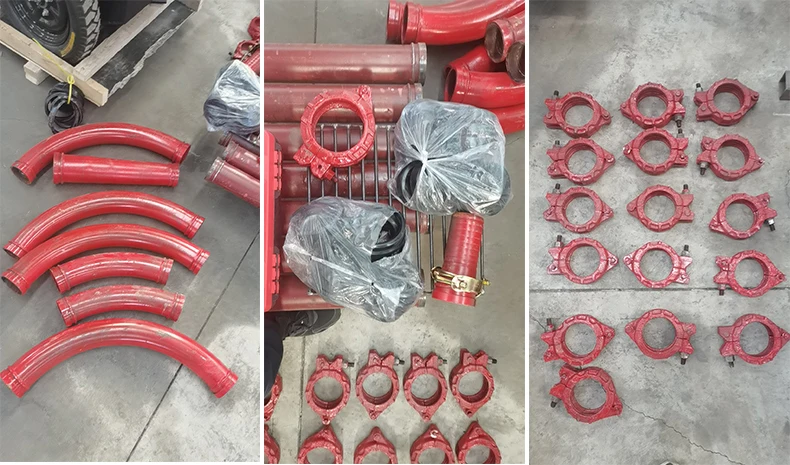

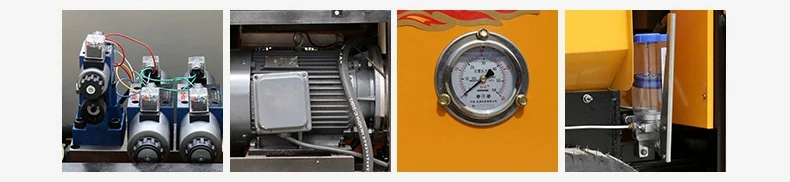

Parts











Exhibition









Company Information



Henan Weibang Intelligent Technology Co., Ltd. is located in Jiaozuo New District. lt was established in 2006 with a registered capital of eighty million yuan. It is a high-end equipment manufacturing enterprise integrated scientfic research, production and sales. The company has successively established Shenzhen Besi Tiger Industry Co., Ltd., Luoyang Xinbang Technology Co.Ltd., Chengdu Taixin Zhongchuang Technology Co., Ltd., Henan Weibang Intelligent Technology Co., Ltd. and other subsidiaries, and has established 120 directly affiliated offices andfirst-level offices across the country agent. The products are widely used in the construction of mine tunnels.railways, highways, urban subways, slope engineering, water conservancy and electricity and other engineering projects. Assisting national key projects such as Shenbai High-speed Railway.Sichuan-Tibet High-speed Railway, Chongqing-Kunming High-speed Railway, Liu-Wu High-speed Railway, Xiongxin High-speed Railway, Guiping High-speed Railway, Yanyu High-speed Railway.Tianlong Railway, Yu-Wanzhou High-speed Railway, Chengda-Wanzhou High-speed Railway.

The company has long-term strategic cooperative relationships with universities and scientfic research institutions such as China Engineering Machinery Research Institute, Henan Polytechnic University, and has successively obtained 89 patents and 36 mine certfication products. In 2013, it was approved as a"National High-tech enterprise". in 2014, it was approved as "Jiaozuo Concrete Spraying and Motar Grouting Engineering Technology Center". In 2017, it was rated as a "Double 50" enterprise in Jiaozuo City, Since 2019, it has been continuously shortlisted as the annual framework supplier of many central enterprises such as China Railway and China Communications Construction Company. In 2021, he will be awarded the title of "Little Giant" for special- ization. In 2022, it was continuously approved as a "National High-tech Enterprise". lt will be approved as Henan Provincial Industrial Design Center in 2023.Taixin Company is working hard to build a collectivized industrial cluster with a new attitude and forge ahead bravely!











FAQ



1. Q: Which pump model should we choose?

A: To recommend the most suitable model, please tell us:

        - Material: composition, max aggregate size

       - Capacity (-m3/h) :

       - Delivery distance (horizontally / vertically):

       - Pump pressure:

       - Driven type: electric motor, diesel engine, pneumatic motor



2. Q: What is the vulnerable part? How many spares should we prepare?

A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.



3. Q: Can we have customized model?

A: Yes. Customized production and OEM production are available according to your actual requirements.

4. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.



5. Q: What should we do if there are some problems with the machine?

A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.

6. Q: What is the lead time?

A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

7. Q: How about the package?

A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.

8. Q: How to place an order?

A: Both online order and offline order are acceptable.

It is suggested to place online order with a Trade Assurance to get full protection for first order.

9. Q :How to pay for this order?

A: Generally, TT, 30% deposit 70% before shipment;

L/C at sight (high bank charge, not suggest, but acceptable);

100% TT in advance (especially for small amount and spare parts etc.)
