Factory Price PV Panel Rotating Brush Water Cleaning Dry Cleaning Solar Cleaning Brush
- Category: >>>
- Supplier: Jining Hongrun Machinery Equipment Co. Ltd.Jining Ltd.
Share on (1601338828740):
Product Overview
Description
Note
The listing price is only a deposit price, excluding shipping costs. Please note that if you would like to know the specific
price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you.
price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you.
Product Description
Photovoltaic panel cleaning roller brush | ||
Telescopic rod length（Aluminum alloy） | 3.5/5.5/7.5 m | |
Telescopic rod length（Carbon fiber） | 4.6/6/7.4 m | |
Telescopic rod Diametrer | 36/39.5/43 mm | |
Telescopic rod number of stanzas | 3/4/5 section | |
Telescopic rod Wall thickness | 1mm | |
Brush head size | 60 cm | |
Cleaning width | 60 cm | |
Material | Nylon wire | |
Voltage | DC 24V | |
Power | 150 W | |

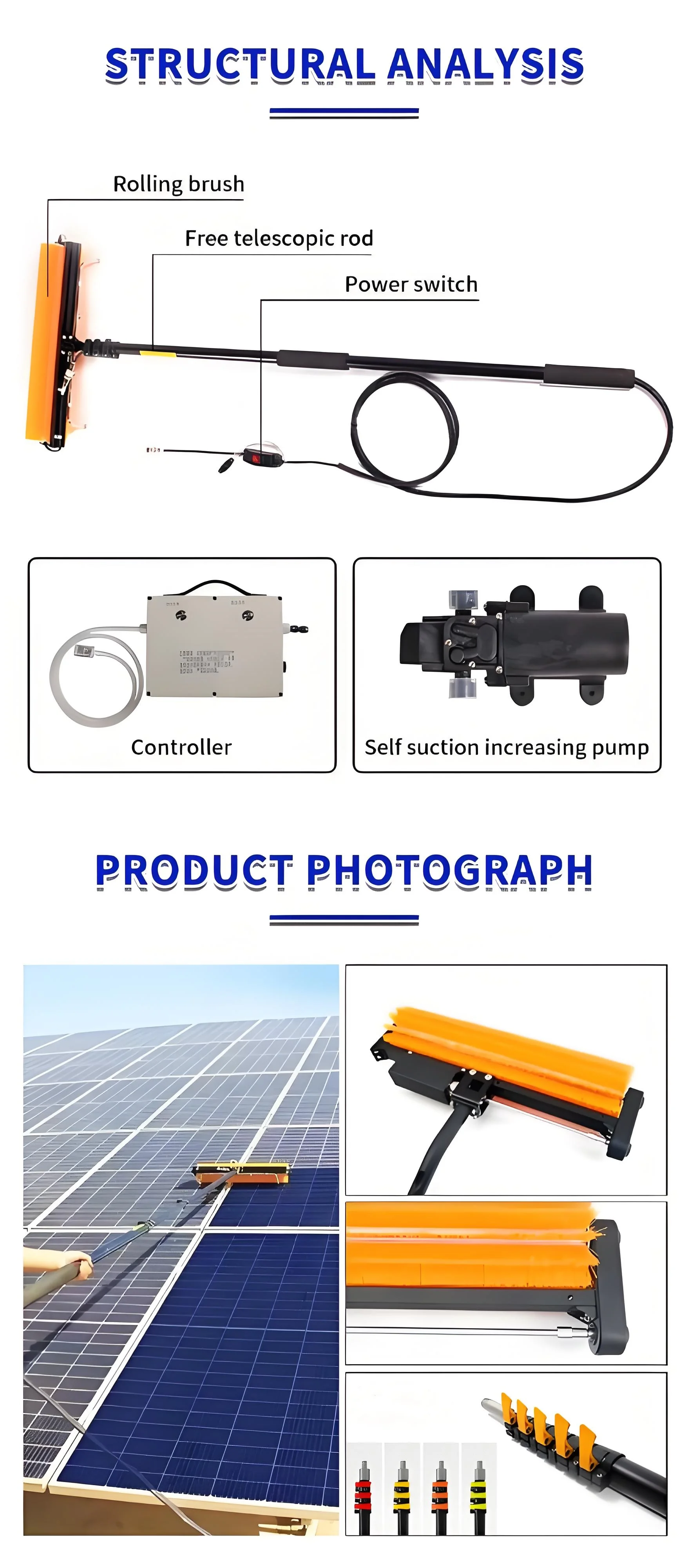

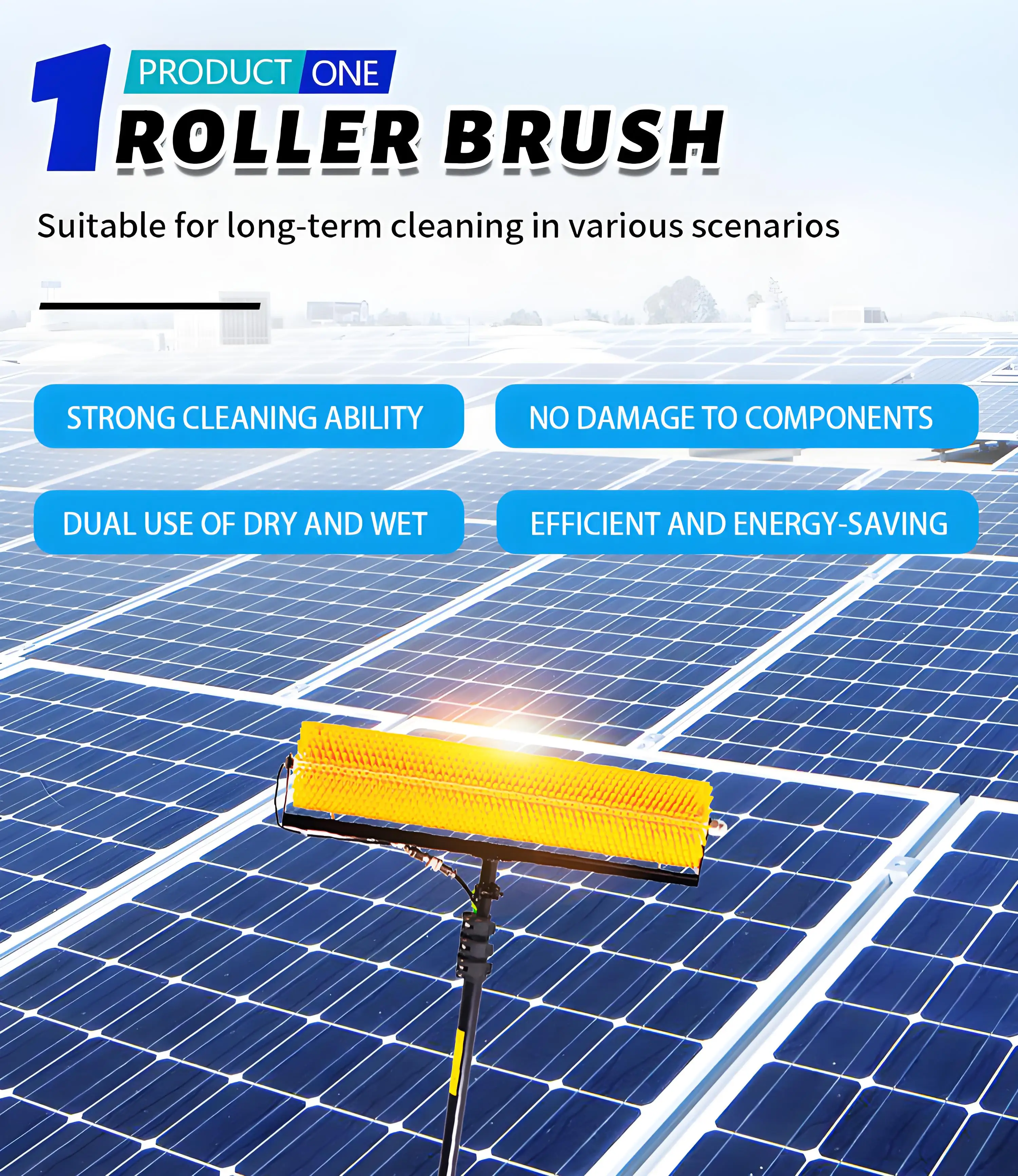

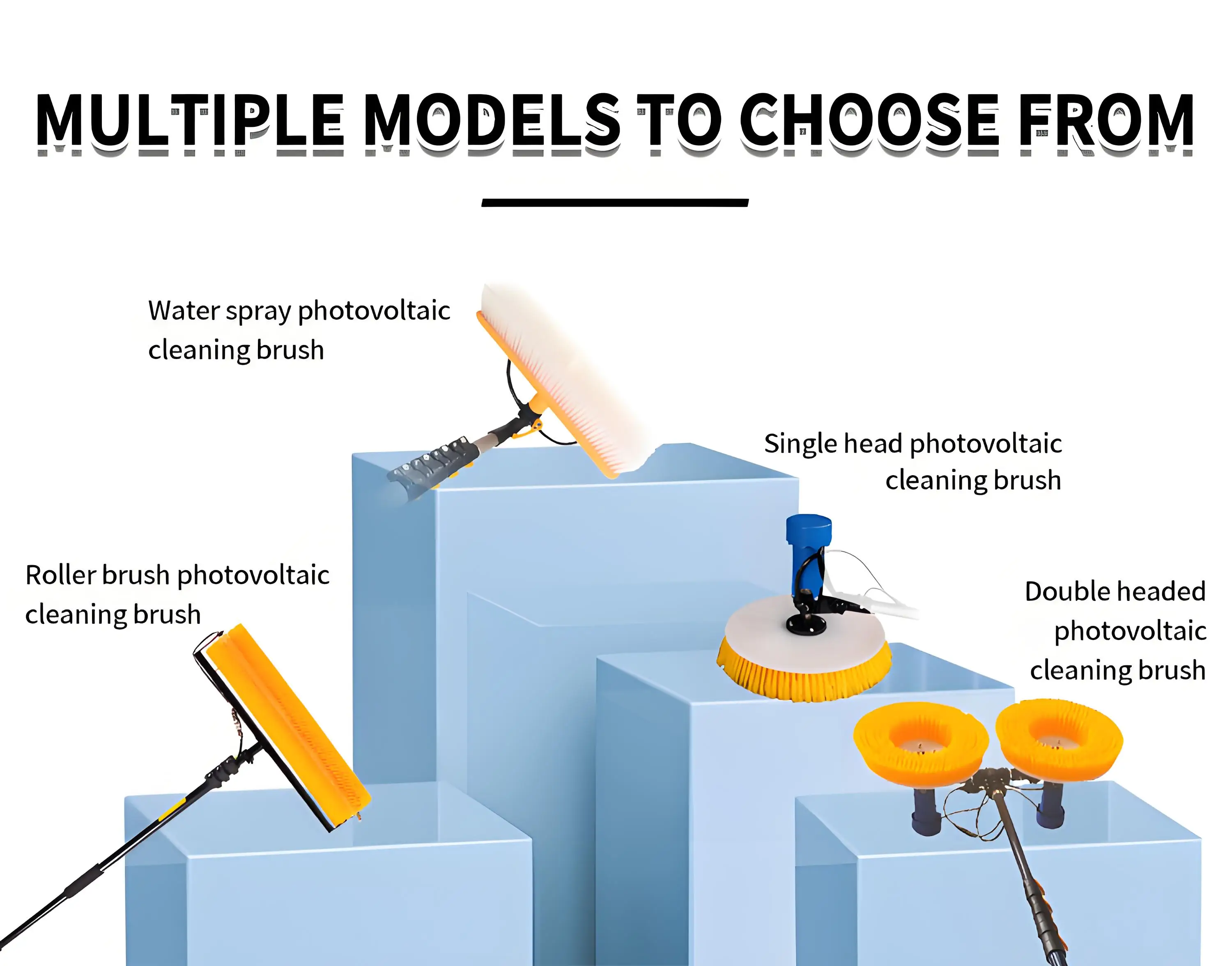

Photovoltaic panel cleaning roller brush
Roller brush using rod head gooseneck design, than the straight rod laborsaving, more in line with human mechanics, construction personnel hold the cleaning rod in hand to press and clean more easily,the efficiency is significantly improved, a day can be cleaned about 0.5-1.2 MWP (please refer to the field data).
The rod length is 1.5-7.5 meters freely retractable, washed and dried, can adapt to a variety of complex terrain environments.
Support global shipping and recommend logistics methods based on designated locations.
Photovoltaic cleaning manual spray brush | ||
Brush head size | 35/55*7 cm | |
Brush bristle length | 6 cm | |
Brush head material | Nylon wire | |
Water pipe length | 25-33 m | |
Water pipe material | Braided hose | |
Telescopic rod length | 3.6-12 m | |
Telescopic rod number of stanzas | 3/4/5 section | |
Telescopic rod wall thickness | 1mm | |
Telescopic rod material | Aluminum alloy/Carbon fiber rod | |
Water pump Power | DC12V 60W / DC24V 120W | |
Water pump power converter | 12V 5a / 24V 4a | |

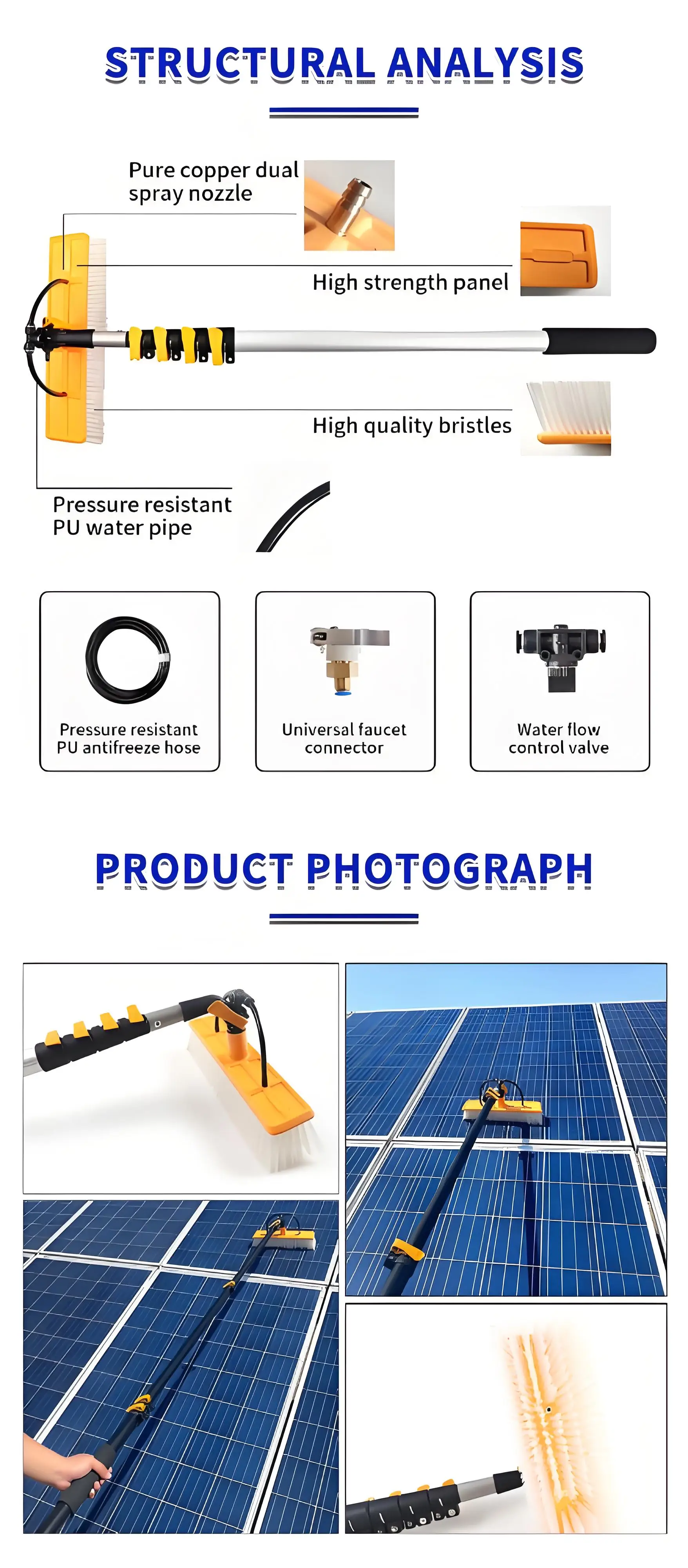

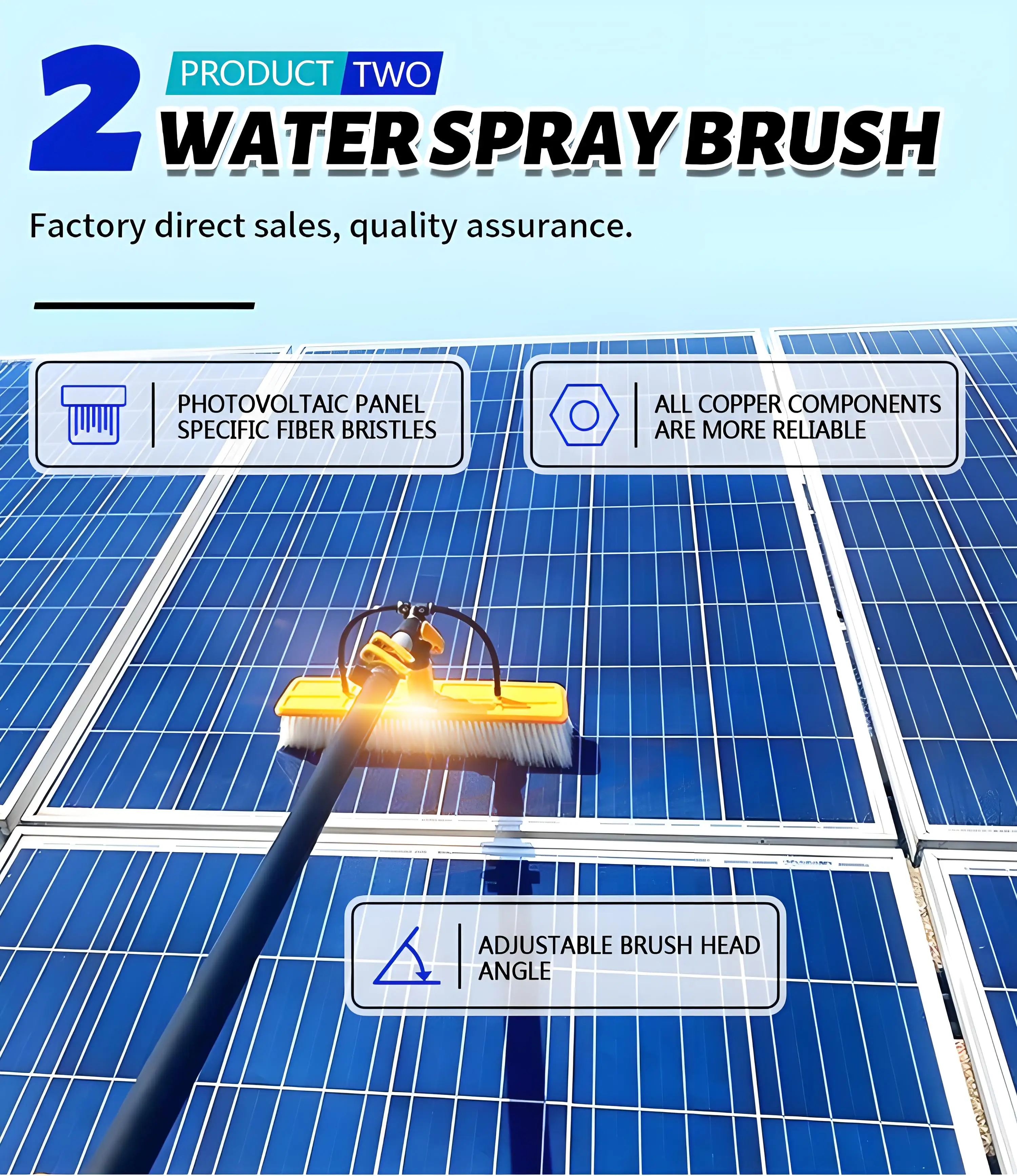

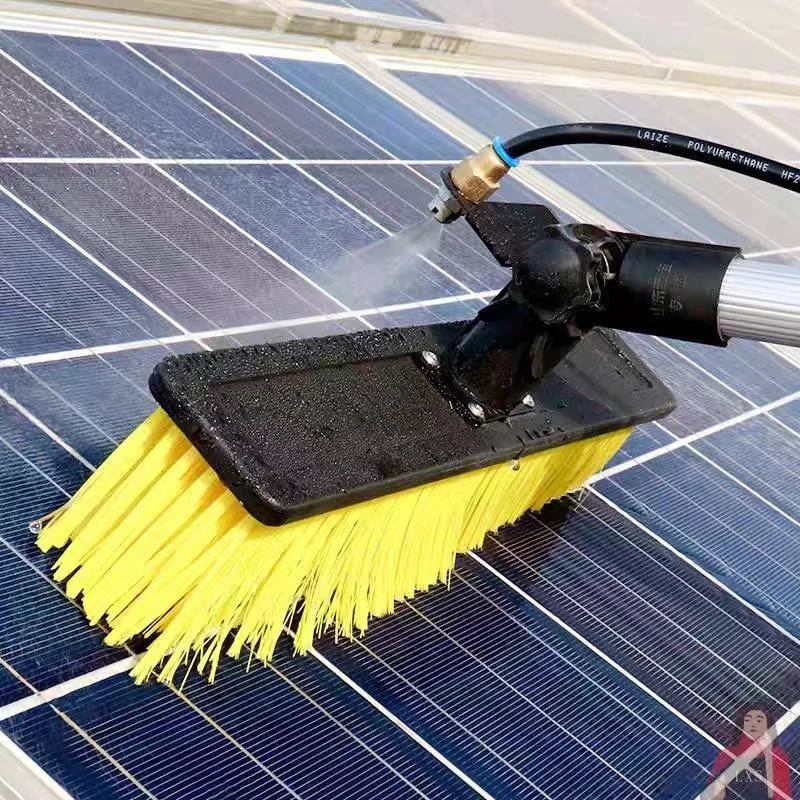

Photovoltaic cleaning manual spray brush
This manual spray brush is equipped with a 3.6 m-12 m telescopic rod and a 25 m - 33 m water pipe, with tap water or other water supply devices, can achieve the purpose of efficient cleaning of photovoltaic panels at the same time.
When there is no water supply device, a low-power water pump can also be selected to achieve a 12-meter head cleaning, and a lithium battery can be chosen to achieve water supply in non powered environments.
Support global shipping and recommend logistics methods based on designated locations.

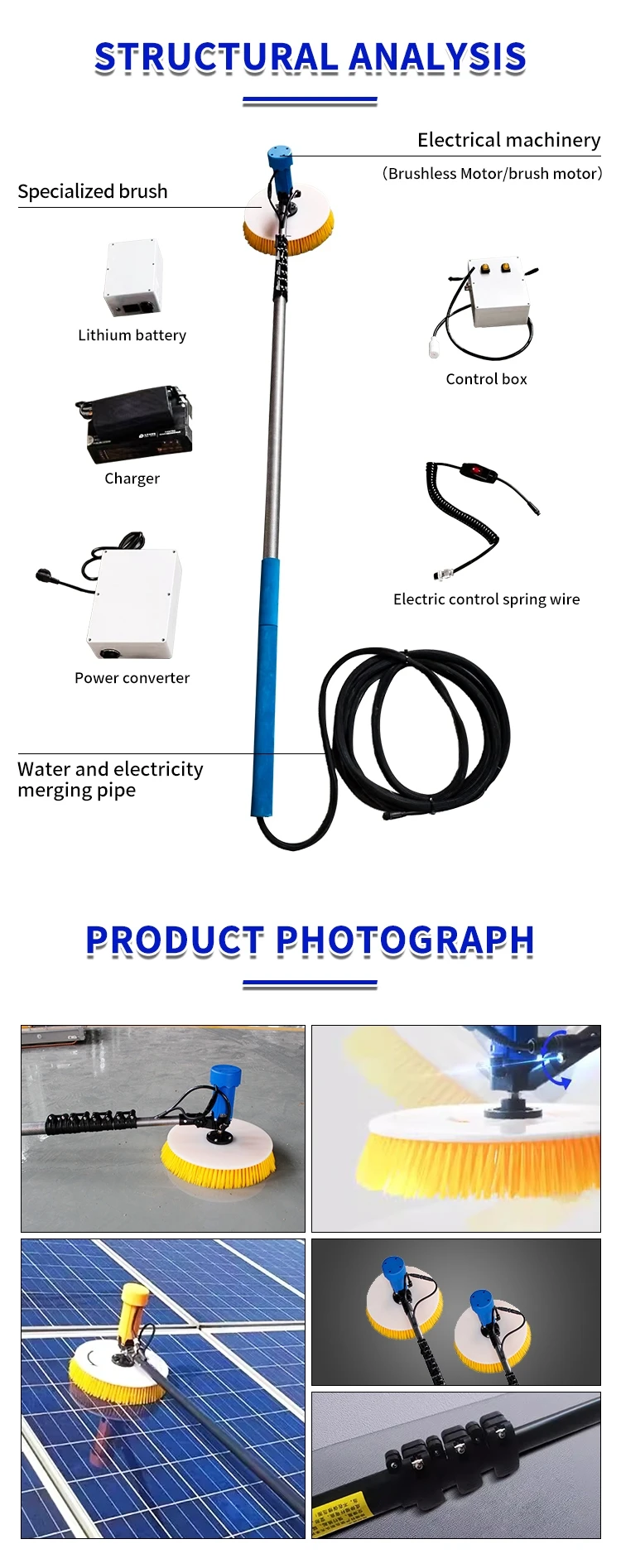

Single head electric photovoltaic cleaning brush | ||
Telescopic rod length（Aluminum alloy） | 3.5/5.5/7.5 m | |
Telescopic rod length（Carbon fiber） | 3.5/5.5/7.5/10 m | |
Telescopic rod diametrer（Aluminum alloy） | 30/35/40 mm | |
Telescopic rod diametrer（Carbon fiber） | 34/36/39.5/43 mm | |
Telescopic rod wall thickness | 1mm | |
Cleaning width | 33 cm | |
Brush hair length | 55 mm | |
Cleaning method | Water /Dry Clean | |
Brushed motor power | DC24V 150W | |
Brushed motor speed | 300 rpm/min | |
Brushless motor power | DC24V 300W | |
Brushed motor speed | 360 rpm/min | |

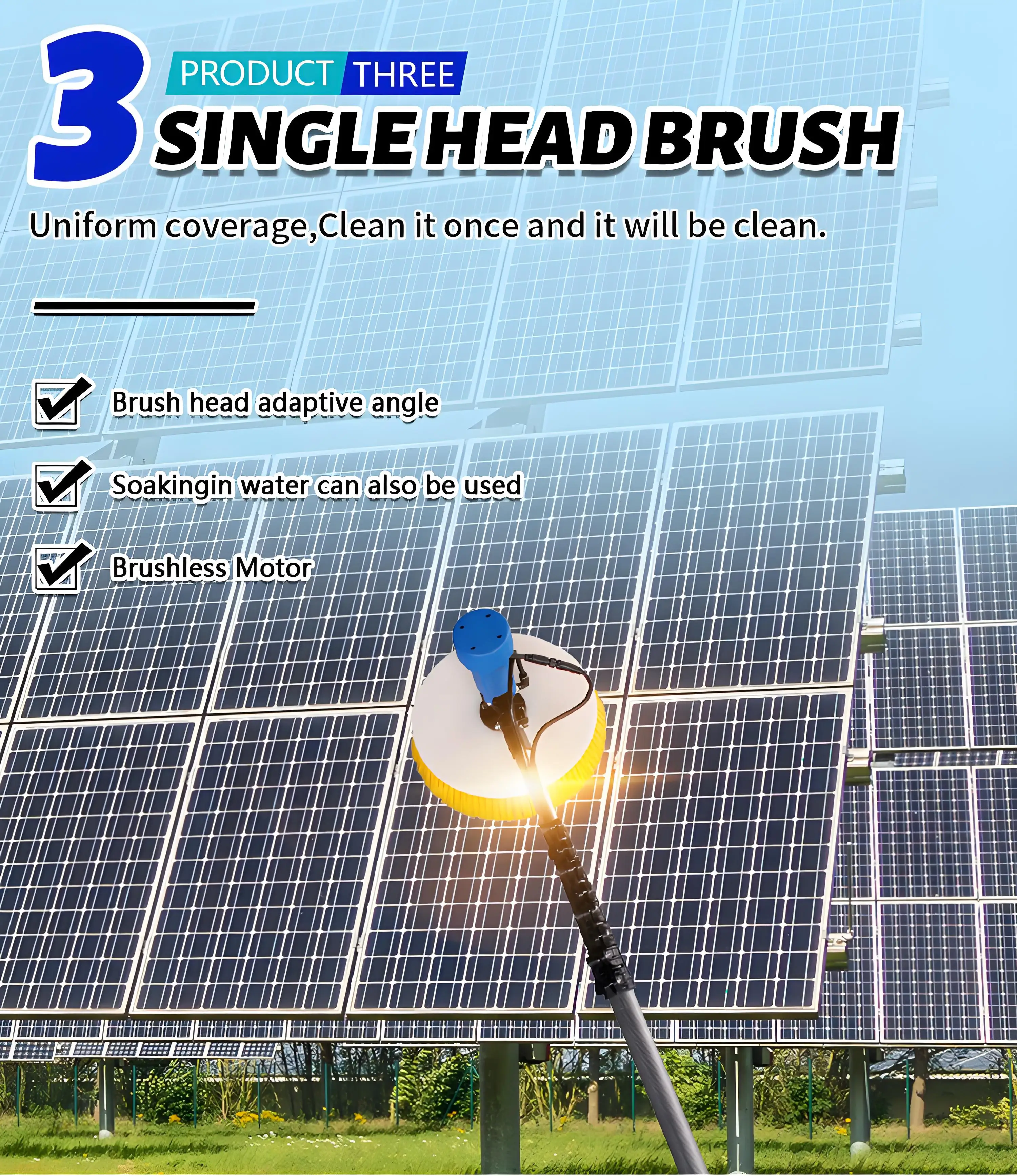

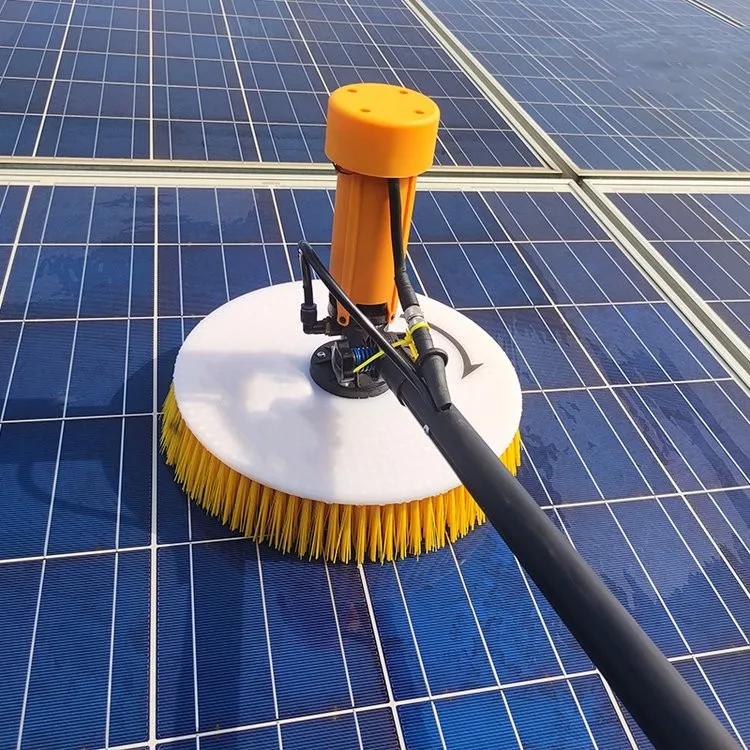

Single head electric photovoltaic cleaning brush
Single head electric photovoltaic cleaning brush, equipped with telescopic rods made of aluminum alloy or carbon fiber, can achieve dry cleaning or water cleaning. Three versions are available for different water and electricity supply environments.
Compared to double head brushes, they are lighter in weight and flexible, but have lower efficiency and are difficult to control for remote operation. They are suitable for cleaning small areas and short distances of photovoltaic modules.
Compared to double head brushes, they are lighter in weight and flexible, but have lower efficiency and are difficult to control for remote operation. They are suitable for cleaning small areas and short distances of photovoltaic modules.
Support global shipping and recommend logistics methods based on designated locations.

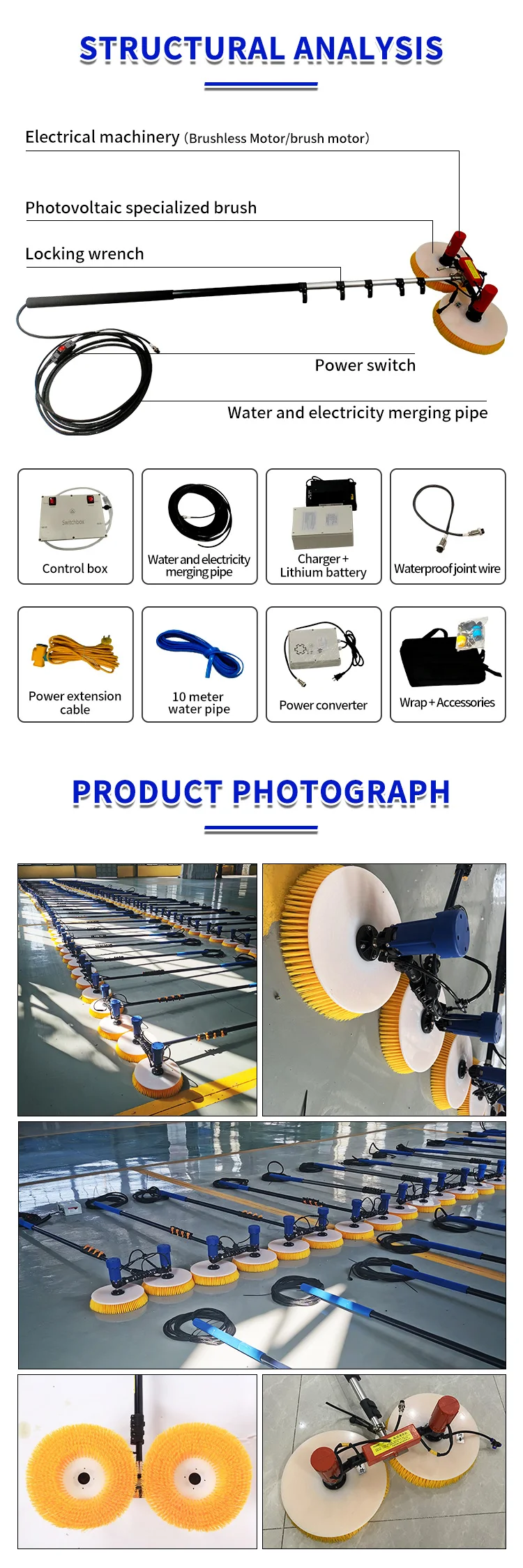

Double-headed electric photovoltaic cleaning brush | ||
Telescopic rod length（Aluminum alloy） | 3.5/5.5/7.5 m | |
Telescopic rod length（Carbon fiber） | 3.5/5.5/7.5/10 m | |
Telescopic rod diametrer（Aluminum alloy） | 30/35/40 mm | |
Telescopic rod diametrer（Carbon fiber） | 34/36/39.5/43 mm | |
Telescopic rod wall thickness | 1mm | |
Cleaning width | 67 cm | |
Brush hair length | 55 mm | |
Cleaning method | Water /Dry Clean | |
Brushed motor power | DC24V 150W | |
Brushed motor speed | 300 rpm/min | |
Brushless motor power | DC24V 300W | |
Brushed motor speed | 360 rpm/min | |

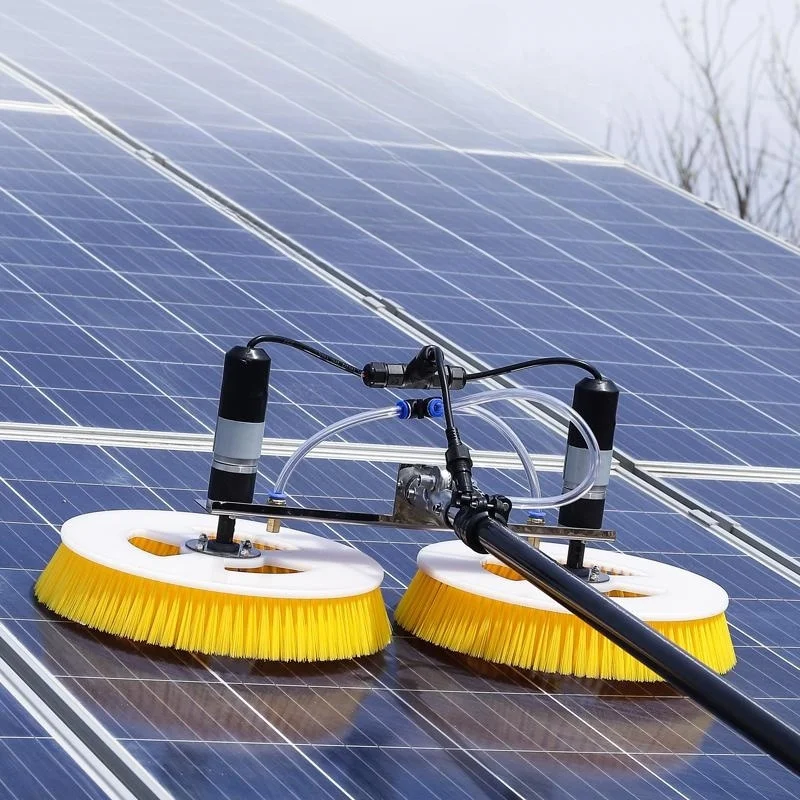

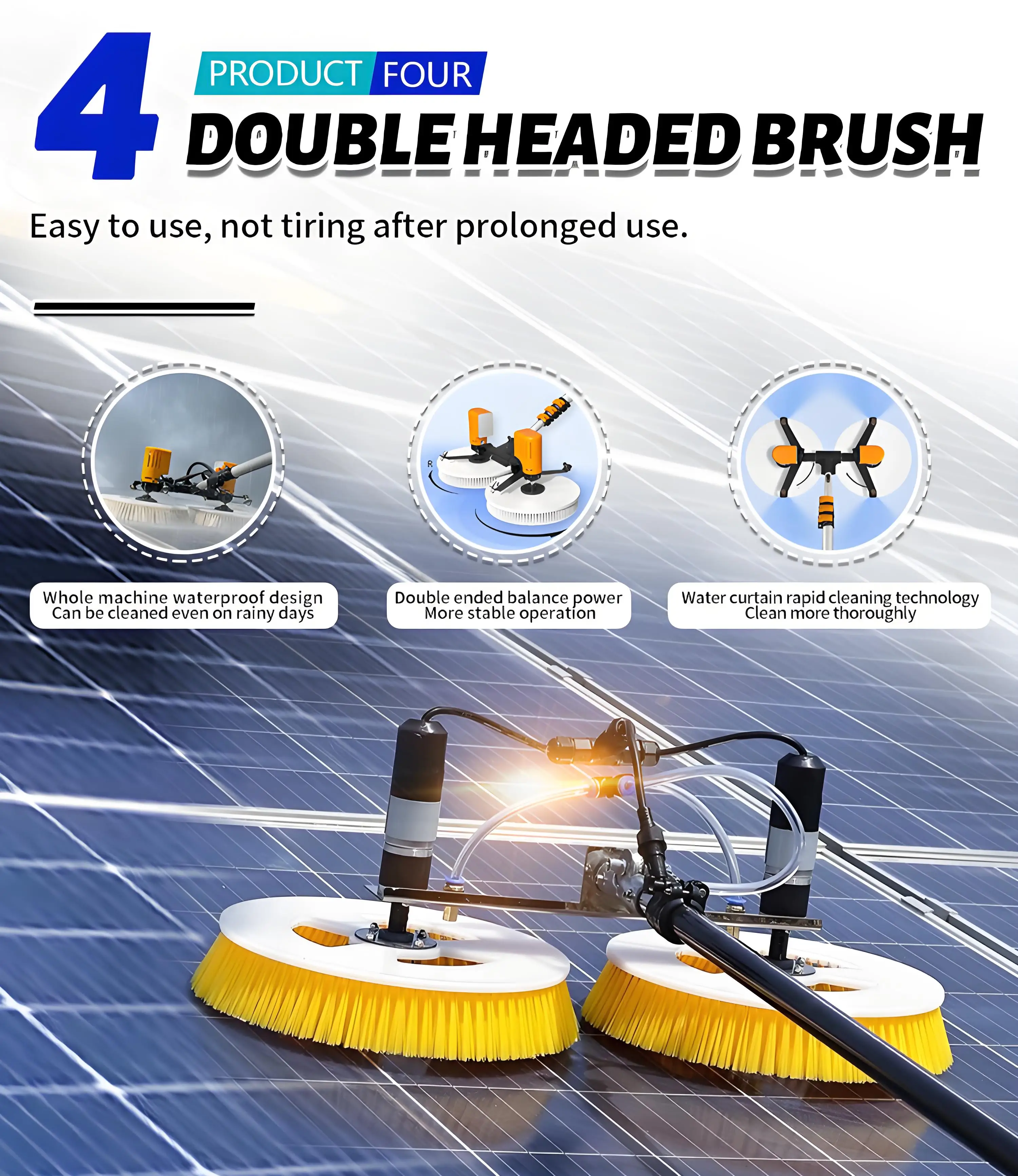

Double-headed electric photovoltaic cleaning brush
Double head electric photovoltaic cleaning brushes can provide customized water supply solutions for dry cleaning or water washing.
Three versions are available for different water and power supply environments. The structure is more reasonable. the stability is better, and the cleaning efficiency of photovoltaic panels is doubled.
Support global shipping and recommend logistics methods based on designated locations.
Recommend Products
Company Profile
Intelligent Production Line
Quality Inspection of Parts
Machine testing
Certifications
Packing
FAQ
1.Are you manufacture?
Ans: Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
.Full payment before shipment.we'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW, FOB,CFR, CIF.
4.How about your delivery time?
Ans.: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.What is the warranty of our machine?
Ans.:Our main machine enjoys a l year warranty, during this time all accessories broken can be changed for a new one.And we provide videos for machine installation and operation.
6.What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery.And we will attach our inspectreport for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
Ans.: 1.We maintain good quality and competitive prices to ensure long-term cooperation with customers.
10.Do you have any certificates for your machine?
Ans.:All of our products coming with the certificates of CE, ISO9001.
