Factory 6' large touch screen 1080P FHD industrial borescope 4 way articulation IP67 videoscope endoscope inspection camera
- Category: >>>
- Supplier: Shenzhen Vsndt Co. Ltd.Shenzhen Ltd.
Share on (1601338918979):
Product Overview
Description
Factory 6'' large touch screen 1080P FHD industrial borescope 4 way articulation IP67 videoscope endoscope inspection camera
Product Description

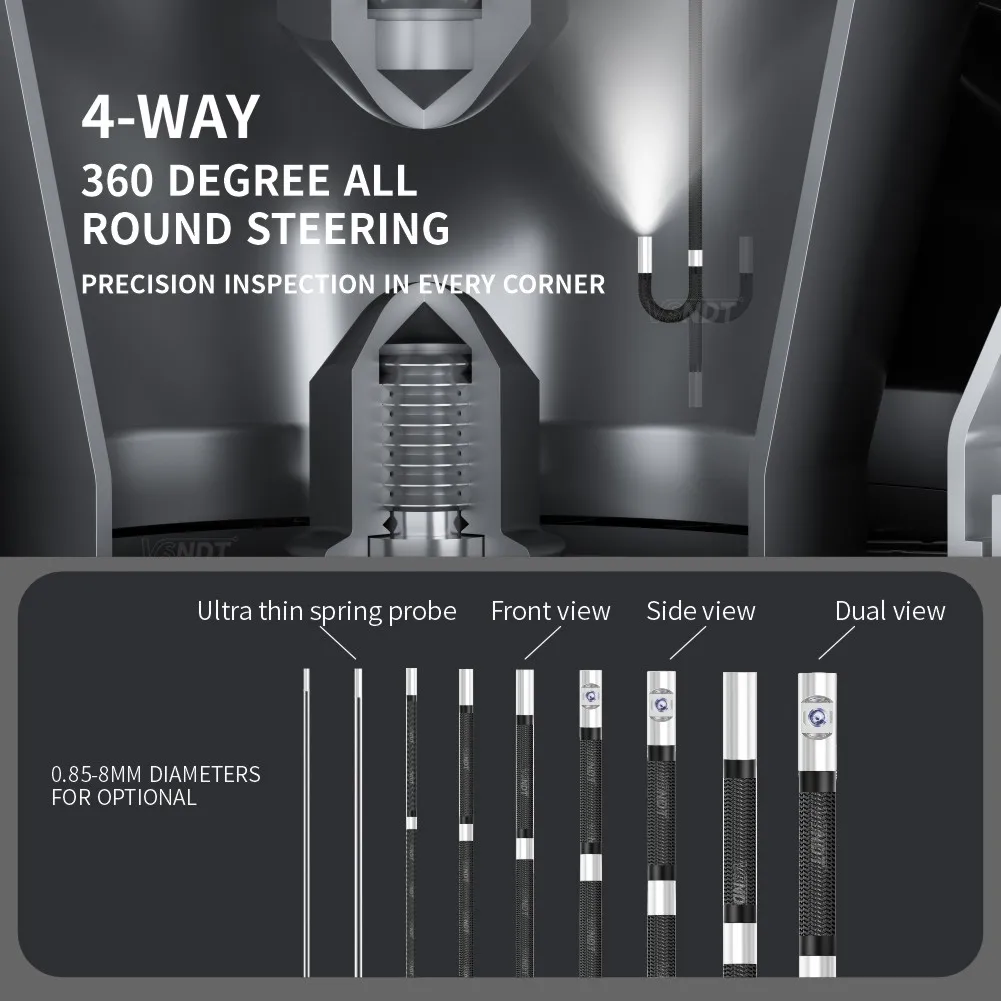

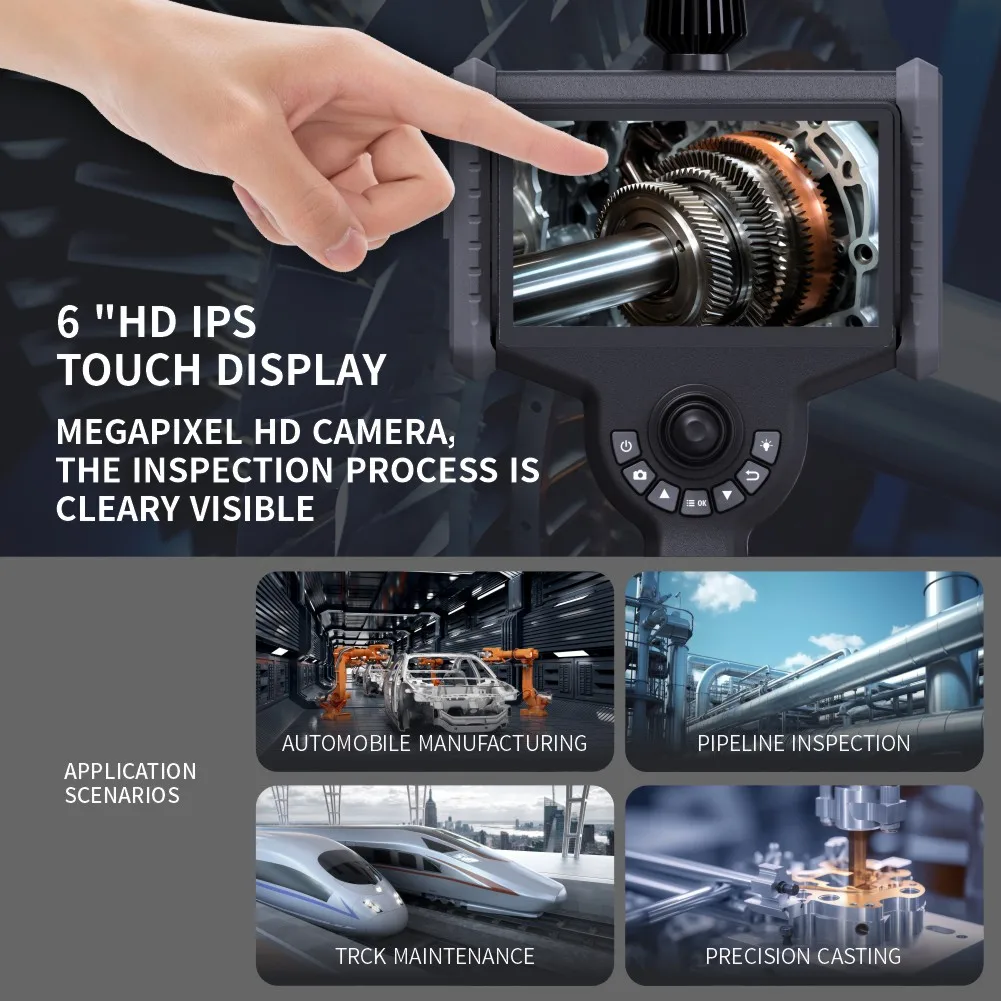

VSNDT VS-P Series industrial video endoscope, equipped with 6 inch HD touch LCD screen,360 degree steering function in 4 directions, 1080p million high-definition camera, can intuitively judge whether the observation part is qualified, support photo and video archiving, clear picture and video, this series of industrial video endoscope can be applied to precision casting, pharmaceutical manufacturing, automobile manufacturing and other application scenarios.
Technical Parameter
| TECHNICAL PARAMETERS [ VS-P] | ||
| HOST | Dimension | 375*175*78mm |
| Disply | 6" FHD Touch screen(1920x1080) | |
| Output | Type-C, TF card slot, HDMl interface, AUX interface | |
| Power | >8h | |
| IP Grade | IP54 | |
| Storage | Built in storage,Standard 32GB TF card, Max support 128GB | |
| Operating temperature | -20°C~50°C,Low temperature without preheating | |
| Storage temperature | −20℃~60℃ | |
| Relative humidity | Max90%,Nocondensation | |
| Storage | Multifunctionaloperatingsystem | |
CAMERA PROBE | Probe diameter | 0.85/0.95/1.0/1.2/1.8/2.0/2.4/2.8/3.9/4.5/6.0/8.0mm(Optional) |
| Lens direction | Direct view/Sideview/Doubleview | |
| Articulation | 360° full way articulation | |
| DOF | 3mm~30mm/3mm~70mm/7~150mm/12~200mm/50~infinity | |
| Pixel | ≥1.0MP | |
| FOV | 90°/120°/140°(0ptional) | |

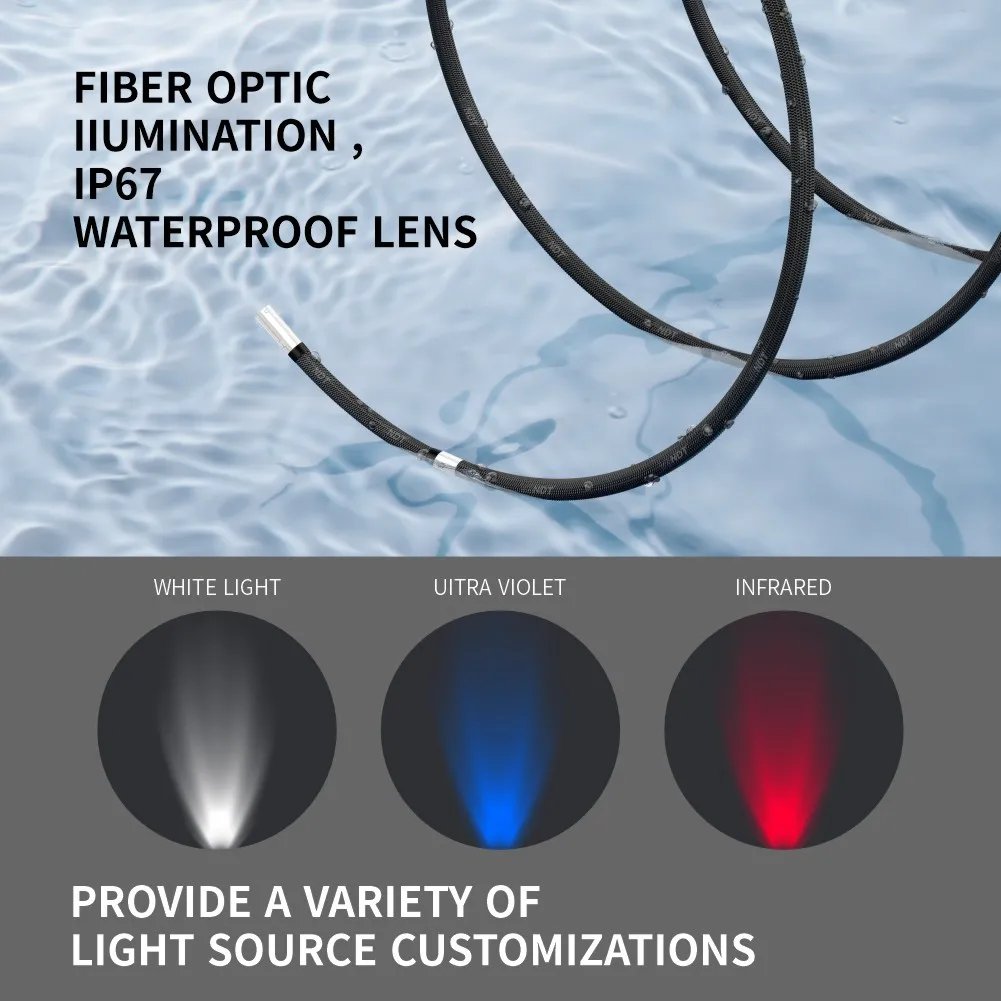

| lllumination | Rear high power LED optical fiber illumination, White light/UV/infrared(optional) | |
| Max swing head angle | 180°±10° | |
| Probe IPgrade | IP67 | |

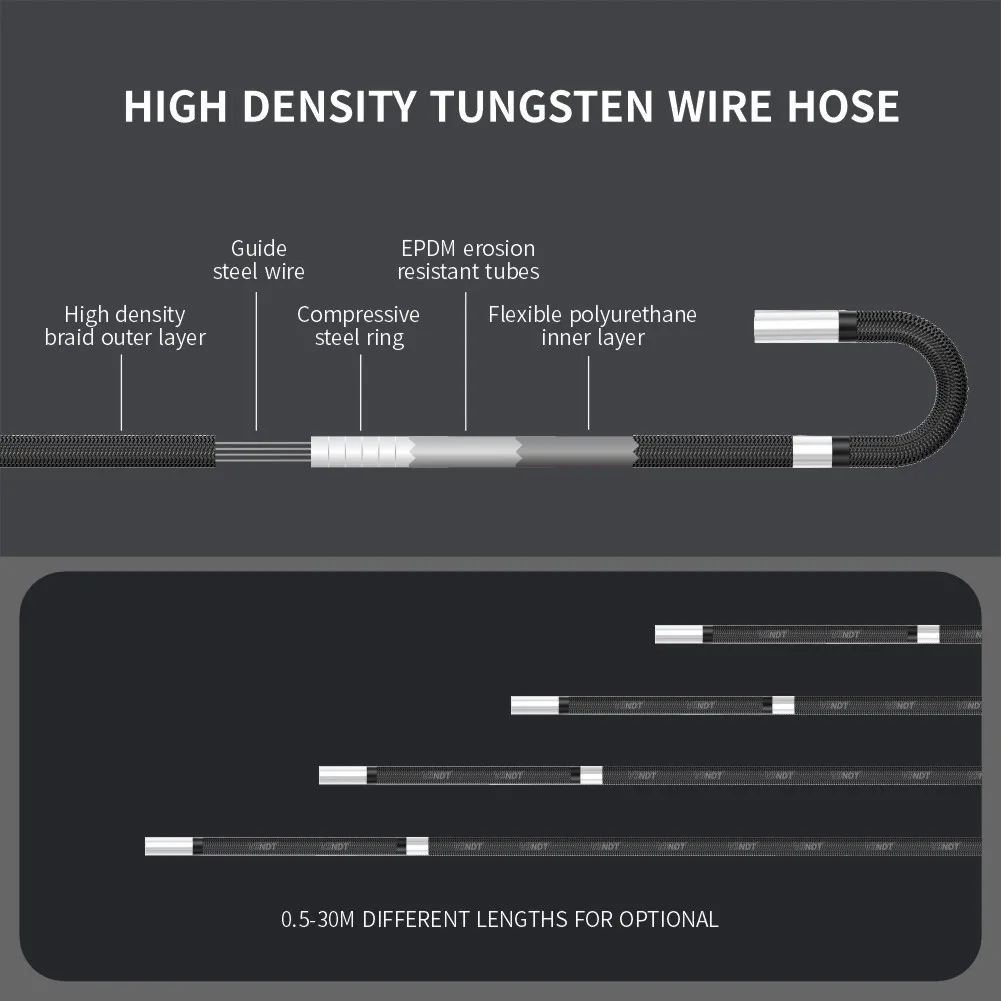

| Insert tubelength | 0.5m~30m(customizable) | |
| FRONT VIEW [ VS-P] | ||
| Lens Direction |  | |
| View Angle(θ) |  | |
| DOF |  | |
| Probe Length(L) |  | |
| Probe Diameter(D) |  | |
| Articulation |  | |
| Bending Angle |  | |
Product Details
Product Recommend
       |
Company Information
    |
Packaging & Shipping
FAQ
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide you a sample in a relatively favorable price.
Q: How long is your delivery time?
A: Generally it is 5-8 working days if the gods are in stock, or it is 15-20 working days if not in stock.It is according to stock quantity situation.
Q: If I am interested in your products, can I get one piece sample for test?
A: Of course, as long as we have stock, welcome to start cooperation from sample for test, after test, then we can talk about further cooperation, we wanna longer term cooperation with our client, not just one time business.
Q: How can I buy online for your products?
A: If the products are the standard one, just can place online on trade assurance order on alibaba.com, we will treat your order sincerely and make sure timely delivery.
Q: Can you supply us OEM/ODM service?
A: Yes, if our existing products can't meet your requirement, it's our pleasure to supply OEMODM service for you.
