Y Series 360 rotation 4 way HD endoscope ,IP67 waterproof borescope inspection camera,sewer endoscopic camera With5.7'screen
- Category: >>>
- Supplier: Shenzhen Vsndt Co. Ltd.Shenzhen Ltd.
Share on (1601339021388):
Product Overview
Description
Y Series 360 rotation 4-way HD endoscope ,IP67 waterproof borescope inspection camera,sewer endoscopic camera With5.7''screen
Product Description

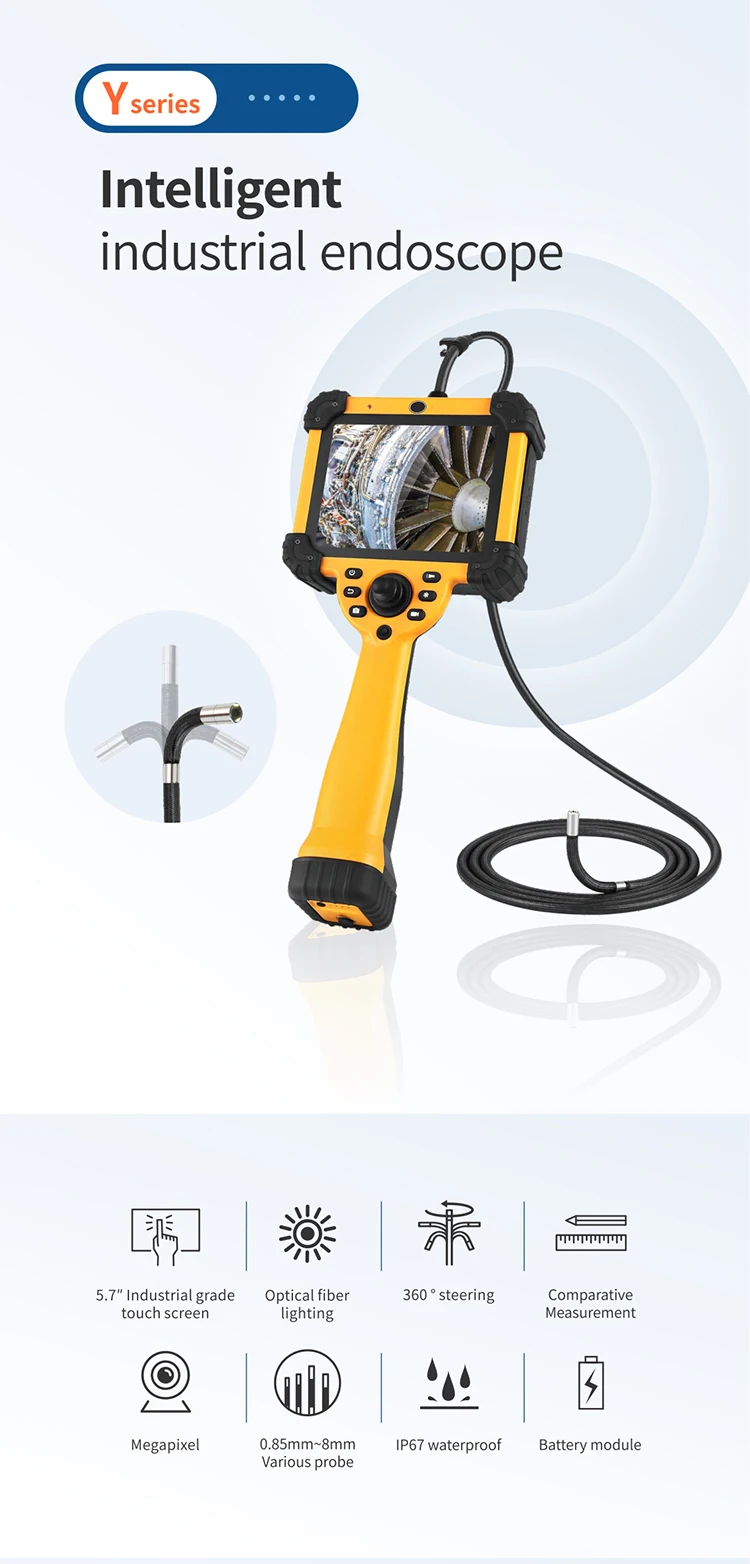

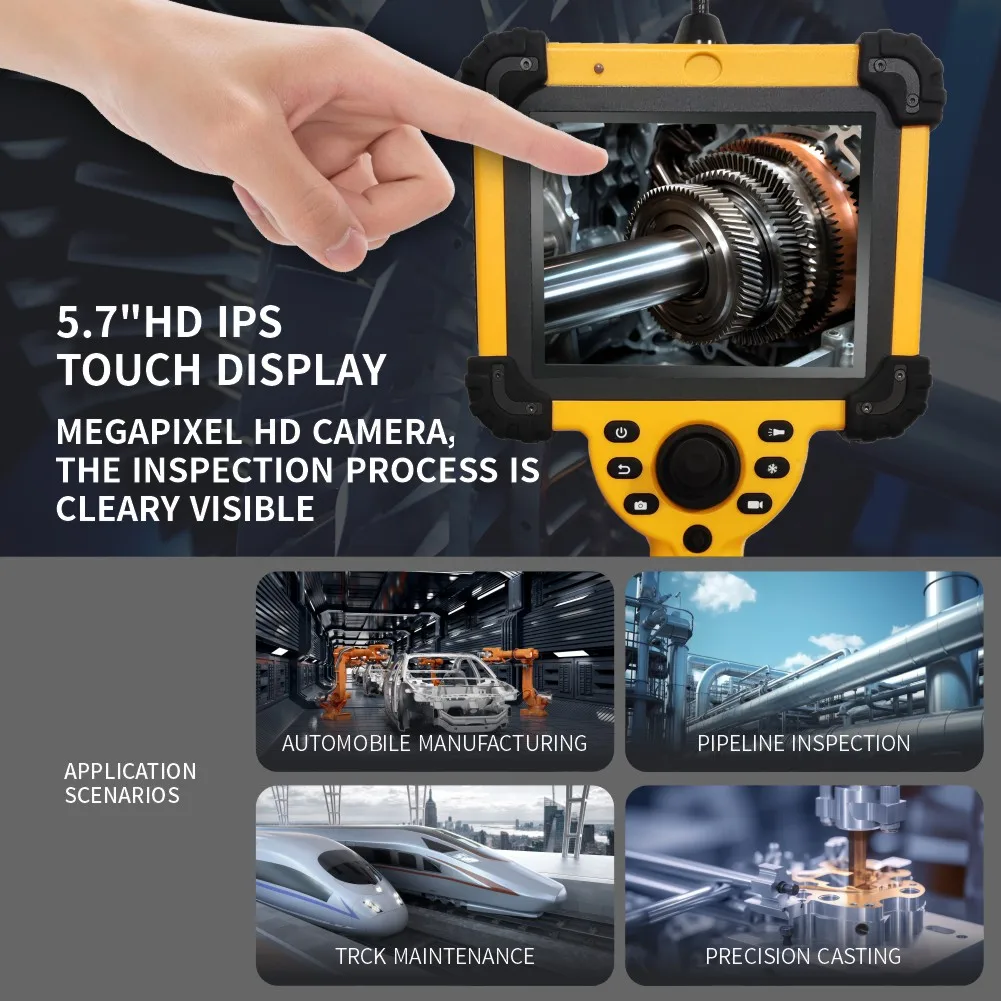

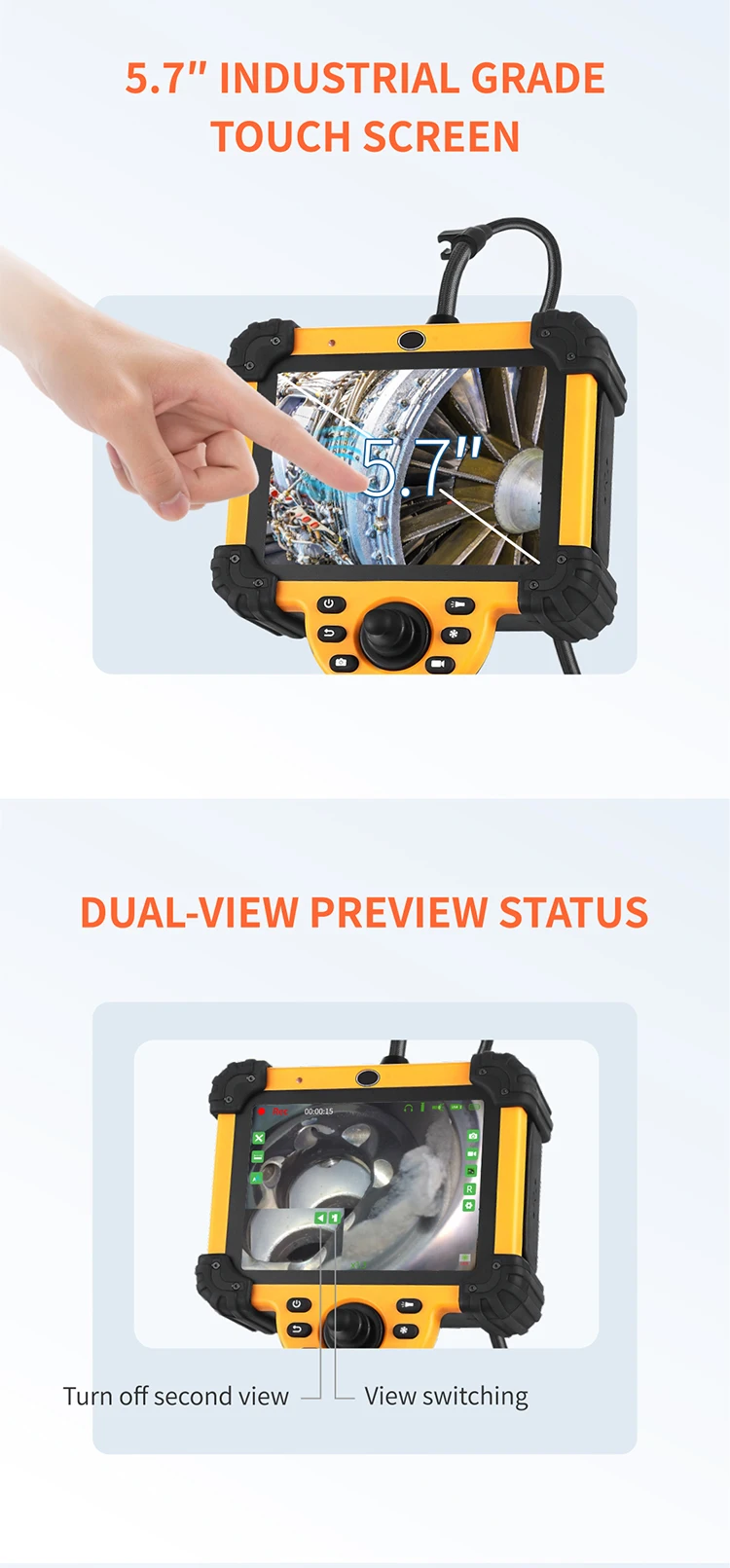

VSNDT VS-Y Series industrial video endoscope, equipped with 5.7 inch HD touch LCD screen,360 degree steering function in 4 directions, million high-definition camera, can intuitively judge whether the observation part is qualified, support photo and video archiving, clear picture and video, this series of industrial video endoscope can be applied to precision casting, pharmaceutical manufacturing, automobile manufacturing and other application scenarios.
Technical Parameter
| TECHNICAL PARAMETERS [ VS-Y ] | ||
| HOST SYSTEM | Dimension | 360*160*60mm |
| Disply | 5.7" Industrial grade touch LCD screen | |
| Output | VGA video output, dual USB output port | |

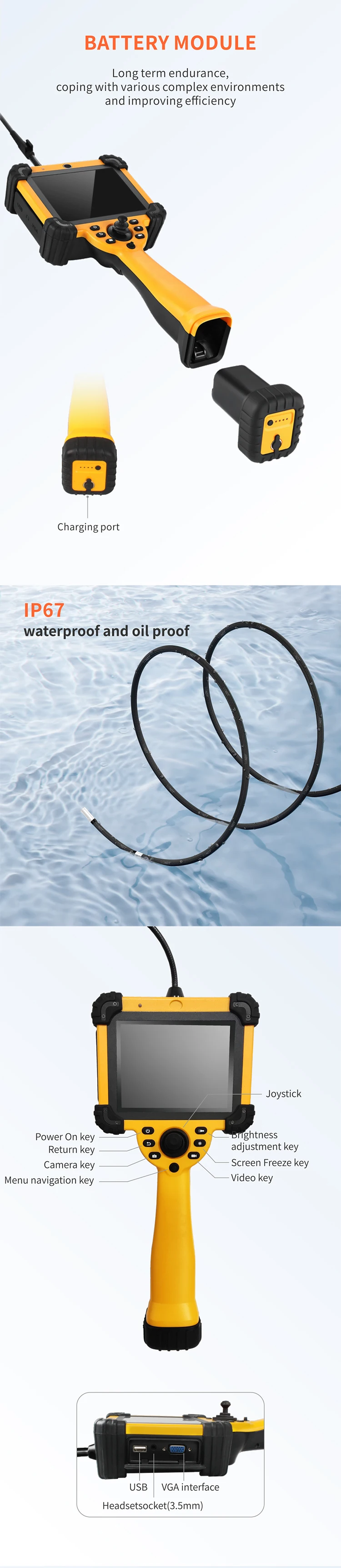

| Power | Modular lithium battery | |
| IP Grade | IP54 | |

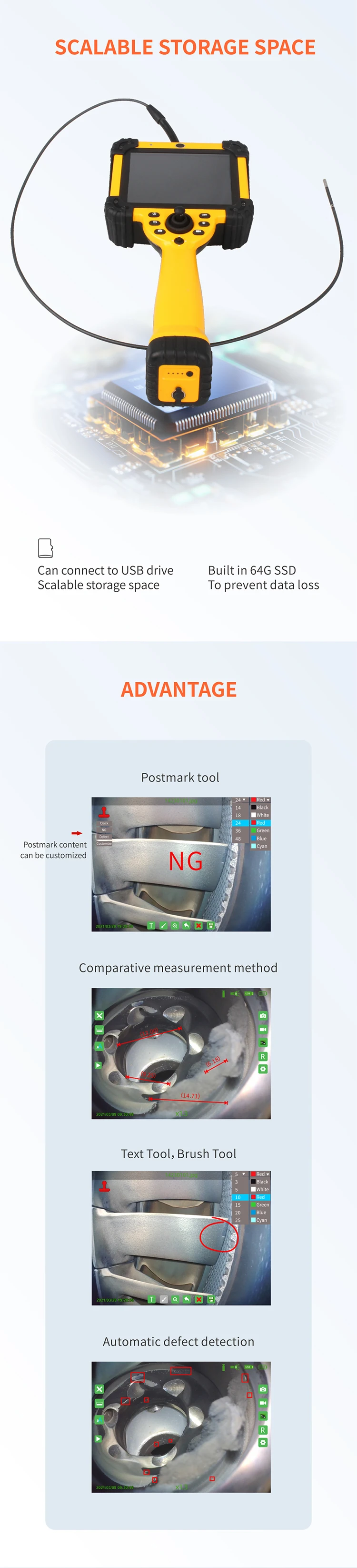

| Storage | 64GB SSD and can be expandable up to 512GB | |
| Operating temperature | -20°C~70°C, Low temperature without preheating(customized-40°C-85°C) | |
| Storage temperature | −20℃~60℃ | |
| Relative humidity | Max90%,Nocondensation | |
| File Format | Image:JPEG(JPG),Video:AVI | |
| Support Language | English,German,French,Russian,Spanish,Italian,Polish,Japanese,Ukrainian,and other languages | |

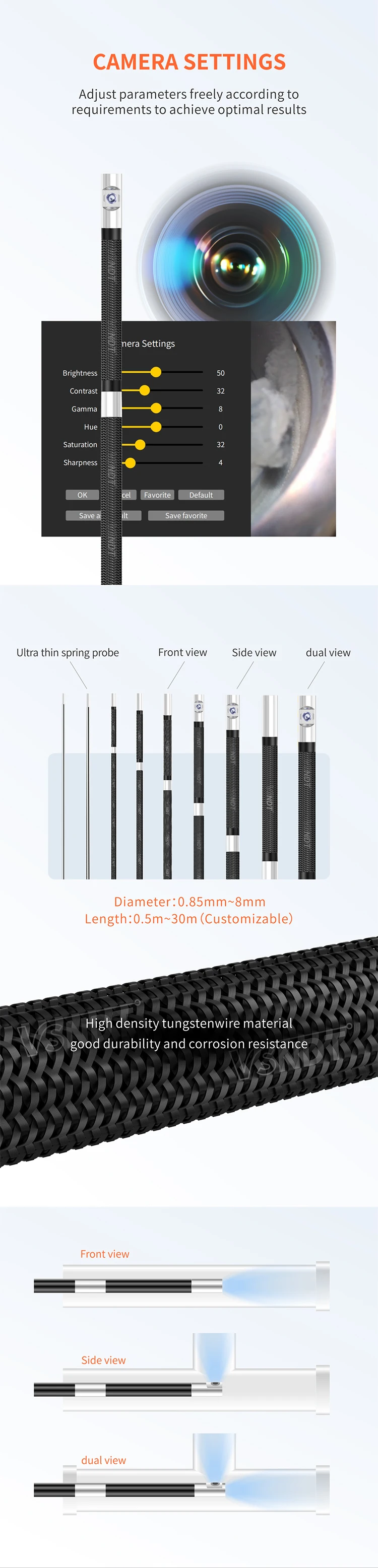

| PROBEPROBE PAYAMETERS | Probe diameter | 0.85mm~8mm |
| Lens direction | Direct view/Sideview/Doubleview | |
| Pixel | 1.0MP/450,000 pixels/160,000 pixels | |

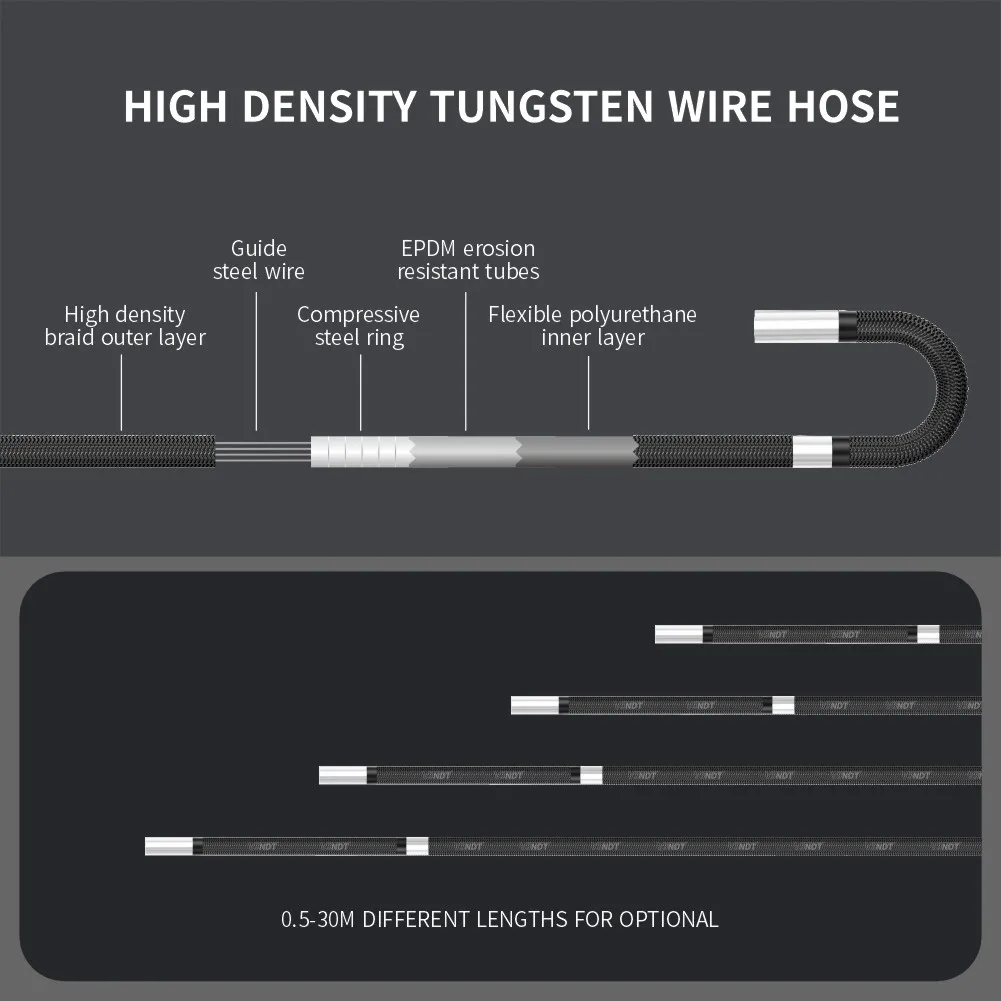

| Length | 1-7m(other customized) | |

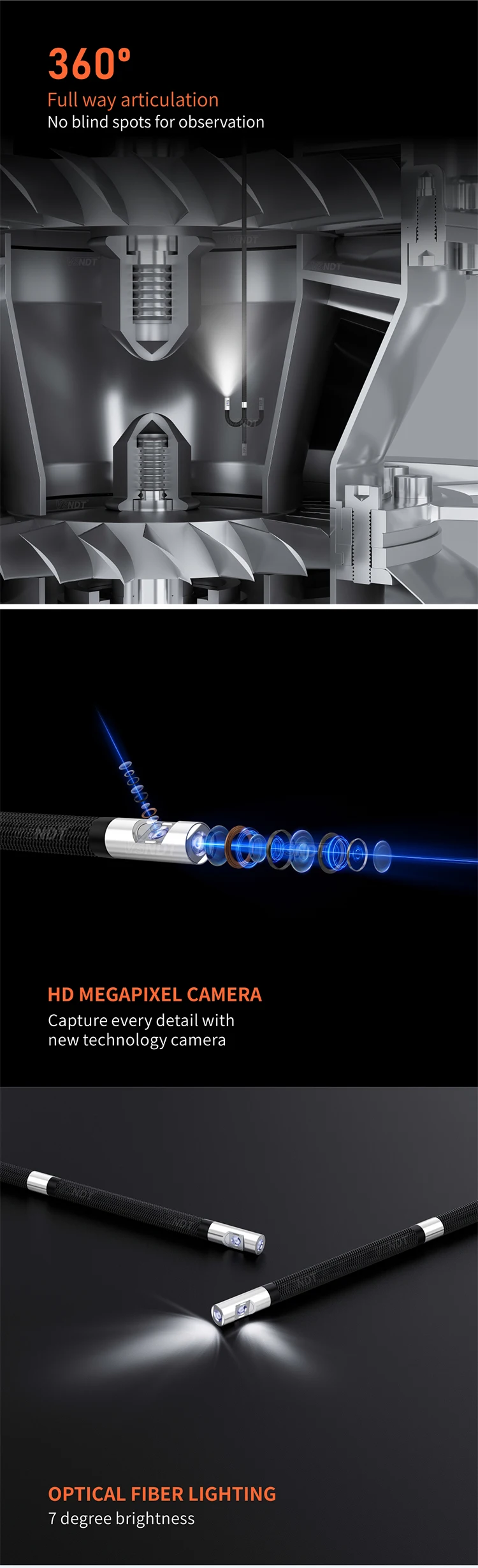

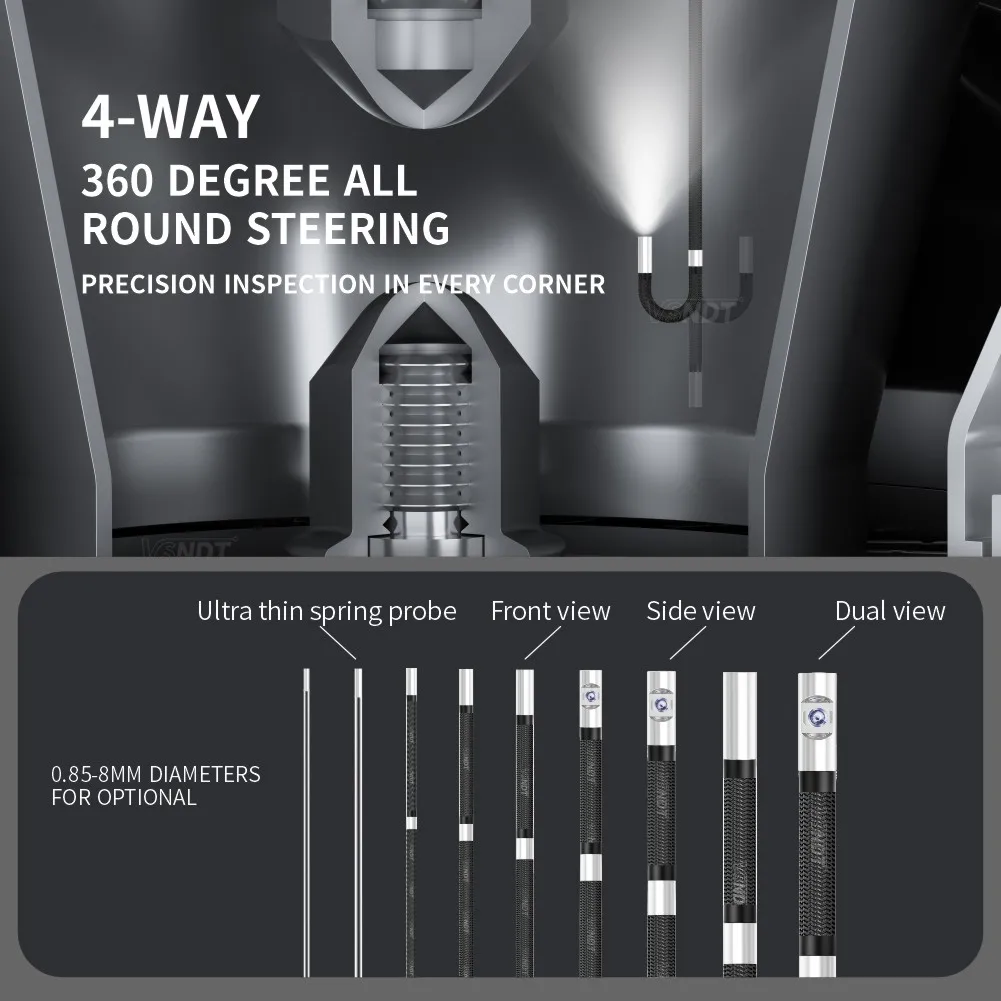

| Articulation | 360° full way articulation | |
| Max swing head Angle | >180° | |
| DOF | 3mm~30mm/3mm~70mm/7-150mm/12~200mm/50-infinity | |
| FOV | 90°~140° | |
| Viewing angle | Front/side/dual view | |

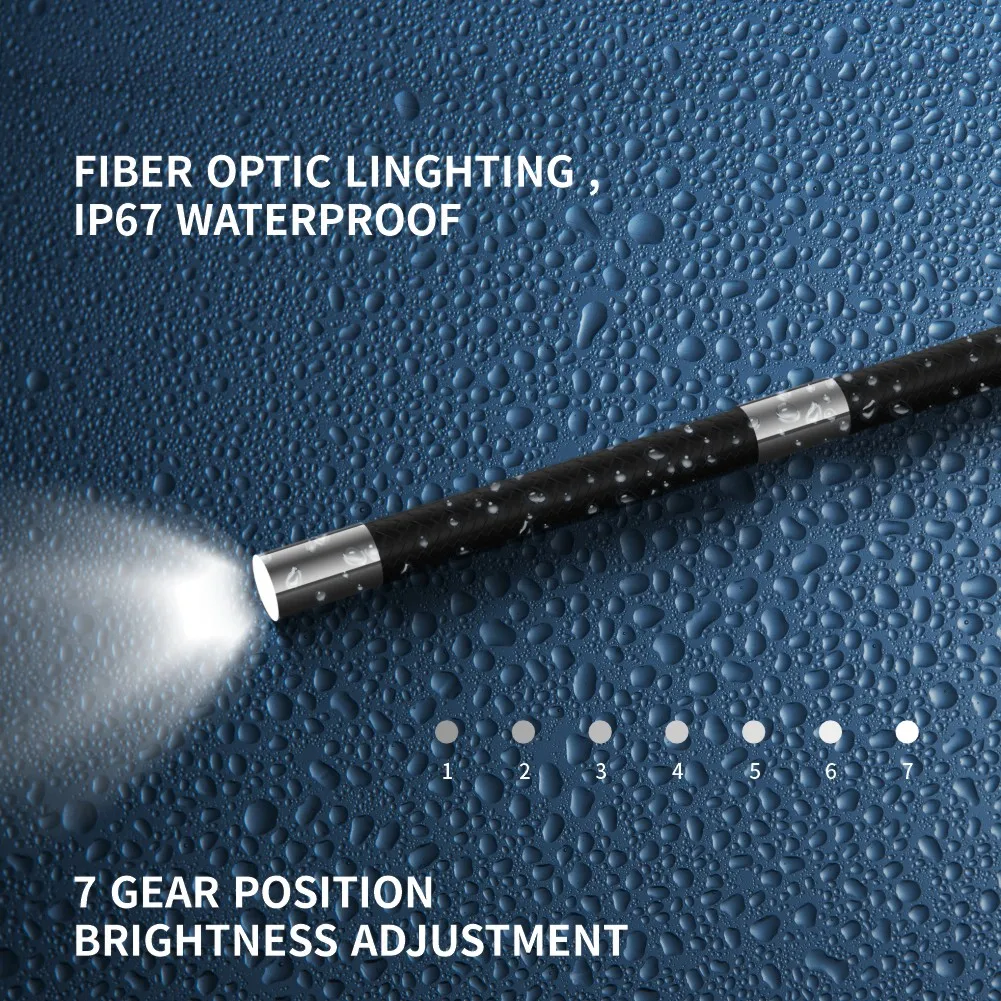

| lllumination | Rear high power LED fiber optical transmission | |
| IP Grade | IP67 | |
| FRONT VIEW [ VS-Y ] | ||

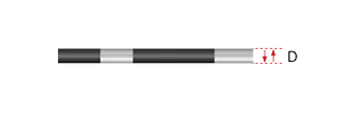

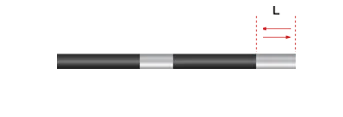

| Lens Direction |  | |

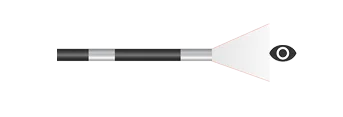

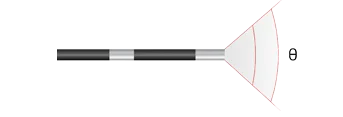

| View Angle(θ) |  | |

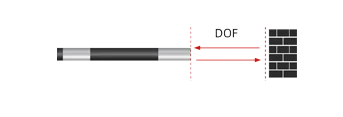

| DOF |  | |
| Probe Length(L) |  | |
| Probe Diameter(D) |  | |

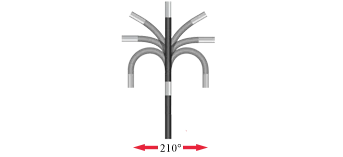

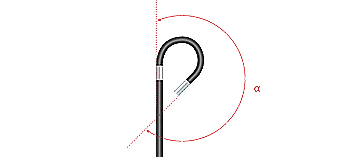

| Articulation |  | |
| Bending Angle |  | |

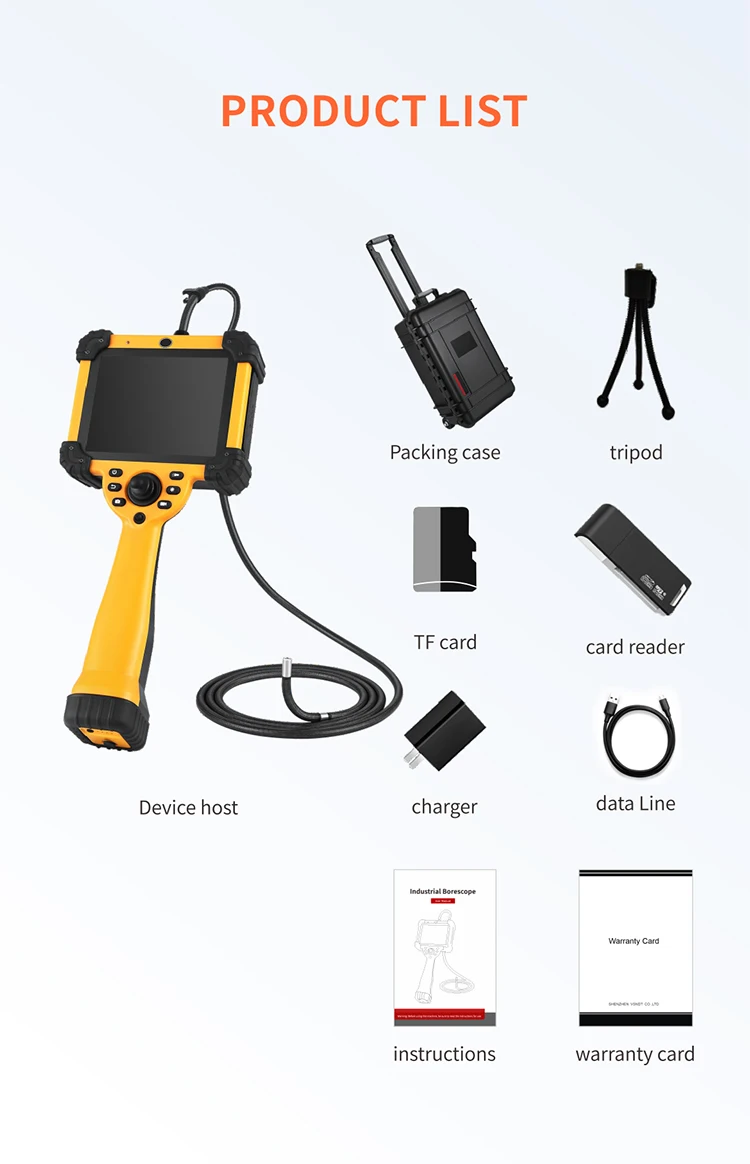

Product Details
Product Recommend
       |
Company Information
    |
Packaging & Shipping
FAQ
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide you a sample in a relatively favorable price.
Q: How long is your delivery time?
A: Generally it is 5-8 working days if the gods are in stock, or it is 15-20 working days if not in stock.It is according to stock quantity situation.
Q: If I am interested in your products, can I get one piece sample for test?
A: Of course, as long as we have stock, welcome to start cooperation from sample for test, after test, then we can talk about further cooperation, we wanna longer term cooperation with our client, not just one time business.
Q: How can I buy online for your products?
A: If the products are the standard one, just can place online on trade assurance order on alibaba.com, we will treat your order sincerely and make sure timely delivery.
Q: Can you supply us OEM/ODM service?
A: Yes, if our existing products can't meet your requirement, it's our pleasure to supply OEMODM service for you.
