Automatic sticker label inspection rewinder machine with slitter
- Category: >>>
- Supplier: Hangzhou Prime Intelligent Technology Co. Ltd.Hangzhou Ltd.
Share on (1601339091257):
Product Overview
Description
Hot Sales 350 Label Sticker Inspecting And Rewinder
Products Description

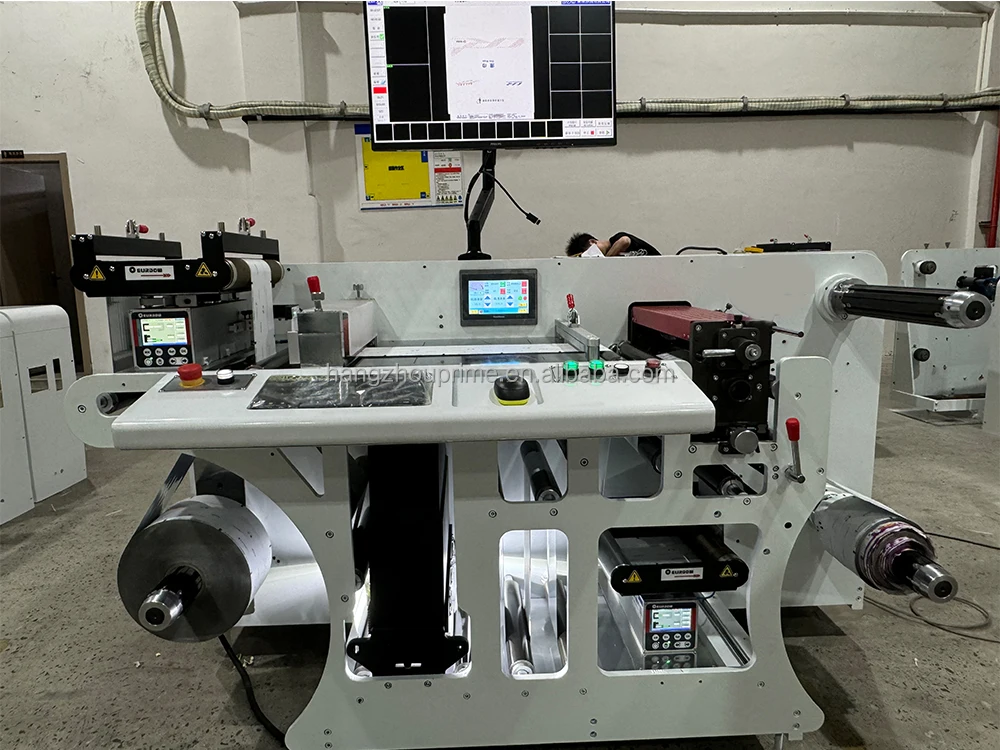

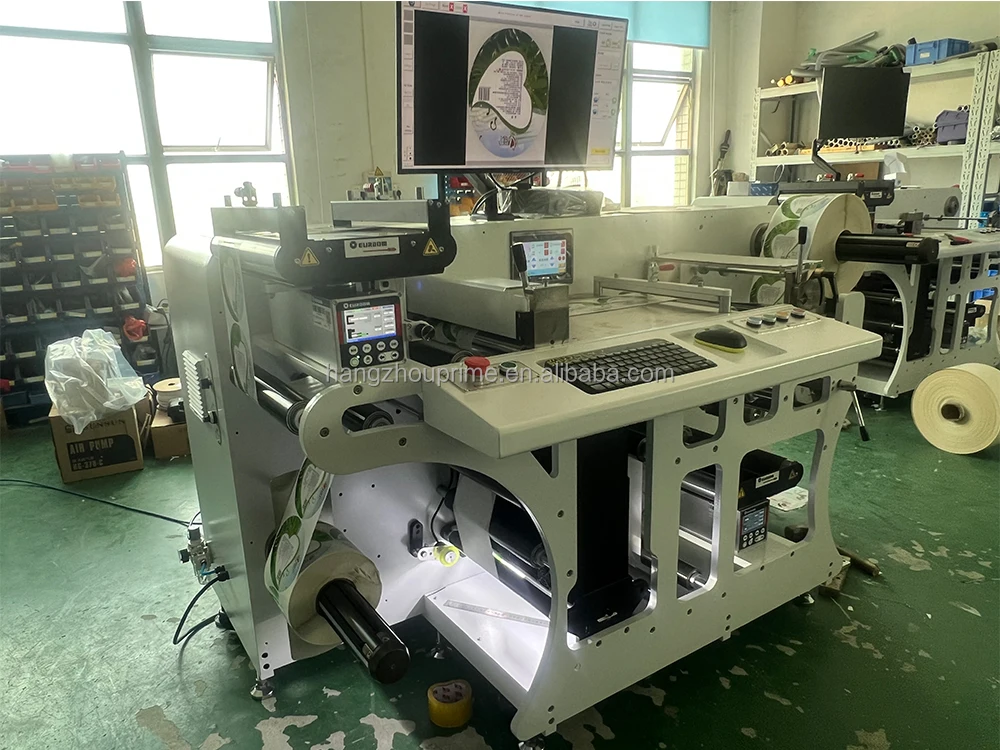

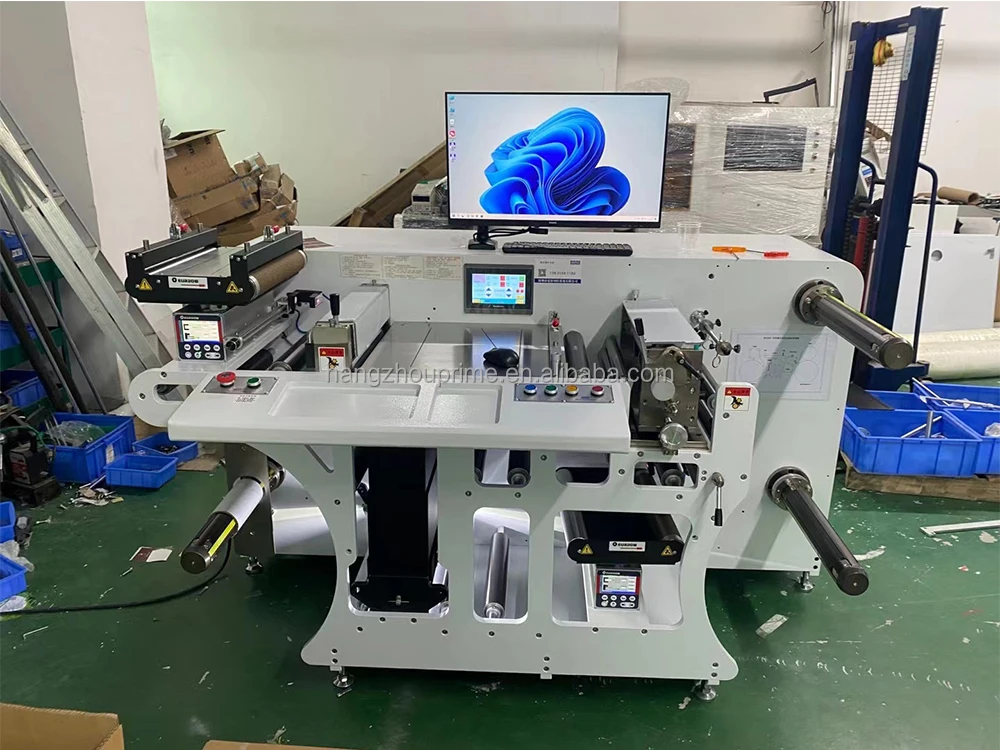

Automatic label inspecting machine
The label inspection machine is a supporting product of the flexographic printing machine and the automatic die-cutting machine. It is used to detect the quality of the printed labels. It has the functions of automatic meter counting, counting pieces, forward and reverse.
Product Specifications
Model | PM-JBJ-350 | PM-JBJ-450 |
Inspection speed | 100m/min (inspection speed according to label size and content) | 100m/min (inspection speed according to label size and content) |
Maximum inspection size | 350*350mm | 450*450mm |
Maximum width | 350mm | 450mm |
Maximum unwinding diameter size | 600mm | 600mm |
Maximum rewinding diameter size | 600mm | 600mm |
Resolution | ±0.1mm | ±0.1mm |
Total power | 3kw | 3kw |
Voltage | 220V, 50HZ/60HZ | 220V, 50HZ/60HZ |
Weight | 350kg | 200kg |
Machine size | 2250*1300*1700mm | 900*620*960mm |

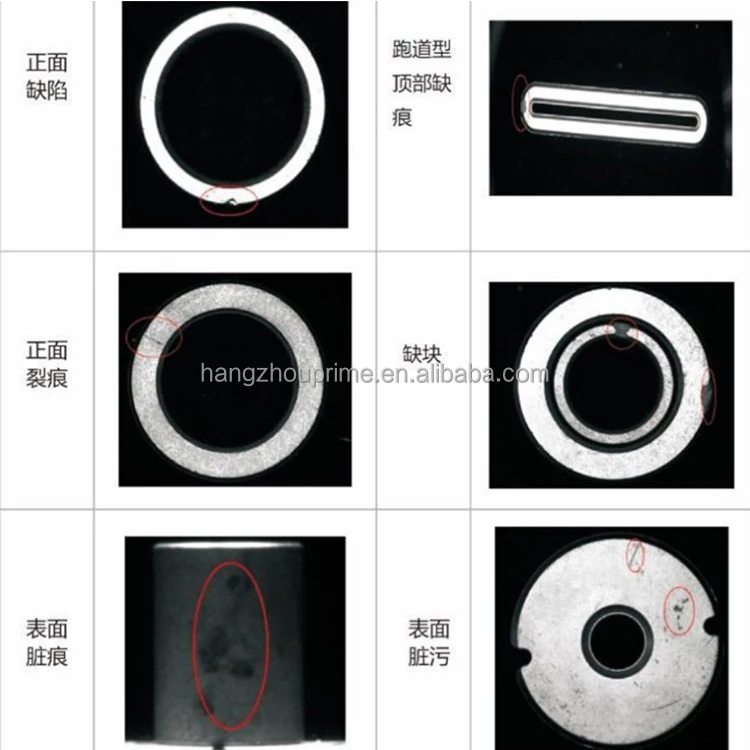

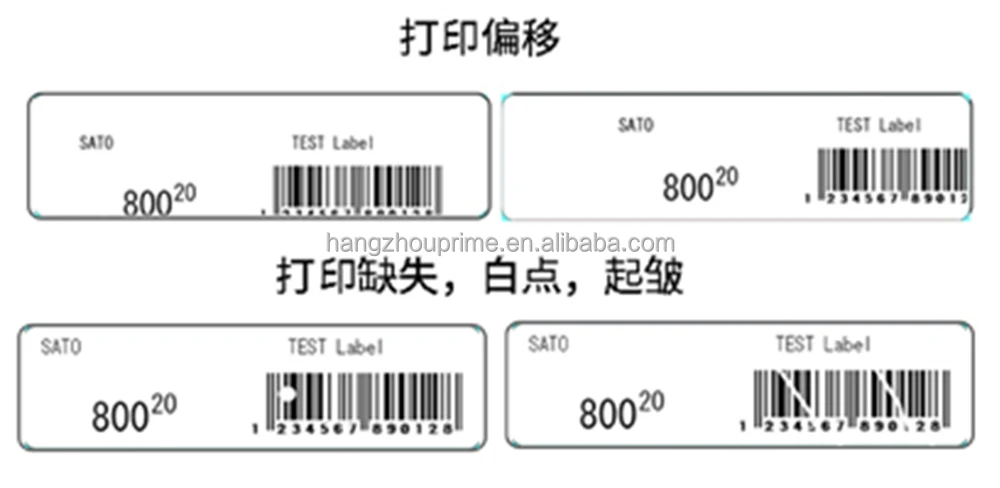

Detectable items | Unclear words, missing printing, dirty spots, overprint deviation, color difference, etc | Unclear words, missing printing, dirty spots, overprint deviation, color difference, etc |

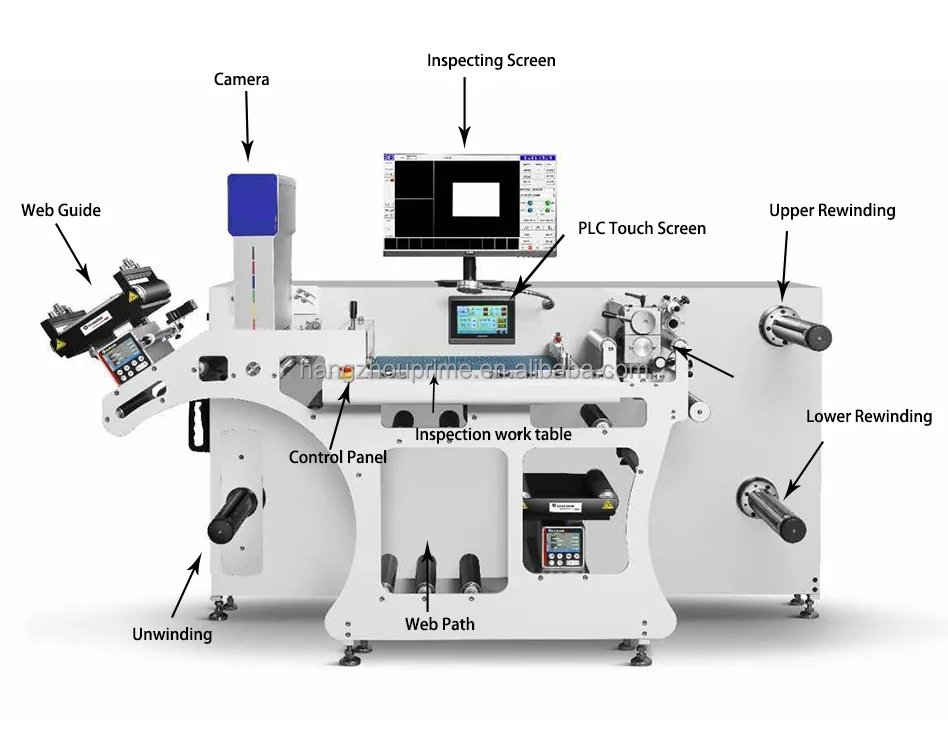

Machine Details

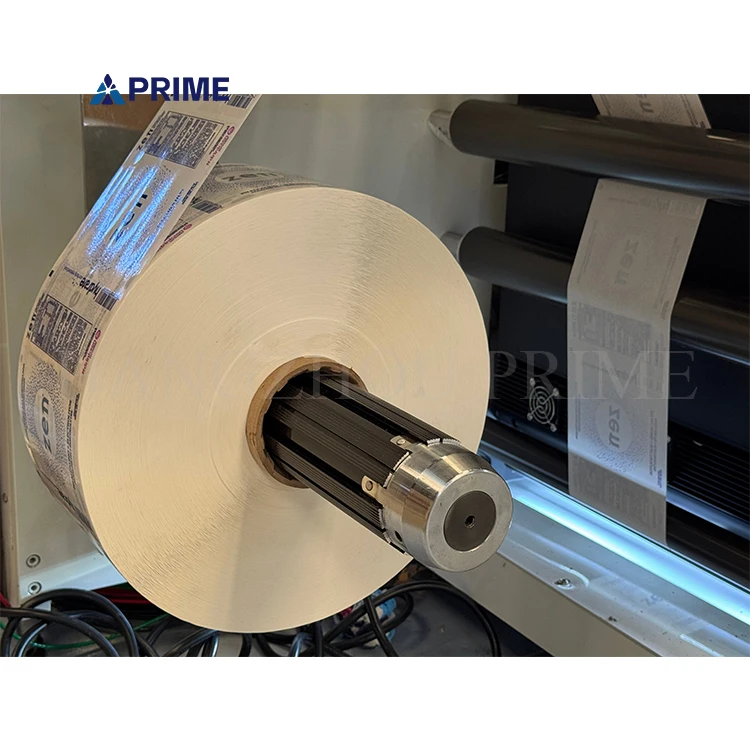

Unwinding Air Shaft
Rewinding Air Shaft

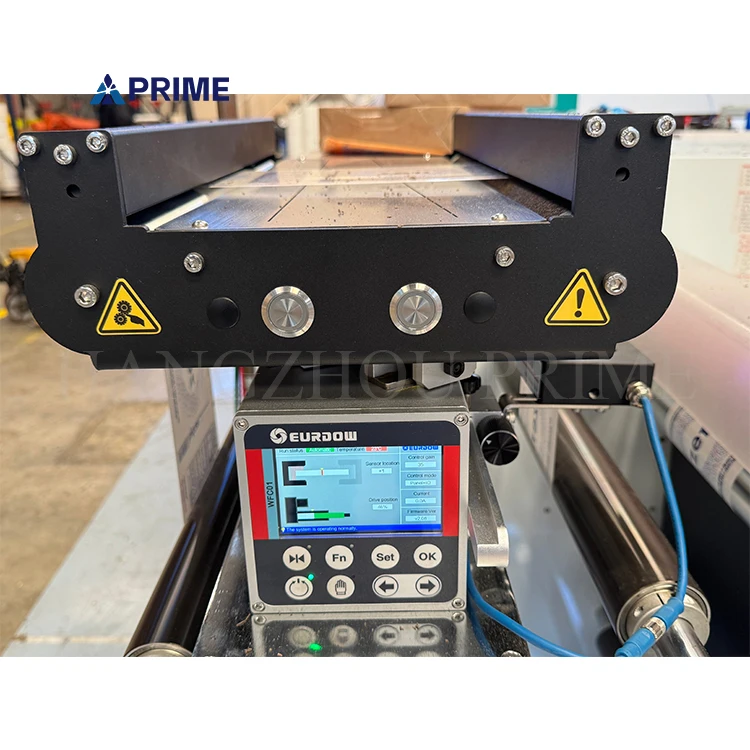

Double Web Guide
Inspecting Screen
Camera
PLC Control Panel
Electric Box
Program Storage
Inspecting Platform

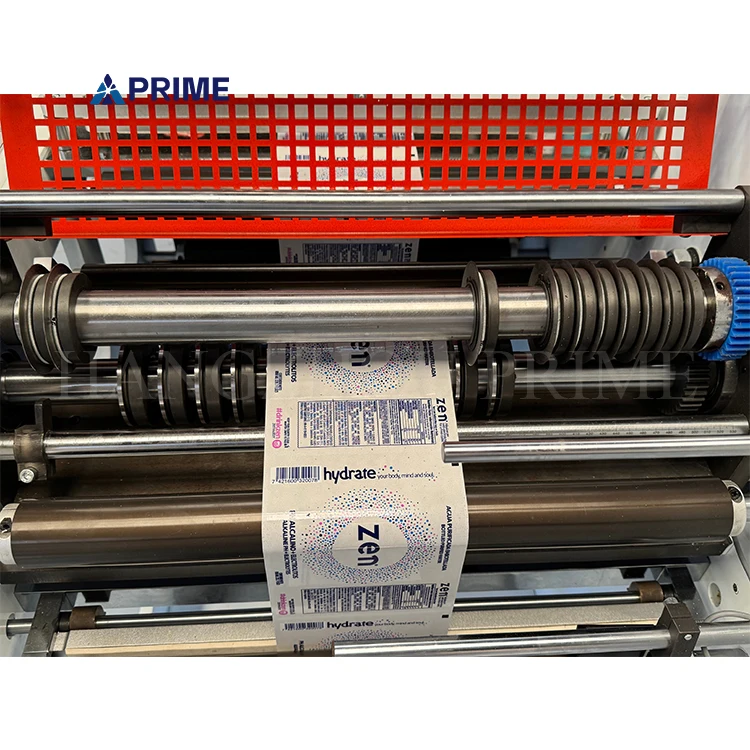

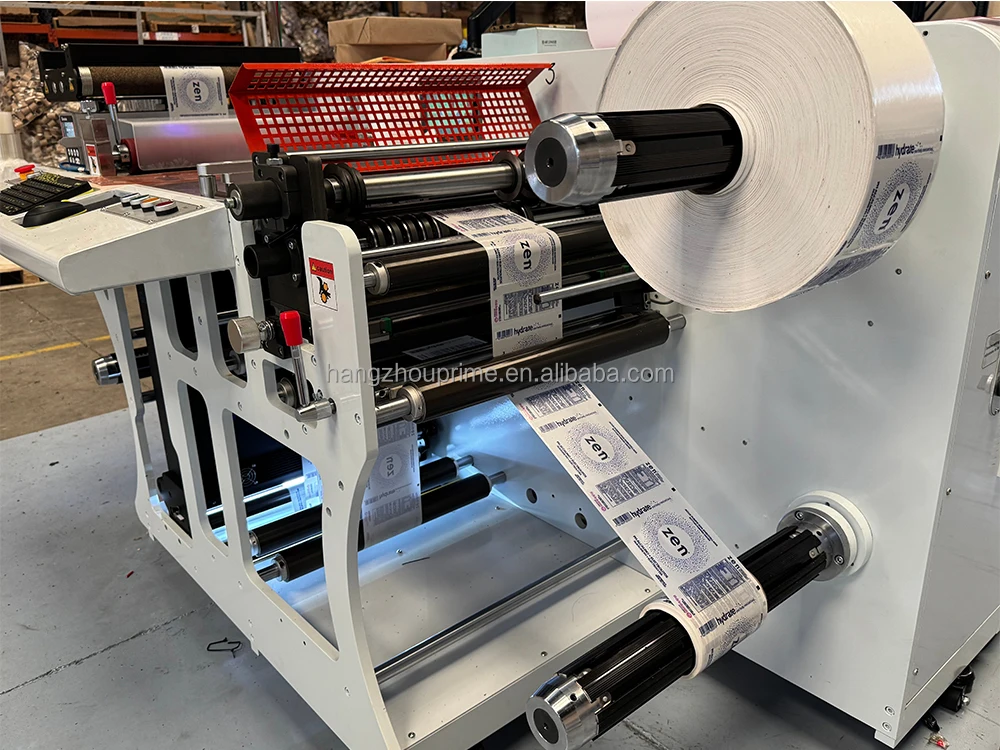

Sltting Unit
Samples
Notes: The label inspection machine can detect variable codes and QR codes.
Our Factory
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
