concrete batching plant complete for sale concrete mixer construction site concrete mixing machine on site
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.Ningdu Ltd.
Share on (1601339107088):
Product Overview
Description
Product Description

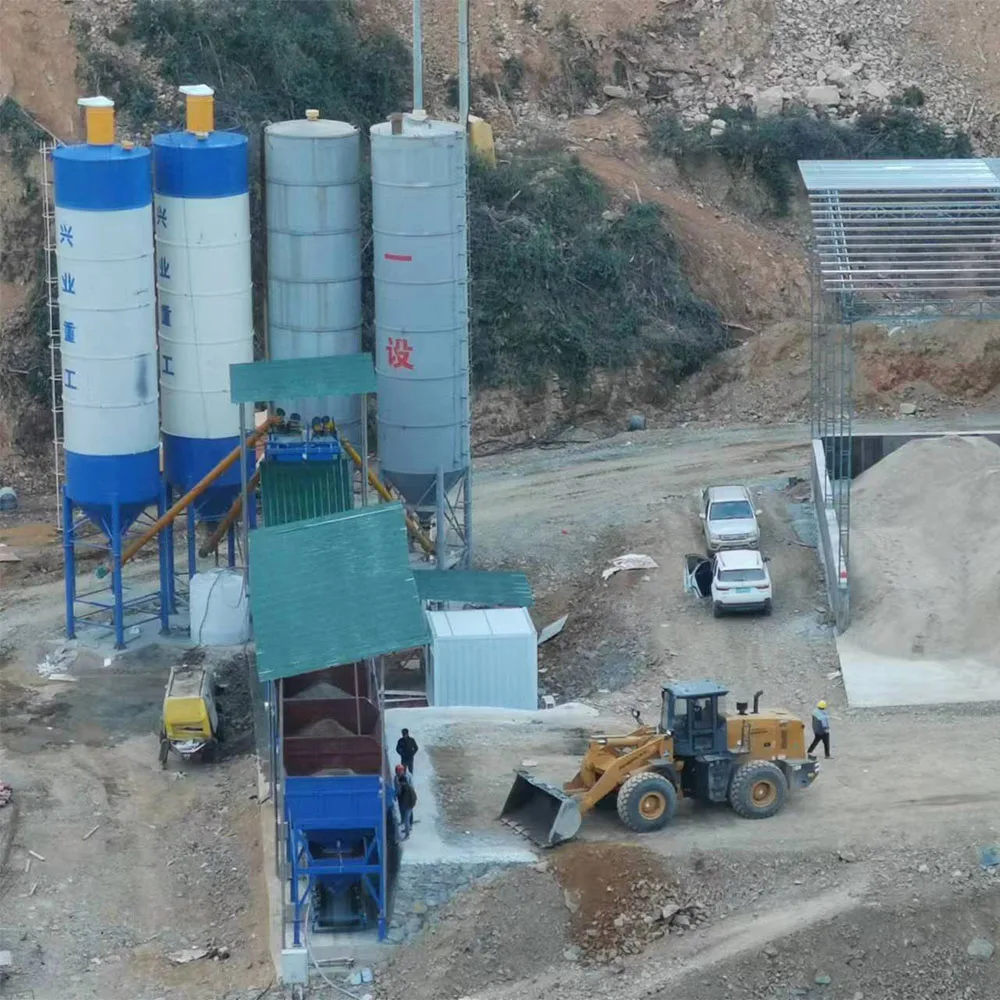

Large Capacity Mixing Plant 120 m3/hour Concrete Mixer Plant With Fully Automatic Control System Concrete Batching Plant
HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Specification

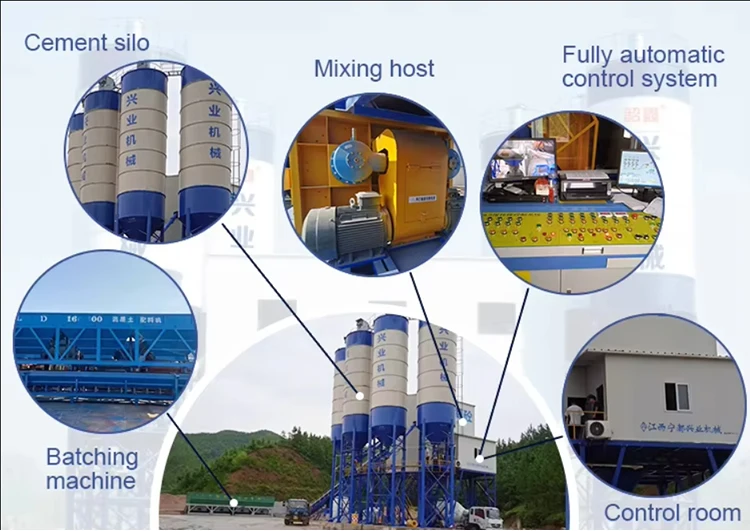

Concrete Batching Plants consists
*Aggregate weighing system
*conveying system,
*cement weighing system
*Water weighing system,
*Additive weighing system
*Mixer system,
*Dust removal system
*Pneumatic system,
*Computer control system
*Cement silo.
The modular design to make quickly installation and relocation; the fully automatic control system to make easily
operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid
noise
*Aggregate weighing system
*conveying system,
*cement weighing system
*Water weighing system,
*Additive weighing system
*Mixer system,
*Dust removal system
*Pneumatic system,
*Computer control system
*Cement silo.

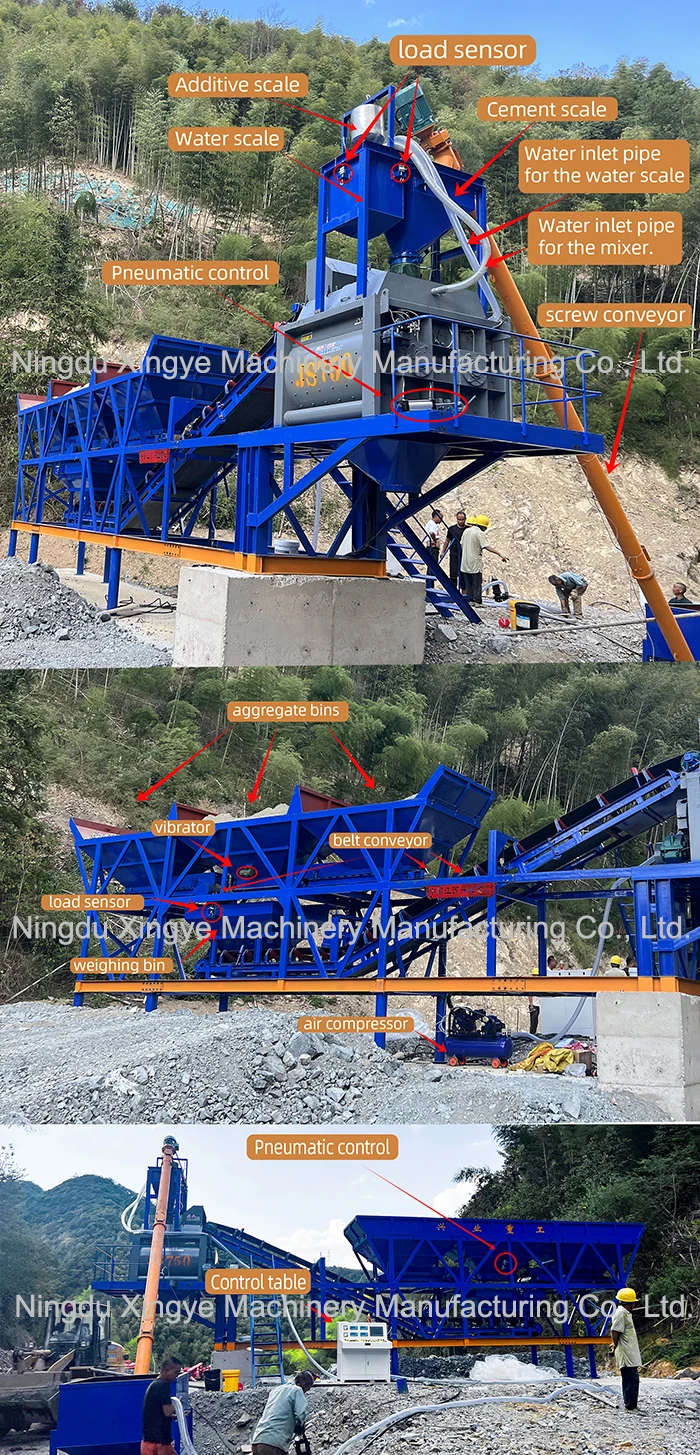

Additive scale Water scale Cement scale Water inlet pipe for the water scale Water inlet pipe for the mixer Load sensor Pneumatic control Aggregate bins Weighing bin Screw conveyor Belt conveyor Vibrator Air compressor Control table
The modular design to make quickly installation and relocation; the fully automatic control system to make easily
operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid
noise
Product Paramenters
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
Total Installed Capacity(kw) | 60 | 65 | 85 | 100 | 145 | 165 | 210 | 230 | 260 |
NO. | Concrete Batching Plant Main Components | ||||||
1 | CONCRETE MIXING SYSTEM | ||||||
2 | AGGREGATE BATCHING MACHINE | ||||||
3 | INCLINED BELT CONVEYOR | ||||||
4 | AGGREGATE PRO-STORAGE BIN | ||||||
5 | CEMENT MEASURING SYSTEM | ||||||
6 | WATER MEASURING SYSTEM | ||||||
7 | ADDITIVE MEASURING SYSTEM | ||||||
8 | PNEUMATIC SYSTEM | ||||||
9 | FULL AUTOMATIC CONTROL SYSTEM | ||||||
10 | CONTROL ROOM | ||||||
11 | OTHER ACCESSORIES (CABLE & CABLE TRAY) | ||||||
12 | BOLTED CEMENT SILO (OPTIONAL) | ||||||
13 | SCREW CONVEYOR (OPTIONAL) | ||||||
Item No. | Item Name | Models and Specifications | QTY | ||||
1 | Mixer | Double-horizontal forced stirring host | JS2000 | 1set | |||
gearbox | Planetary 2000 | 2sets | |||||
motor | 37KW | 2sets | |||||
Air unloading | 100X250 | 2pcs | |||||
Electric lubricating system | 380V/1KW | 1set | |||||
High Strength Liner | 1set | ||||||
Host frame structure | 200# National standard channel steel | 1set | |||||
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
Certifications
Our products concrete batching plant and concrete mixer both own CE QMS certifications.
Packing and Delivery
Our products have been exported to more than 20 countries in Southeast Asia, Middle East, Africa and so on.
YOU MAY LIKE
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
