Hq Nq Bq Hydraulic Core Rig Drilling Rig For Water Well
- Category: >>>
- Supplier: Zhengzhou Yugong Construction Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601339291290):
Product Overview
Description

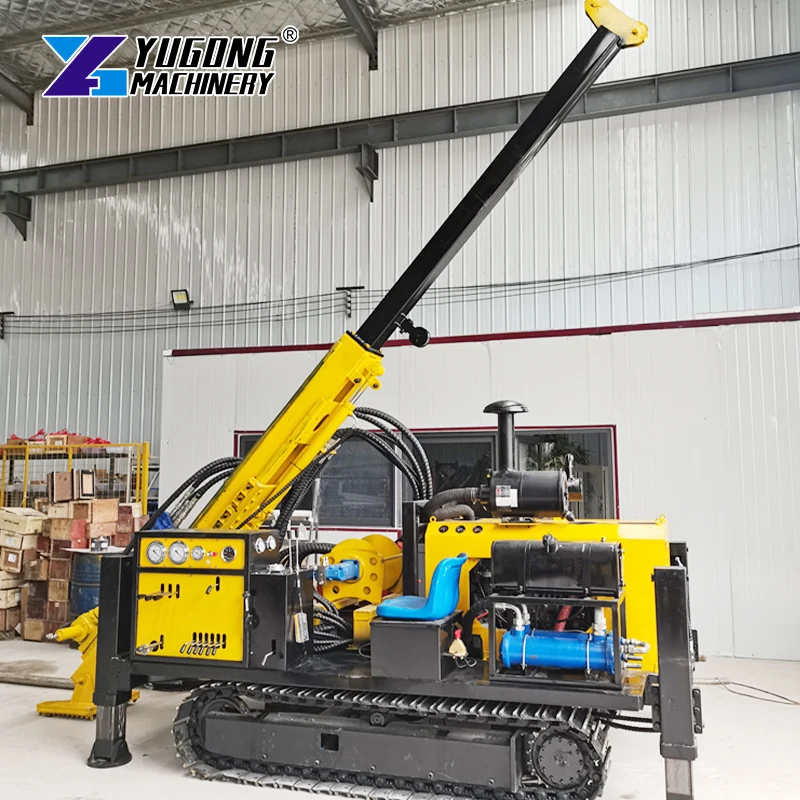

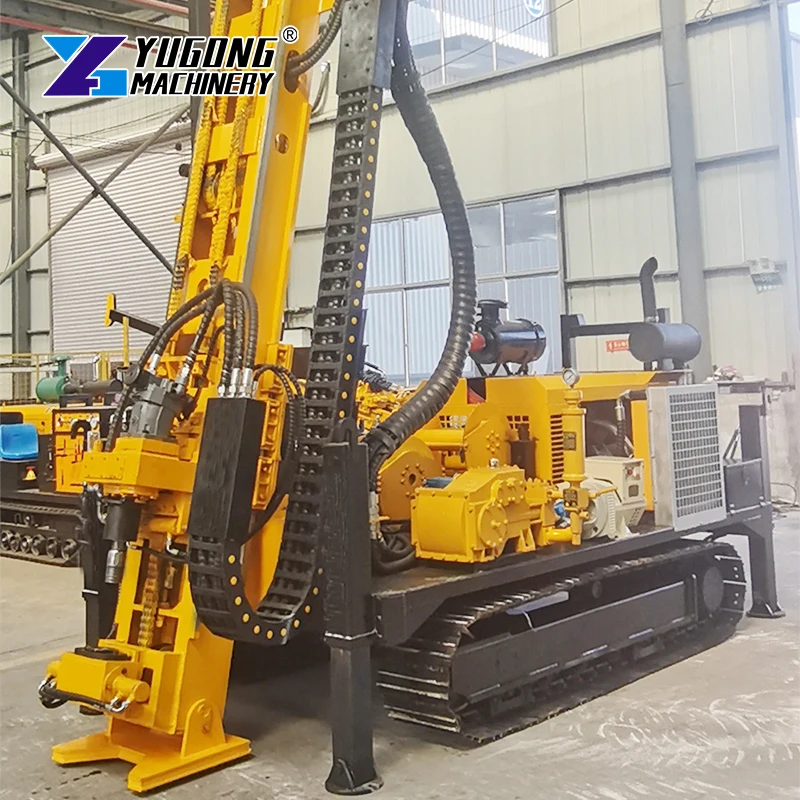

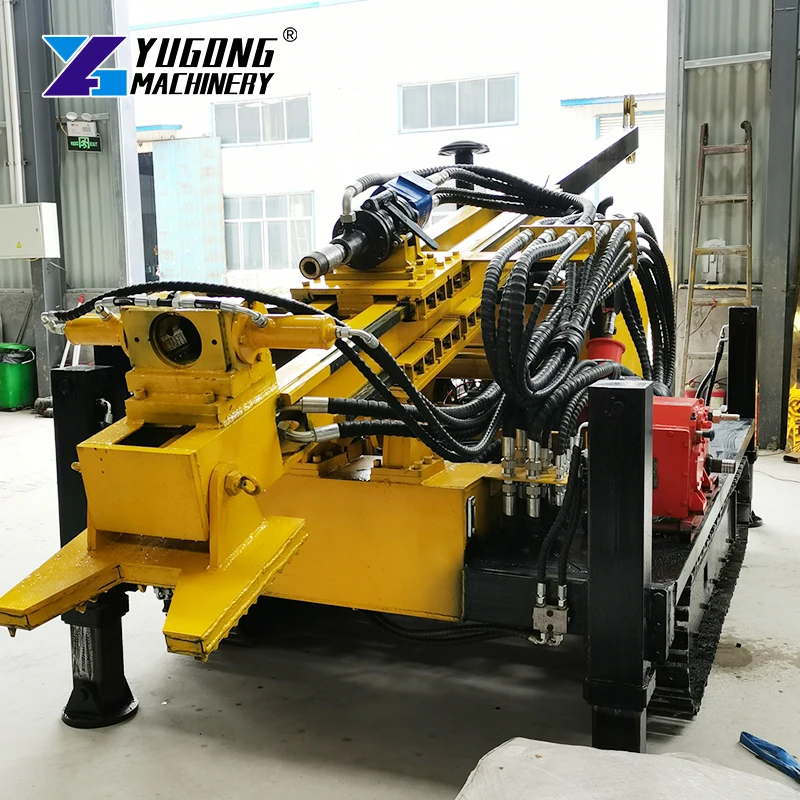

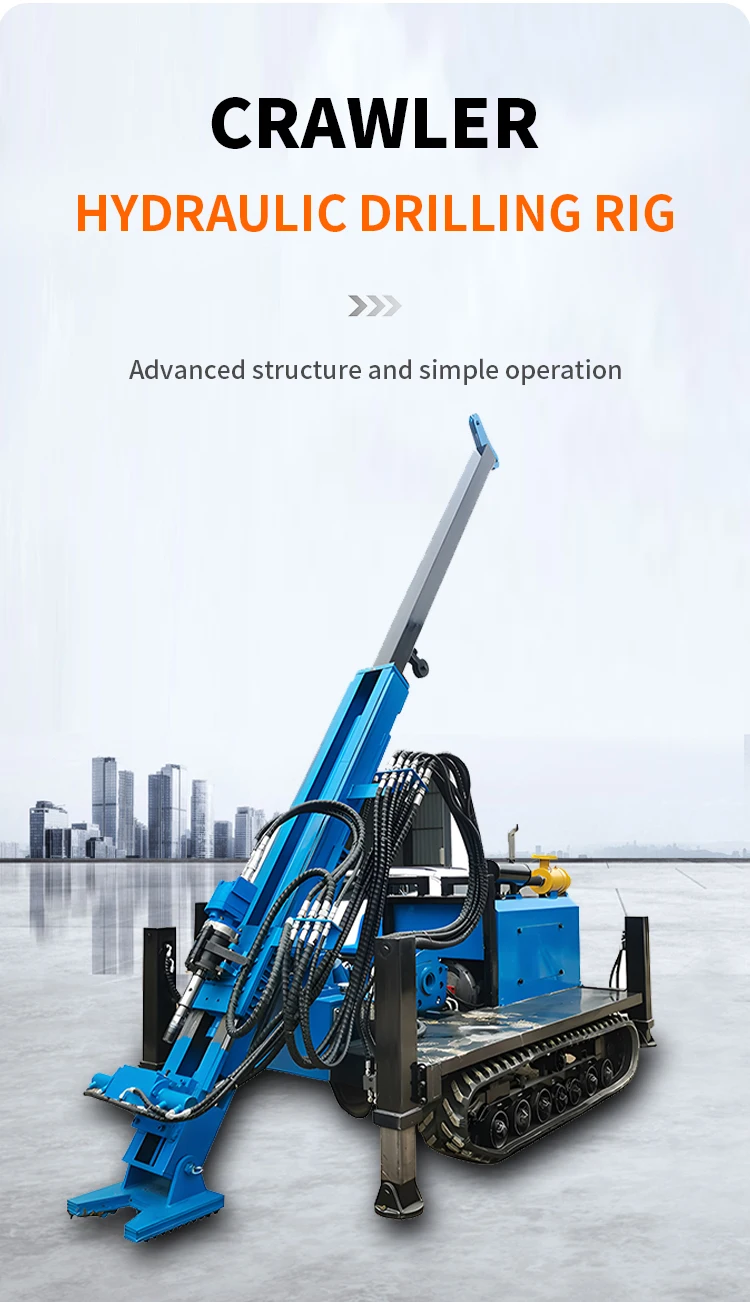

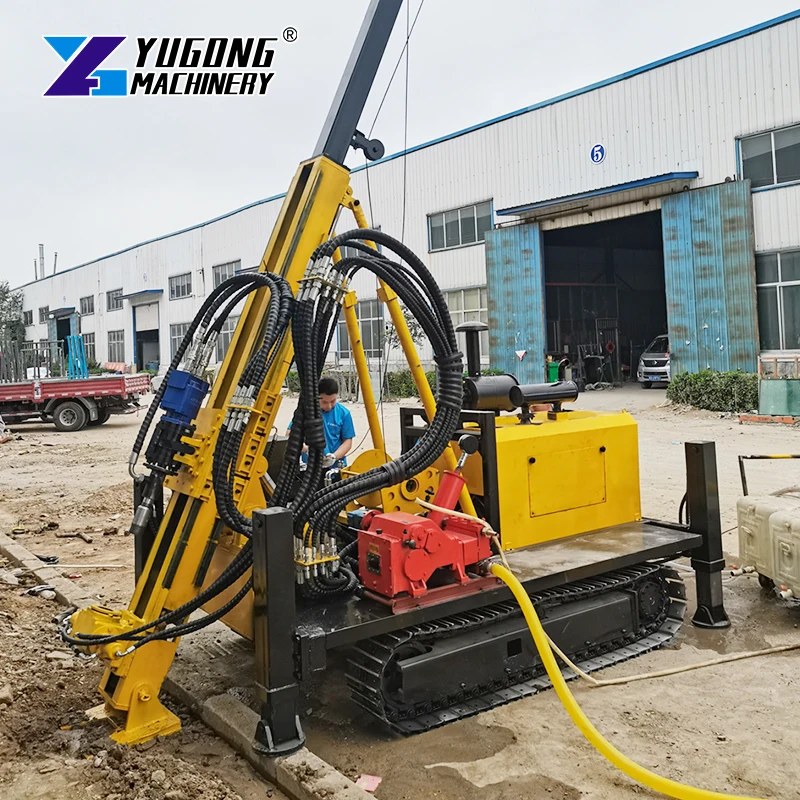

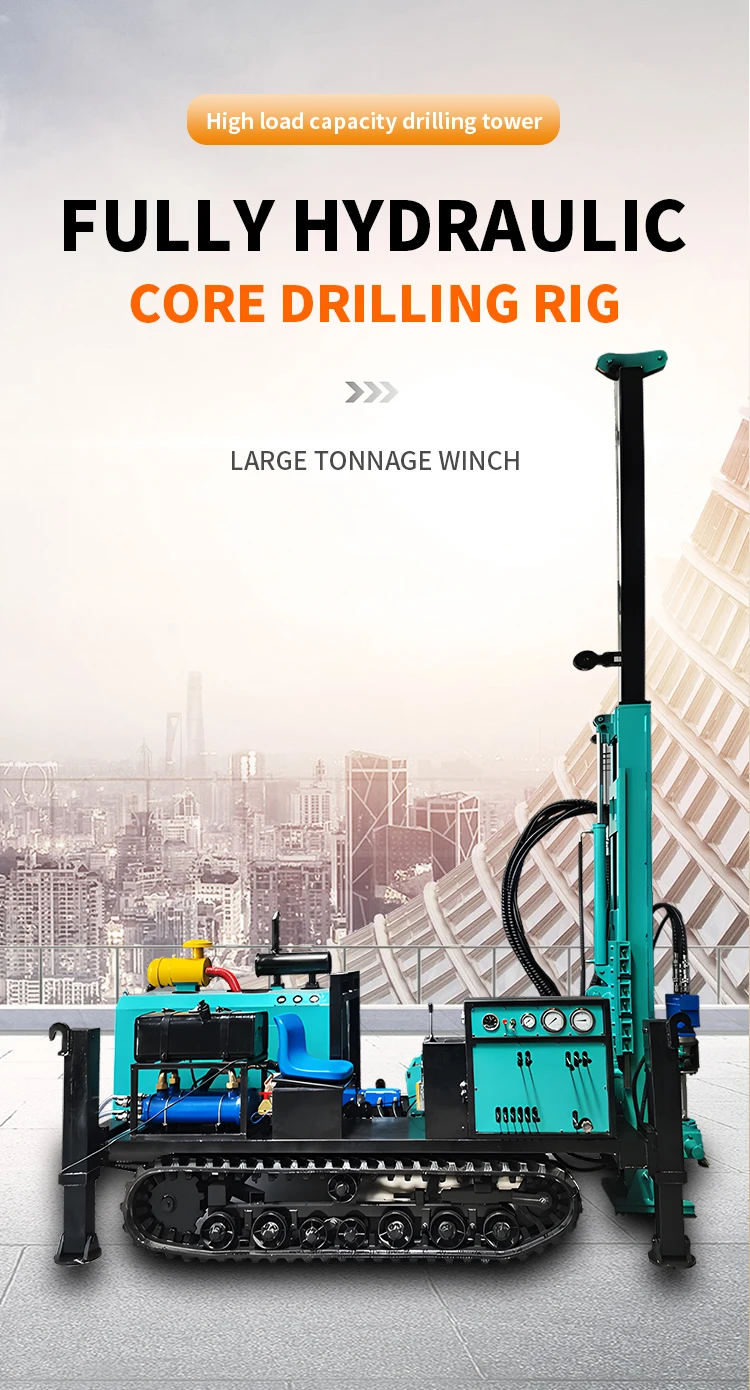

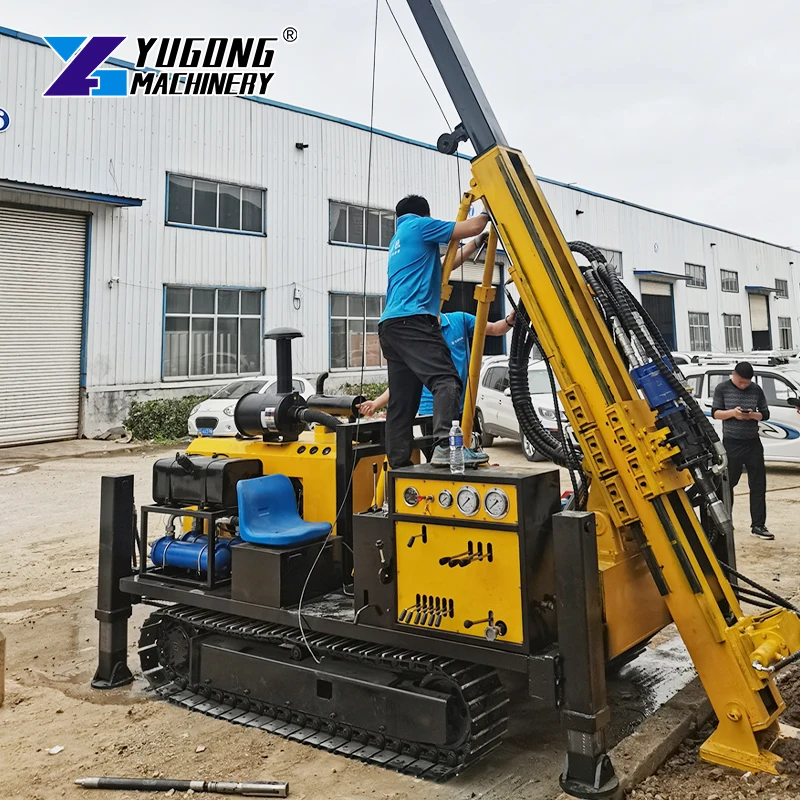

The YG series water well drilling rig is a lightweight, efficient, multifunctional drilling equipment powered by a diesel
engine. It is mainly suitable for drilling water wells, agricultural irrigation wells and other wells, especially in mountainous
areas and Water intake projects in rock formations. This series of drilling rigs adopt new hydraulic technology and are equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion. All drilling rigs must be used with air compressors.
engine. It is mainly suitable for drilling water wells, agricultural irrigation wells and other wells, especially in mountainous
areas and Water intake projects in rock formations. This series of drilling rigs adopt new hydraulic technology and are equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion. All drilling rigs must be used with air compressors.
Details and Features
(1)Reliable Performance
(1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
(2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method, all these
guarantee the drill rig’s high operation and performance efficiency.
(3)Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4)Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.
(2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method, all these
guarantee the drill rig’s high operation and performance efficiency.
(3)Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4)Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.

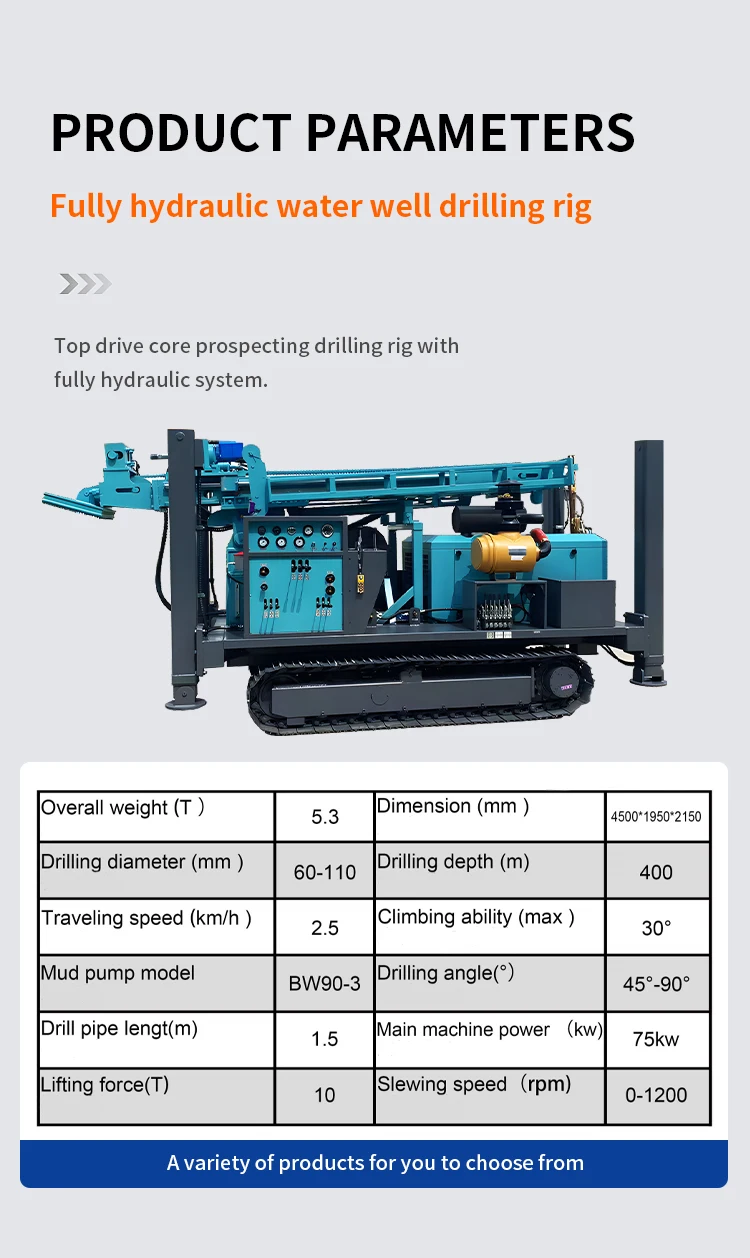

Product Specifications
Model | YG-400 | YG-600 | YG-1000 |
Depth | 180- 400- 500 (M) | 200- 600- 650 (M) | 500-1000-1100 (M) |
Rated pressure | 21 (MPA) | 21 (MPA) | 28 (MPA) |
Rated flow | 168 (L/min) | 192 (L/min) | 300 (L/min) |
Heat dissipation mode | Air cooling+water cooling | Air cooling+ water cooling | Air cooling+ water cooling |
Type | Turbocharged | Turbocharged | Turbocharged |
Rated speed | 2400 (RPM) | 2400 (RPM) | 2400 (RPM) |
Rated power | 78 (KW) | 92 (KW) | 154 six-cylinder (KW) |
Maximum torque | 300 - 500 (N. M) | 450 - 1000 (N. M) | 1000 - 3500 (N. M) |
Maximum speed | 1300 (RPM) | 1300 (RPM) | 1300 (RPM) |
Given process | 1900 (MM) | 1900 (MI) | 3500 (MM) |
