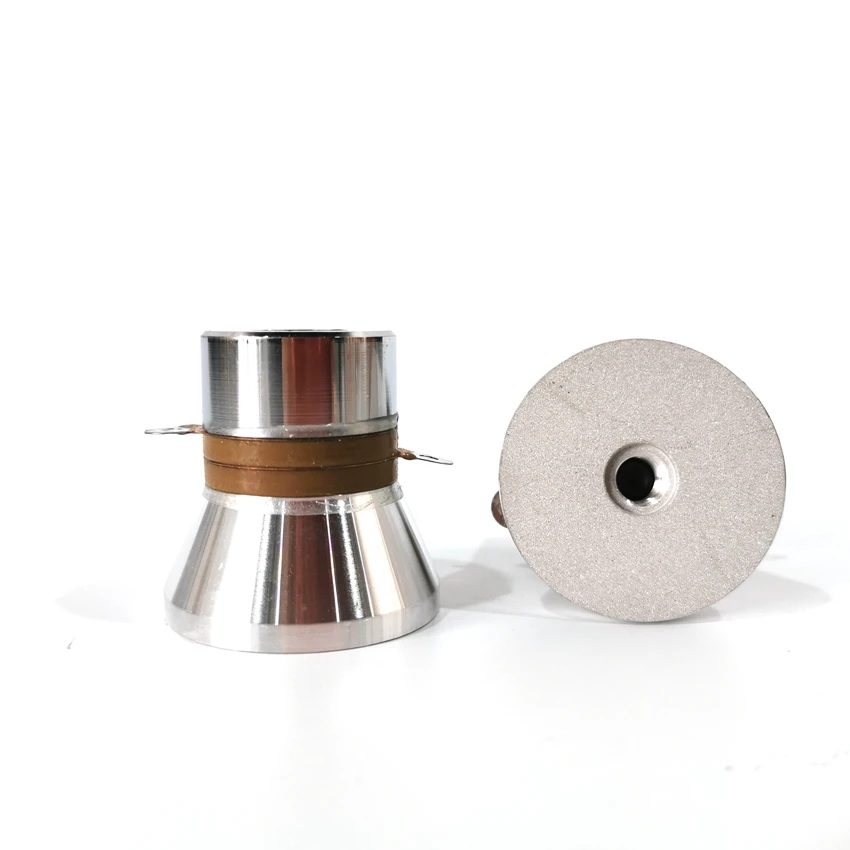

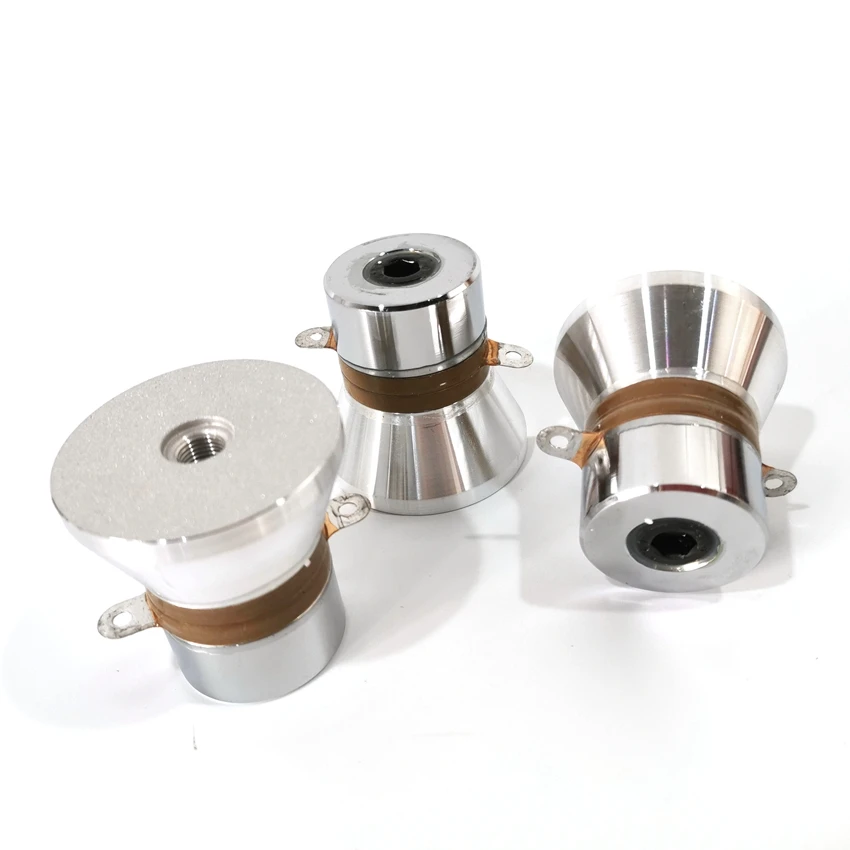

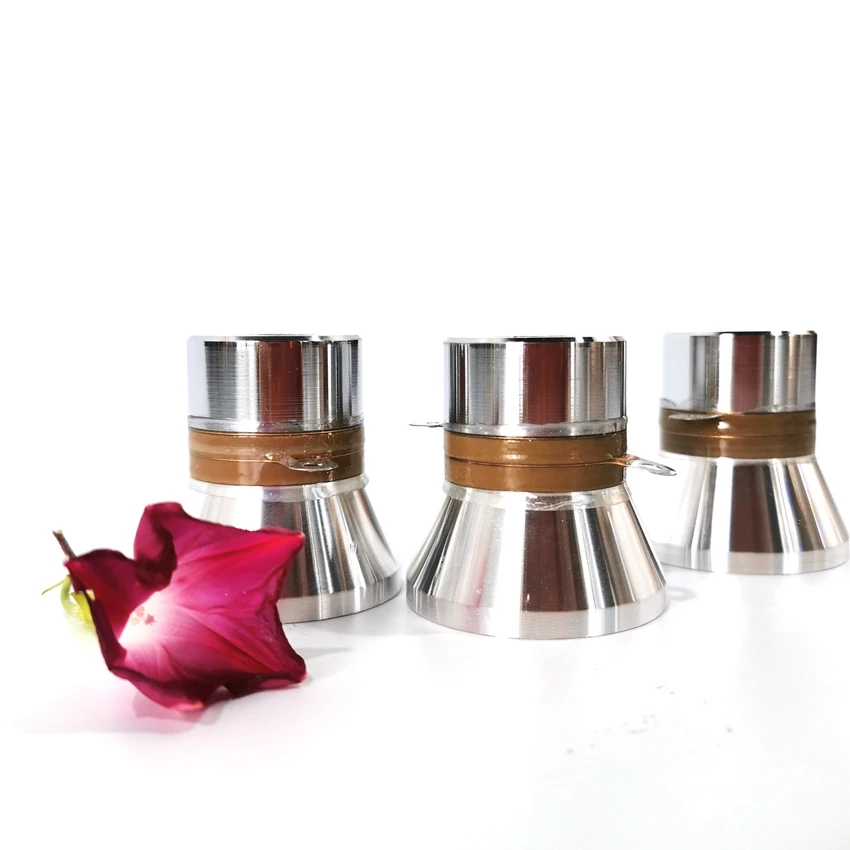

40khz 60w/100w Powerful Industrial Ultrasonic Cleaning Transducers For Ultrasonic Tank

Product Overview

Description

40khz 60w/100w Powerful Industrial Ultrasonic Cleaning Transducers For Ultrasonic Tank

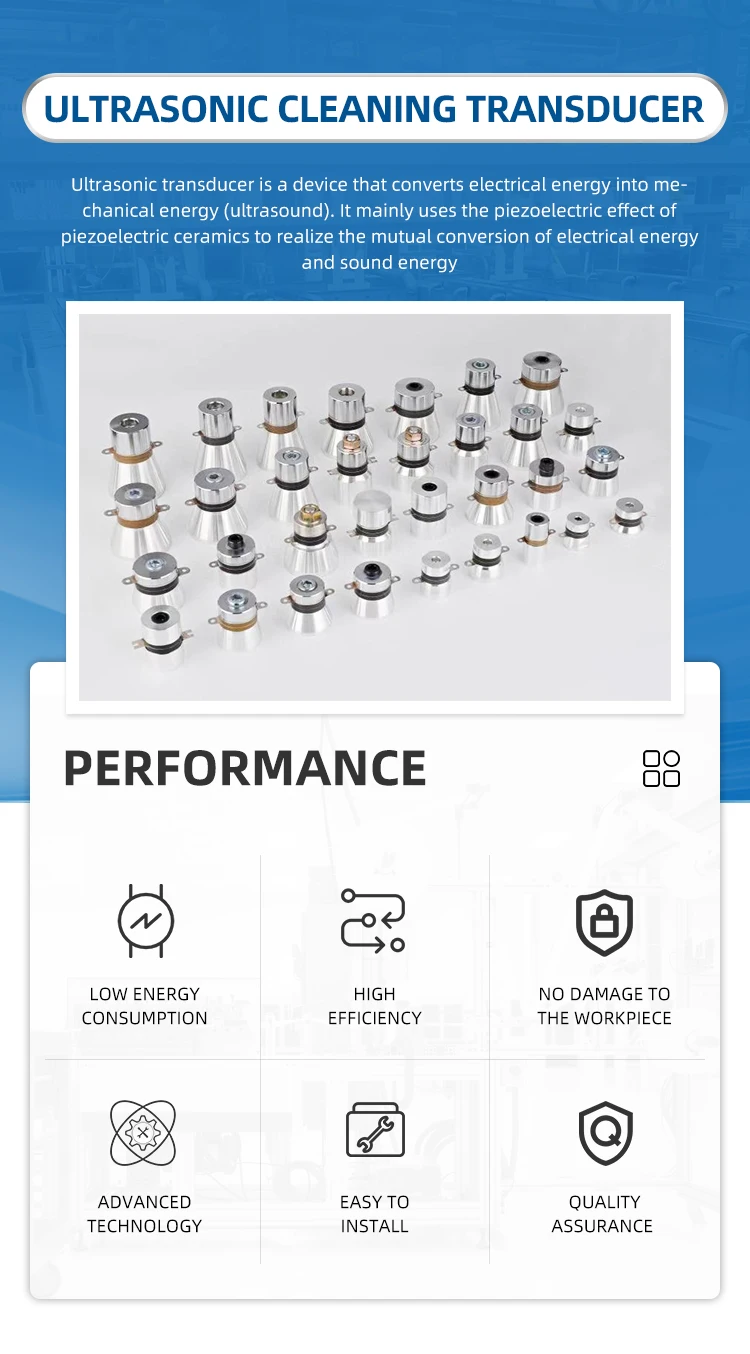

Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies. The piezoelectric effect of the material converts electrical signals into mechanical vibrations. The working principle of medical ultrasonic transducers (ultrasound probes) is basically the same, and its interior usually contains an electrical energy storage element and a mechanical vibration system. When the transducer is used as a transmitter, the electric oscillation signal sent from the excitation power supply will cause the electric field or magnetic field in the electric energy storage element of the transducer to change. This change will affect the mechanical vibration system of the transducer through a certain effect. A driving force is generated to enter the vibration state, thereby driving the medium in contact with the mechanical vibration system of the transducer to vibrate, and radiate sound waves into the medium. The process of receiving sound waves is just the opposite. External sound waves act on the vibrating surface of the transducer, thereby causing the mechanical vibration system of the transducer to vibrate. With the help of a certain physical effect, it causes the electric field or the energy storage element of the transducer. The magnetic field changes accordingly, causing the electrical output of the transducer to generate a voltage and current corresponding to the acoustic signal.



Specification List
Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	(KHz)	(pF)	(Ω)	Radiation head*Height (mm)	(W)	(2500VDC)
OKS-8UCT-2540	40±0.8	3100±10%	≤30Ω	25*58	20w	≥100MΩ
OKS-8UCT-3820	20±0.8	3800±10%	≤28Ω	59*99	60w	≥100MΩ
OKS-8UCT-3825*	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
OKS-8UCT-3828*	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
OKS-8UCT-3833*	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
OKS-8UCT-3840*	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
OKS-8UCT-4528*	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
OKS-8UCT-5020	20±0.5	4650±10%	≤25Ω	79*94	120w	≥100MΩ
OKS-4UCT-3528*	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
