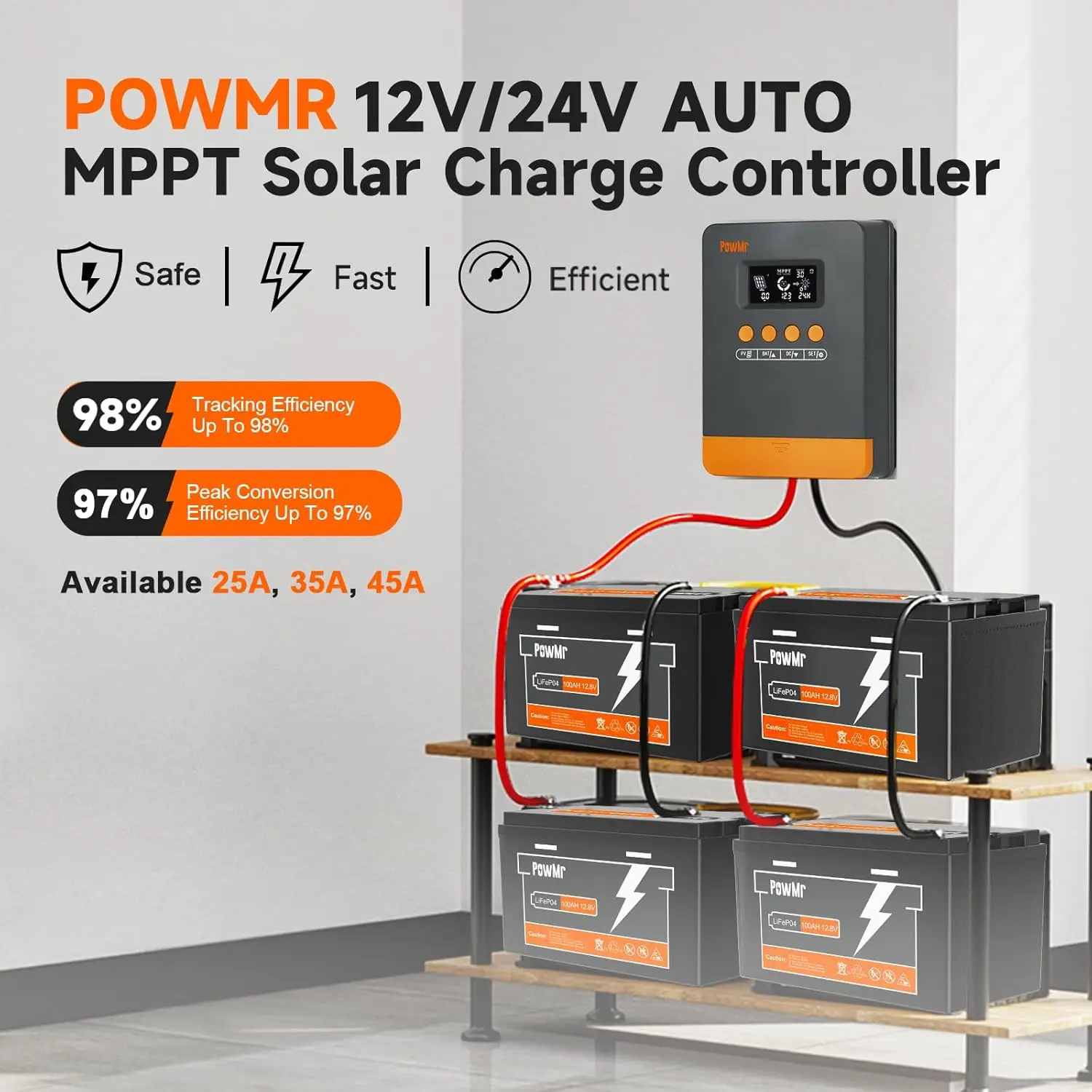

PowMr Solar Charge controller 25A 35A 45A 12V/24V AUTO MPPT LCD Display PV Panel Battery Solar Charge Controller
- Category: >>>
- Supplier: Shenzhen Sgpower Tech Co. LtdShenzhen Ltd
Share on (1601340052209):
Product Overview
Description
PowMr Solar Charge controller 25A 35A 45A 12V/24V AUTO MPPT LCD Display PV Panel Battery Solar Charge Controller
Features:

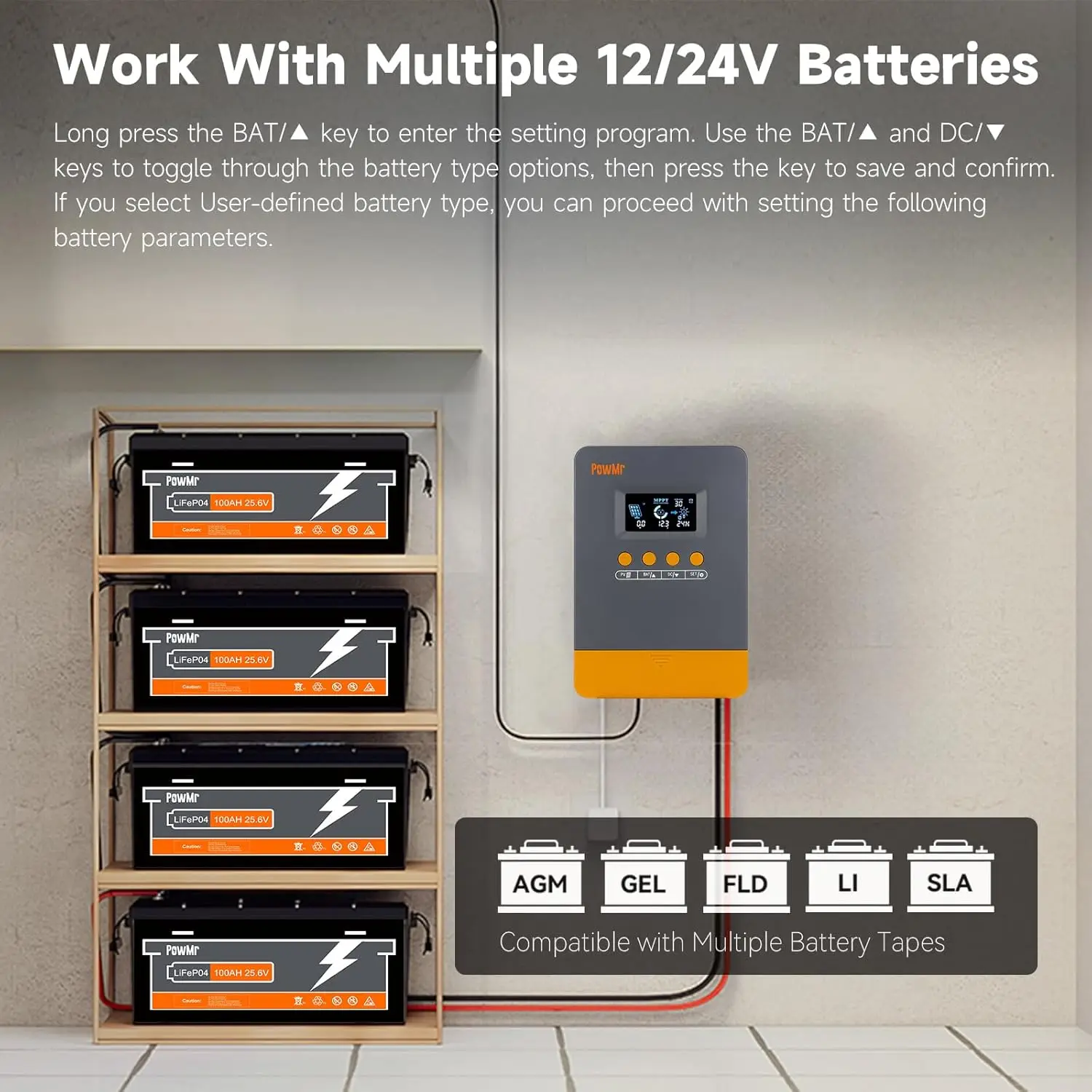

The integrated charging modes include adaptive charging logic, making them suitable for most battery types, such as flooded lead-acid, sealed gel, and lithium batteries.
Compatible with 12V/24V system voltages.
25A/35A/45A charging current options to meet the needs of various solar energy storage systems.
The multi-stage charging algorithm is designed to optimize each charging cycle, maintaining battery charge through preset charging parameters for specific stages once the battery is fully charged.
MPPT technology tracks the maximum power point voltage (Vmp) of the array, which varies with weather conditions, ensuring maximum power is collected from the array throughout the day.
Innovative MPPT technology with tracking efficiency up to 99.9% and peak conversion efficiency up to 97%, reducing power consumption, heat generation, and operating temperature.
During initial charging, adaptive boost charging monitors the battery's response and automatically determines the appropriate boost stage duration for each independent charging cycle. This ensures the battery is fully charged at any discharge level or capacity, avoiding overcharging during the boost stage, thereby extending battery life.
Models | POW-M25-PRO | POW-M35-PRO | POW-M45-PRO | ||||||||||
Solar Input Parameters | |||||||||||||
Max. PV Open-Circuit Voltage | 100V | ||||||||||||
Max. Input Power | For 12V System(300W) For 24V System(600W) | For 12V System(420W) For 24V System(840W) | For 12V System(540W) For 24V System(1080W) | ||||||||||
Input Voltage Range | For 12V System(<60V) For 24V System(<60V) | For 12V System(<80V) For 24V System(<80V) | For 12V System(<100V) For 24V System(<100V) | ||||||||||
Battery Charging Parameters | |||||||||||||
Charging Technology | MPPT | ||||||||||||
Charging Algorithm | 3 Stages | ||||||||||||
Nominal System Voltage | 12V/24V | ||||||||||||
Battery Voltage Range | 9~30V | ||||||||||||
Rated Charging Current | 25A | 35A | 45A | ||||||||||
Conversion Efficiency | ≤98% | ||||||||||||
Max. Power Point Tracking Efficiency | >99% | ||||||||||||
Temperature Compensation | -3mV/℃/2V (default) | ||||||||||||
Self-Consumption | 44mA/12V; 26mA/24V | ||||||||||||
DC Output Parameters | |||||||||||||
Rated DC Output Current | 15A | 20A | 25A | ||||||||||
General Parameters | |||||||||||||
IP Class | IP32 | ||||||||||||
Operating Temperature Range | -35℃~+45℃ | ||||||||||||
Humidity Range | ≤95% Non-condensing | ||||||||||||
Altitude | <3000m | ||||||||||||
Dimensions | 160x115x51mm | 195x135x65mm | 195x135x65mm | ||||||||||
Net Weight | 500g | 900g | 1035g | ||||||||||
Specification
| Models | POW-M25-PRO | POW-M35-PRO | POW-M45-PRO |
| Max. PV Open-Circuit Voltage | 100V | ||
| Charging Technology | MPPT | ||
| Charging Algorithm | 3 Stages | ||
| Nominal System Voltage | 12V/24V | ||
| Battery Voltage Range | 9~30V | ||
| Rated Charging Current | 25A | 35A | 45A |
| Max. Power Point Tracking Efficiency | >99% | ||
| Operating Temperature Range | -35°C~+45°C | ||
| IP Class | IP32 | ||
| Dimensions | 160x115x51mm | 195x135x65mm | 195x135x65mm |
| Net Weight | 500g | 900g | 1035g |
