Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00
20t Ultra Thin Floor Manual Hydraulic Lifting Jack with Stainless Steel Flat Single Acting Design JackingCylinder DY RSM 200
- Category: >>>
- Supplier: Yantai Dongyue Hydraulic Technology Co. Ltd.Yantai Ltd.
Share on (1601341336633):
Product Overview
Description
Details

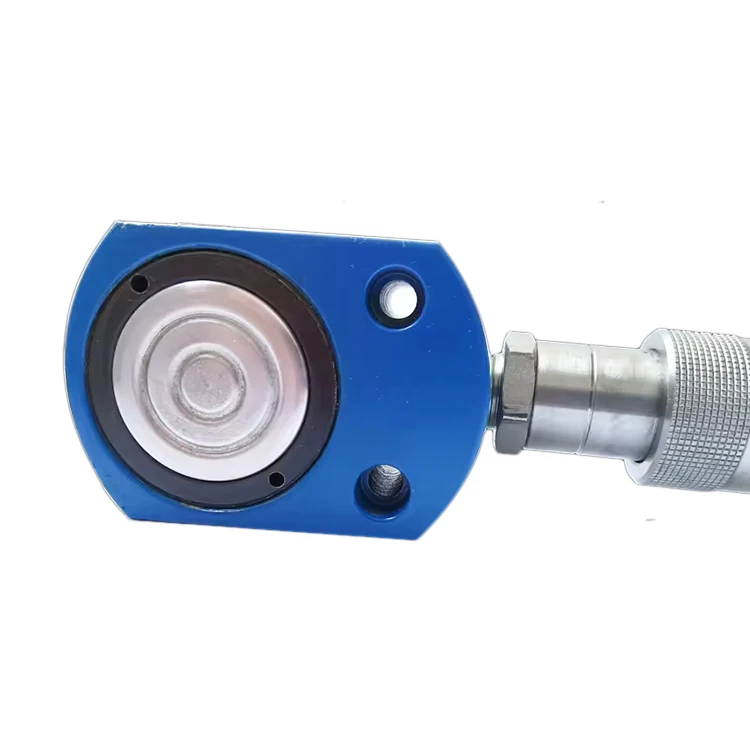

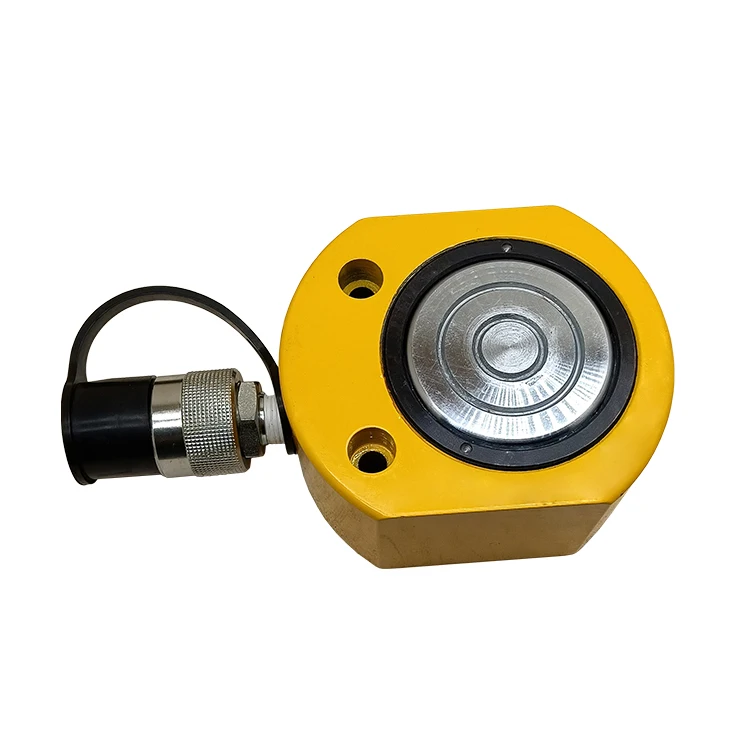

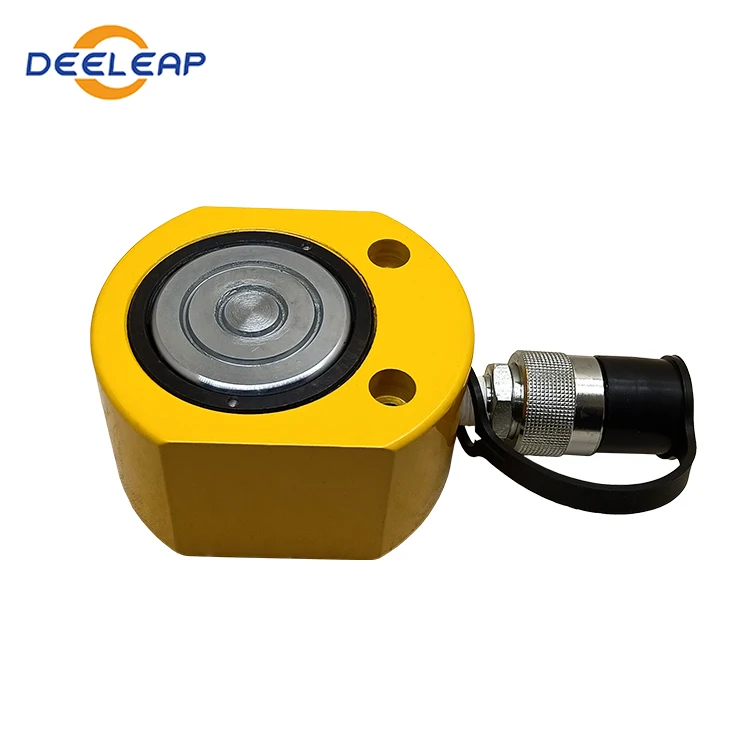

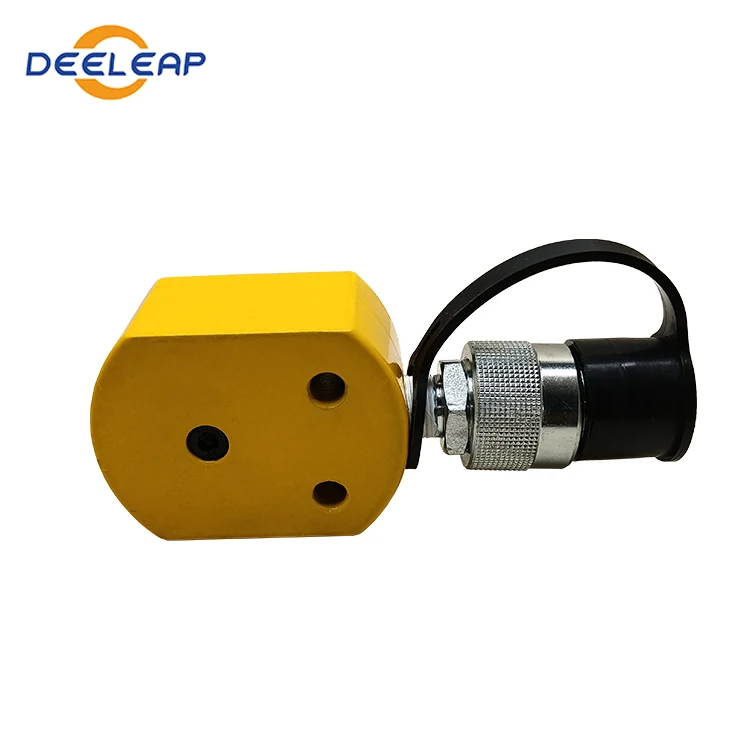

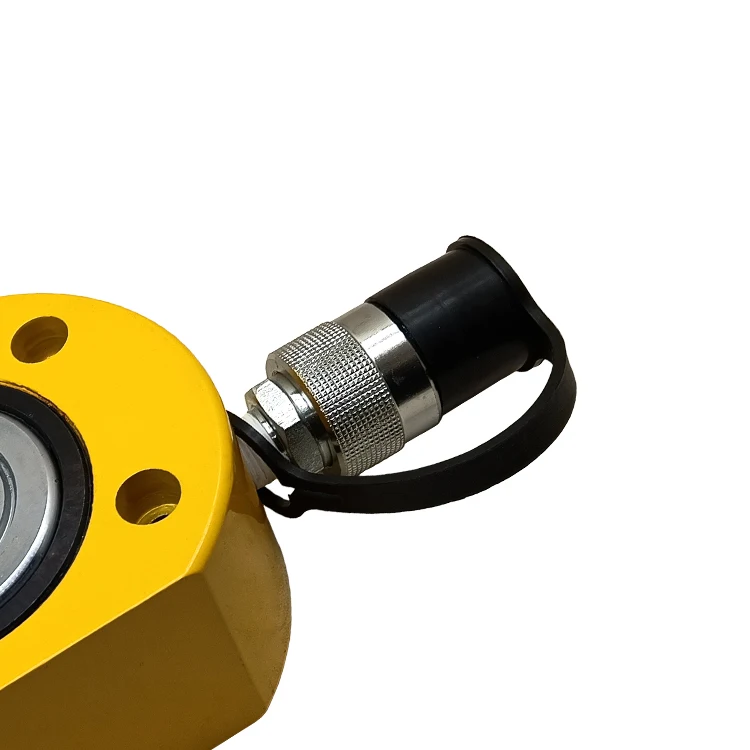

DY-RSM-200 single acting ultra-flat hydraulic cylinder floor jack
Small and lightweight, easy to carry and install.
Mounting holes are provided for easy installation and fixing.
Mounting holes are provided for easy installation and fixing.
The plunger face is designed with anti-slip grooves and undergoes quenching treatment, eliminating the need for a saddle.
Chrome-plated piston rod with thick chrome layer to prevent wear and corrosion.
Chrome-plated piston rod with thick chrome layer to prevent wear and corrosion.
Built-in high strength reset spring for fast piston reset speed and long-term work without deformation or cracking.
Overall heat treatment for high strength and long service life.
Overall heat treatment for high strength and long service life.
Sealing ring: Selected brand sealing ring with wear-resistant and anti-aging function to ensure long-term operation of the hydraulic cylinder.
Corrosion-resistant treatment on the cylinder body surface, shiny and not easy to rust.
The plunger limit structure prevents the piston rod from over extension.
Corrosion-resistant treatment on the cylinder body surface, shiny and not easy to rust.
The plunger limit structure prevents the piston rod from over extension.

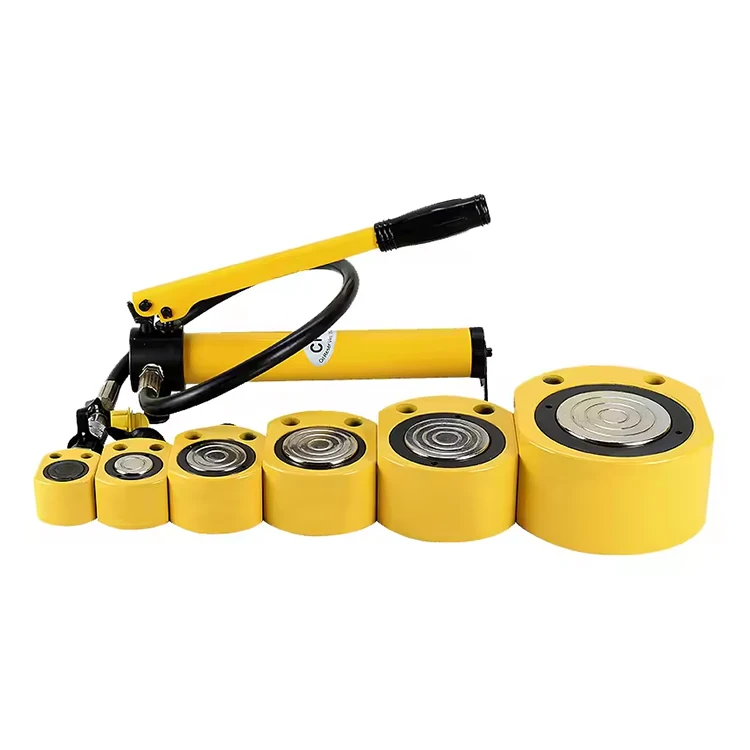

RSM-Series Low Profile Hydraulic Cylinders provide superior durability, safety, and quality in a compact and convenient format.
They’re the perfect choice for general lifting and production applications where space is limited.
A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations.
RSM-Series Cylinders are a popular choice. Not only for general lifting, but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.
Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive.
They’re the perfect choice for general lifting and production applications where space is limited.
A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations.
RSM-Series Cylinders are a popular choice. Not only for general lifting, but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.
Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive.

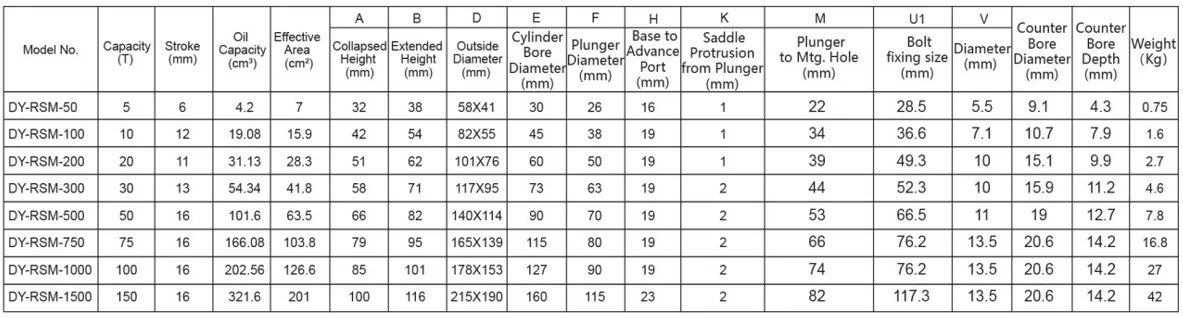

NO | Item | Data | ||
1 | Model | DY-RSM-200 | ||
2 | 2Capacity | 20Ton | ||
3 | Stroke | 11mm | ||
4 | Oil Capacity | 31.13cm³ | ||
5 | Effective Area | 28.3c㎡ | ||
6 | Bore Diameter | 60mm | ||
7 | Plunger Diameter | 50mm | ||
8 | Net Weight | 4.6kg |
Other Products

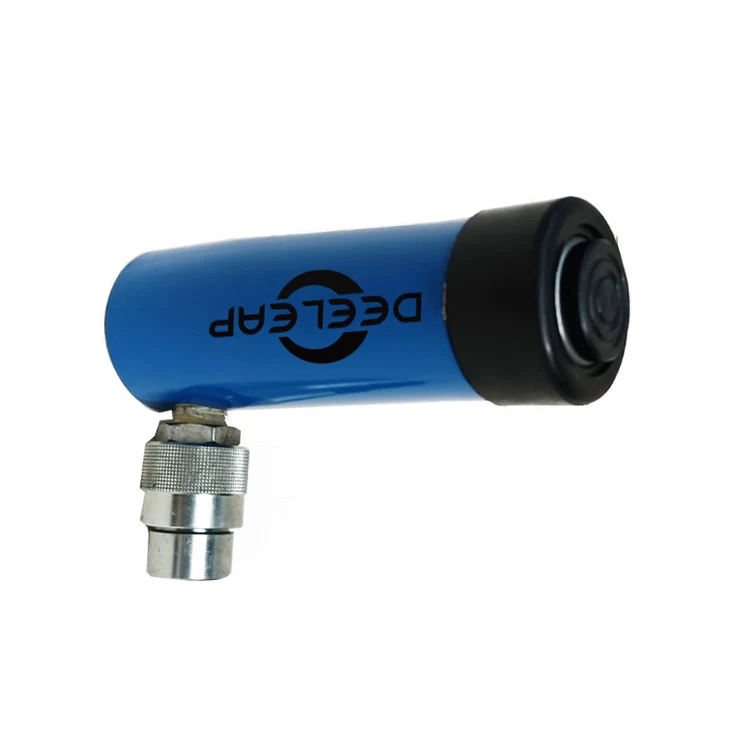

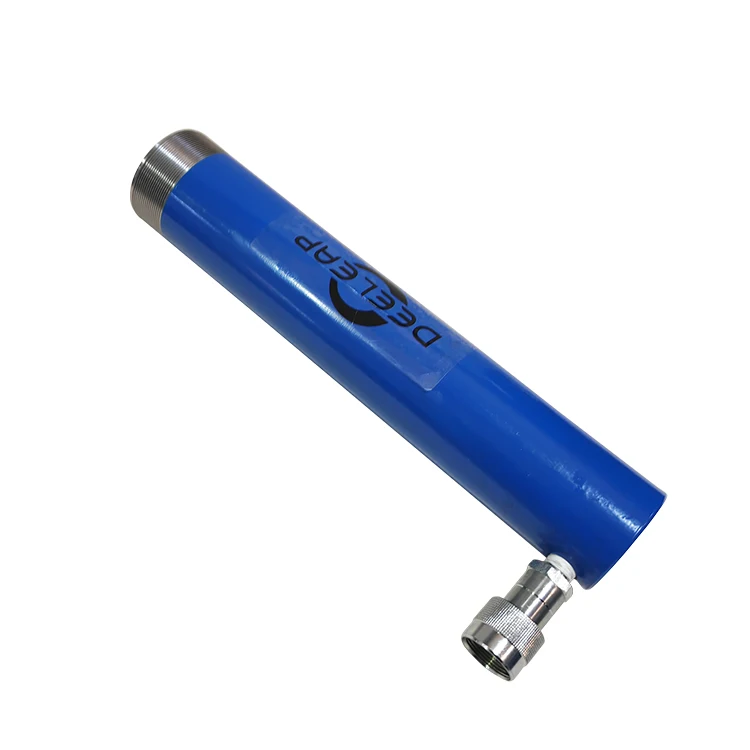

General Purpose Hydraulic Cylinder Single Acting Spring Return Hydraulic Cylinder Jack DY-RC102FB

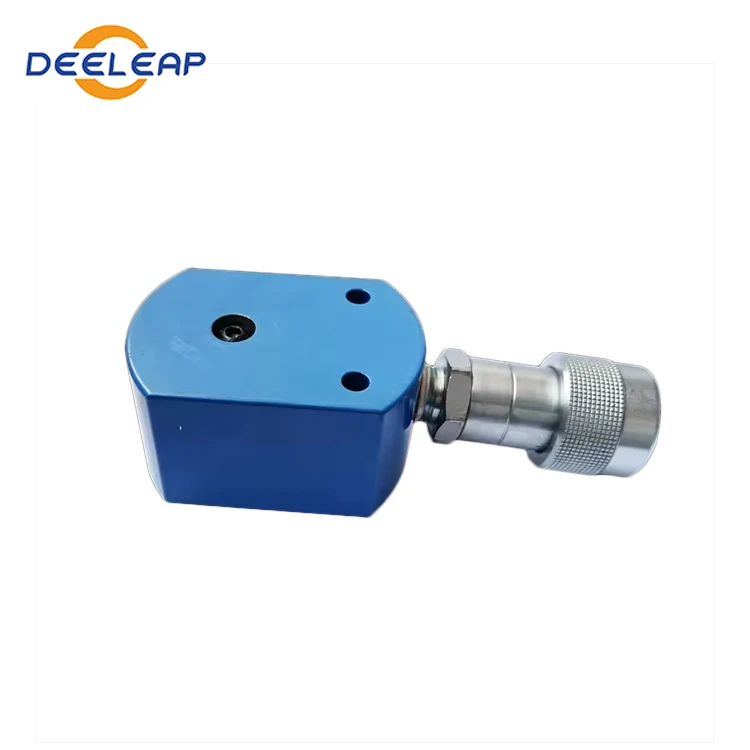

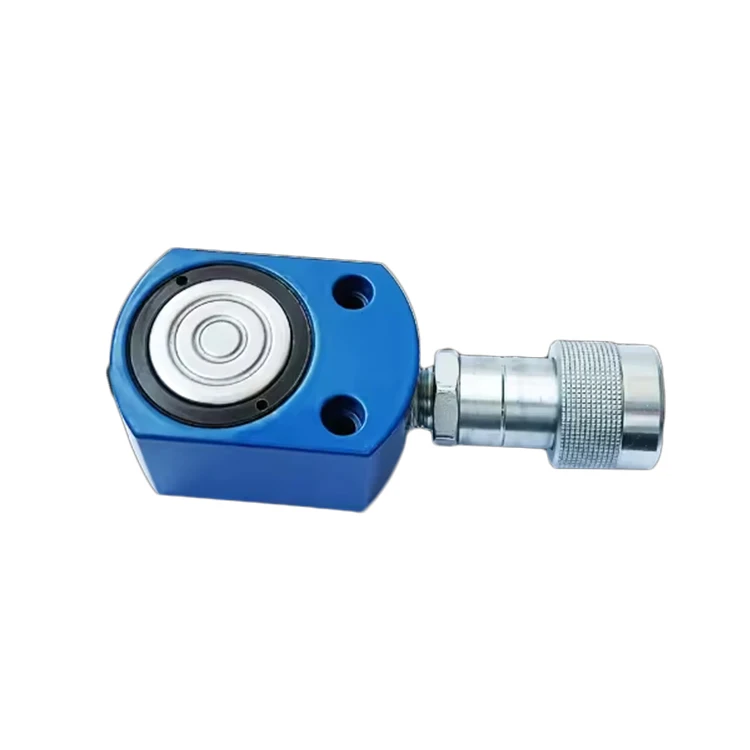

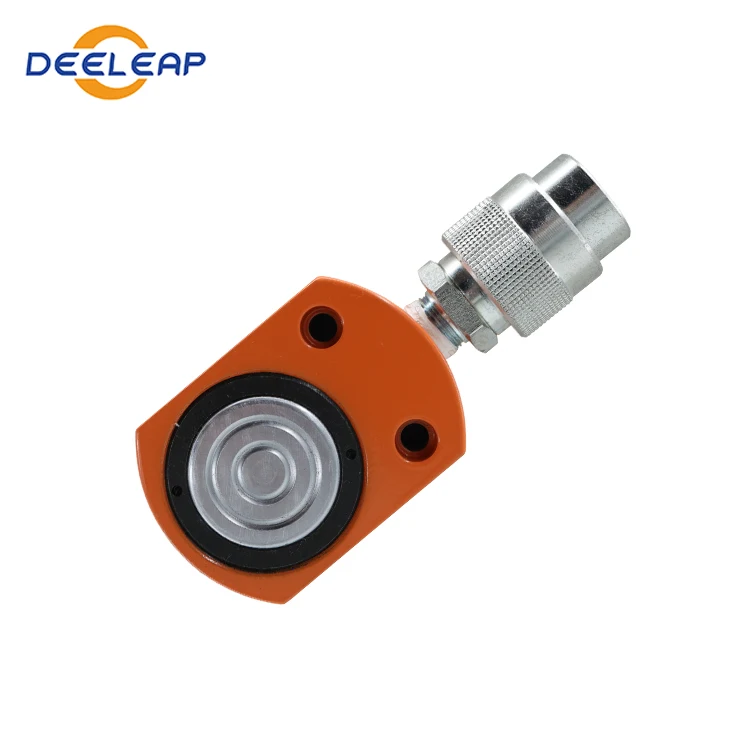

Flat Ultra-thin Single Acting small Hydraulic steel Cylinder for Hydraulic Jack DY-RSM-50
Lifting Single Acting good Height hydraulic jack cylinder for tipper truck DY-RC-1510
Application
About us
Yantai Dongyue Hydraulic Technology co., ltd
Our products mainly include pneumatic hydraulic pump series, electric hydraulic pump series, manual hydraulic pump series, high-pressure hydraulic cylinder series, and supporting hydraulic tool series. Our products have been widely applied in numerous industries such as automotive mainte-nance, metallurgy, petroleum, chemical, power, lifting, construction, mining, railways, and shipping.

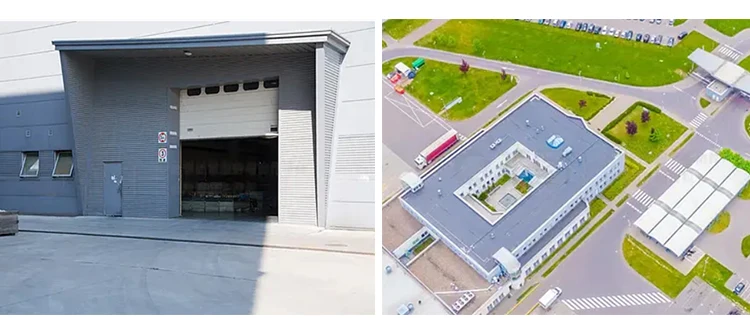

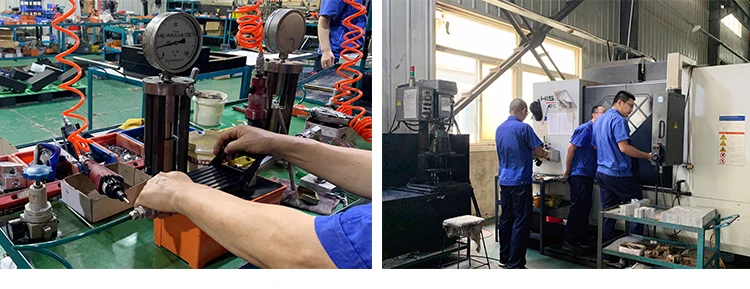

The company has more than 5 modern production lines,including CNC machine tool、spraying equipment Test shop、Packaging workshop、Raw material warehouse、Finished goods warehouse、Customer's overseas warehouse, etc. They can achieve an annual production capacity of 1 million sets of pneumatic hydraulic pump and 200,00 high-pressure hydraulic cylinder . We can accept OEM and ODM.
Customer Reviews
Exhibitions

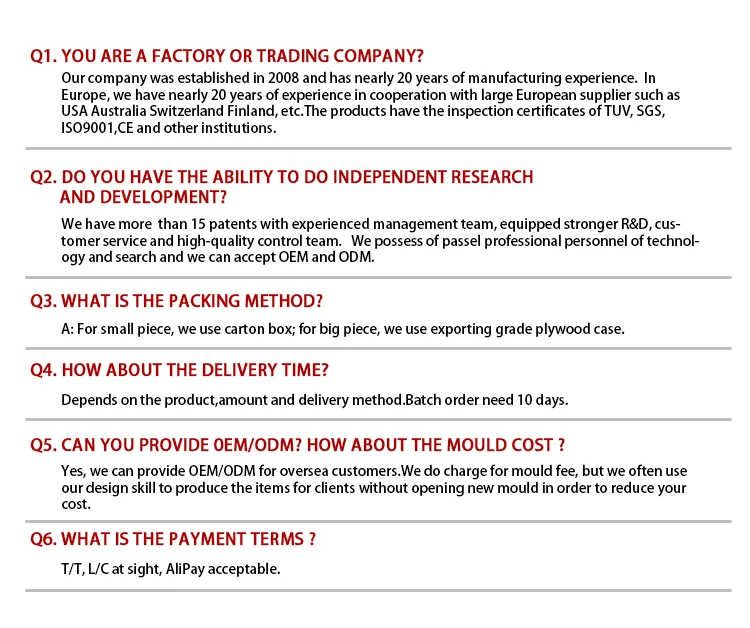

FAQ
