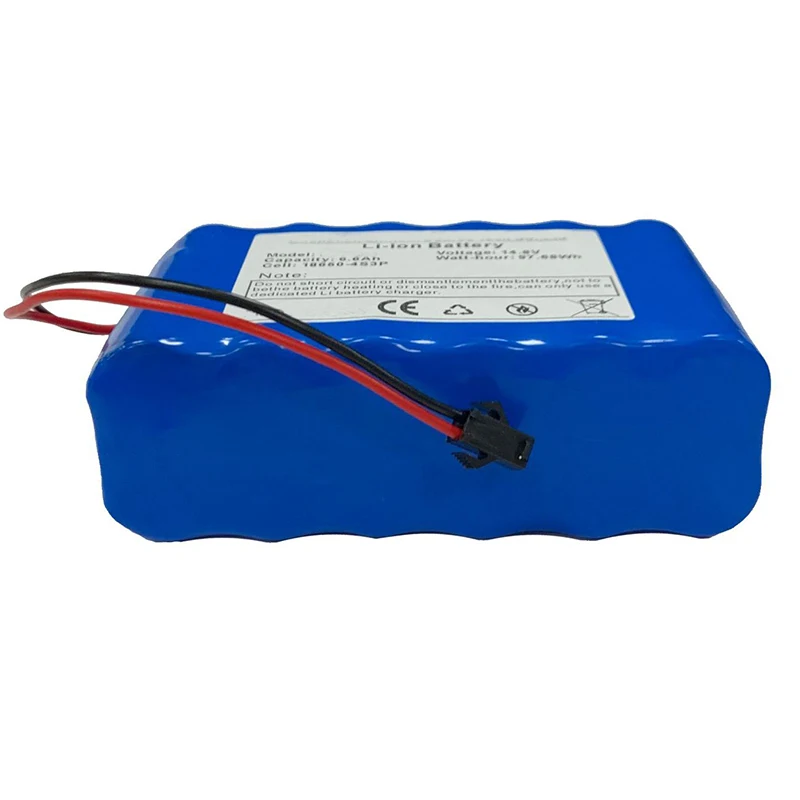

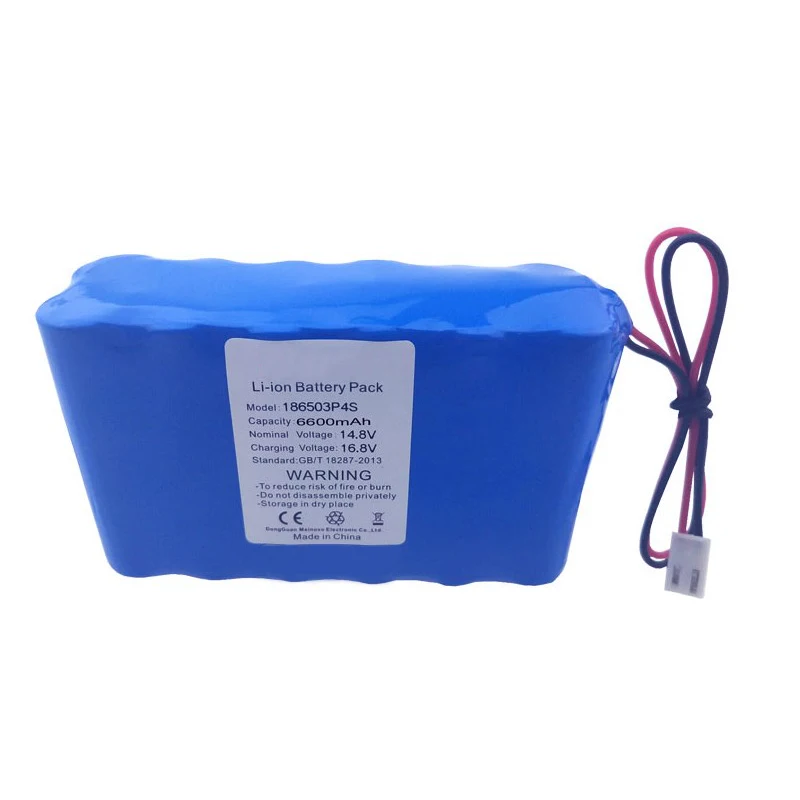

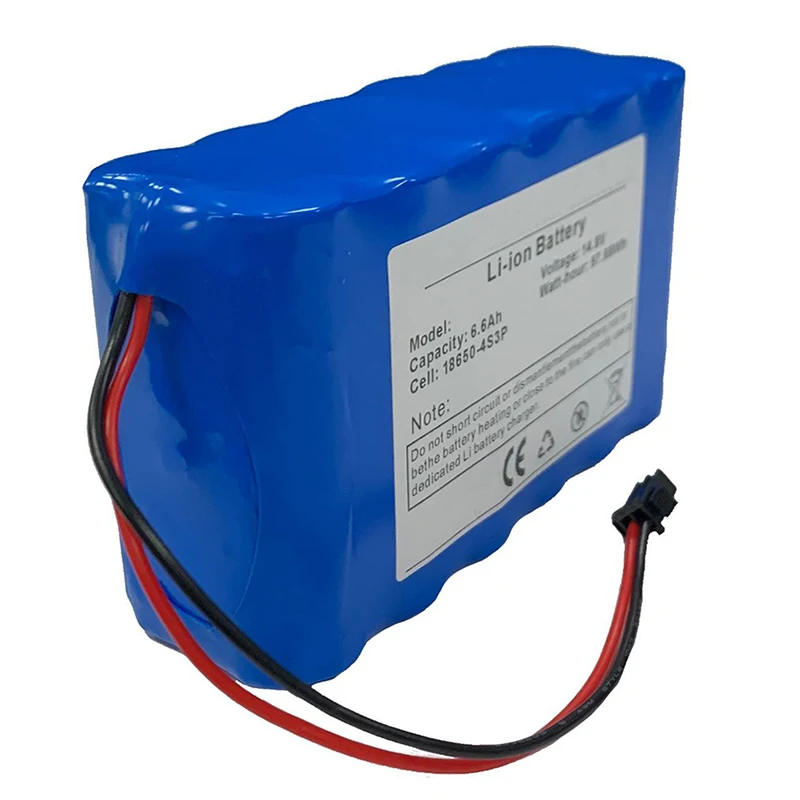

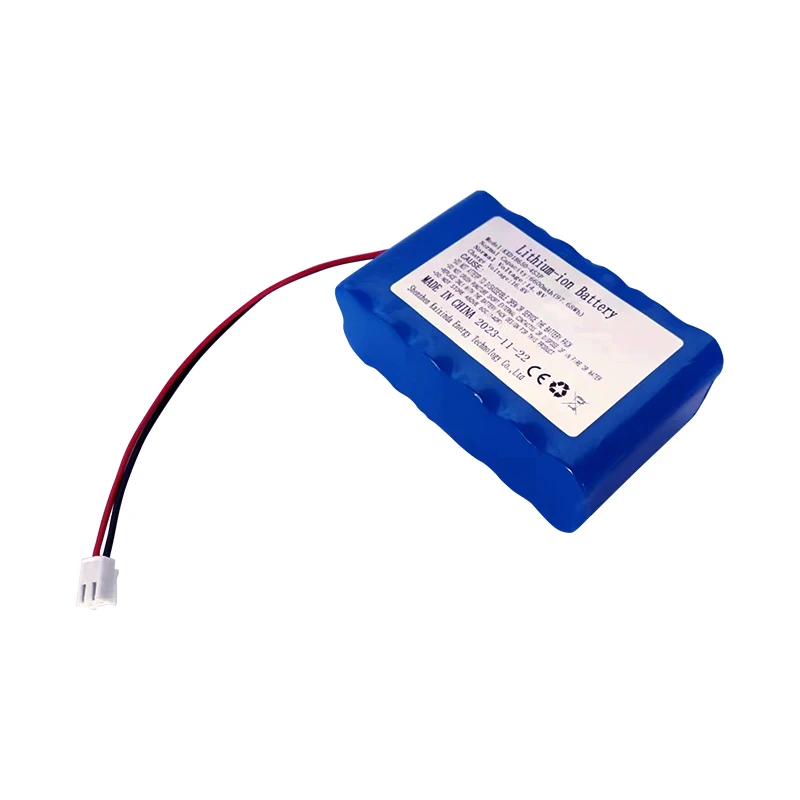

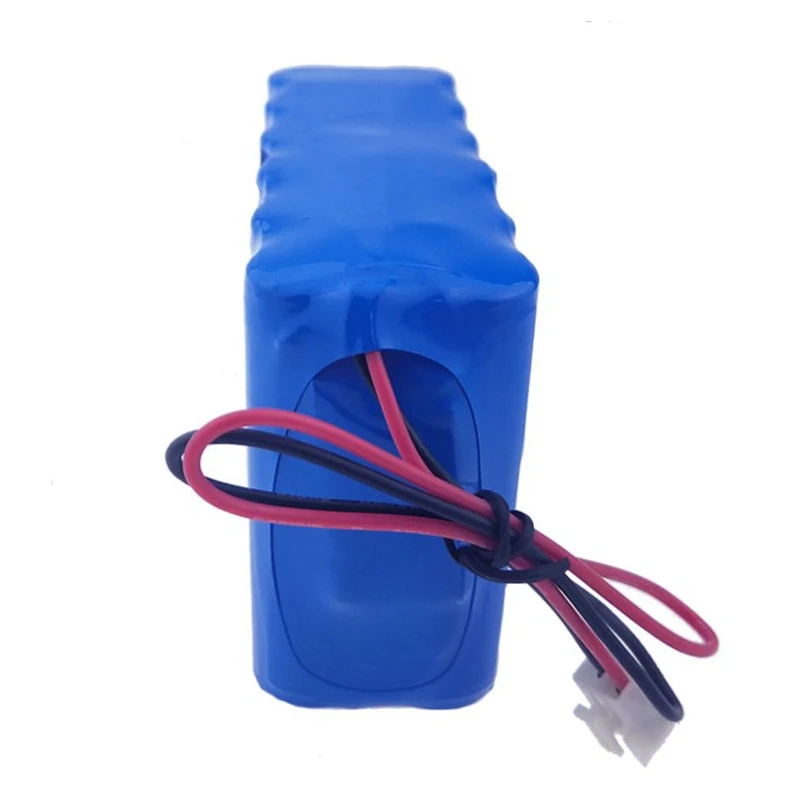

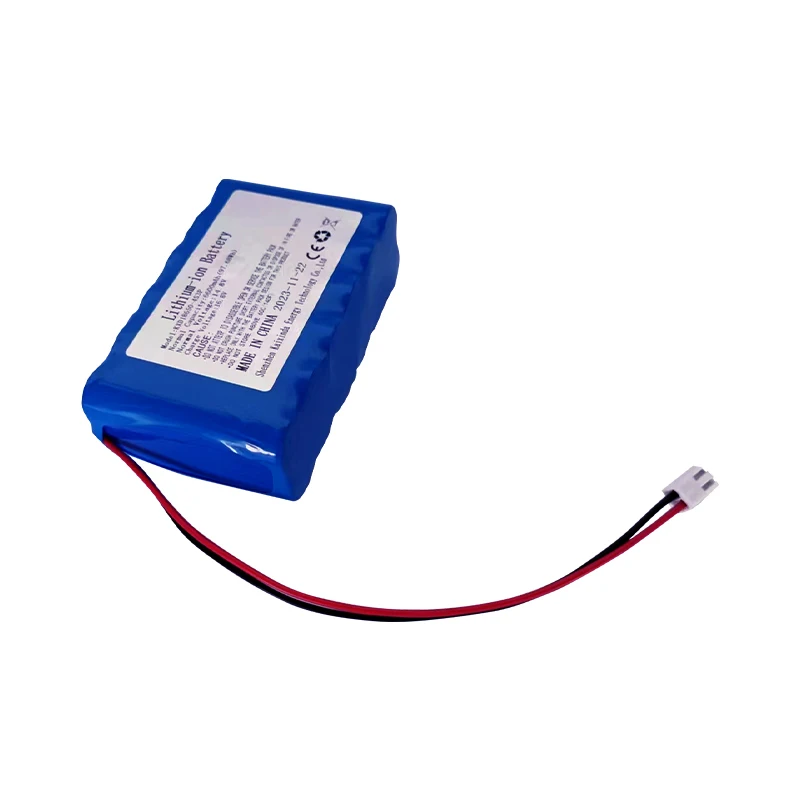

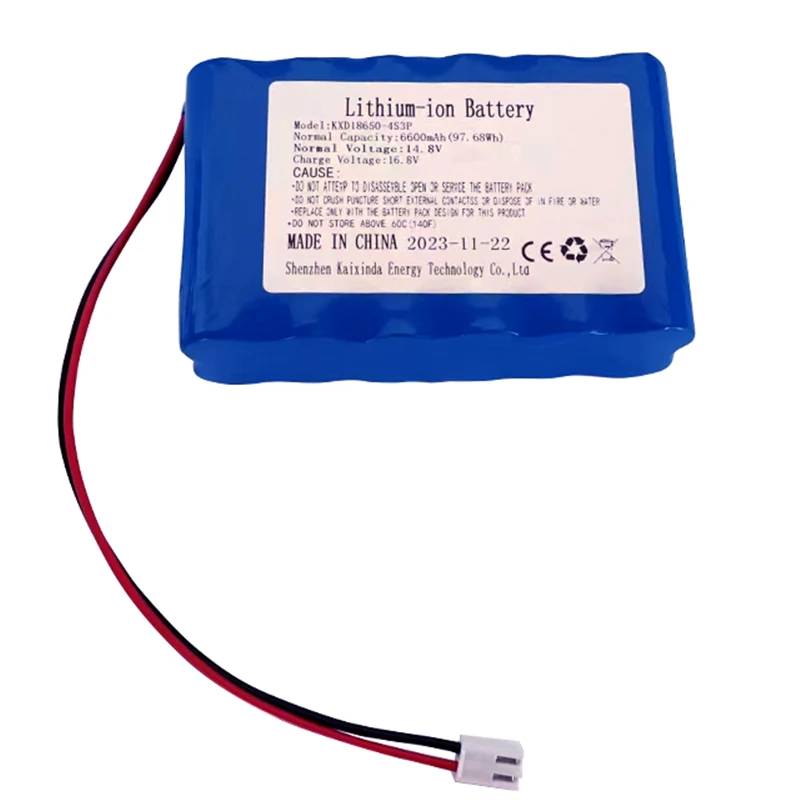

Customized for stage lighting Lithium battery pack ICR18650 4S3P Li Ion Batteries 14.8V 6600mAh icr18650 4s3p lithium battery
- Category: >>>
- Supplier: Dongguan Ren Woxing Energy Technology Co. Ltd.Dongguan Ltd.
Share on (1601341367580):
Product Overview
Description
Product Description
Product Description
Normal parameters | ||||
NO. | Item | General Parameter | ||
1 | Type | Lithium Ion Battery | ||
2 | Model | KXD-14.8V-6600mAH | ||
3 | Casing material for single cell | Nickel plated steel | ||
4 | Standard capacity(0.2C5A) | 6600mAh | ||
5 | Rated voltage | 14.8V | ||
6 | Max.charge voltage | 16.8V | ||
7 | Cut-off voltage | 12.0V | ||
8 | Standard charge current | 3A /Customized | ||
9 | Max continuous discharge current | 5A /Customized | ||
10 | Peak discharge current | 15A /Customized | ||
11 | Battery dimension | L115*H72*W37mm/L76*H58*W72mm/Customized | ||
12 | (Approx.)Total weight(Approx.) | about 0.6kg | ||
13 | Standard charging temperature | 0℃~45℃ | ||
14 | Discharge temperature | -20℃~60℃ | ||
15 | Storage temperature | -20℃~45℃ | ||
16 | Cycle life | >800 times | ||
17 | Case | blue PVC wrap | ||
18 | Option | Wires /Connectors/other Capacity | ||
Manufacturer | Shenzhen Kaixinda Energy Technology Co., Ltd. | ||||||||
Voltage | 3.7V/7.4V/11.1V/14.8V/22.2V/24V | ||||||||
Capacity | 2Ah/2.2AH/ 2.5AH/3AH | 4Ah/4.4AH/ 5AH/6AH | 6Ah/6.6AH/ 7.5AH/9AH | 8Ah/8.8AH/ 10AH/12AH | 10Ah/11AH/ 12.5AH/15AH | ||||
Discharge current | 2-12A | 3-15A | 5-30A | 6-35A | 10-60A | ||||
Support Power | <300W | <360W | <720W | <840W | <1440W | ||||
OED/ODM | Availiable | ||||||||
Size | 1S 2S 3S 4S 6S 7S 18650 21700 Customized to your requirements | ||||||||
Connector | JST/Molex/XT plug/DC jacket /SM plug/Customized to your requirements | ||||||||
Cycle Life | ≥80% capacity after 500 times | ||||||||
Warranty | 12 Months | ||||||||
Application | Lighting/Digital products/Monitoring equipment/Portable audio system/Solar system/Ebike/Other | ||||||||

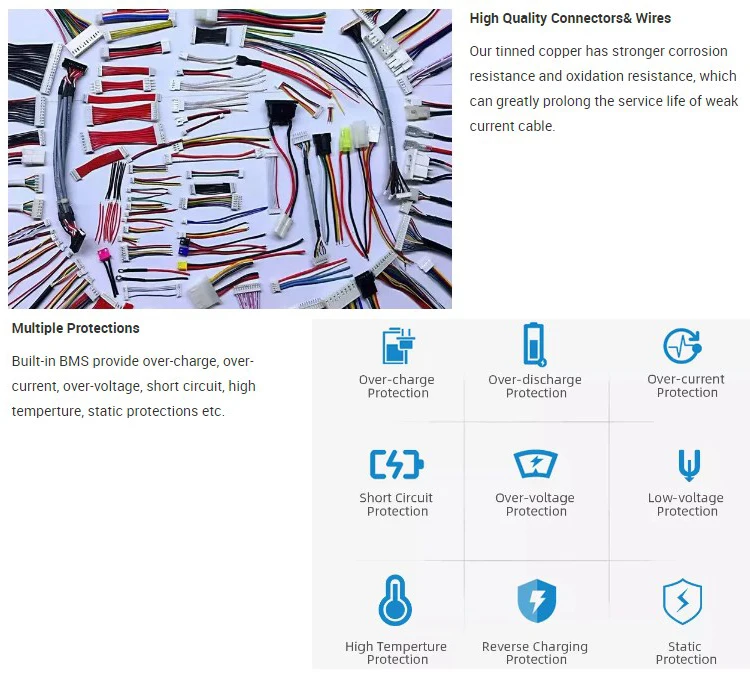

360℃ customized service:

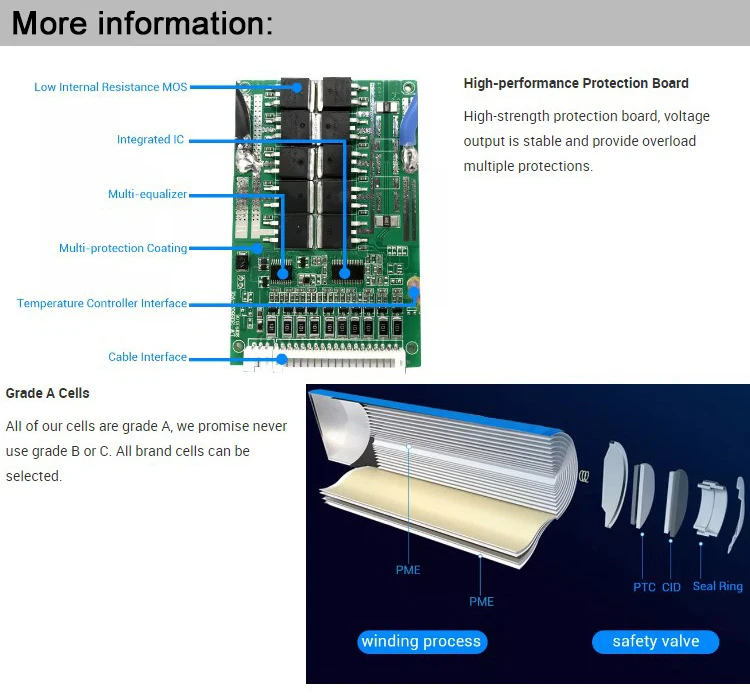

1.Over charged voltage protection
2.Over discharged voltage protection
3.Thermal protection
4.Over load protection
5.Over charge and discharge current protection
6. Balance functions. Etc
3.Thermal protection
4.Over load protection
5.Over charge and discharge current protection
6. Balance functions. Etc

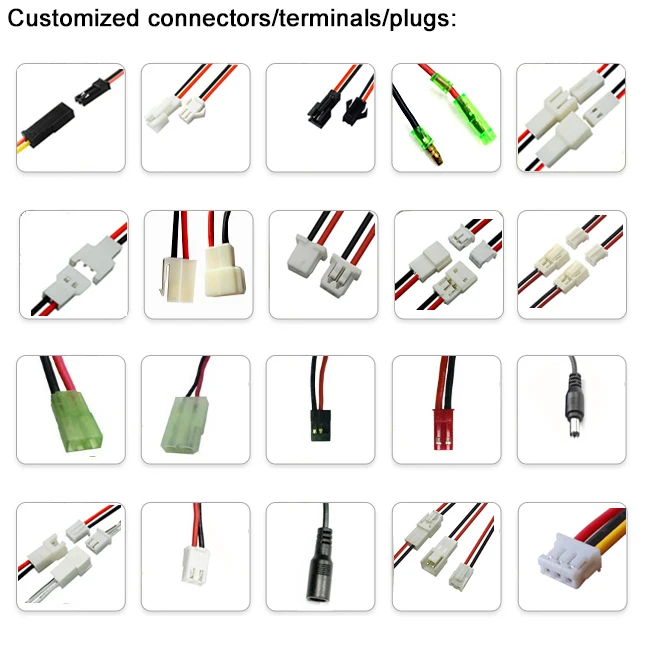

1.JST / Molex connector
2. DC 1.35*3.5, 2.1*5.5 plug
3. XT plug
3. XT plug
4.SM conector
5.Other

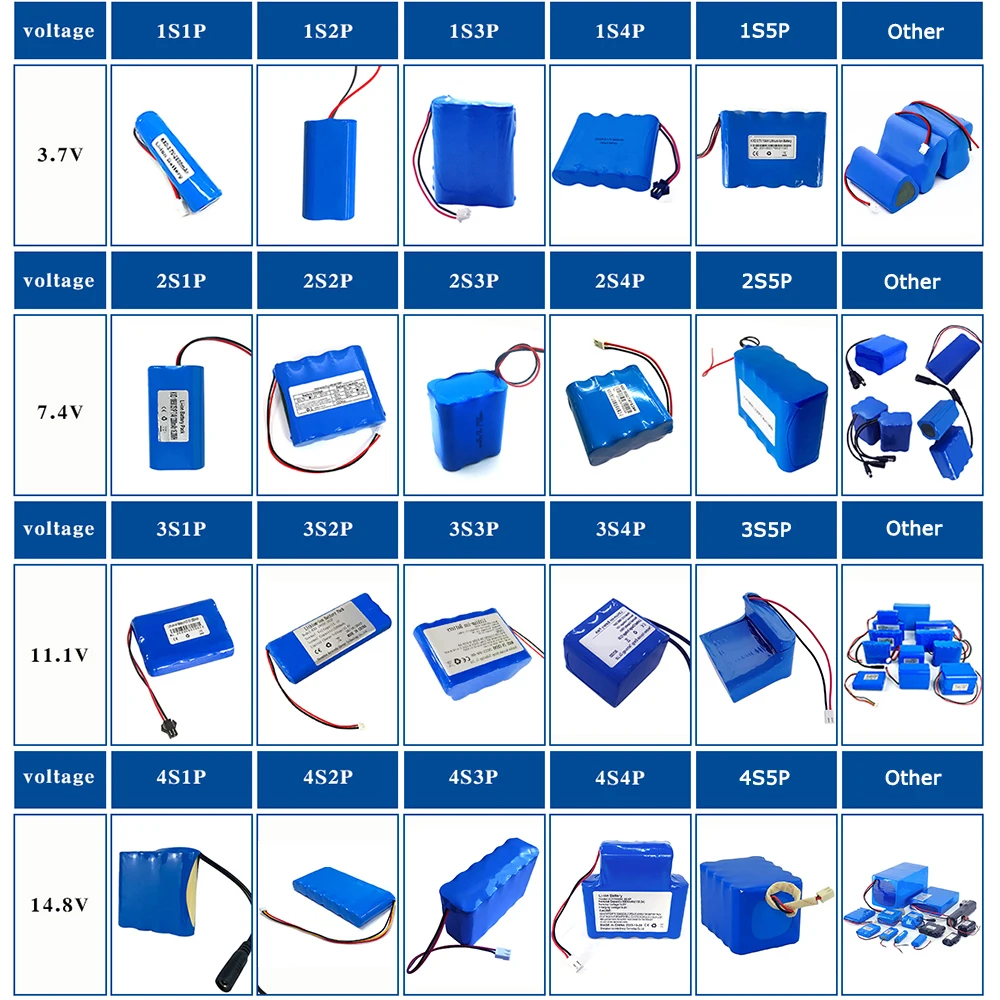

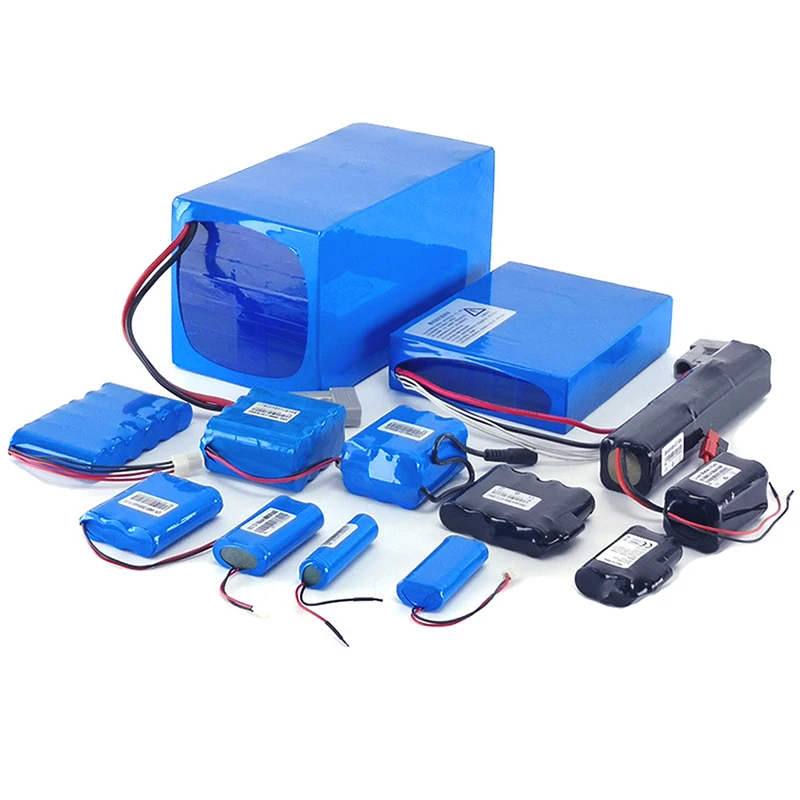

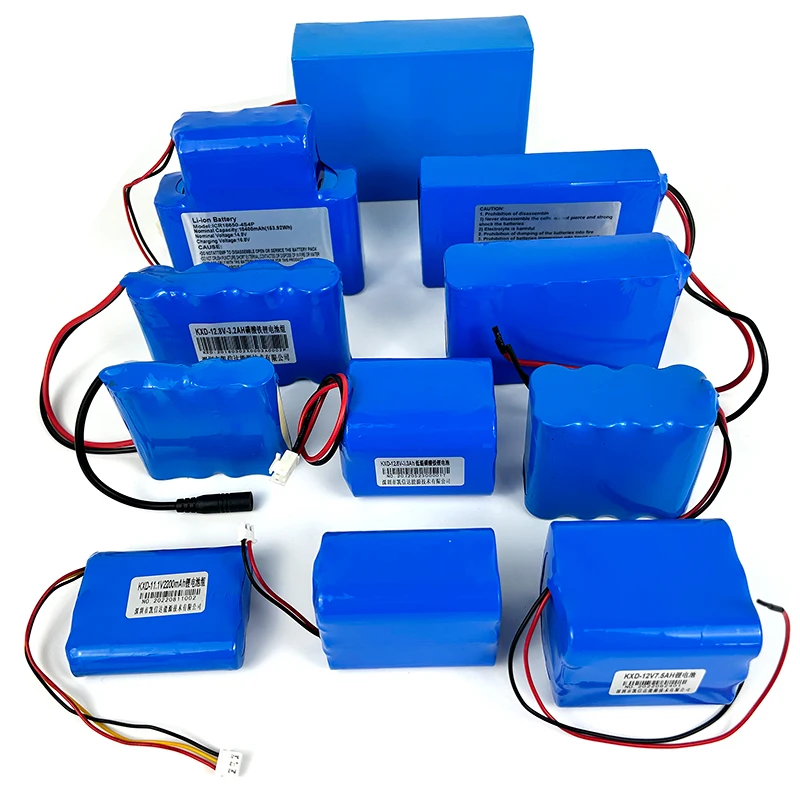

Some of the battery packs we customize for customers
1S 2S 3S 4S 5S 6S 7S 18650 21700 Customized to your requirements

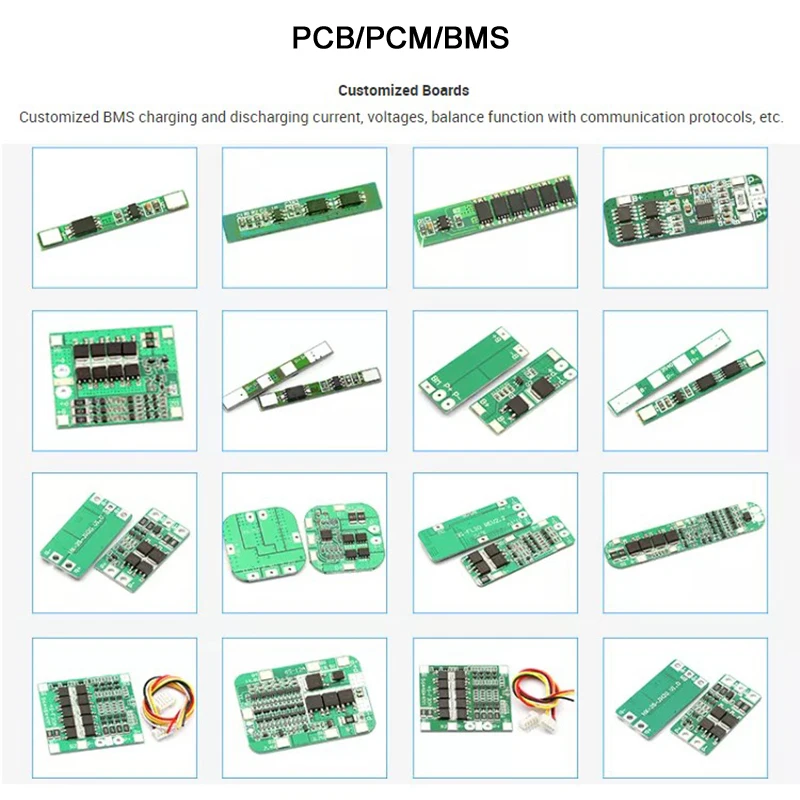

Here at KXD we stock a range of standard Li-Ion Battery Packs which are used in a wide range of applications both in consumer and industrial markets. All of these lithium batteries have a PCM/PCB/BMS (protection control module) to ensure safety. If you need a quote of Li-Ion Battery Packs or you can’t find a specific Li-Ion pack you need on our website, please get in touch with us.
Certifications
Certifications
Exhibition
Exhibition
FAQ
FAQ
Q: 1. Can I have a sample for customized specification?
A: Of course. please send us your specific requirement.
Q: 2. What is the lead time?
A: 3~7 days for sample, 10~25 days for bulk order.
Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.
Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive.
For large quantity, ship by airplane or ocean, shipping time will depend on destination port.
we can do DDP DDU to the door .
Q: 5. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
Q: 5. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
