CHINESE MINING DUMP TRUCK, MINE TRUCK RATED LOAD 45 TONS FOR SALE

Product Overview

Description

CHINESE  MINING DUMP TRUCK, MINE TRUCK RATED LOAD 45 TONS FOR SALE

mobile/wechat/whatspp 86-15866001919

Specifications

Articulated dump truck		MLA45G
Main parameters
Unladen mass	kg	34000
gross weight	kg	75000
Load capacity	kg	41000
Frame type		Box section large arc transition

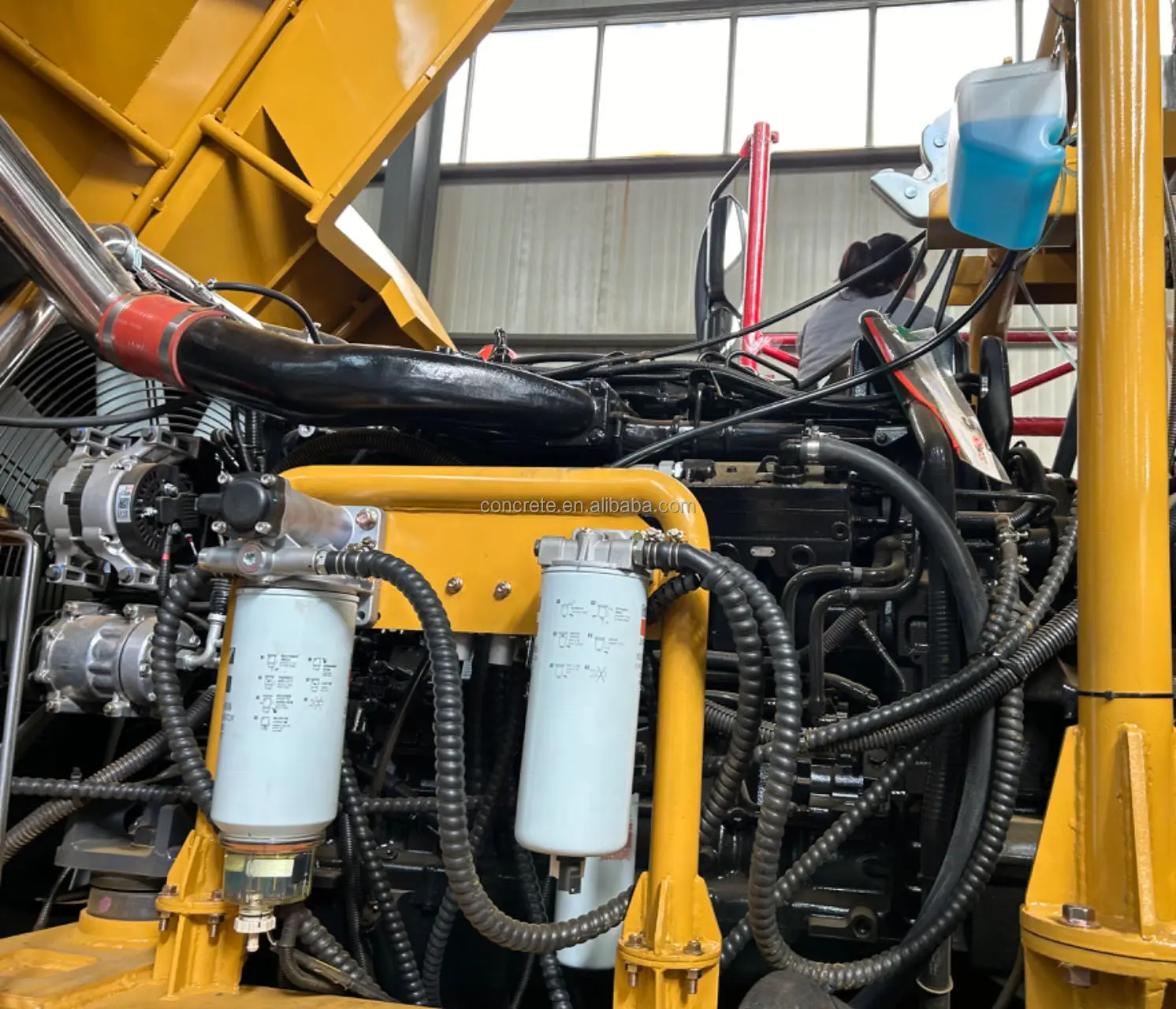

engine
model		Cummins
Rated Power	hp	540
Rated speed	rpm	2000
Type		In-line6Cylinder four-stroke, turbocharged
Suction type		Turbocharger&Supercharged intercooler
Cylinder diameter xstroke	mm	135 × 157
Displacement	L	13.48
Emission standards		National Three
Gearbox
model		Allison 4800 ORS-P
Gear		7 F 1 R
Type		AT automatic transmission
Axles
factory		Meritor
Axle type		Heavy duty wet bridge
Final Drive		Planetary gear reduction
Drive type		6 x 6
suspension
Front axle		Hydro-pneumatic suspension + A-frame + push rod
Rear axle		Balance beam rubber tower spring shock absorber+AType frame+Push rod
Steering system
Steering type		Fully hydraulic articulated frame steering
Emergency Turn		Full hydraulic manual control
Minimum turning radius	m	Outside9.0m,Inside4.5m
Braking system
Service brake		Three-circuit hydraulic wet brake
Parking brake		Hydraulically controlled disc brakes
reducer		Engine cylinder brake
Cargo compartment
shape		Double slope
Flat bucket capacity	m³	19.7
Full stack capacity	m³	25.1

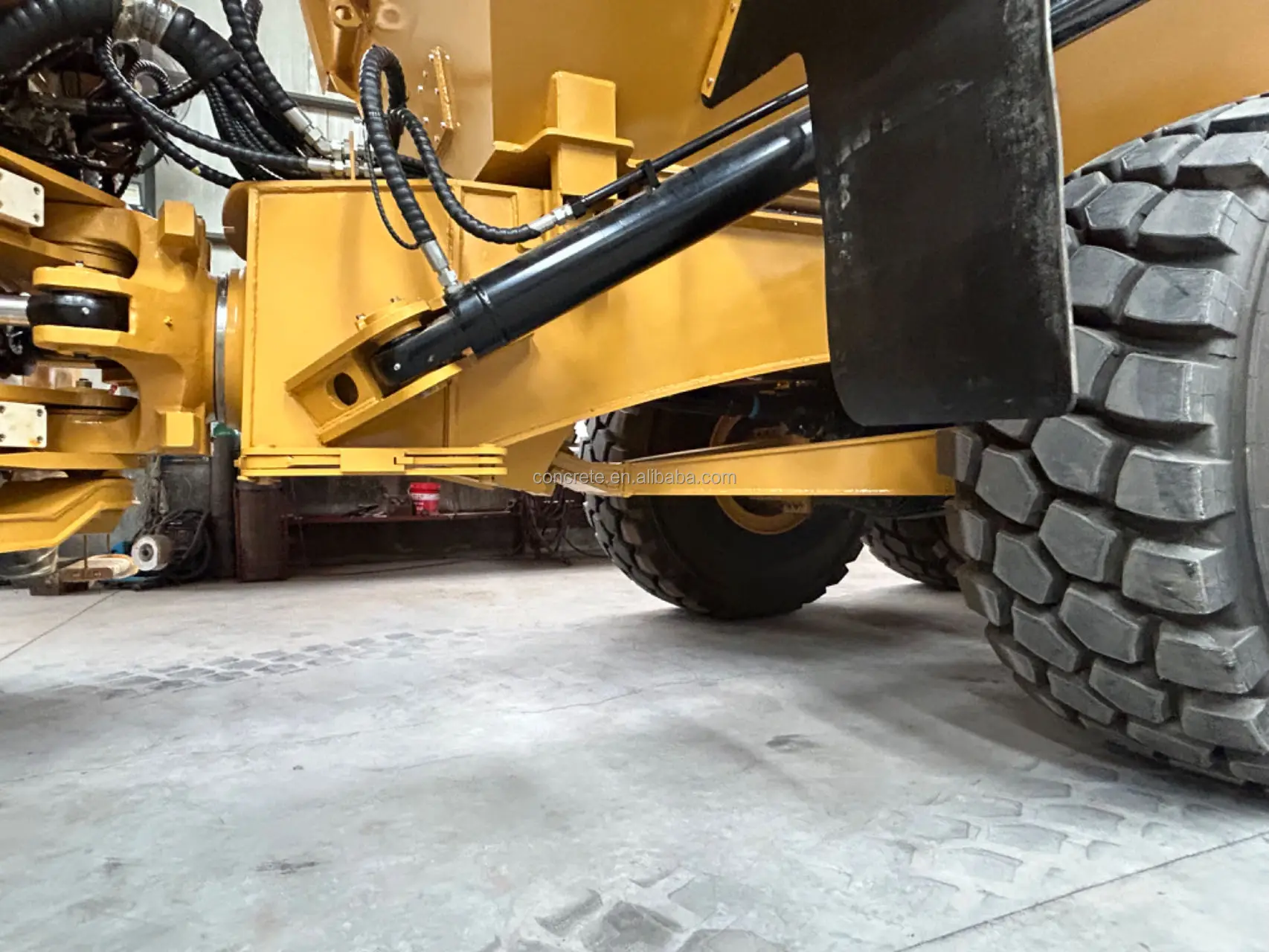

Lifting cylinder		2Double-acting cylinders
Unloading angle	°	70
tire
Tire size		29.5R25
Rim size		25-25.00/3.5
Oil and water capacity
Diesel tank	L	545
Oil sump	L	40
Transmission oil	L	48
Final reducer and wheel rim	L	Front axle : 42Middle Bridge : 42Rear axle: 42
Hydraulic oil	L	300

Company Introduction



since 1999
150 employees

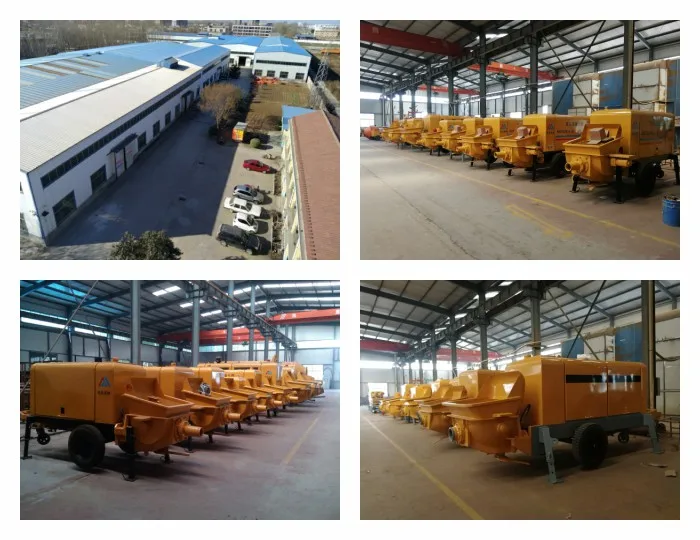

our own professional manufacturing factory covers 21,000 square meters area
