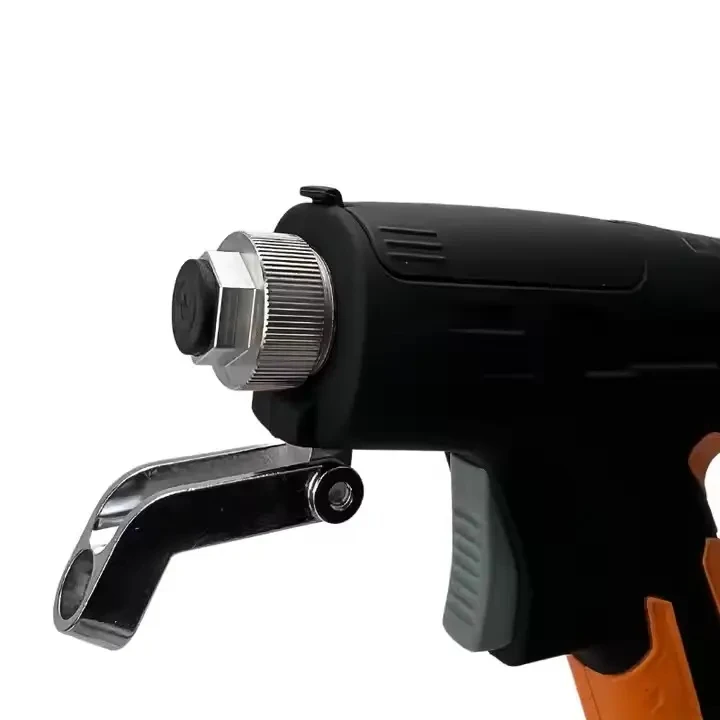

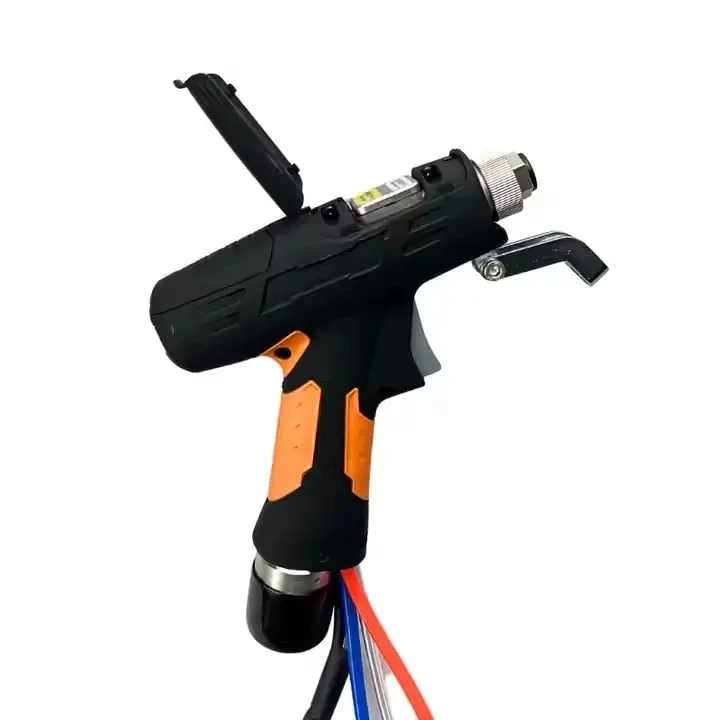

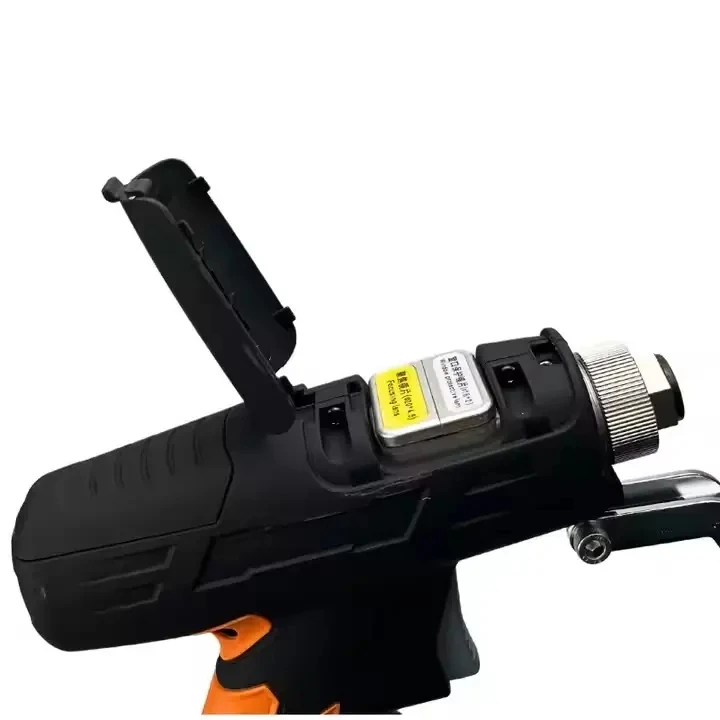

High quality handheld laser welding heads/guns

Product Overview

Description

Supply Voltage(v)	220±10%V AC 50/60Hz
Placement Environment	Flat, no vibration
Temperature of Working Environment	10~40
Humidity of Working Environment	<70
Cooling Method	Water-Cooling
Applicable Wavelength	1064nm(±10nm)
Applicable Power	≤2000W
Collimating Lens	D20*4.5/F60
Focusing Lens	D20*4.5/F150
Reflective Mirrors	30*14 T2
Specifications of Protective Windows	18*2
Maximum Support Pressure	10bar
Vertical Adjustment Range of Focus	±10mm
Adjustment Range of Spot	Line0-5mm
Laser Welding Head Weight	0.7kg
Maximum Support Wire Feeding Wire Diamete	2.0mm
Wire Fedder Size	560*250*350mm
