p10 LED display module white color 320*160MM display panel SMD 2835 LED display module
- Category: >>>
- Supplier: Fujian Huacai Tronics LimitedFujian Limited
Share on (1601341396178):
Product Overview
Description
welcome to Huacai
big promotion lower price than cost P10 single color outdoor DIP SMD white red green blue yellow led display module
Product Description
1)Excellent Quality,Pass ISO9001:2000
2)Low Power Comsuption, Energy Saving
3)High Brightness,Long Lifespan
4)Very Competitive Price, Good uniformity
5)Excellent Quality,Pass ISO9001:2000
6)High Reliability, Long Durability
7)Easy and fast installation
8)Timely Delivery

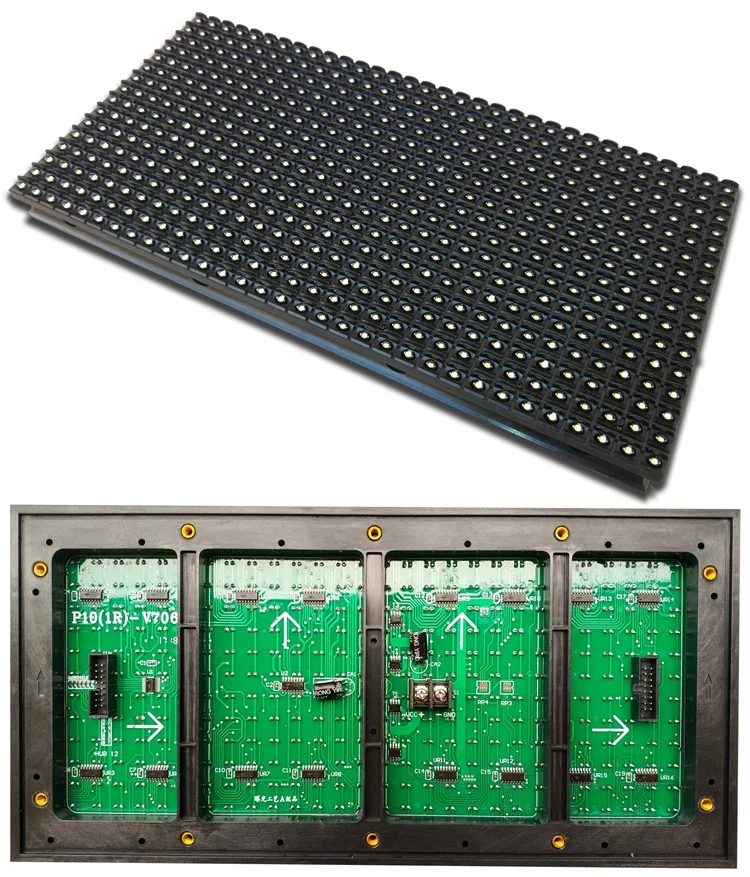

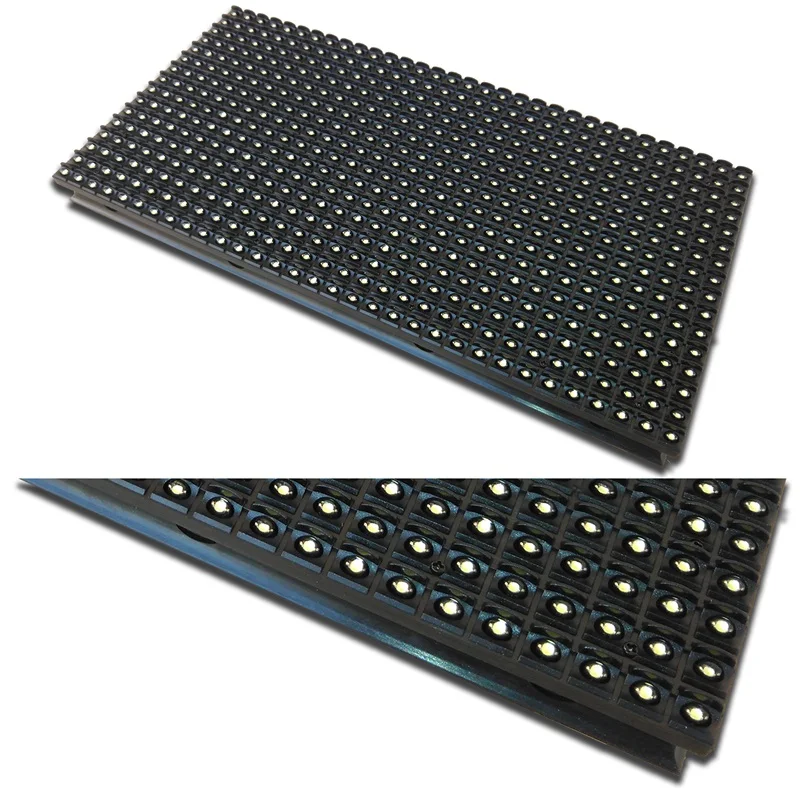

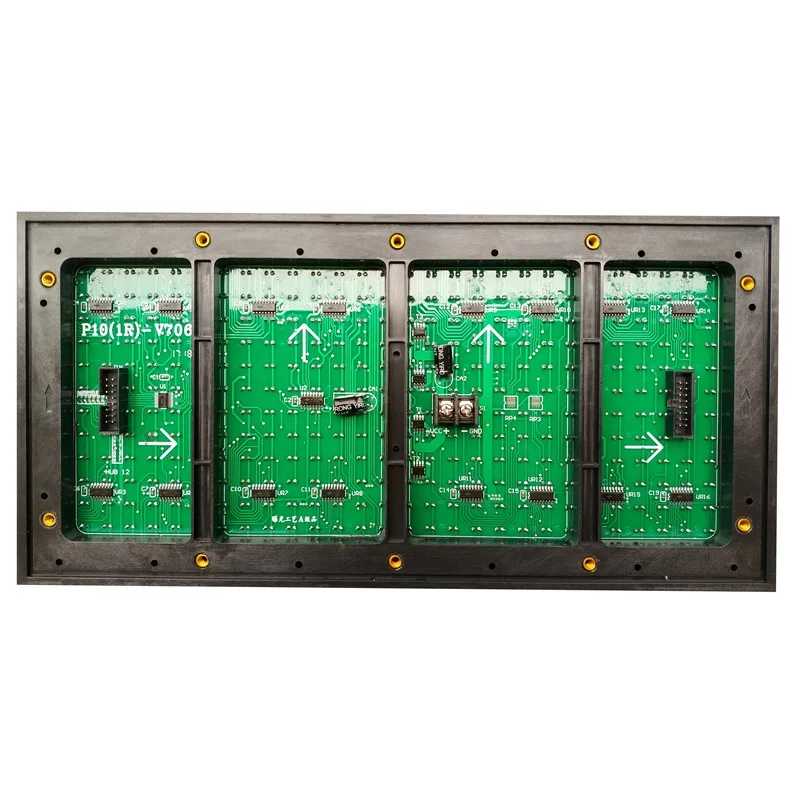

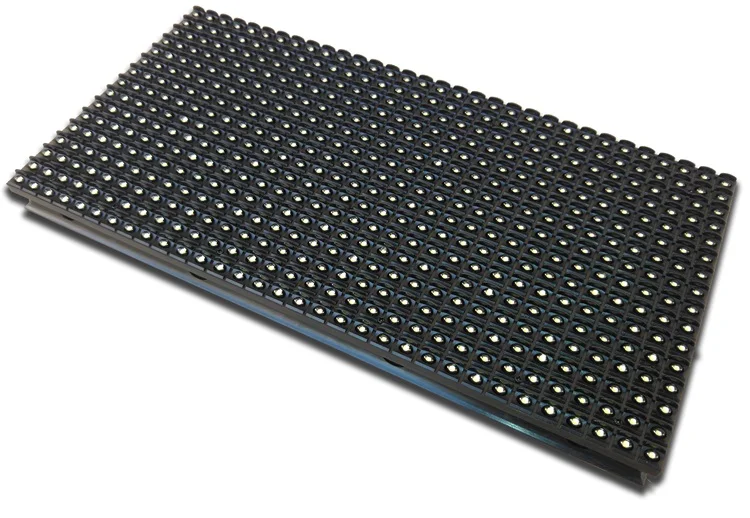

Direct manufacturer outdoor white color p10 single color 32*16 led display modules
| LED tube chip parameters | ||||||
| Packaging | Color | Brand | Model | Brightness | Wave length | Quantity |
| DIP Oval 546 Lamp | R | Epistar | 9mil | 800-900 | 730-800 | 1 |
| G | Epistar | 8x10mil | 1000-1100 | 900-1000 | 1 | |
| B | Epistar | 8x10mil | 230-260 | 230-260 | 1 | |
| LED module parameters | |||
| Pixels pitch: | 10mm | Pixel density: | 10000dot/m2 |
| Pixel configuration: | 1R/1G/1B/1W/1Y/1P Optional | Module pixels: | 32x16=512 dots |
| Module size: | 320x160x25mm | Module weight: | 0.58KG |
| Configuration feature: | Integrated Light/Driver | Frame material: | Polycarbonate(PC) |
| Input voltage: | AC 4.8-5.5V | Max current: | 6.0A±0.1A |
| Module power consumption: | 30W | Driver mode: | 1/4 scan |
| LED cabinet parameters | |
| Standard cabinet size: | 960x960x48 mm |
| Cabinet pixel: | 96x96=9216dots |
| Cabinet square: | 0.9216m2 |
| Cabinet weight: | 45KG |
| Max power consumption: | 300W |
| Average power consumption: | 100W~250W |
| LED display parameters | |||
| Brightness: | ≥1800cd/m2 | Brightness homogeneity: | ≥0.95 |
| Best horizontal view angle: | 120° | Best vertical view angle: | Vertical:<160° |
| Best view distance: | 5m~100m | Blind spot rate: | <0.0001 |
| Max power consumption: | 300w/m² | Application condition: | outdoor |
| System control parameters | |||
| Gray scale: | 256 grade | Color | 16777216 kinds |
| Repetition rate: | ≥60 frame/second | Refresh rate: | ≥300Hz |
| Control method: | Asynchronous or Synchronous | Brightness adjusting: | 256 auto/manual |
| Input signal: | DVI/VGA, RGBHV, S-VIDEO, HDTV and so on | ||
| System working features | |||
| Lifespan: | ≥100,000 hours | MTBF: | ≥10,000 hours |
| Attenuation rate: | ≤15% 3 years working | Out of control dots: | 0 |
| Discrete control dot: | 0 (before shipment) | Blind spot rate: | 0 (before shipment) |
| Working temperature: | -20 ~50 °C | Working humidity: | 10%~90%RH |
| Protection feature: | over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder (optional) | ||

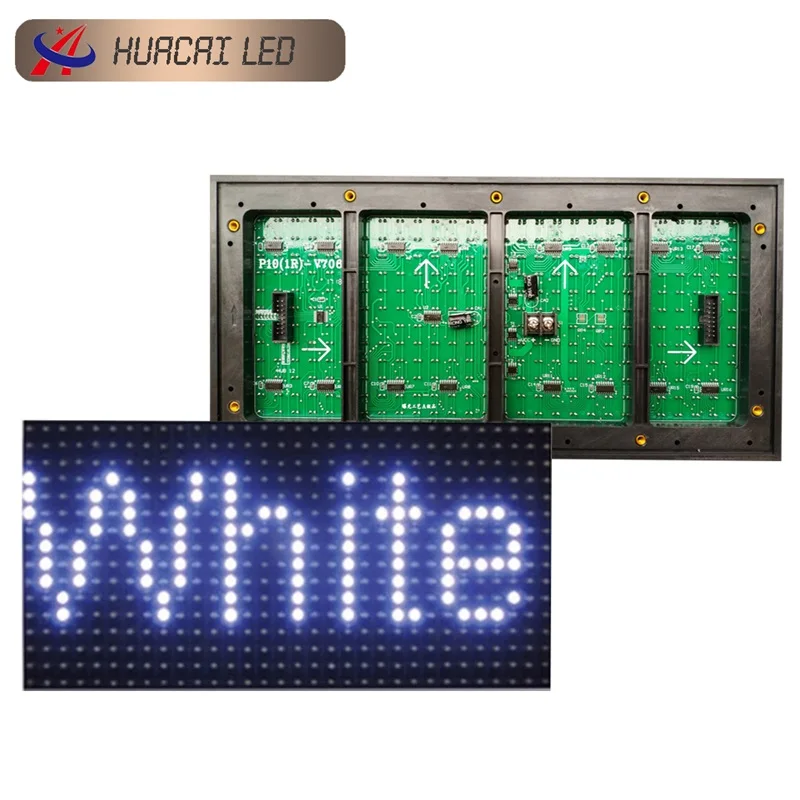

White color DIP outdoor p10 led message billboard for shop station advertising
outdoor led display keep lighting up for 24-48 hours
Hot Selling Products
 |
 |
 |
 |
Factory View
Packaging & Shipping
Packaging & Shipping:
Cabinet : Plywood standard package, 2pcs per wooden case or According to customer's Request;
Led Module: pcs/Carton; Cartons Size: 57*36.5*36cm
Delivery: 7 to 15 days or depends on the quantity.
Our Services
Application Field
Advertising LED displays, Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing ,
bank & stock exchange LED message signs for rates showing , train & bus station , airport ,
telecommunication LED video wall system forinformation showing and instruction, Stage performances ect.
Company Information
We are specialized in big promotion lower price than cost P10 single color outdoor DIP SMD white red green blue yellow led display module for many years.
We can offer you the best competitive price at the market with the same even better quality.
The price quoted for you leaves us with only the smallest of margins, which is lower than those of our competitors for goods of the same quality.
Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing,
bank & stock exchange LED message signs for rates showing , train & bus station , airport ,
telecommunication LED video wall system forinformation showing and instruction, Stage performances ect.
Contact us:
Our certifications:
FAQ
1.Where is your nearest Sea Port?
Our nearest sea port is at Xiamen,Fujian Provice
2.What's your payment term?
The payment term is 40%T/T,the balance before shippment
3.What's the brand of your diode chip?
Our led lamps are by Silan,Epistar,Cree ect.
4.Could you alow a trial order?
Yes.We are alowing to a trial order. This would enable you to see the high quality of our product and give you the opportunity to test it’s superiority.
