Megarevo Hybrid Inverter With PV Controllers Isolation Transformer Mps0250 250kw 500kw Solar Power Converter System
- Category: >>>
- Supplier: Lovsun Solar Energy Co.LtdLovsun Co.Ltd
Share on (1601341780899):
Product Overview
Description
Product Description

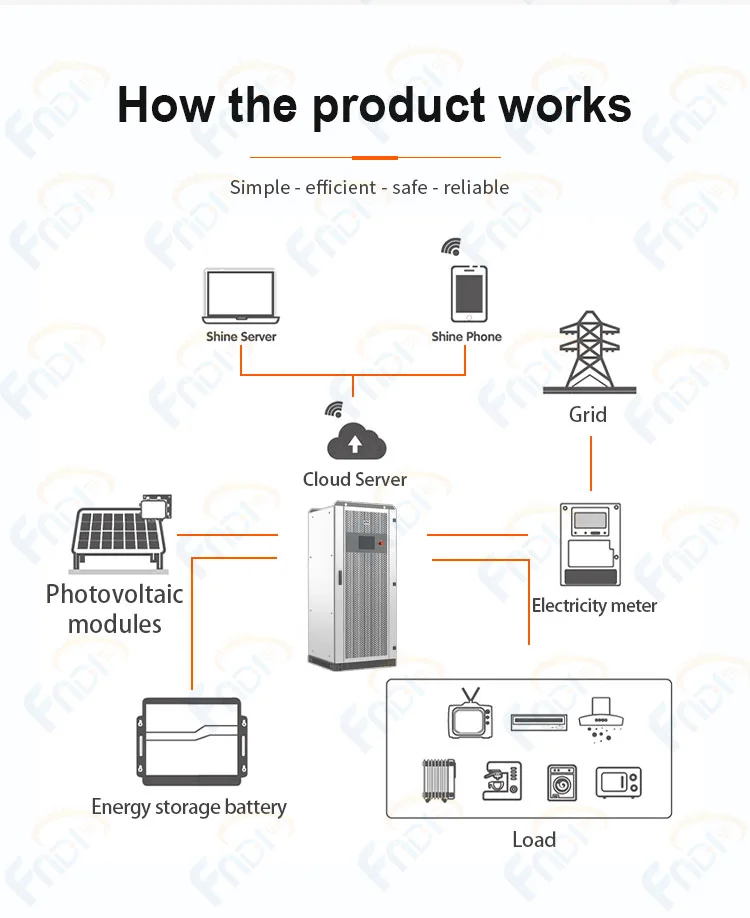

Application Scenario
Technical Parameter

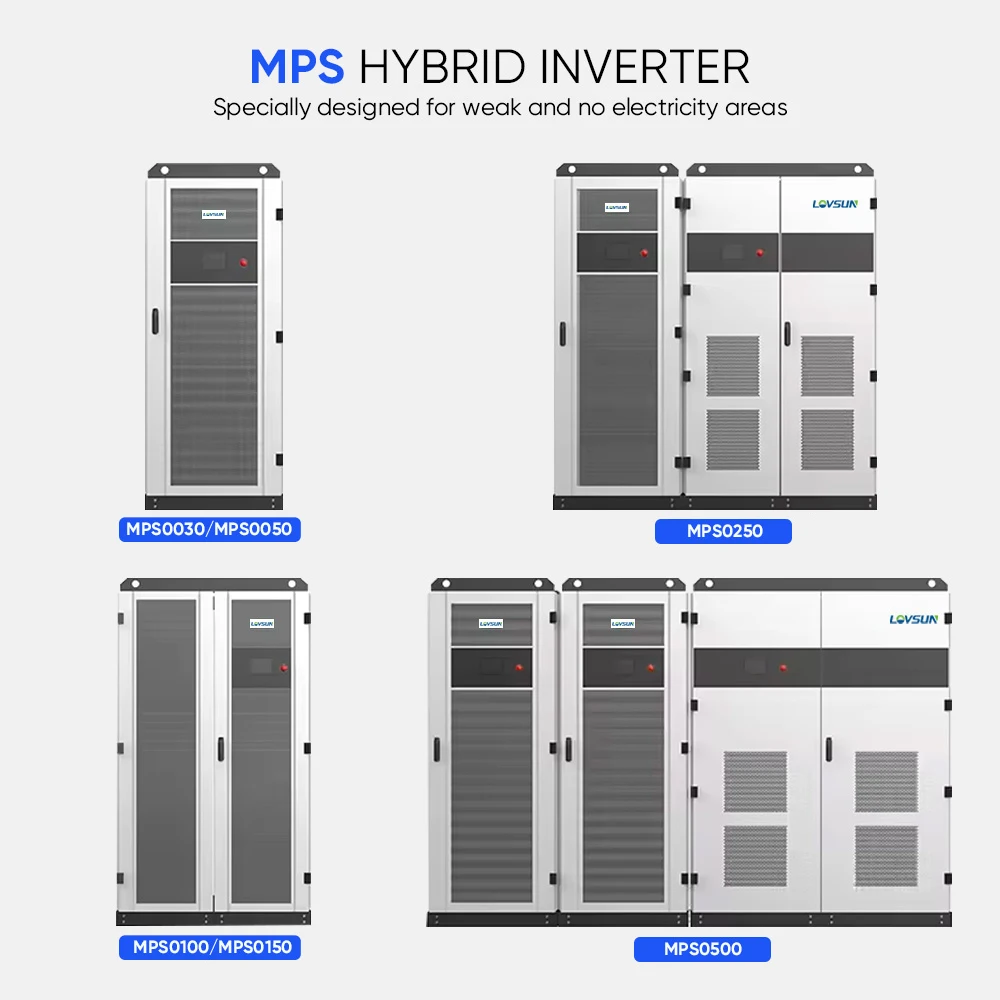

Model | MPS0030 | MPS0050 | MPS0100 | MPS0150 | MPS0250 | MPS0500 | ||||||
AC(on-grid) | ||||||||||||
Max output power | 33 | 55 | 110 | 165 | 275 | 550 | ||||||
Rate output power | 30 | 50 | 100 | 150 | 250 | 500 | ||||||
Voltage range(V) | 320-460V | |||||||||||
Rated current(A) | 43 | 72 | 144 | 216 | 361 | 722 | ||||||
Rated frequency (Hz) | 50/60 | |||||||||||
THDi | ＜3% | |||||||||||
AC connection | 3W+N+PE | |||||||||||
AC(off-grid) | ||||||||||||
Rated power(kW) | 30 | 50 | 100 | 150 | 250 | 500 | ||||||
Rated voltage(V) | 400V | |||||||||||
Rated current(A) | 43 | 72 | 144 | 216 | 361 | 722 | ||||||
THDU | ≤1% linear; or≤5% nonlinear | |||||||||||
PV input | ||||||||||||
Max.PV input voltage | 1000 | |||||||||||
Max.PV power | 36/72 | 60/120 | 120/180/240 | 300/360 | 600/660/720 | |||||||
MPPT voltage range | 250-850 | |||||||||||
Battery | ||||||||||||
Battery voltage range | 250~850 | 320-850 | 420-850 | 500-850 | ||||||||
General data | ||||||||||||
Dimension W*D*H (mm) | 800*800*1900 | 1200*800*2050 | 1800X800X2050 | 2800X800X2050 | ||||||||
Ingress protection | IP20 | |||||||||||
Display and communication | ||||||||||||
Display | LCD touch-screen | |||||||||||
BMS communication | RS485, CAN | |||||||||||

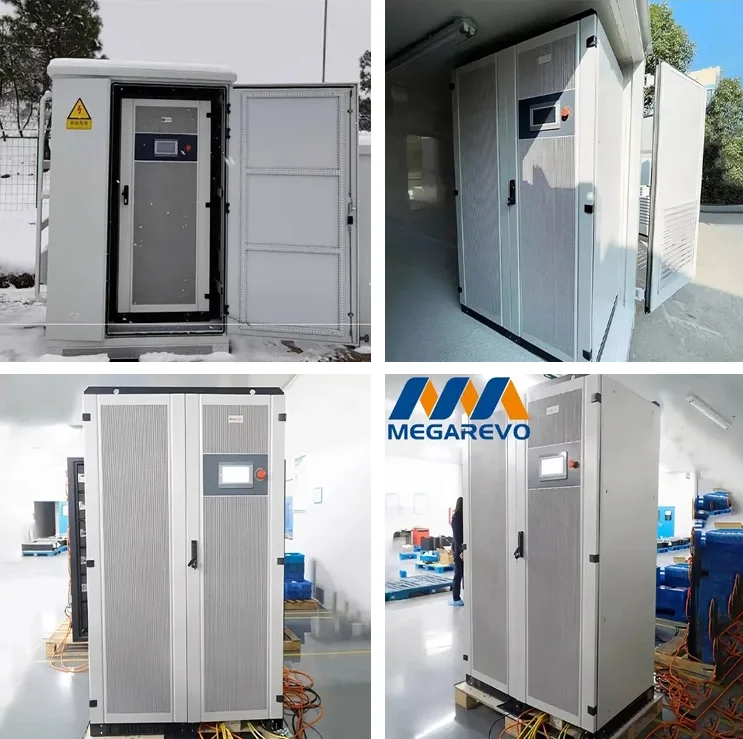

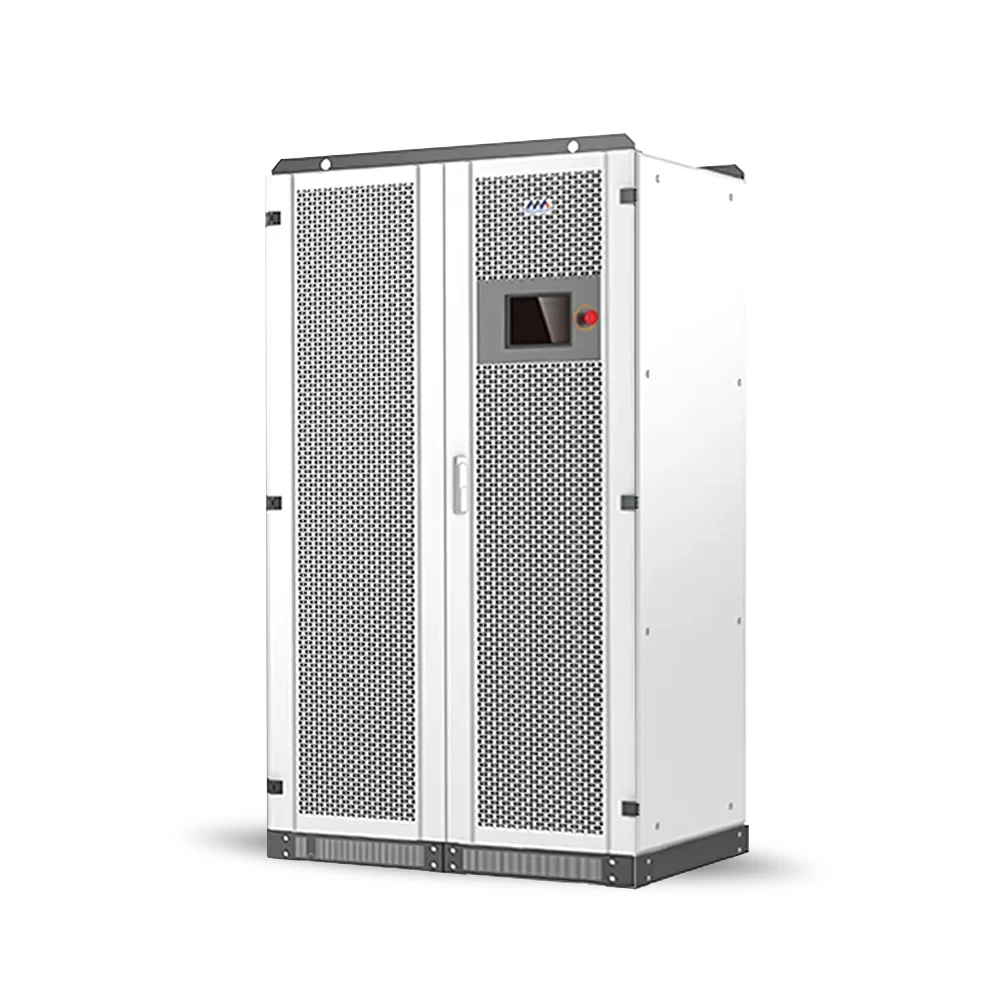

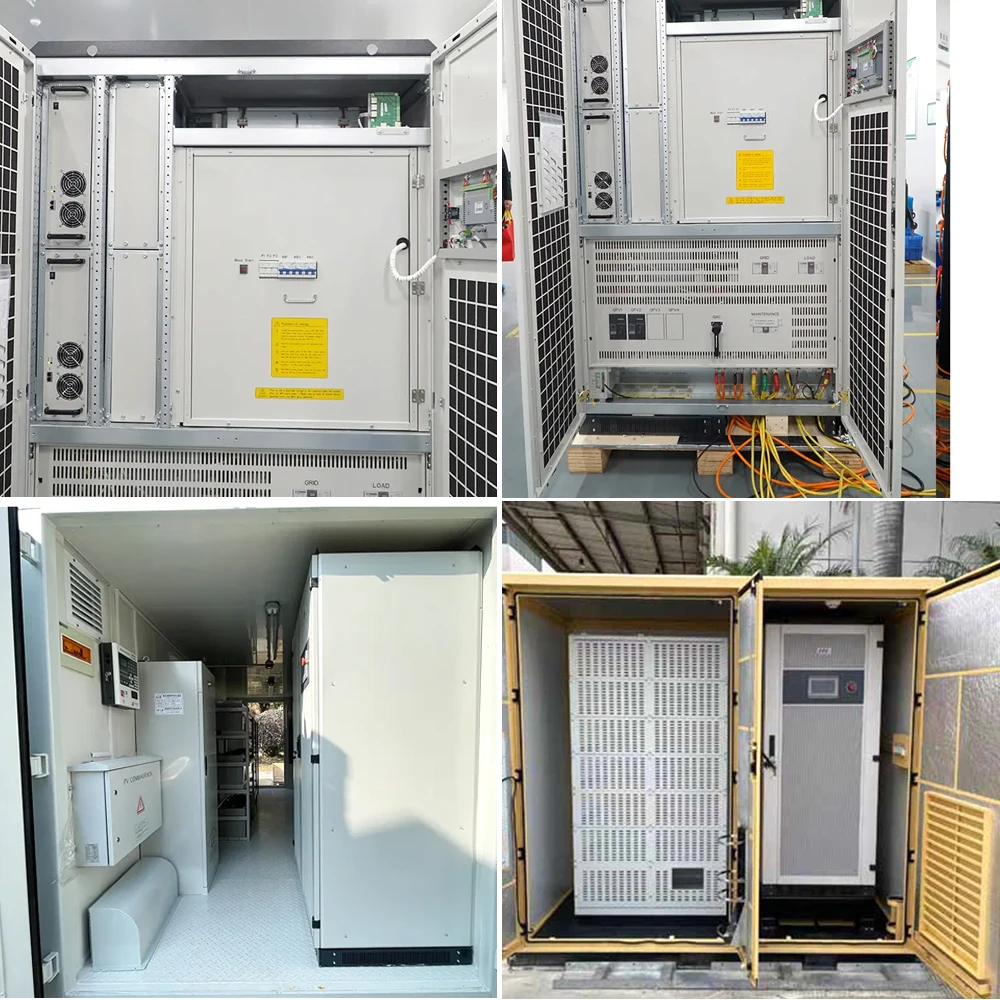

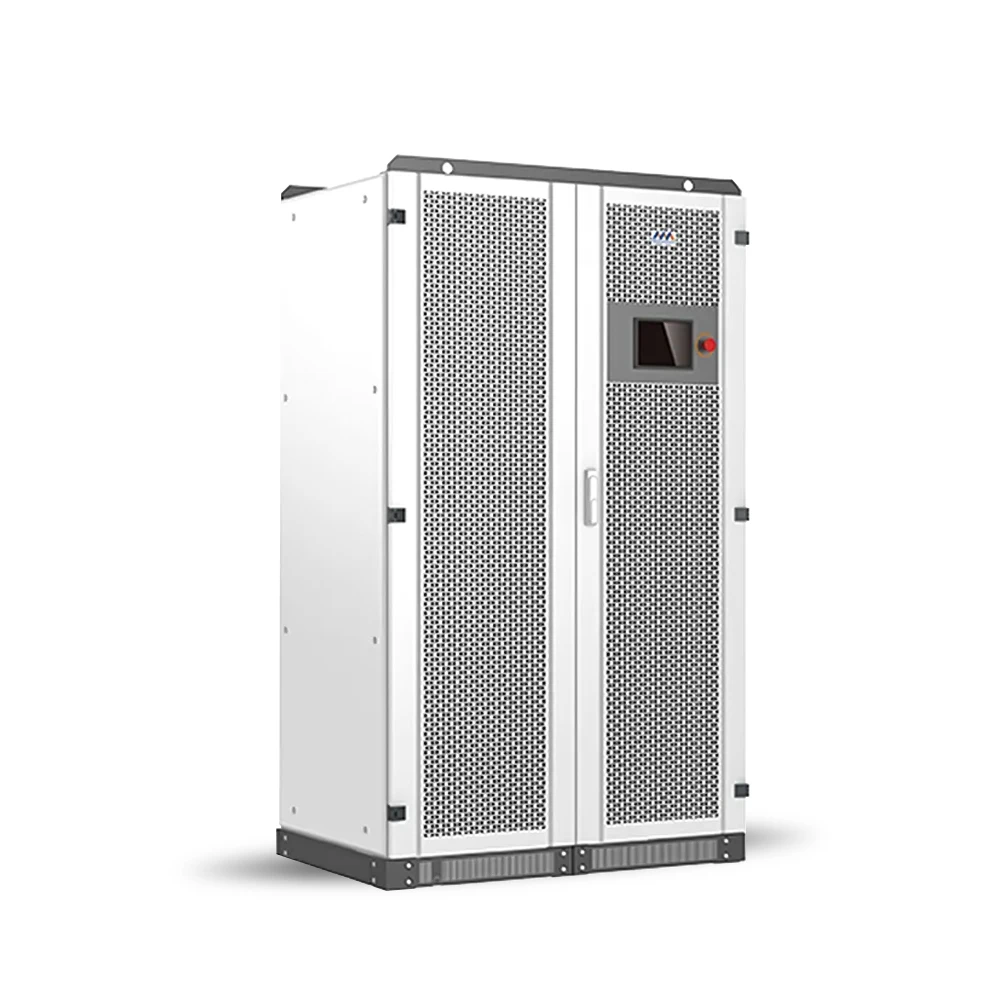

Product Picture&Packing
Our company

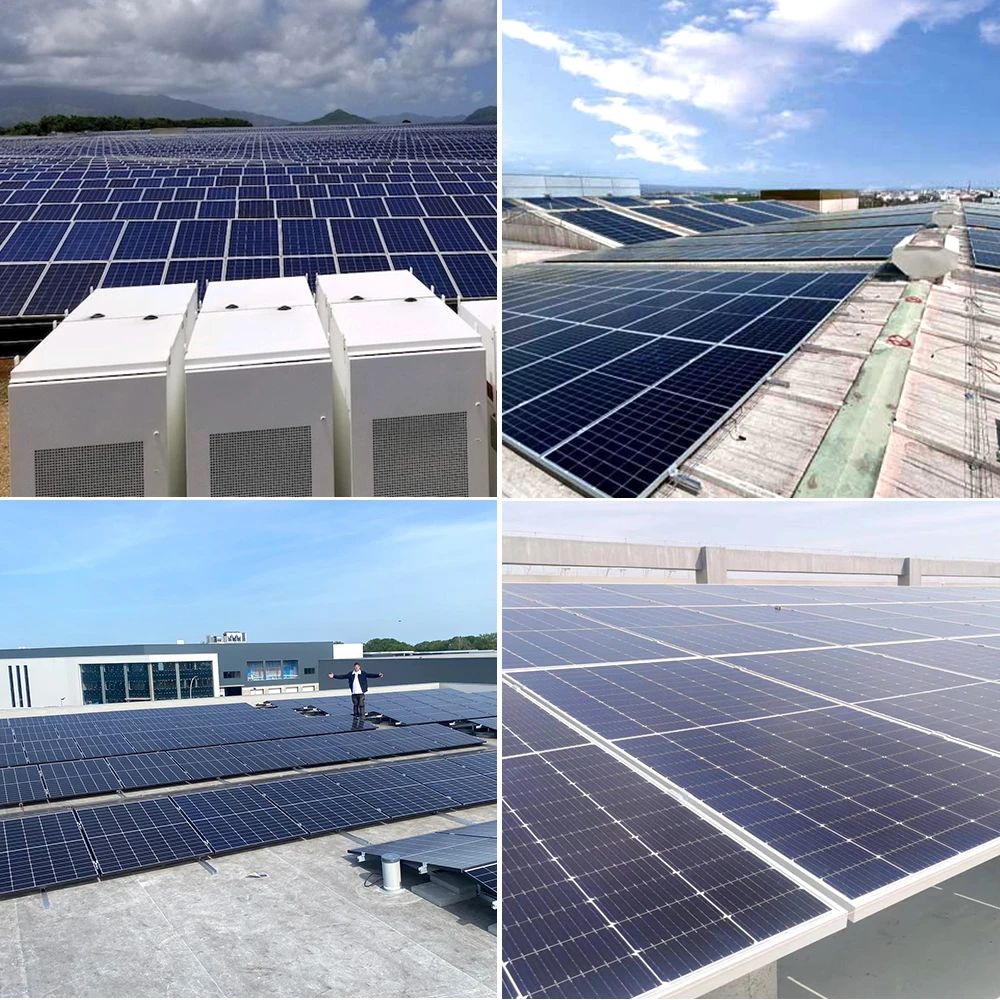

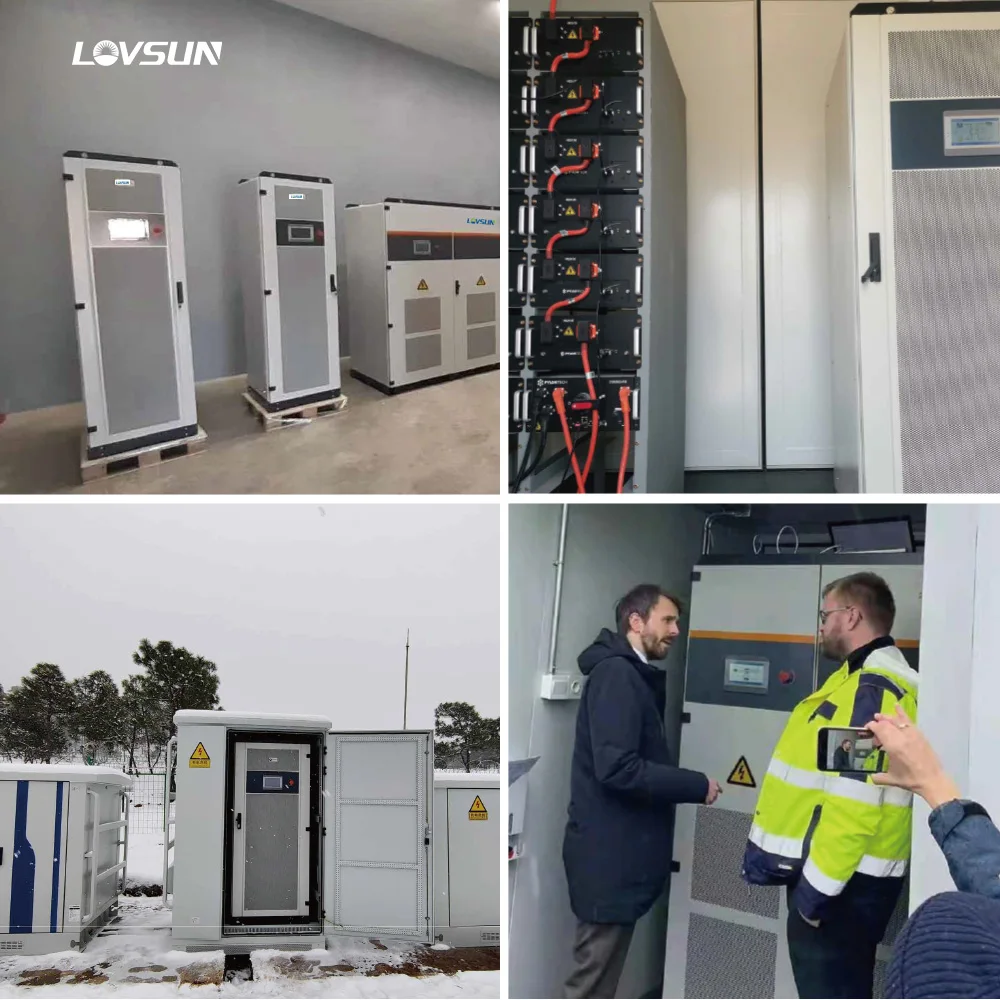

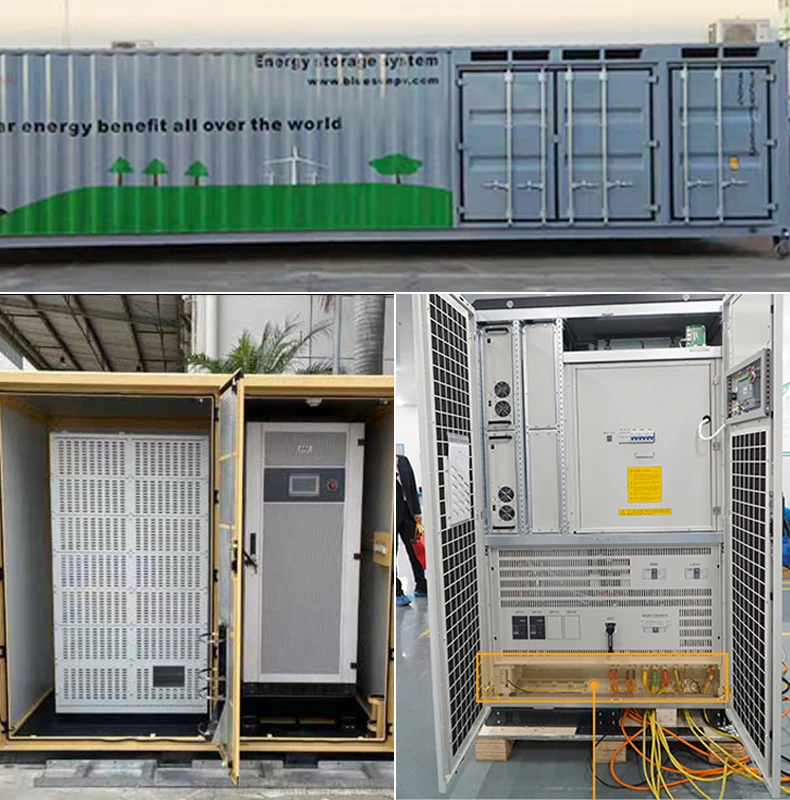

Project
