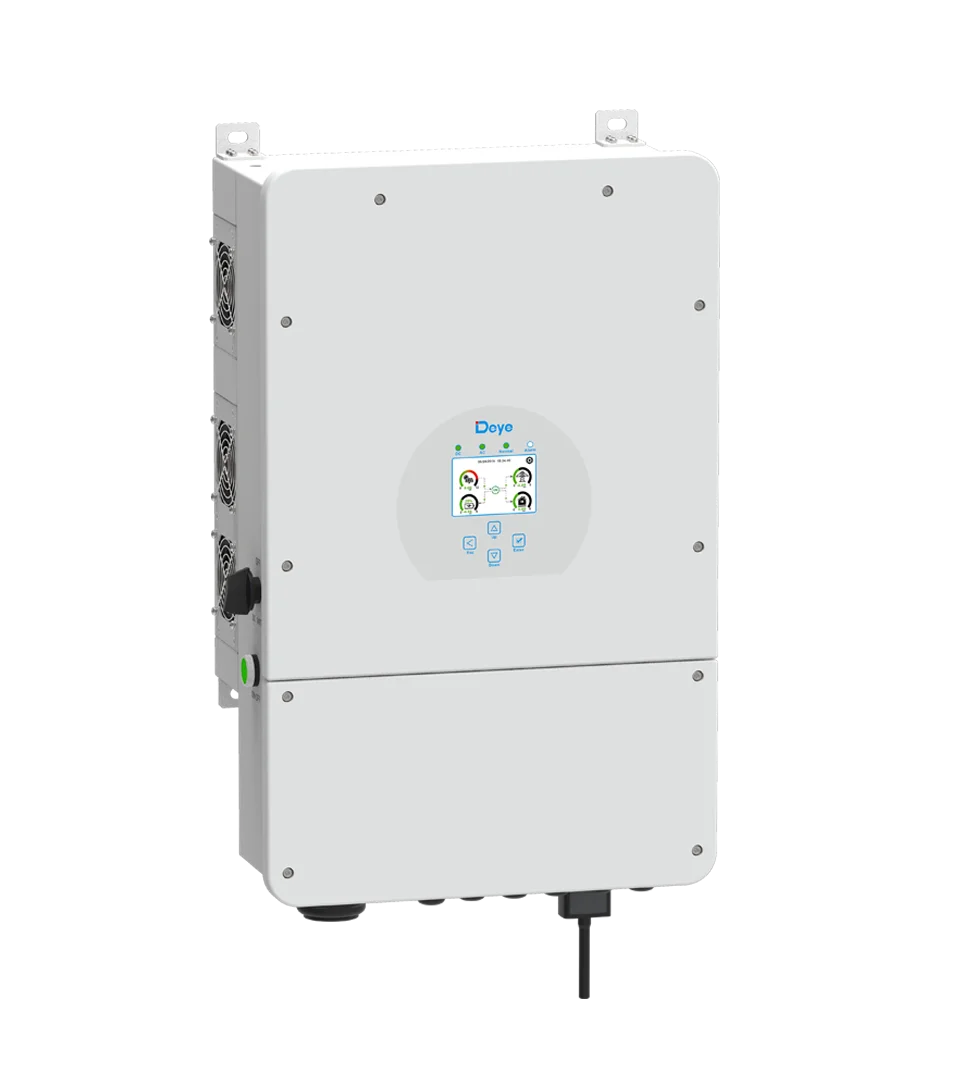

SUN 8K SG01LP1EU 8000W Solar Hybrid Inverter IP65 Waterproof 8KWT 1 Phase Low Volta 8KW AC Output MPPT Controller 60Hz Frequency
- Category: >>>
- Supplier: Guangzhou Future Green Machinery Co. Ltd .Guangzhou .
Share on (1601341903585):

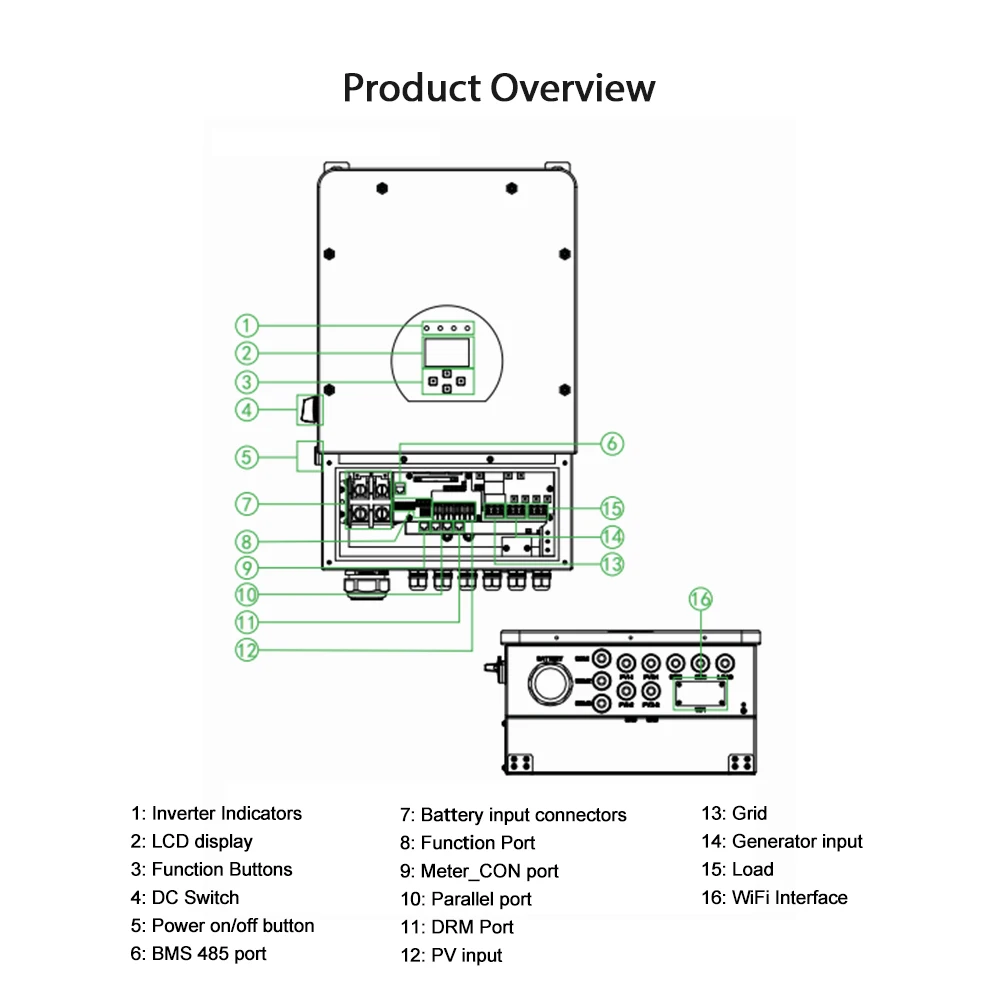

Product Overview
Description
SUN-8K-SG01LP1EU 8000W Solar Hybrid Inverter IP65 Waterproof 8KWT 1-Phase Low Volta 8KW AC Output MPPT Controller 60Hz Frequency
* Colorful touch LCD, IP65 protection degree
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 190A
* AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 190A
* AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
Product Paramenters
Model | SUN-8K-SG01LP1-EU | |
Battery Input Data | ||
Battery Type | Lead-acid or Li-lon | |
Battery Voltage Range (V) | 40~60 | |
Max. Charging Current (A) | 190 | |
Max. Discharging Current (A) | 190 | |
External Temperature Sensor | Yes | |
Charging Curve | 3 Stages / Equalization | |
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |
PV String Input Data | ||
Max. DC Input Power (W) | 10400 | |
Rated PV Input Voltage (V) | 370 (125~500) | |
Start-up Voltage (V) | 125 | |
MPPT Voltage Range (V) | 150-425 | |
Full LoadDC Voltage Range (V) | 200-425 | |
PV Input Current(A) | 26+26 | |
Max. PV ISC (A) | 34+34 | |
Number of MPPT / Strings per MPPT | 2/2+2 | |
AC Output Data | ||
Rated ACOutput and UPS Power(W) | 8000 | |
Max. AC Output Power(W) | 8800 | |
Rated AC Input/Output Current（A） | 36.4/34.8 | |
Max AC Input/Output Current（A） | 40/38.3 | |
Max. Continuous AC Passthrough (A) | 50 | |
Peak Power (off-grid)（W） | 2 time of rated power, 10 S | |
Power Factor | 0.8 leading to 0.8 lagging | |
Output Frequency and Voltage | 50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase),L/N/PE 220/230Vac (single phase) | |
Grid Type | Split phase; 2/3 phase; Single Phase | |
DC injection current (mA) | THD<3% (Linear load<1.5%) | |
General Data | ||
Operating Temperature Range (℃) | -45~60℃, >45℃ derating | |
Cooling | Smart cooling | |
Noise (dB) | <30 dB | |
Communication with BMS | RS485; CAN | |
Weight (kg) | 30 | |
Size (mm) | 420W×670H×233D | |
Installation Style | Wall-mounted | |
Warranty | 5 years/10years | |

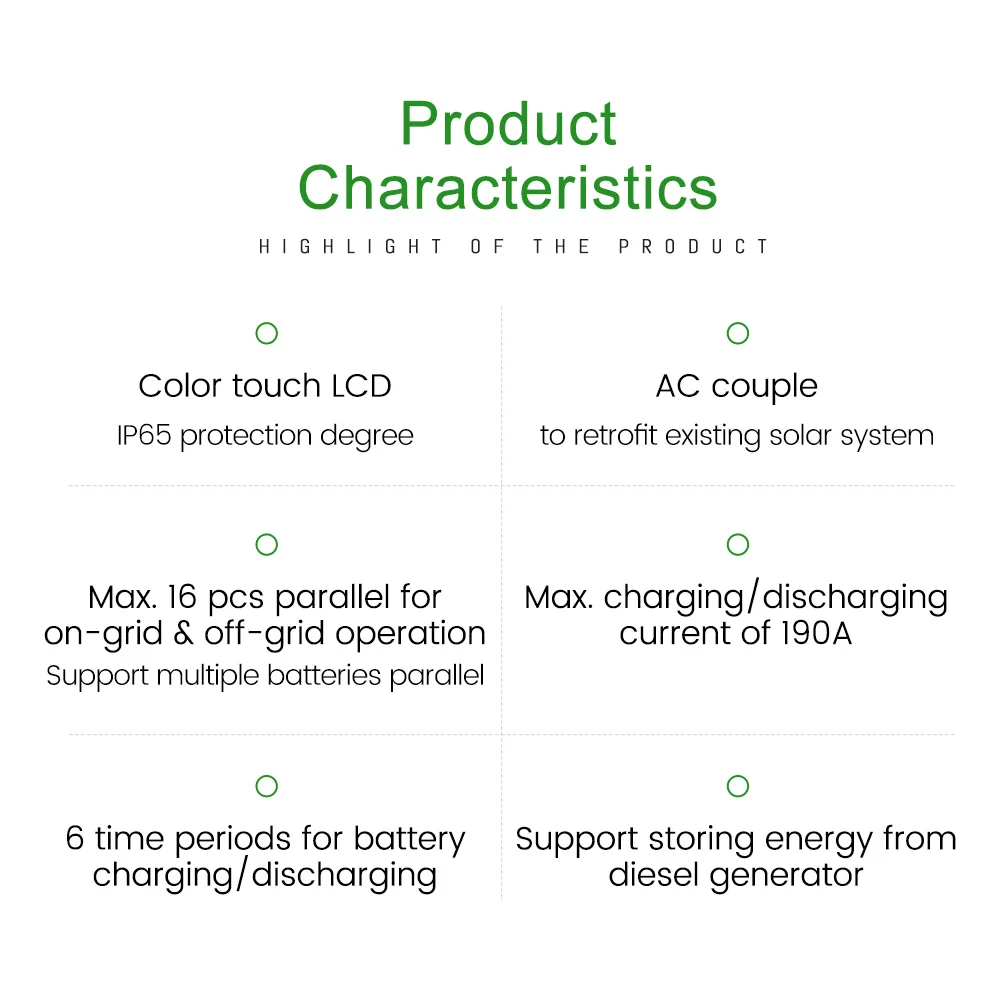

Product Characteristics

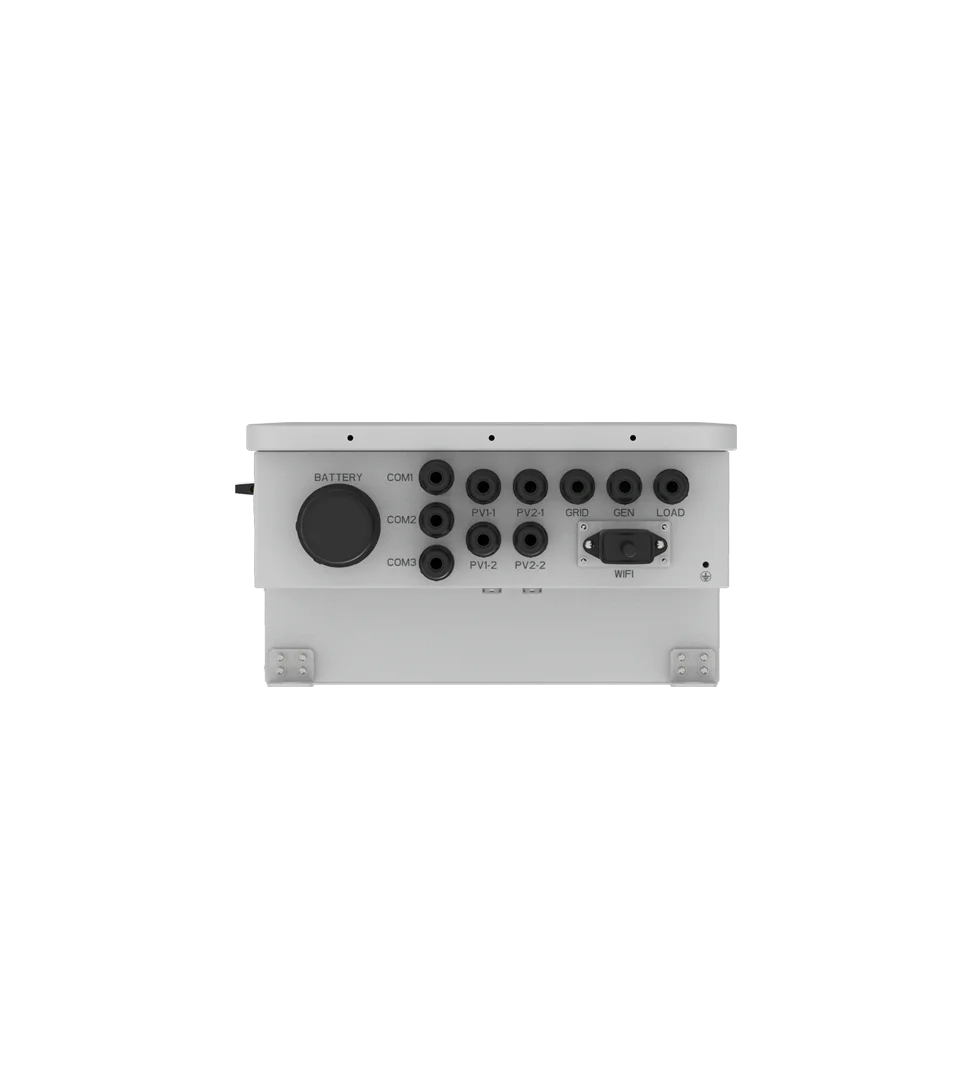

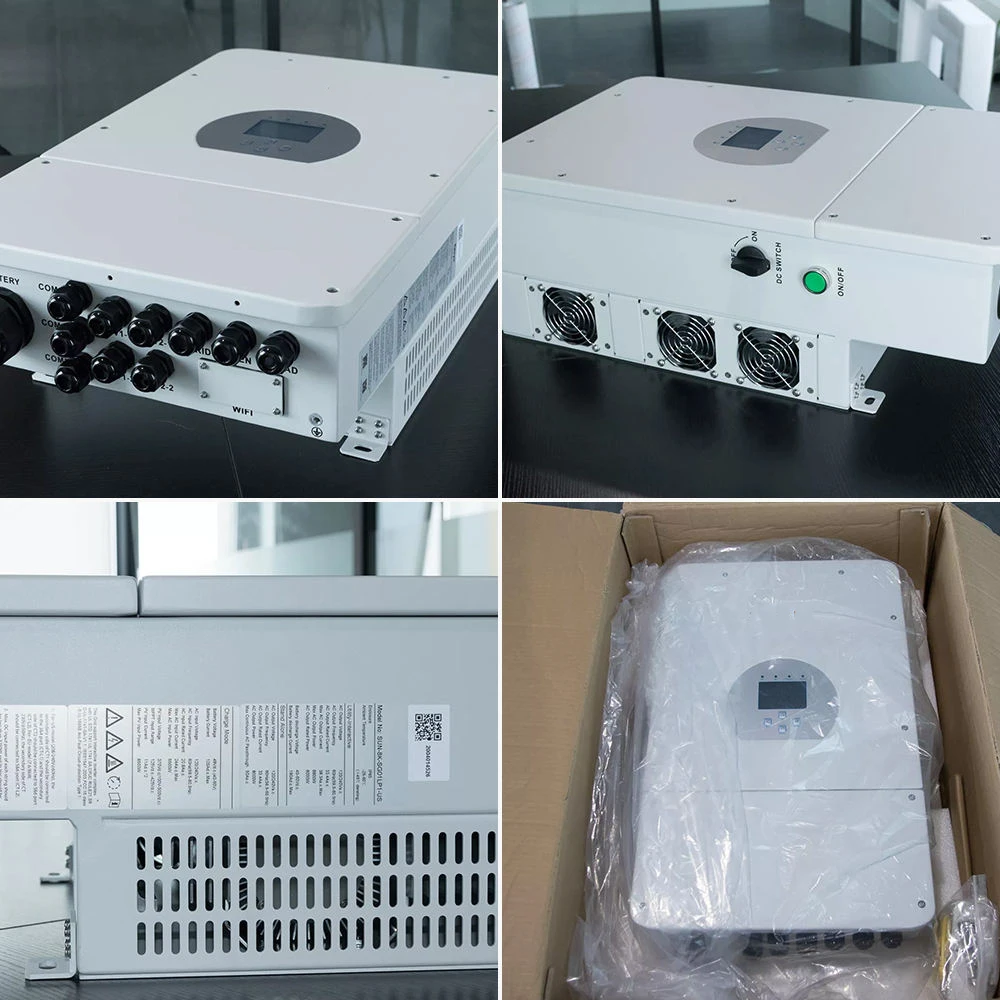

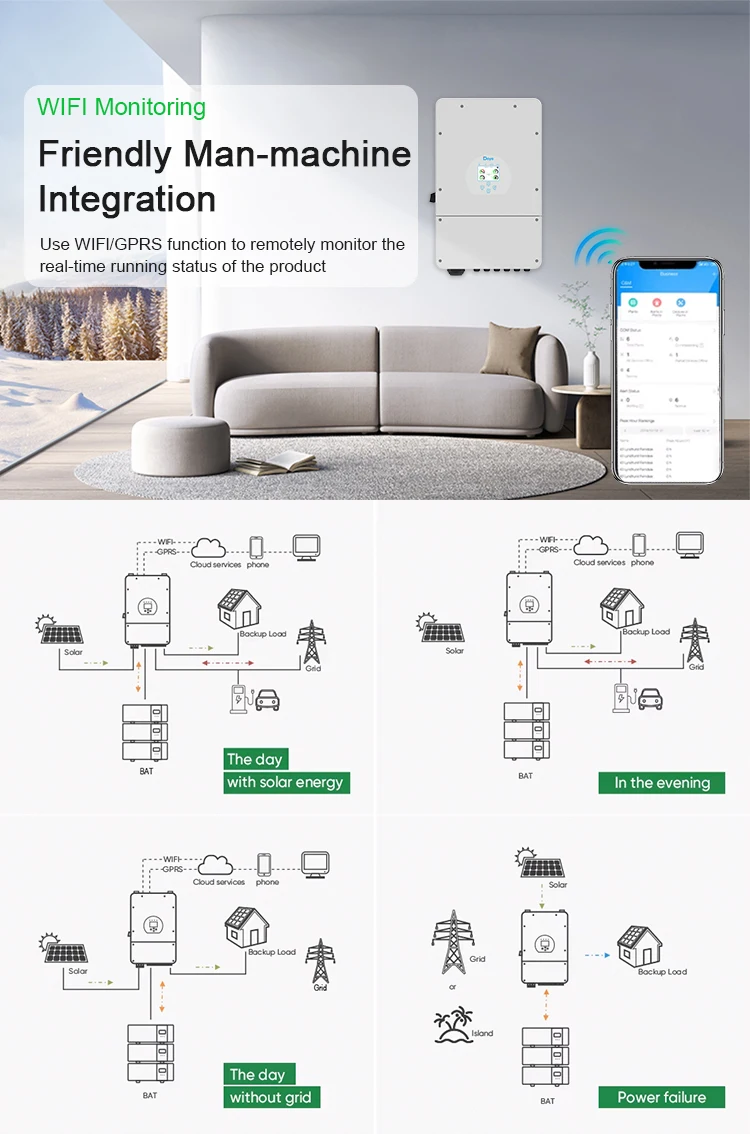

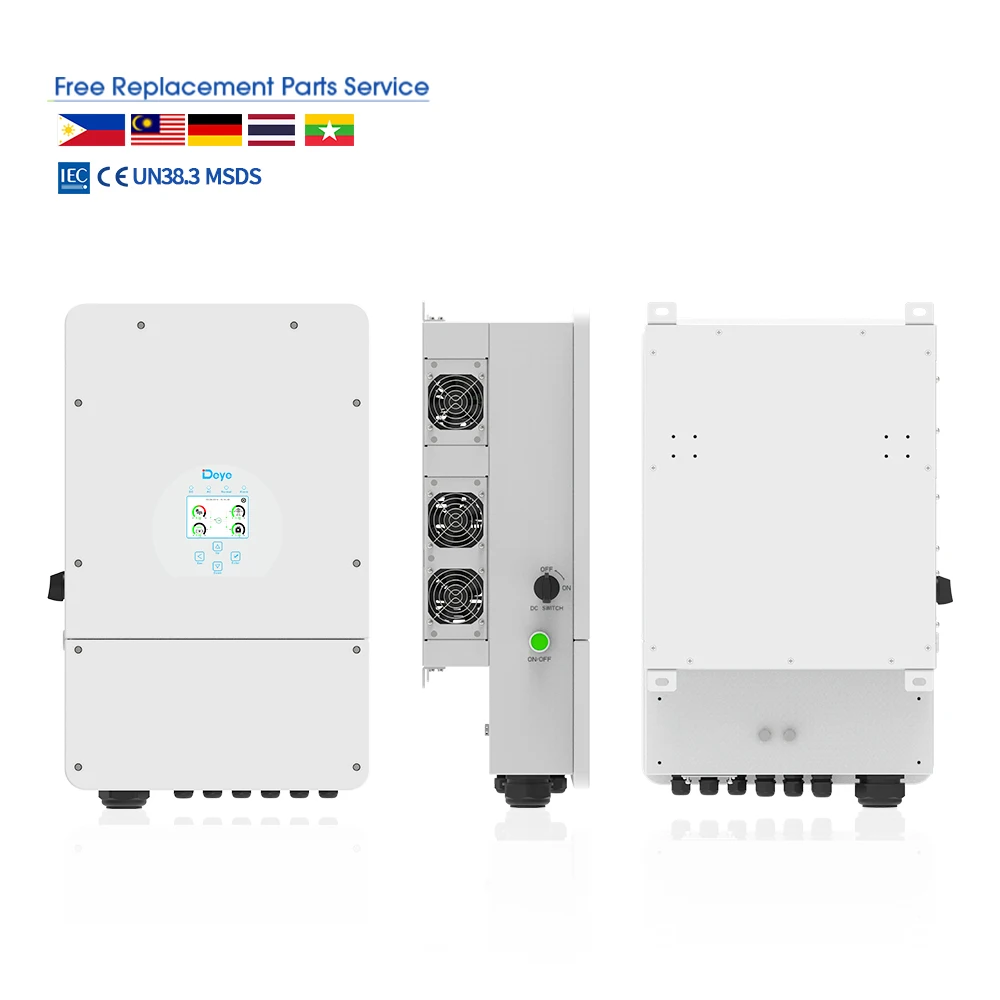

Product Details

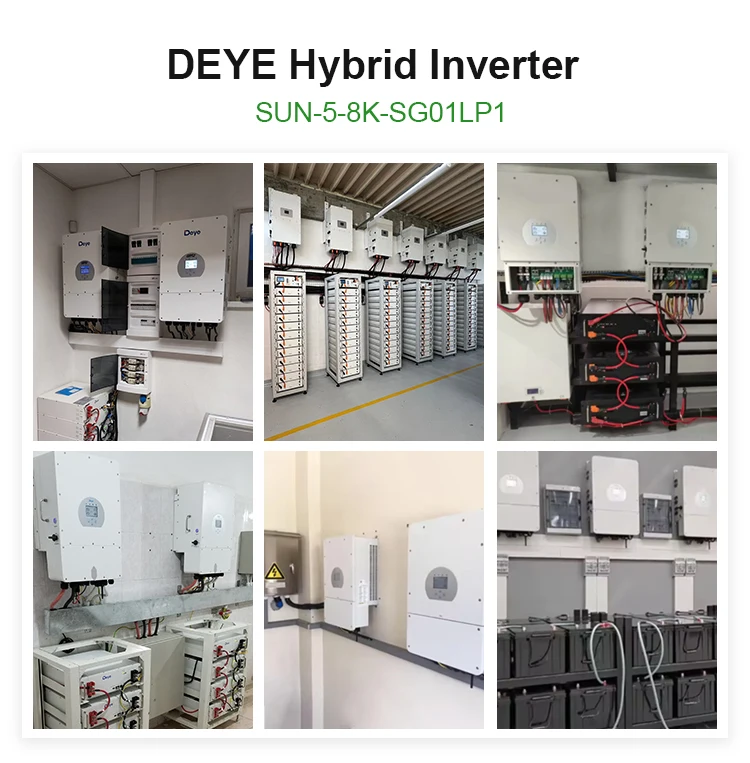

Project Case
Customer Feedback
Packaging & Shipping

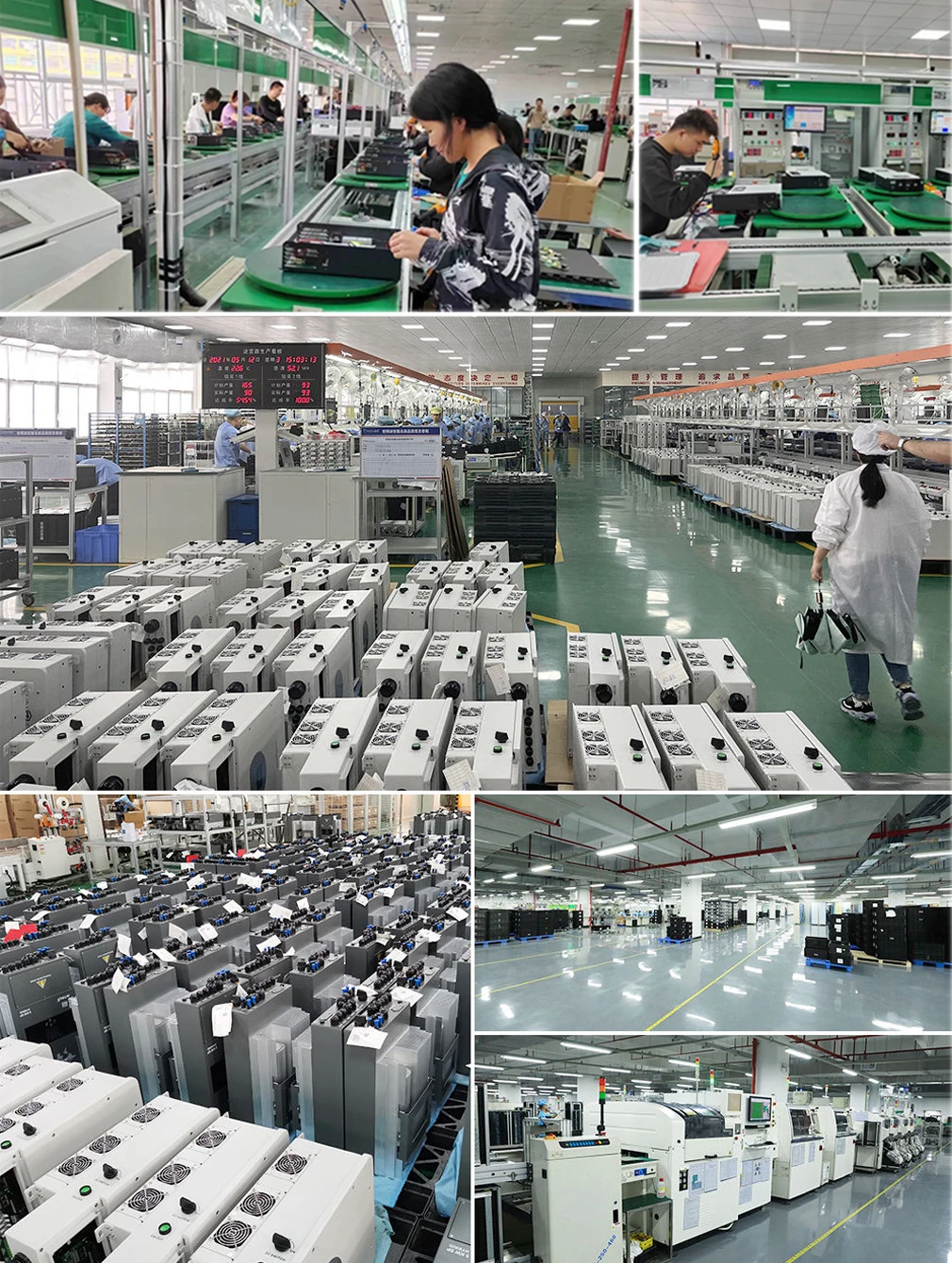

Super Factory
FAQ
