Product Overview
Description
Description:

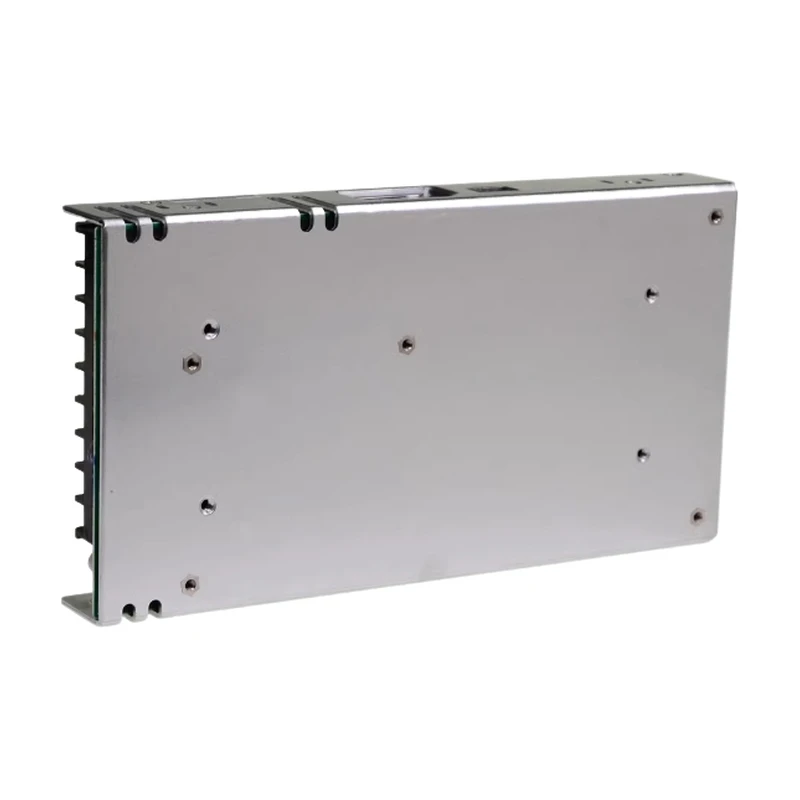

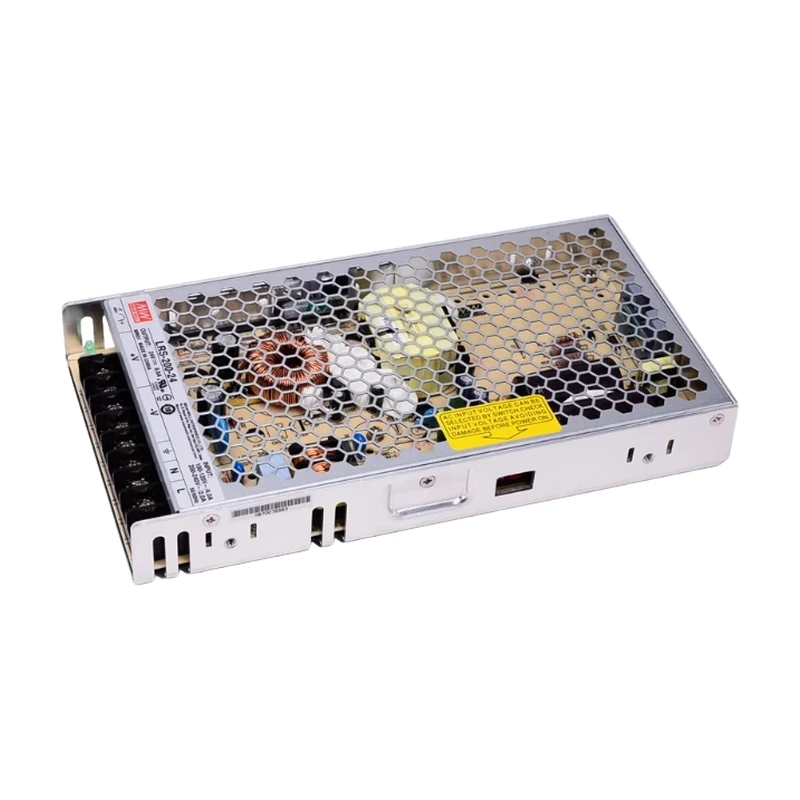

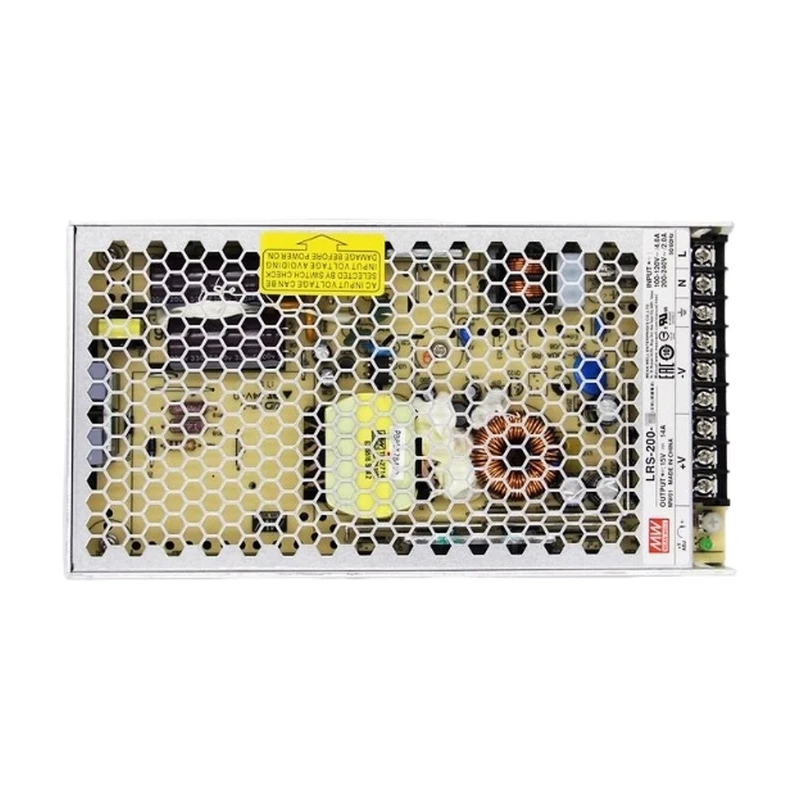

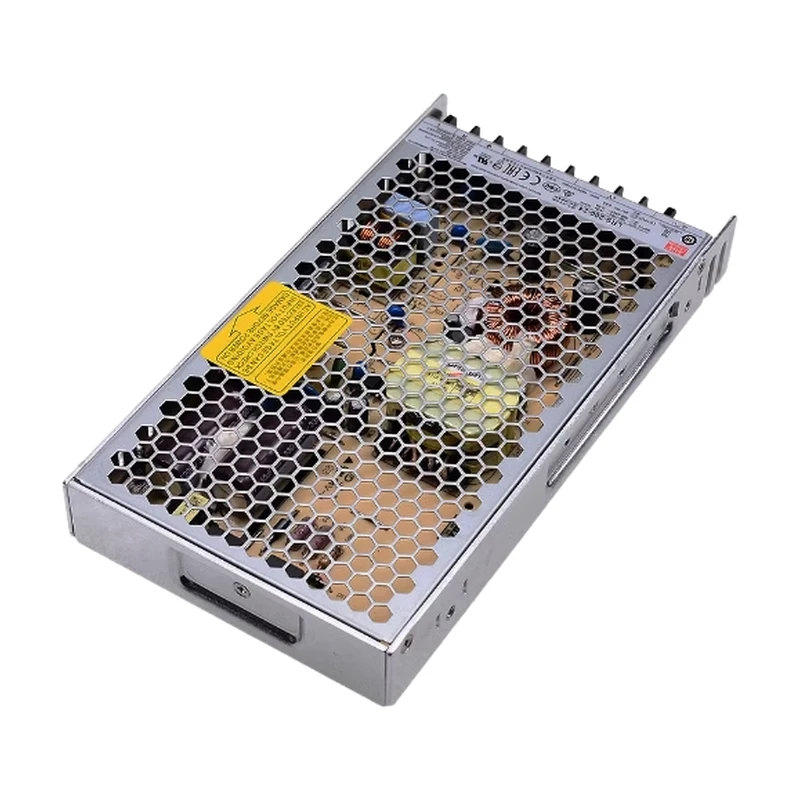

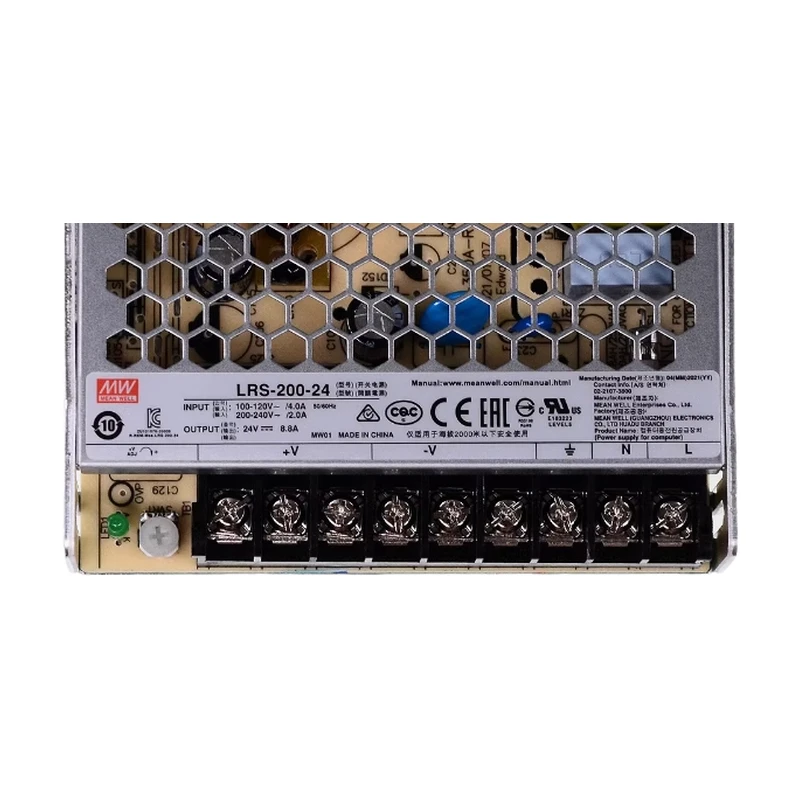

The LRS-200 series is a 200W single output enclosed power supply with a 30mm low profile design. It accepts 115VAC or 230VAC segmented input (selectable by switch) and provides output voltages of 4.2V, 5V, 12V, 15V, 24V, 36V and 48V for the whole series. With an efficiency of up to 90%, the metal mesh enclosure design enhances heat dissipation, enabling the LRS-200 to operate in a temperature range of -25°C to +70°C without a fan. It offers ultra-low no-load power consumption (< 0.75W), making it easy for end systems to meet international energy requirements. The LRS-200 has complete protection functions and 5G vibration resistance; it complies with UL62368-1 international safety regulations. The LRS-200 series provides a cost-effective solution for various industrial applications.
| model | LRS-200-3.3 | LRS-200-4.2 | LRS-200-5 | LRS-200-12 | LRS-200-15 | LRS-200-24 | LRS-200-36 | LRS-200-48 | |
| output | volts d.c | 3.3V | 4.2V | 5V | 12V | 15V | 24V | 36V | 48V |
| rated current | 40A | 40A | 40A | 17A | 14A | 8.8A | 5.9A | 4.4A | |
| current range | 0~40A | 0~40A | 0~40A | 0~17A | 0~14A | 0~8.8A | 0~5.9A | 0~4.4A | |
| power rating | 132W | 168W | 200W | 204W | 210W | 211.2W | 212.4W | 211.2W | |
| Waves and noise (maximum) Note 2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltage adjustment range | 2.97~3.6V | 3.6~4.4V | 4.5~5.5V | 10.2~13.8V | 13.5~18V | 21.6~28.8V | 32.4~39.6V | 43.2~52.8V | |
| Voltage accuracy note 3 | ±3.0% | ±4.0% | ±3.0% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate Note 4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load adjustment rate note 5 | ±2.5% | ±2.5% | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Start-up, rise time | 1,500 ms, 50ms / 230VAC 1500ms, 50ms / 115VAC (when fully loaded) | ||||||||
| Hold time (Typ.) | 16ms / 230VAC 12ms / 115VAC (when fully loaded) | ||||||||
| import | voltage range | 90~132VAC / 180~264VAC (via switch selection) 240~370VDC (switch on 230VAC) | |||||||
| frequency range | 47~63Hz | ||||||||
| productiveness (Typ.) | 83% | 86% | 87% | 87.50% | 88% | 89.50% | 89.50% | 90% | |
| AC current (Typ.) | 4A/115VAC 2.2A/230VAC | ||||||||
| Inrush current (Typ.) | Cold start at 60A / 115VAC 60A / 230VAC | ||||||||
| leakage current | <2mA/240VAC | ||||||||
| protect | excess load | 110~140% of the rated output power | |||||||
| 3.3~36V hiccup mode. After removing the abnormal condition, it can automatically restore the 48V turn-off output voltage and restart the recovery | |||||||||
| 3.8~4.45V | 4.6~5.4V | 5.75~6.75V | 13.8~16.2V | 18~21V | 28.8~33.6V | 41.4~46.8V|55.2~64.8V | |||
| overvoltage | 3.3~36V hiccup mode. After removing the abnormal condition, it can automatically restore the 48V turn-off output voltage and restart the recovery | ||||||||
| excess temperature | 3.3~36V hiccup mode. After removing the abnormal condition, it can automatically restore the 48V turn-off output voltage and restart the recovery | ||||||||
| environment | working temperature | -25~ + 70℃ (refer to "reduction curve") | |||||||
| Working humidity | From 20 to 90% RH, with no condensation | ||||||||
| Storage temperature, and humidity | -40~+85℃,10~95%RH | ||||||||
| temperature coefficient | ±0.03%/℃(0~50℃) | ||||||||
| vibration resistance | 10 to 500 Hz, 5G 10 minutes / cycle, 60 minutes each X, Y and Z | ||||||||
| vervoltage grade | Ⅲ:According to EN61558,EN50178,EN60664-1,EN62477-1;altitude up to 2000 meters | ||||||||
| safety standard | safe code | IEC/UL62368-1, BSMI CNS15598-1, EAC TP TC004, KC62368-1 (LRS-200-12 / 24 only), GB 4943.1, BIS IS13252 (Part1): 2010 / IEC60950-1:2005 (Note 11), BSEN/EN61558-1, BS EN61558-2-16, Certification is passed; Design according to AS / NZS 61558.1/2.16, AS/NZS62368.1, BS EN/EN62368-1 | |||||||
| withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| Insulation impedance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70%RH | ||||||||
| Electromagnetic compatible emission | Compliance with BSMI CNS15936, EAC TP TC020, KS C9832, KS C9835 (LRS-200-12 / 24 only) | ||||||||
| EMC immunity | Compliance with BS EN / EN55035, EAC TPTC020, KSC9832, KSC9835 (LRS-200-12 / 24 only) | ||||||||
| else | MTBF | 2346.6K hrs min.Telcordia SR-332(Bellcore);279.4Khrs min.MIL-HDBK-217F(25℃) | |||||||

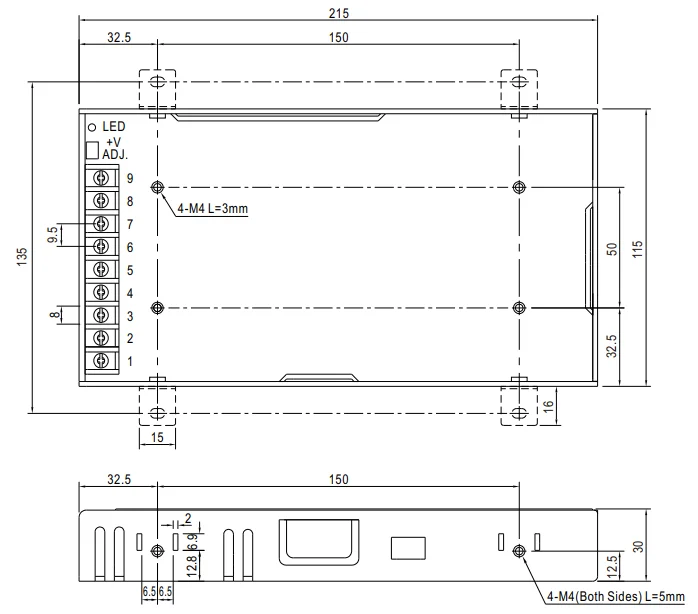

| size | 215*115*30mm(L*W*H) | ||||||||
| pack | 0.66Kg;15pcs/10.9Kg/0.67CUFT | ||||||||
