Product Overview

Description

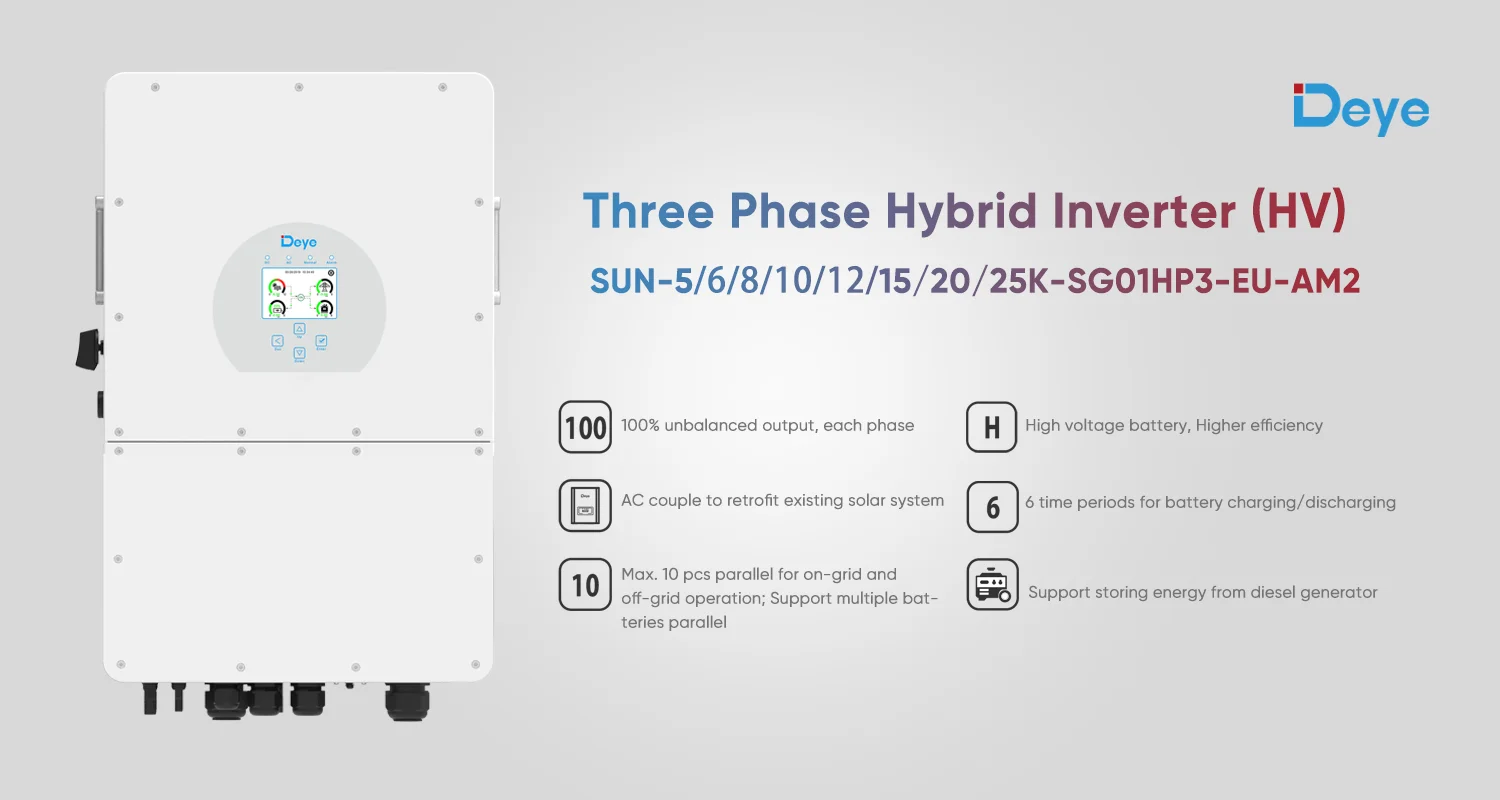

Products Description





Model
SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2







5K
6K
8K
10K
15K
20K
25K
Battery Input Data







Battery Type
Lithium-ion






Battery Voltage Range(V)
160-700






Max.Charging Current(A)
30
30
37



50
Max.Discharging Current(A)
30
30
37



50
Charging Strategy for Li-ion Battery
Self-adaption to BMS






Number of battery input
1






PV String Input Data







Max. PV Access Power (W)
10000
12000
16000
20000
30000
40000
50000
Max DC Input Power（W）
8000
9600
12800
16000
24000
32000
40000
Max DC Input Voltage（V）
1000






Start-up Voltage（V）
180






MPPT Voltage Range（V）
150-850






Rated DC Input Voltage(V)
600





700
Max Input Short-Circuit Current（A）
30+30




39+39

Max Operating PV Input Current（A）
20+20




26+26

No.of MPP Trackers/No.of String Per MPP Tracker
2/1+1




2/2+2

AC Input/Output Data







Rated AC Input/Output Active Power（W）
5000
6000
8000
10000
15000
20000
25000
Max AC Input/Output Apparent Power （VA）
5500
6600
8800
11000
16500
22000
27500
Peak Power (off-grid)（W）
1.5 times of rated power,10s






Rated AC Input/Output Current（A）
7.6/7.3
9.1/8.7
12.2/11.6
15.2/14.5
22.8/21.8
30.4/29
37.9/36.3
Max AC Input/Output Current（A）
8.4/8
10/9.6
13.4/12.8
16.7/16
25/24
33.4/31.9
41.7/39.9
Max Continuous AC Passthrough (grid to load)（A）

40






Rated Input/Output Voltage/Range(V)

220/380V，230/400V 0.85Un-1.1Un






Grid Connection Form
3L+N+PE






Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz 60Hz/55Hz-65Hz






Power Factor Adjustment Range

0.8 leading to 0.8 lagging






Total Current Harmonic Distortion THDi

<3% (of nominal power)






DC Injection Current
<0.5%ln








How does it work?
The above illustration shows basic application on of this inverter.
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner


Intelligent Monitoring


* Open station supports one-click installation and registration
* Problem support one-click dispatch and navigation
* Safe operation, traceable logs, etc
* Support full lifecycle data storage to ensure data security and reliability

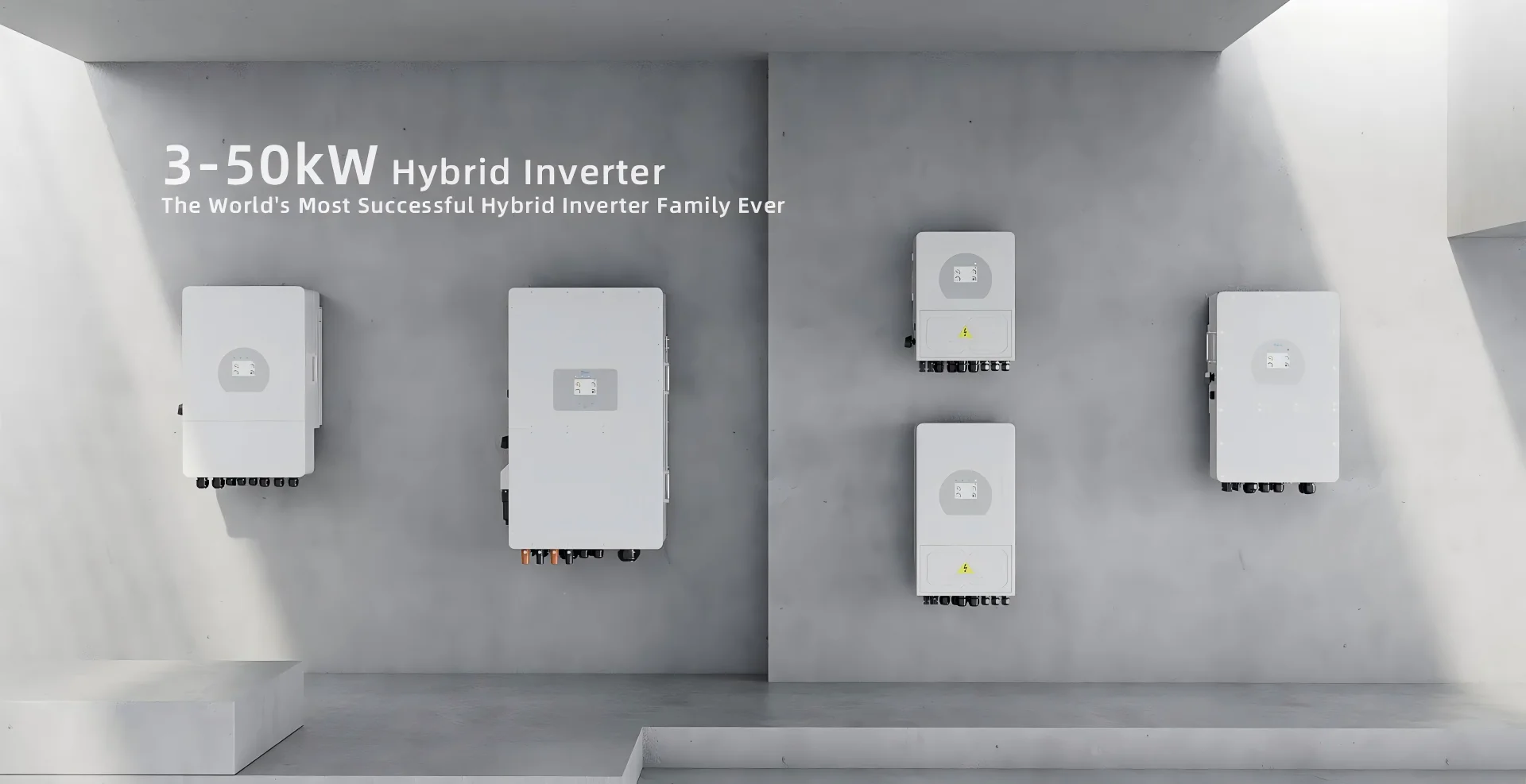

Product Series


SUN-3/3.6/5/6K-SG04LP1 | 3-6KW
Output Power: 3-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-3.6/5/6K-SG03LP1-EU | 3.6-6KW
Output Power: 3.6-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-3.6/5/6/7.6/8K-SG05LP1-EU | 3.6-8KW
Output Power: 3.6-8KW Single Phase
Output Voltage: 220/230/240V Battery Voltage: 40-60V Battery Type: Lead-acid or Lithium-ion


SUN-5/6K-SG01LP1-US
SUN-7.6/8K-SG01LP1-US/EU | 5-8KW
Output Power: 5-8KW Split Phase
Output Voltage: 120V/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-5/6/8/10/12K-SG04LP3 | 5-12KW
Output Power: 5-12KW Three Phase
Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-12/14/16K-SG01LP1 | 12-16KW
Output Power: 12-16KW Single Phase Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion


Our Factory


Deye
Deye is a global leader of smart energy solutions, provides residential, commercial and utility-scale PV inverters, The company is dedicated to becoming the world’s largest supplier of smart energy solutions. Deye has an advanced manufacturing plant in Ningbo, China. The facility covers an area of 200,000 square meters and has an annual output of 20GW. Growatt is one of the world’s top 10 inverter brands. Having its strong competitive advantages in distributed solar, the company is the world’s. No.1 residential inverter supplier and it also ranks among the world‘s top 5 suppliers.


Package and Delivery



Packing Details : In carton on pallet or wooden box
Delivery Details : 5-15 working days

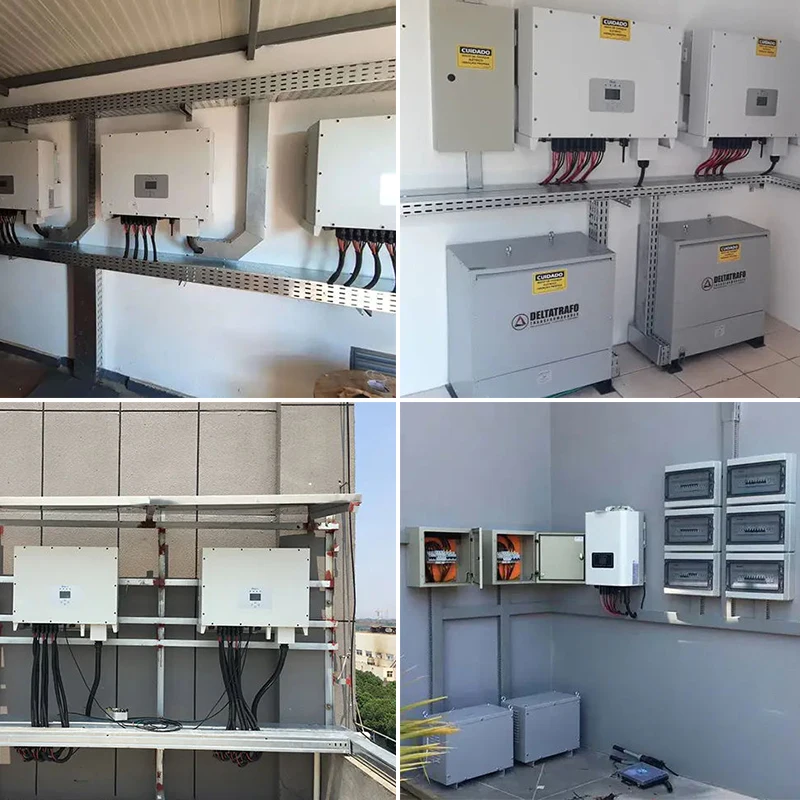

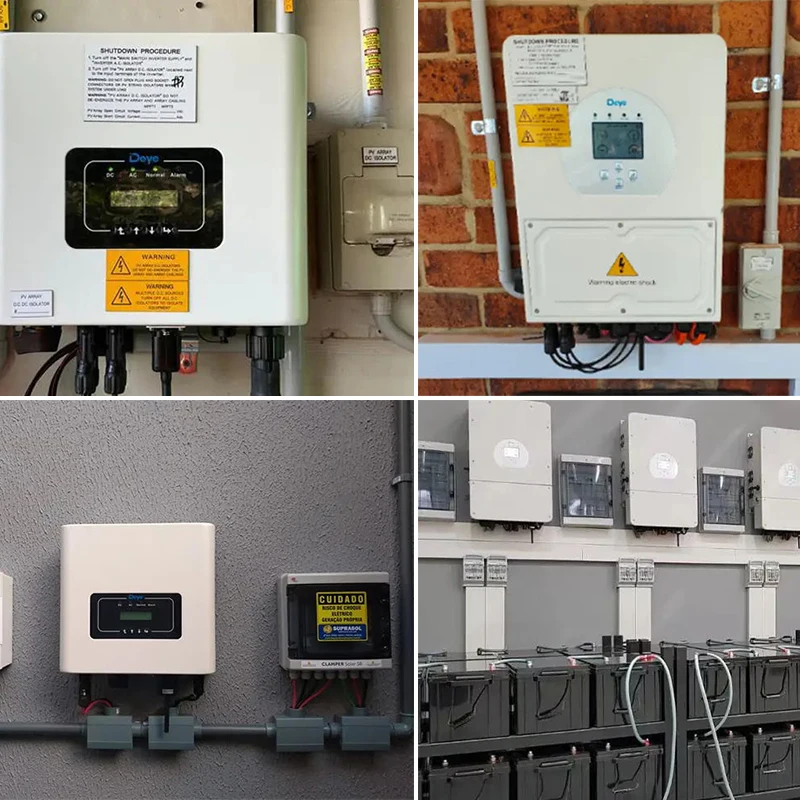

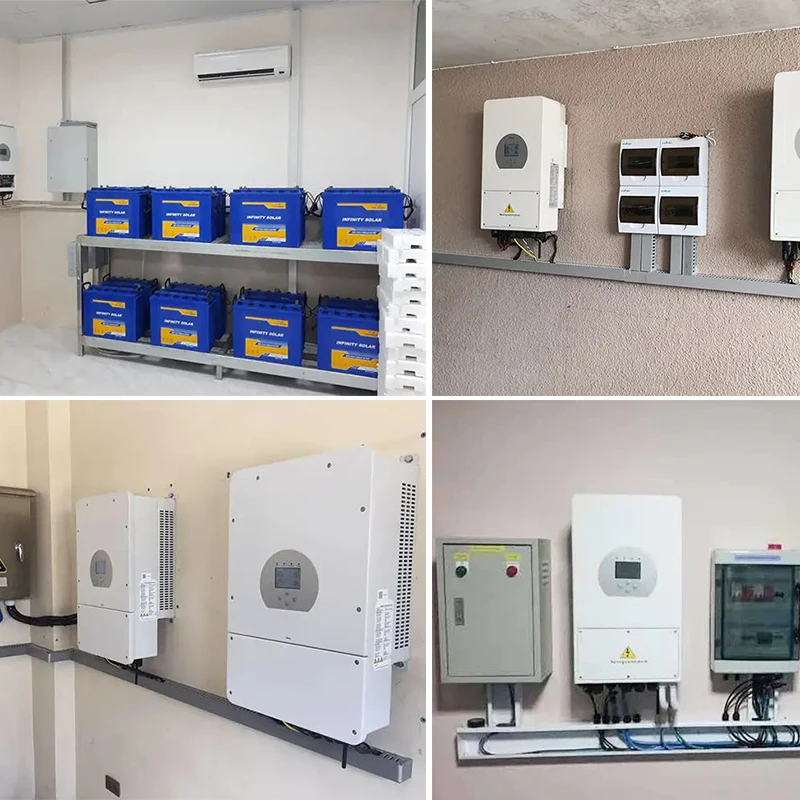

Projects





Deye Residential Hybrid Solar System All Over the World.


Payment


                                                                                                                                           Payment Term
                                                                                           T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(CNF)
30% T/T in advance, paid the balance against copy of B/L
CIF
                L/C
L/C amount above 50,000 usd, we can accept L/C at sight
     Western Union
Amount Lower than 5000usd


Go Solar



We can supply complete On Grid, Off Grid and Hybrid solar system, Include solar panel, inverter, battery and accessories etc.
