Coffee tea powder filling packaging machine 1 100g sachet bags vertical spiral filling packing machine
Coffee tea powder filling packaging machine 1-100g sachet bags vertical spiral filling packing machine
Coffee tea powder filling packaging machine 1-100g sachet bags vertical spiral filling packing machine
Coffee tea powder filling packaging machine 1-100g sachet bags vertical spiral filling packing machine
Coffee tea powder filling packaging machine 1-100g sachet bags vertical spiral filling packing machine
Coffee tea powder filling packaging machine 1-100g sachet bags vertical spiral filling packing machine
Coffee tea powder filling packaging machine 1-100g sachet bags vertical spiral filling packing machine

Coffee tea powder filling packaging machine 1 100g sachet bags vertical spiral filling packing machine

Share on (1601342619987):


Price:$4,700.00-5,500.00

Quantity:


Product Overview

Description

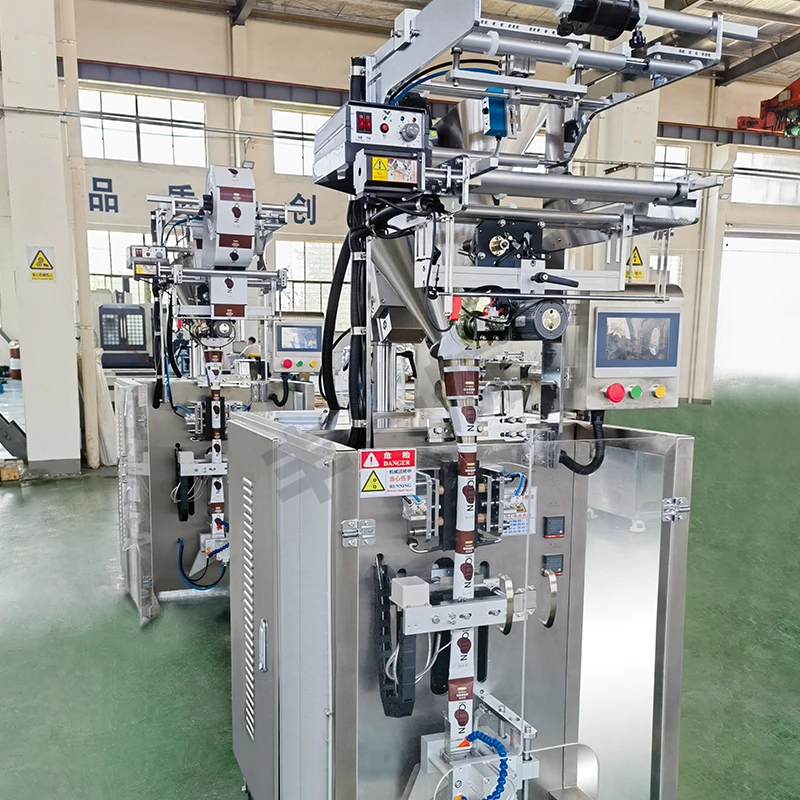

HDK Automatic Powder Sachet Packing Machine offers a versatile solution for a range of powder substances. This machine is tailored for efficiently packaging items like mono sodium, sugar, coffee, milk, pepper powder, desiccating agents, and more. Its key features include the automation of bag-making, measuring, material filling, sealing, counting, and code printing processes.

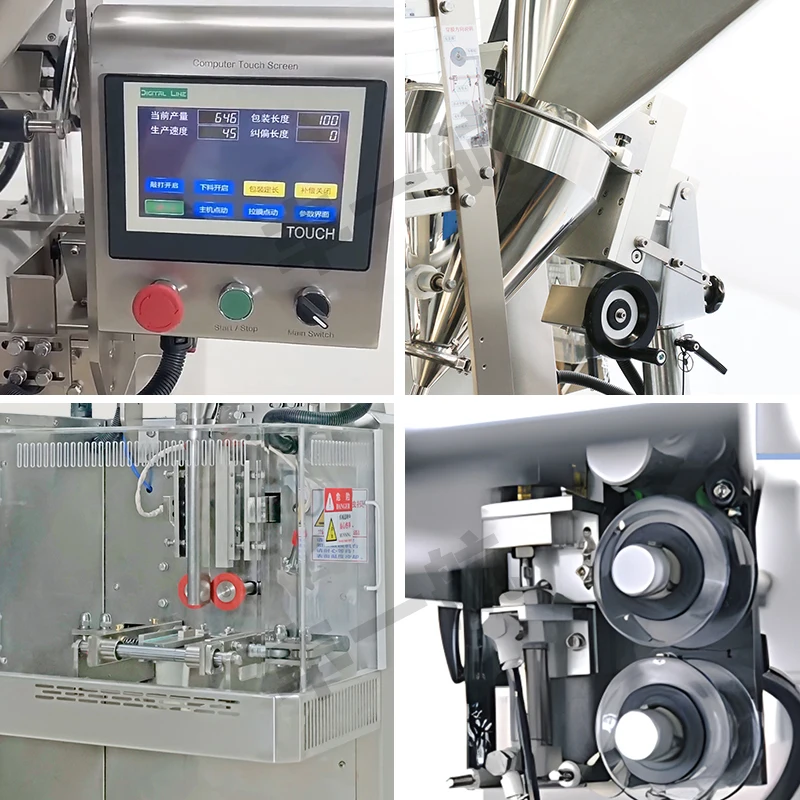

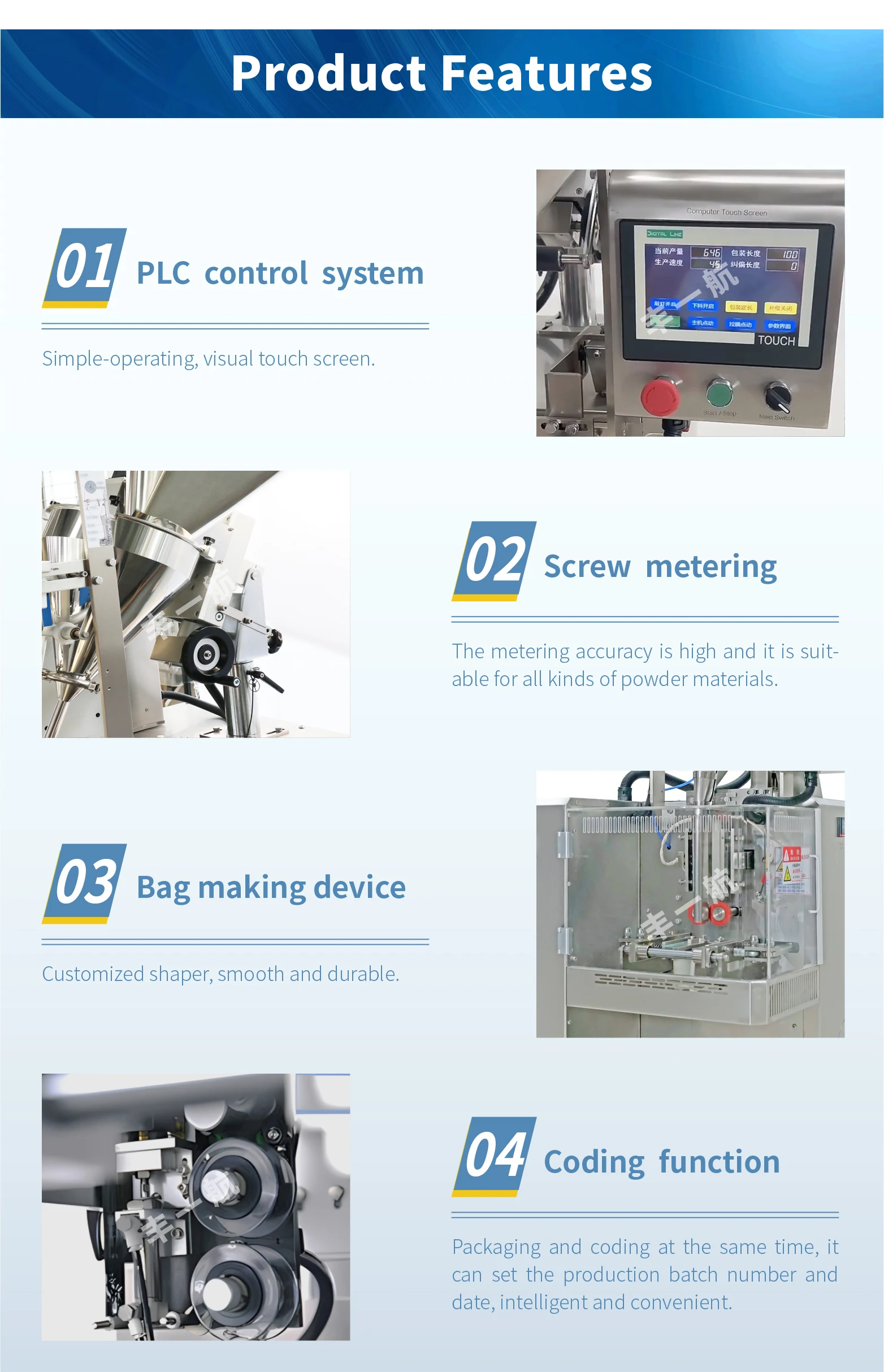

The machine can be equipped with a photoelectric and tracing system or a PLC system based on specific requirements. The PLC system enhances accuracy by precisely tracing, determining bag length, indicating packing quantity and speed, through user-friendly controls.
Additionally, it facilitates automatic printing of 1-3 line codes and shelf life details using a color belt code printer.

The machine is compatible with various packaging materials such as PT/PE, PET/PE, PET/AL Plating/PE, BOPP/PE, and other heat-sealable compound materials, ensuring a reliable and efficient packaging process for powdered substances.








Project
Parameter

Intermittent vertical packaging machine
Power supply and power
AC220V,50-60Hz two-phase 1.6kW
Gas consumption
HS sealing 0.1NL/cycle
Compressed air
Minimum 0.5MPa
Film materials
With cursor, without cursor, heat-sealable packaging film
Film roll outer diameter
Max:380mm
Inner diameter of film core
76mm
Packaging speed
30-80 packs/minute
Packaging film size
Max film width: 280mm
Machine dimensions
L730mm×W1000mm×H1690mm(can be customized according to customer requirements)
Machine weight
About 235kg
Environmental conditions
Relative humidity 30%~90%; ambient temperature 0℃~40℃
Bag width
30-130mm
Bag length
30-170mm

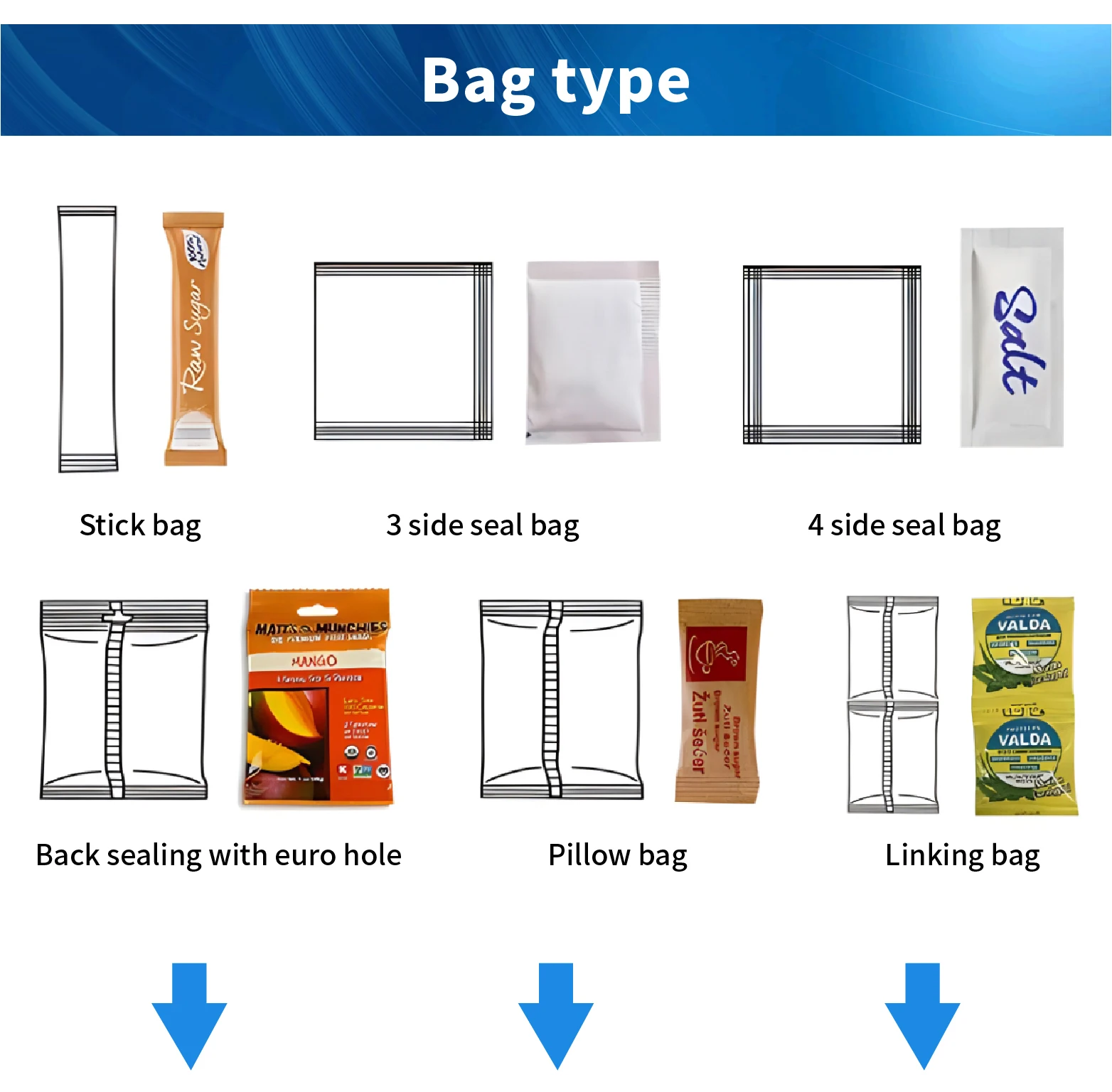

What bag sizes can the HDK produce?
The machine is capable of producing bags with a variety of sizes. Typically, it can handle bag widths from 30mm to 150mm and bag lengths from 30mm to 170mm, but these dimensions may vary based on specific model configurations.

What kind of materials can be used for packaging with the HDK?
The HDK can use various types of packaging materials such as polyethylene (PE), aluminum foil, and laminated films. It is designed to work with roll stock film that is supplied in rolls, which are unwound and formed into bags during the packaging process.

Is the HDK easy to maintain and clean?
Yes, the HDK is designed with ease of maintenance and cleaning in mind. It features quick-release components for easy access to internal parts, and the machine is constructed with materials that are compatible with standard cleaning procedures. Regular maintenance and cleaning will help ensure optimal performance and longevity of the machine.
