Product Overview
Description
Products Description

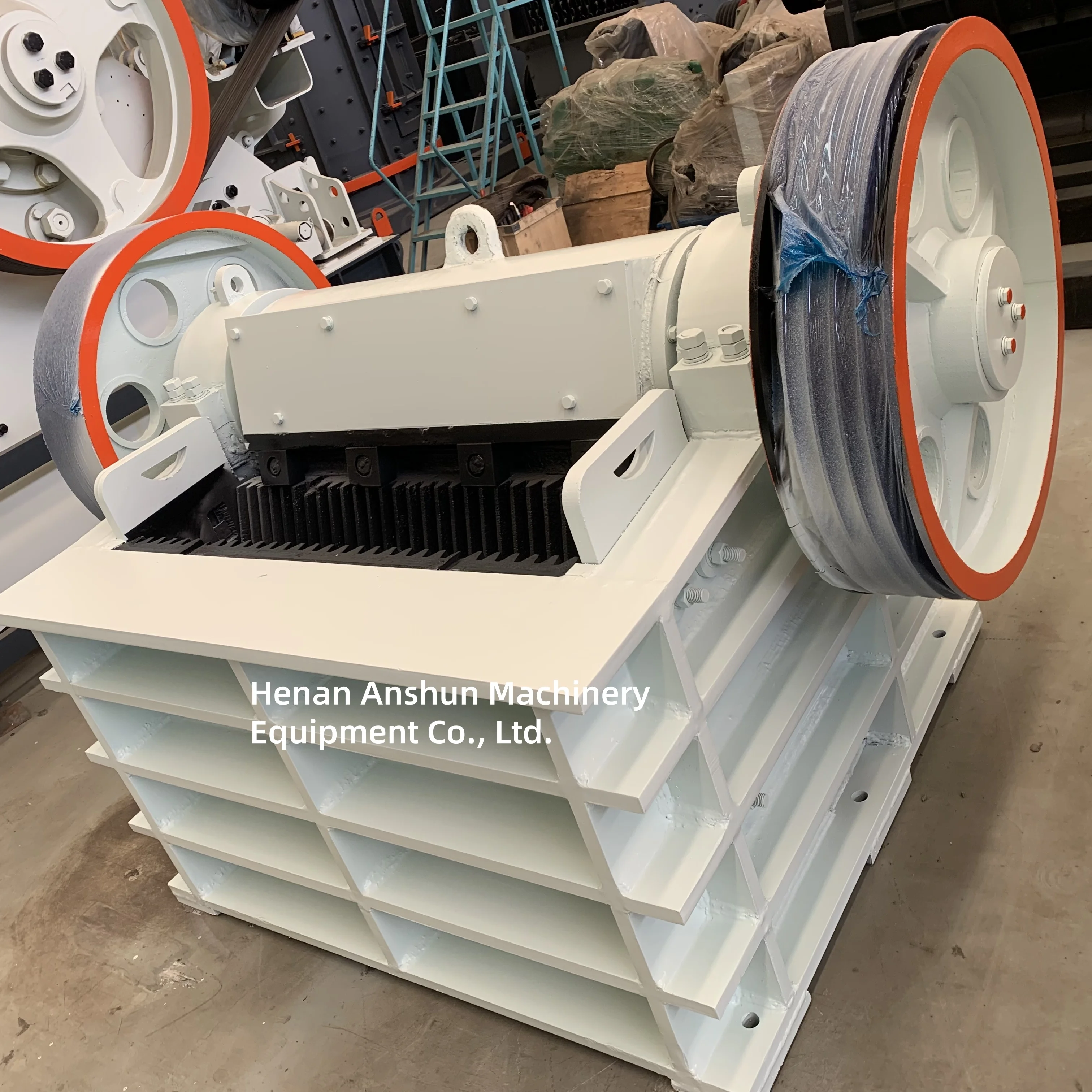

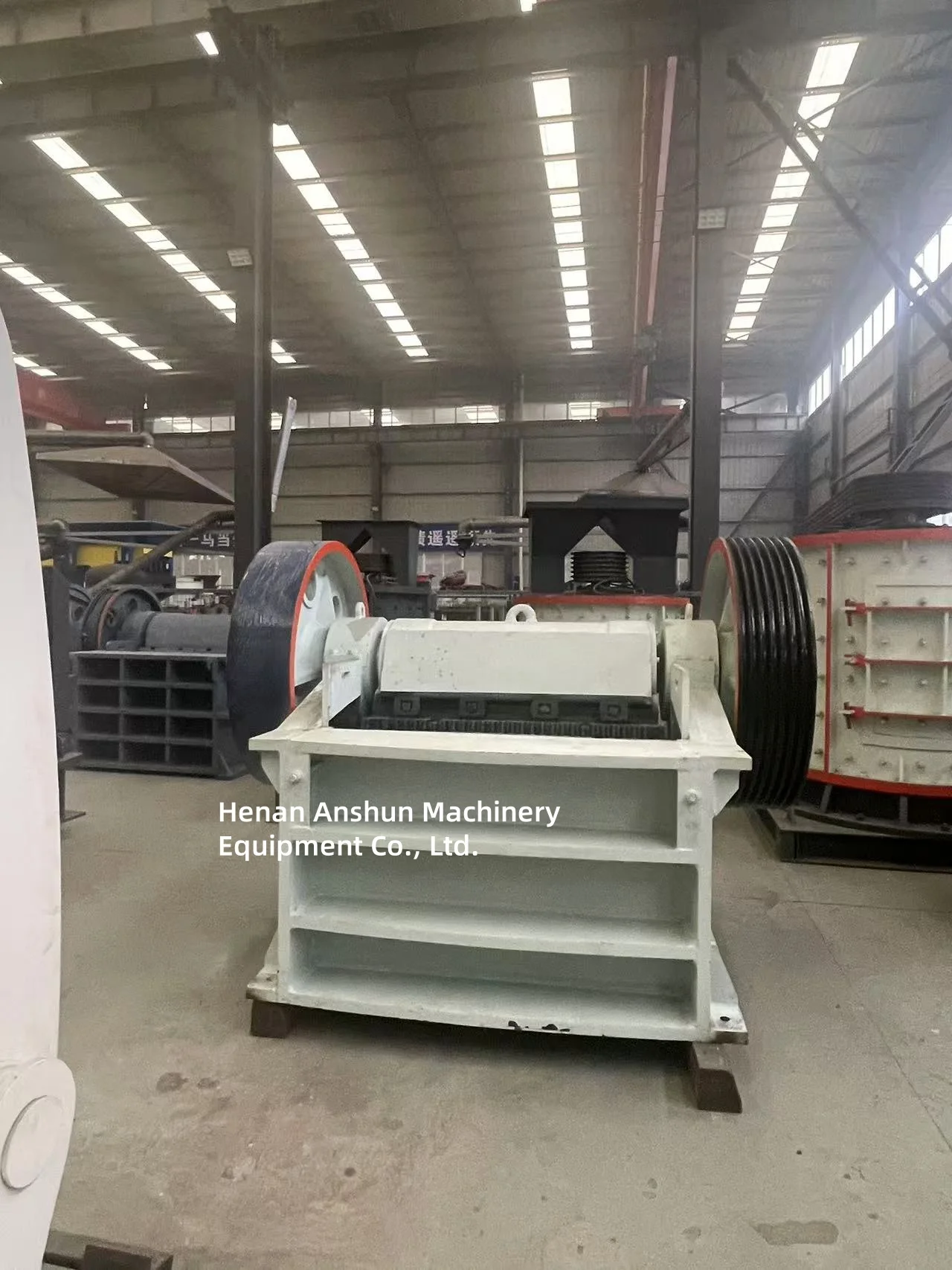

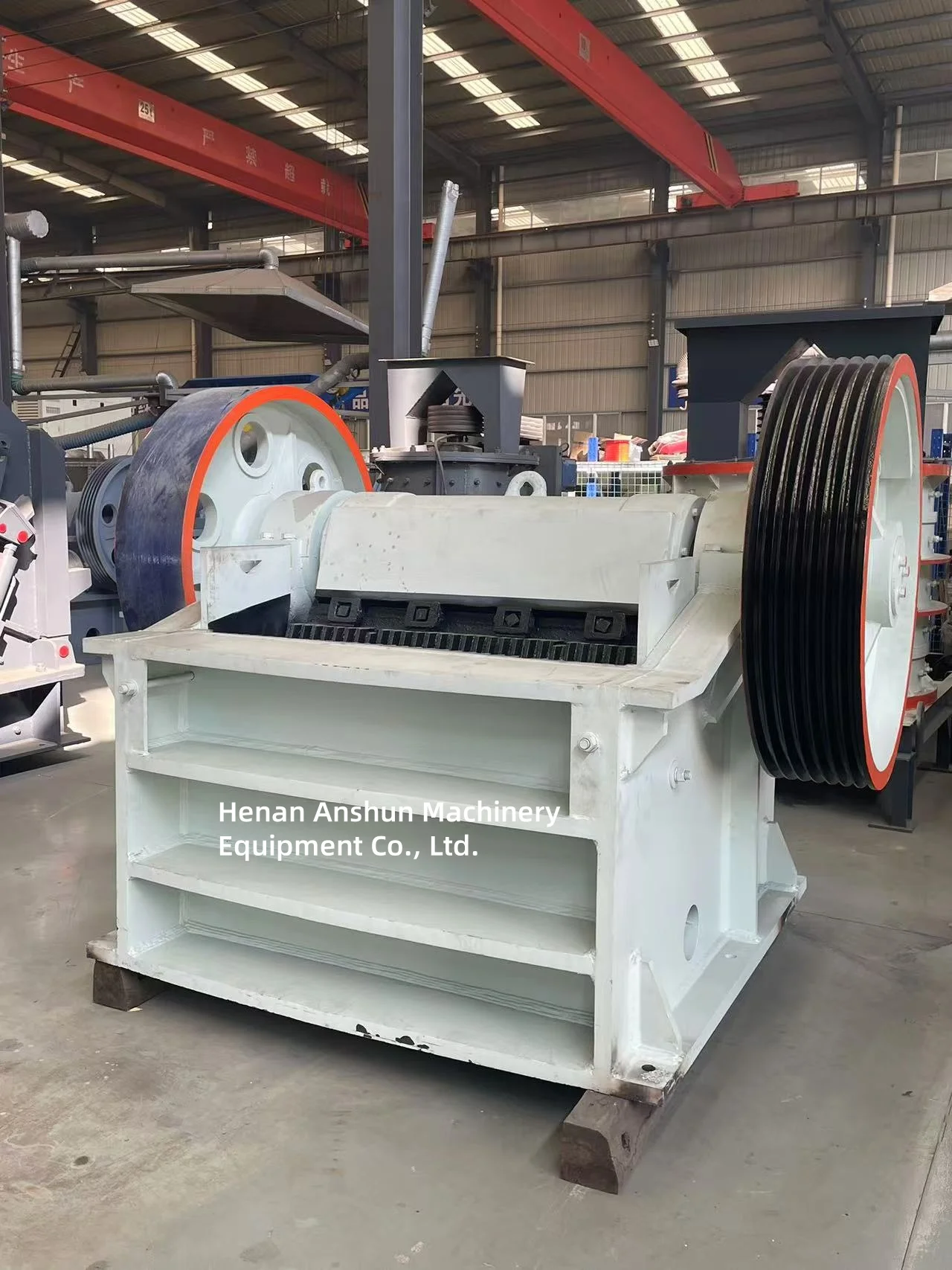

PEX fine jaw crusher
PEX fine jaw crusher is the more commonly used coarse crushing equipment in the two series of jaw crushers. This equipment adopts mature crushing technology, and its performance and structure adopt systematic and comprehensive optimization design. It has the characteristics of high strength, reliability and durability, large crushing force, high production output, etc. It is often used as a primary crusher in various stone production lines and ore crushing production lines.

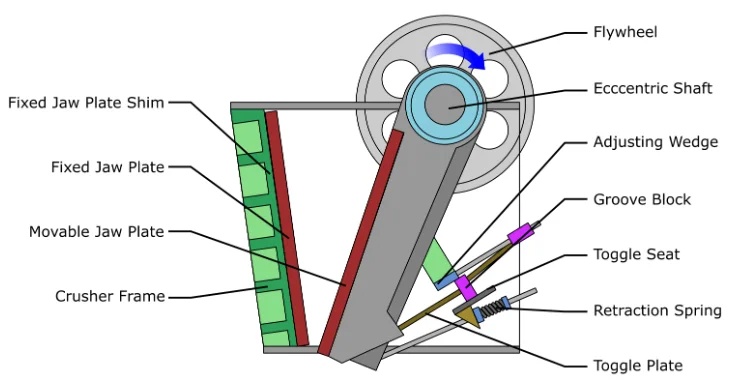

Working Principle
PEX fine jaw crusher The motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw increases, thereby pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is squeezed to achieve the purpose of crushing. When the movable jaw moves downward, the angle between the toggle plate and the movable jaw decreases. Under the action of the pull rod and spring, the movable jaw plate leaves the fixed jaw plate, and the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the movable jaw of the crusher performs periodic movements to crush and discharge materials, realizing mass production.
Product Advantages
1. Stable and reliable performance
It is made of high-quality steel castings. At the same time, compared with other crushers of the same specifications, we use larger and more durable eccentric shaft bearings, which makes it have a higher load-bearing capacity and the equipment runs more stably and reliably.
It is made of high-quality steel castings. At the same time, compared with other crushers of the same specifications, we use larger and more durable eccentric shaft bearings, which makes it have a higher load-bearing capacity and the equipment runs more stably and reliably.
2. Good finished product particle shapePEX jaw crusher adopts the principle of driven extrusion crushing, which significantly reduces the proportion of cubes in the product, reduces the content of needle-like products, and makes the particle size more uniform.
3. Simple structure and easy operation.After continuous optimization, the machine structure is also constantly upgraded and optimized. It has a simple structure, is easy to operate, and is more convenient to maintain, greatly shortening the downtime for maintenance.
Product Paramenters
Model | Size of Feed Opening(mm) | Max.feed Size(mm) | Discharge Opening Adjustment Range（mm） | Processing Capacity（t/h） | Power（kw） | Overall Dimension LxWxH(mm) |
PEX250×750 | 250×750 | 210 | 15-50 | 15-30 | 22-30 | 1400×1751×1515 |
PEX350×750 | 350×750 | 300 | 15-50 | 18-40 | 30 | 1485×1680×1648 |
PEX250×1000 | 250×1000 | 210 | 15-60 | 15-60 | 30 | 1550×1964×1380 |
PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 1530×1946×1380 |
PEX300×1300 | 300×1300 | 250 | 20-90 | 35-70 | 55-75 | 2000×2320×1730 |
PEX500×1500 | 500×1500 | 400 | 40-110 | 45-150 | 75 | 2850×2640×2100 |
Company Profile
Henan Anshun Machinery Equipment Co., Ltd.
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales andservice of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry.
Application
PEX fine jaw crusher
Spring cone crusher is suitable for medium crushing, medium type is suitable for fine crushing, and short head type is suitable for ultra-fine crushing. It is suitable for crushing hard and medium hard ores and rocks, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc.,

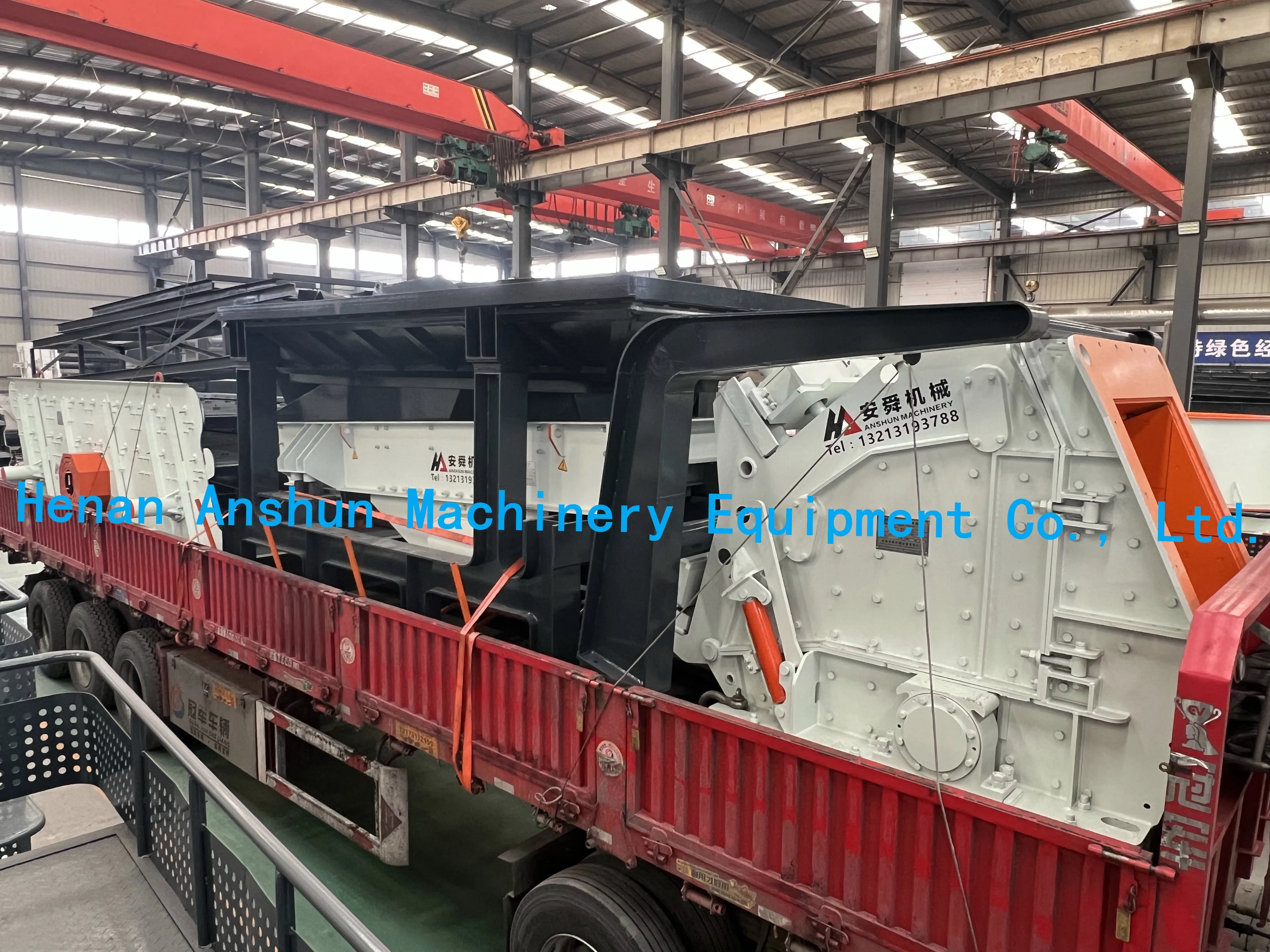

Product packaging
FAQ
Support:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support :
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that
responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands. We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support :
ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support :
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that
responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands. We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support :
ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
