Underground Diesel Battery Explosion Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive
Underground Diesel Battery Explosion-Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive
Underground Diesel Battery Explosion-Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive
Underground Diesel Battery Explosion-Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive
Underground Diesel Battery Explosion-Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive
Underground Diesel Battery Explosion-Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive
Underground Diesel Battery Explosion-Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive

Underground Diesel Battery Explosion Proof Coal Mine Overhead Line Train Locomotive For Coal Mine Locomotive

Share on (1601344679132):


Price:$3,000.00-3,800.00

Quantity:


Product Overview

Description



Products Description




Introduction of Mining battery locomotive
Mining battery locomotive has two types: general type and explosion-proof special type. The battery electric locomotive adopts IGBT chopper speed regulation and frequency conversion speed regulation technology. Main features: reasonable structure, reliable explosion-proof, high efficiency and energy saving, large starting torque and stable operation. With multiple protection devices, low maintenance, and electric brake function, the locomotive performance is safer and more reliable, and is well received by users.
Mining battery locomotive is mainly used in mines with coal (rock) and gas (biogas, methane) and main wind tunnels with full wind pressure ventilation, as well as the main return air passage of the gas mine and the inlet and return air passage of the mining area, and the rock roadway for excavation. Traction mines, transportation equipment and personnel without overhead lined downhole roadway.


Product Paramenters




Parameter of Mining battery locomotive


Specification/ Model
CJY7/6GP
CJY7/7GP
CJY7/9GP
CJY10/6GP
CJY10/7GP
CJY14/6GP
CJY14/7GP
CJY14/9GP
weight (ton)
7
7
7
10
10
14
14
14
Track gauge (mm)
600
762
900
600
762
600
762
900
Wheelbase (mm)
1100
1100
1100
1100
1100
1700
1700
1700
Wheel diameter (mm)
680
680
680
680
680
680
680
680
Height btw connector & track surface (mm)
320/430
320/430
320/430
320/430
320/430
320/430
320/430
320/430
Min curve radius (m)
7
7
7
7
7
15
15
15
Pantograph (mm)
1800-2200
1800-2200
1800-2200
1800-2200
1800-2200
1800-2400
1800-2400
1800-2400
Braking mode
Mechanic + electric
Mechanic + electric
Mechanic + electric
Mechanical+Electrical
Mechanical+Electrical
Mechanic + electric+Air
Mechanical+Electrical+Air
Mechanical+Electrical+Air
Max traction (kN)
19.2
19.2
19.2
27.5
27.5
38.5
38.5
38.5
Max speed (km/h)
20
20
20
20
20
25
25
25
Rated speed (km/h)
10
10
10
10
10
10
10
10
Power of motor (kW)
2 * 22
2 * 22
2 * 22
2*22(30)
2*22(30)
2*37
2*37
2*37
Voltage(V)
DC250/550
DC250/550
DC250/550
DC250/550
DC250/550
DC550
DC550
DC550
Driving method
spur gear
spur gear
spur gear
spur gear
spur gear
spur gear
spur gear
spur gear
Speed adjust
AC frequency change
AC frequency change
AC frequency change
AC Frquency Conversion
AC Frquency Conversion
AC frequency change
AC Frquency Conversion
AC Frquency Conversion
Controller
Resistance or IGBT
Resistance or IGBT
Resistance or IGBT
Resistance or IGBT
Resistance or IGBT
Resistance or IGBT
Resistance or IGBT
Transmission
Single Level Spur Gearing
Single Level Spur Gearing
Single Level Spur Gearing
Single Level Spur Gearing
Single Level Spur Gearing
Dual Bevel Gearing
Dual Bevel Gearing
Dual Bevel Gearing
Dimension(L*W*H)(mm)
4460 * 1060 * 1590
4400 *1340 *1590
4400 * 1340* 1590
4460*1060*1590
4460*1340*1590
5250*1060*1750
5250*1340*1750
5300*1340*1750
Service & Application
Mucking in Mining&Tunneling
Mucking in Mining&Tunneling
Mucking in Mining&Tunneling
Mucking in Mining&Tunneling
Mucking in Mining&Tunneling
Mucking in Mining&Tunneling
Mucking in Mining&Tunneling
Mucking in Mining&Tunneling


Model
CTY2.5/6,7,9G
CTY5/6,7,9G
CTY8/6,7,9G(B)
CTY(L)12/6, 7, 9G
CTY18/6,7,9G(B)
CTY18/6,7,9G(B)
Self Weight(t)
2.5
5
8
12
15
18
Track Gauge(mm)
600, 762 or 900
600,762 or 900
600,762,900
600, 762 or 900
600,760 or 900
600,762 or 900
Traction(kN)
2.55
7.06
11.18
12.83
16.48
18.47
29.4
Ma* Speed(km/h)
4.54
7
6.2
7.8
8.7
9.6
9.8
Ma*. Traction(kN)
6.13
12.26
19.62
29.43
36.18
44.15
Power Supply Device
Voltage(V)
48
90
110,132
140,144
192
256
208
Capacity(Ah)
308 or 330
385
440
560
620
730
Power(kW)
3.5kW*1
7.5kW *2
11kW*2
15kW*2
22kW*1
30Kw * 2
45Kw * 2
Size
Length(mm)
2330
2850
44,704,490
5100
5200
5100
Width(mm)
914,1076 or 1212
920,1082/1220
1062/1190/1212/1350
1050, 1212 or 1350
1500
1500
Height(mm)
1550
1550
1600
1600
1920
1900
Traction Height(mm)
320
/
/
/
/
/
/
Wheelbase(mm)
650
850
1100
1150
1220
1400
2100
Wheel Diameter(mm)
Φ460
Φ520
Φ680
Φ600,Φ680
Φ680
Φ680
Φ600
Min. Turning Radius(m)
5
6
7
10
15
20
Controller
Resistance or Pulsing speed regulation
Resistance or Chopped wave
Resistance,IGBT or Frequency conversion
Resistance, IGBT or AC Converter
Resistance, IGBT or AC Converter
Frequency conversion or chopper speed regulation
Brake Mode
Mechanical
Mechanism or hydraulic pressure
Mechanical
Mechanical and Pneumatic Brake
Mechanical and Pneumatic Brake
Mechanical, electrical, air brake


Details Images

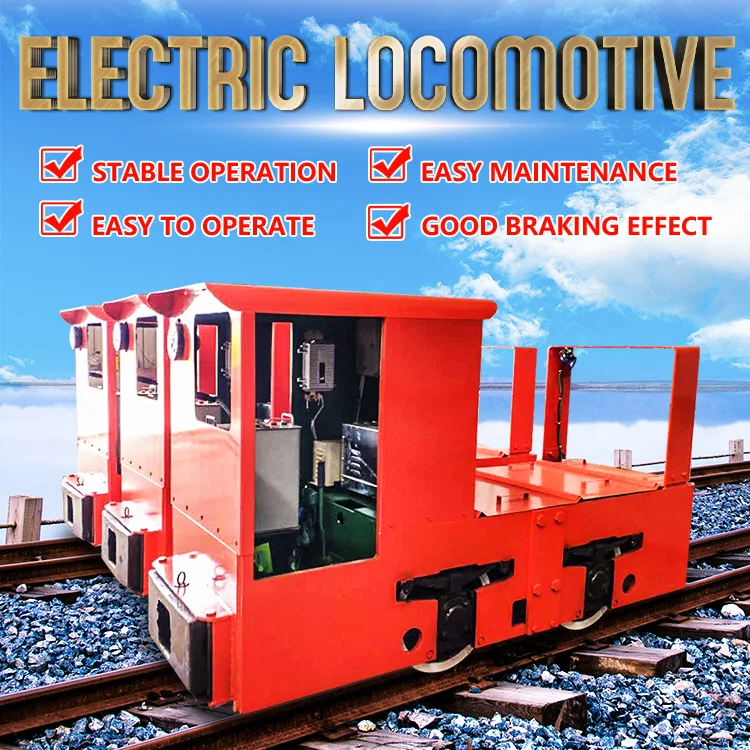

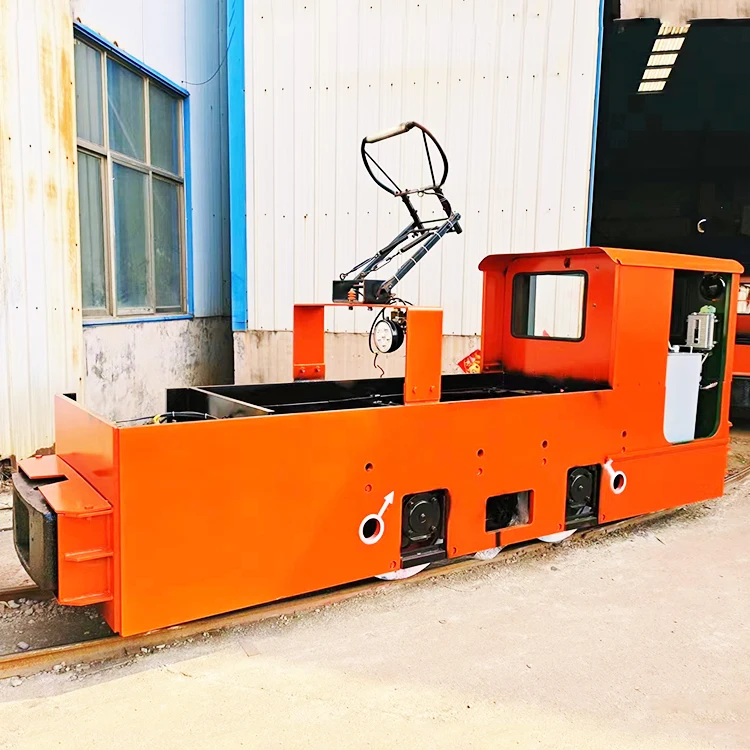

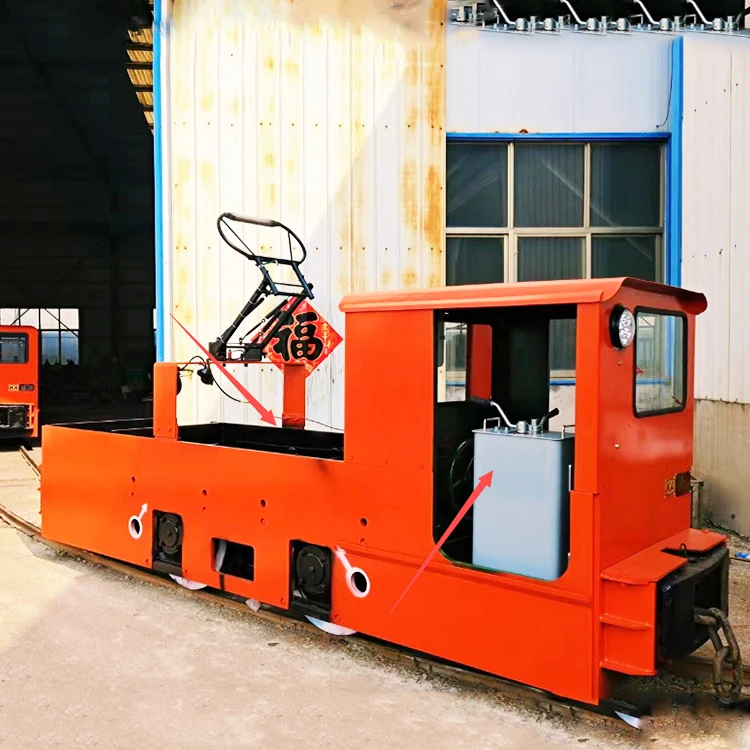

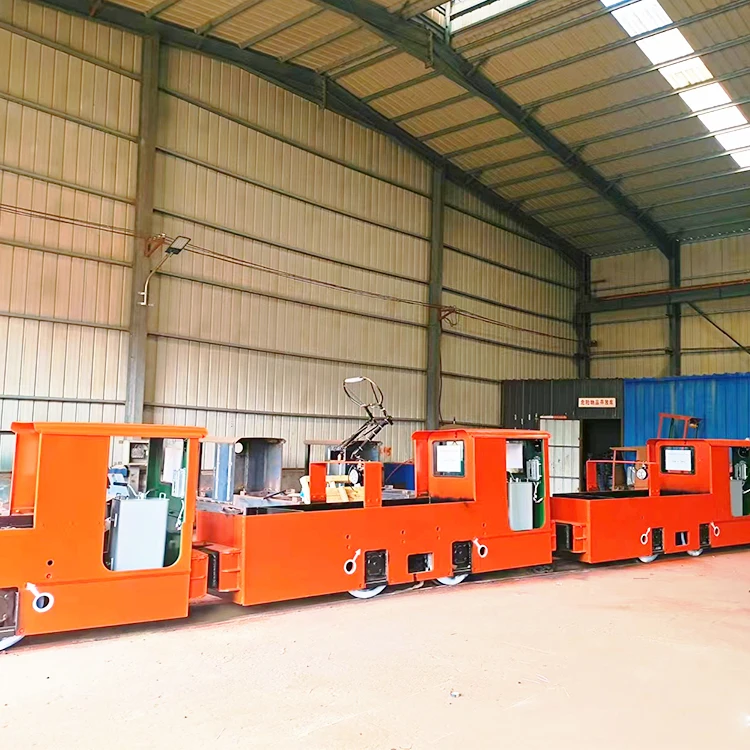

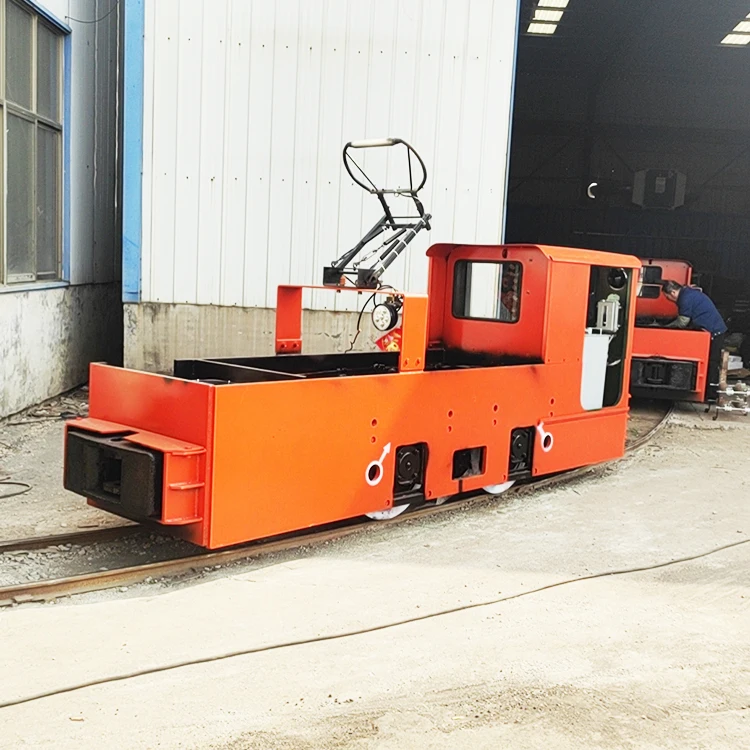

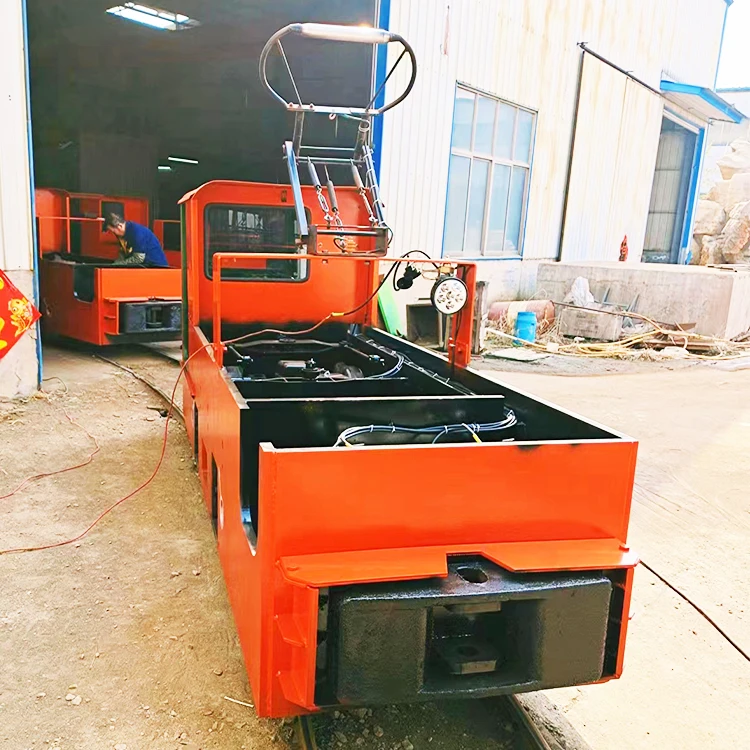

Photos of Mining battery locomotive
