Workstation KBK 0.5 1 2 ton Flexible Suspension Monorail Bridge Crane
- Category: >>>
- Supplier: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601344753853):
Product Overview
Description
Products Description

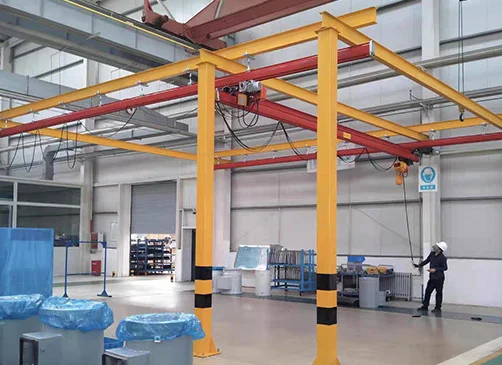

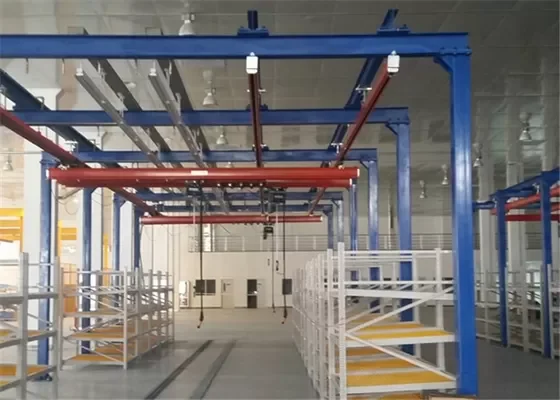

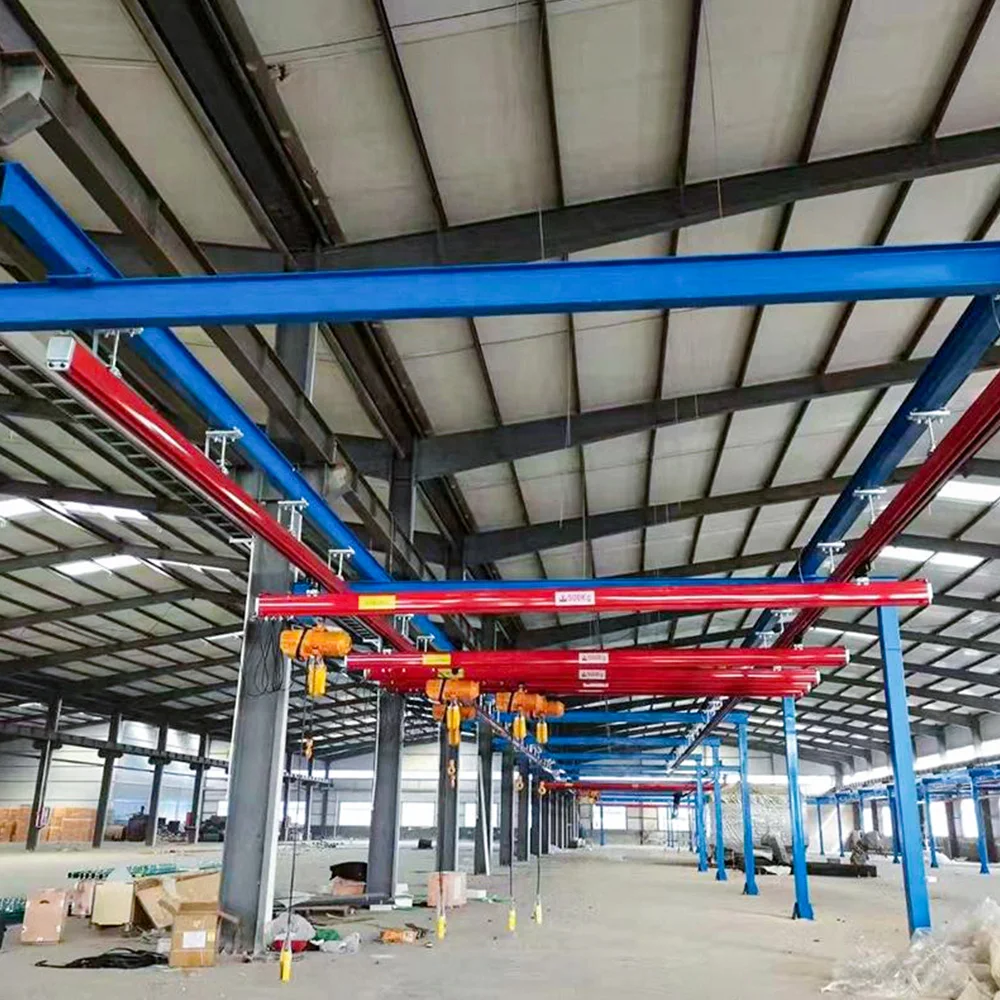

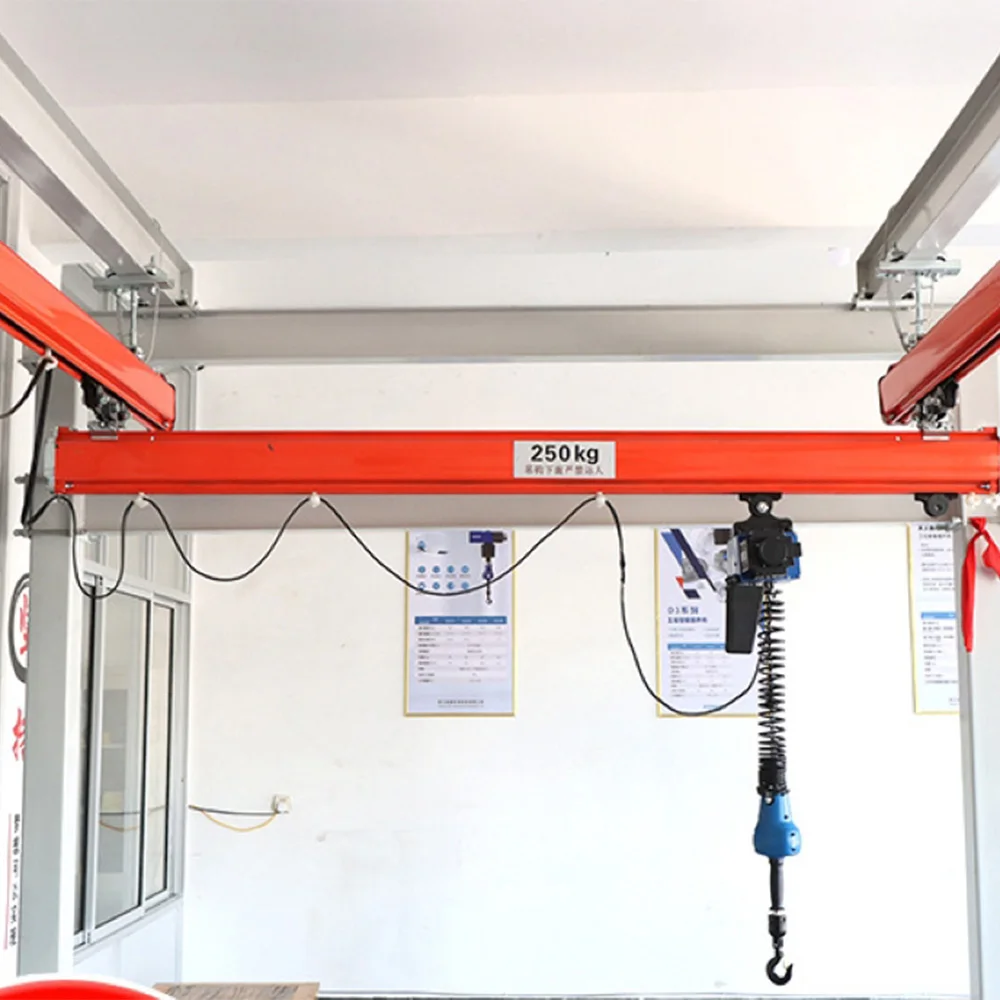

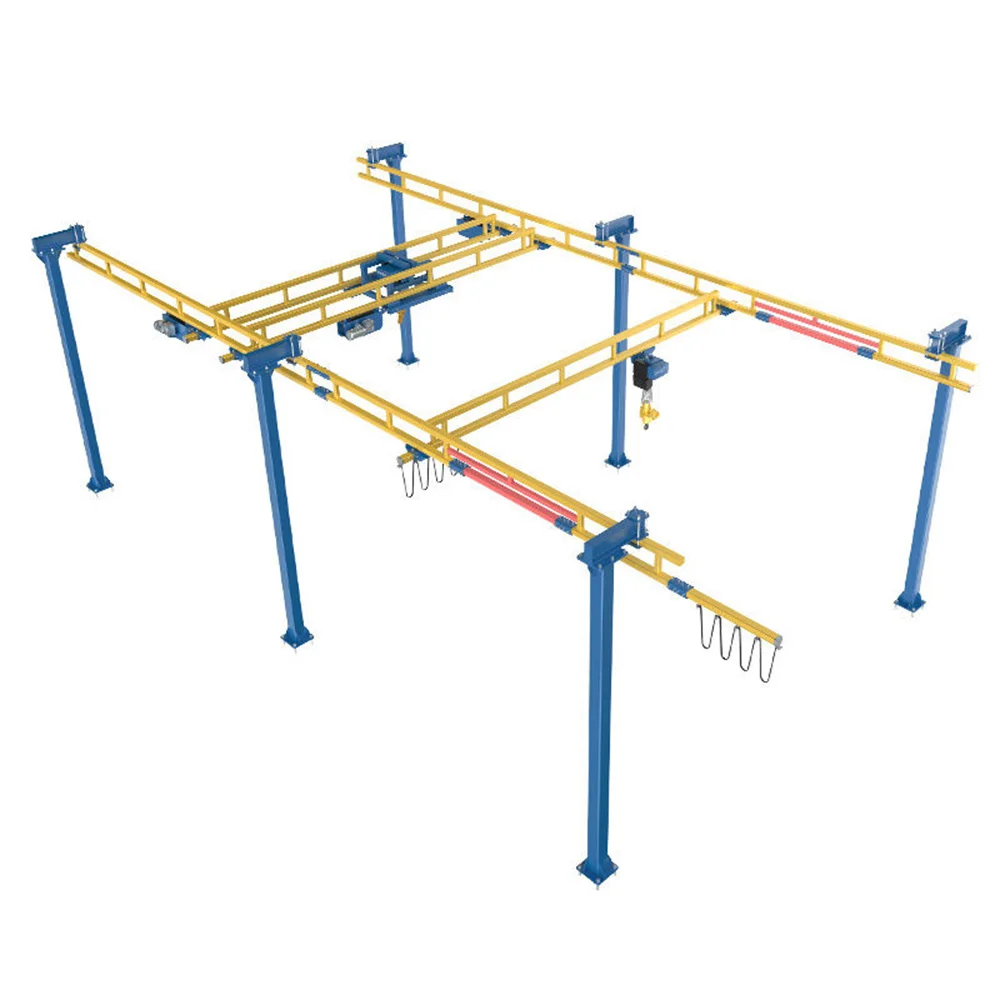

Free Standing Light Duty Flexible KBK Overhead Rail Crane System are composed of track systems, electric hoists, control systems, support structures, etc. It is made of steel. Electric hoists are installed on the track and operated through the control system to achieve lifting operations.
According to different structures, KBK is currently divided into flexible KBK, rigid KBK and KBK aluminum alloy cranes. The biggest difference is the track structure and suspension method. In terms of track structure, flexible KBK is mostly Ω-shaped, welded from two pieces of steel. Rigid KBK is mostly formed by cold rolling of C-shaped steel.
Features
Flexible Assembly
Including beams, columns, guide rails, lifting mechanisms, walking mechanisms, etc., which can be combined according to actual needs to build KBK cranes of different specifications and functions.
Stable Operation
The traveling mechanism and the lifting mechanism cooperate with each other to run smoothly and accurately on the track during the operation.
Good Flexibility
Whether it is a single-track, double-track or multi-track system, it can be realized by adjusting the combination of components and is flexible to use.
Easy Maintenance
Standard component design, easy replacement and maintenance during use, no need to disassemble and reinstall the entire device.
Main Parts

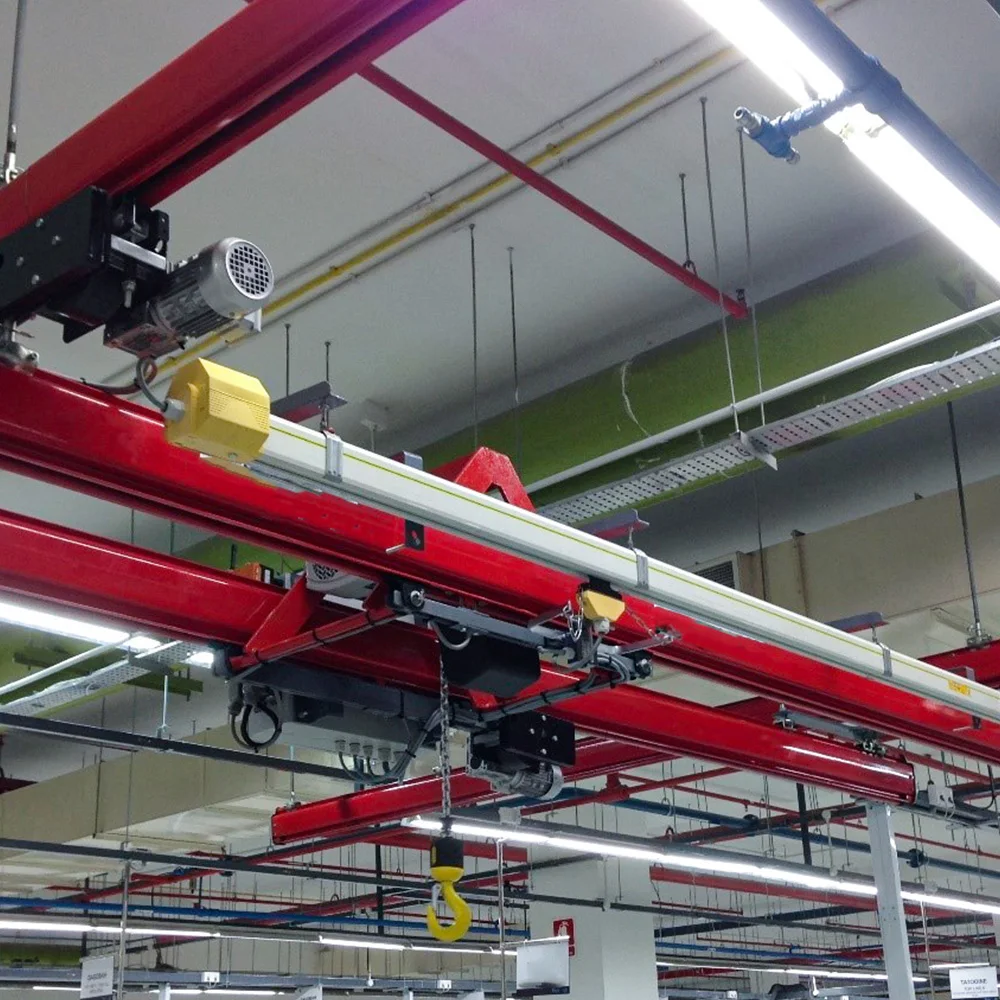

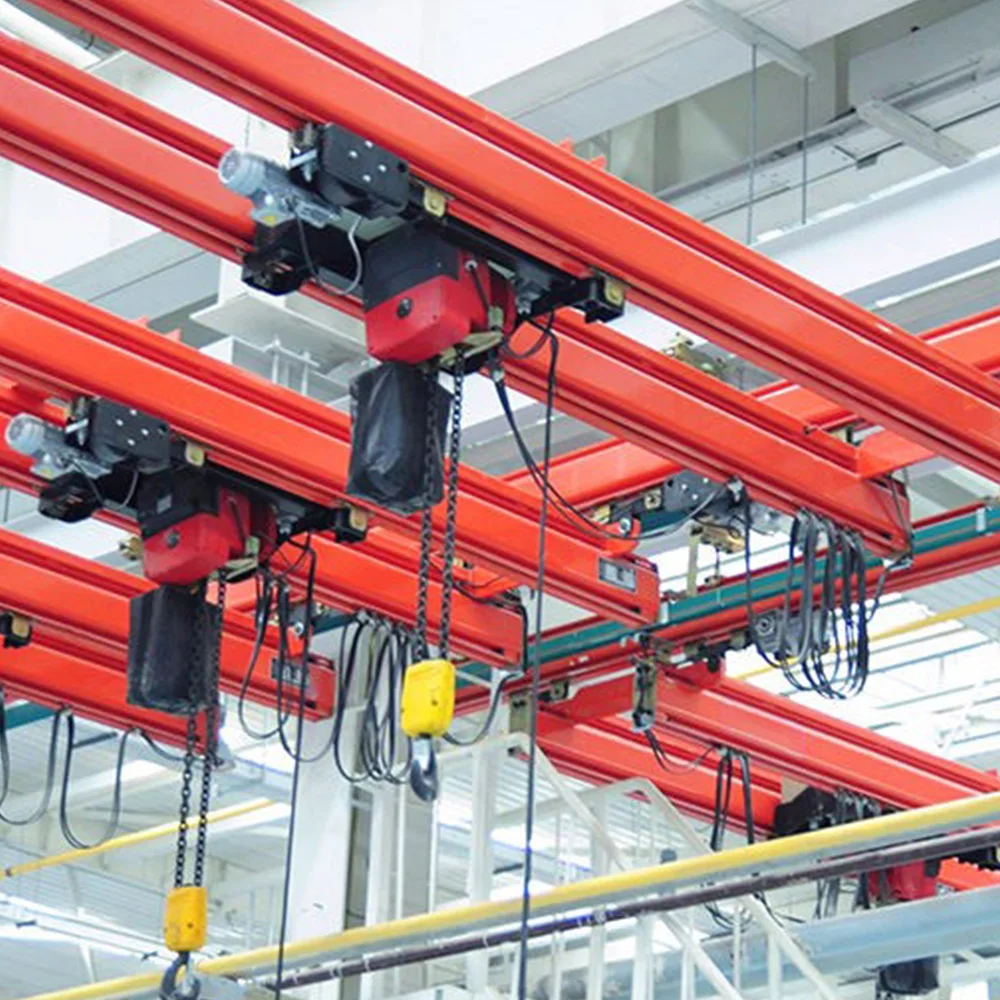

Hoist Trolley
Provides connection between lifting device and main beam, can be easily moved along the main beam, sealed bearings are maintenance-free.
Rail Trolley
Provides connection between main beam and fixed rail, prevents main beam from getting stuck, main beam imbalance can be adjusted automatically.
Wire Clamp
Fixed rail and main beam moving cable does not require any tools, directly fix the cable on the wire clamp.
Pulley
Used with air hose or round cable.
End Cover
Sealed ports at both ends of main beam and rail control trolley derailment.
Trolley Connection Plate
Fixed limit hoist, enhance the safety performance of hoist hook, so that hoist hook does not fall off.

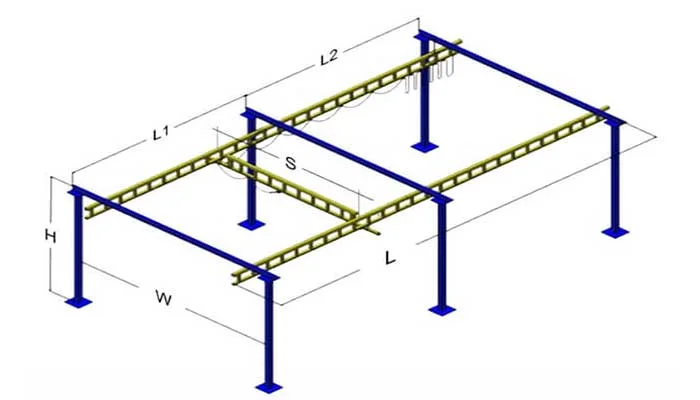

Technical Parameter
Track Type | H-KBK Flexible Series | H-KBK Rigid Series | H-KBK Aluminum Series | ||||||||||||
Lifting Capacity | 250KG | 500KG | 1000KG | 2000KG | 3000KG | ||||||||||
Device Type | Monorail | Single beam | Double beam | Multi-point crane | |||||||||||
Installation Location | Steel structure frame | On-site support | Non-standard production lifting points | Other | |||||||||||
Lifting Height | 2M~8M | ||||||||||||||
Span | 0.7M~12M | ||||||||||||||
Operation Type | Manual/Electric | ||||||||||||||
Lifting Device | Hoist | Pneumatic balancer | Smart crane | ||||||||||||
About Our Factory
Certifications
Packing & Delivery
FAQ
1. What types of cranes do you offer?
As a manufacturer with over 20 years’ experience, Huasui provide a range of cranes, including gantry cranes, overhead cranes, RTG cranes, jib cranes, and customized lifting solutions tailored to specific industry needs, such as for steel, precast concrete, and container handling.
2. How do I know which crane is suitable for my project?
Our team of experts is here to help! By understanding your lifting capacity requirements, operational environment, and usage frequency, we can recommend the ideal crane solution for your project. Contact us for a free consultation.
3. How to choose the right crane?
The following factors need to be considered when choosing a crane: Load capacity, Lifting height, Working environment, Frequency of operation.
4. What maintenance services do you offer?
We offer comprehensive maintenance plans, including preventive maintenance, inspection, repair, and spare parts replacement, to keep your crane running efficiently and safely. Our service team is available for scheduled and emergency support.
5. Are your cranes compliant with international safety standards?
Absolutely. Our cranes are manufactured in compliance with major international standards such as ISO, EN, and GB/T. Additionally, we ensure that each crane undergoes rigorous testing and inspection before delivery.
6. What are your delivery and installation timelines?
Delivery and installation timelines vary based on the type and customization of the crane. Generally, standard cranes can be delivered within 6–8 weeks, while customized solutions may require additional time. We aim to provide accurate timelines upfront to ensure smooth project planning.
7. Do you offer installation services?
Yes, we provide comprehensive training programs for crane operators, including safety training, maintenance guidelines, and operational best practices to ensure your team is fully prepared to operate the crane safely and efficiently.
