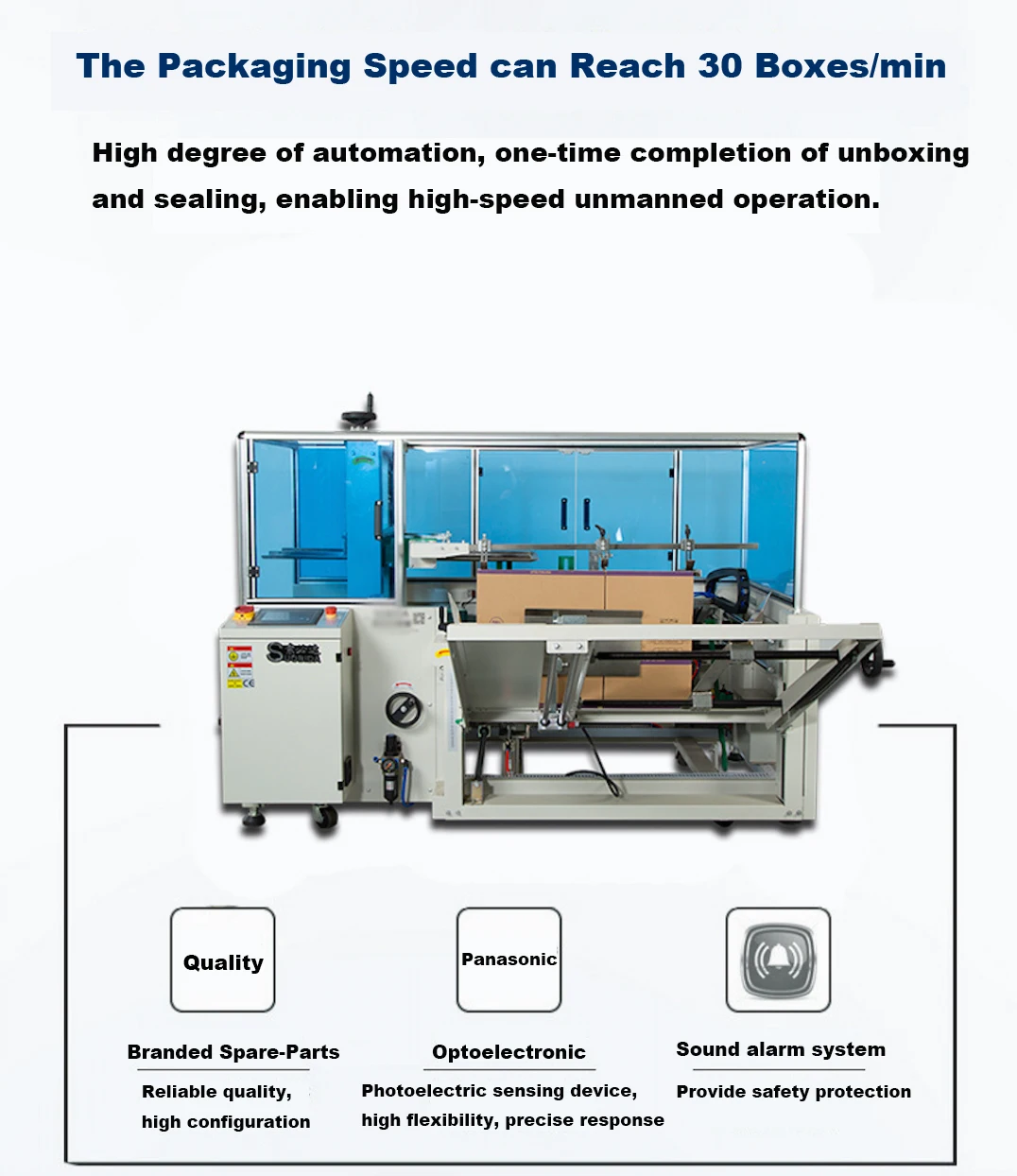

Fully Automatic Box Case Carton Erector

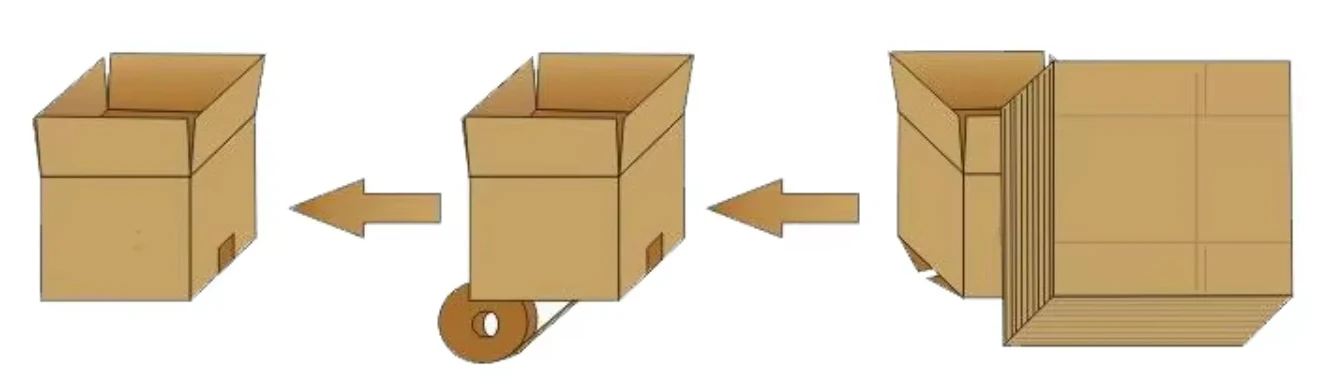

The carton erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot melt glue system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.
Product Parameters
| Model | BKD-40M | BKD-400 | BKD-50 | BKD-60 |
| Voltage | 220/110V/60HZ | 220/110V/60HZ | 220/110V/60HZ | 220/110V/60HZ |
| Power | 240W | 200W | 200W | 200W |
| Unboxing speed | 12pcs/min | 18pcs/min | 8-10pcs/min | 4-6pcs/min |
| Tape size | 48-60-75mm | 48-60-75mm | 48-60-75mm | 48-60-75mm |
| Size after molding | L150-400*W100-400* 250-450mm | L250-500*W150-400* H100-300mm | L250-500*W150-400* H100-300mm | L320-800*W250-600* H1250-600mm |
| Remarks | Parts need to be replaced if the length exceeds 400mm Maximum length 400mm Maximum Breadth 200mm | Parts need to be replaced if the length exceeds 530mm Maximum length 530mm Maximum Breadth 400mm | Parts need to be replaced if the length exceeds 750mm Maximum length 750mm Maximum Breadth 500mm | Parts need to be replaced if the length exceeds 900mm Maximum length 900mm Maximum Breadth 1400mm |
| Air source | 6kg/m3 | 6kg/m3 | 6kg/m3 | 6kg/m3 |
| Net weight | 450kg | 450kg | 480kg | 450kg |
| Diamensions | L2000*W1900*H1450 | L2100*W2400*H2450 | L2250*W1900*H1650 | L2749*W28200*H1450 |
| Product Configuation | |
| Accessory Name | Brand Model |
| Electric machinery | Taibang Electric |
| Touch screen | Kunlun Tong State |
| Thermal relay | Tianyi |
| PLC | Schneider |
| Contactor | Siemens |
| Intermediate relay | Siemens |
| Switch | Schneider |
| Intermediate relay | Omron |
| Blade | Japan SKD11 |
| Optoelectronic opening light | Tianyi |
| Caster wheels | German leuze |
Conveyor belt | Global Dual Brakes |

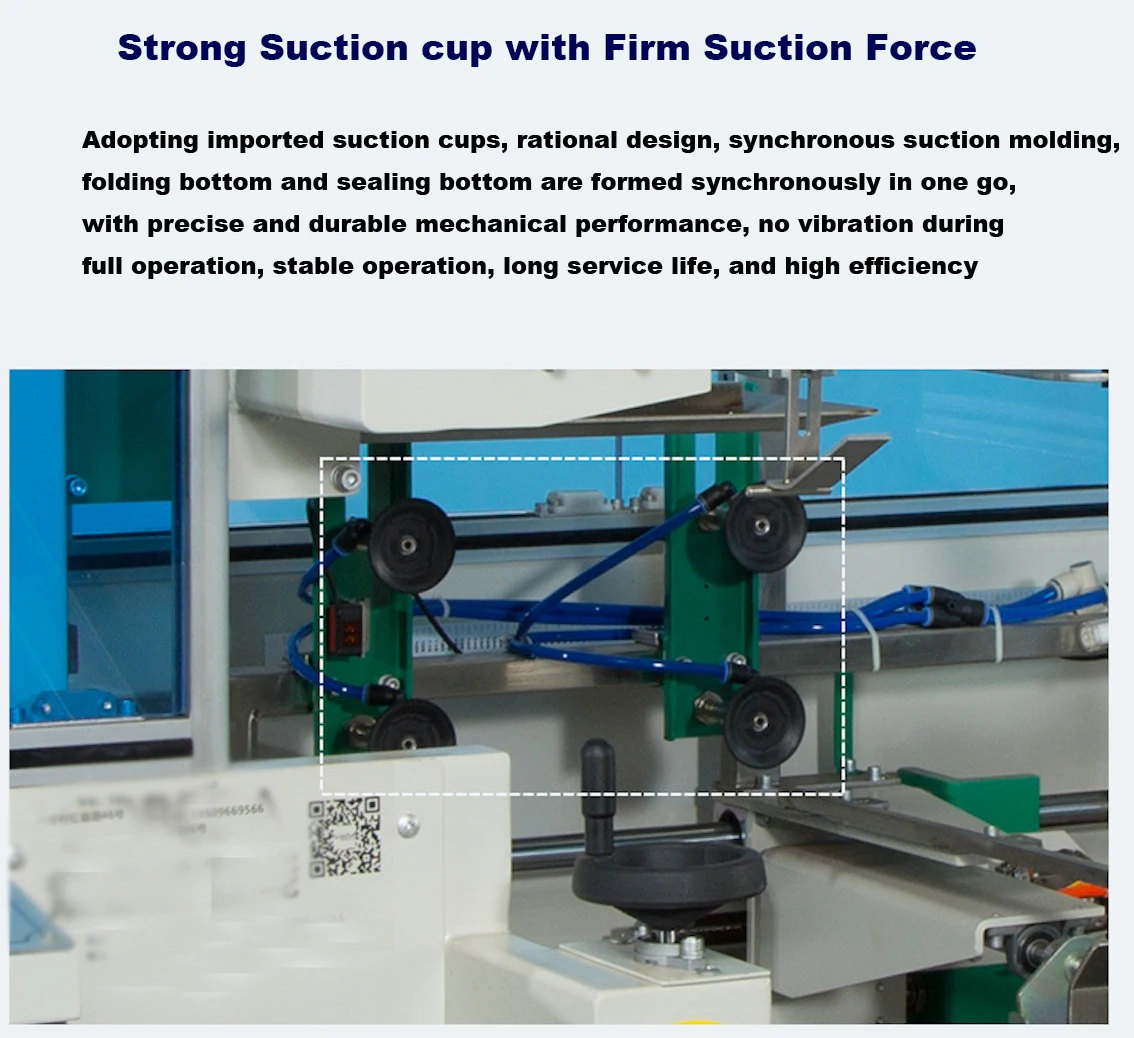

| Sucker | Burke, Italy |
| Solenoid valve | Taiwan Photon |
| Cylinder | AirTAC |
| Relay | AirTAC |
Features:
1, Automatically complete the unpacking, forming, bottom bending and bending, and at the same time complete the bottom tape sticking, saving time and labor

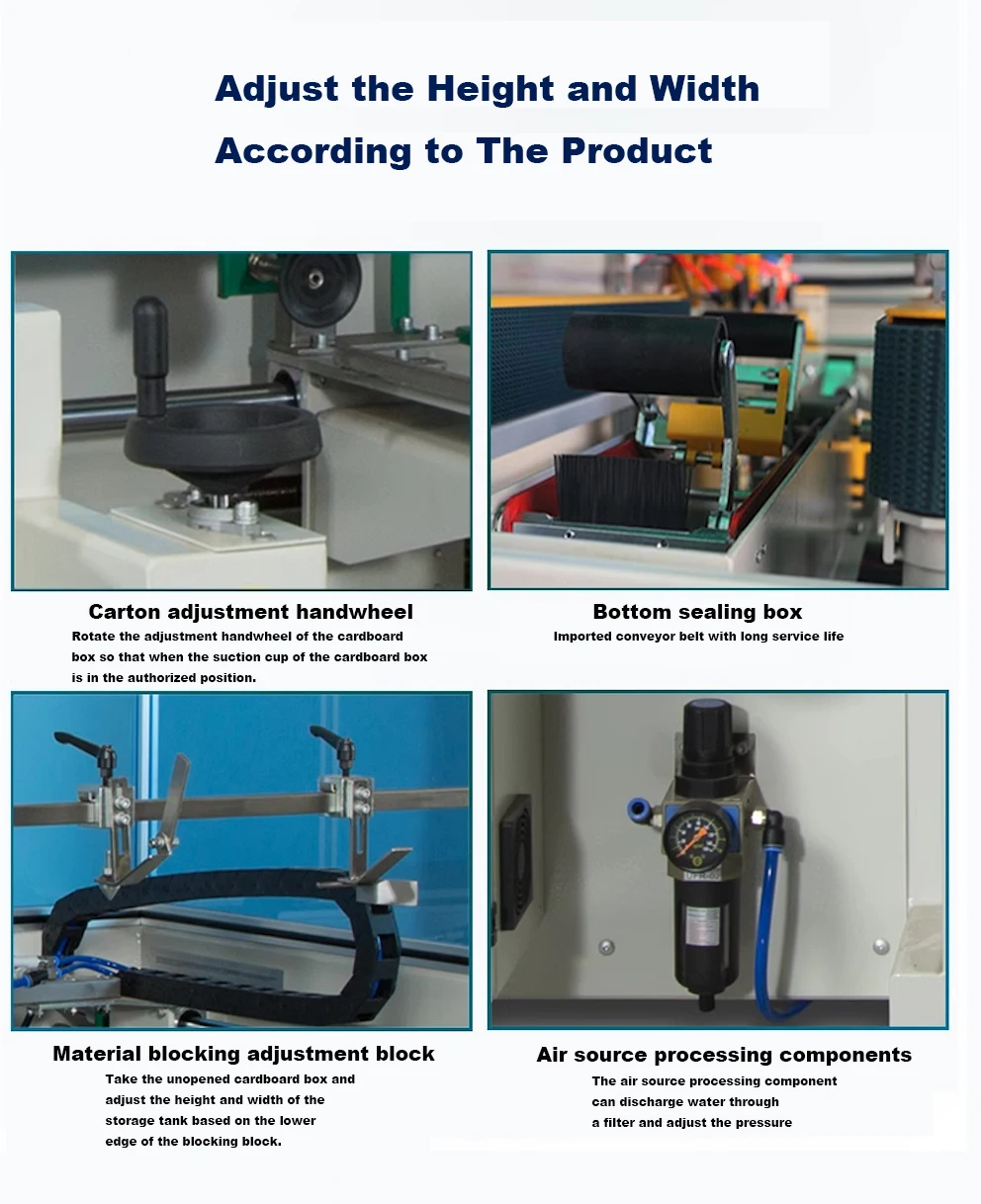

2, A wide range of short carton, easy adjustment of different sizes of carton
3, The whole operation is stable and reliable, the packaging effect is solid and beautiful
4, Configuration is high, the main components use international famous brands
5, The equipment is simple, easy to maintain
6, Automatically correct the carton straight angle
2, A wide range of short carton, easy adjustment of different sizes of carton
3, The whole operation is stable and reliable, the packaging effect is solid and beautiful
4, Configuration is high, the main components use international famous brands
5, The equipment is simple, easy to maintain
6, Automatically correct the carton straight angle
Related Products

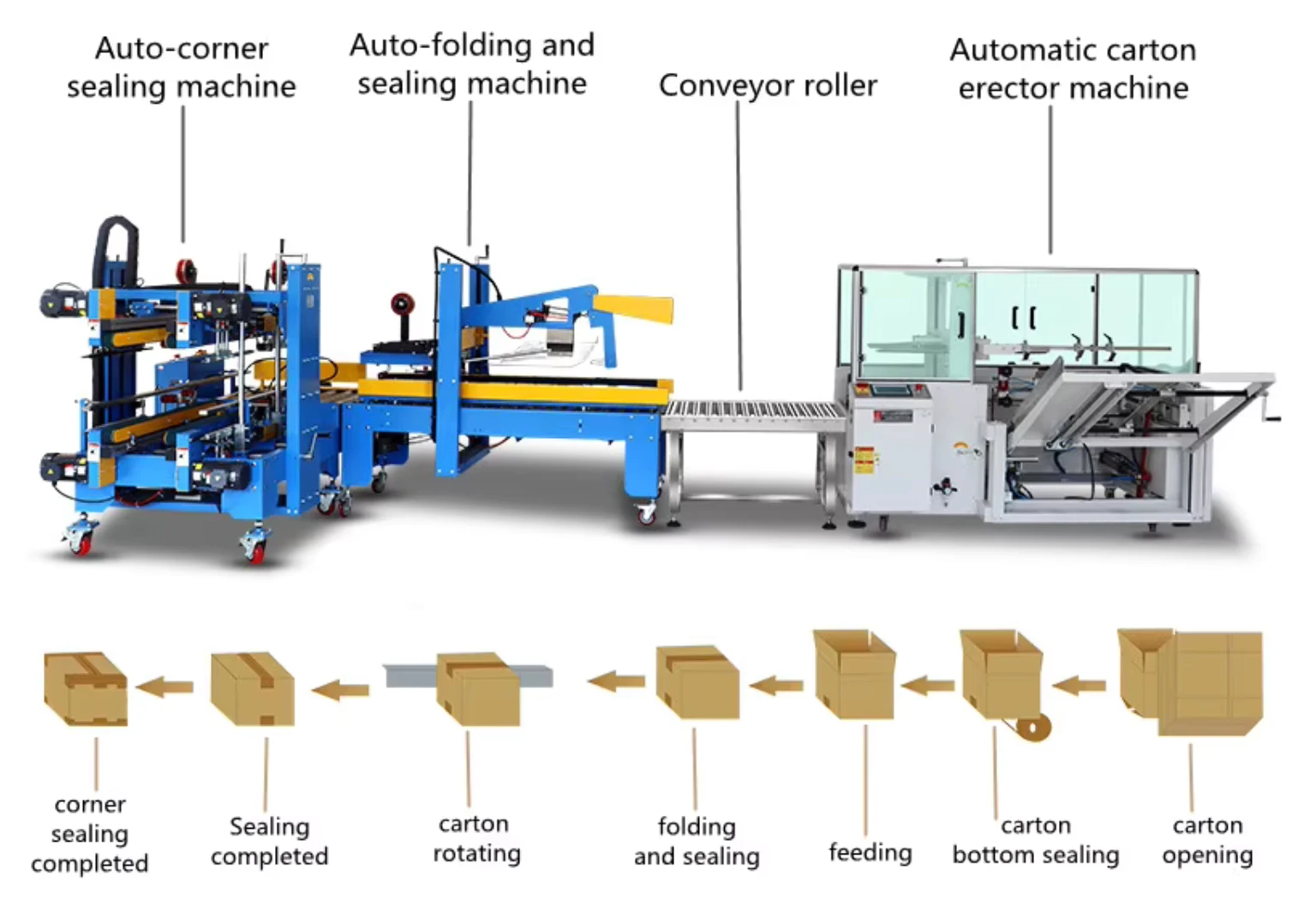

It can be matched with other equipment for production line operation
to better improve efficiency,save manpower and material resources.
If you are interested, feel free to contact us and tell us the carton size
you would like to sealing,we will recommend you the best solution.

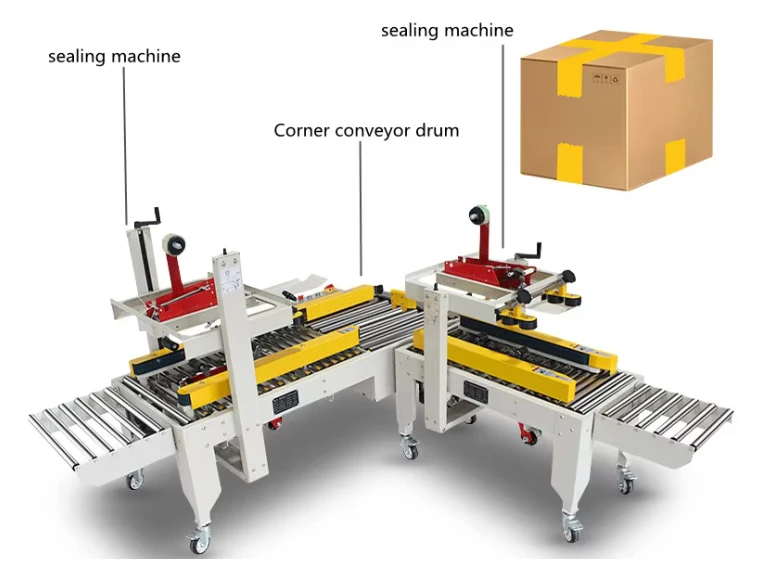

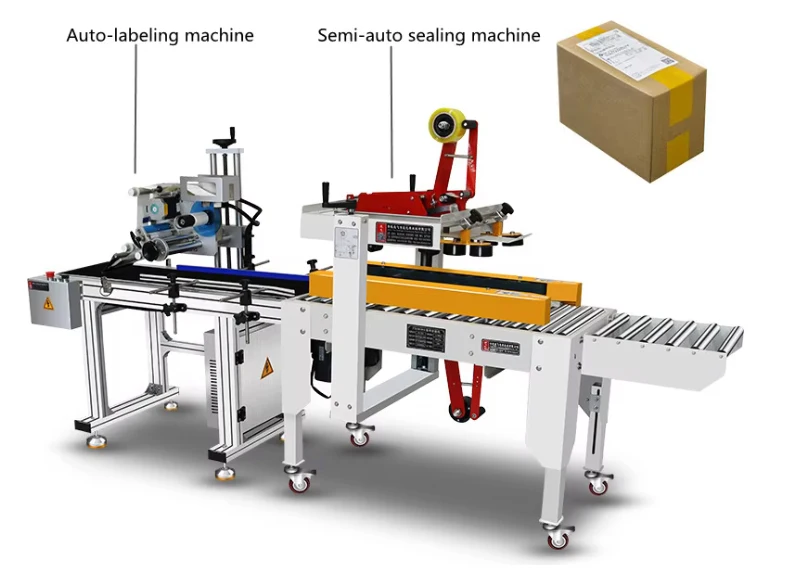

Left and right drive sealing + cross sealing machine Labelling +sealing machine

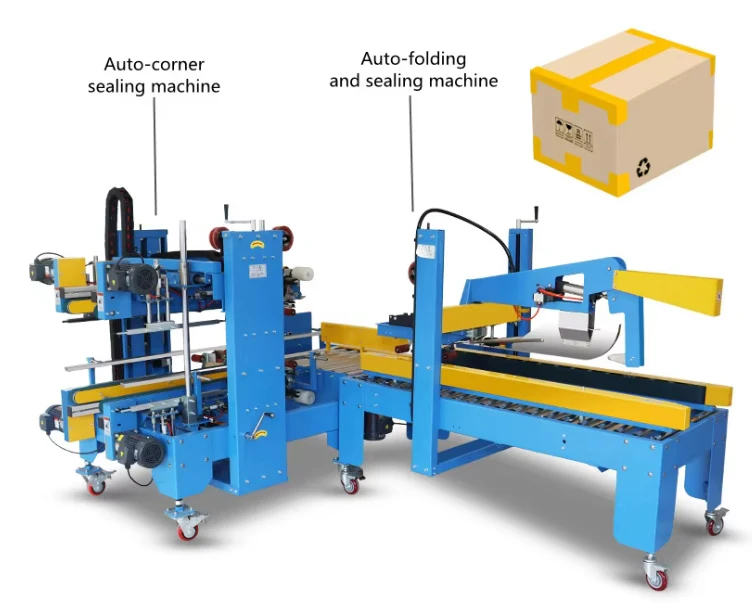

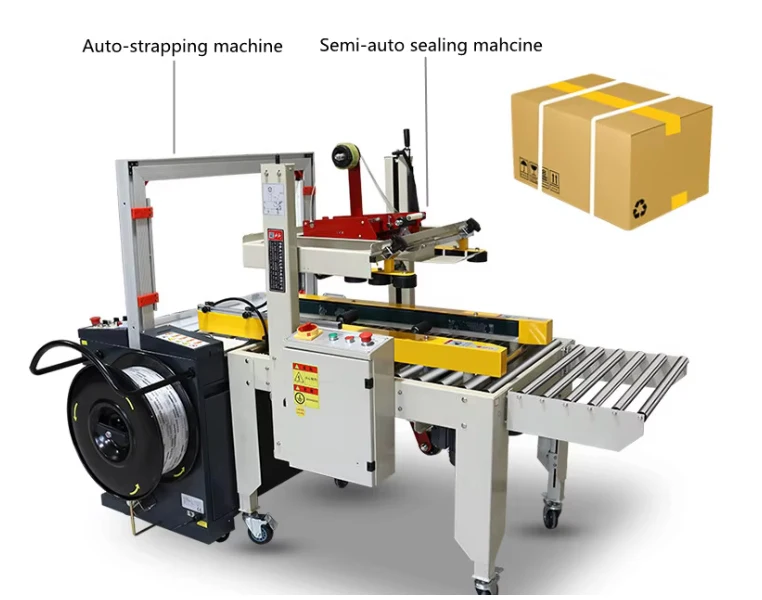

Auto-folding &sealing+ auto-corner sealing machine strapping & sealing machine

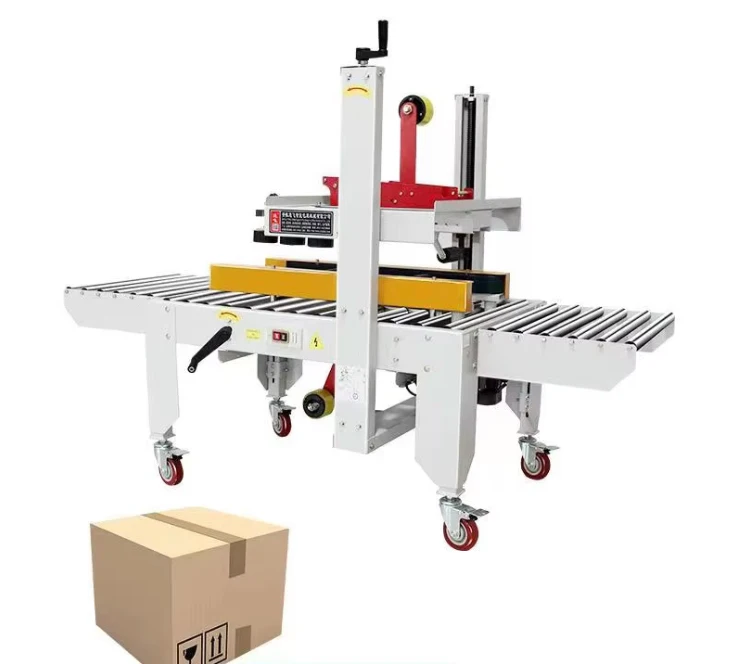

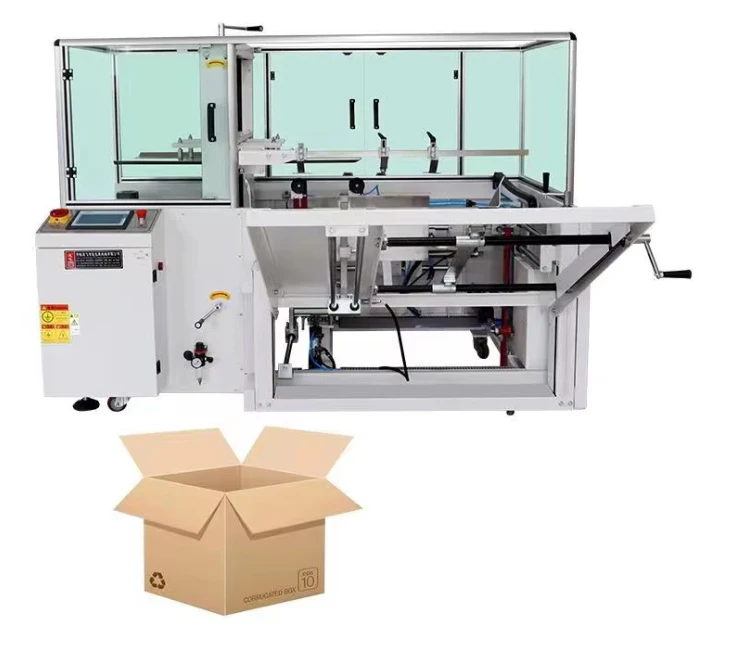

Automatic Carton erector machine Semi-auto sealing machine

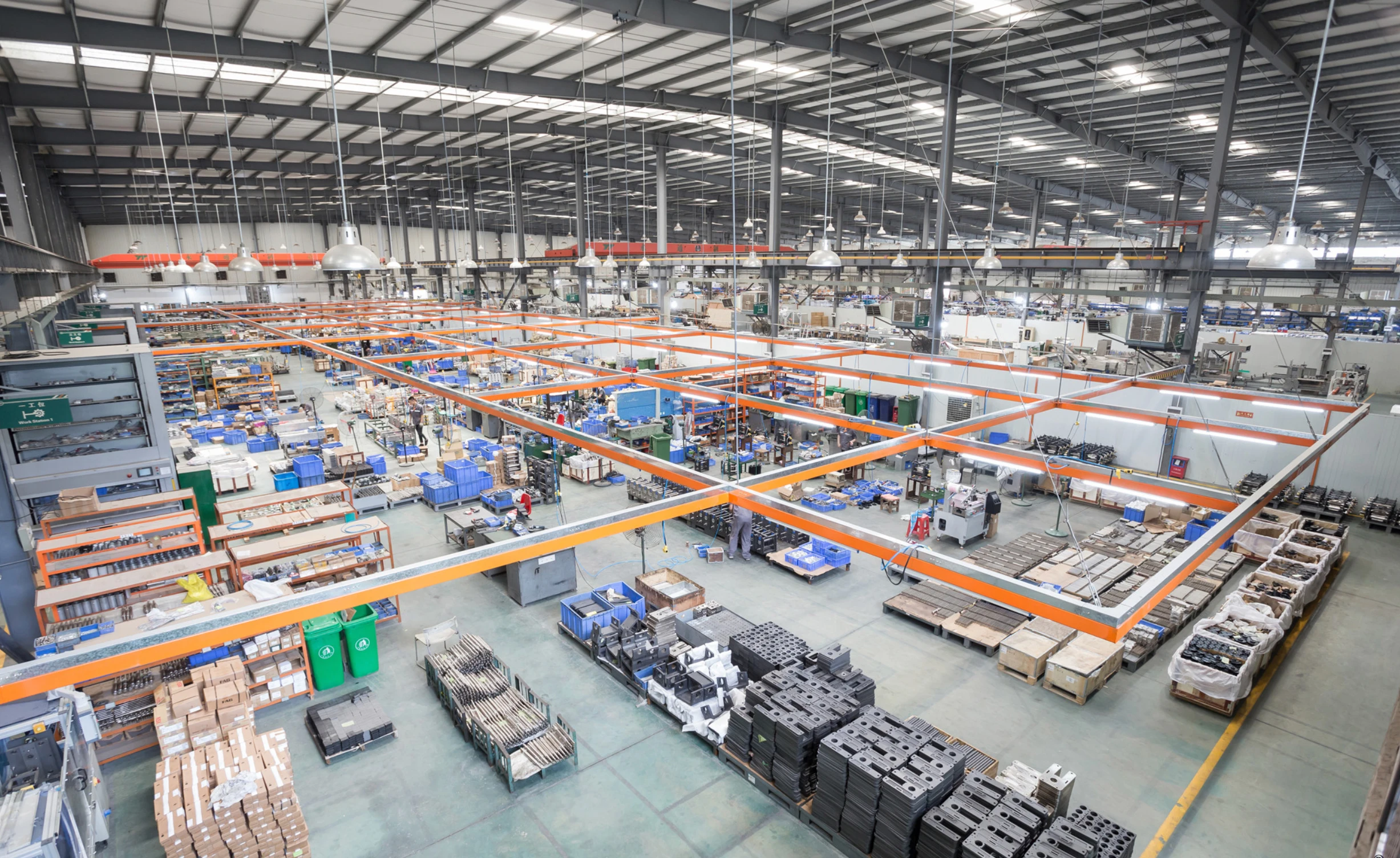

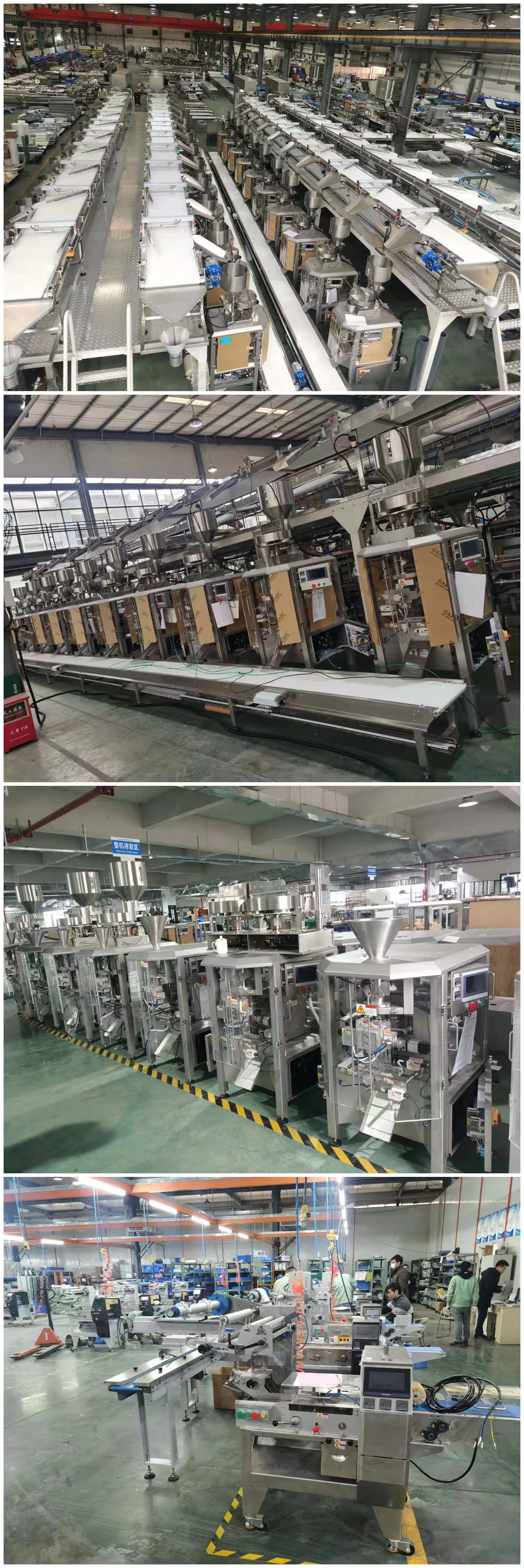

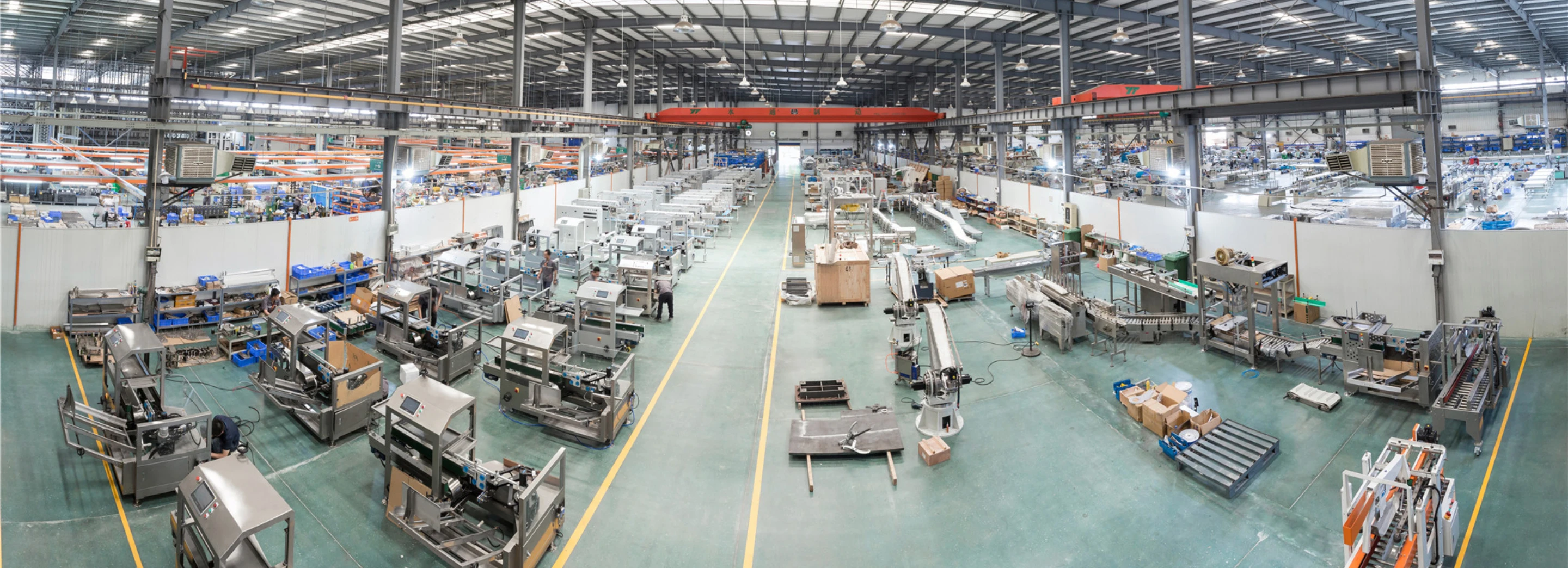

Factory Displays
Company Information
Our Certificate
Customs Clearance

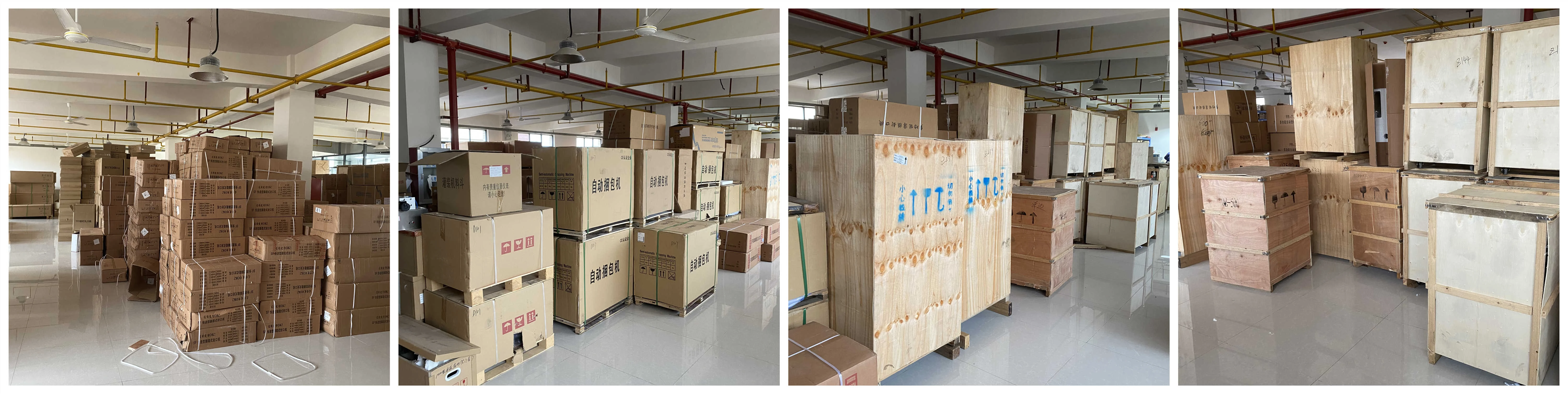

Packaging & Shipping
